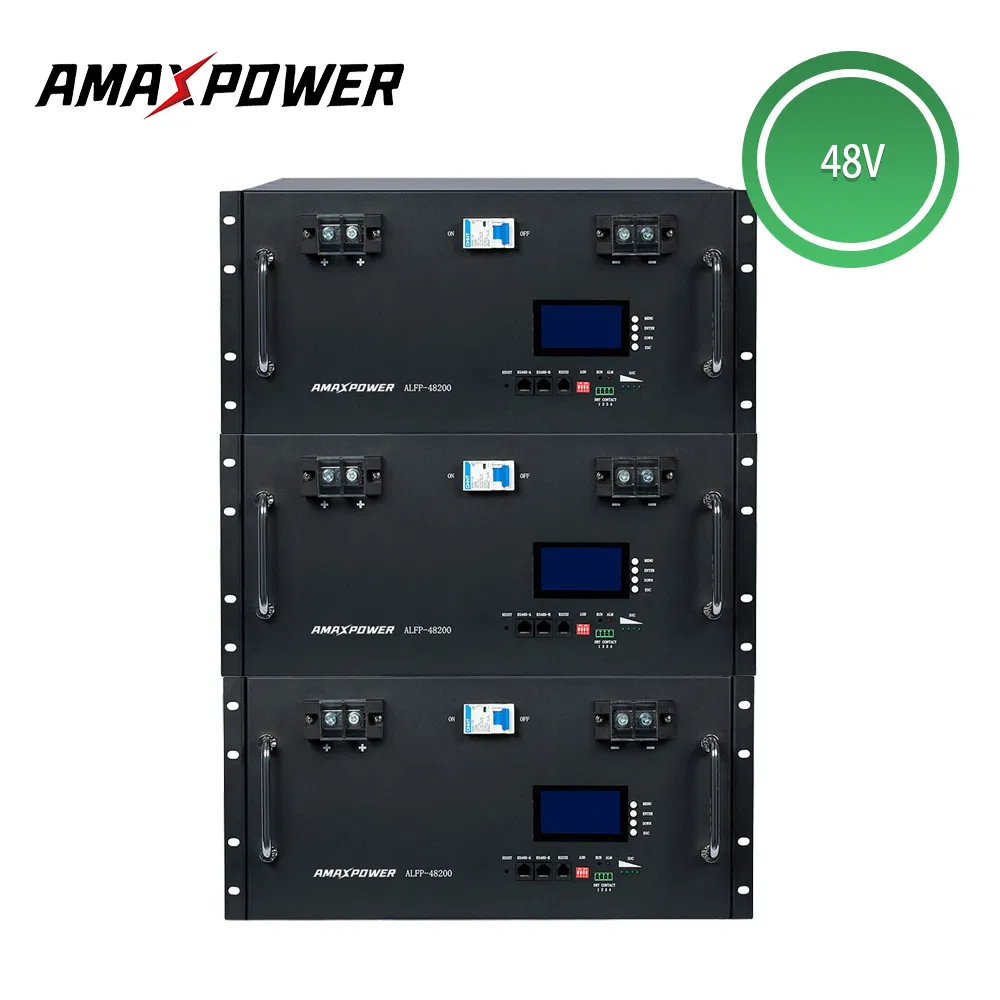

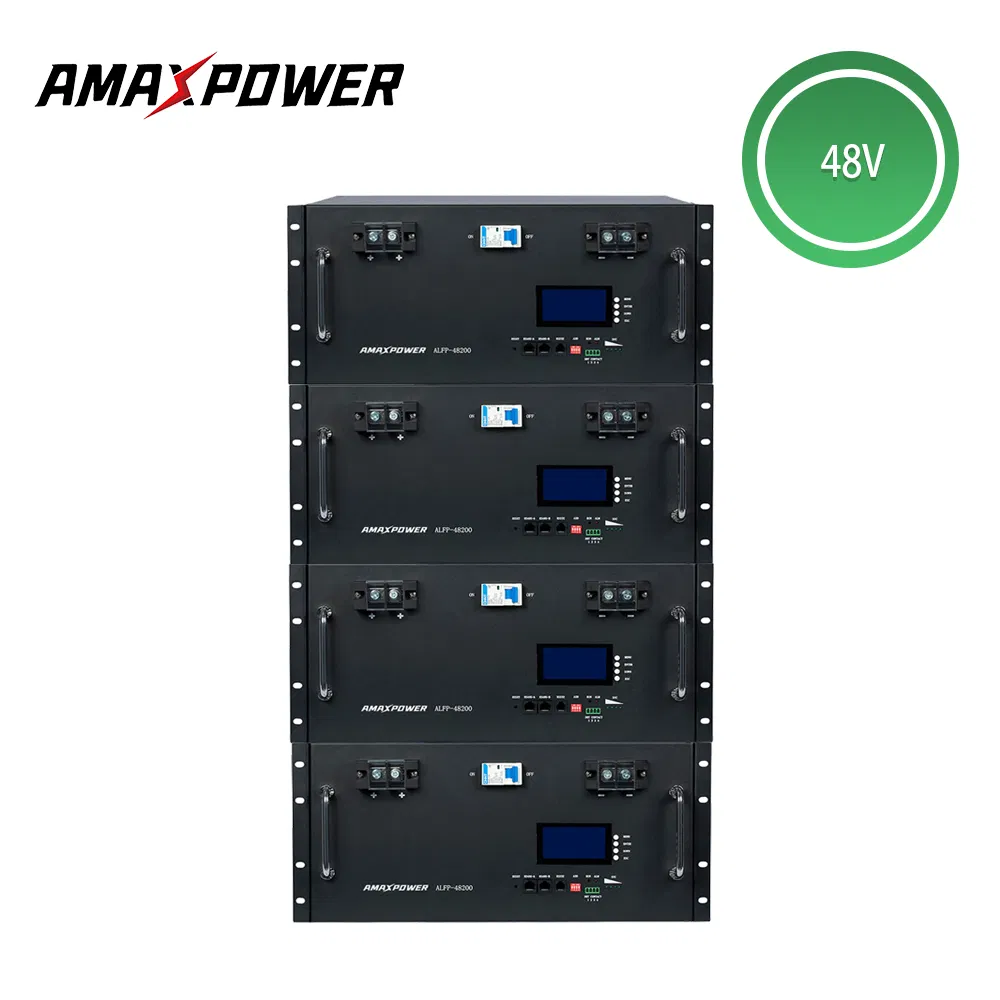

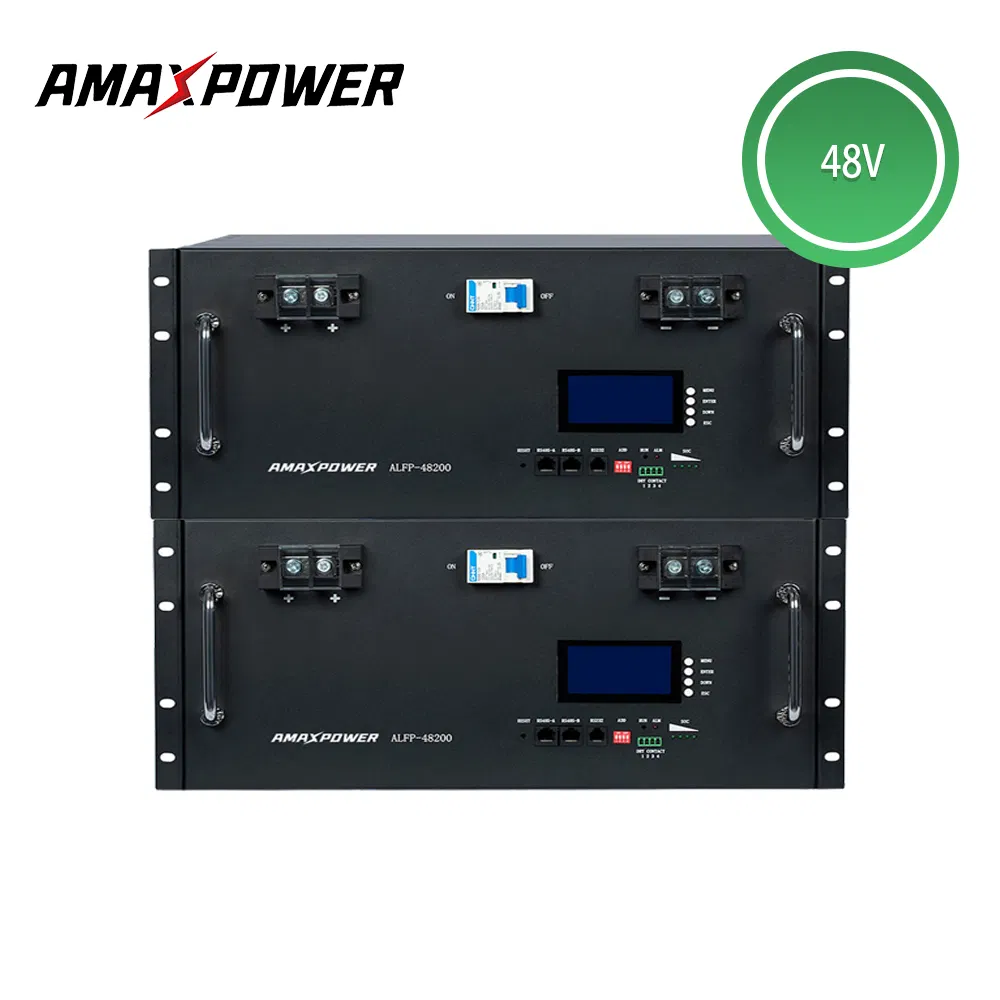

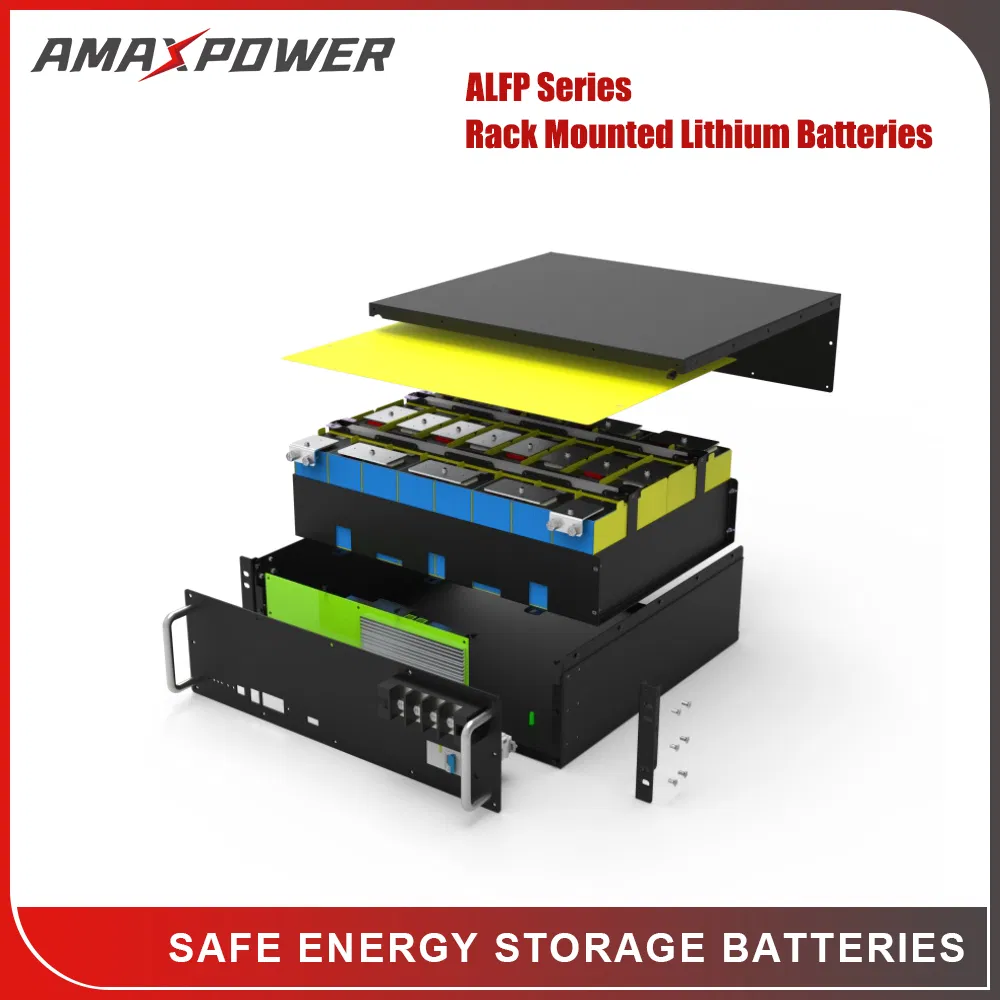

Rack Mounted lithium Battery system for communications back-up type LiFePO4 (lithium iron phosphate) battery products. The system uses advanced battery technology with the benefits of long cycle life, small size, light weight, safety, and environmental protection. It features strong environmental adaptability, making it ideal for harsh outdoor environments.
| Basic Specifications | |
|---|---|
| Model | RESS Series / LiFePO4 Battery |
| Nominal Voltage | 48V, 51.2V |
| Discharge Rate | High Discharge Rate |
| Electrolyte | Li-ion / LiFePO4 |
| Design Life | Over 10 Years |
| Warranty | 5 Years |
| Cycle Life | DOD 80% 6000 Cycles |
| Certificates | CE, IEC, ISO, MSDS |
| MODEL SPEC | 48V 100Ah | 48V 200Ah | 51.2V 100Ah | 51.2V 200Ah |
|---|---|---|---|---|
| Nominal Energy | 4.8KWh | 9.6KWh | 5.12KWh | 10.24KWh |
| Dimensions | 442*133*450mm | 442*222*480mm | 442*133*450mm | 442*222*510mm |
| Weight | 43KG | 80KG | 45KG | 84KG |
| Cycle Life | ≥4000 cycles @100%DOD / ≥6000 cycles @80%DOD | |||
| Charge Temp | 0ºC ~ 55ºC | |||
| Discharge Temp | -20ºC ~ 60ºC | |||

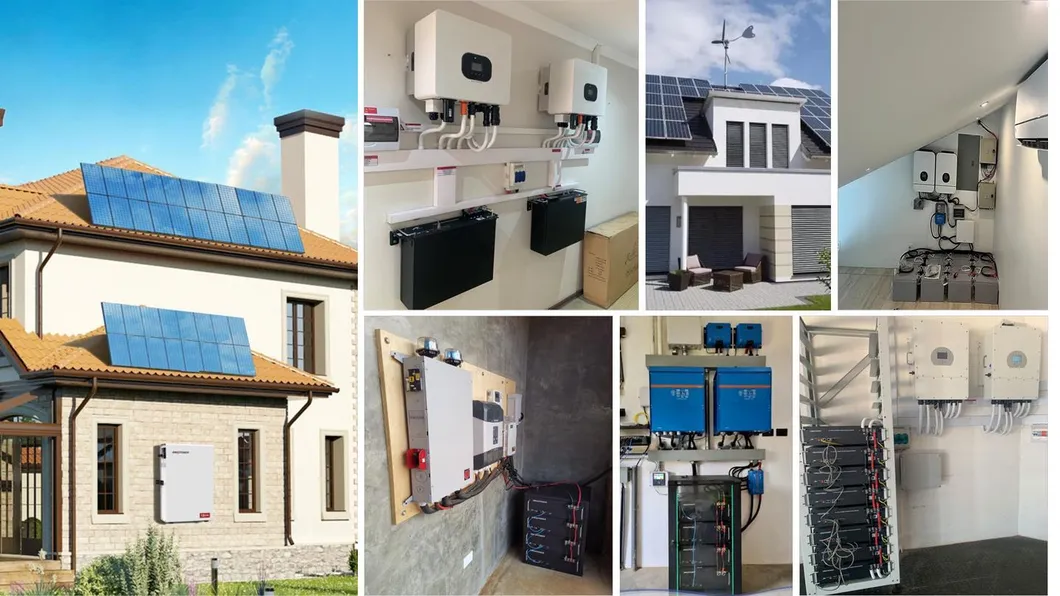

Widely used for household solar energy, RV/Marine energy storage, low-speed vehicles/forklifts, solar street lights, communication base stations, UPS backup power supply, off-grid power generation, and photovoltaic power plant energy storage.

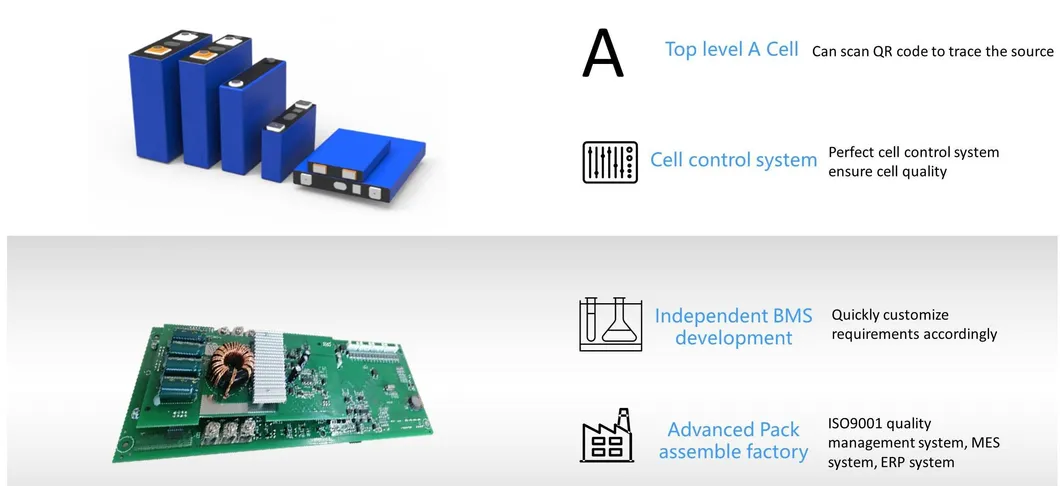

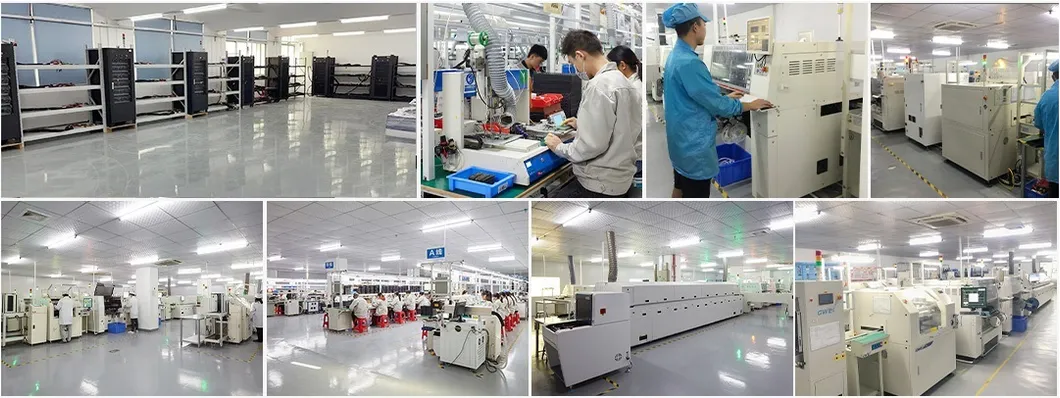

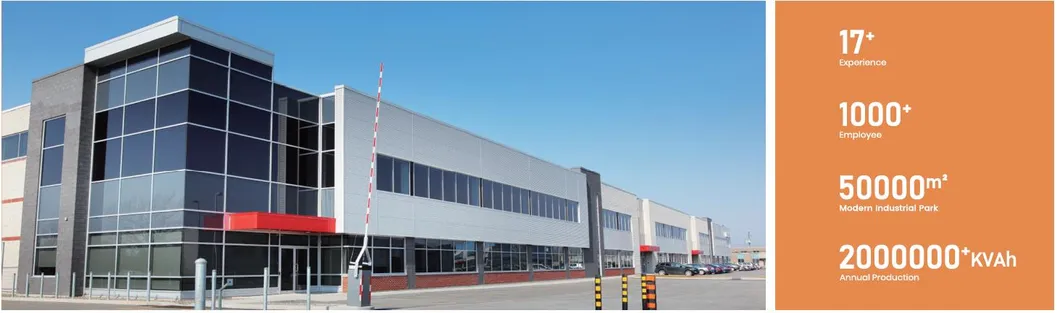

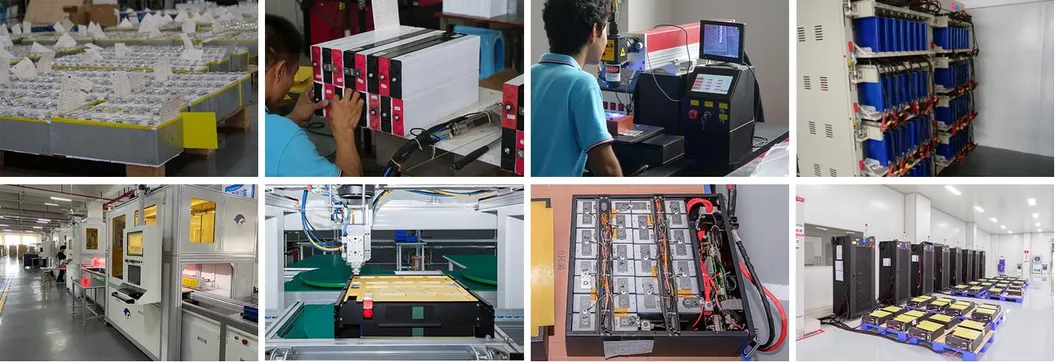

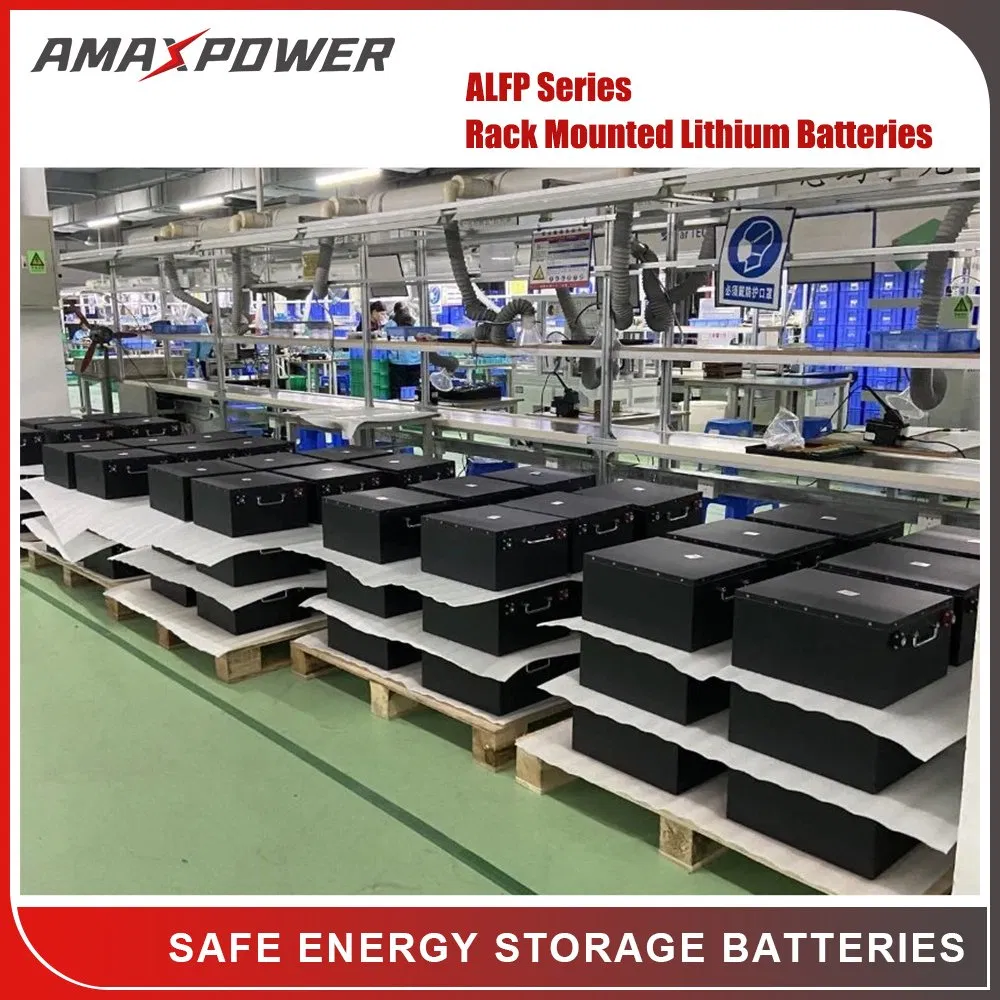

With over 17 years of industrial experience, the facility utilizes advanced equipment and automatic production lines. Strictly complying with ISO quality management systems, products pass CE, IEC, and ROHS certifications. Independent BMS development and top-level A Grade battery cells ensure premium performance.
