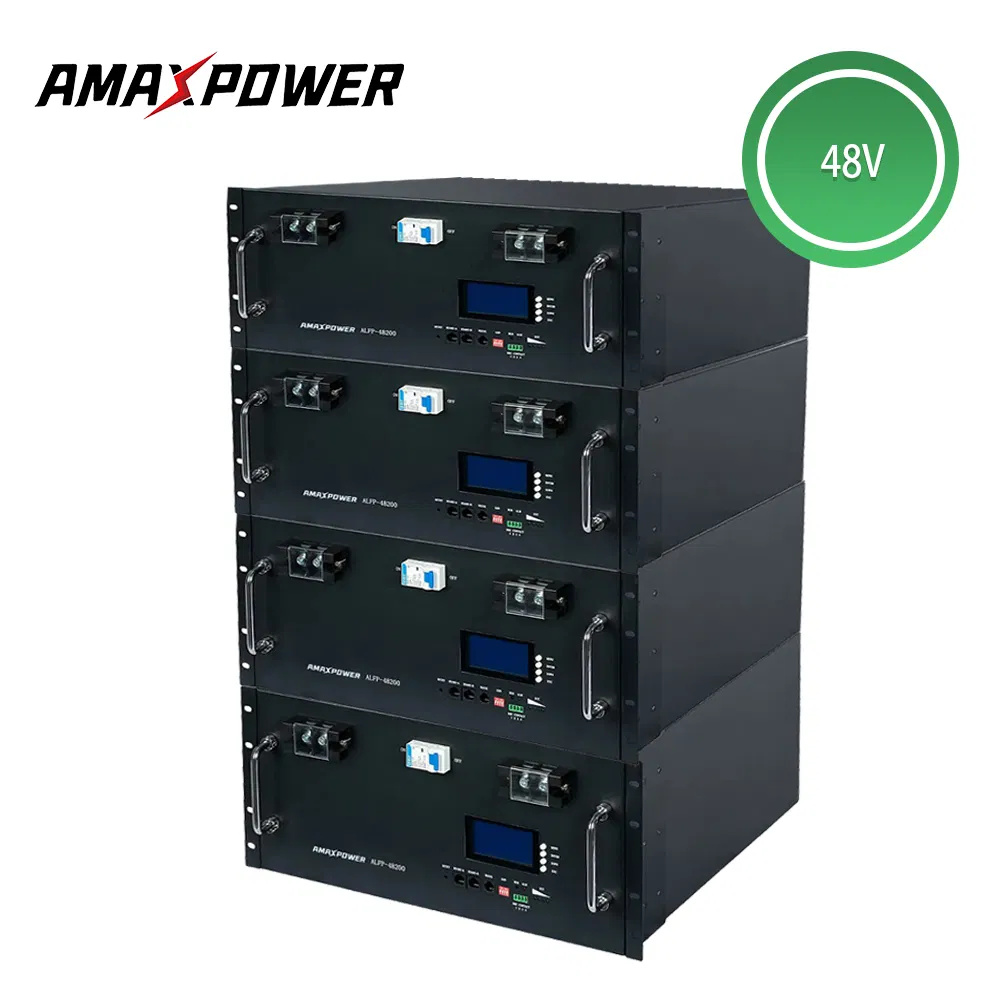

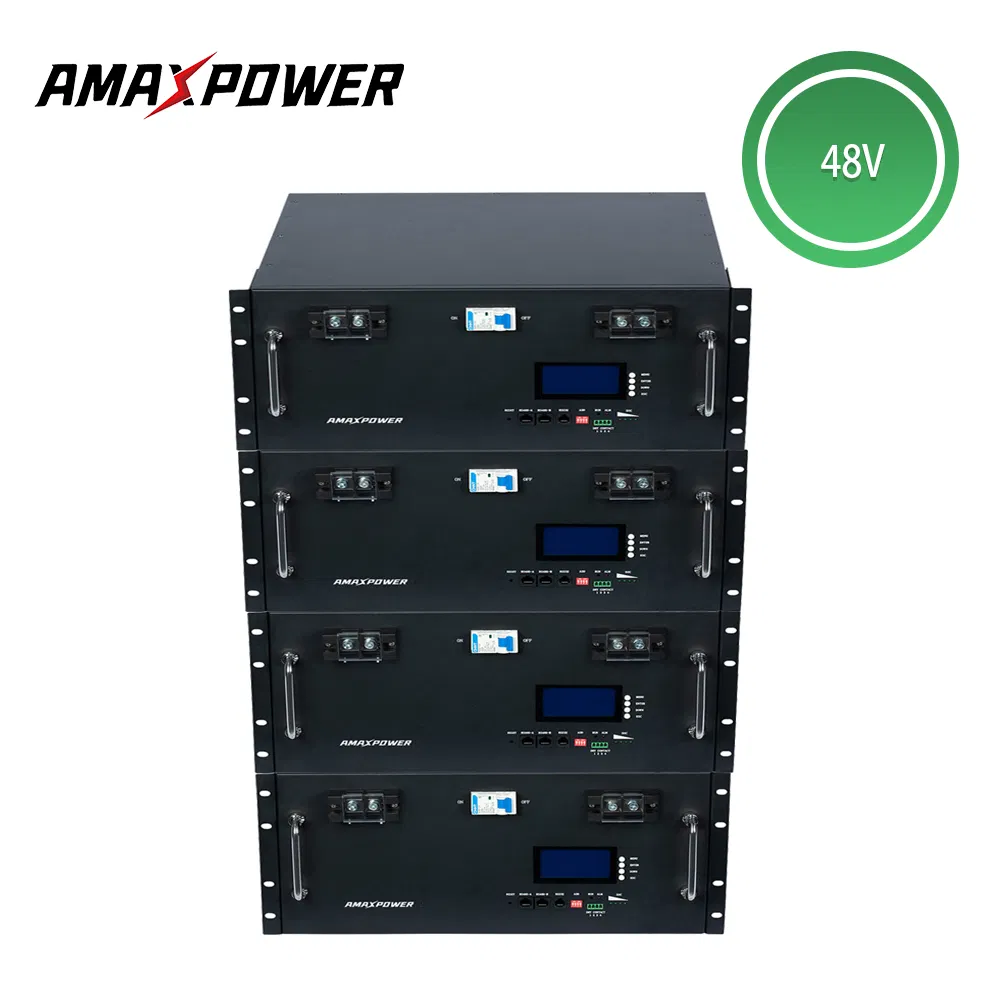

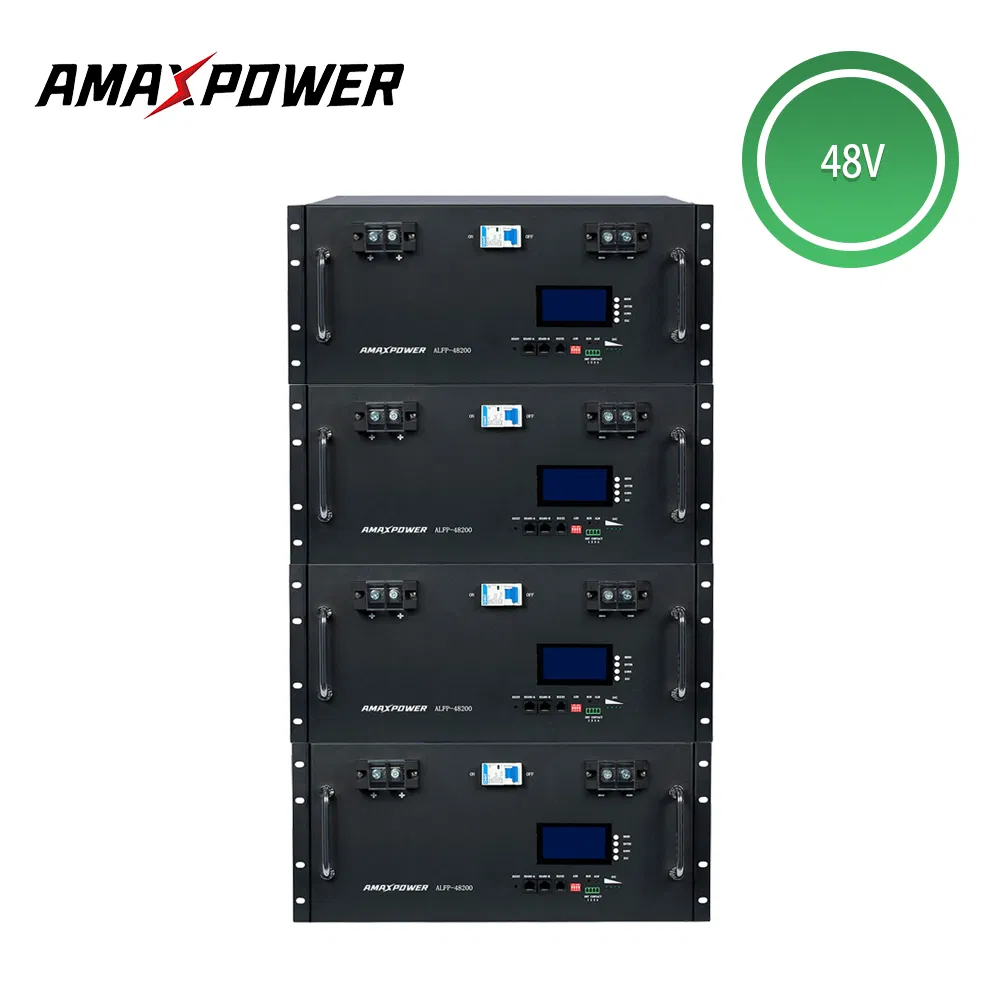

Factory ODM & OEM LiFePO4 Lithium Battery 48V/51.2V Telecom Rack Mounted Type.
The rack-mounted lithium battery system for communications back-up utilizes advanced LiFePO4 technology. It offers benefits like long cycle life, compact size, light weight, and safety. Designed for harsh outdoor environments with strong adaptability.
Long life type prismatic LiFePO4 cells. Low voltage system for safe application. Certified by UN38.3, MSDS, and CE.

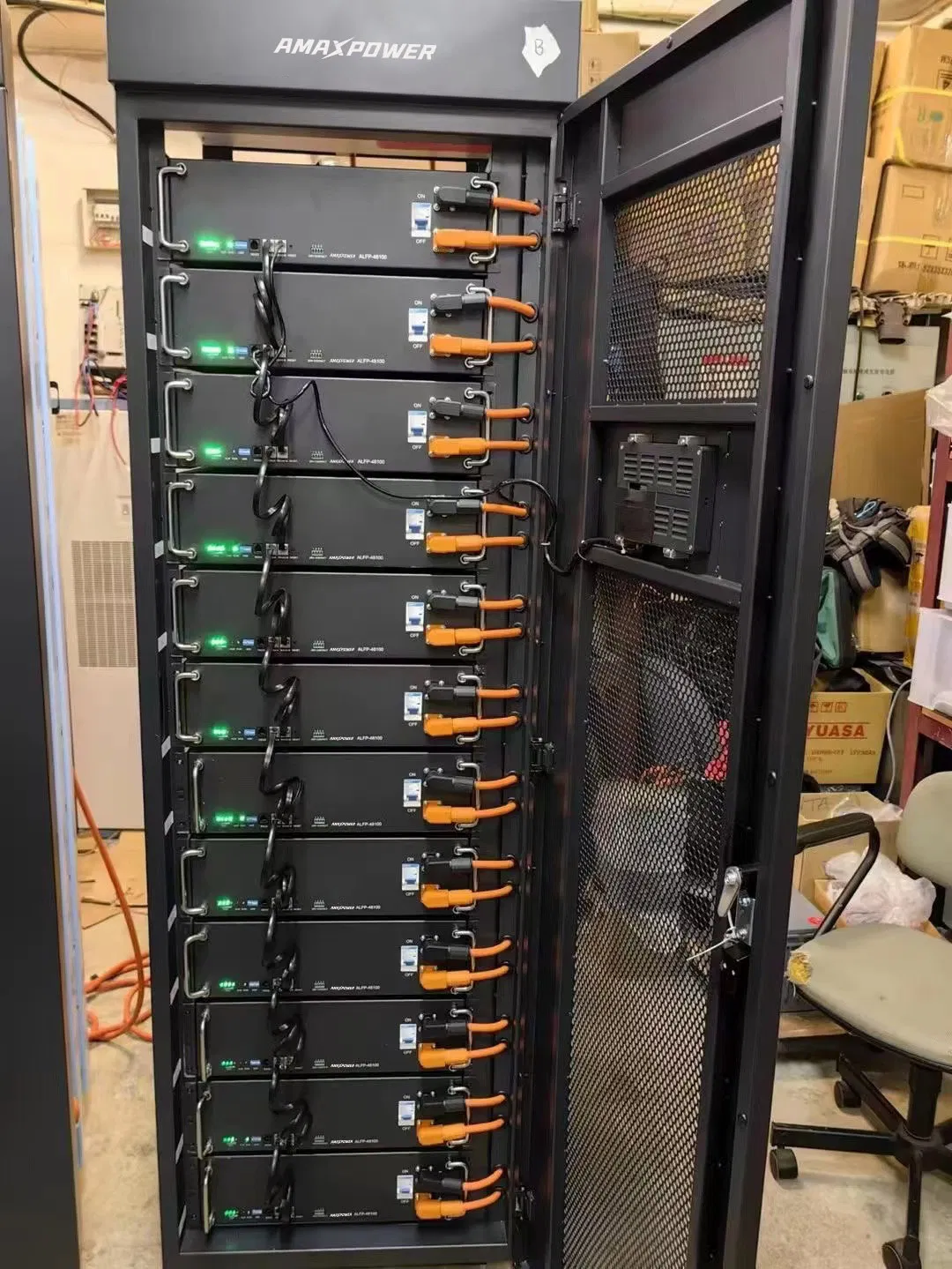

Standard 19" rack design for flexible installation. Parallel support for expanded capacity. Maintenance-free operation.
Integrated hardware BMS. Independent protection for charge/discharge. RS232, RS485, CAN communication ports.
| SPECIFICATION | 48V 100Ah | 48V 150Ah | 48V 200Ah | 51.2V 100Ah | 51.2V 200Ah |
|---|---|---|---|---|---|
| Nominal Energy | 4.8KWh | 7.2KWh | 9.6KWh | 5.12KWh | 10.24KWh |
| Dimensions (mm) | 442*133*450 | 442*177*480 | 442*222*480 | 442*133*450 | 442*222*510 |
| Weight | 43KG | 67KG | 80KG | 45KG | 84KG |
| Cycle Life | ≥4000 cycles @100%DOD / ≥6000 cycles @80%DOD | ||||
| Charge Temp | 0ºC ~ 55ºC | ||||
| Discharge Temp | -20ºC ~ 60ºC | ||||

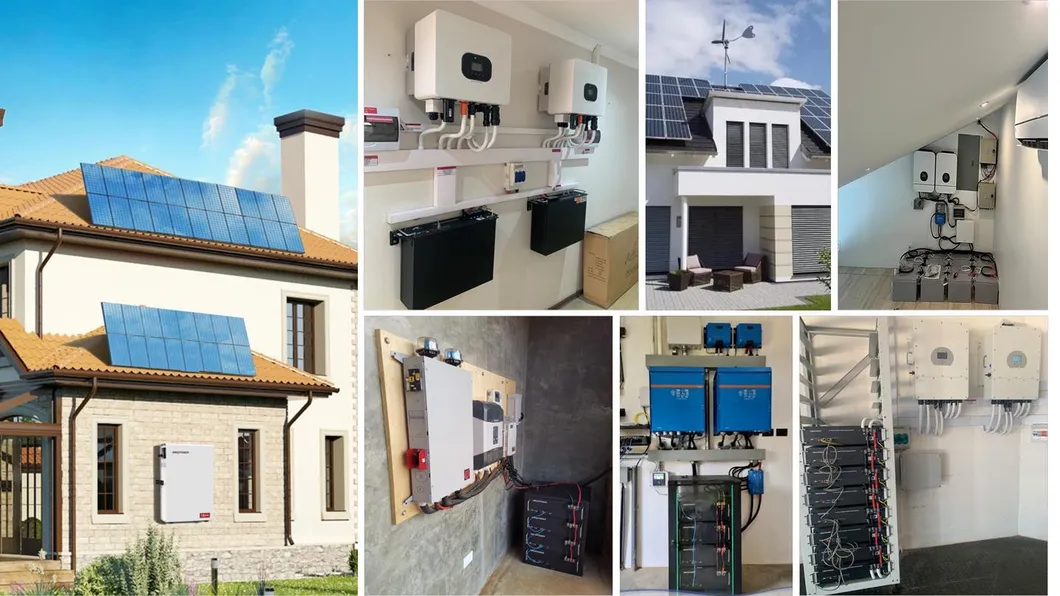

Ideal for household solar energy, RV/Marine storage, low-speed vehicles, forklifts, solar street lights, communication base stations, and UPS backup power.
