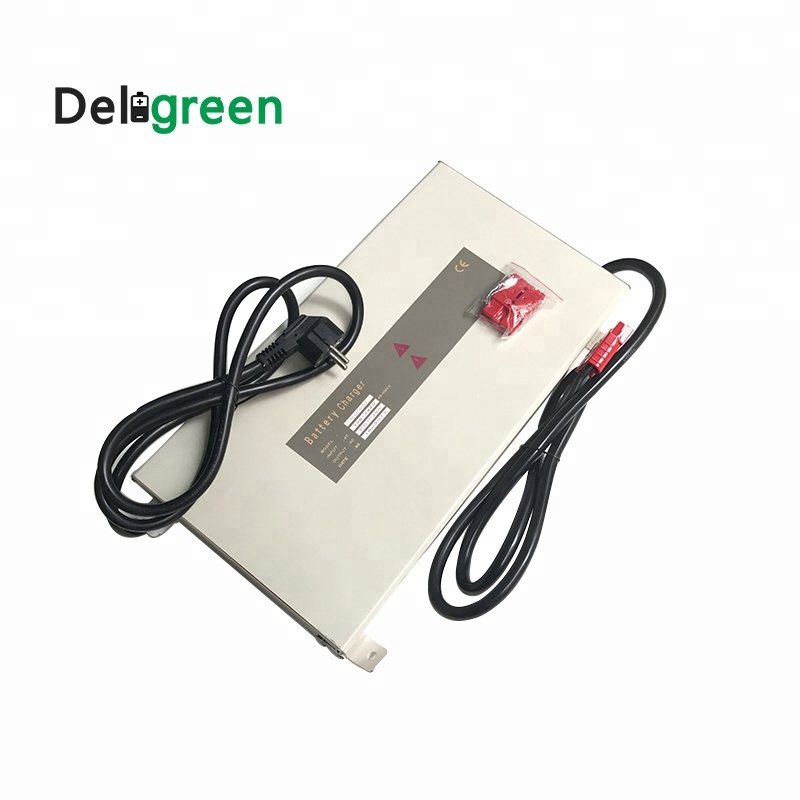

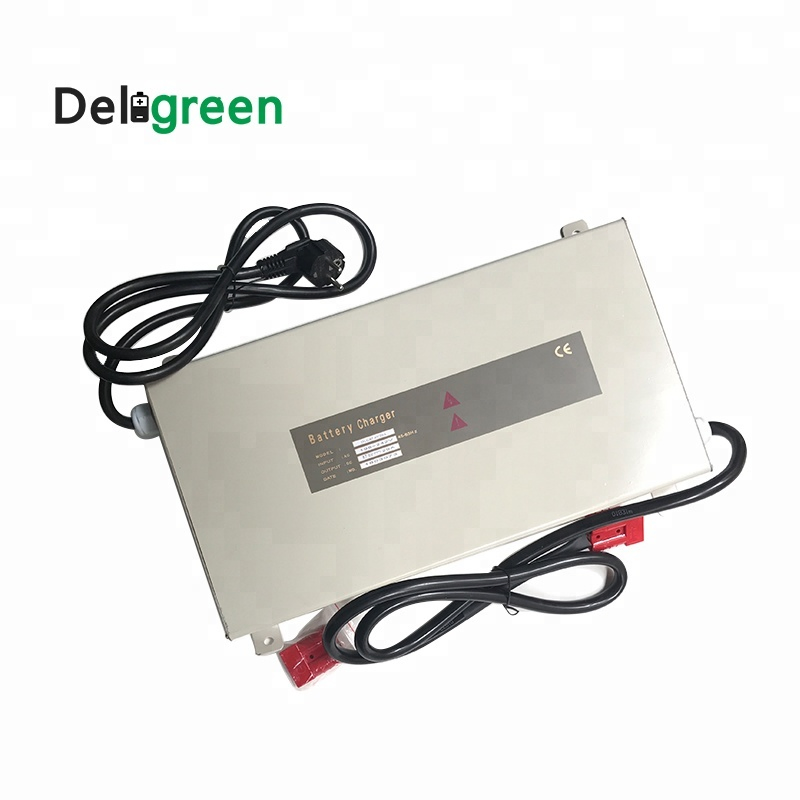

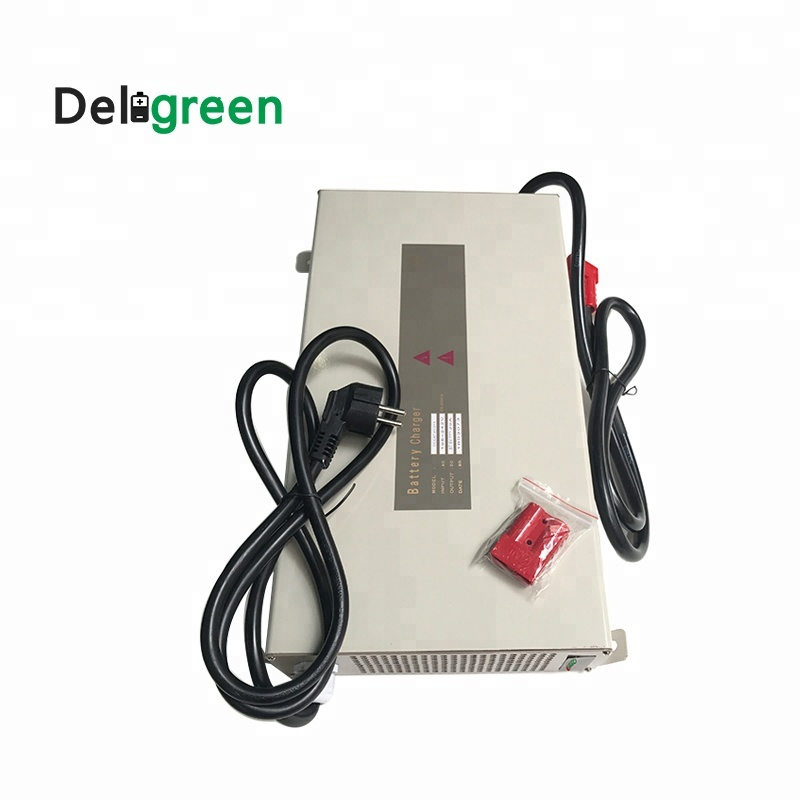

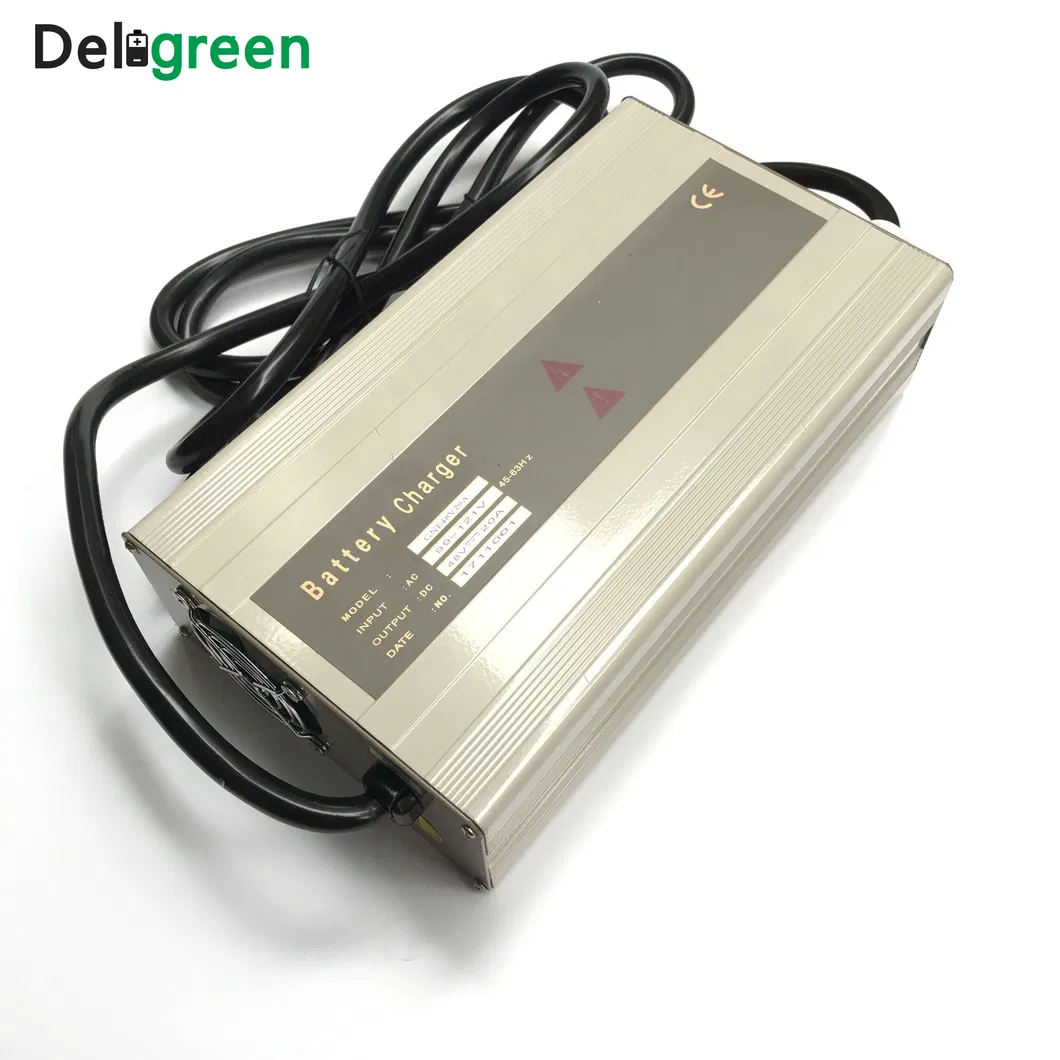

24V 36V 48V 72V 96V 148V 10A 15A 20A 25A 30A 35A 40A Customized / LiFePO4 Charger for 12V Lithium Ion Golf Cart Batteries
Brief Introduction: We mainly produce Lithium battery chargers and Lead-acid battery chargers based on MCU technology and advanced charging algorithms. These chargers feature light weight, compact size, steady charging, high efficiency, and advanced intelligent multi-step CC/CV charging modes.
| Technical Specifications | |||
|---|---|---|---|
| Input voltage: | 110V/220V | Efficiency: | ≥88% |
| Voltage range: | AC95~130V/AC195~242V | Communication: | CAN/ NO CAN |
| Voltage frequency: | 40~60Hz | Quake proof: | SAEJ1378 |
| Power Factor: | ≥0.75 | Waterproof IP: | IP31 |
| Working Environment | ||
|---|---|---|
| Above sea level: | ≤2000m | Without conductive dust |
| Ambient temperature: | -30ºC~55ºC | Mounting slope ≤ 5 degree |
| Ambient humidity: | 5%~70%RH | Keep away from rain and snow |
| Storage temperature: | 5%~70%RH | Without explosive dust |

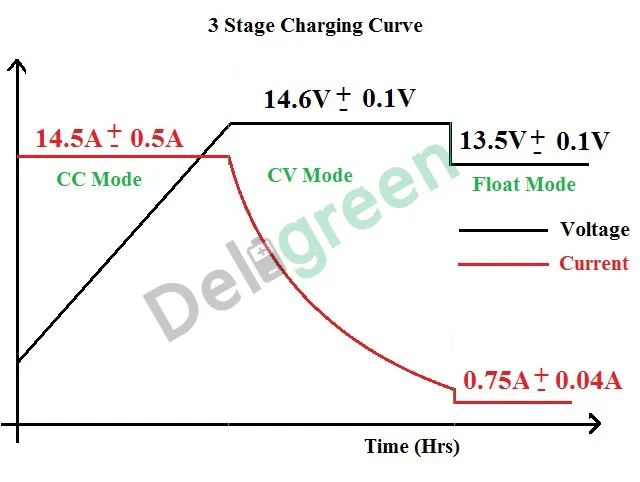

Charging Curve For Lead Acid Battery

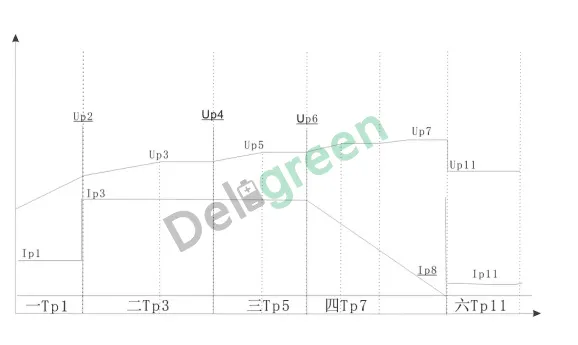

Charging Curve For Lithium Battery
Intelligent Models:
