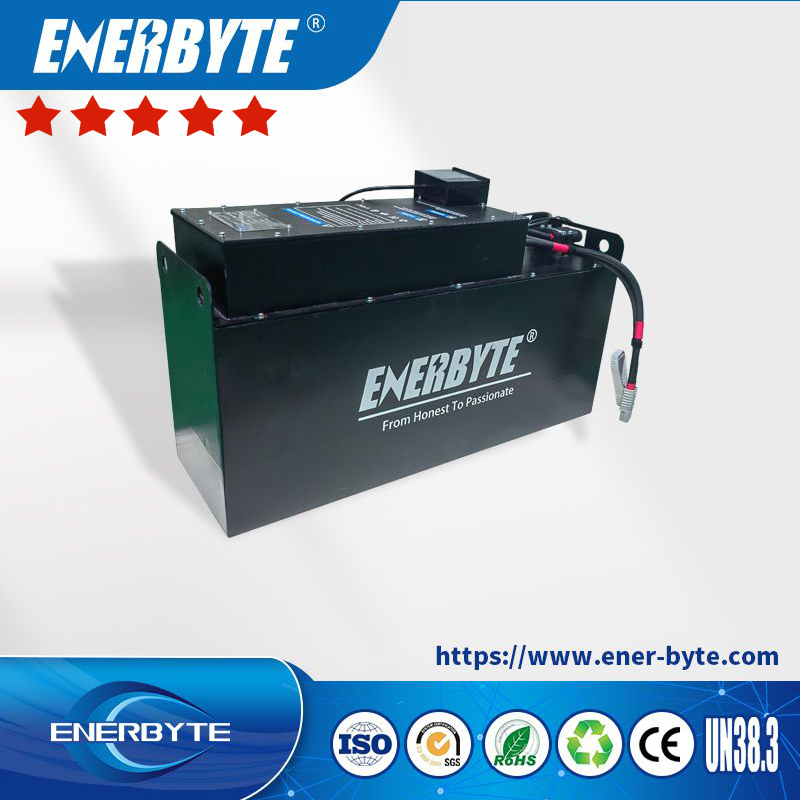

Basic Specifications
Electrolyte
LiFePO4 Battery
Cycle Life
>4000 Times (80% DOD)
Self-Discharge
≤3% / Month
Dimensions
960 × 310 × 520 mm
Evolution of Material Handling
The material handling equipment industry is witnessing a significant shift towards electromobility. There is a growing demand for electric forklifts as an alternative to IC engine-powered trucks. Li-ION technology ensures high vehicle availability and offers numerous advantages over traditional lead-acid batteries in demanding forklift applications.

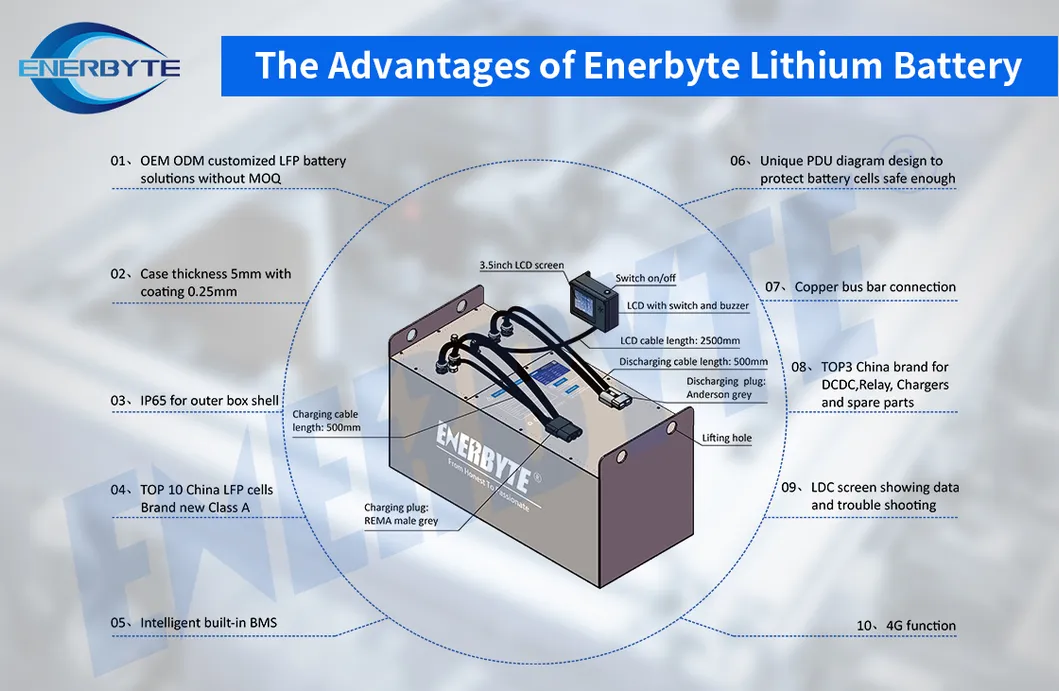

Core Advantages
Short and Quick Reloading
Batteries can be recharged during short breaks, eliminating the need for time-consuming battery changes.
Higher Energy Efficiency
Provides up to 30 percent more energy due to higher energy density and optimized system efficiency.
Powerful & Consistent Performance
Ensures no loss of performance even as the battery charge decreases.
User-Friendly & Maintenance-Free
No hazardous gas leakage or acid handling. Easy to clean and virtually maintenance-free.
Detailed Parameters
| Model | ENBY-51.2V/300Ah |
| Battery Configuration | 16S 1P |
| Rated Capacity | 300Ah |
| Working Voltage Scope | 40V~58.4V |
| Charge Mode | CC, CV |
| Max. Continuous Working Current | 300A |
| Max. Pulse Working Current | 450A / 15S |
| Communication Mode | CAN |
| Operating Temp (Discharge) | -20°C ~ 60°C |
| Operating Temp (Charge) | 0°C ~ 45°C |
Product Strength & Customization

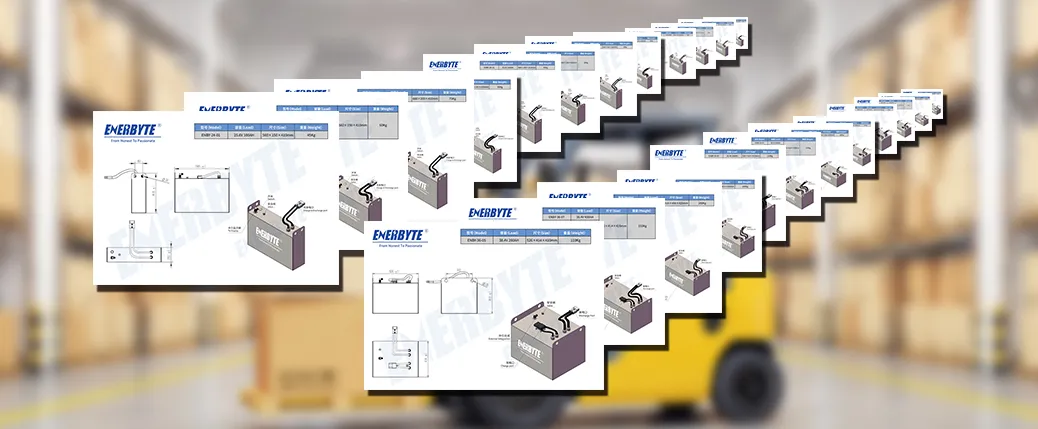

Customized solutions are available for specific voltage, capacity, or dimension requirements. The design process considers usage patterns, operational environments, and performance needs to maximize efficiency and longevity.
Over 950 models of LiFePO4 batteries are available for almost all electric industrial trucks and forklifts.

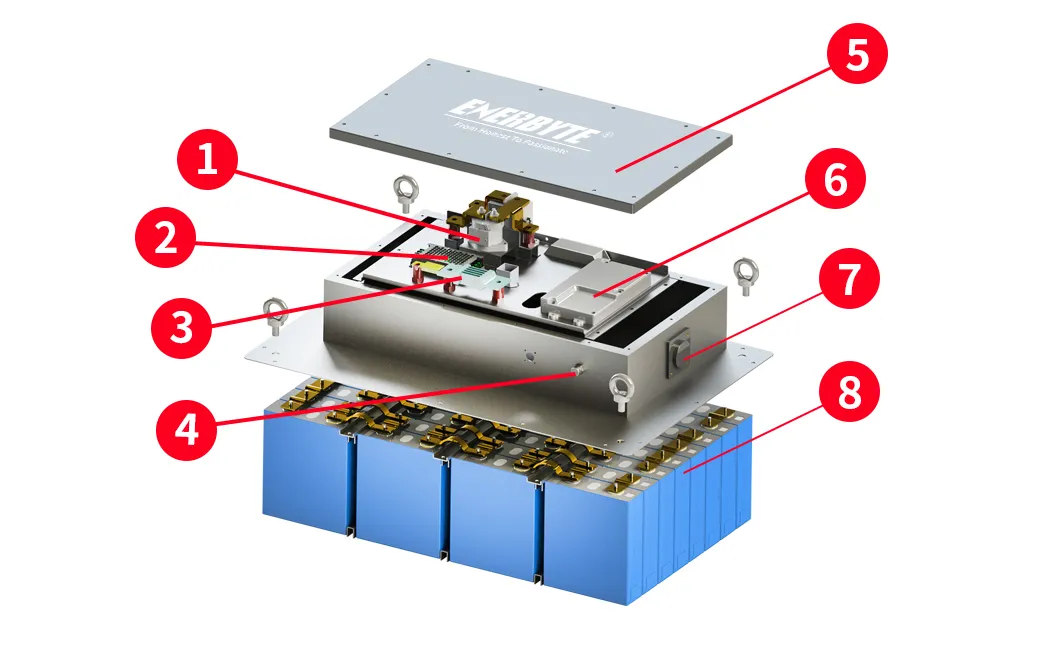

Internal Battery Structure
1. Relay / 2. DC-DC
3. Diverter / 4. Safety Valve
5. Upper Cover / 6. BMS
7. 4G Antenna / 8. Battery Pack

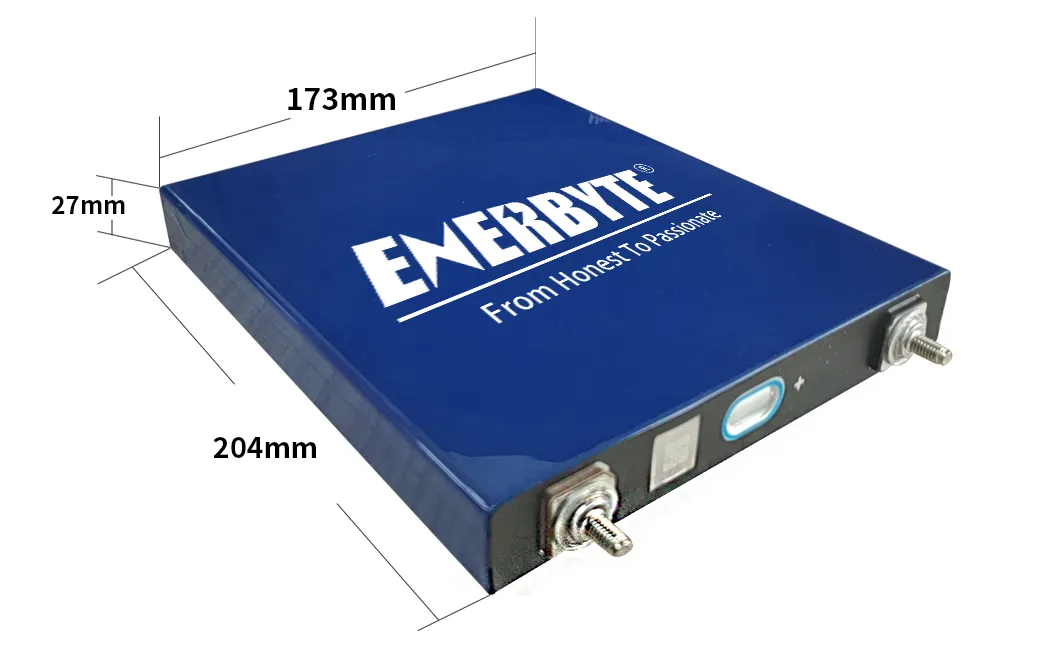

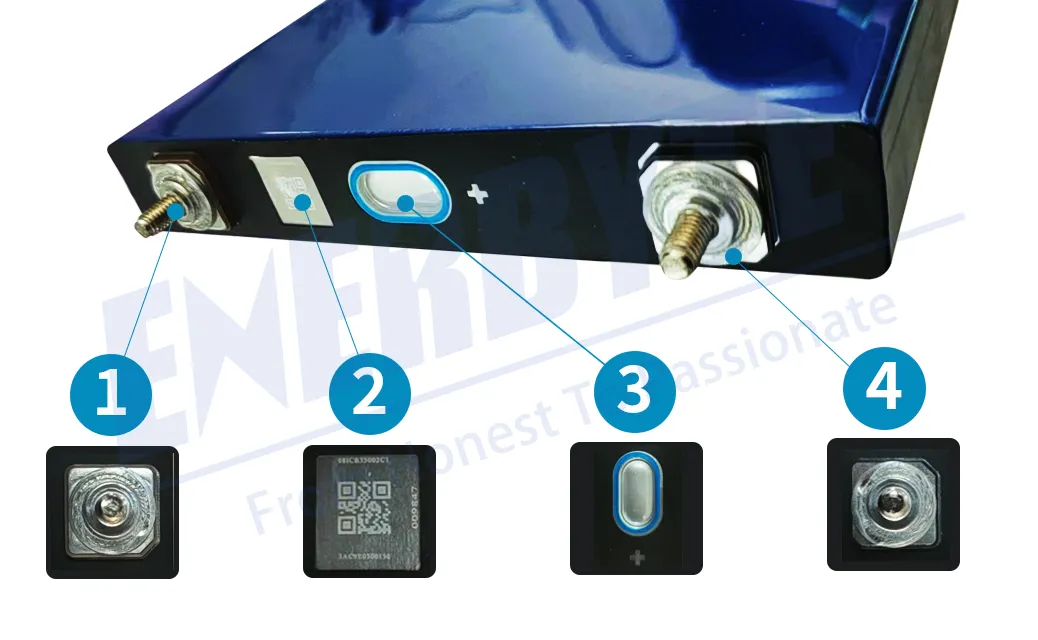

Grade-A LiFePO4 Cell Characteristics
- High capacity retention: Maintains high capacity after multiple cycles.
- Low internal resistance: Reduces energy loss and improves conversion.
- Uniform performance: Stable and reliable pack operation.
- Strong cycle life: Can reach more than 4000 cycles.
- High thermal stability: Safe operation in extreme temperatures.

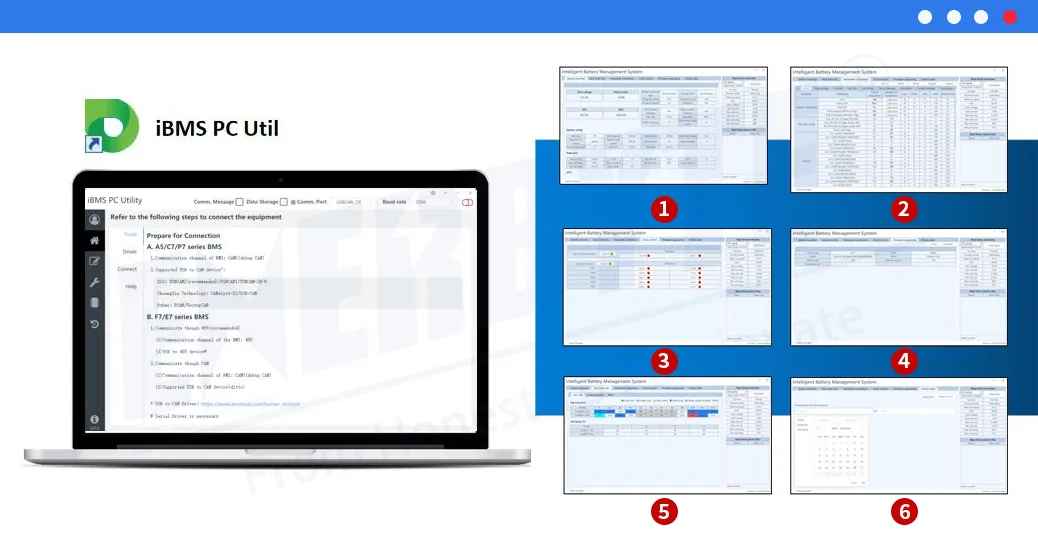

Intelligent Monitoring & Cloud System

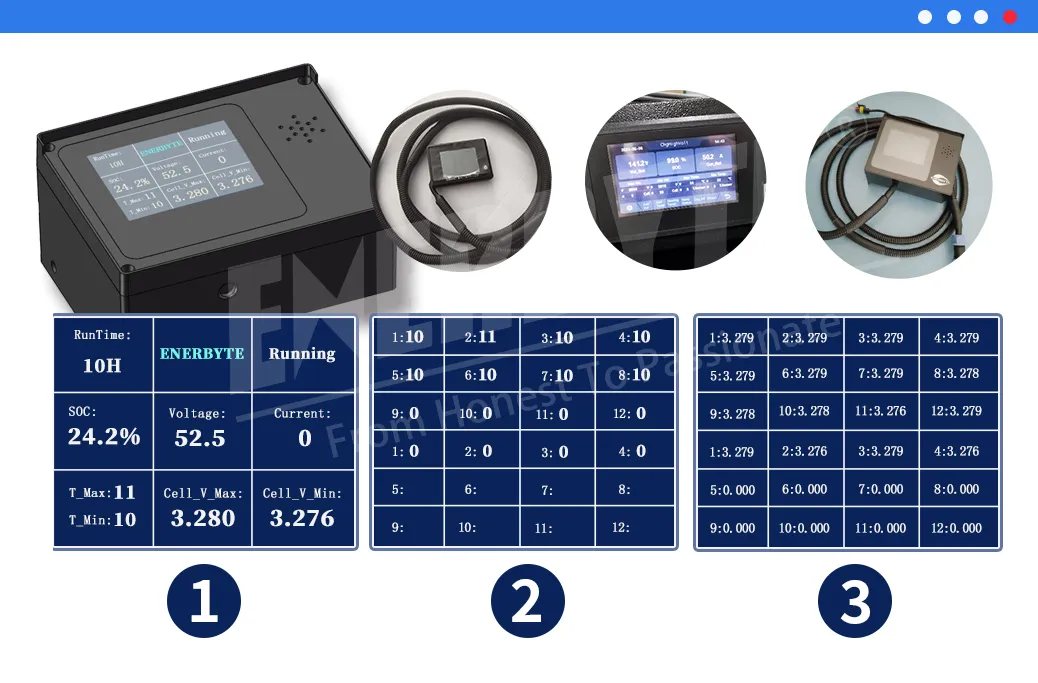

The external display provides real-time monitoring of power, voltage, and current. It accurately reflects State of Charge (SOC) and State of Health (SOH), alerting operators to any abnormal conditions.
Web-Based Cloud Management: Supports 4G network coverage across 120 countries for global fleet monitoring via computer or mobile apps.

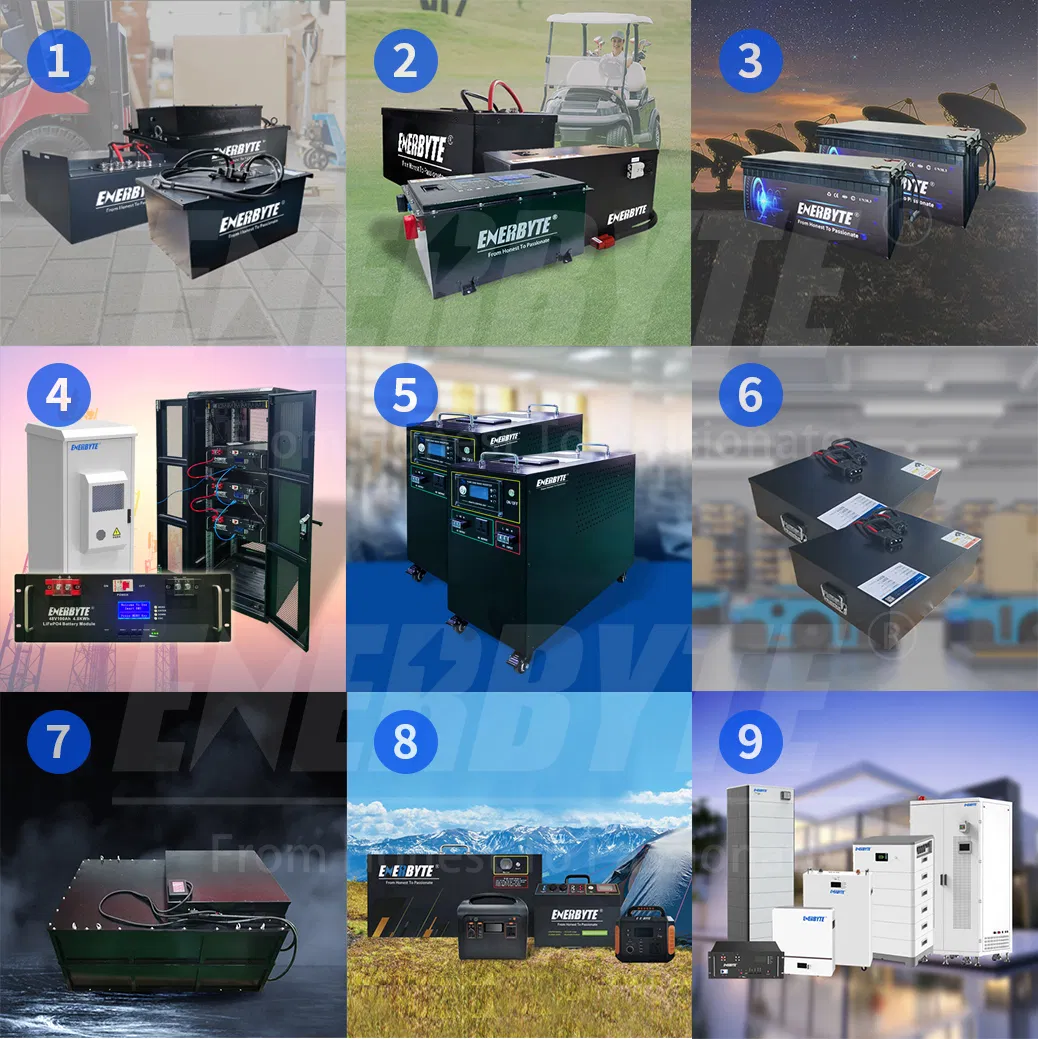

Wide Range of Applications
Forklift Battery
Golf Cart Battery
LiFePO4 Packs
Telecom Lithium
UPS Lithium
AGV Battery
Custom Solutions
Energy Storage
Safety Precautions
- Use only specialized lithium battery chargers.
- Avoid storing in humid or high-temperature environments.
- Do not short-circuit terminals or reverse charge.
- Do not disassemble or squeeze the battery shell.
- If not in use for long periods, charge fully every 3 months.
- Wading depth should not exceed 1/3 of the cabinet height.
Frequently Asked Questions
Q1: What is the warranty period for the lithium battery?
We offer a 5-year warranty. These LiFePO4 batteries have a service life of more than 10 years and over 4000 cycles.
Q2: Can the battery be customized for specific forklift models?
Yes, we support full customization for voltage, capacity, and dimensions to fit almost all electric industrial trucks.
Q3: How does the cloud management system work?
The system uses 4G connectivity to allow real-time monitoring of fleet status, diagnosis, and resetting via mobile or desktop apps.
Q4: What are the advantages over lead-acid batteries?
Lithium batteries offer 30% higher efficiency, faster charging, no maintenance, and a longer lifespan (4 times that of lead-acid).
Q5: Is there a minimum order quantity (MOQ)?
There is no strict MOQ; sample orders for 1 unit are accepted, though bulk orders offer better cost performance.
Q6: Are the batteries safe for indoor warehouse use?

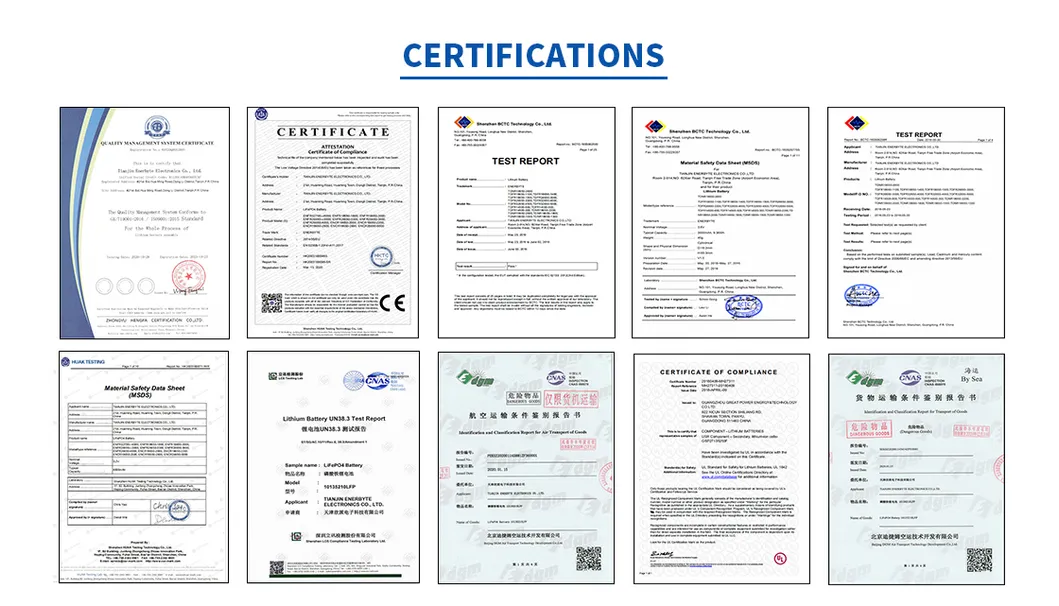

Absolutely. They are CE approved, contain no toxic materials, and do not emit hazardous gases during charging.
