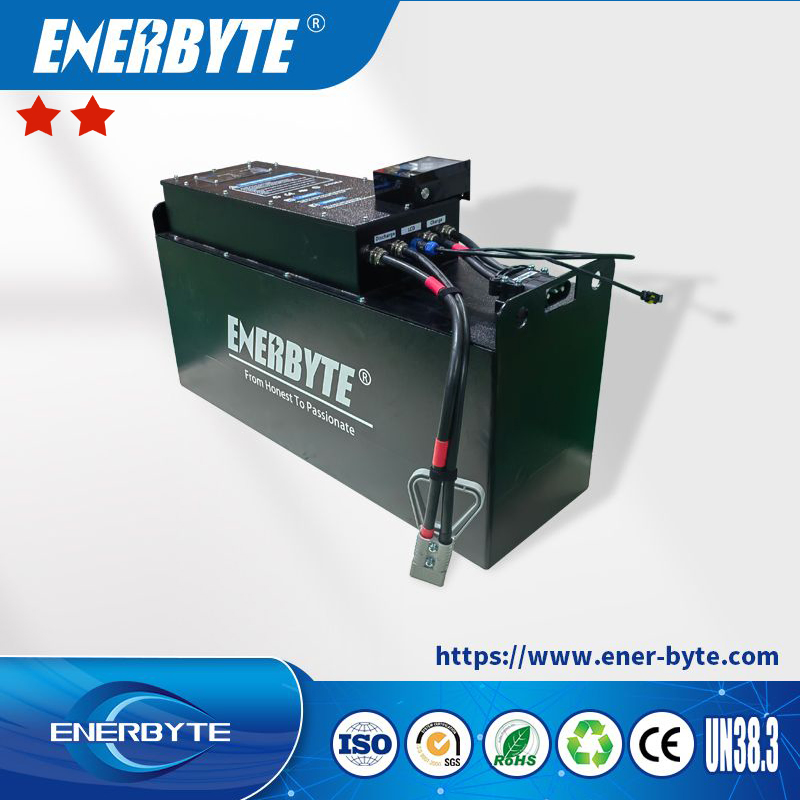

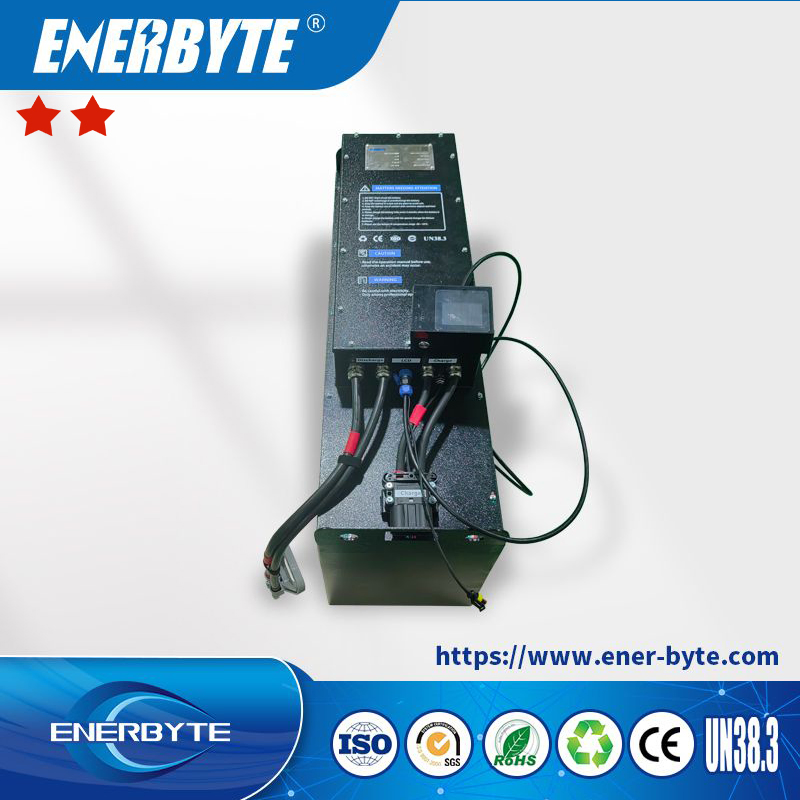

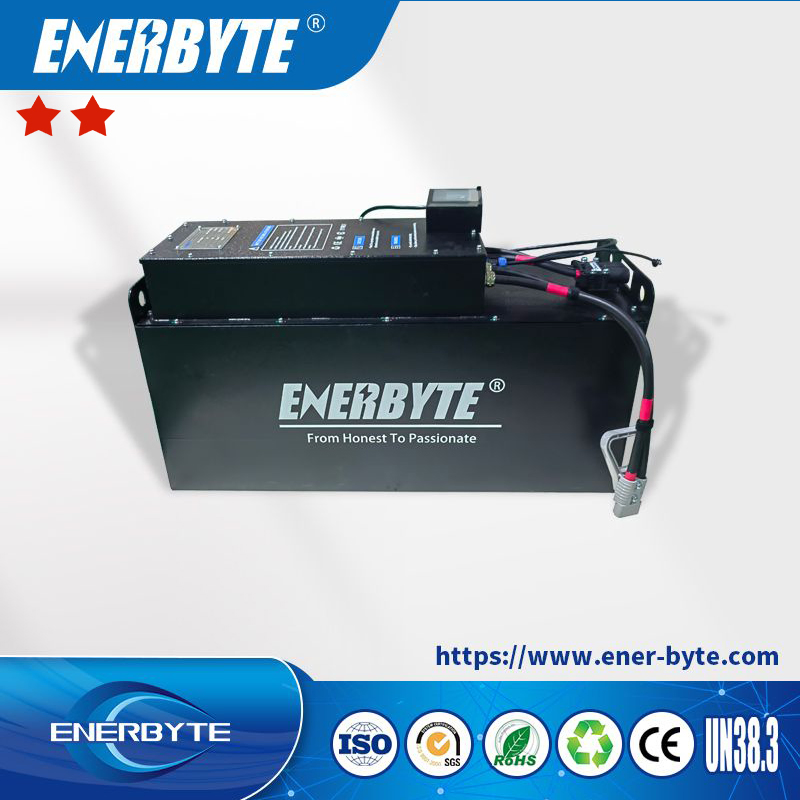

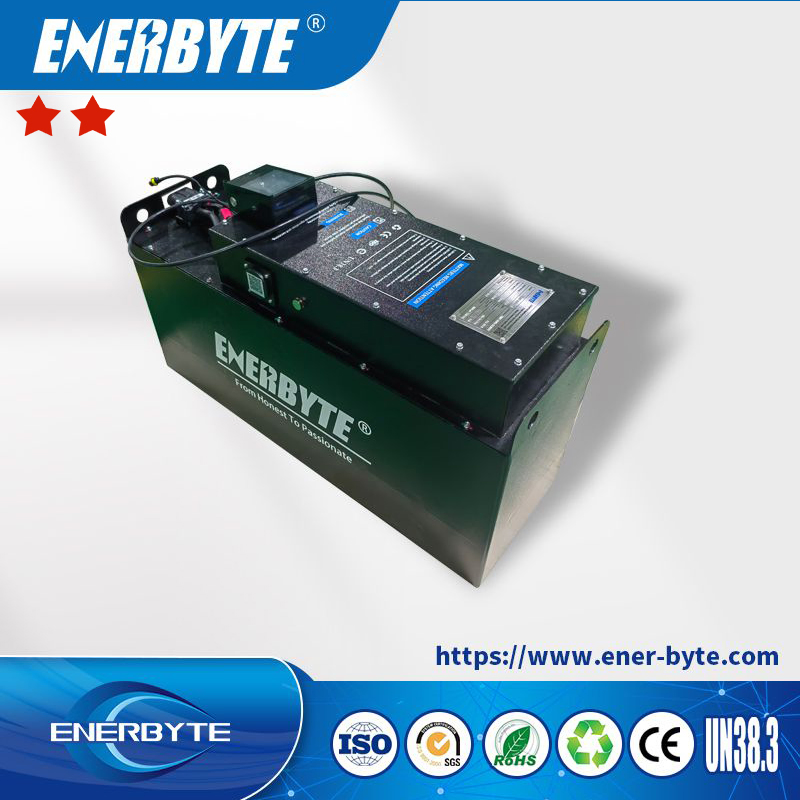

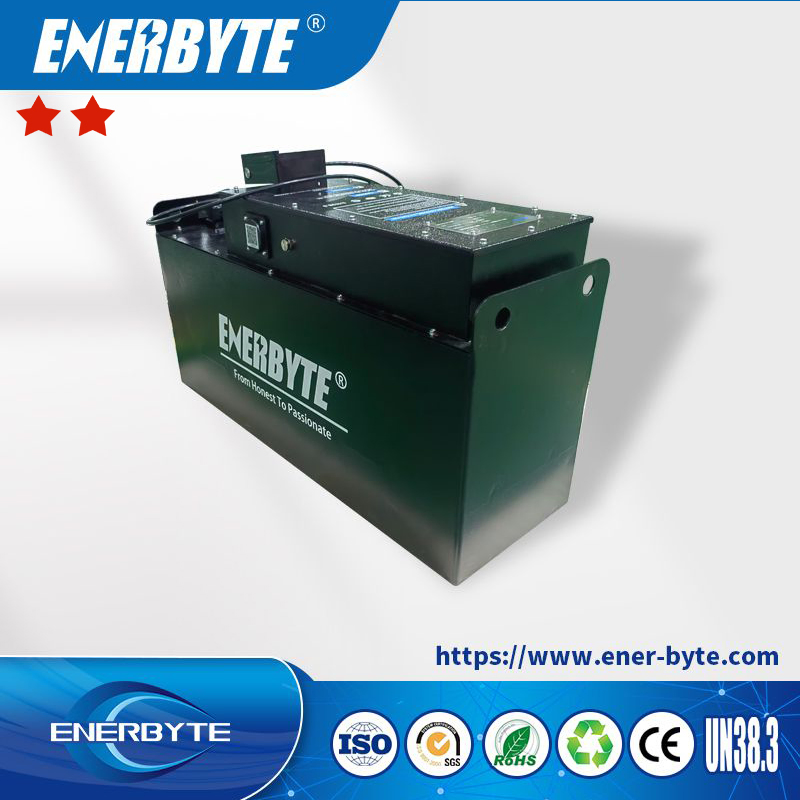

Enerbyte 51.2V300ah Load Capacity Electric Forklift Hydraulic Forklift 24V 36V 48V 80V Lithium Battery Optional with ISO

Still deciding? Get samples of $ !
Request Sample

Product Description

Technical Specifications
Item Specifications
Nominal Voltage51.2V
Rated Capacity300Ah
ElectrolyteLiFePO4 Battery
Cycle Life (80% DOD)>4000 Times
Charge ModeCC, CV
Working Voltage Scope40V - 58.4V
Dimensions960 × 310 × 520 mm
WeightApprox. 495.5kg
Self-Discharge Rate≤3% (Per Month)
Communication ModeCAN
CertificateCE, UN38.3, IEC62133, RoHS, MSDS
Technological Advantages
The material handling industry is shifting towards electromobility. Electric forklifts are increasingly replacing IC engine trucks to meet environmental standards and operational efficiency. Lithium-ion (Li-ION) technology has proven its worth in everyday industrial use, offering a series of advantages over traditional lead-acid batteries.
Electric Forklift Lithium Battery Technology
Core Features
  • Short and Quick Reloading: Battery can be recharged during short breaks, eliminating time-consuming changes.
  • Higher Energy Efficiency: Up to 30% more energy density compared to traditional systems.
  • Consistent Performance: No loss of performance even as the battery charge decreases.
  • Maintenance-Free: No leaking of hazardous gases or acids; easy to clean and operate.

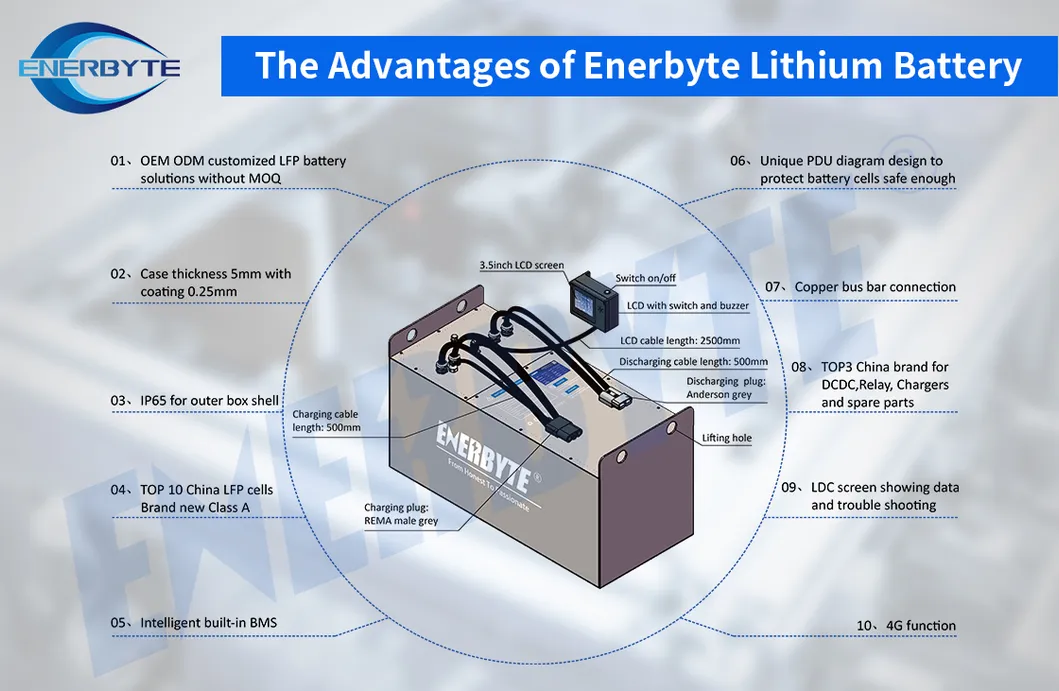

Forklift Battery Benefits
Customization & Compatibility
We offer over 950 models of LiFePO4 batteries designed for almost all electric industrial trucks and forklifts. Our team provides seamless collaborative design to meet specific voltage, capacity, or dimension requirements based on your unique usage patterns and operational environment.
Custom Battery Models

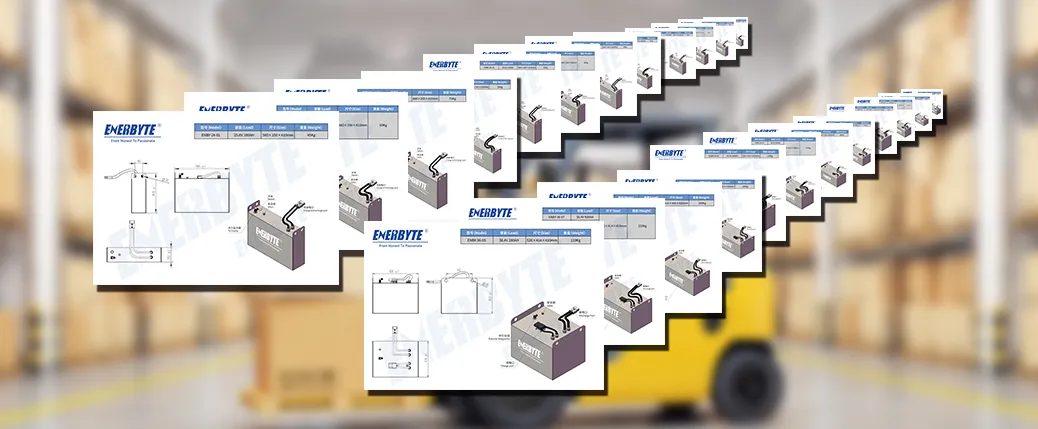

Bespoke Battery Sizes

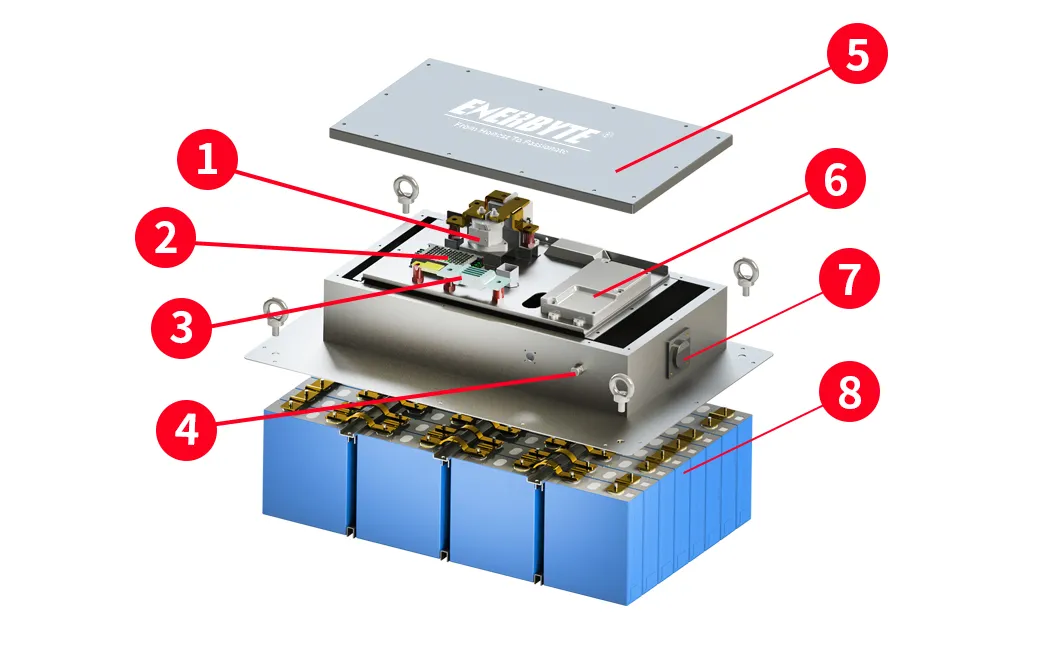

Battery Internal Structure
Internal Structure of Lithium Battery
1. Relay2. DC-DC Converter
3. Diverter4. Safety Valve
5. Upper Cover6. BMS (Battery Management System)
7. 4G Antenna8. Battery Pack
A-Grade Cell Characteristics

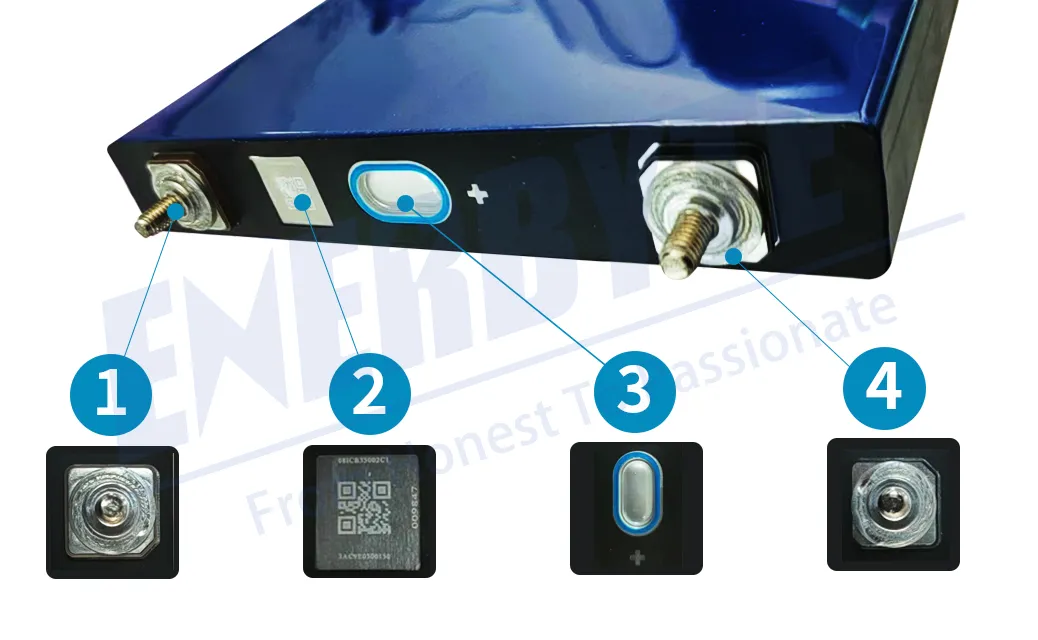

A-Grade Lithium Cells
  • High Capacity Retention: Maintains high capacity after thousands of cycles.
  • Low Internal Resistance: Reduces energy loss during charge/discharge.
  • Uniform Performance: Minimal variance between cells for stable operation.
  • High Thermal Stability: Remains stable in extreme temperatures, reducing safety risks.
  • Environmental Protection: Contains no heavy metals; non-toxic.
Intelligent Monitoring & Fleet Management
Equipped with an external display screen for real-time monitoring of power, voltage, and current. The integrated BMS provides precise power management, including SOC (State of Charge) and DOD (Depth of Discharge) calculations.

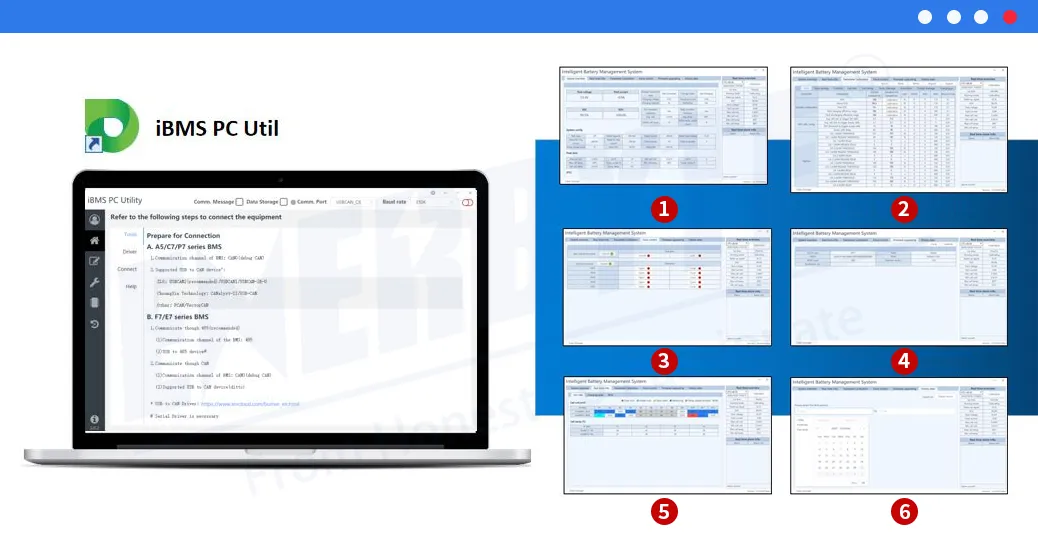

Battery Monitoring Display
BMS Management System
The web-based cloud system allows for global fleet management via 4G networks. Users can diagnose, trace, and analyze battery status remotely across various platforms including PC and mobile apps.
Cloud Management Interface
Operational Precautions
* Use only specialized chargers for lithium batteries.
* Avoid storing in humid or high-temperature environments.
* Do not short-circuit terminals or reverse charge.
* Do not soak in water; wading depth should not exceed 1/3 of the cabinet height.
* If unused, charge fully and store in a dry place; recharge every 3 months.
* Avoid charging in direct sunlight.
Product FAQ
Q1: What is your Warranty Policy?
We offer a 5-year warranty for our products. Using Lithium Iron Phosphate cells, these batteries have a service life of more than 10 years and high safety performance.
Q2: How do I choose the right battery for my forklift?
Please provide your equipment requirements, including voltage, battery compartment size, and duty cycle. Our technical team will recommend a suitable solution.
Q3: What is the typical delivery time?
Usually, delivery takes about 4 weeks, but this may vary depending on the order quantity or specific customization requirements.
Q4: Do you accept OEM and ODM services?
Yes, we provide full OEM and ODM services to meet specific client requirements regarding branding, capacity, and dimensions.
Q5: What are the payment terms?
We accept various payment methods including T/T, L/C, and West Union.
Q6: How are technical problems solved?
We provide 24-hour after-service consultancy. With our cloud management system, we can often assist customers in remotely diagnosing and solving battery issues.
