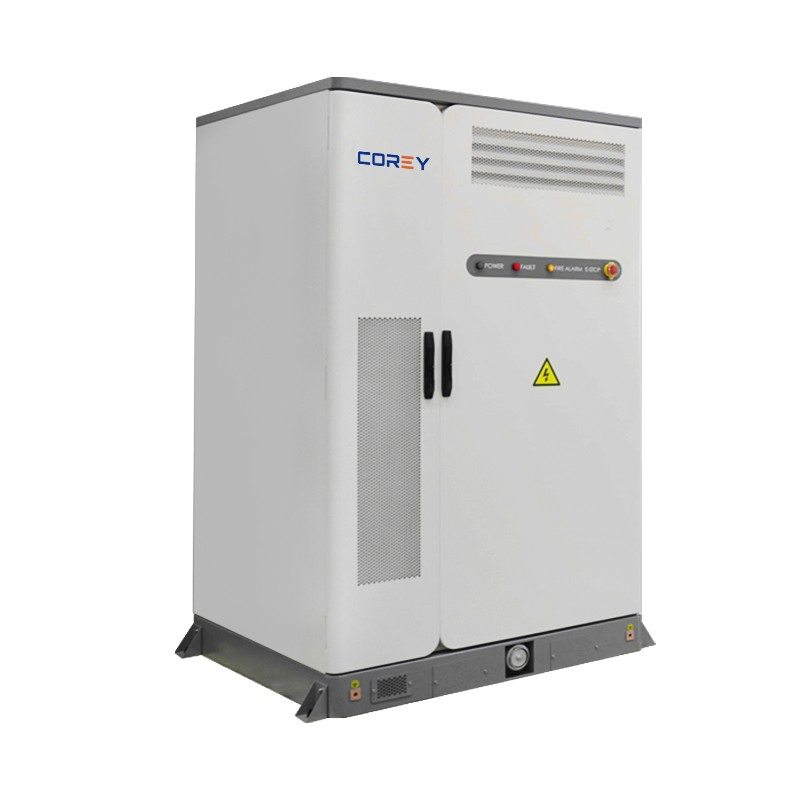

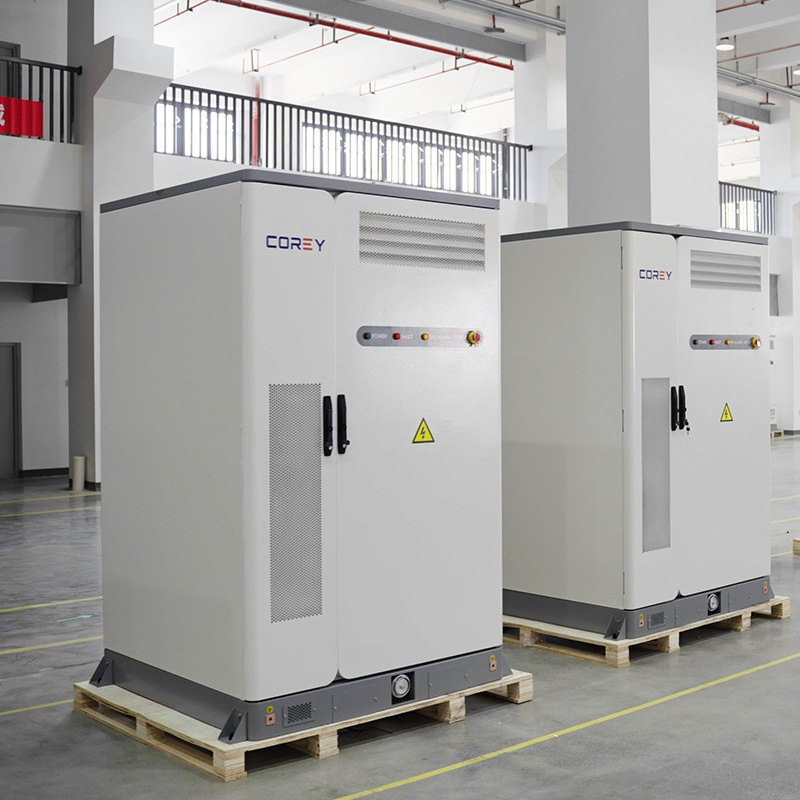

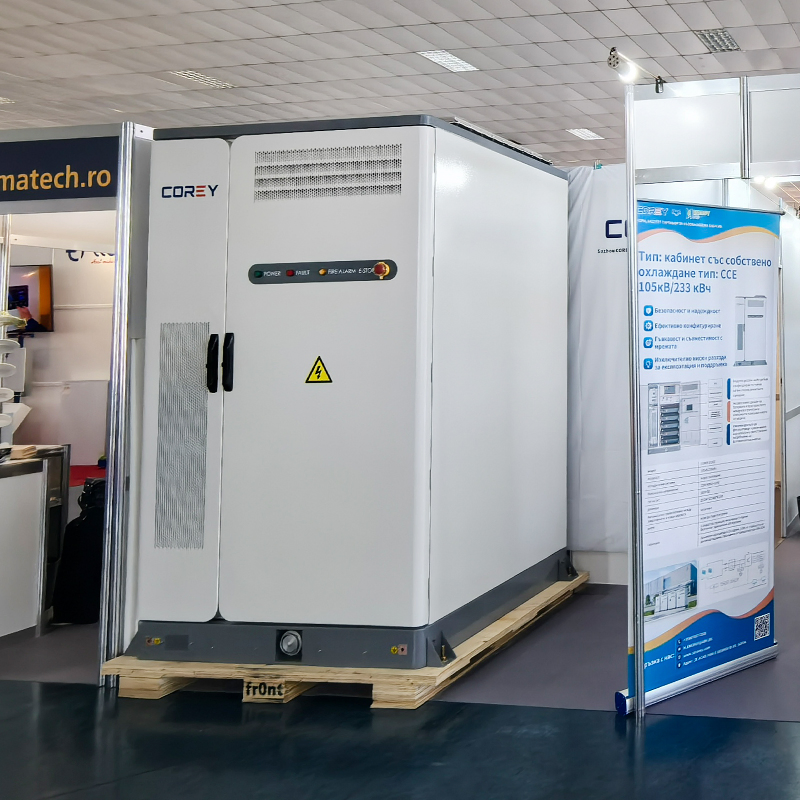

High Voltage 233kwh Commercial Energy Storage Systems Lithium Ion Batteries Air Cooling Solar Battery Energy Storage Systems

Customization: Available
Container Size: L1560mm*D1380mm*H2385mm
Weight: 2600kg

Product Description

Basic Info.
Model NO.
233kWh Series
Nominal Voltage
230V/400V
Warranty
5 years
Nominal Capacity
233kWh
Cycle Life
9000
Battery Type
LiFePO4
Cooling Method
Intelligent Liquid Cooling
Protection Level
IP54
Product Description

What can commercial and industrial energy storage products do for you?

  • Peak - valley arbitrage: Leverage the differential between peak and valley electricity prices, charging during low-cost periods and discharging during high-cost peak periods to cut expenses.
  • Enhance power supply reliability: Function as a backup power source to deliver uninterrupted power during grid outages or malfunctions.
  • Improve power quality: Mitigate power load fluctuations and ensure stable operation of electrical equipment.
  • Participate in demand response: Modify usage patterns in response to grid requirements to earn financial incentives.

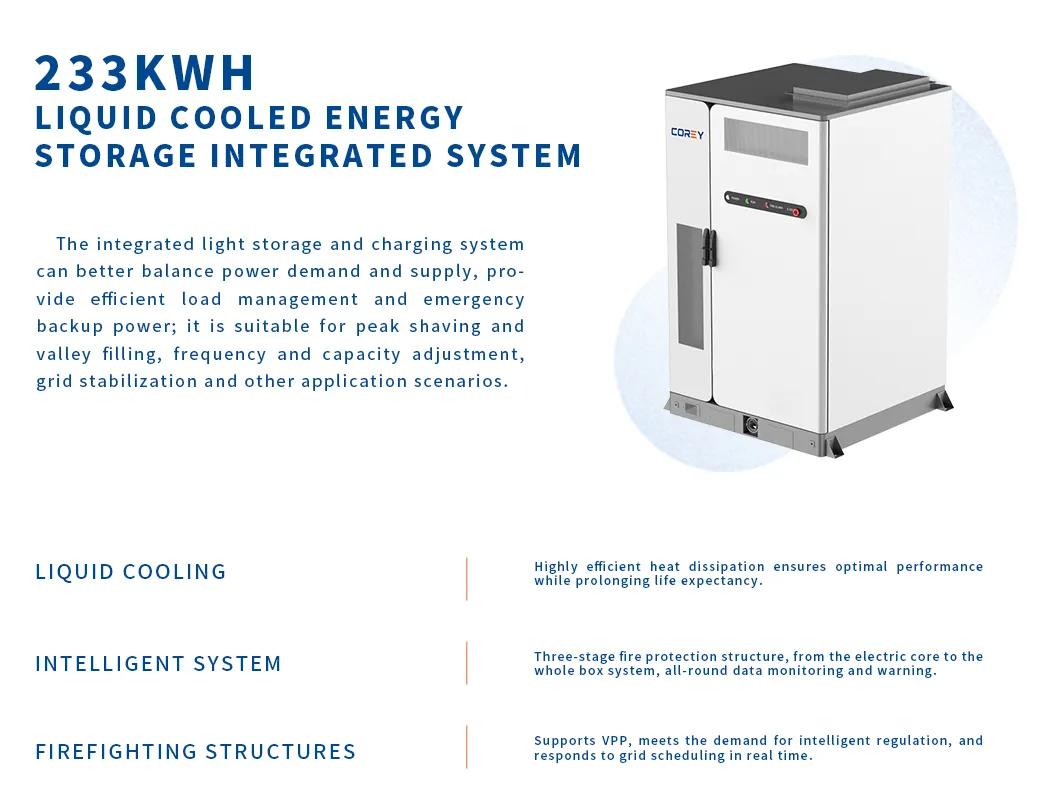

Energy Storage System
Industrial Storage Cabinet

The storage cabinet system uses a multi-stage protection design for battery packs and clusters to effectively isolate faults. The divided system design and three-tier intelligent fire safety design minimize risk and ensure safety for people and assets.

Product Advantages
  • Safe and reliable: Emergency backup for continuous operation.
  • Flexible configuration: Modular design for easy expansion and installation.
  • High efficiency: Optimized energy usage to reduce costs.
  • Intelligent O&M: Reduced maintenance costs and promoted green energy consumption.
  • Grid-friendly: Rapid switching between on-grid and off-grid modes.
Technical Parameters
System Parameter Details
Core Specs Battery Cell LFP(LiFePO4) 3.2V 280Ah
System Capacity 233kWh
Rated Power 105kW
Cooling Method Intelligent Liquid Cooling
Environment Fire Fighting Aerosol + Water Fire Protection
Operating Temp -20ºC ~ 50ºC
Protection Level IP54
Size L1560mm * D1380mm * H2385mm
AC Side Rated Voltage 230V/400V(±15%)
Rated Frequency 50/60 Hz
Max Current 167A

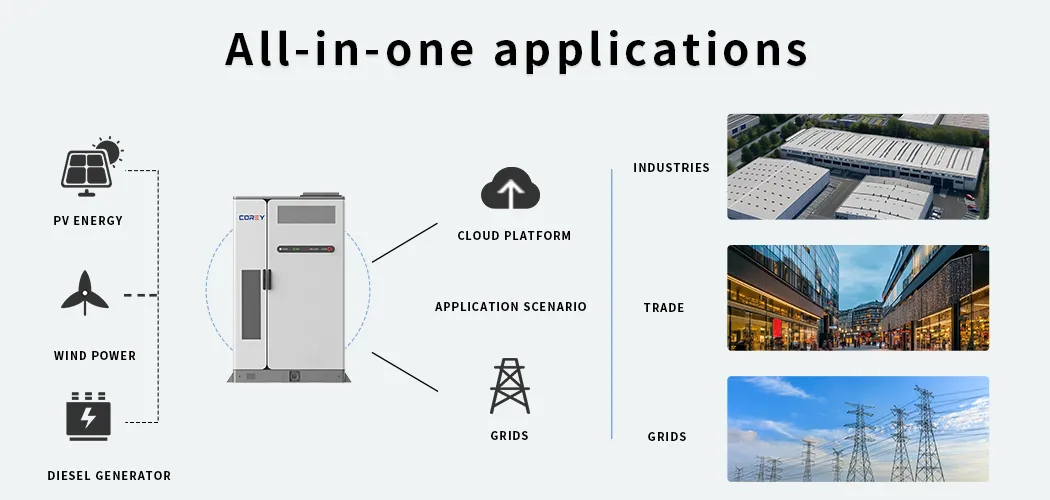

Application

Widely used in commercial buildings, factory buildings, remote areas, and areas with power shortages.

Application Scenario 1

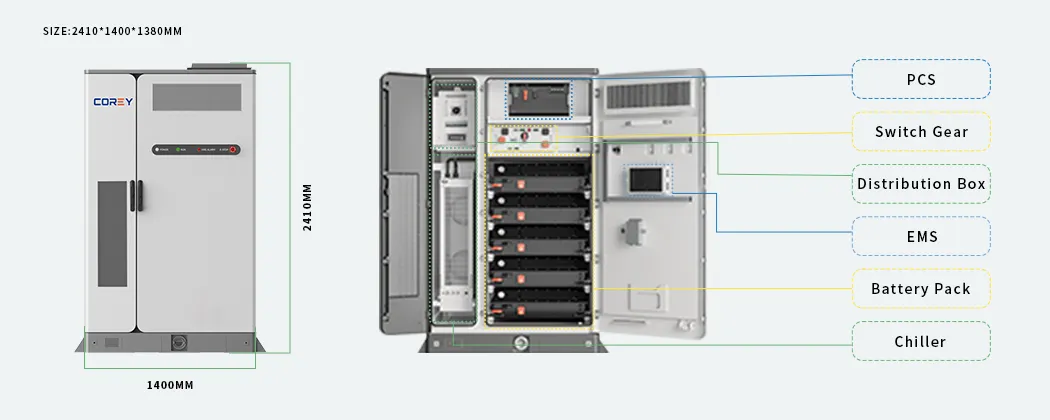

Application Scenario 2
Project Case

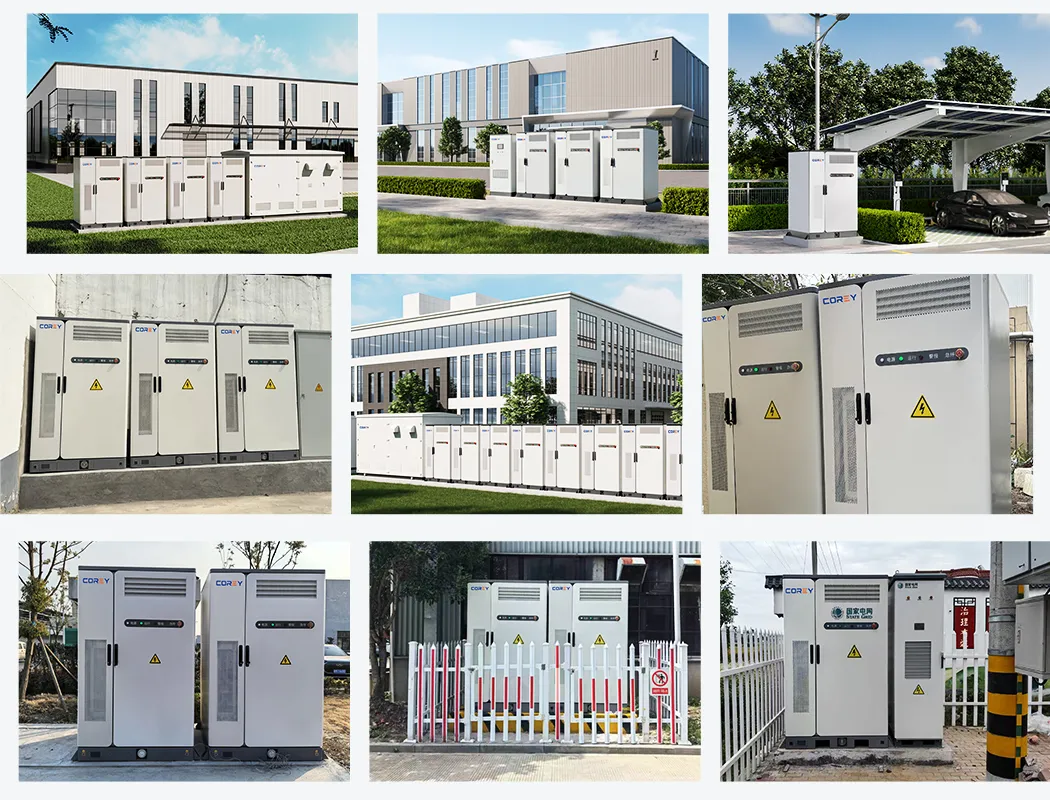

Project Case Display
Manufacturing Excellence
Manufacturing Line
Quality Control
System Integration
Frequently Asked Questions
What is the main battery chemistry used in this system?
The system utilizes high-quality LiFePO4 (Lithium Iron Phosphate) battery cells, known for their safety, stability, and long cycle life.
What is the expected cycle life of the energy storage system?
This system is rated for 9,000 cycles, ensuring long-term operational reliability for commercial and industrial applications.
How does the intelligent liquid cooling system benefit the unit?
Liquid cooling provides more uniform temperature distribution across the battery cells compared to air cooling, which extends battery life and improves safety under high loads.
Can this system be installed outdoors?
Yes, the system features an IP54 protection level and C4 anti-corrosion rating, making it suitable for various outdoor environments.
What is the switching time between on-grid and off-grid modes?
The system supports an optional automatic switching time of less than 20ms, providing near-seamless backup power for critical equipment.
What safety measures are in place for fire protection?
The system integrates a multi-tier safety approach including pack-level aerosol suppression and cabinet-level water fire protection to prevent fault spread.
