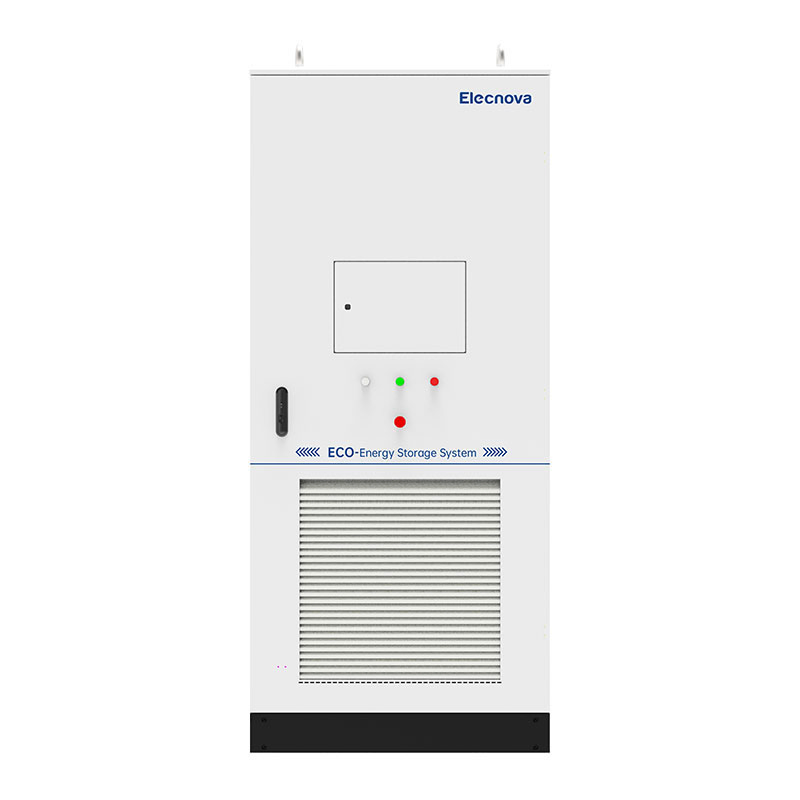

Industrial Commercial Energy Storage Battery Cabinet LiFePO4 Bess 0.5p Battery Storage System
Industrial Commercial Energy Storage Battery Cabinet LiFePO4 Bess 0.5p Battery Storage System
Industrial Commercial Energy Storage Battery Cabinet LiFePO4 Bess 0.5p Battery Storage System
Industrial Commercial Energy Storage Battery Cabinet LiFePO4 Bess 0.5p Battery Storage System
Industrial Commercial Energy Storage Battery Cabinet LiFePO4 Bess 0.5p Battery Storage System
1 / 5
Industrial Commercial Energy Storage Battery Cabinet LiFePO4 Bess 0.5p Battery Storage System
Industrial Commercial Energy Storage Battery Cabinet LiFePO4 Bess 0.5p Battery Storage System
Industrial Commercial Energy Storage Battery Cabinet LiFePO4 Bess 0.5p Battery Storage System
Industrial Commercial Energy Storage Battery Cabinet LiFePO4 Bess 0.5p Battery Storage System
Industrial Commercial Energy Storage Battery Cabinet LiFePO4 Bess 0.5p Battery Storage System

Industrial Commercial Energy Storage Battery Cabinet LiFePO4 Bess 0.5p Battery Storage System

Customization: Available
Nominal Voltage: 728~936V DC
Warranty: 2 Years
Send Inquiry

Product Description

Basic Information
Model NO.
ECO-E233LS
Nominal Capacity
100kw
Cycle Life
8,000 Times
Battery Cell Type
LFP 3.2V/280ah
Battery Pack Configuration
46.59kwh/1p52s
Battery System Configuration
232kwh/1p260s
Pack Voltage Range
728~936V DC
Protection Level
IP65
AC Rated Power
116kw
Grid Rated Voltage
400V AC
Discharge Depth
95%Dod
Origin
China
Product Description
Energy Storage System Overview
The all-in-one liquid-cooled ESS cabinet adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and has higher energy density, which significantly improves the economy, safety and construction convenience of ESS projects.
Industrial Commercial Energy Storage Battery

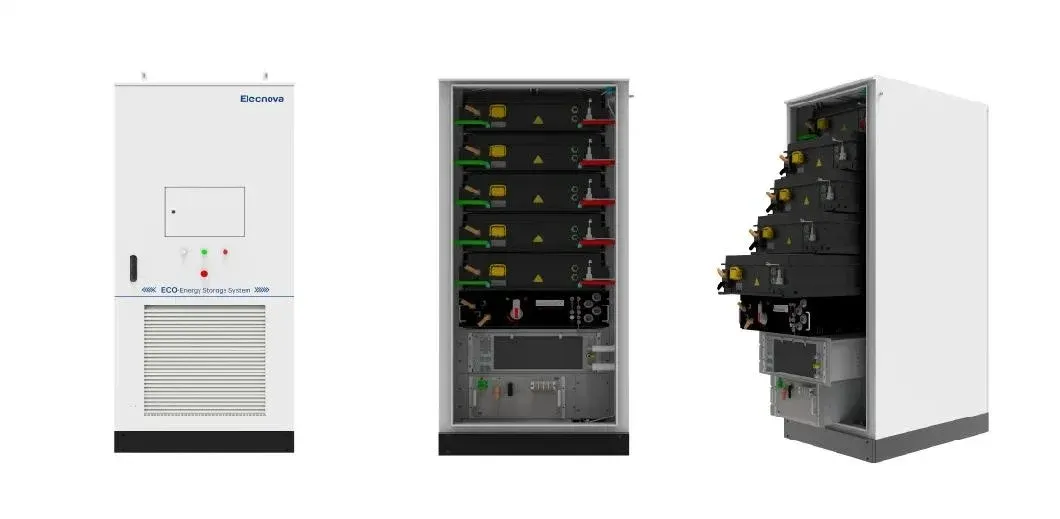

Battery Storage System

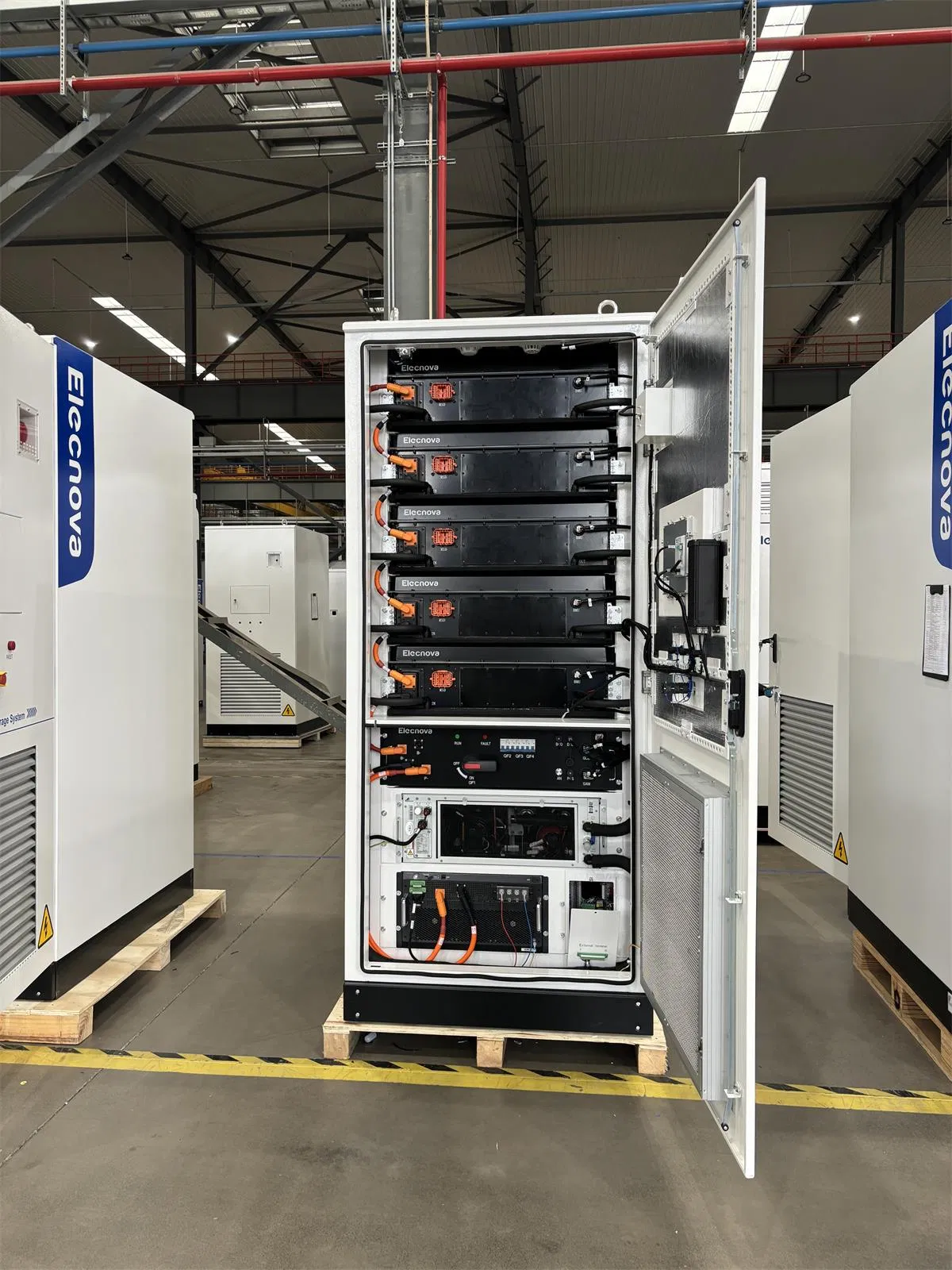

Detailed Photos

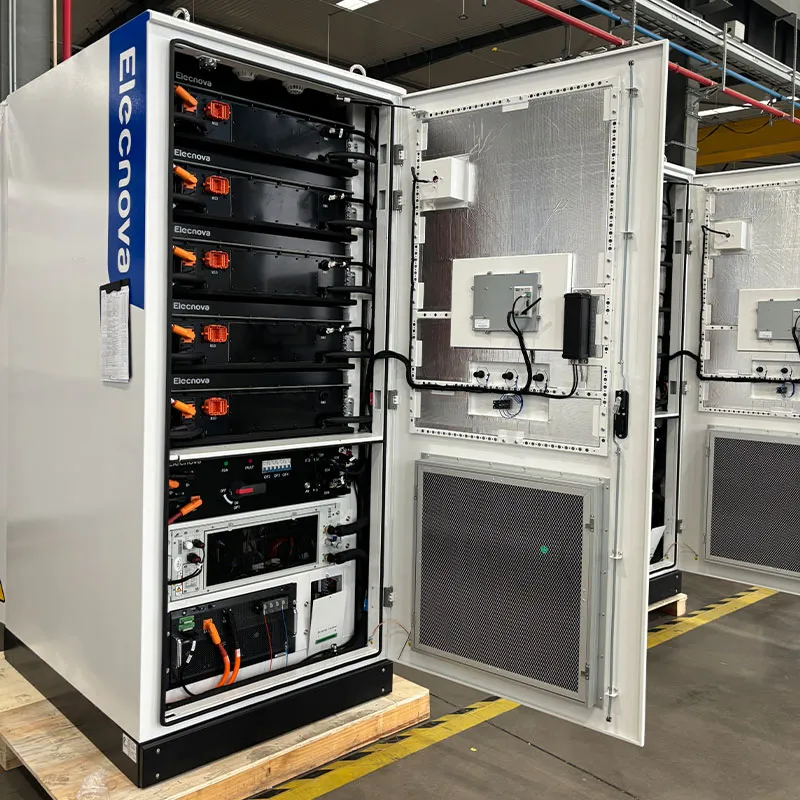

Detail 1

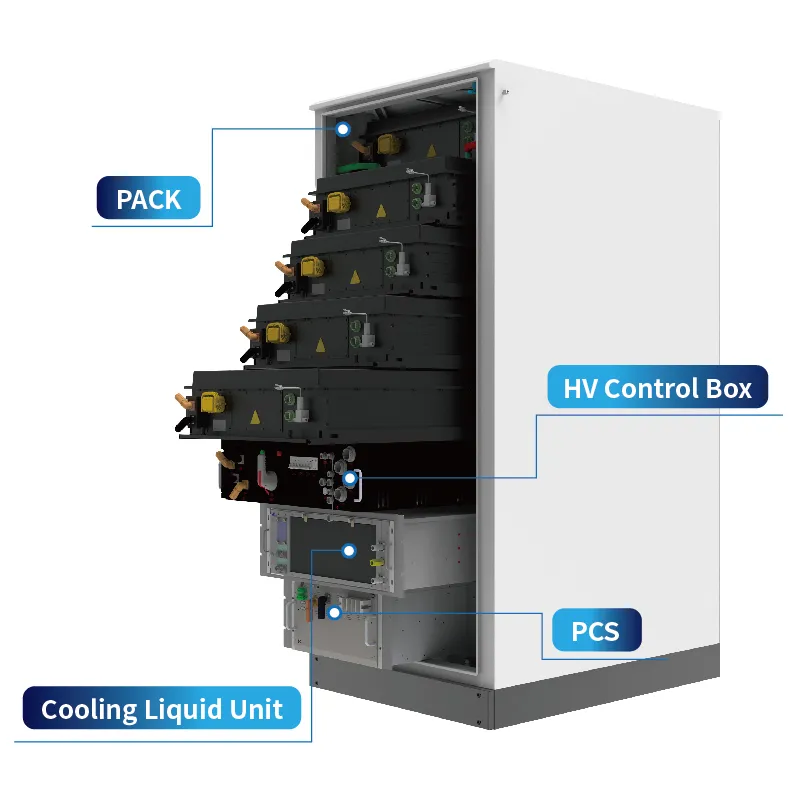

Detail 2

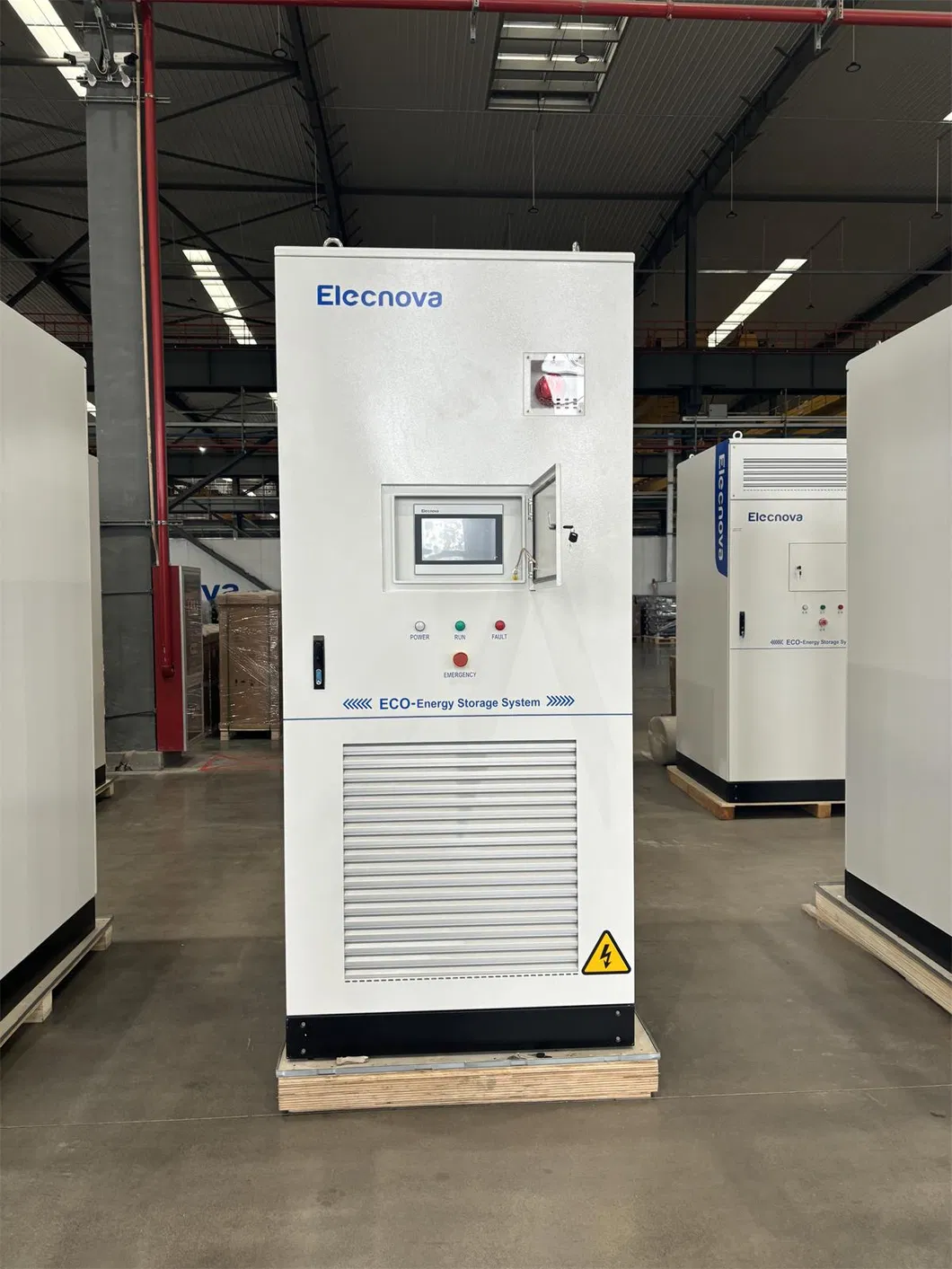

Detail 3
Detail 4

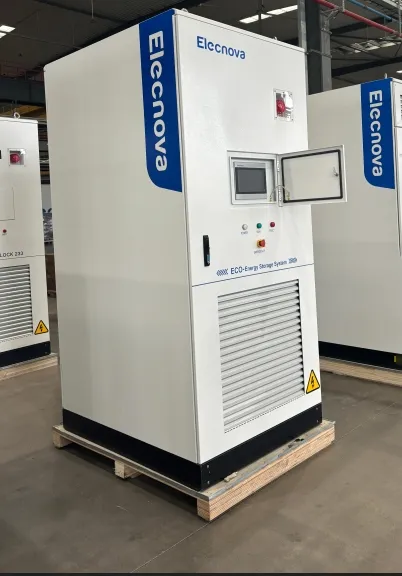

Detail 5
Detail 6
Detail 7
Technical Parameter
Parameter ECO-E215WS ECO-E233LS ECO-E101WX
DC Side
Cell TypeLFP 280AhLFP 120Ah
Battery System215kWh/1P240S232.96kWh/1P260S101kWh
Voltage Range672~864Vdc728~936Vdc739.2V~950.4V
AC Side
Rated Power100kW
Nominal Voltage400Vac/3P+N+PE400Vac/3P+N+PE-1400Vac/3P+N+PE
General
Efficiency≥90%≥89%
Cycle Life≥8,000 times≥5500 cycles
CoolingForced air coolingActive liquid coolingForced air cooling
Dimensions (W*D*H)1,250*1,300*2,400 mm1,050*1,350*2,400 mm1,250*1,200*2,150 mm
Application
Application Scenarios
Packing & Delivery

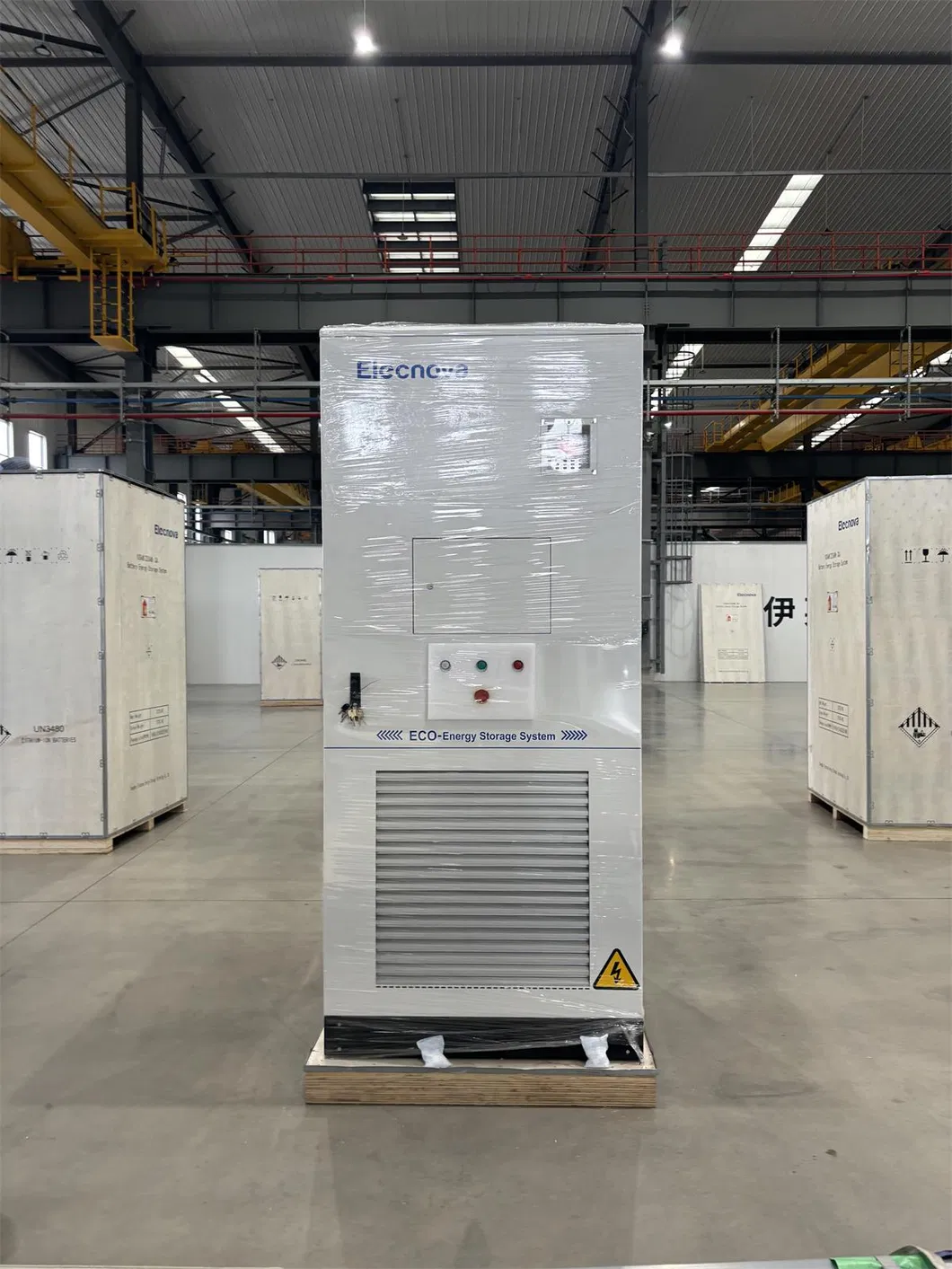

Packing 1

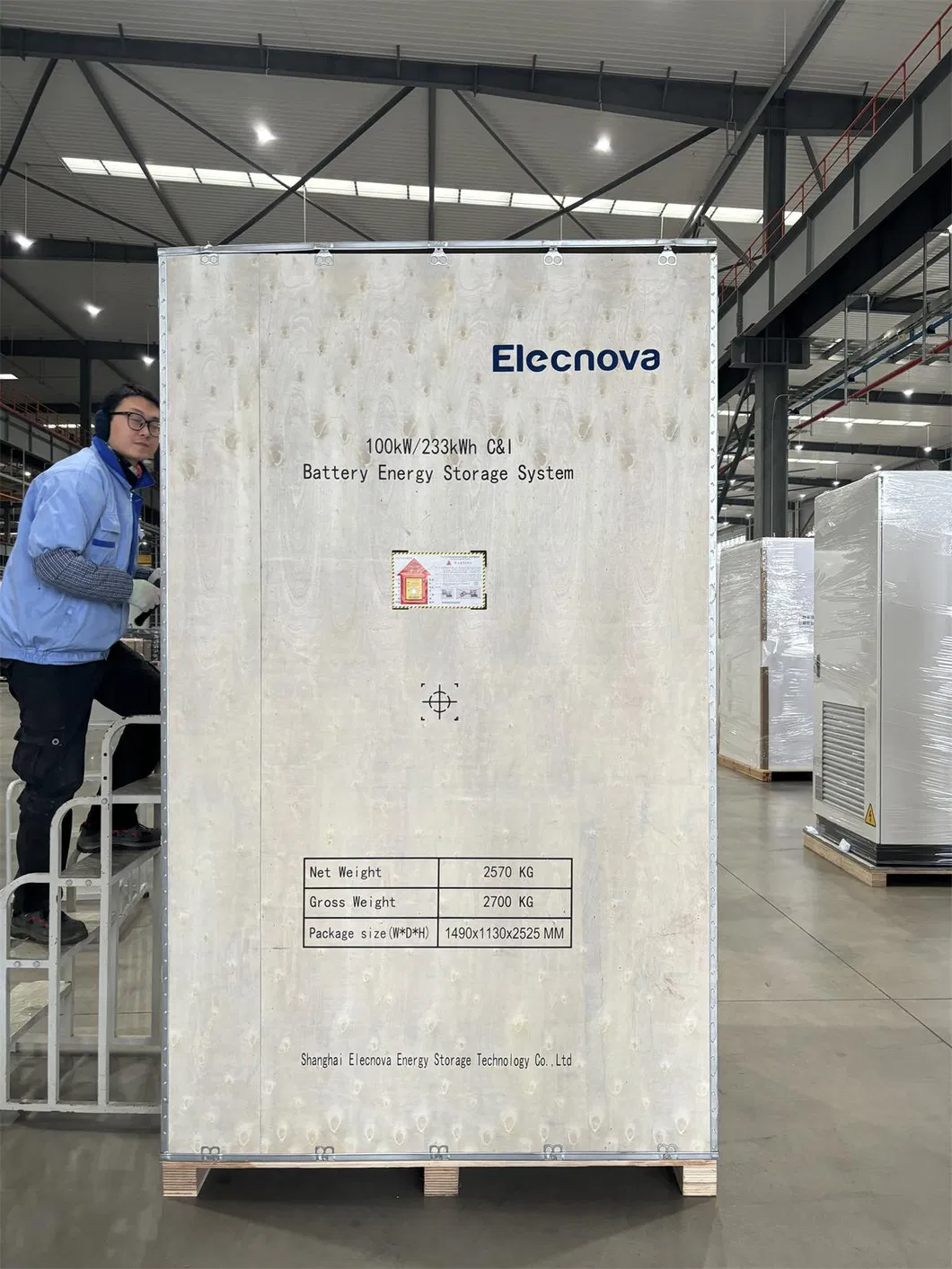

Packing 2

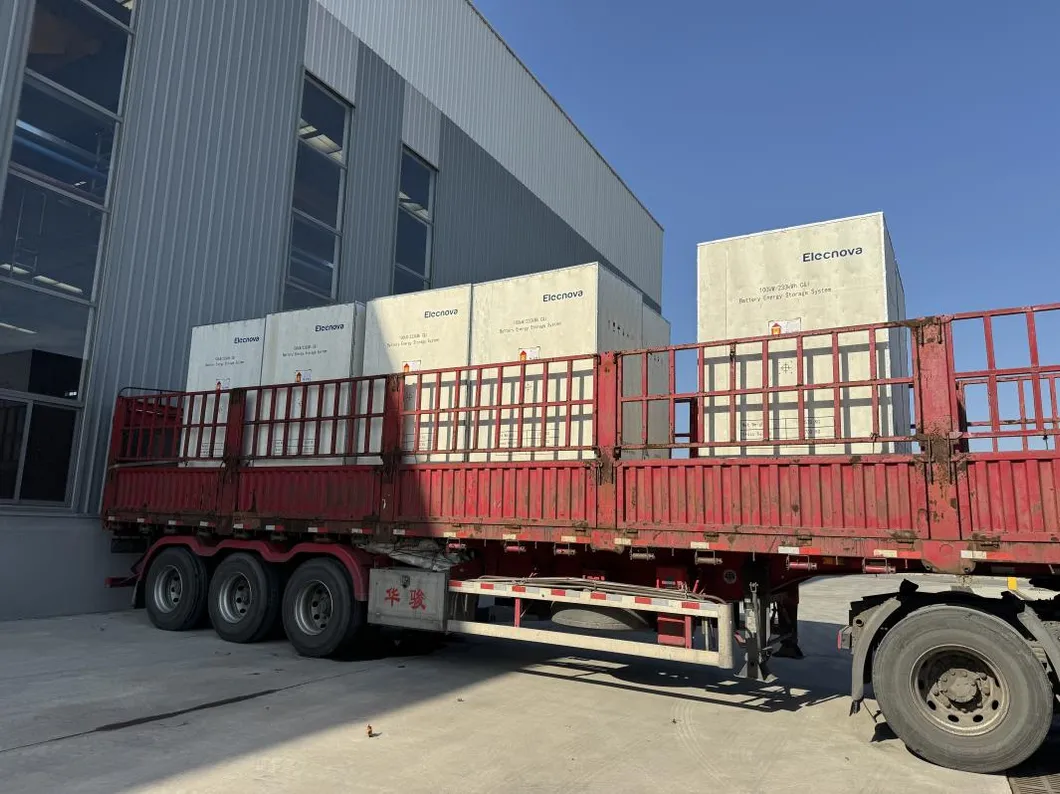

Delivery Process
Certifications

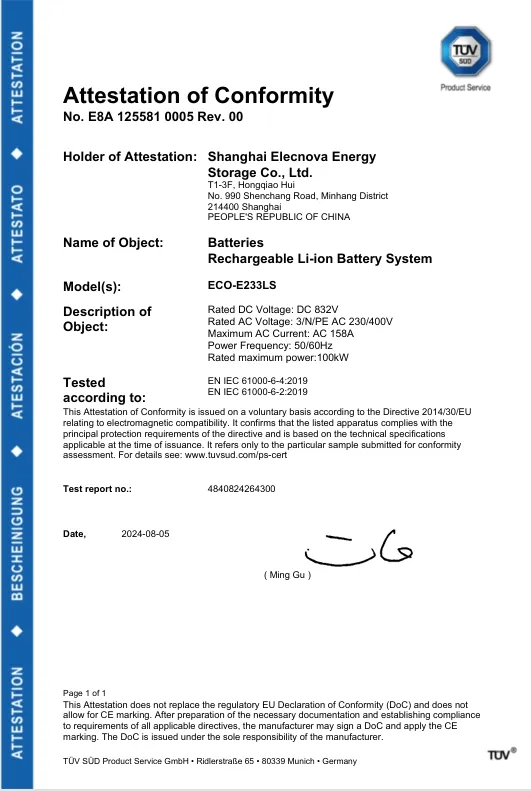

Certification 1

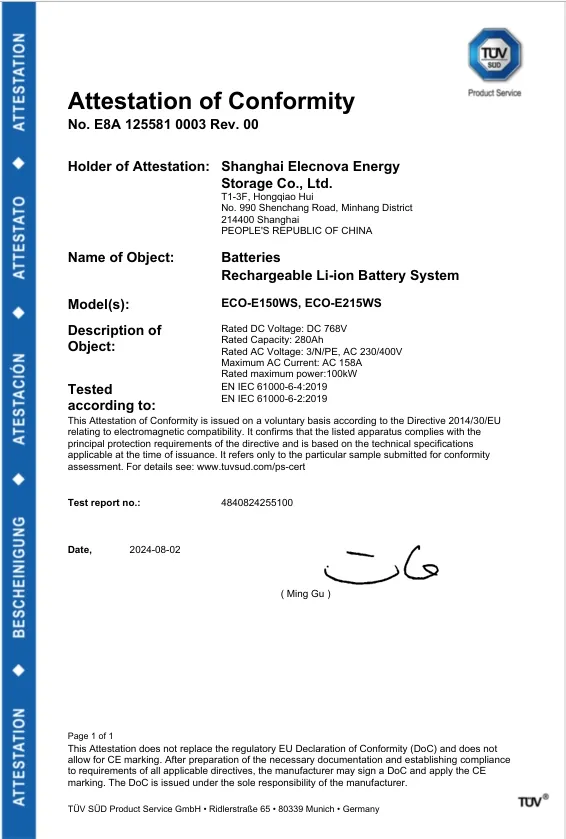

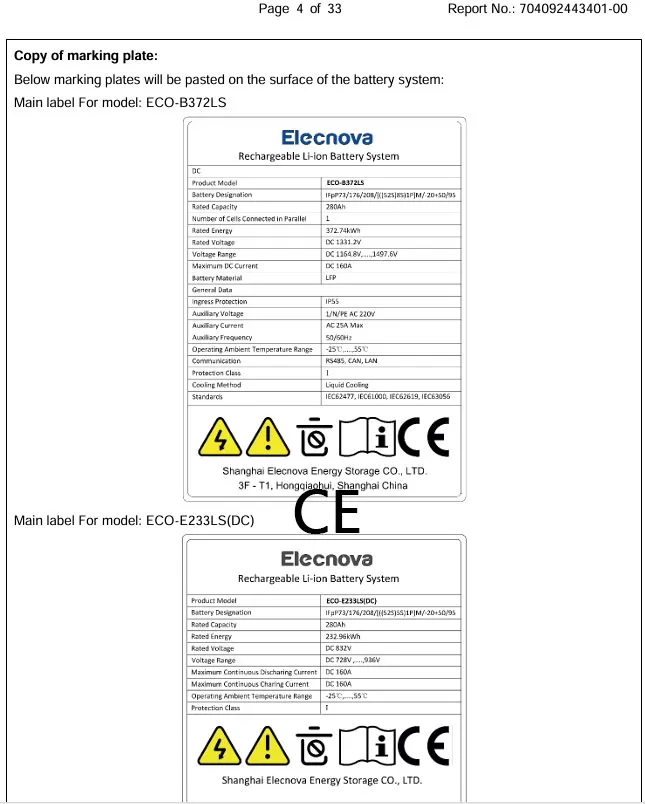

Certification 2
Certification 3
FAQ
Are you a trading company or manufacturer?
We are a factory dedicated to high-quality manufacturing.
Does your company provide customized manufacturing?
Yes, we provide OEM/ODM services to our customers. Our experienced R&D team provides highly efficient custom solutions.
How long is your delivery time?
3-5 working days for items in stock, and 15-21 days for items out of stock.
Do you provide samples?
Sample orders are available; customers are responsible for sample costs and freight.
What are your terms of payment?
For orders under $3000, 100% upfront. For orders over $3000, 30% deposit and 70% before shipment, or as negotiated.
What is the cycle life of your battery systems?
Our advanced LFP systems offer a cycle life of up to 8,000 times, ensuring long-term reliability.
