100KW Solar Energy System
| Model | SAS100KW-HY |
|---|

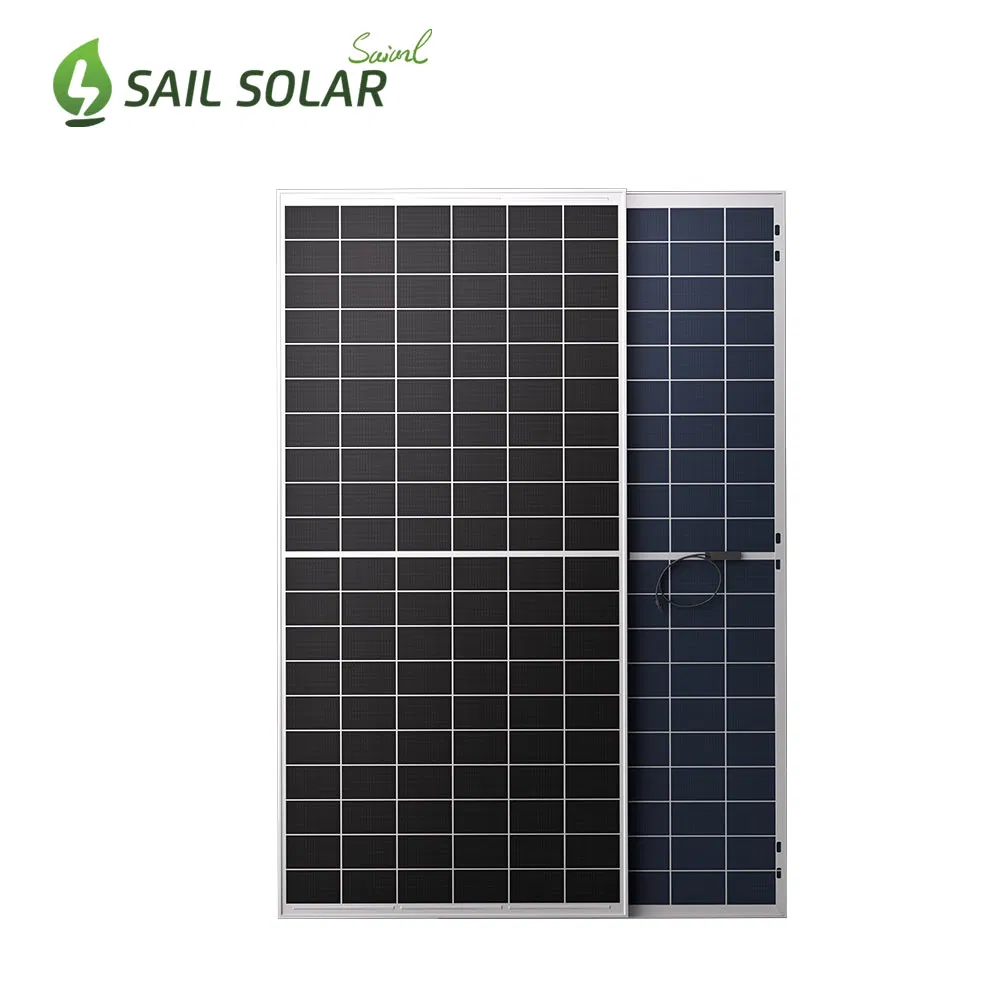

| 590W Solar Panel | 170 pieces |
|---|
| Hybrid Inverter | 100KW |
|---|
| Lithium Battery | 200KWH Customized Lithium (Lifepo4) Battery Storage System with BMS Monitoring |
|---|

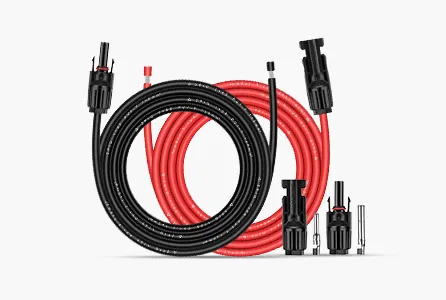

| DC Cable 4mm2 | 300 Meters |
|---|
| MC4 Connector | 200 Pairs |
|---|

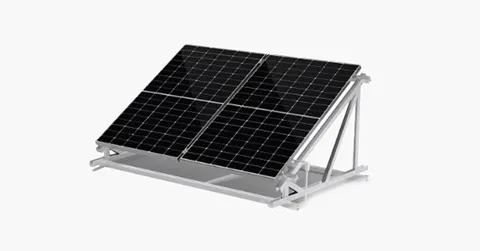

| Mounting System | Customized for Rooftop or Ground |
|---|
| Optional Accessories | Lightning protection/grounding device, AC/DC Combiner box, AC Cable, Smart Meter |
|---|

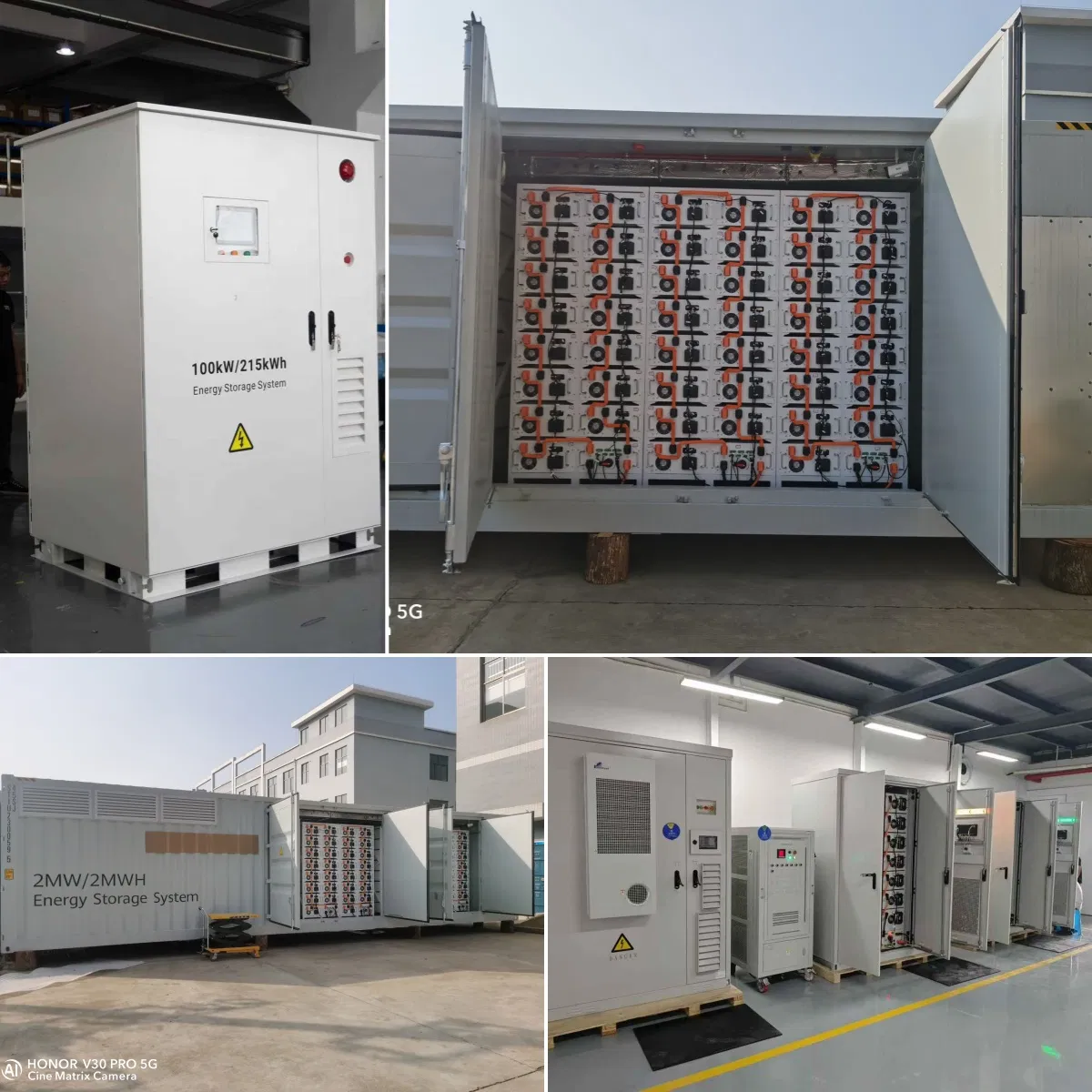

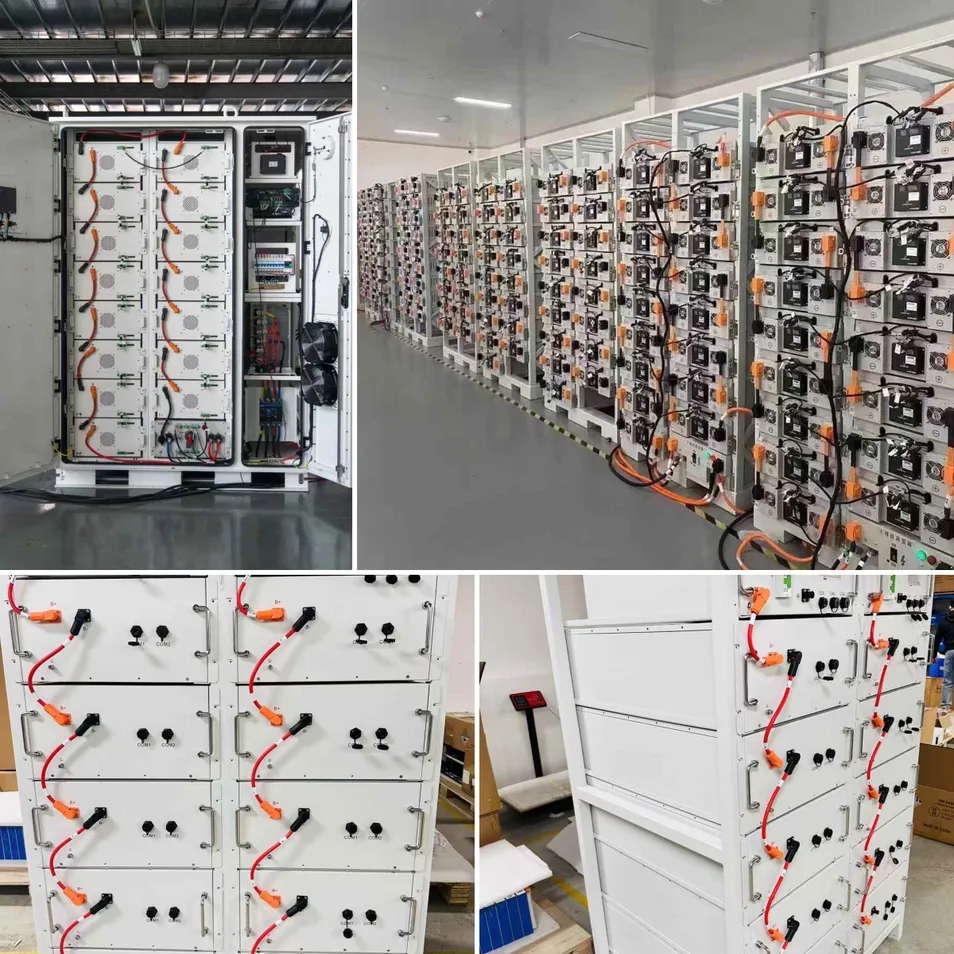

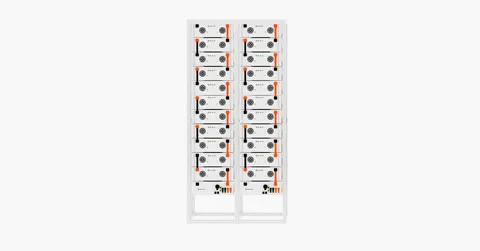

Storage Battery Specification
| Battery Type | LiFePO4 battery |
|---|
| Efficiency of Charge | 99.5%@0.2C |
|---|
| Configuration | 14 battery modules+1 BPU(716.8V 280Ah) |
|---|
| Energy | 200Kw/h |
|---|
| Discharge Cut-Off Voltage(V) | 616 |
|---|
| Charge Cut-Off Voltage(V) | 795.2 |
|---|
| Max. Charge/Discharge Current | 200A |
|---|

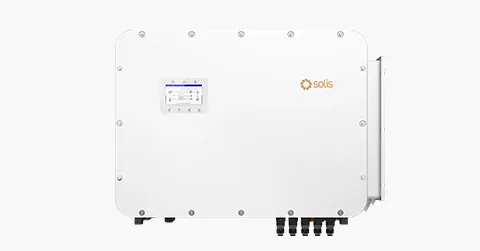

Solar Inverter Specification
| Rated Output Power | 100 kW |
|---|
| Max. Apparent Output Power | 100 kVA |
|---|
| Rated Grid Voltage | 3/N/PE, 220 V / 380 V, 230 V / 400 V |
|---|
| Rated Grid Frequency | 50 Hz / 60 Hz |
|---|
| Power Factor | > 0.99 (0.8 leading - 0.8 lagging) |
|---|
| Ingress Protection | IP66 |
|---|
Frequently Asked Questions

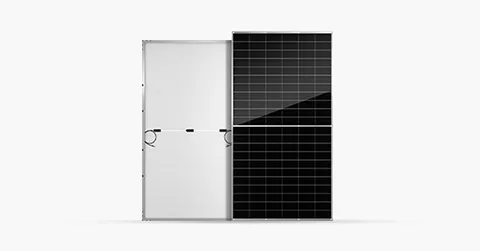

What is the warranty for the solar panels?
The solar panels come with a 25-year performance warranty, featuring high conversion efficiency and anti-reflective surfaces.
How many cycles does the lithium battery support?
The LiFePO4 battery storage system is designed for longevity, supporting more than 6000 cycles.
Is the inverter suitable for outdoor installation?
Yes, the 100KW hybrid inverter has an IP66 ingress protection rating, making it highly resistant to dust and water for outdoor use.

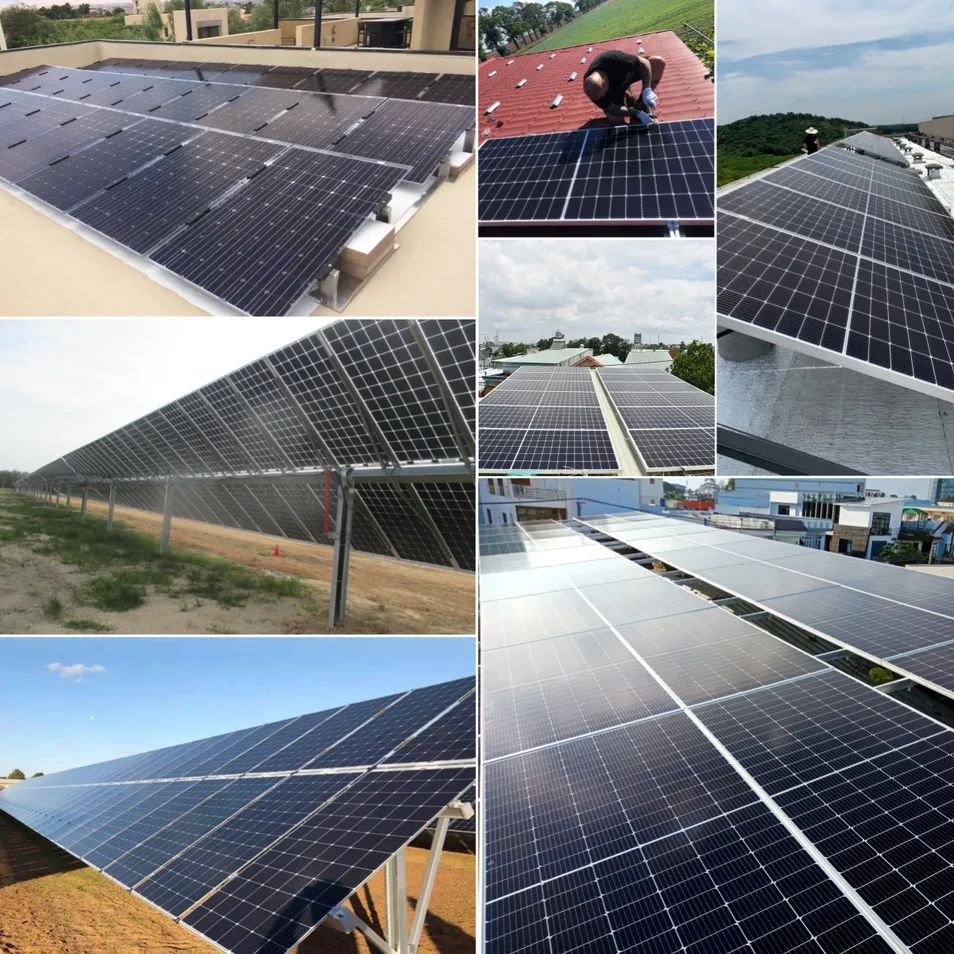

Can the mounting system be customized?

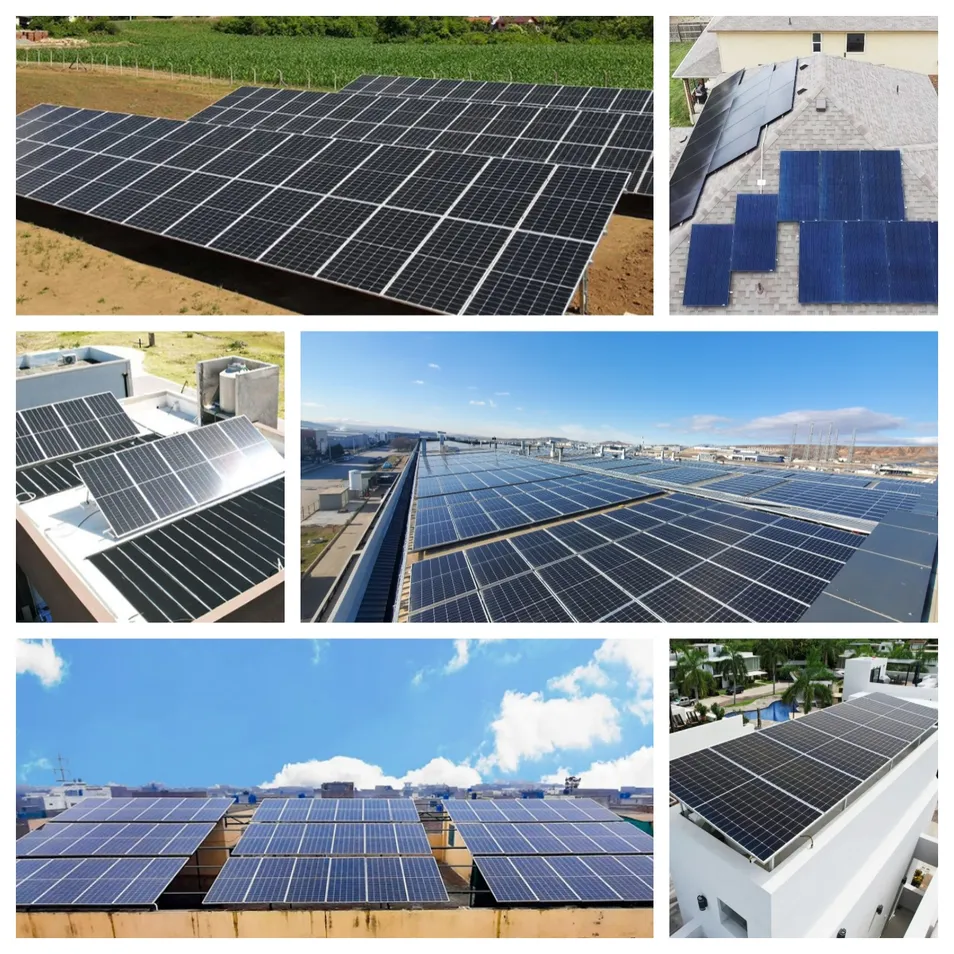

Absolutely. We provide customized mounting solutions for residential pitched roofs, commercial flat roofs, ground installations, and even carports.
Does the system support remote monitoring?
Yes, the system includes real-time battery monitoring, remote upgrade capabilities, and a BMS to prolong battery life.
What is included in the full 100KW system?
The standard package includes 170 pieces of 590W solar panels, a 100KW hybrid inverter, a 200KWH lithium battery bank, DC cables, MC4 connectors, and a mounting system.
