Basic Specifications
Product Name

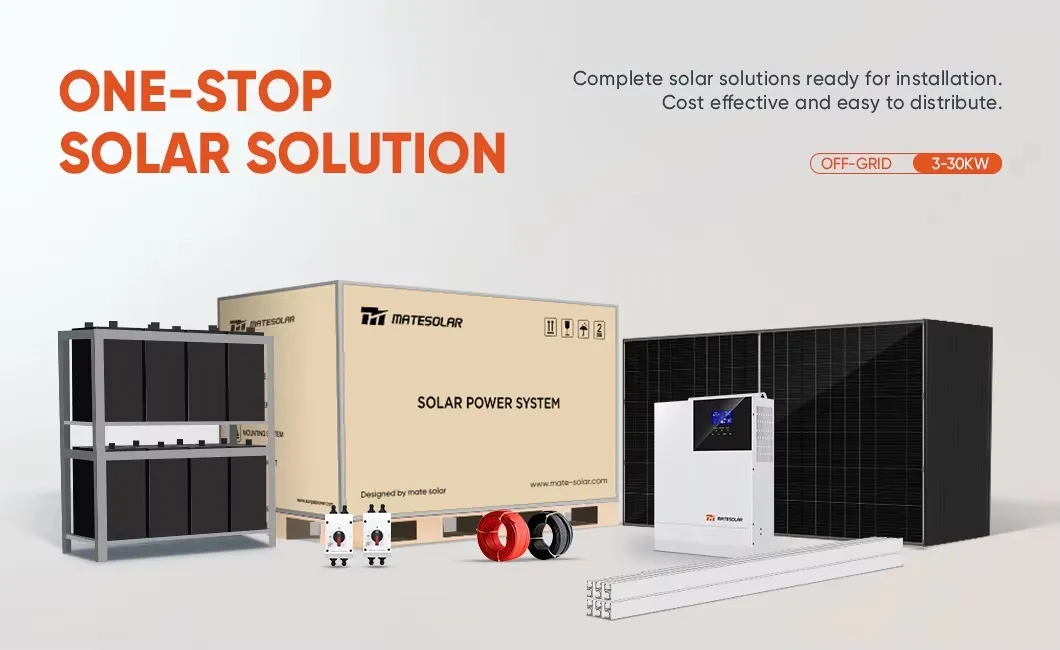

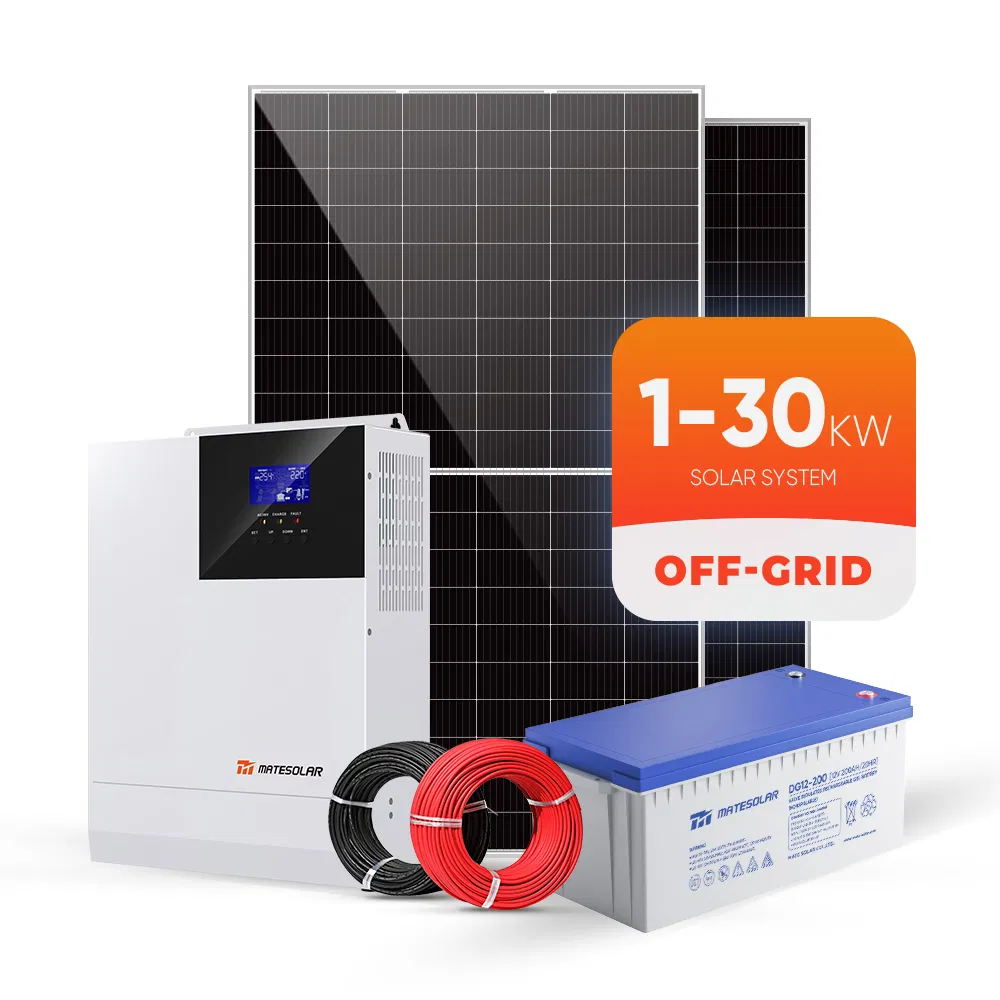

Residential Off Grid Solar System
Specifications
Off Grid 3-30KW
System Type
Off-grid Solar Photovoltaic System
Battery
Lead Acid/LiFePO4 Lithium Battery
Inverter
Single Phase/Split Phase/3Phase
Usage
Home Solar Energy Generation
Battery Voltage
48VDC/51.2V
Production Capacity
50000PCS/Week
Product Description
Warranty & Reliability: Our systems are engineered for long-term performance with comprehensive warranty coverage for all major components.

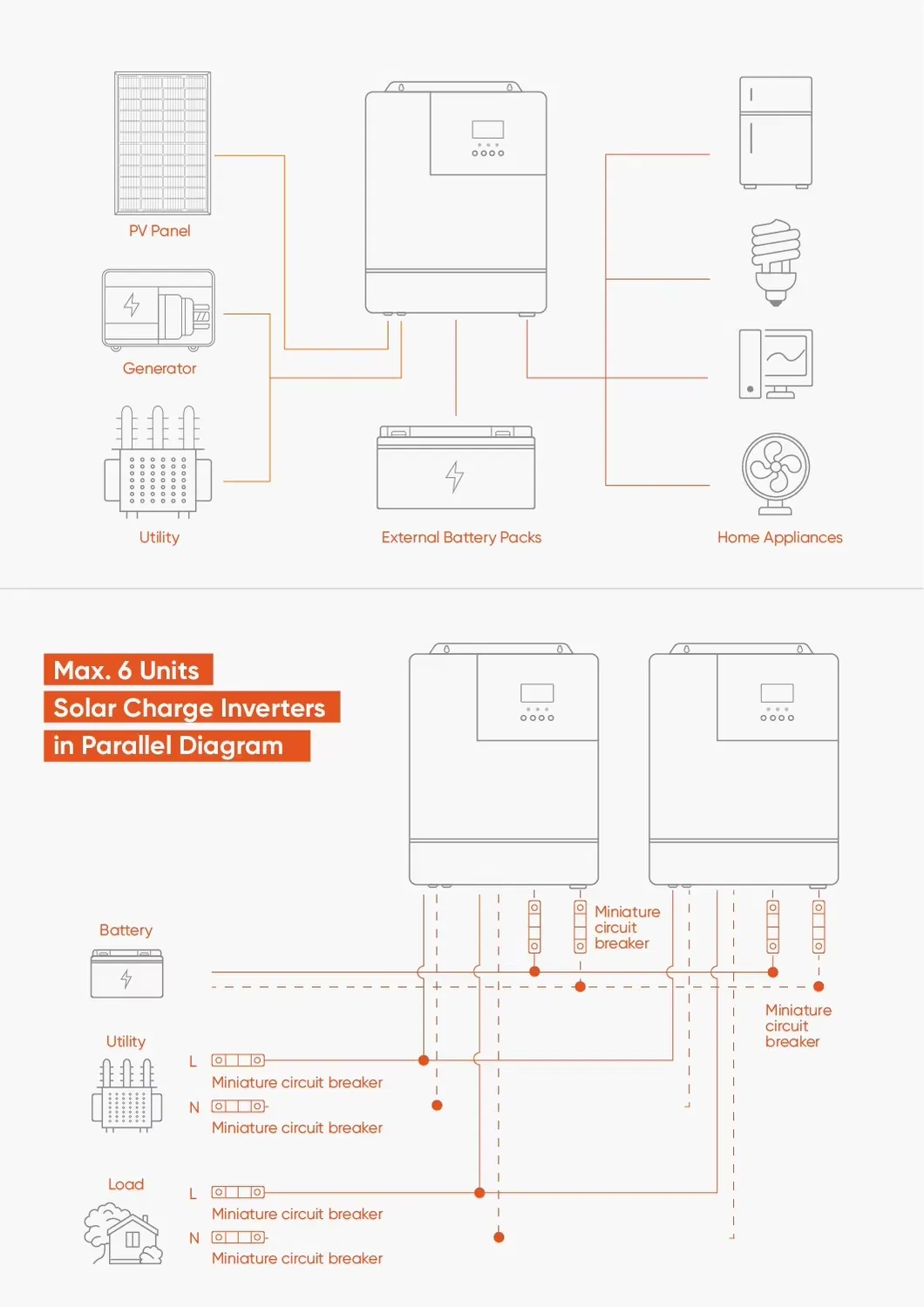

How it works: The system captures solar energy via high-efficiency panels, manages power through an MPPT hybrid inverter, and stores excess energy in advanced lithium or GEL batteries for residential use.

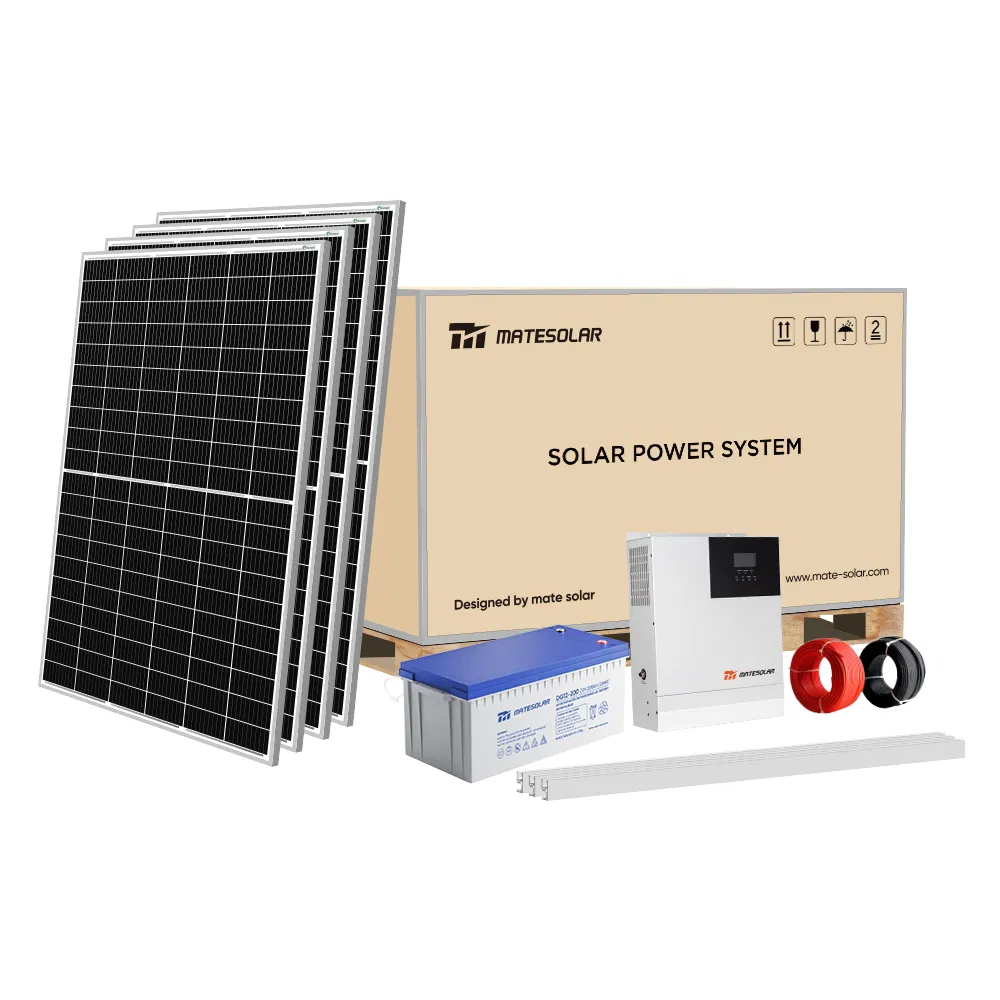

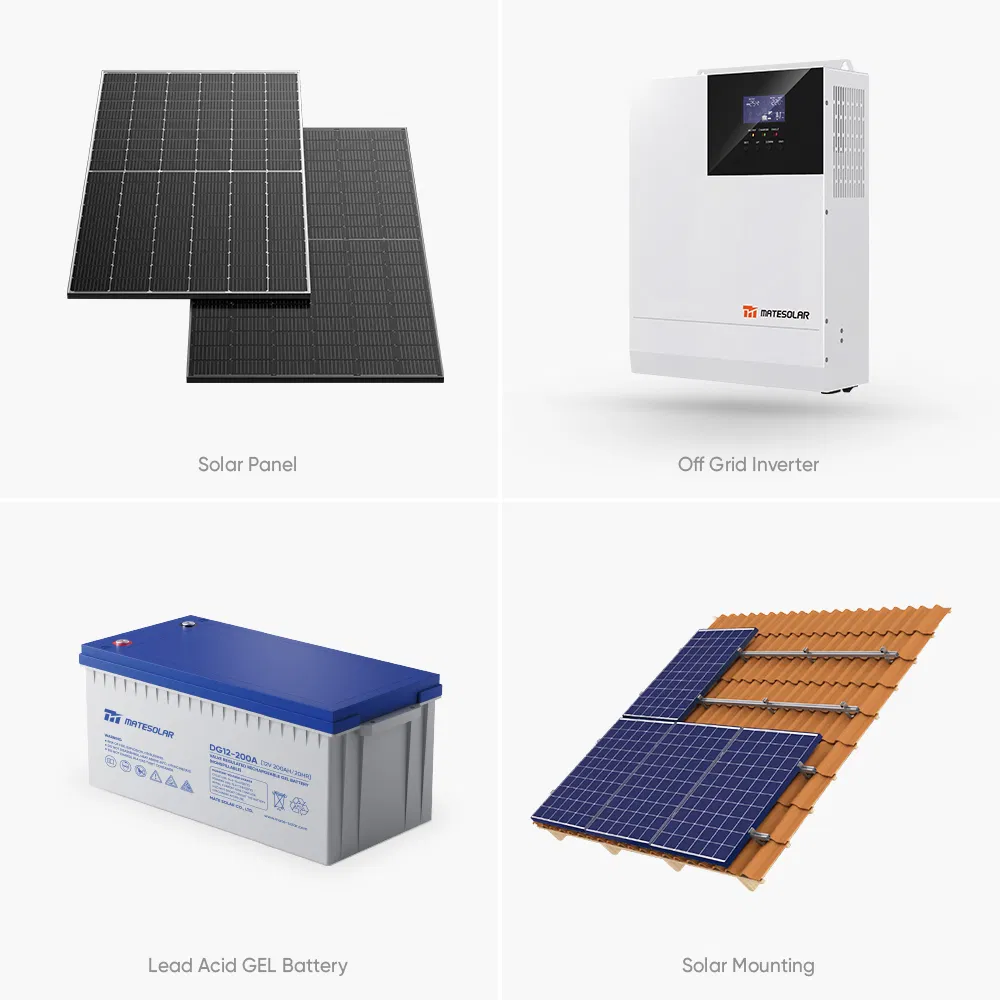

System Configuration Included
| Model |
3KW System |
5KW System |
10KW System |
| 550W Solar Panel |
6 Pieces |
8 Pieces |
20 Pieces |
| PV Combiner Box |
3 In 1 Out / 1pc |
4 In 1 Out / 1pc |
4 In 1 Out / 2pcs |
| Hybrid Inverter |
HF4830S60 |
HF4850S80 |
HFP4850S80 / 2pcs |

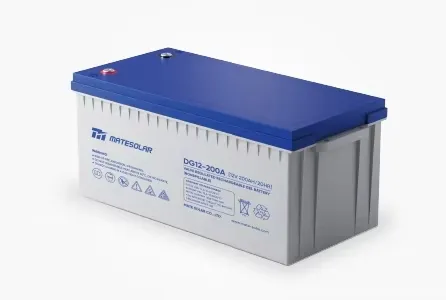

| GEL Battery |
12V 200AH / 4pcs |
12V 200AH / 4pcs |
12V 200AH / 8pcs |
| DC Cable (4mm2) |
100 meters |
200 meters |
400 meters |
| Model |
15KW System |
20KW System |
30KW System |
| 550W Solar Panel |
24 Pieces |
32 Pieces |
48 Pieces |
| PV Combiner Box |
4 In 1 Out / 3pcs |
4 In 1 Out / 4pcs |
4 In 1 Out / 5pcs |
| Hybrid Inverter |
HFP4850S80 / 3pcs |
HFP4850S80 / 4pcs |
HFP4850S80 / 6pcs |
| GEL Battery |
12V 200AH / 12pcs |
12V 200AH / 16pcs |
12V 200AH / 20pcs |
| DC Cable (4mm2) |
600 meters |
800 meters |
1000 meters |
Core Components Details

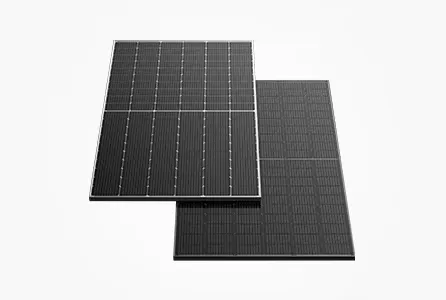

Half Cut Mono 550W Solar Panel
Peak Power: 550W
Max Voltage: 42.06V
Dimensions: 2279x1134x35mm
Weight: 26.9 kg

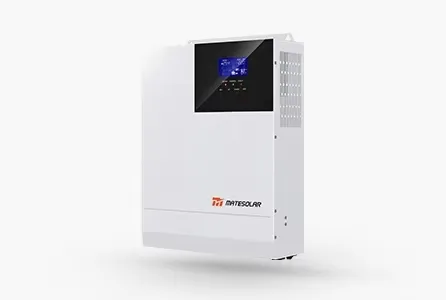

Hybrid Solar Inverter
48V low voltage battery support. Transformer isolation design. 6 time periods for charging/discharging. Max 10pcs parallel support.

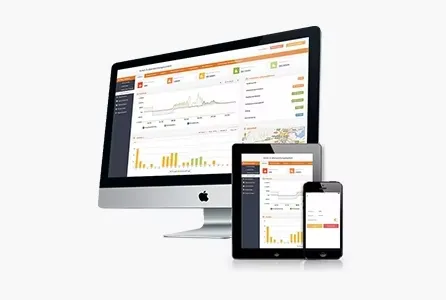

Monitoring System
One-click installation and registration. Supports full lifecycle data storage to ensure security and traceability.

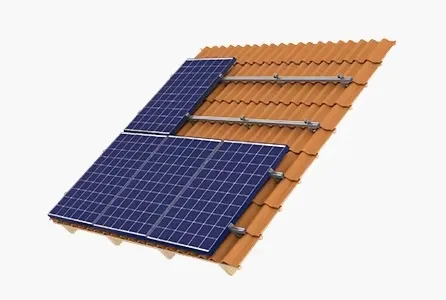

PV Mounting System
AI6005 & SUS304 high-strength materials. Customized for Roof or Ground installation with optional clamps and clips.
Wall Mounted LiFePo4 Battery
High density LFP cells (>130wh/kg). Self-developed 3-level BMS. Long cycle life up to 6000 cycles.

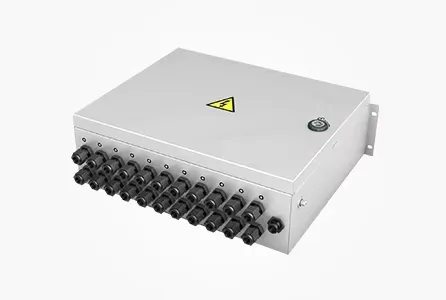

PV Combiner Box
IP65 Rated for outdoor safety. Rated Voltage 1000VDC. Suitable for 4-6mm2 input terminals.

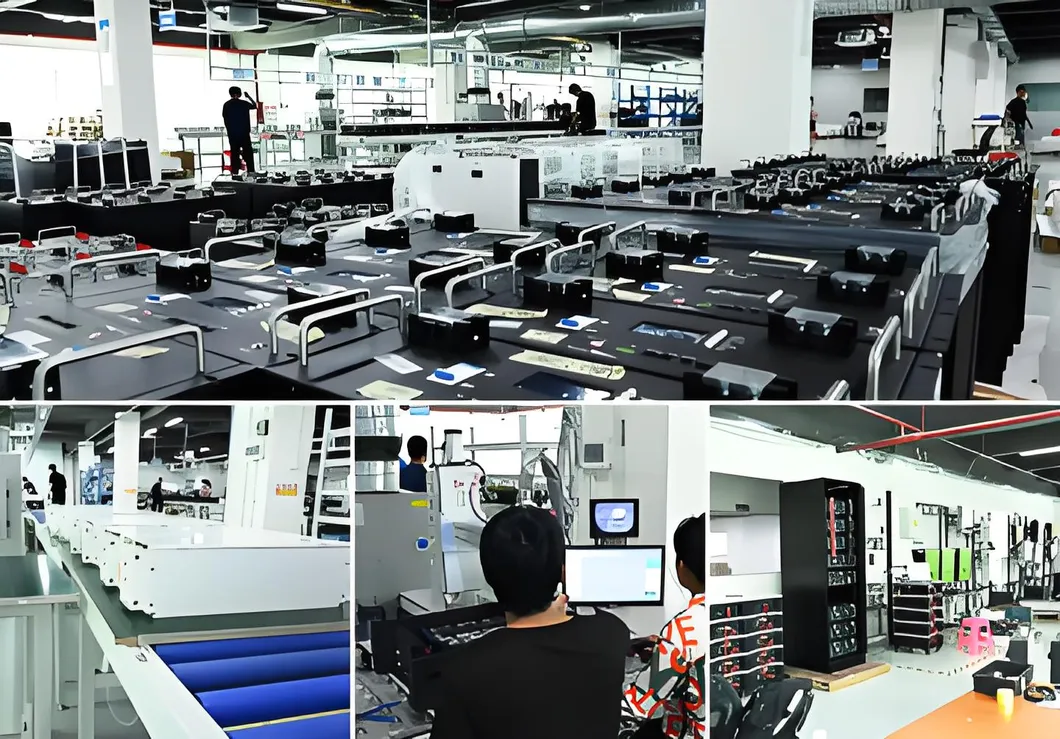

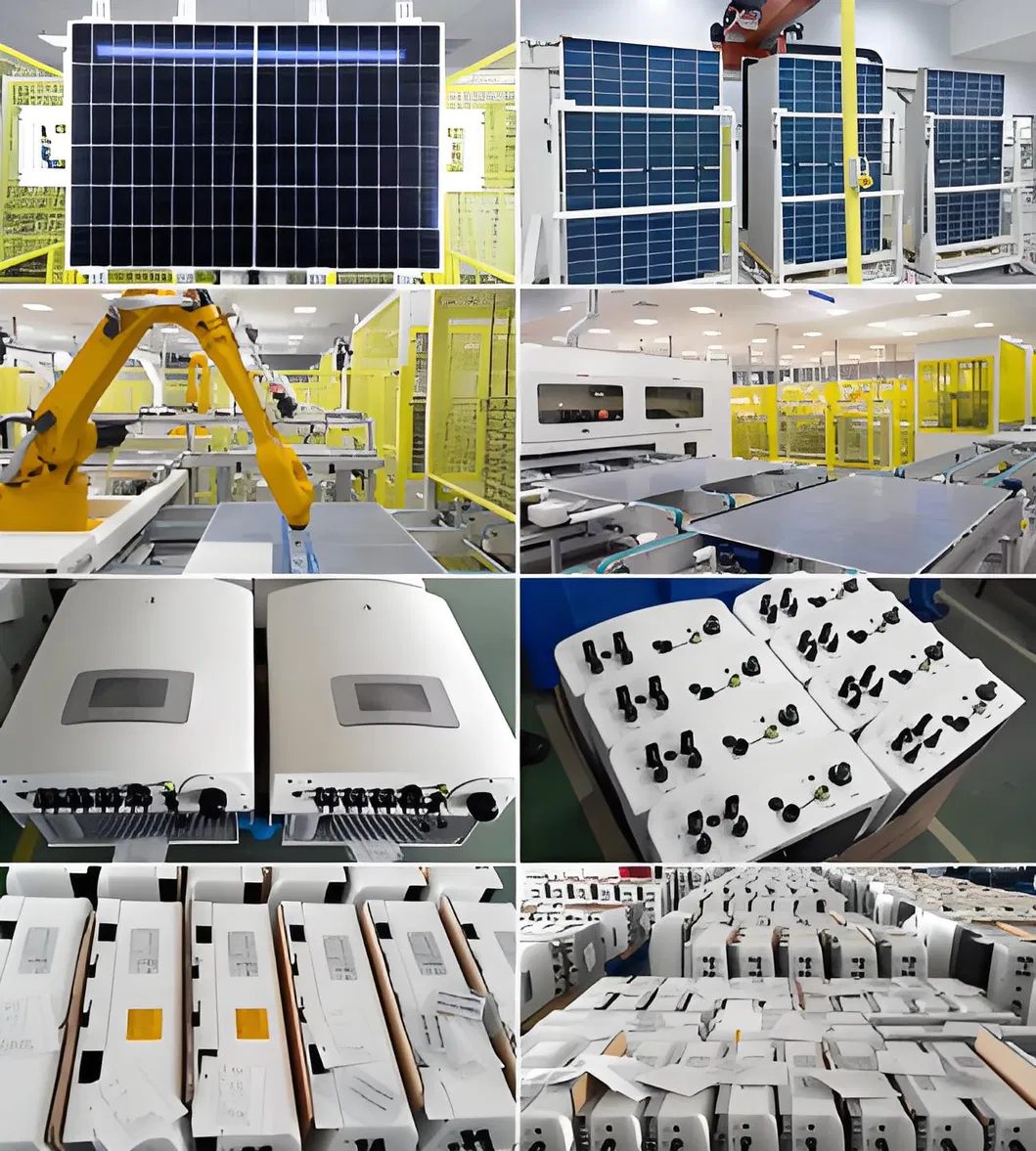

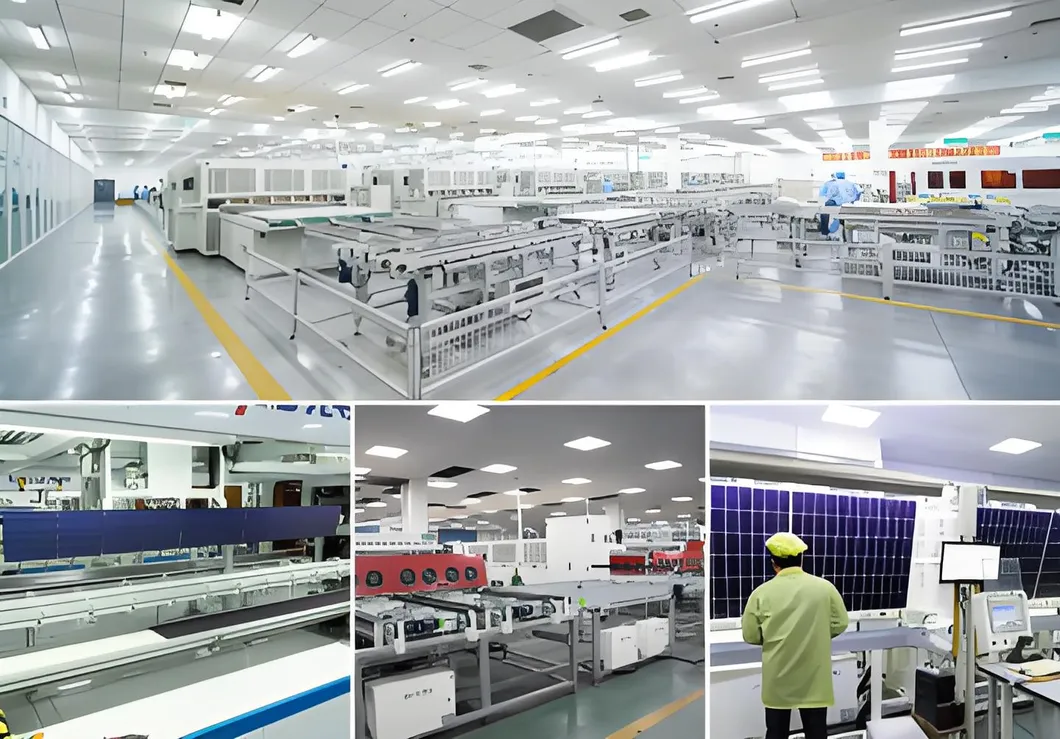

Manufacturing & Projects
Specializing in the research, development, and production of solar PV products since 1998, exported to over 86 countries. Our facility covers 150,000 square meters with professional expertise.

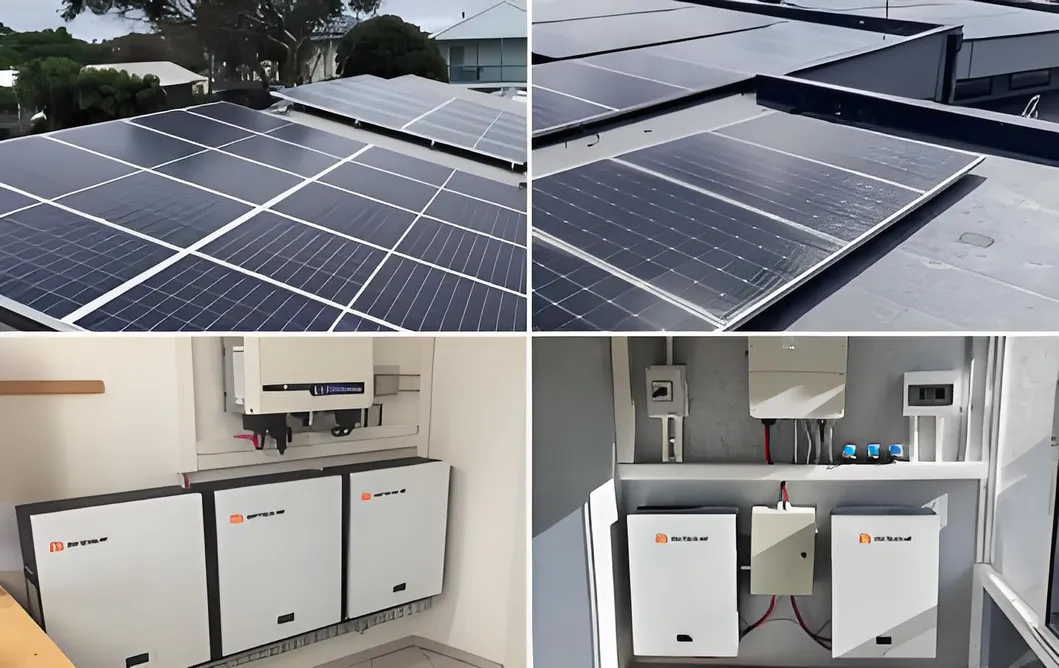

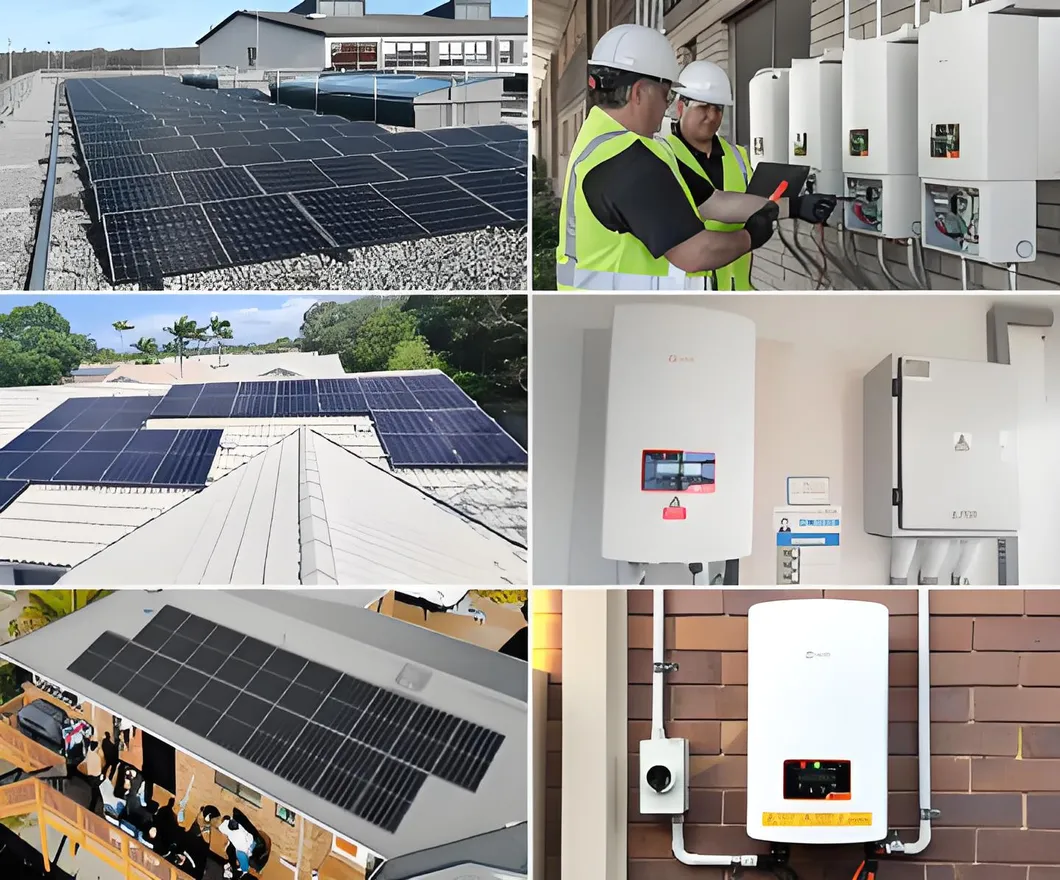

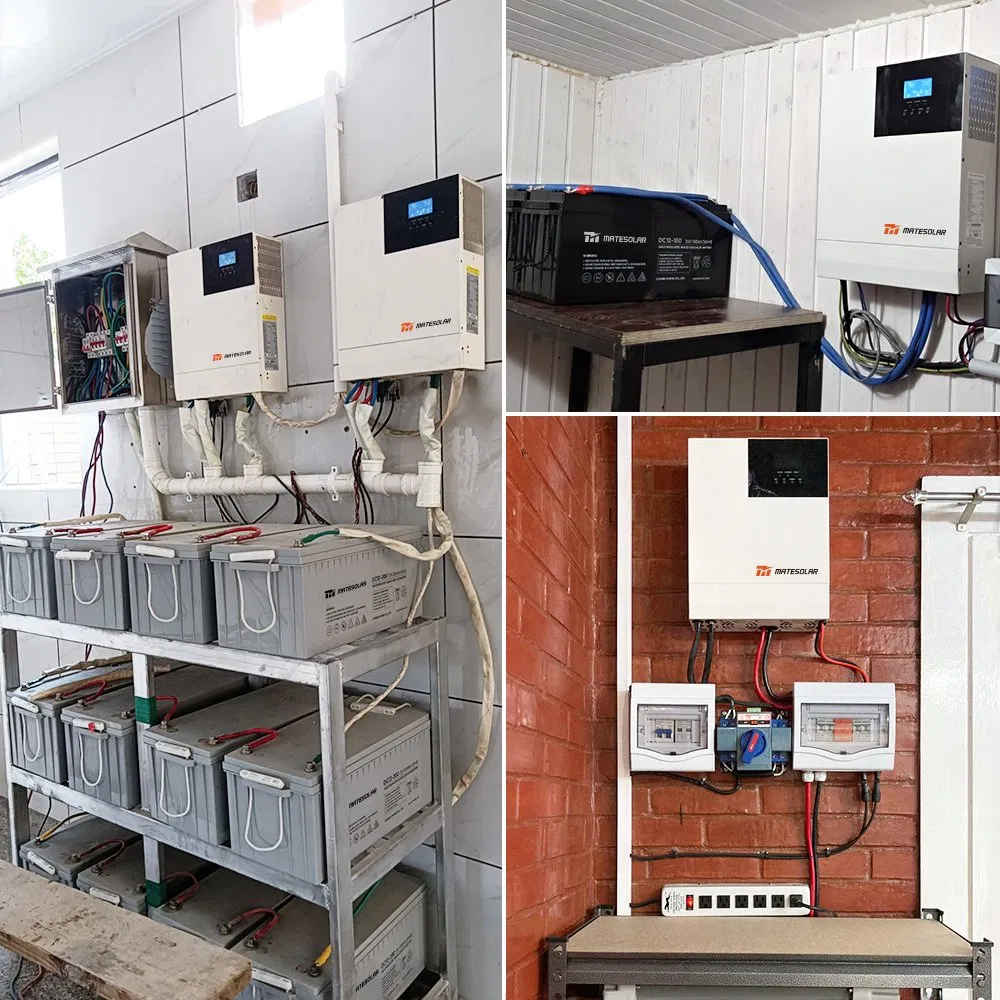

Global Installations
Frequently Asked Questions
What is an off-grid solar system?
An off-grid solar system operates independently of the local utility grid. It uses solar panels to generate electricity and batteries to store that energy for use when the sun isn't shining.
Can this system run a whole house?
Yes, depending on the capacity chosen (3KW to 30KW). We offer customized configurations to match your household's total energy consumption, including appliances and HVAC systems.
How long does the LiFePO4 battery last?
Our lithium batteries are designed for high durability, typically offering over 6,000 cycles, which equates to roughly 10-15 years of daily use depending on discharge depth.
Is the mounting system compatible with all roofs?
We provide customized mounting solutions for various types, including asphalt shingle, tile, and metal roofs, as well as ground-mount options.
Do you provide technical support for installation?
Absolutely. We provide complete technical support, including wiring diagrams, installation manuals, and remote technical assistance to ensure your system is set up correctly.
