| Basic Information | |
|---|---|
| Model NO. | XINGHUI-30-50K-S |
| Product Name | Solar Energy System |
| Cycle Life | 8000 Cycles |
| Protection Class | IP20 |
| Operating Voltage | 150V~850V |
| System Efficiency | >90% |
| Operating Temp | -25°C~55°C |

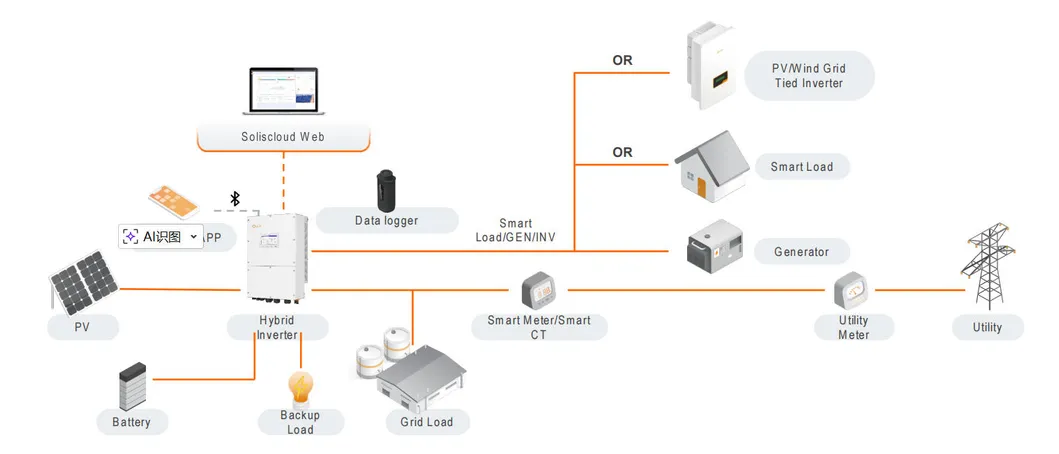

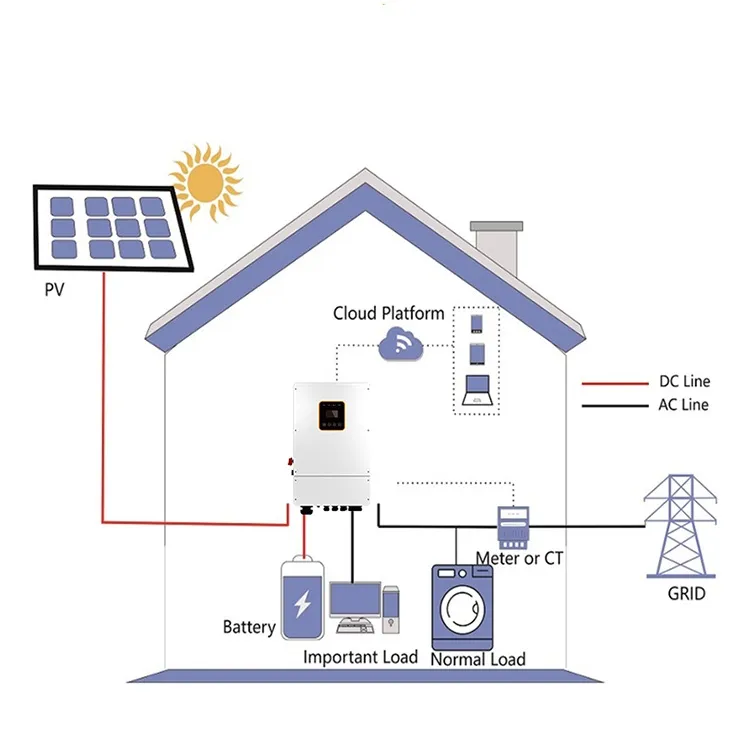

A complete hybrid solar photovoltaic (PV) power generation system consists of a power generation unit, a conversion unit, an energy storage unit, and control units. Each component functions collaboratively to ensure stable operation.
Photovoltaic modules generate electricity to supply local loads. Excess energy is stored in batteries. Once fully charged, remaining energy can be fed into the grid for benefits.
Storage batteries discharge via the PCS to supply local loads. If battery levels are low, the grid automatically replenishes power to prevent outages.
During off-peak periods (low prices), the grid charges the battery. During peak periods (high prices), the battery discharges, significantly reducing purchase costs.
System automatically switches to "off-grid mode" within milliseconds, ensuring critical equipment in factories or communication camps stays powered.

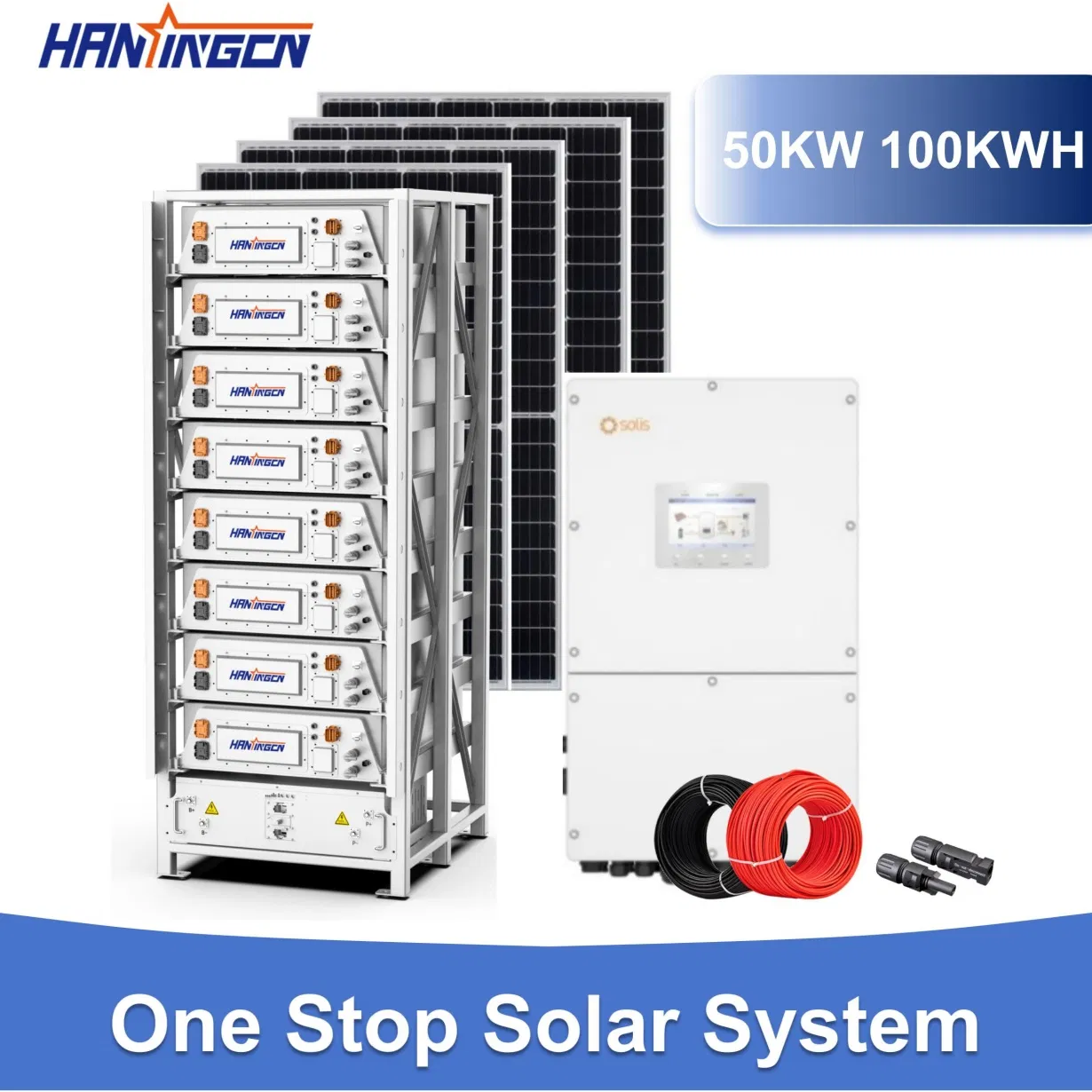

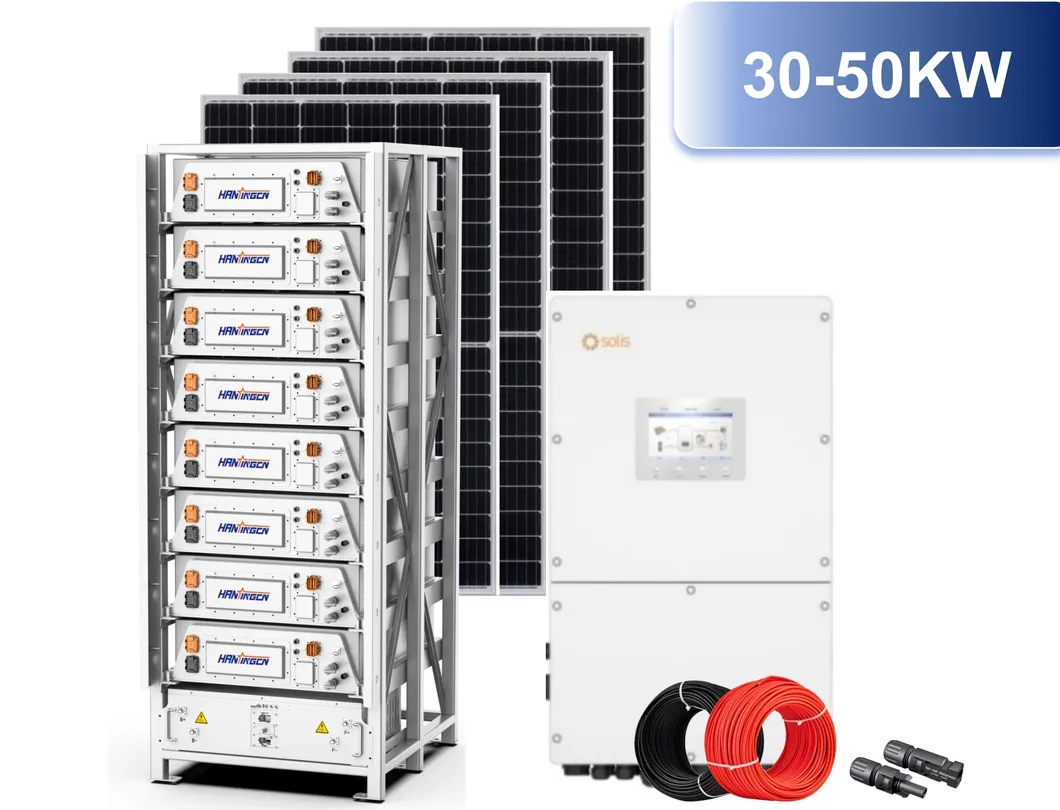

| Specification | 30KW System | 40KW System | 50KW System |
|---|---|---|---|
| Solar Panel Array | 30-33KW | 40-44KW | 50-55KW |
| Hybrid Inverter | 30KW | 40KW | 50KW |
| Battery Capacity | 60kwh | 80kwh | 100kwh |
| PV/DC Cable | 300 Meters | 400 Meters | 500 Meters |
| Connectors | 20 Pairs | 20 Pairs | 30 Pairs |

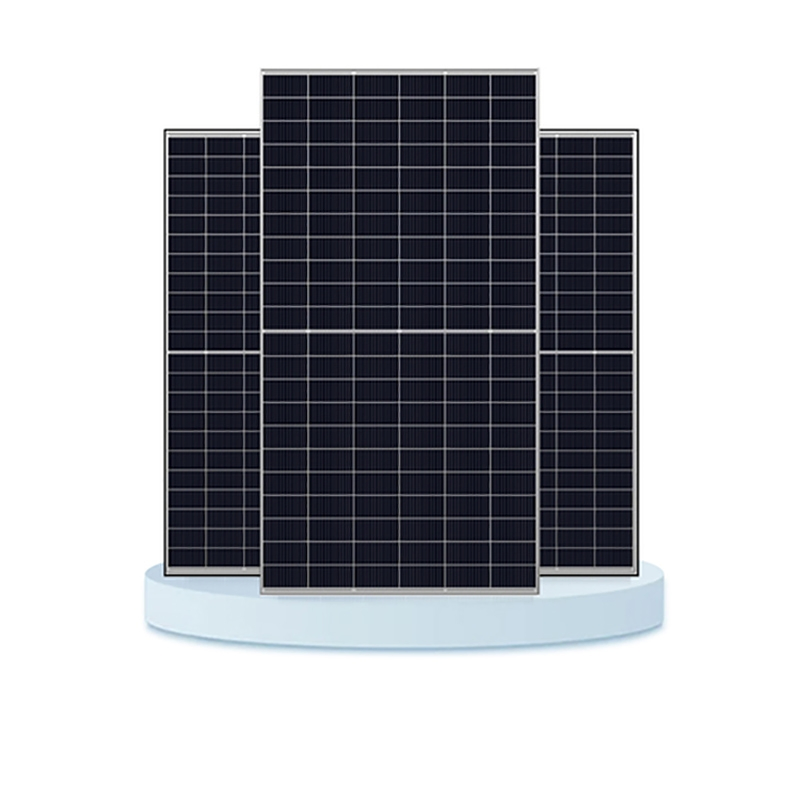

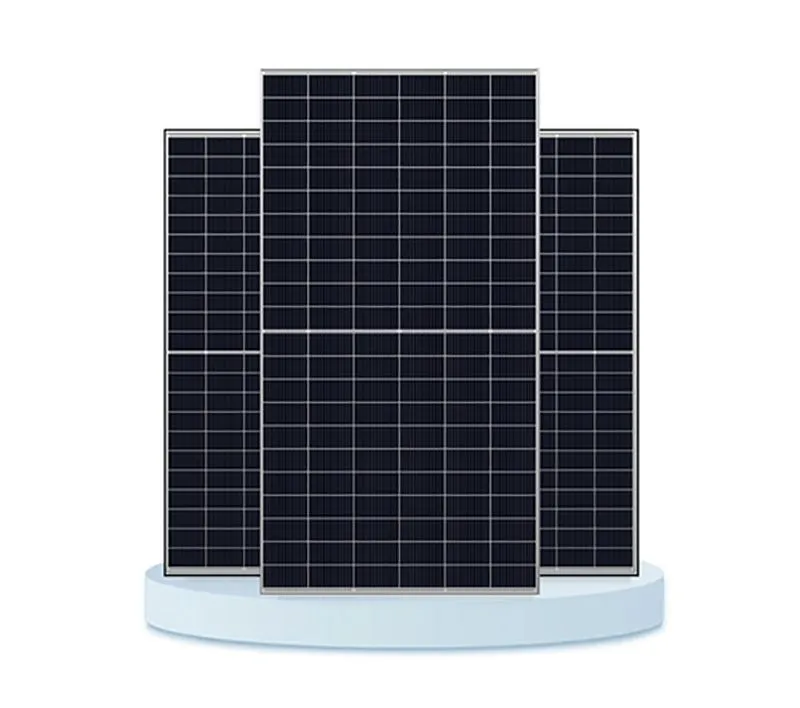

Solar Panels: High conversion efficiency with a 25-30 year lifespan. Resistant to extreme wind, sand, and UV.

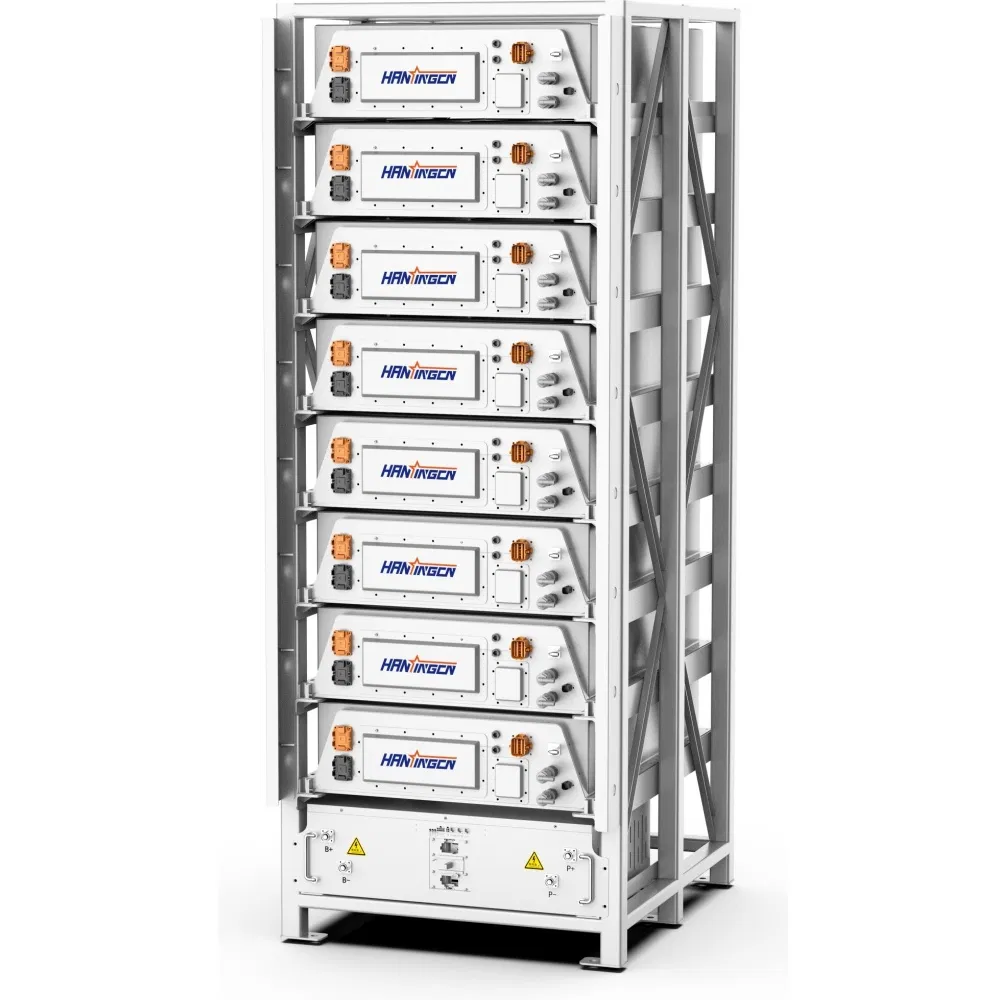

LiFePO4 Battery: 8000+ deep cycles. High safety with thermal stability and modular installation.

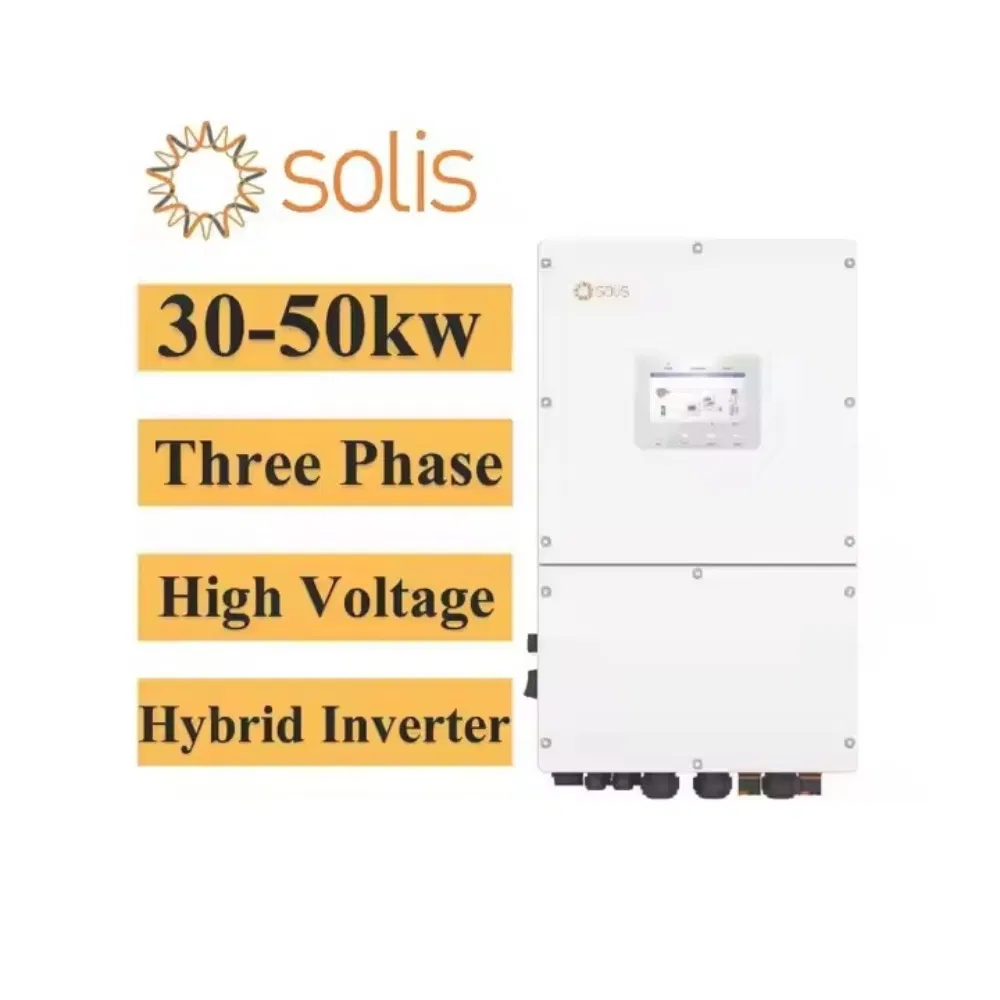

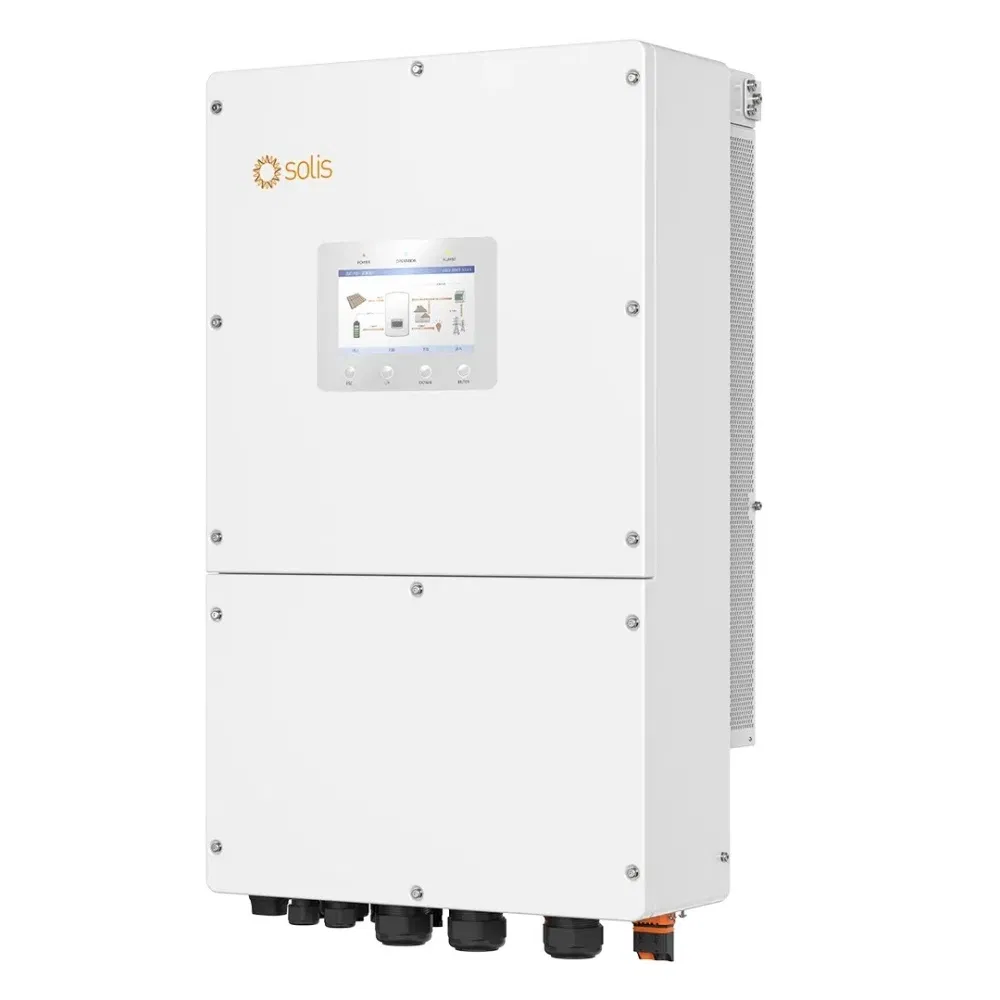

Hybrid Inverter: Integrates PCS, PV grid-tie, and EMS functions. Supports 200% DC oversizing.

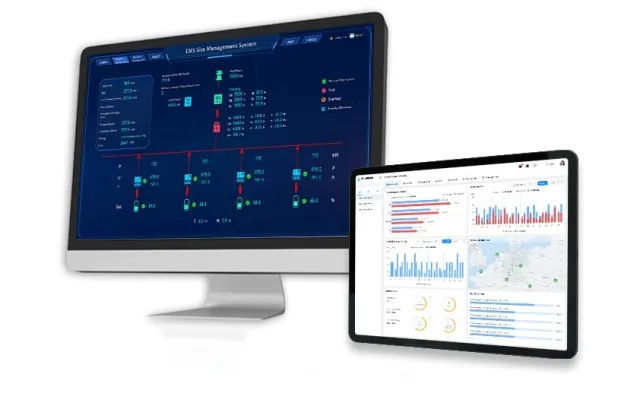

EMS Management: Real-time monitoring and optimal charging strategies to enhance energy utilization.

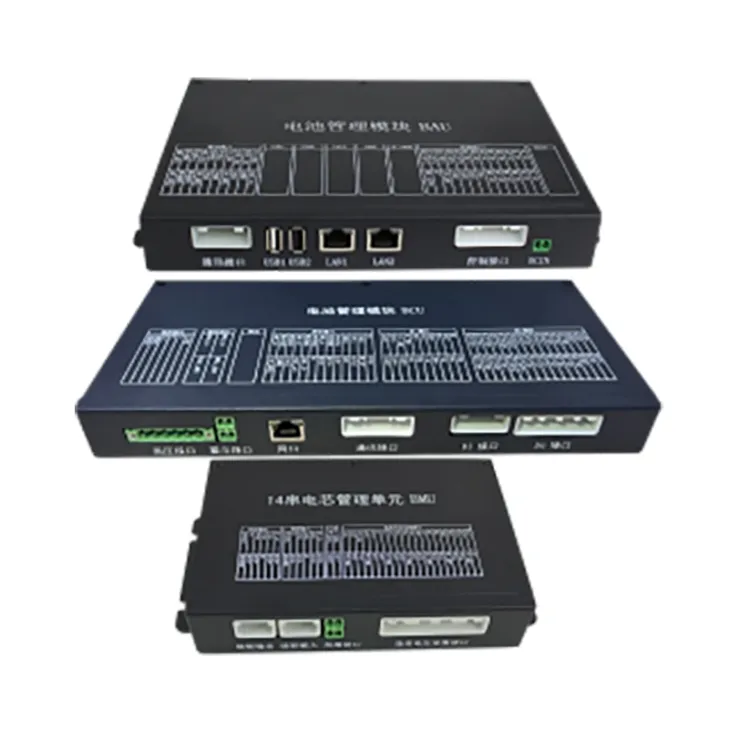

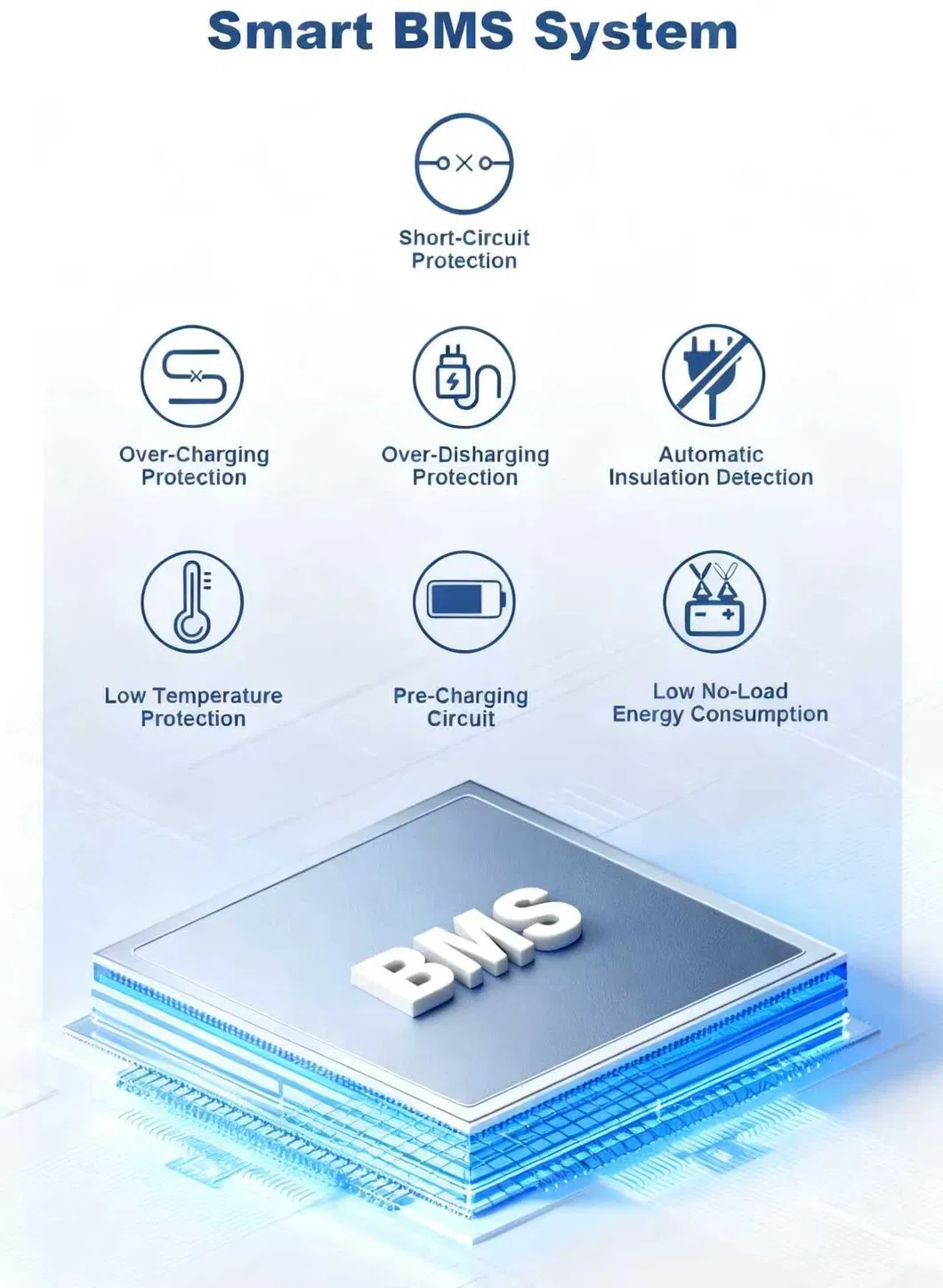

BMS Protection: Monitors voltage, temp, SOC, and SOH of each cell to ensure battery longevity.

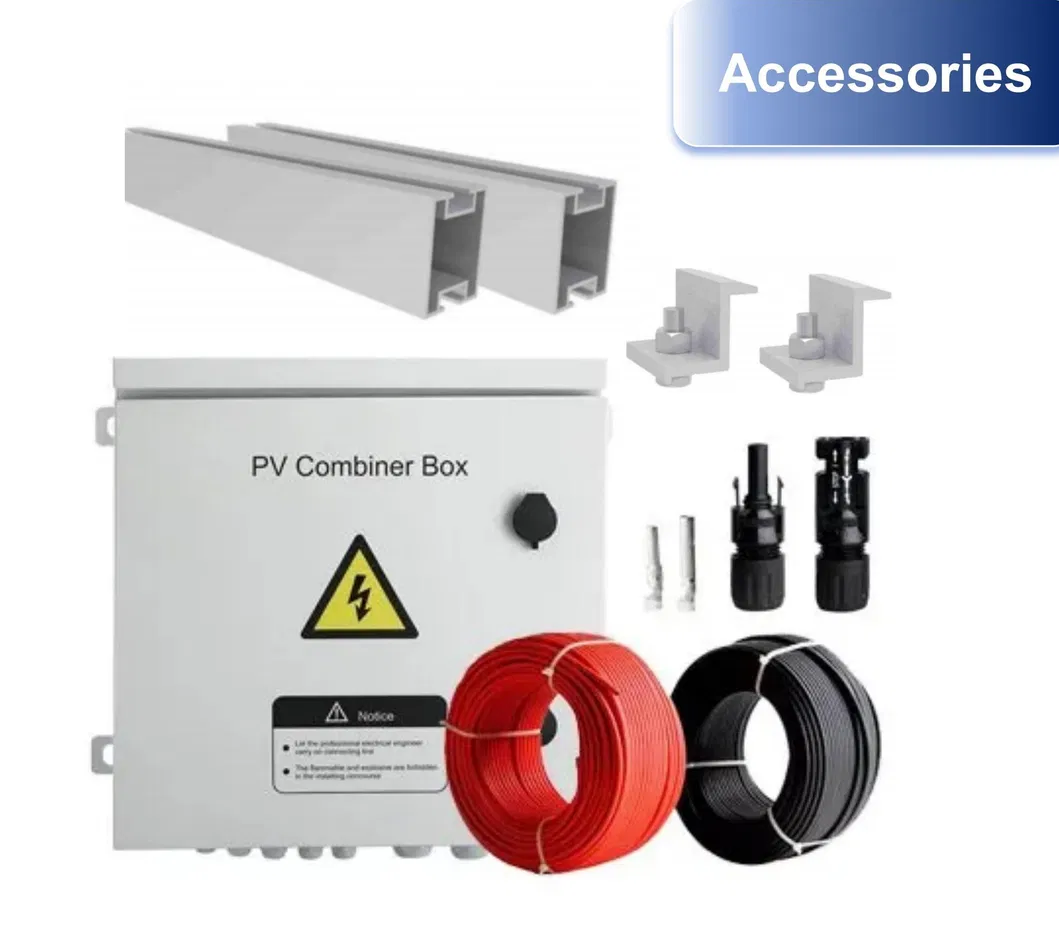

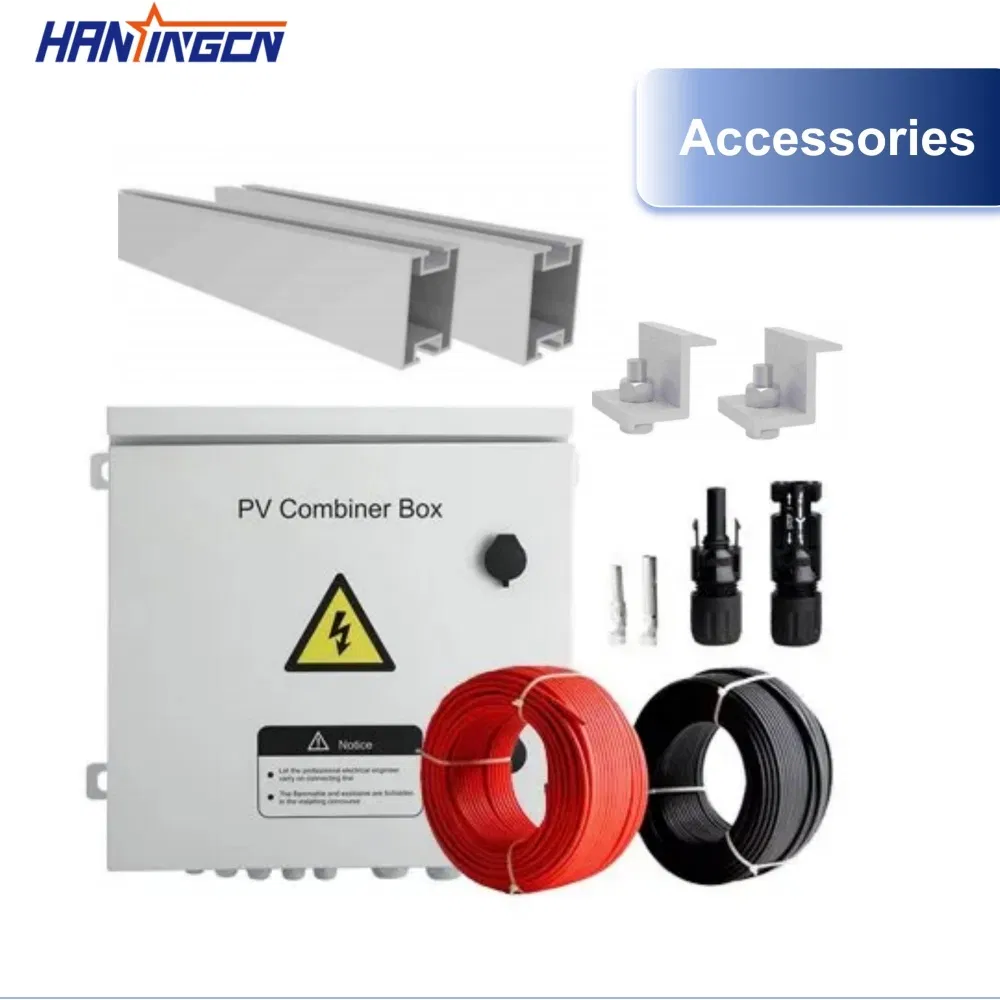

Support System: Aluminum alloy or galvanized steel. Adaptable to rooftops, ground, or hillsides.
