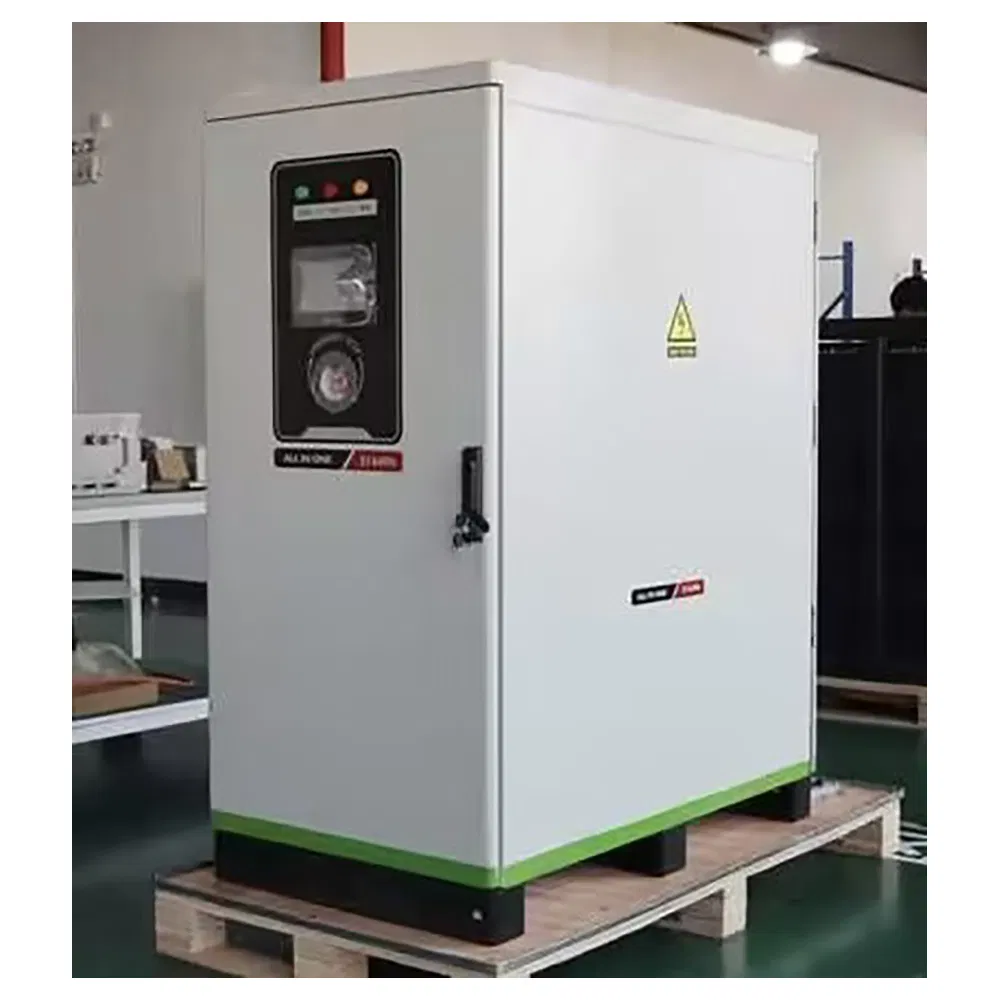

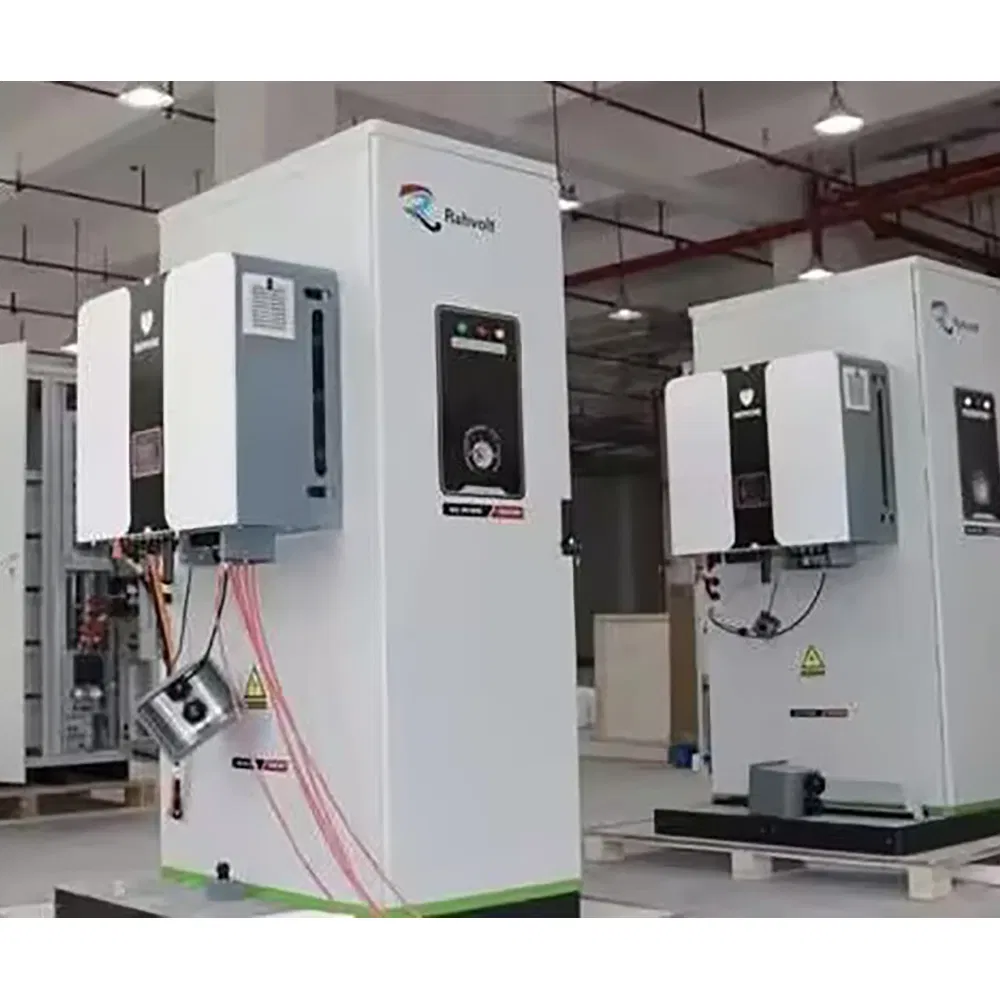

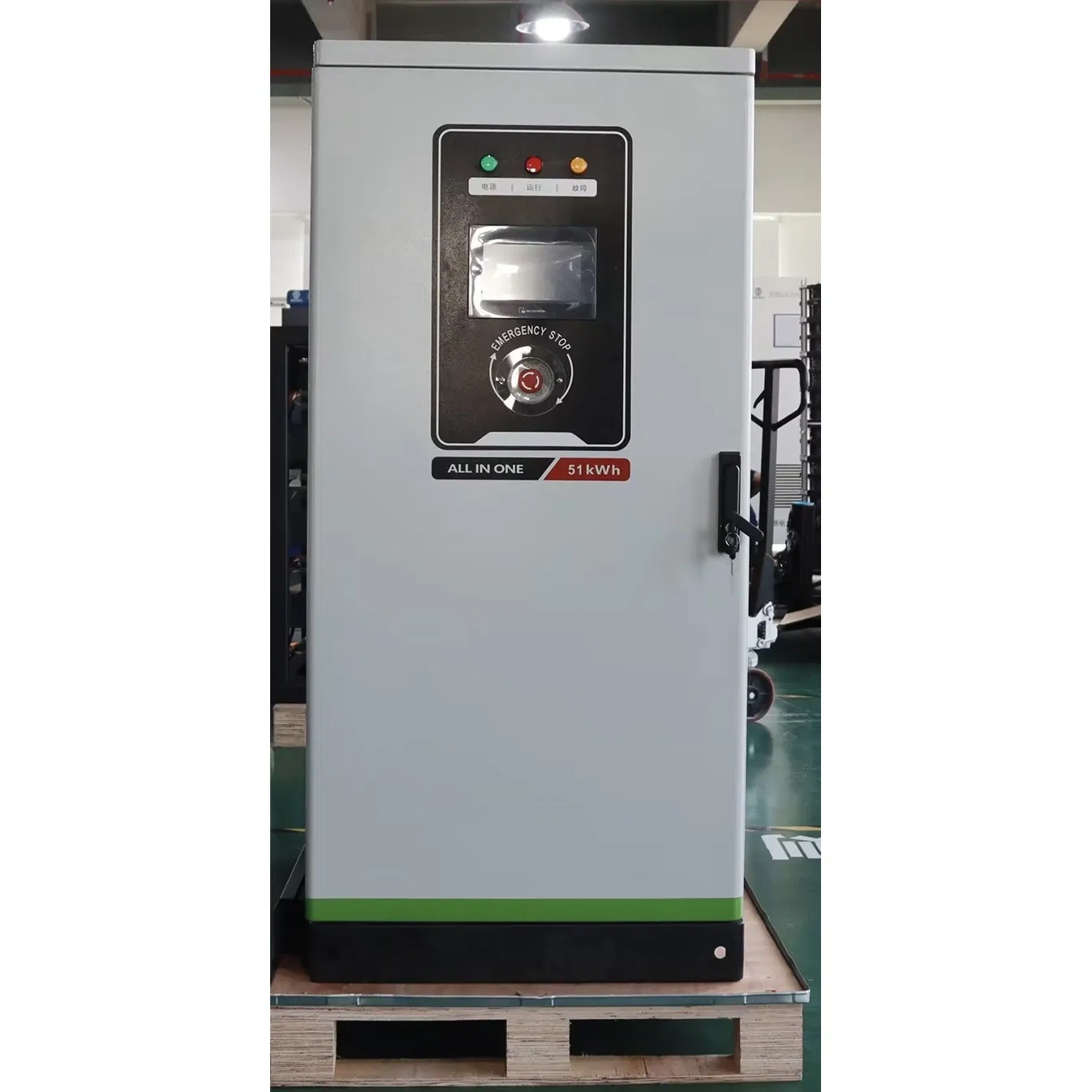

102kwh High-Voltage Energy Storage System for the Commercial

Customization:	Available
Weight:	1.6T
Warranty:	5Year

i

Basic Info

Model NO.

YH-ESS-50kw

Cycle Life

10000

Nominal Capacity

50KW

Cell Type

3.2/206Ah

Battery Config

2P160S

Cabinet Size

1050*1340*2160mm

Protection Level

IP55

Origin

China

D

Product Description

102kwh High-Voltage Energy Storage System for Commercial Use
Battery system: 100Ah battery cell 2P16S PACK, 10 modules in clusters, each cluster 102kWh, including sub-control box and BMS.
Inverter: YH - EST50KH - 50kw

P

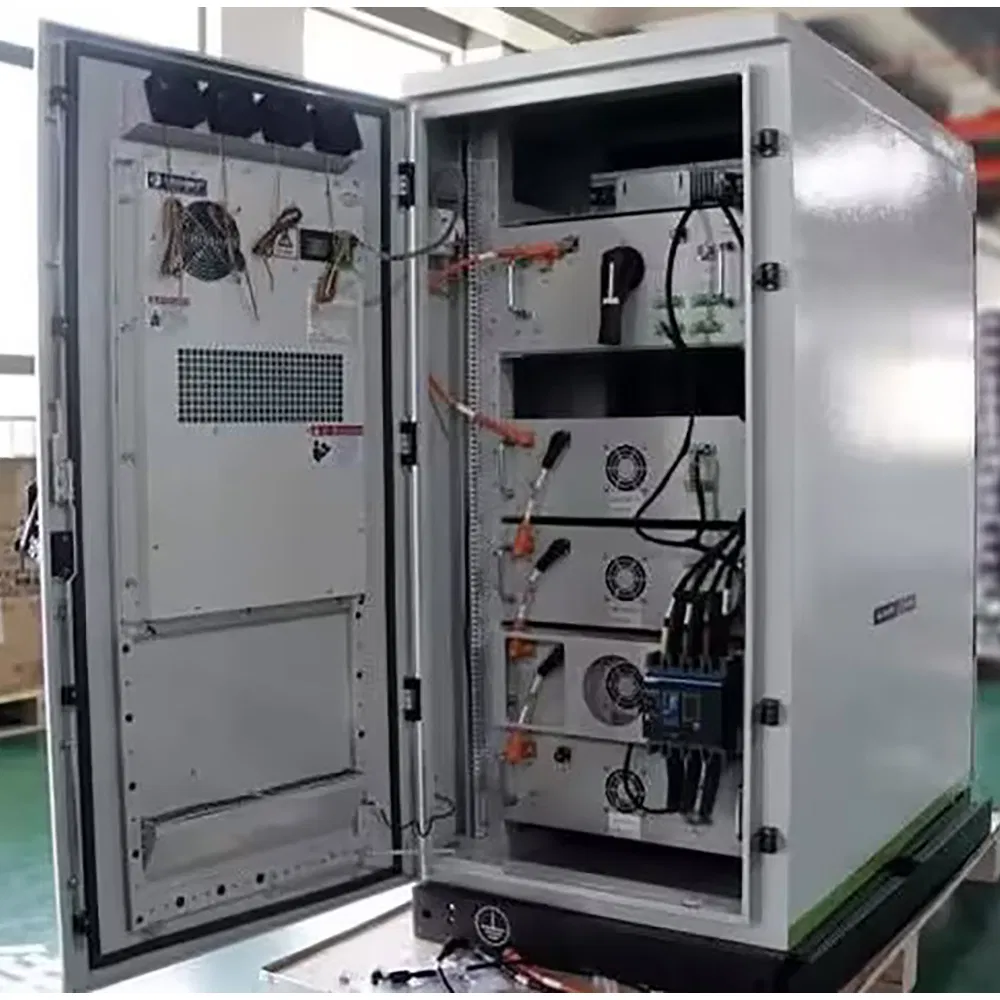

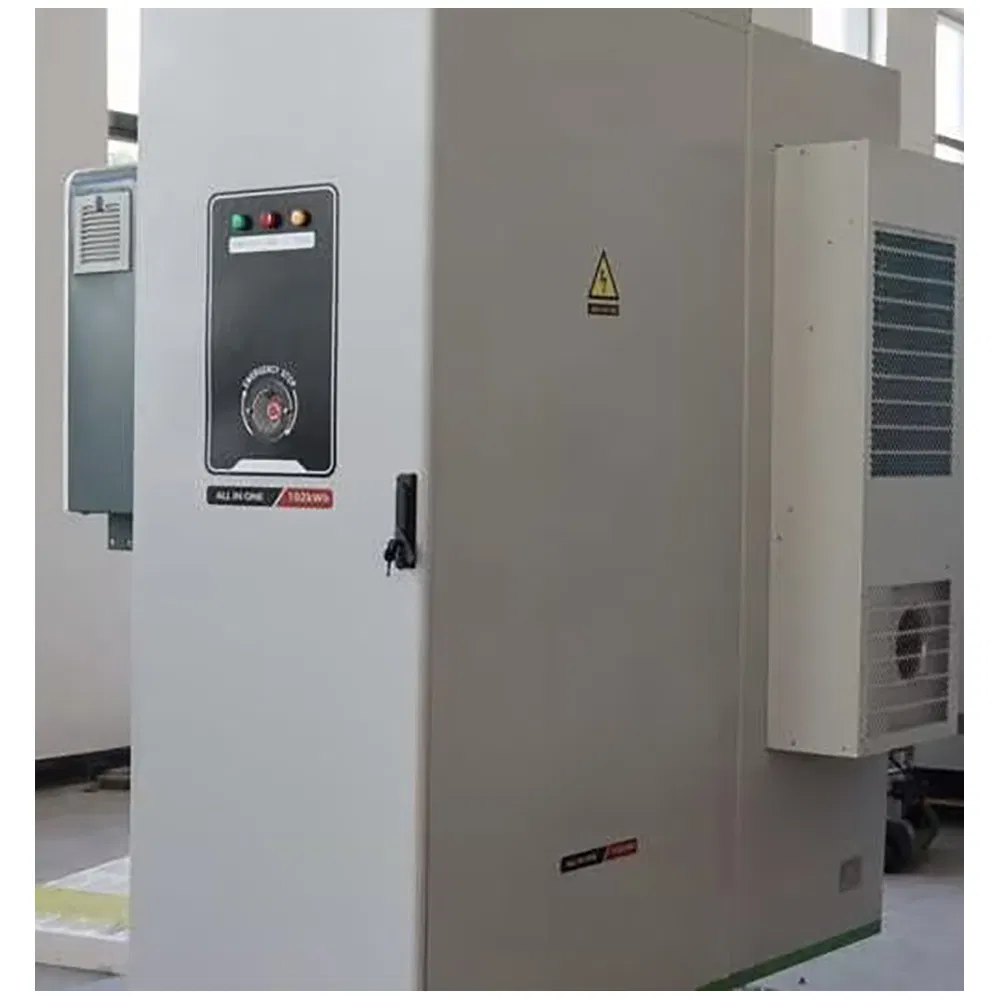

Detailed Photos

T

Product Parameters

Cell Type	LFP-3.2V-100Ah
System Battery Configuration	2P160S
Nominal capacity [Ah]	200Ah
Nominal voltage [Vdc]	51.2
Voltage range [Vdc]	400~584VDC
Charge and discharge rate	0.5P
Storage temperature	-20 ºC ~ + 55 ºC (reduction above 40 ºC)
Weight [kg]	1.6T
Charge and discharge cycles	6000
Protection level	IP55
Size (W * D * H)	105013402160mm

C

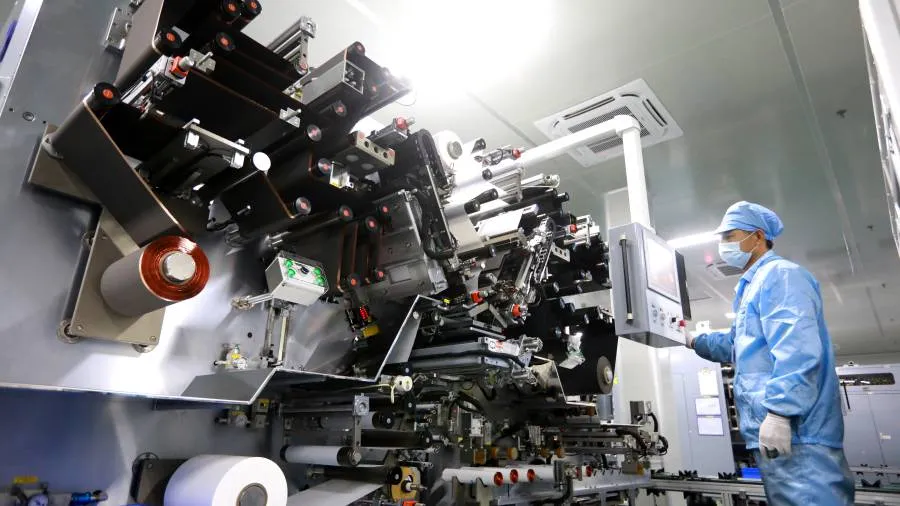

Profile & Capabilities

We are a high-tech green energy enterprise specializing in customized solutions and products for lithium-ion batteries. Our expertise spans across various applications including solar energy storage systems, electric vehicles, industrial forklifts, marine vessels, and AGVs.

We provide comprehensive battery solutions including standard battery cells, modules, and tailor-made battery packs using Lithium Iron Phosphate (LFP) and NMC technologies.

F

FAQ

Do you have a Minimum Order Quantity (MOQ) for your batteries?

We want to support our customers without specific MOQ requests for standard orders.

What is the typical lead time for production?

Samples typically take 7 days, while mass production requires 3-5 weeks depending on the order quantity.

Is it possible to customize products with my own logo?

Yes, we warmly welcome OEM orders and can print your logo on the products.

How long is the warranty period for your energy storage systems?

In general, our standard warranty period is 1 year.

What certifications do your battery products hold?

Our products are certified with CE, FCC, ROHS, UN38.3, and MSDS among others.

How are the goods shipped and how long does delivery take?

We use DHL, UPS, FedEx or TNT for samples. For mass orders, we offer both Sea and Air shipment options.
