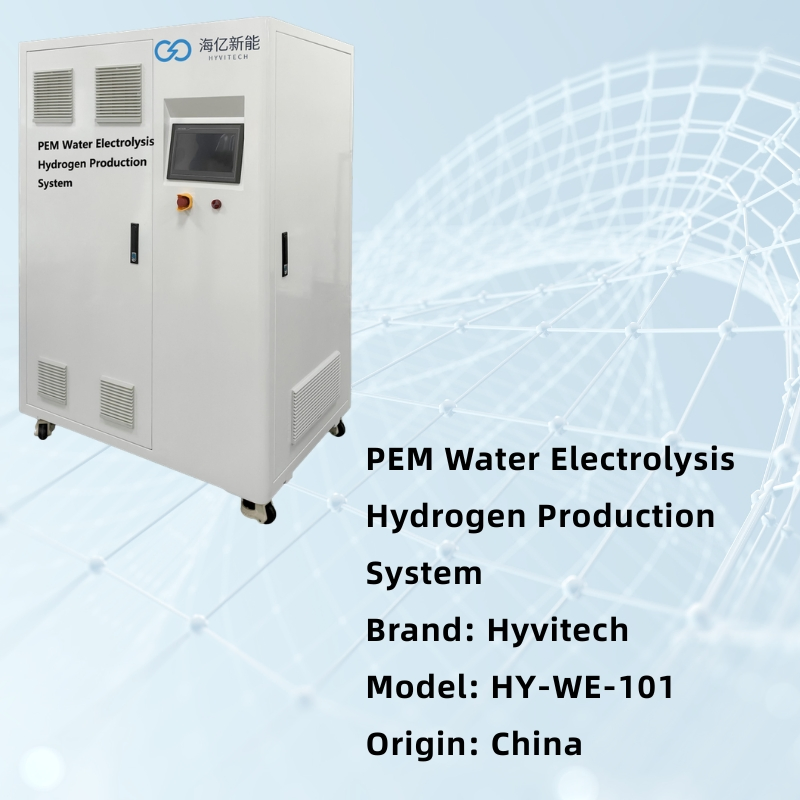

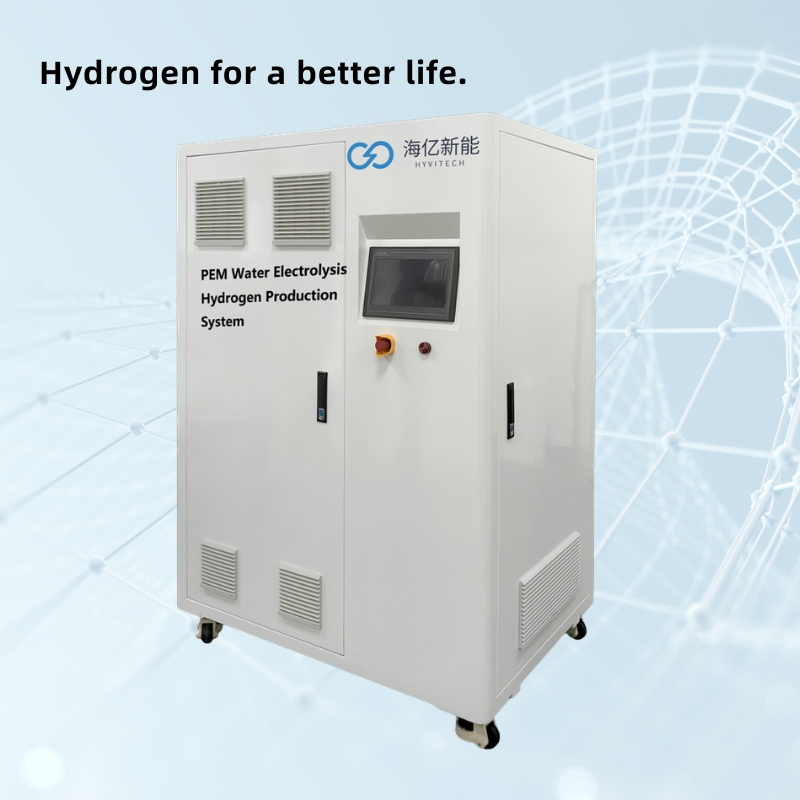

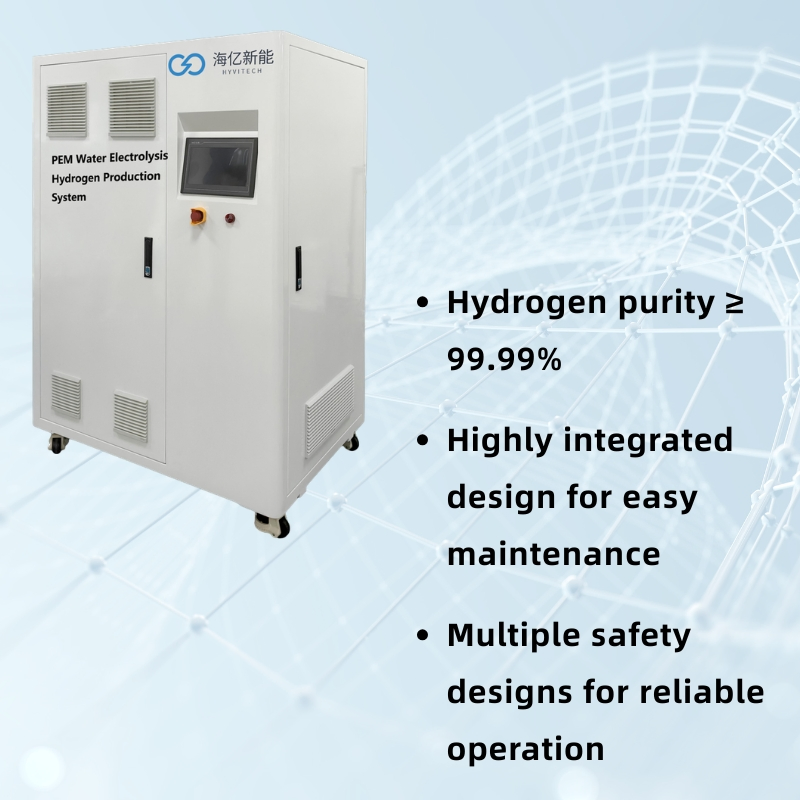

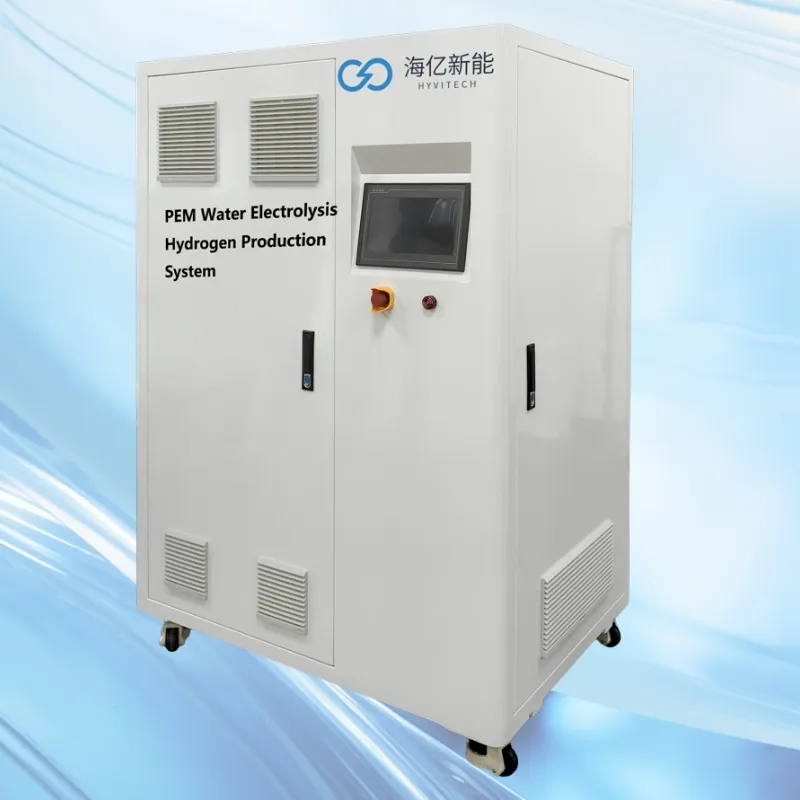

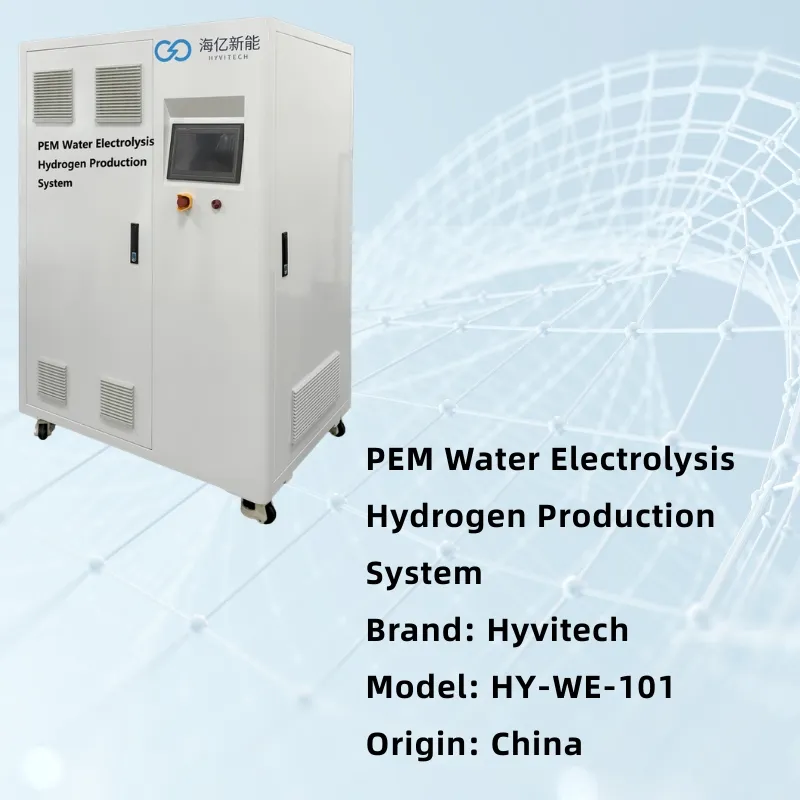

PEM Water Electrolysis Hydrogen Production System
This system features simple installation, easy operation, and high reliability, with internationally advanced technical specifications. It is designed to provide convenient hydrogen supply assurance for various scenarios.

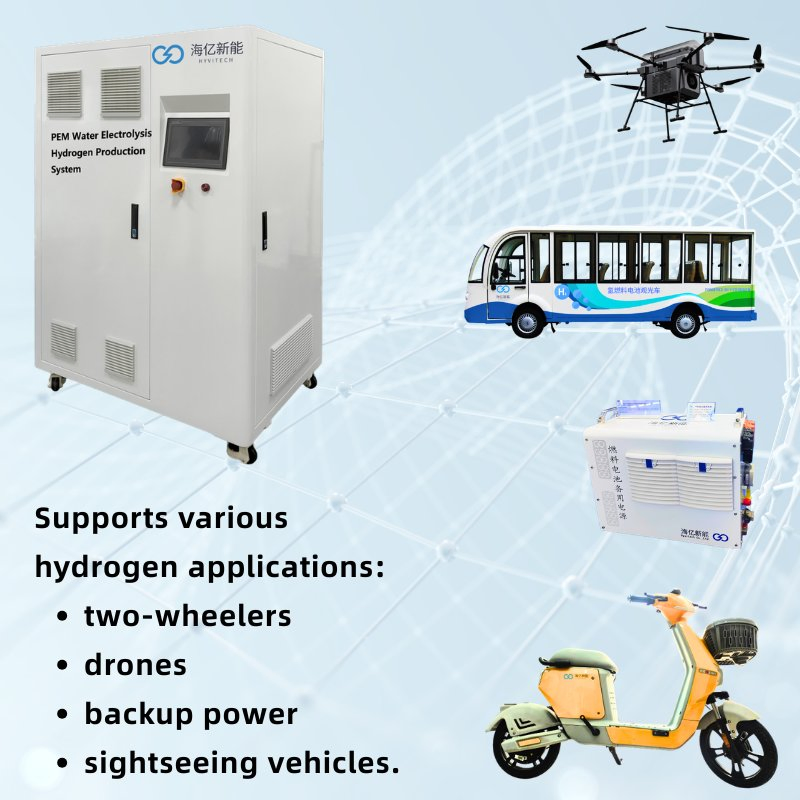

Widely applied in hydrogen scenarios such as drones, two-wheelers, sightseeing vehicles, golf carts, robots, and forklifts.
The system integrates an electrolyzer, power supply module, pure water preparation, gas-water separation, hydrogen purification, and PLC control modules. It provides comprehensive leak detection and safety protection, supporting remote monitoring and automatic drainage.
| Dimensions | 1100 × 800 × 1600 mm | Feed water requirement | conductivity < 0.1 μS/cm |
| Hydrogen production | 1 Nm³/h (1 atm, 0 ℃) | Power supply | 380 V, AC |
| Oxygen production | 0.5 Nm³/h (1 atm, 0 ℃) | Power consumption | 4.4 kWh/Nm³ - H2 |
| H2 purity (pre) | 99.8% | Wide load range | 20% ~ 120% |
| H2 purity (post) | 99.999% | Electrolysis efficiency | 77.7% (HHV) |
| Operating temp | 5 ℃ ~ 65 ℃ | Dynamic response rate | ≥ 15%/s |
| Operating pressure | 0 ~ 3 MPa(G) | H2 dew point | -70 ℃ |
| Water inlet pressure | 1 ~ 4 bar(g) | Cold start time | ≤ 0.5 min |
Committed to the R&D and production of core products such as hydrogen fuel cells and electrolysis systems. The core team boasts over 20 years of experience in hydrogen-related technologies, representing one of the earliest research teams in this field in China.
