| Model NO. | Haorui series |
| Nominal Capacity | 233kwh |
| Cycle Life | >=6000 (@0.5c 80%Soh) |
| Rated Power | 125kw |
| DC Voltage Range | 650V ~ 949V |
| System Average Efficiency | >=90% |
| Humidity | <=70%Rh |
| Levels of Protection | IP 54 |
| Salt Fog Resistance | 600h |
| Fire Extinguisher System | Perfluorhexone |
| Allow Highest Altitude | 2000m |
| Production Capacity | 50000/Year |
| Origin | China |

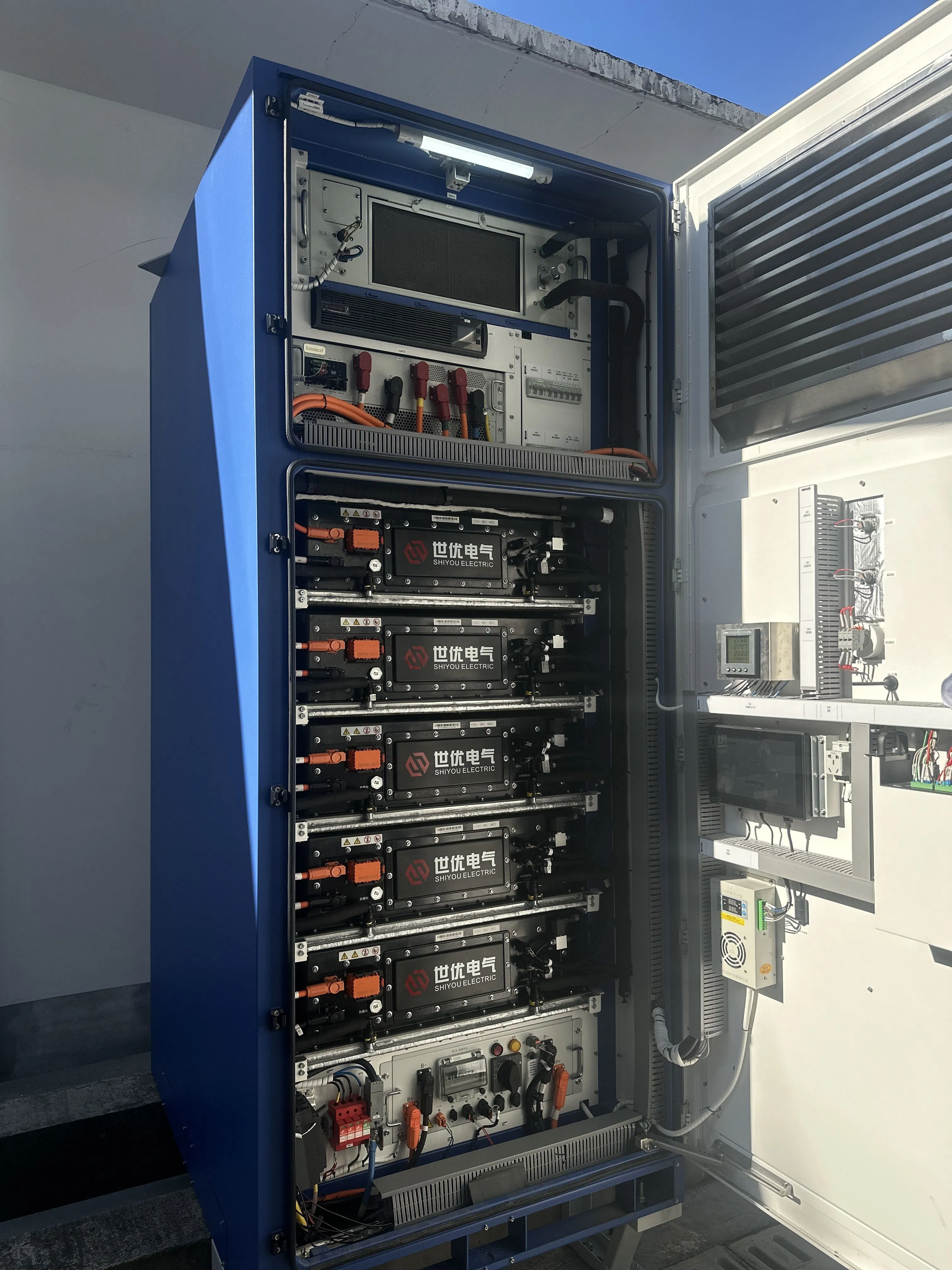

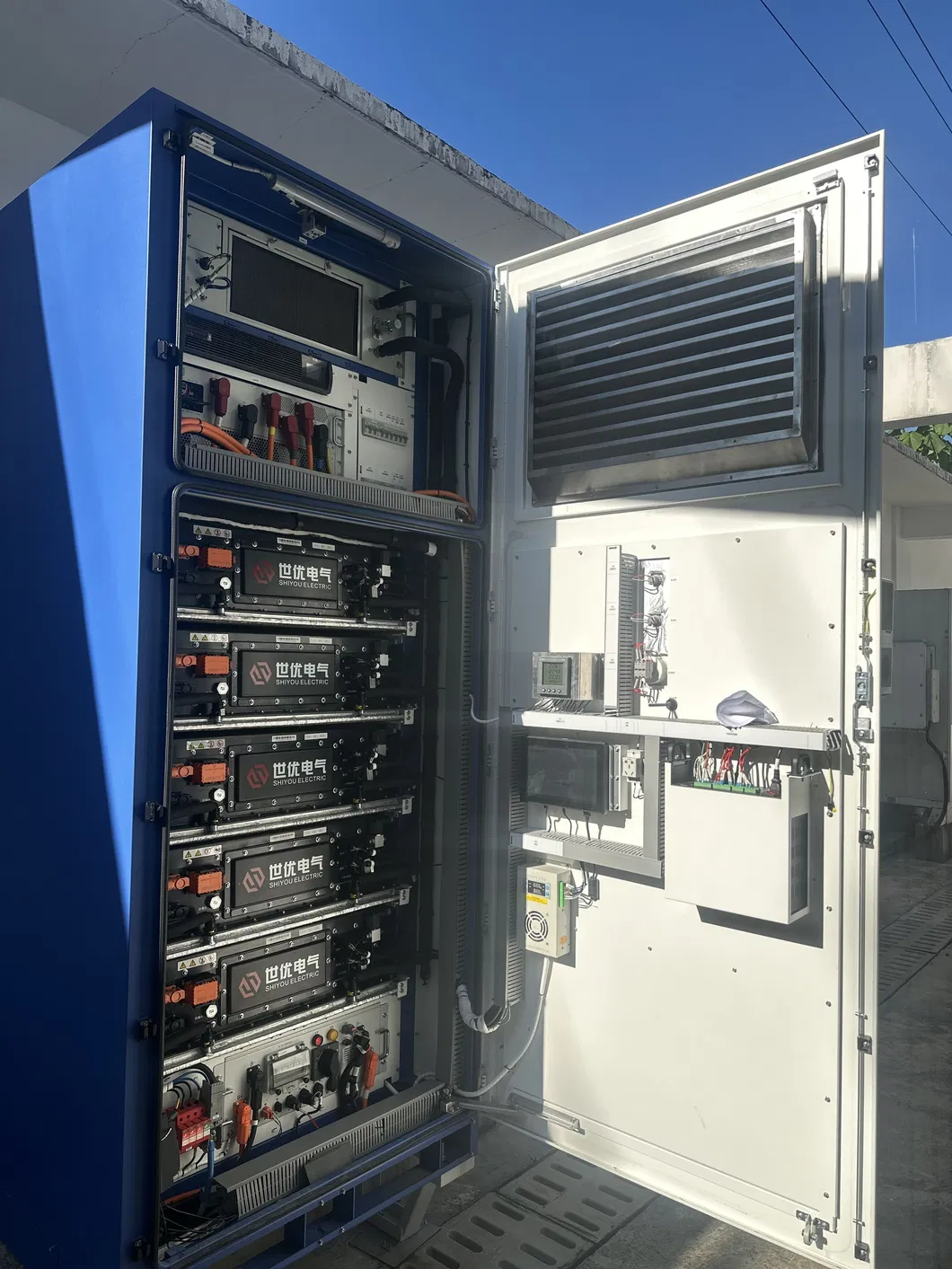

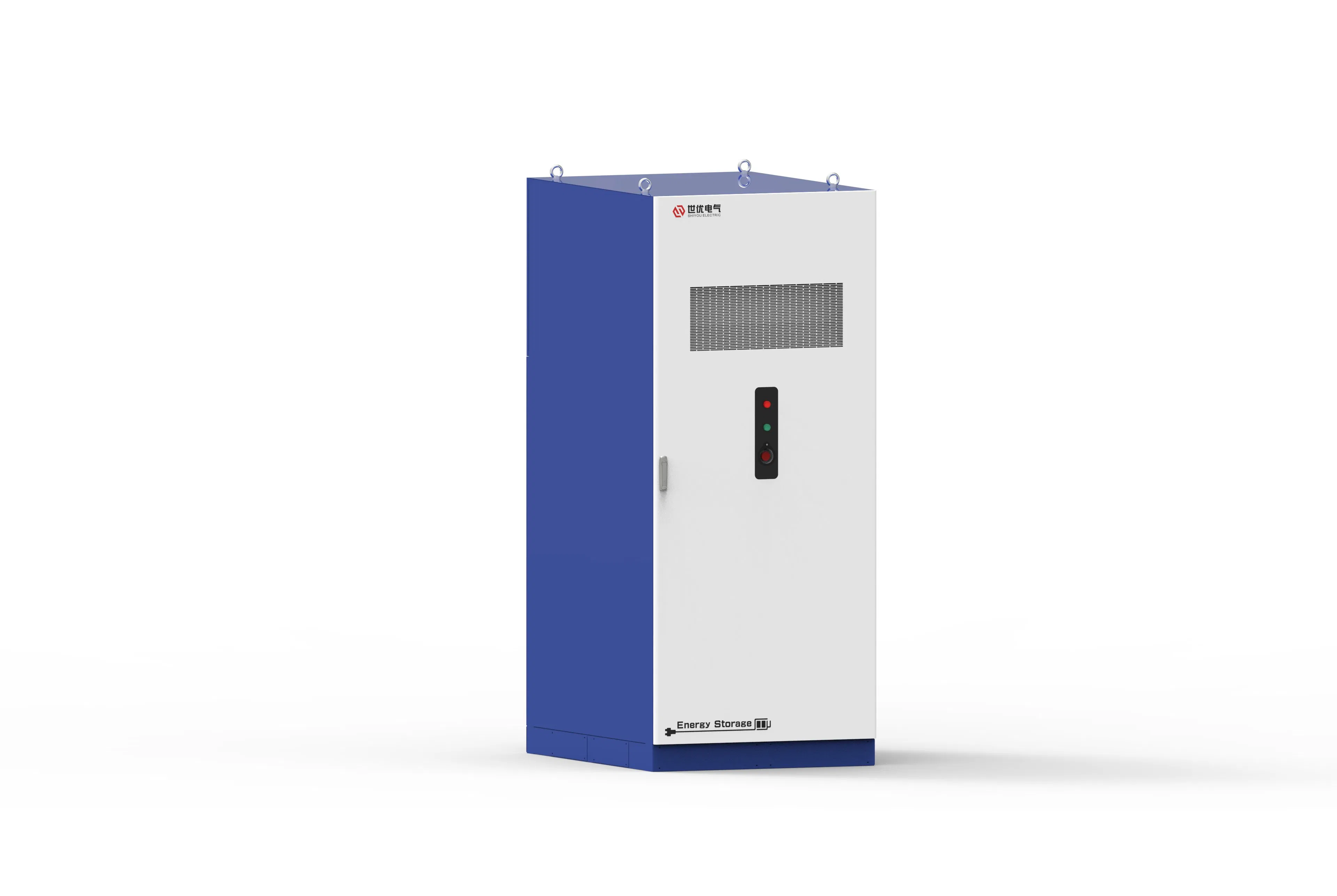

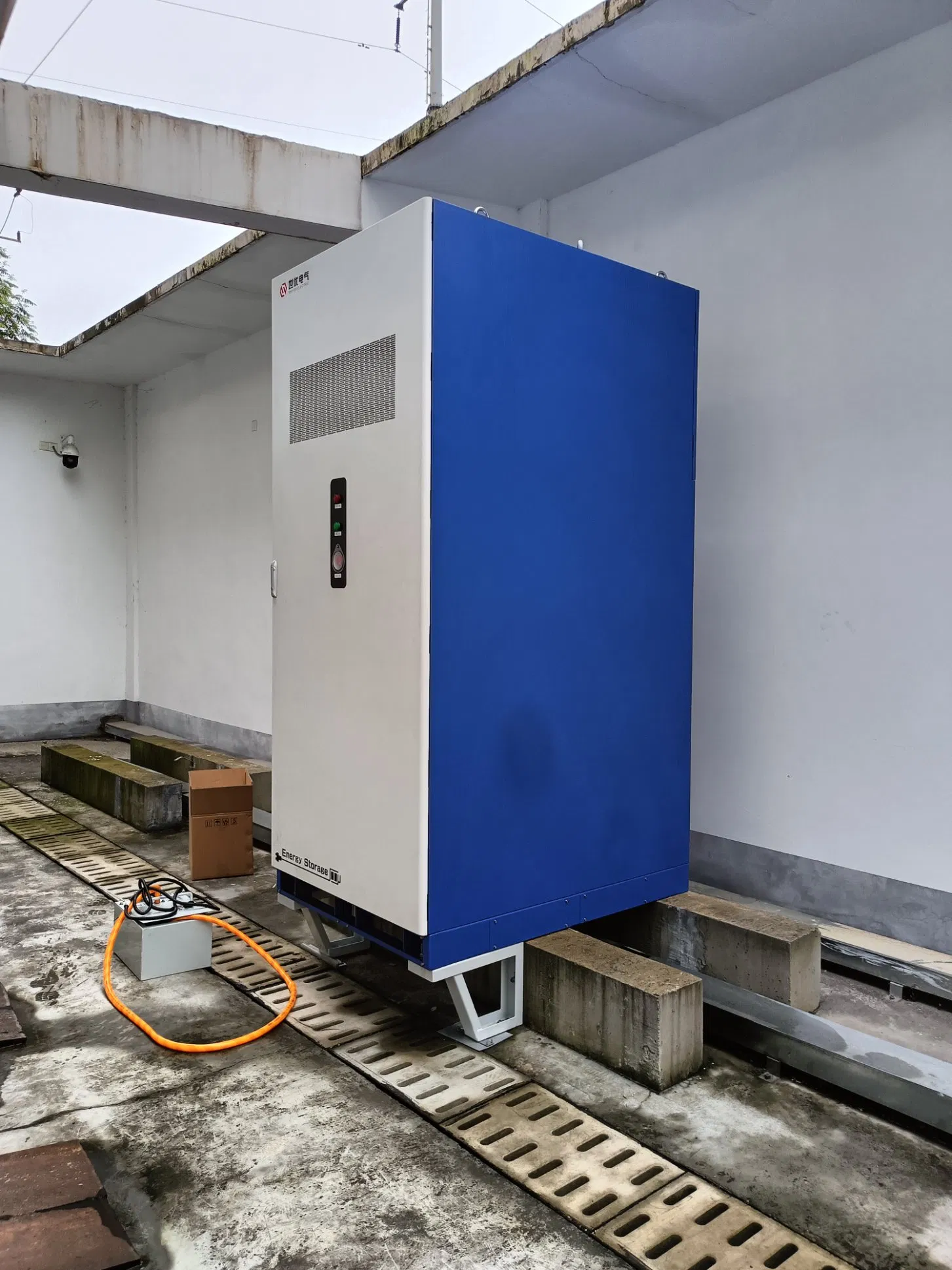

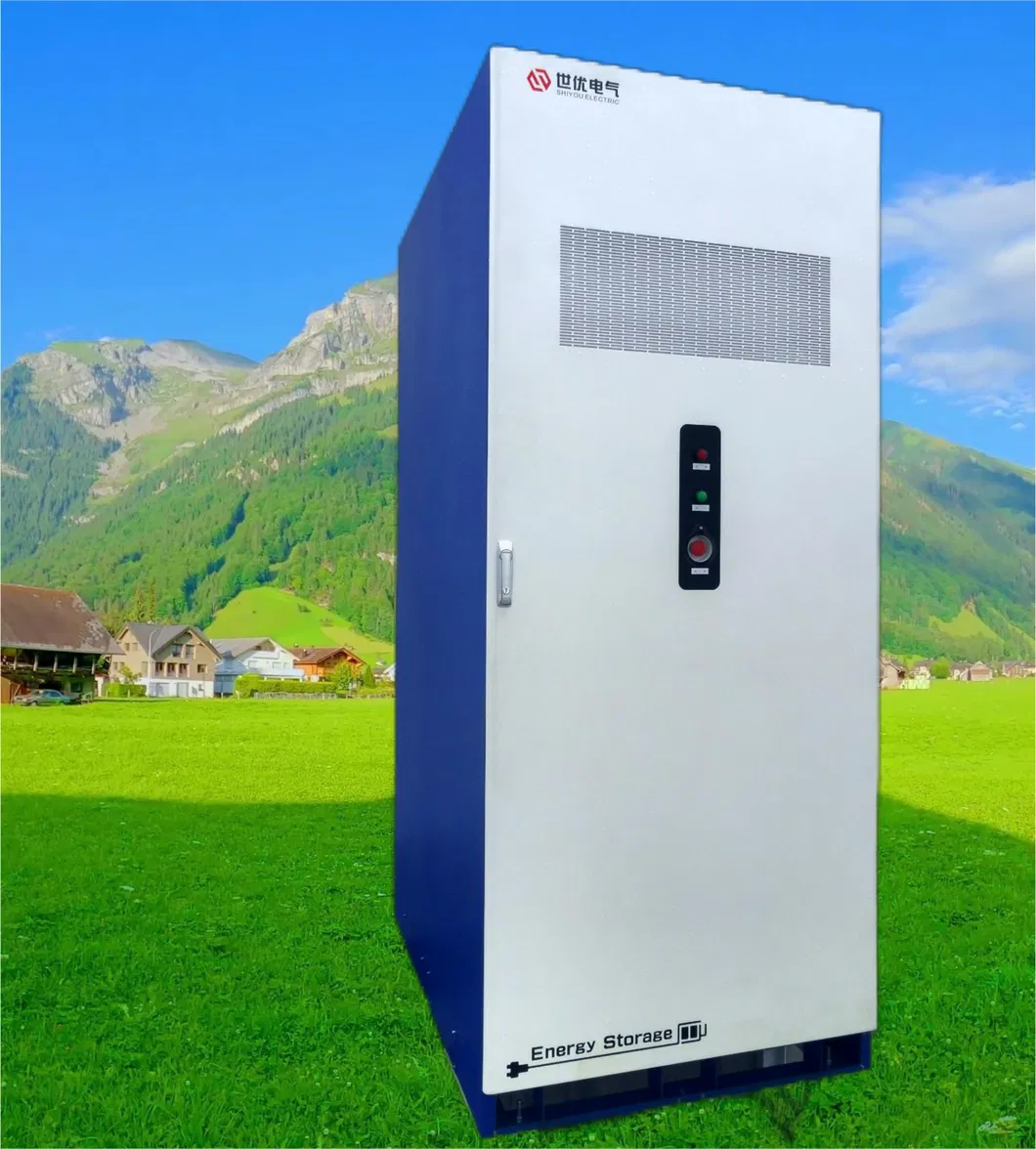

Introducing the Haorui Liquid Cooled Energy Storage System for Industrial and Commercial Use. Crafted for discerning clientele, this cutting-edge solution integrates a battery system, EMS system, PCS system, liquid cooling functionality, and a fire protection system into a seamless whole.
Boasting a modular design, this system ensures hassle-free installation and maintenance, making it an ideal choice for businesses aiming to enhance power supply, optimize peak usage, or bridge energy gaps during off-peak periods. The Haorui series adeptly meets the evolving demands of industrial and commercial sectors.

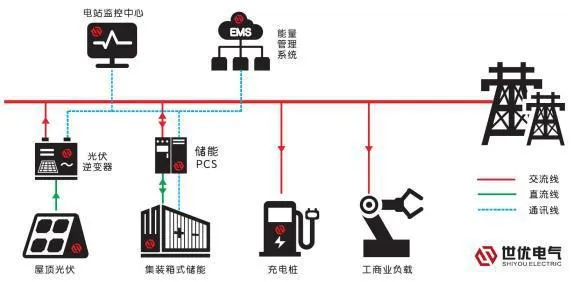

Energy Storage Converter (PCS): 125kW off-grid-connected bidirectional converter connected to the 0.4KV AC bus.
Lithium Iron Phosphate Battery: 3.2V / 280Ah cells in 260-string 832V cluster, totaling 233kWh.
EMS & BMS: Advanced charge/discharge control and SOC monitoring with superior scheduling.

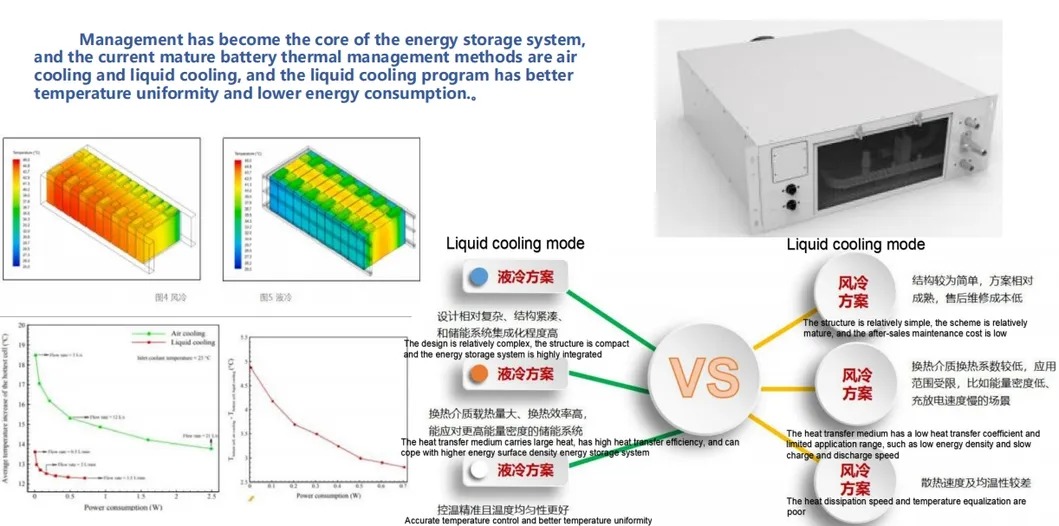

Temperature Control: 13kW liquid cooling unit for optimal thermal management.

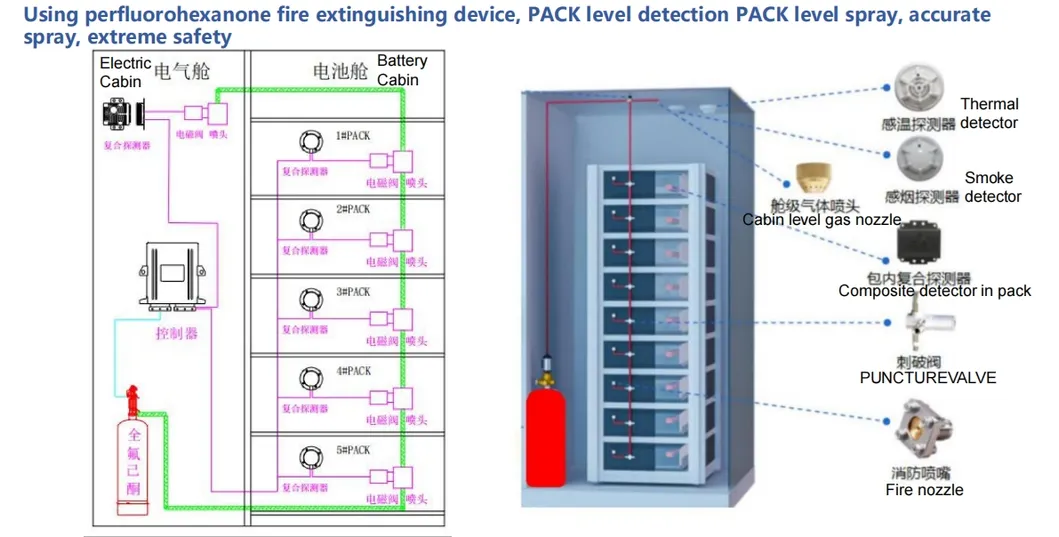

Fire Protection: Pack-class system using Perfluorohexone extinguishing agent.
| Order | Parameter | Values | Remark |
|---|---|---|---|
| 1 | Power Rating | 125kW | / |
| 2 | Rated Capacity | 233kWh | / |
| 3 | DC Voltage Range | 650V ~ 949V | / |
| 4 | Avg. Efficiency | ≥90% | / |
| 5 | Dimensions | 1040x1400x2450mm | / |
| 6 | Weight | <2.5T | / |
