Battery Based Energy Storage System for Power Backup Projects

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Information
Model NO.
QSCNXT
Warranty
5 Years
Battery Type
LFP Preferred
Cycle Life
≥3000 Times
Protection Class
IP65 or Above
Discharge Efficiency
≥96%
Depth of Discharge
Dod≥90%
Operating Mode
Grid-Tied/off-Grid Dual-Mode
System Response
Millisecond Level
HS Code
8504409999
💡 Product Description
Energy Storage System

ONE STOP ENERGY SOLUTION

Our integrated commercial wind-PV-storage power system integrates four core modules: PV/wind power generation, energy storage, intelligent power distribution and auxiliary safety, with built-in inverters for seamless power conversion. Ideal for factories, industrial parks, data centers and other industrial & commercial scenarios, it enables efficient access and coordinated scheduling of multi-source power. Certified to IEC 62619 standards, it ensures stable and reliable whole-process operation.

⚙️ Specification
Products Description
Solar PanelModule Power: 415W-730W
Solar BatteryBMS Management System
Solar InverterSolar: 6KW-80KW
Mounting SystemCustomized as per needs
CablesSolar cable 4mm2, 6mm2 and PV connector
Distribution BoxFull protection integrated
ServiceProfessional Engineering Support
Specs 1

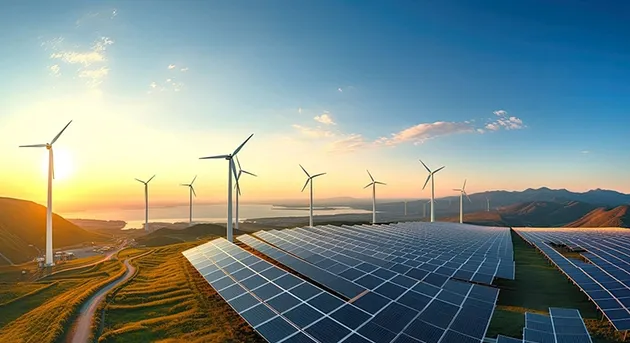

Specs 2

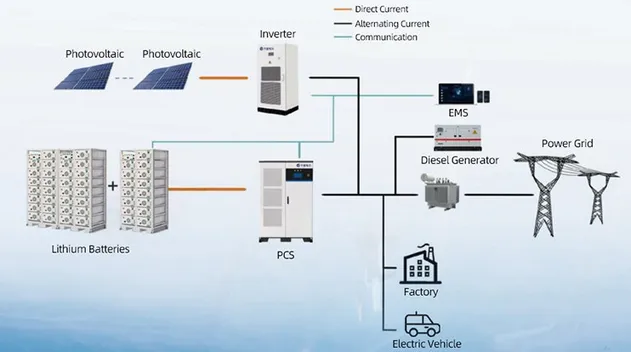

Specs 3
🖼️ Product Display

☀️ Solar Panels

  • Monocrystalline cells, efficiency 23.8%+.
  • 3.2mm tempered glass + aluminum frame, IP68 protection.
  • Resistant to -40℃~85℃, 25-year lifespan.
Solar Panels

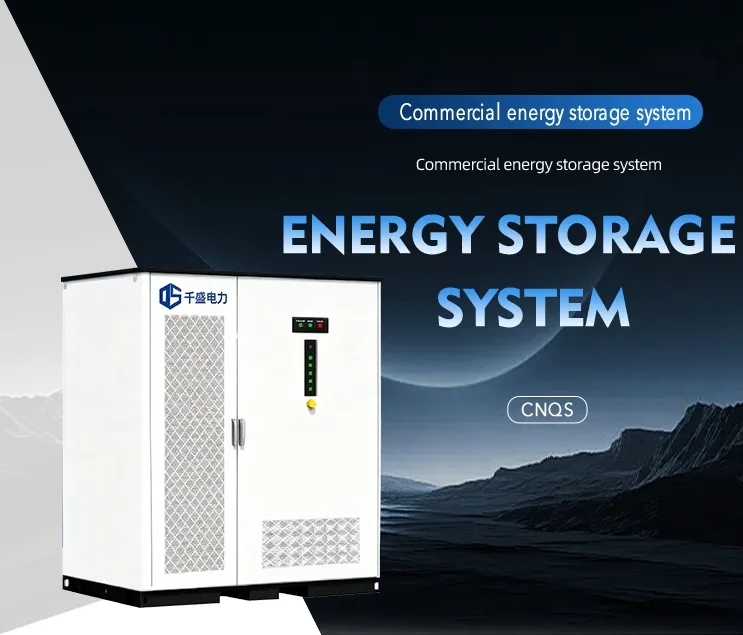

Energy Storage System

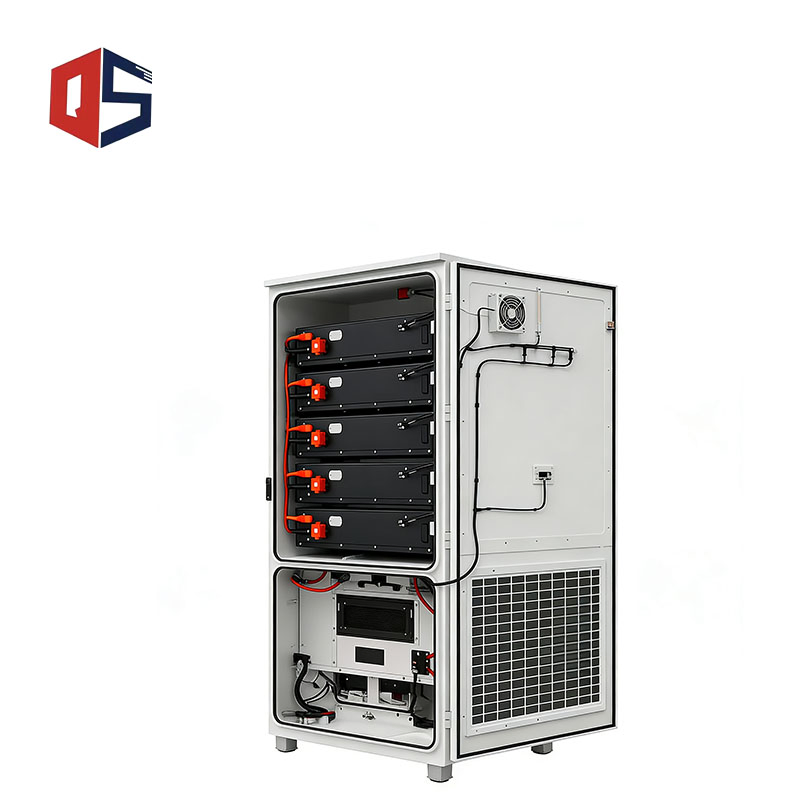

🔋 Energy Storage System

  • High-rate LFP cells, efficiency 95%+.
  • Intelligent BMS, overcharge & over-discharge protection.
  • Modular design, easy expansion, IP65 rating.

🔌 Control Units & Cables

  • Corrosion resistant, IP54+ protection.
  • Oxygen-free copper core, transmission loss <3%.
  • Flame-retardant sheath, voltage-resistant design.

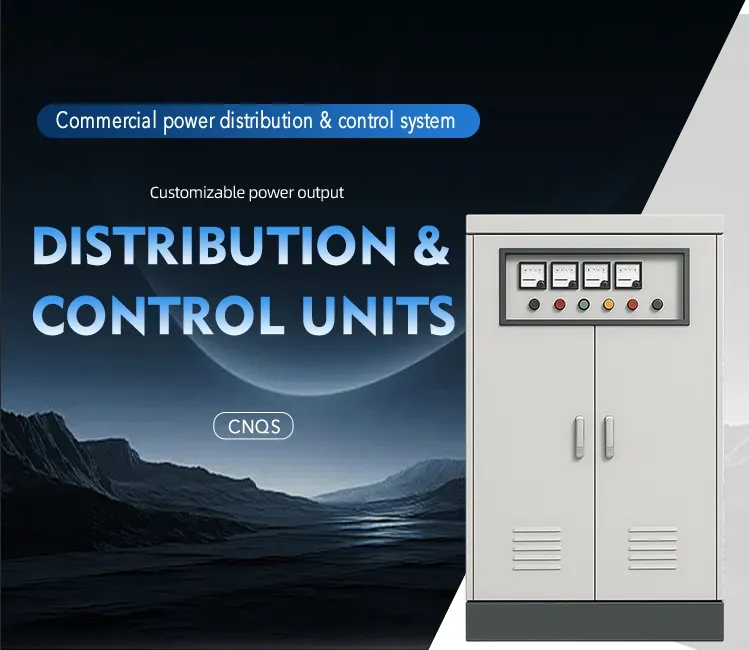

Control Unit
🔍 Product Details
Detail 1

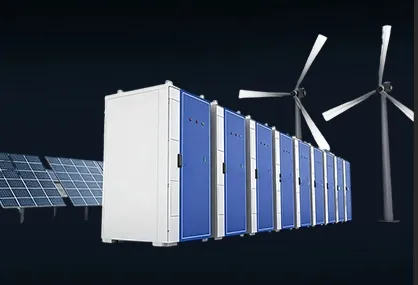

Detail 2

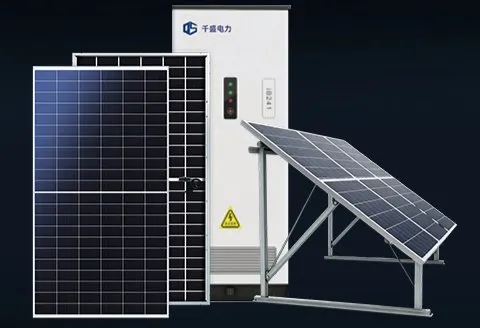

Detail 3

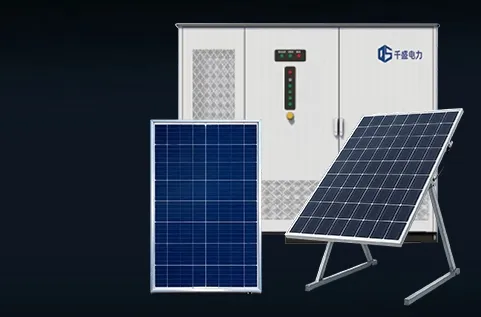

Detail 4

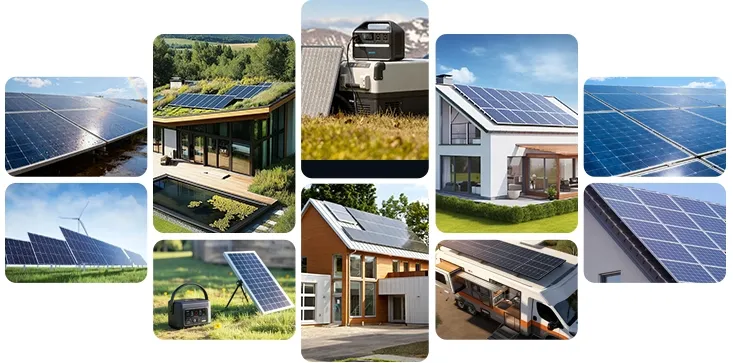

Application Scenario

Commercial & Industrial (C&I) Energy Storage System adapts perfectly to diverse energy scenarios—whether for stable power supply, emergency backup during grid outages, or cost reduction via TOU tariff arbitrage. It ensures reliable, cost-effective and sustainable operations.

📦 Packaging & Shipping
Packaging
Package Size
280cm * 185cm * 205cm
Gross Weight
15000.00kg
Package Type
Wooden Box
🏢 Profile

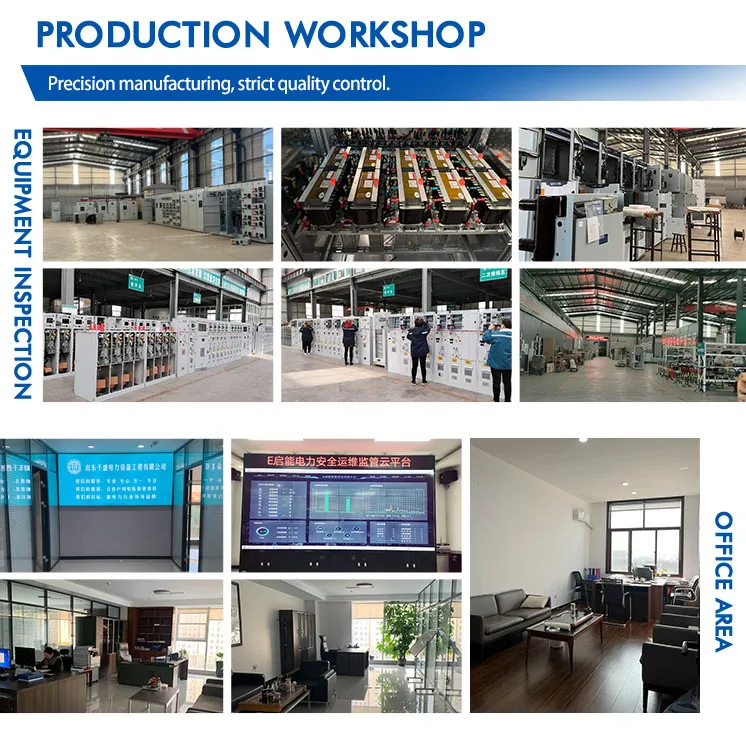

Facility

Scale: Covers over 16,000 stere; employs nearly 100 staff, with 80% holding college or higher degrees.

Philosophy: Integrity-based, Technology-driven Industrial Prosperity, Customer Satisfaction.

Tenet: Safe Production, Quality First.

Certifications: ISO9001:2000, Environmental Management System, Occupational Health and Safety, CCC and CQC product certifications.

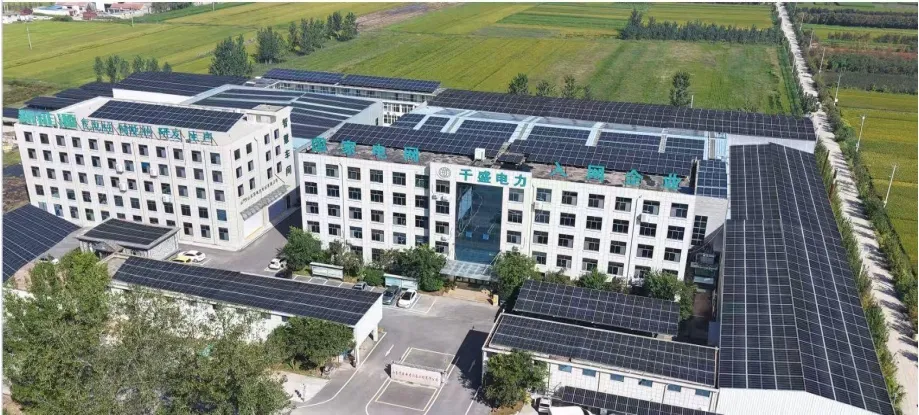

Workplace
❓ Frequently Asked Questions
What working modes does your energy storage system support?
It supports three working modes: off-grid, grid-connected and hybrid power supply. It can seamlessly connect to photovoltaic inverters to realize self-consumption and surplus power storage.
What is the cycle life and warranty of the battery?
It uses LFP cells with a cycle life of ≥6000 times (at 80% capacity). We provide a 5-year warranty for the battery pack and a 2-year warranty for the entire system.
What core protection functions does the BMS have?
The BMS includes overcharge, overdischarge, overtemperature, overcurrent, short-circuit, and cell balancing protection functions to ensure safe operation.
What are the installation requirements for the system?
A flat, ventilated indoor or outdoor site and access to specified voltage lines are required. We provide complete installation drawings and remote commissioning support.
What is the energy efficiency level of the system?
The comprehensive charge-discharge efficiency is ≥95%. Daily maintenance involves checking temperatures and cleaning vents for optimal performance.
What is the response time during power switching?
The system operates with millisecond-level response times, ensuring seamless dual-mode switching between grid-tied and off-grid operations.
