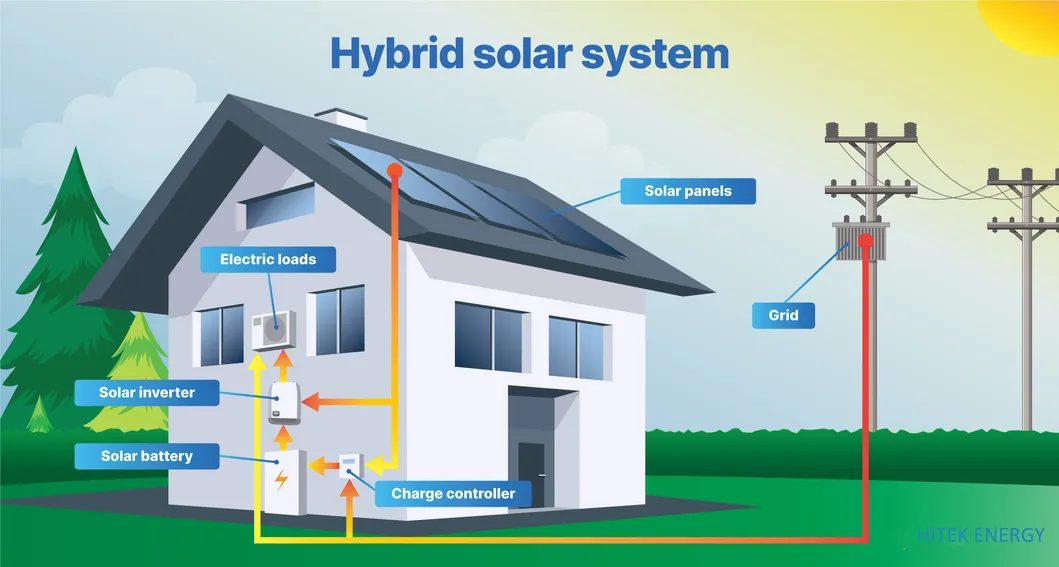

Hybrid system is a combination of solar energy storage with grid connection. It has battery backup to store power and has the ability to feed surplus electricity into the main grid.
| No. | Product Name | Specification Mode | Unit | Qty | Remark |
|---|---|---|---|---|---|
| 1 | Solar Module | BSM560M10-72HPH | pcs | 96 | 53.76KW Total |
| 2 | PV Combiner Box | 6 input and 6 output | pc | 1 | 1000V open circuit |

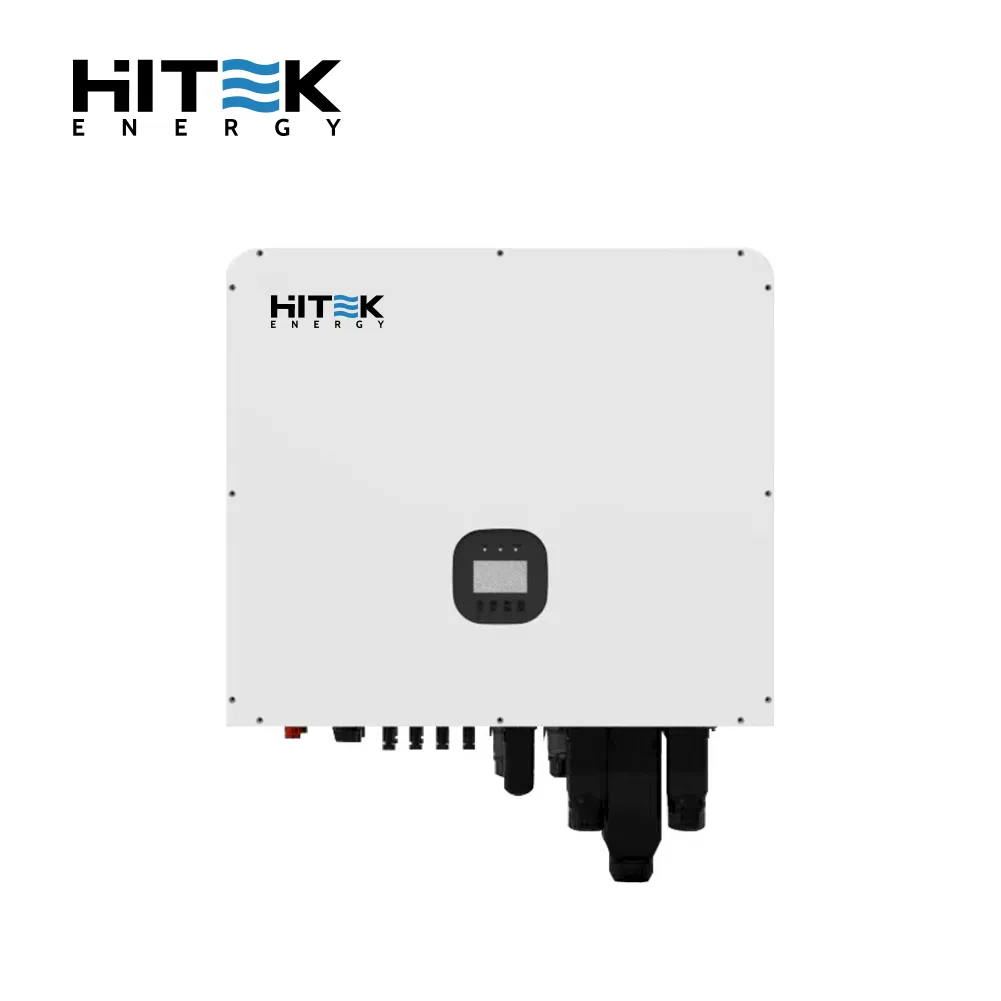

| 3 | Hybrid Inverter | BSE50KH3 | pc | 1 | 3 Phase 400V 50Hz |
| 4 | Lithium Battery | 51.2V 280Ah | pack | 7 | Total 100.352KWH |
| 5 | Control Box | High Voltage box | pc | 1 | - |
| 6 | Battery Rack | Standard Set | set | 1 | - |
| 7 | Cables | Battery-inverter cable | pcs | 2 | 35mm2 cable |
| 8 | Monitoring | WiFi Monitoring | set | 1 | Equipped |
| 9 | Connectors | MC4 Connectors | pair | 24 | - |

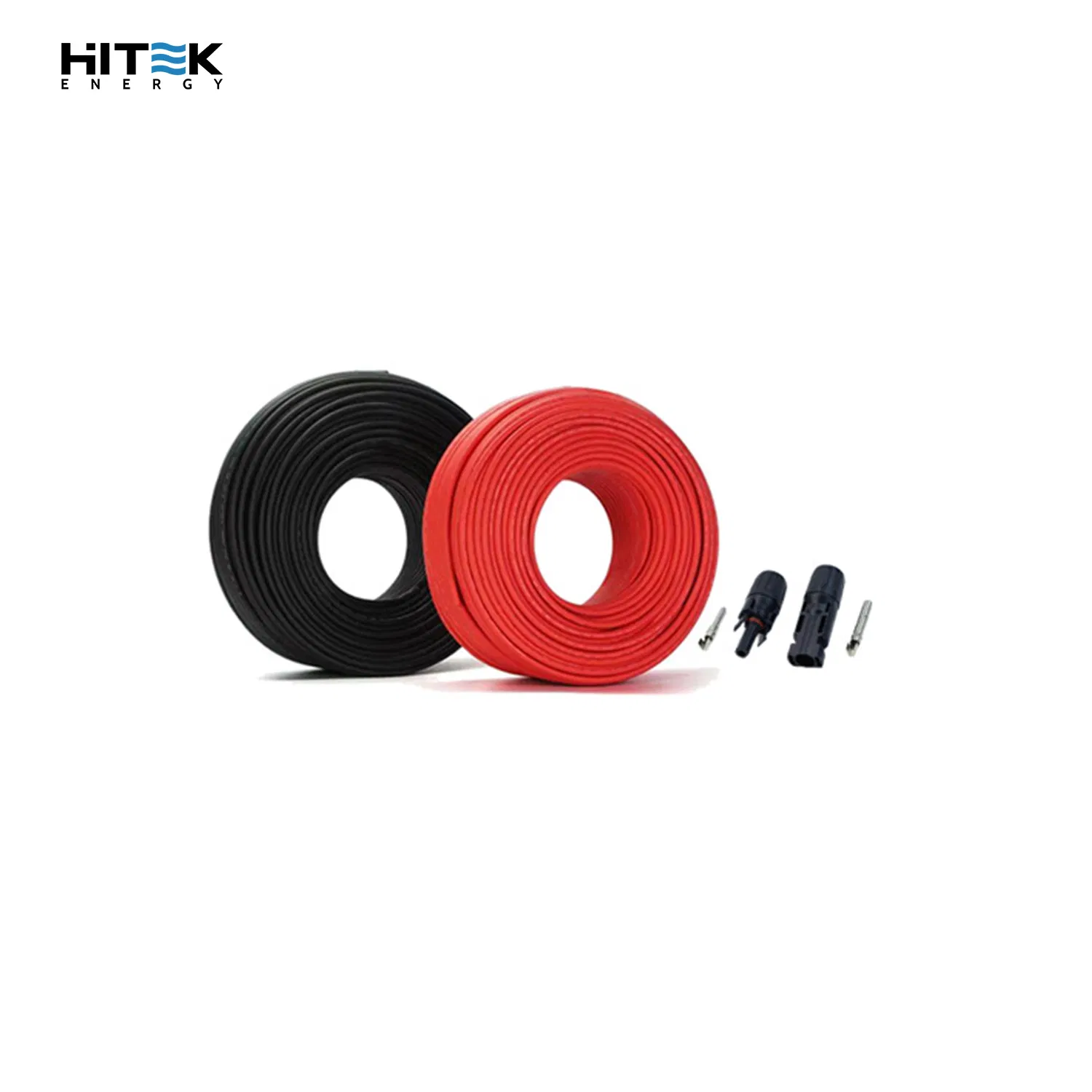

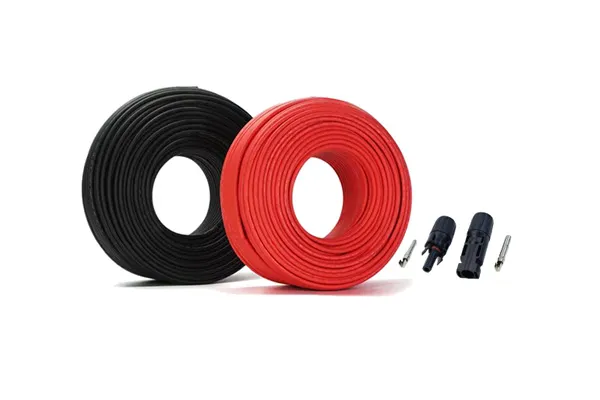

| 10 | PV Cable | PV1-F 1*4mm² | meter | 600 | - |
| 11 | Mounting Kits | Customized Design | set | 1 | Roof/Ground |

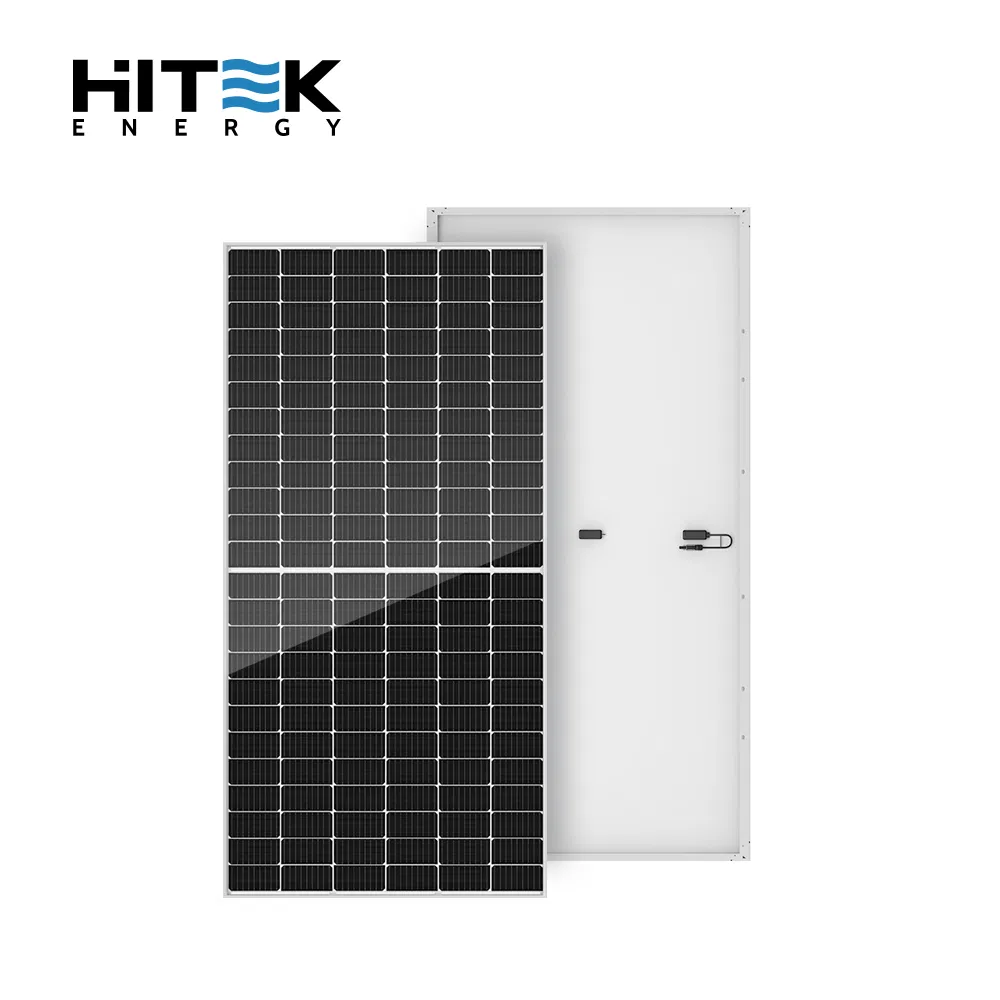

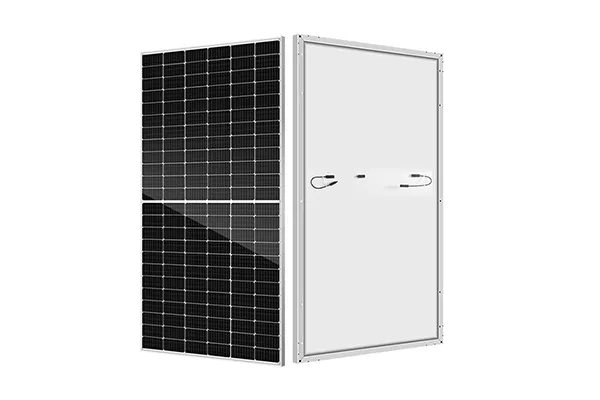

Model: HT560M-72
Peak Power Watt: 560Wp
Open Circuit Voltage: 49.84V
Maximum Power Voltage: 41.08V
Dimensions: 2279*1134*35mm
Weight: 28.0kg

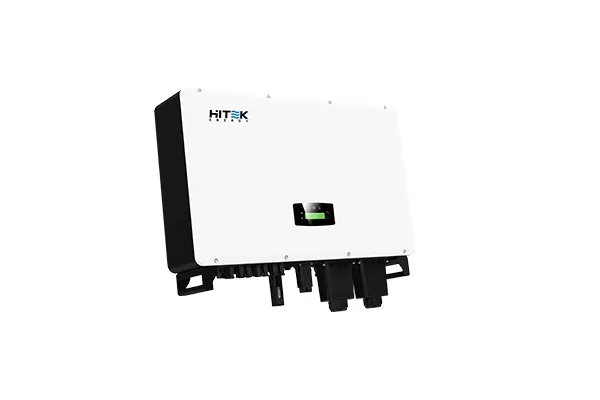

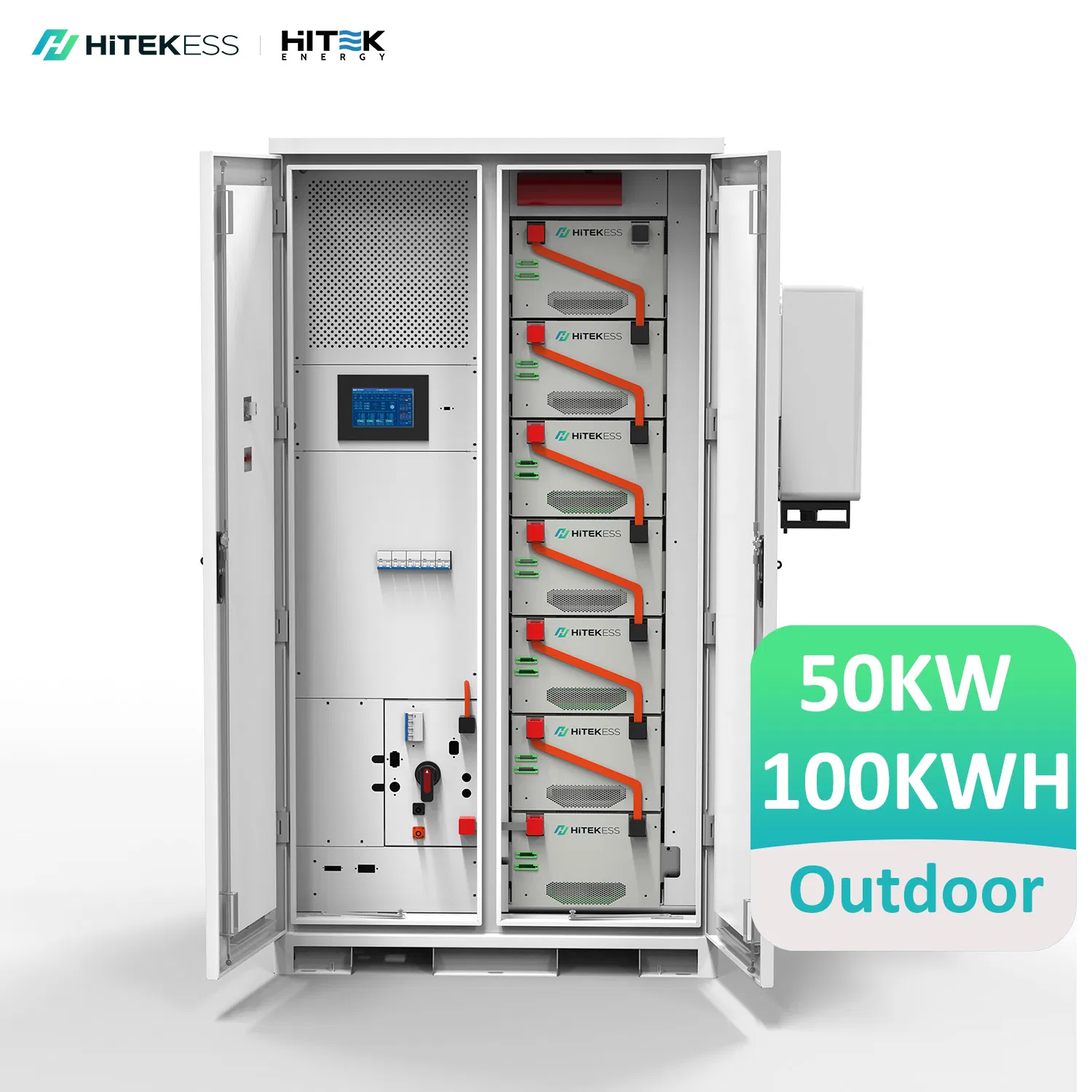

All-in-one design increases energy independence.

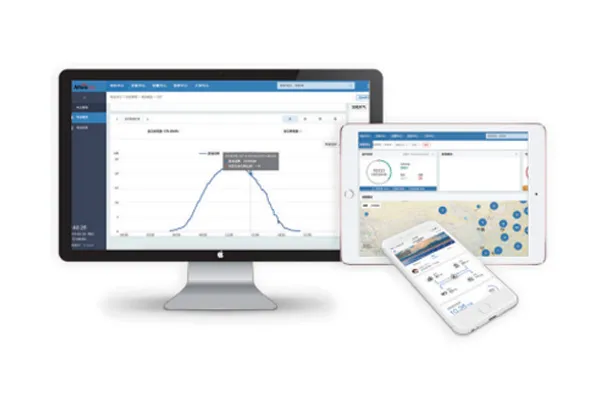

Smart Monitoring & Remote Upgrade.
Built-in Anti-feed-in Function.
Support for Time-of-use Optimization.

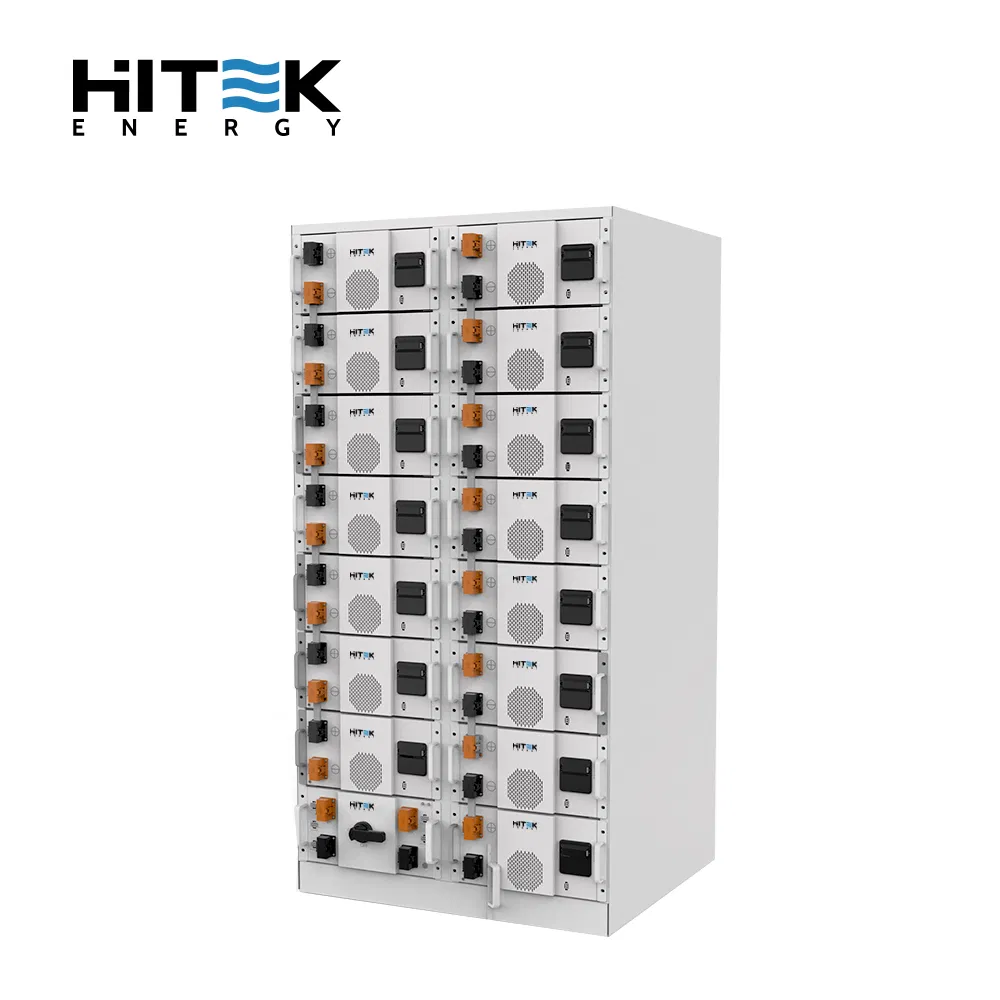

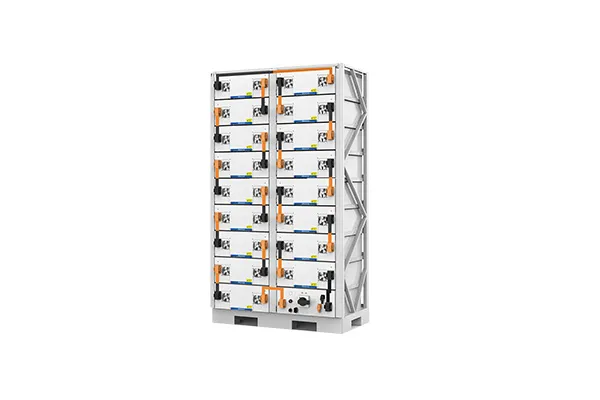

Rack mounted LiFePO4 Lithium Ion.
Deep Cycle with 6000+ times lifespan.
Up to 90% DOD.
Maintenance-free and easy installation.

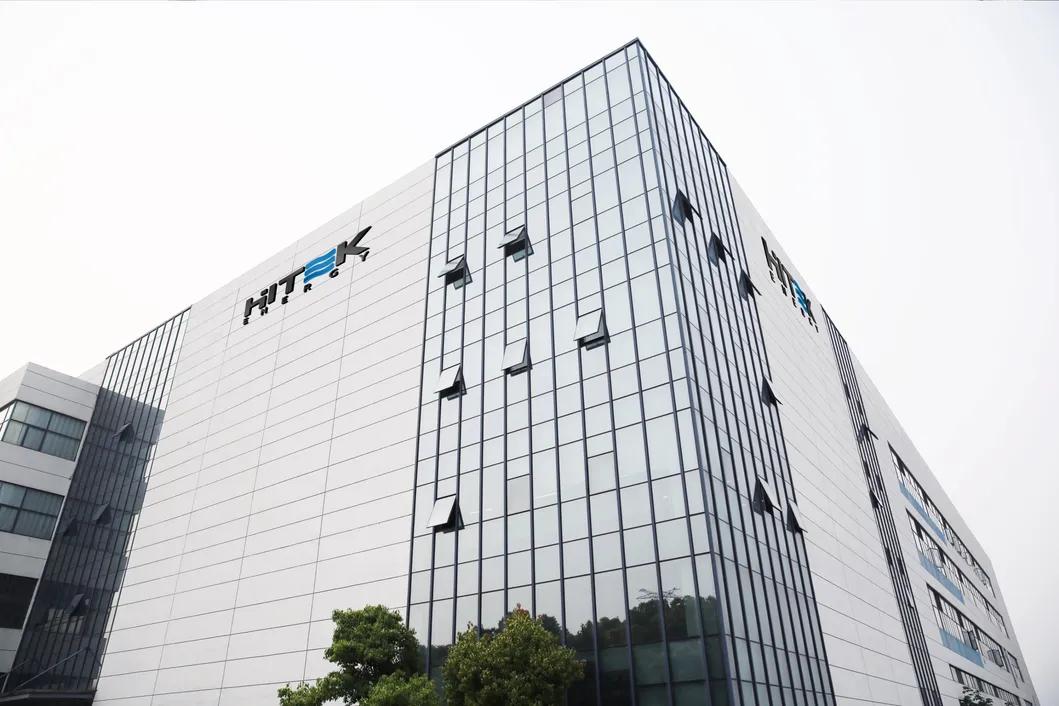

Founded in 2018, the manufacturer is a superior photovoltaic company dedicated to providing sustainable and renewable energy solutions for homes, businesses, and factories. We provide tailored solar energy solutions including backup, residential, and commercial systems. Our mission is to help you save money on electric bills through reliable approved equipment.
Let's work together for a better, brighter and greener future.
