| Model | STS3300 |
| Application | Standard Battery (Golf Cart/Forklift/Scooter/Motorcycle) |
| Nominal Voltage | 12V/24V/36V/48V/60V/72V |
| Compatible Battery | Lithium / Li-ion / LiFePo4 / Lead Acid Battery |
| Efficiency | ≥ 93% (Full Loading) |
| Input Voltage | 90VAC~260VAC 50Hz/60Hz |
| Output Power | 3300W |
| IP Rating | IP34 / IP67 Options |
| Warranty | 24 Months |
Intelligent battery chargers are specifically engineered for high-performance recharging of lead-acid, LiFePo4, and lithium battery packs. Ideal for electric vehicles, forklifts, golf carts, and patrol cars.

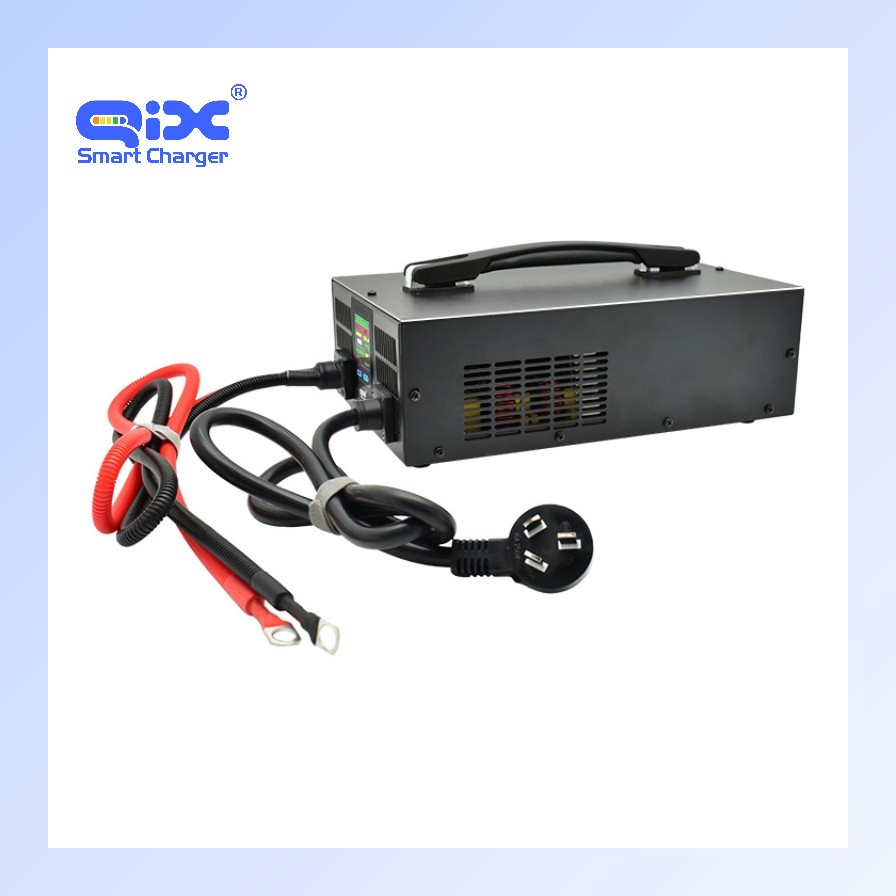

Featuring a fully enclosed aluminum alloy shell, the design ensures superior heat dissipation. The intelligent temperature-controlled fan maintains stable long-term operation even under heavy loads.
| Rated Voltage | Lead Acid (CV) | Li-ion (CV) | LiFePo4 (CV) | CC @220Vac | Size (mm) |
|---|---|---|---|---|---|
| 12V | 14.7V | 16.8V | 14.6V | 200A | 288*180*100 |
| 24V | 29.4V | 33.6V | 29.2V | 100A | |
| 36V | 44.1V | 42V | 43.8V | 60A | |
| 48V | 58.8V | 54.6V | 58.4V | 55A | |
| 60V | 73.5V | 71.4V | 73V | 40A | |
| 72V | 88.2V | 84V | 87.6V | 40A |
Precise placement of electronic components onto PCB boards.
High-temperature soldering for stable electrical connections.
Initial functional testing to ensure design compliance.
Enhancing waterproof, shockproof, and heat dissipation capabilities.
Continuous power-on testing to verify long-term reliability.
Shockproof packaging to ensure safe global transportation.
