Ahd Camera Wireless Front Camera System Ahd Back up Camera Forklift System

1 / 5

Ahd Camera Wireless Front Camera System Ahd Back up Camera Forklift System

Customization:	Available
Applicable Model:	Truck, Agricultural Vehicles, Engineering Vehicles, Sightseeing Car, RV, Forklift, Harvester, Lift Truck
Shell Material:	Stainless Steel

Send Inquiry

Product Description

📋

Basic Info

Model NO.HDWS-772S16A1M1

Display TypeReverse Image

InterfaceBNC

FunctionWaterproof, Dustproof, Shockproof

DefinitionAhd

ChipCMOS

Waterproof GradeIP69K

Operating Temp-20°C to +70°C

Viewing Angle120°

VoltageDC8~32V

🚀

Product Description

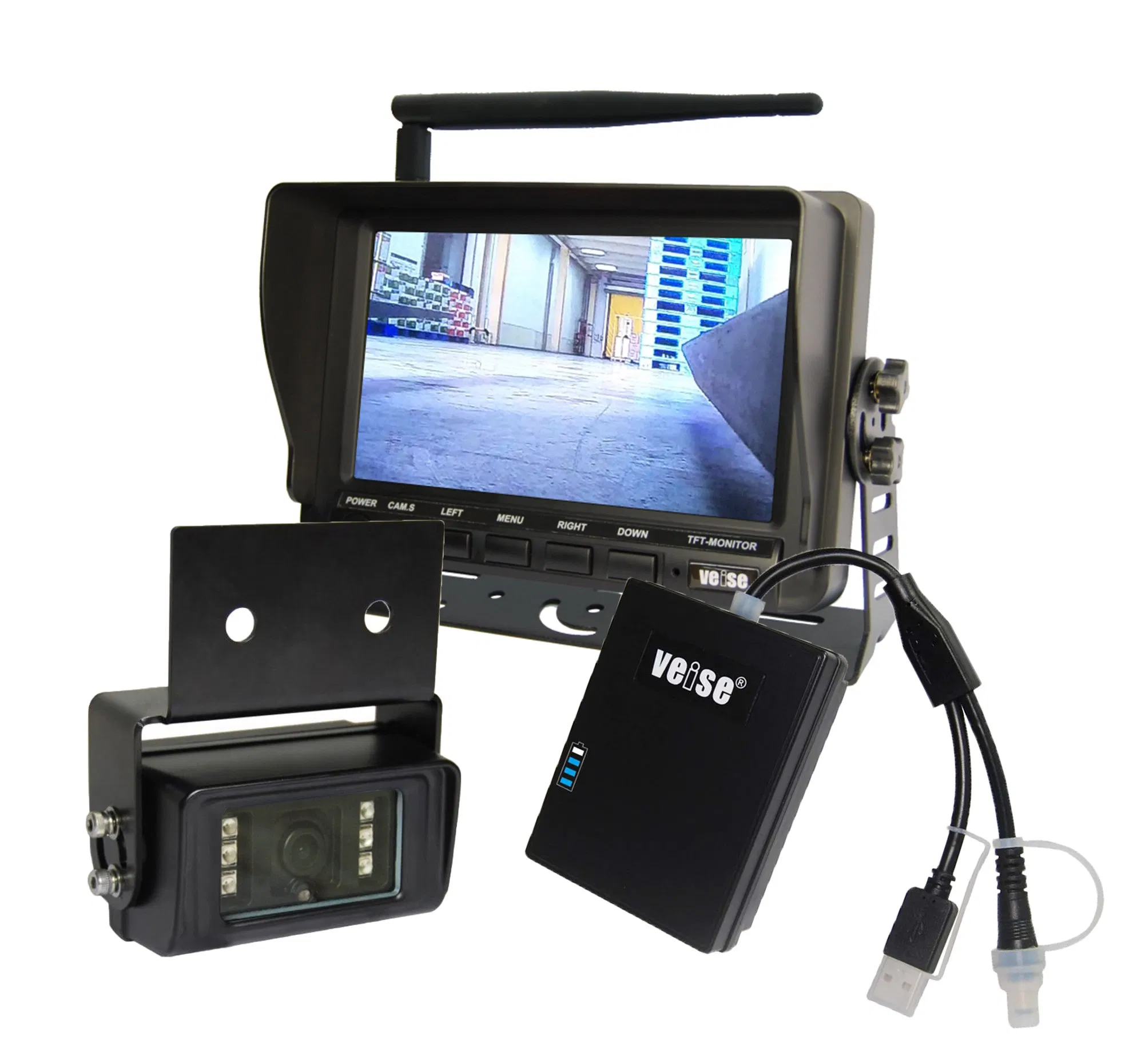

Forklift HD Camera 720P Wireless Front Camera System

AHD back up camera kit designed for outdoor handling safety. Includes a stainless steel wireless camera with built-in 2.4GHz digital transmitter.

🛡️

Industrial Grade
Stainless steel camera with IP69K waterproof rating and 100% nitrogen filling for antifogging.

📡

Long Range
Digital wireless transmission up to 300M line of sight with stable 2.4GHz signal.

🔋

Mobile Power
DC 12V output mobile power (10000mA) for easy installation without running cables.

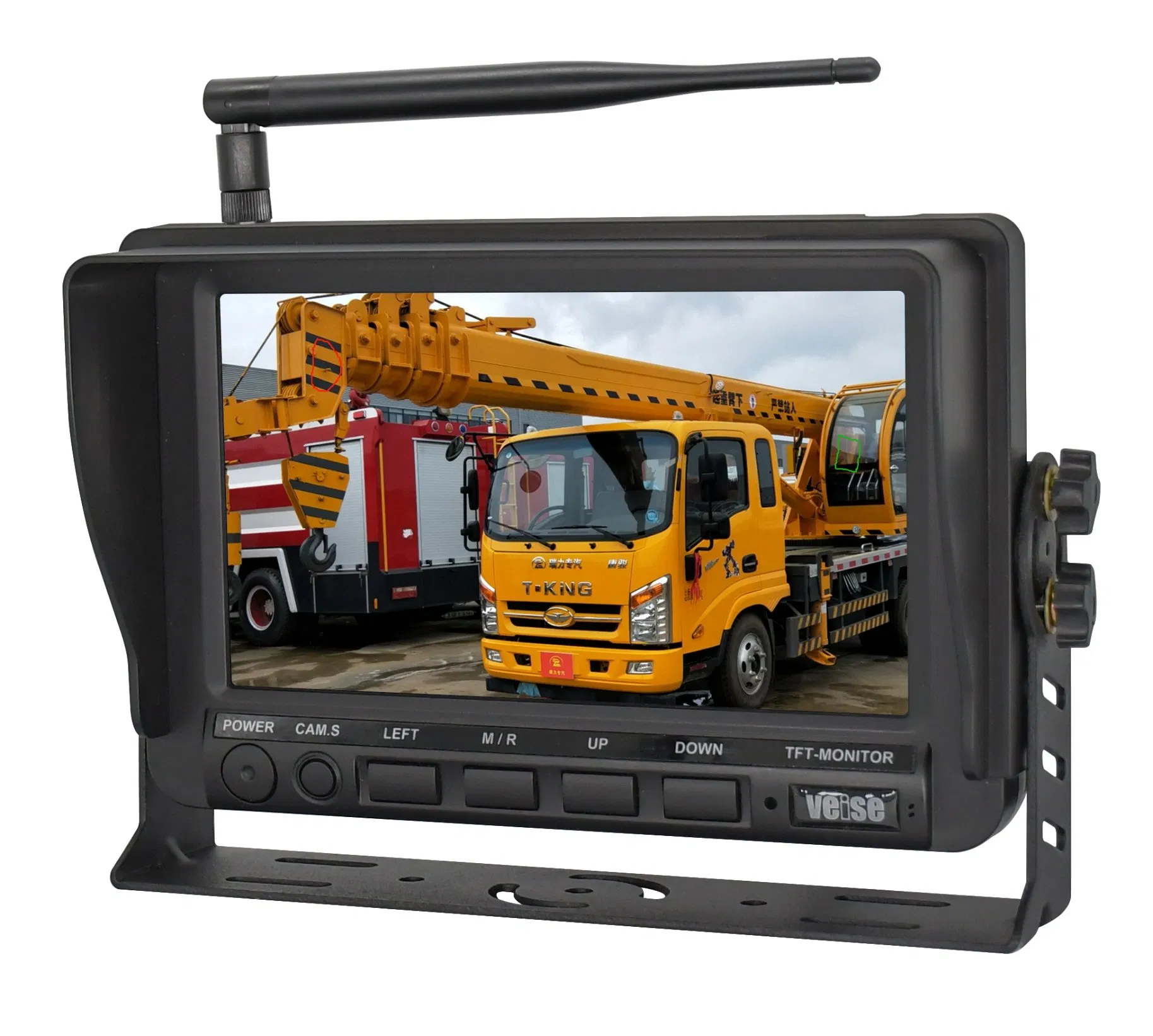

720P Digital Wireless Receive Monitor (MWHD-772S)
Screen Size	7" HD Screen with Removable Sun Visor
Frequency	2400 ~ 2483.5MHz
Resolution	1024RGB(H) x 600(V)
Brightness	600cd/m2
Operating Voltage	DC8~32V
Contrast Ratio	500:1

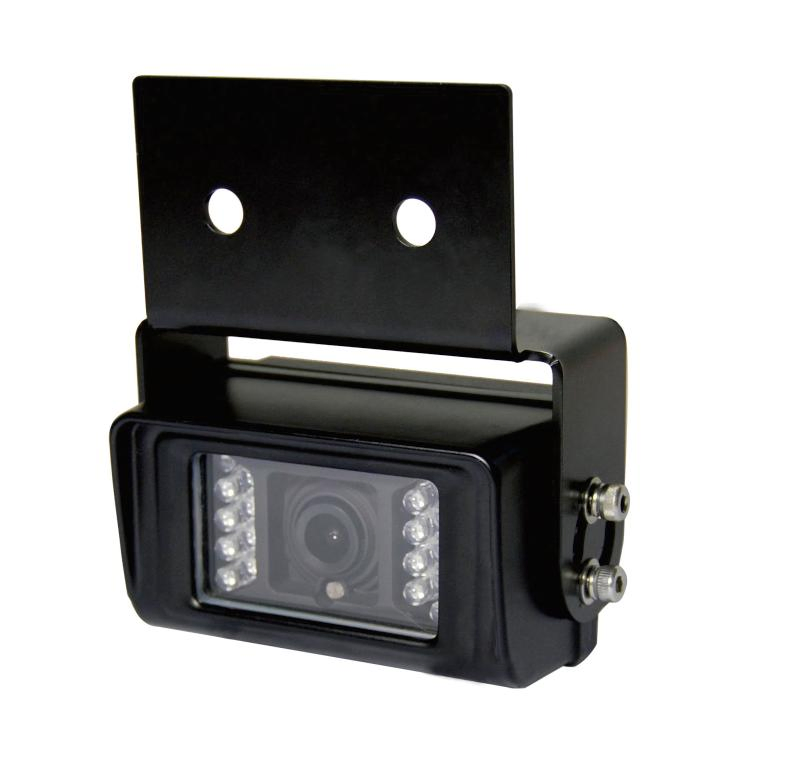

720P Stainless Steel Wireless Camera (CWHD-16A1M)
Image Sensor	1/3.7 inch Color CMOS
Horizontal Resolution	720P
Night Vision	6pcs IR LED's (0 Lux usable illumination)
Shockproof	10G
Viewing Angle	120°
Waterproof Level	IP69K

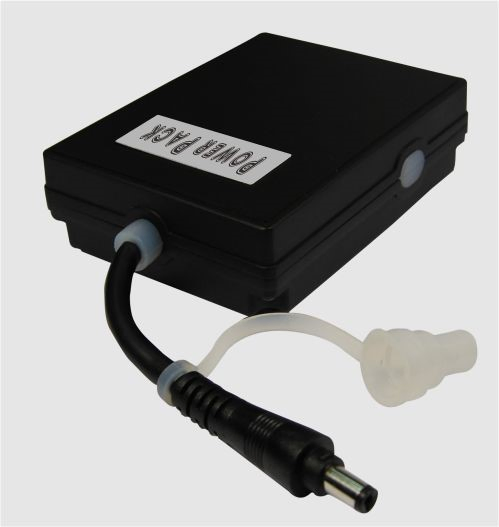

DC12 Mobile Power (MP-01A10W1)

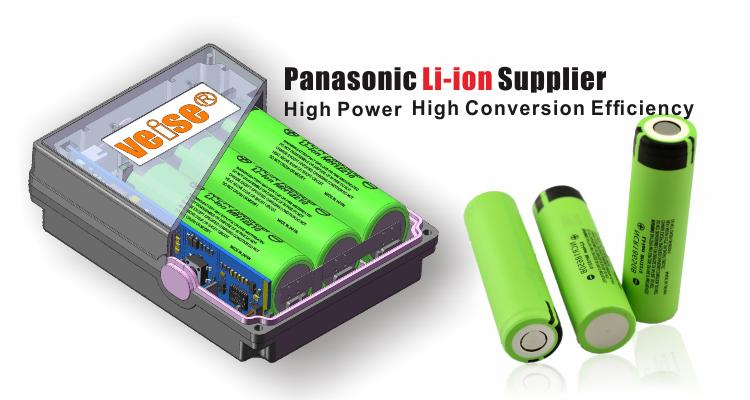

Battery Type	Li-ion batteries (10000mA Capacity)
Output	DC 12V (0.8A)
USB Input	5V/3.5A - 9V/2A - 12V/1.5A (Fast Charge Support)
Charging Cycles	> 800 cycles
Protection	IP66 Waterproof & 6G Shockproof

📸

Detailed Images

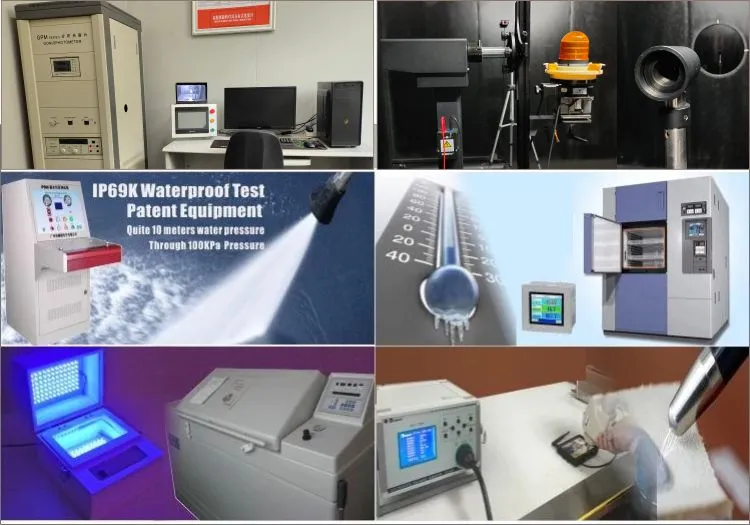

The light intensity analyzer and patented sealed pressure tester ensure IP69K standards.

❓

Frequently Asked Questions

1. What is the wireless transmission range of this system? The system provides a stable digital wireless transmission with a line of sight range of up to 300 meters.

2. Is the camera suitable for harsh outdoor environments? Yes, the camera is made of stainless steel and features an IP69K waterproof rating, making it highly resistant to dust, water, and high-pressure cleaning.

3. Does the system support night vision? Absolutely. The camera is equipped with 6pcs IR LEDs and an IR-CUT automatic switch, providing clear images even in total darkness (0 Lux).

4. Can I install this system without running long cables? Yes, the kit includes a 10000mA mobile power output (DC 12V), allowing for a wireless setup that eliminates the need for complex cable routing.

5. What is the screen quality of the monitor? The 7-inch HD monitor offers a resolution of 1024x600 with a high brightness of 600cd/m2, ensuring clear visibility even in bright daylight.

6. How does the camera prevent fogging in cold weather? The camera is 100% nitrogen-filled for anti-fogging and features a low-temperature resistance cable capable of withstanding -40 ºC.
