Product Description

📋 Basic Specifications
Model NO.
LWS-16S50A-834
Over Current Protection
Yes
Balance Function
Yes
Usage
Lithium Battery Packs, LiFePO4 etc
Application
Digital Equipment, Electrice, Ebike, etc
Production Mode
SMT / Multilayer PCB
Certification
RS485, Can, Bluetooth Support
Testing Service
100% E-Testing
Specification
L125*W65.5*T18mm
Package Gross Weight
1.000kg
🔋 Product Description

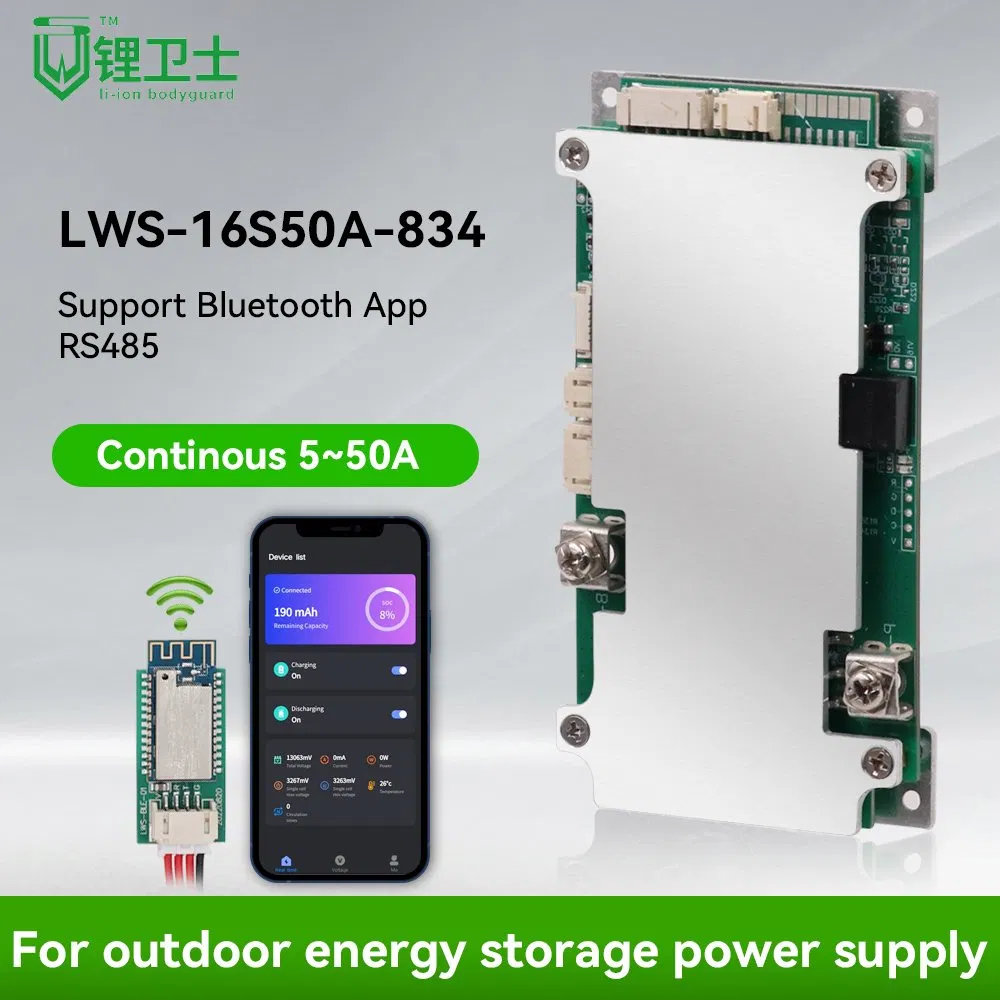

Battery Management Systems NCM BMS 16S 40A 50A Li-ion BMS Board
Suitable for battery packs with 8-16S of monomer voltage 2V-5V. Provides protection and recovery for over-voltage, under-voltage, over-current, high/low temperature, and short circuit.

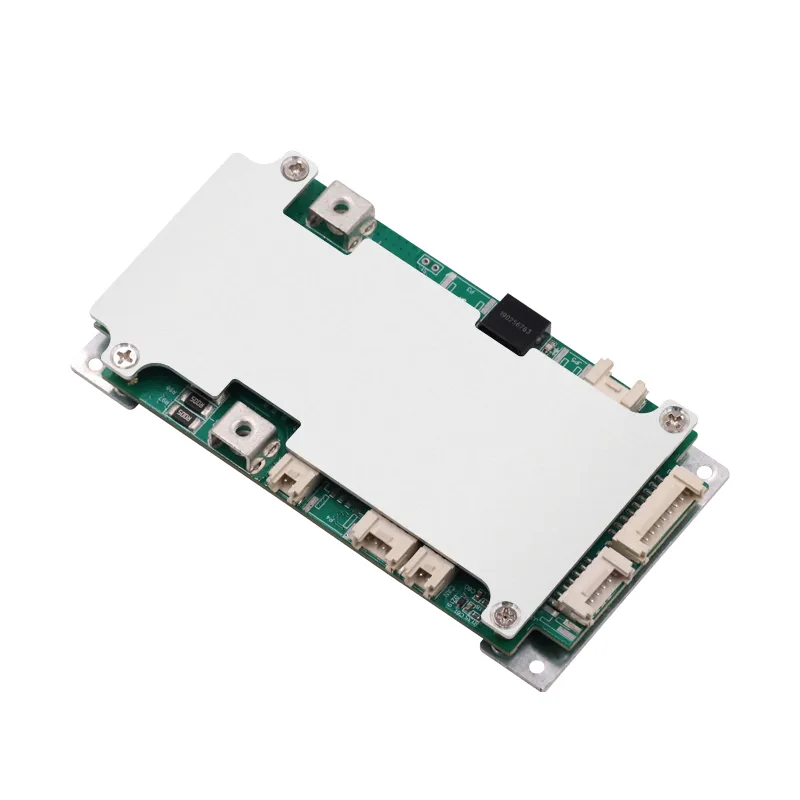

BMS Board View
Parameter Value
Battery Series16S Available
Working Current50A Available
Quiescent Current≤20μA
PCM Size125*65.5*18mm
Main Circuit Resistance≤5mΩ
⚙️ Technical Criterion
Test Item Description Criterion
Voltage Charging voltage DC:57.6V CC/CV
Over Charge Detection voltage for single cell 3.75±0.025V
Over Discharge Detection voltage for single cell 2.50±0.05V
Current Balance current for single cell 60±20mA
Over Current Discharge current protection 60±5A
Short Circuit Protection condition Exterior short circuit
Temperature Operating temperature range -20~+60ºC
📸 Product Gallery

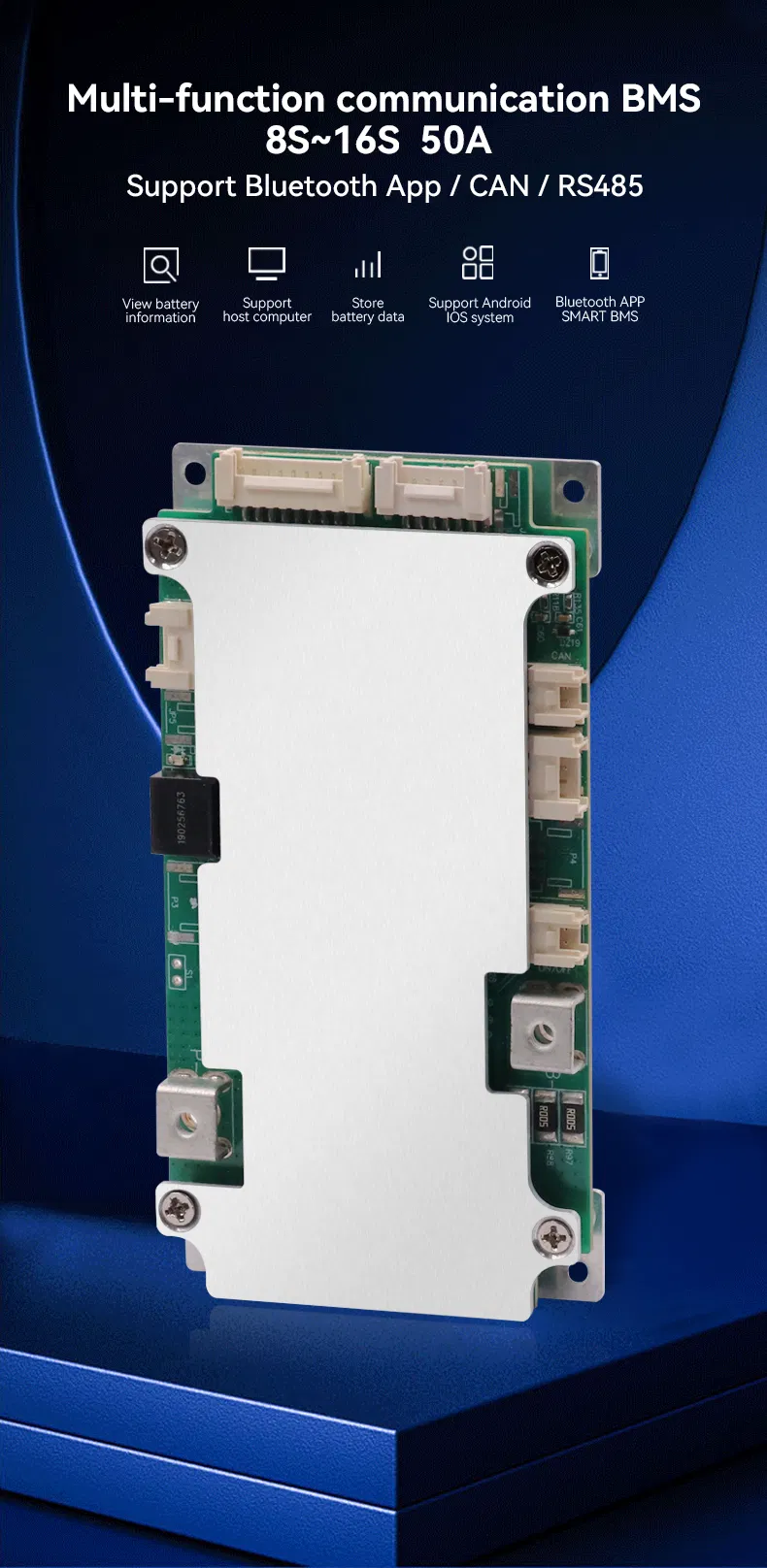

BMS Detail 1

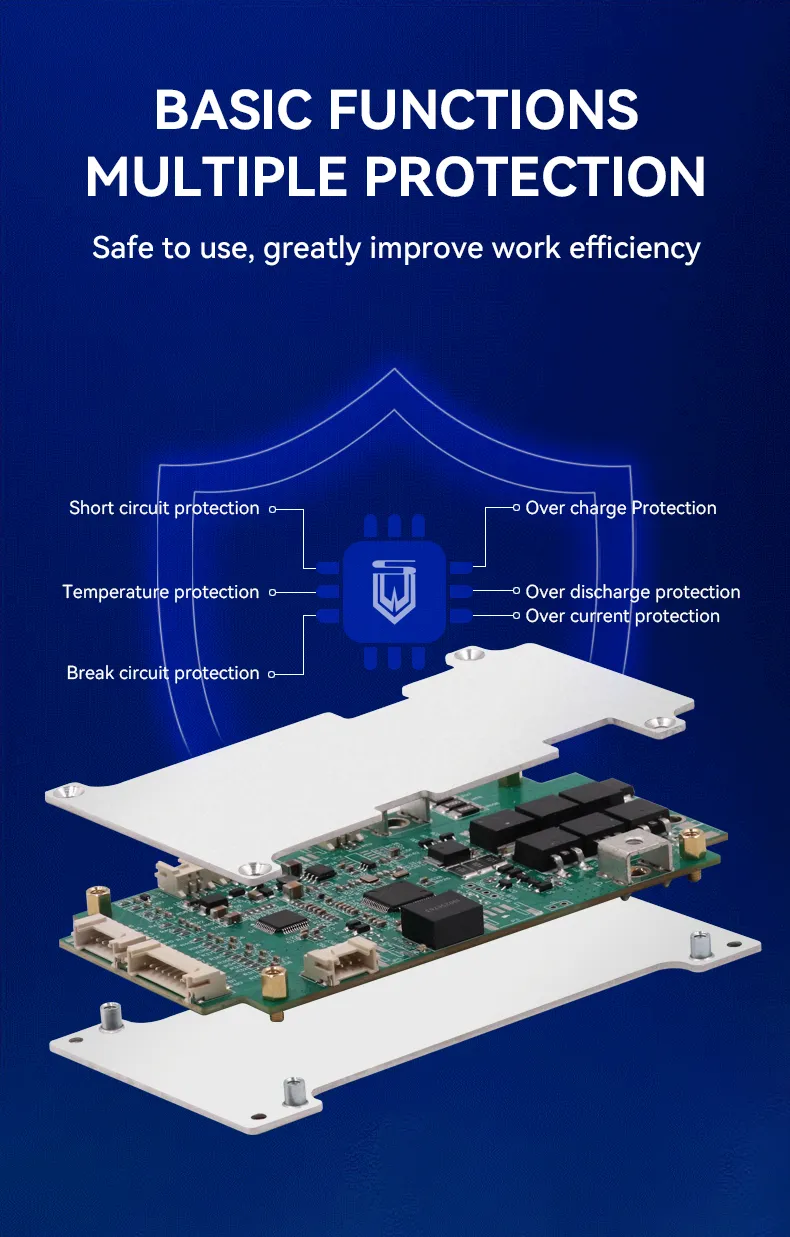

BMS Detail 2

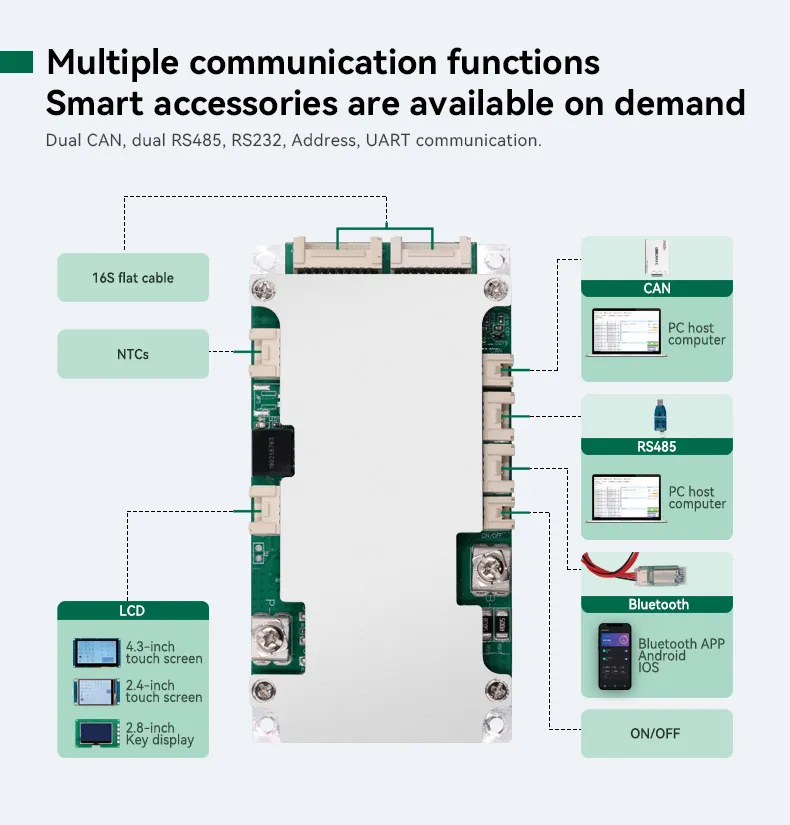

BMS Detail 3

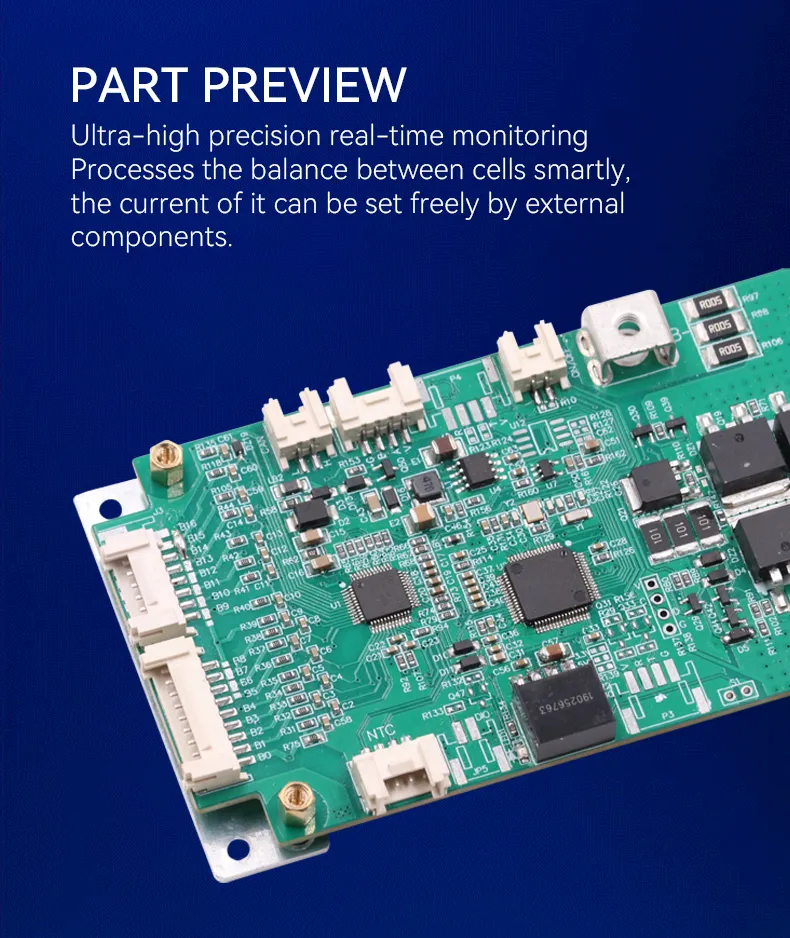

BMS Detail 4

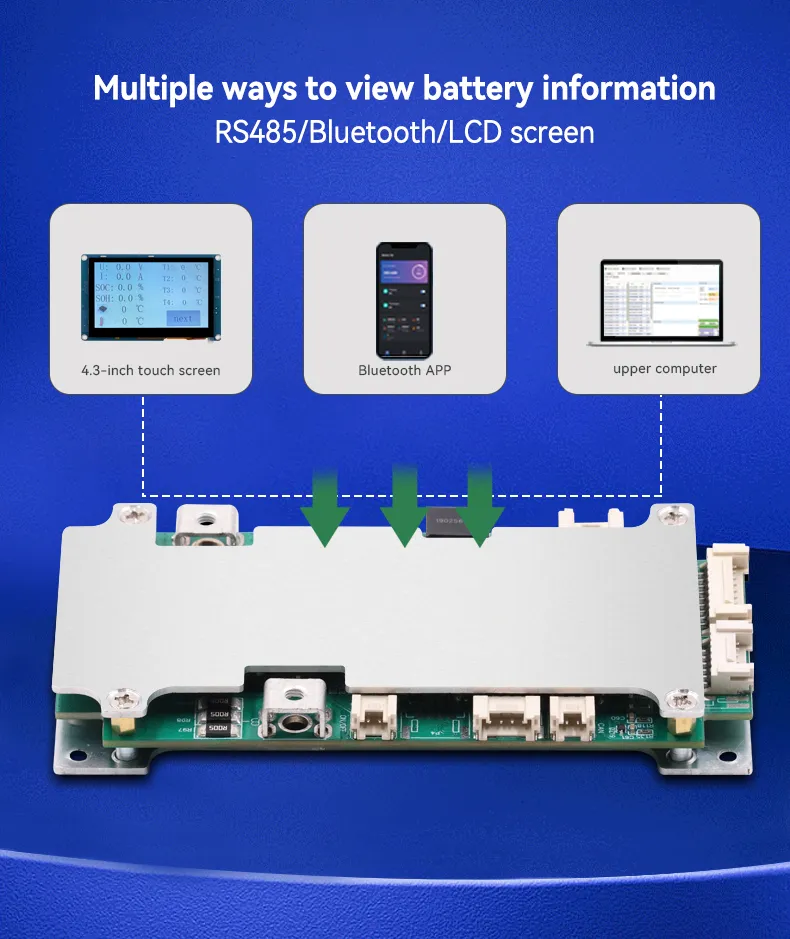

BMS Detail 5
BMS Detail 6

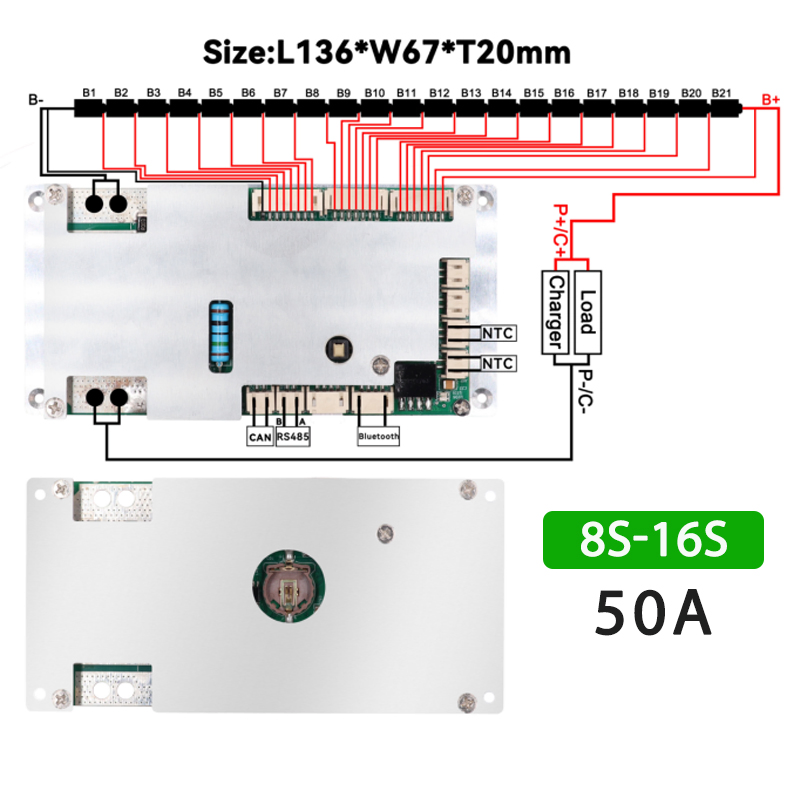

Technical Layout
🏭 Professional Services

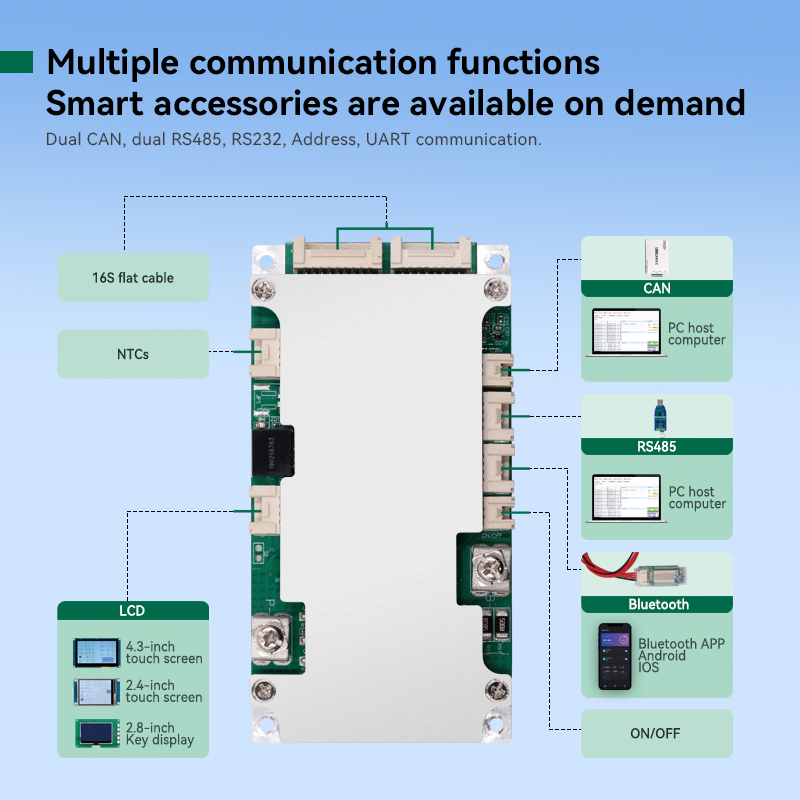

We provide Battery PCM & BMS for Lithium ion, LiFePo4, LTO battery packs and ODM & OEM services. We have designed more than 900 types of hardware PCM/BMS, and software BMS including HDQ/I2C/SMBUS/RS485/RS232 & Bluetooth. Covers battery assembly 1S-35S in series, working current up to 350A.

Production Facility
Quality Control
Certifications
❓ Frequently Asked Questions
Q: How do I judge what material my battery is?
A: Please take a look at the battery body. If the normal voltage shows as 3.2V, the battery is LiFePo4. If it shows as 3.6V or 3.7V, it is a Li-ion or Li-polymer battery.
Q: How can we guarantee quality?
A: We always provide a pre-production sample before mass production and conduct a final inspection before shipment.
Q: What products can you buy from us?
A: Battery Pack BMS, Lifepo4/Lithium Ion PCM, Protection Circuit Boards, Printed Circuit Boards, and Lifepo4/Lithium Ion Battery Packs.
Q: Why should you choose us over other suppliers?
A: We utilize advanced production equipment, a scientific quality management system, and emphasize both quality and environmental philosophy.
Q: What delivery and payment terms are supported?
A: Accepted Delivery Terms: FOB, EXW. Accepted Payment Currency: USD, CNY. Accepted Payment Type: T/T, PayPal, Western Union, Cash. Supported Languages: English, Chinese.
Q: How do I get a product recommendation?
A: Simply provide the relative voltage, cell count, current (A), or equipment type, and we will recommend the most suitable product for your needs.
