Carriage Mounted Reach Truck Camera Monitoring System

1 / 5

Carriage Mounted Reach Truck Camera Monitoring System

Customization:	Available
Warranty:	1 Year
Applicable Model:	Car, SUV, Truck, Agricultural Vehicles, Engineering Vehicles, Sightseeing Car, RV, Forklift, Harvester, Corn Machine

Send Inquiry

Product Description

📋 Basic Information

Model NO.

HDWS-774H372M1-10W

Shell Material

Alloy

Display Type

Reverse Image

Interface

Air Plug

Function

Night Vision, with Gauge, Waterproof, Dustproof, Shockproof

Definition

1080P

Chip

CMOS

Waterproof Grade

IP69K

Display Resolution

1024RGB(H) X 600(V) DOT

Back-Light

Single LED 600CD/M2 Brightness

Image Type

1/2.9 Color DSP

Line of Sight Range

100m

Effective Pixel

PAL:1280(H)X960(V)

Production Capacity

40000PCS/Month

🚀 Product Description

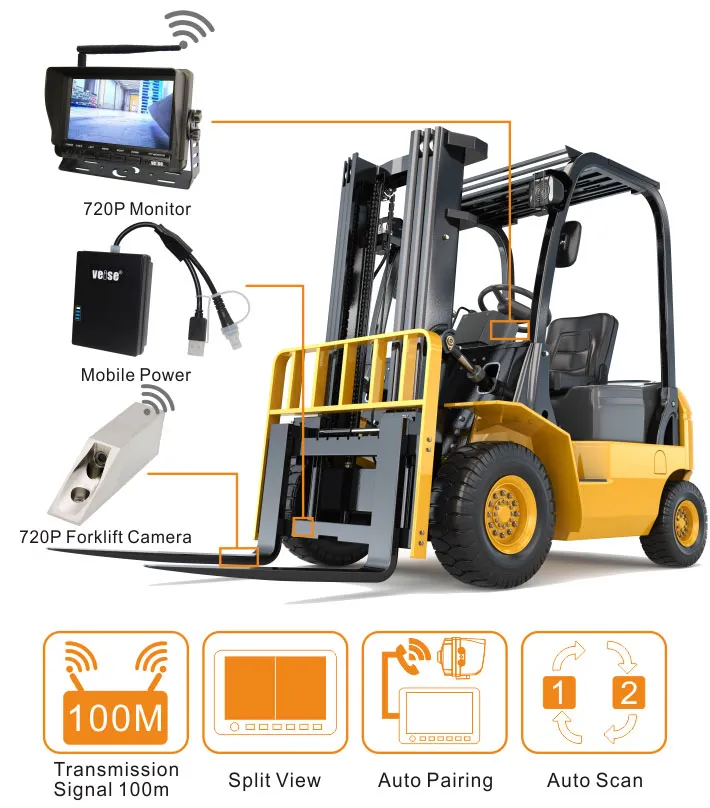

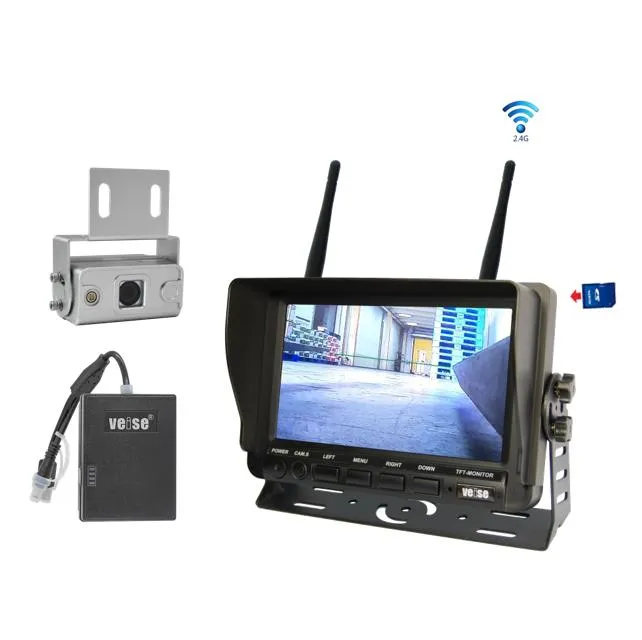

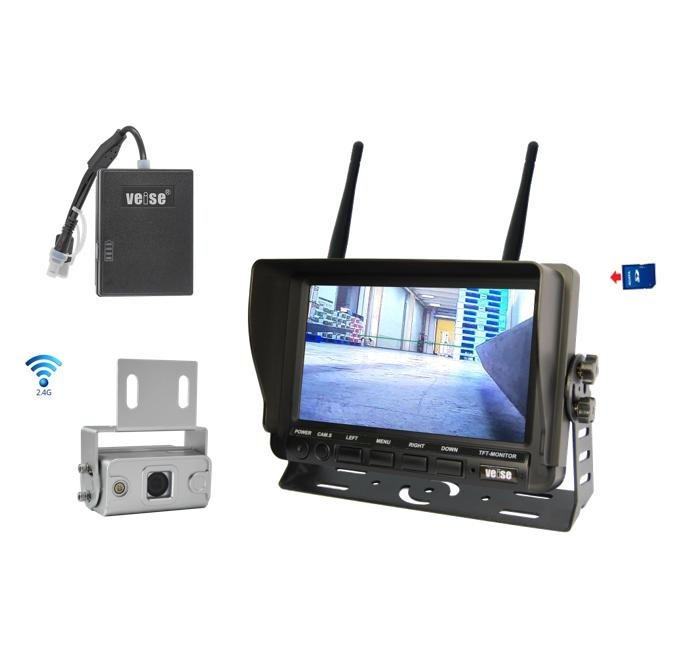

Wireless 2.4G HD Forklift Camera System

Featuring a 7-inch High-Definition Monitor and a specialized 1080P digital wireless camera for industrial safety.

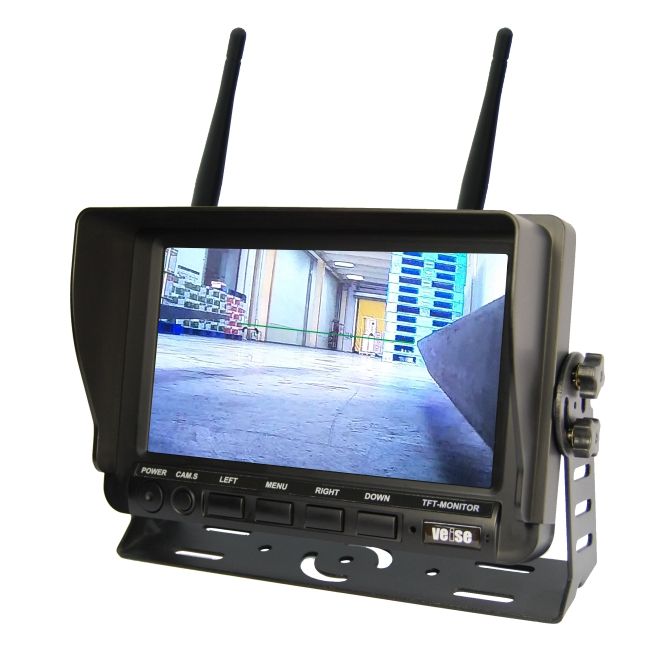

🖥️ 7-inch Digital Screen Monitor Features

Built-in 2.4GHz digital wireless video signal receiver
Multi-frequency hopping frequency automatic code matching, open transmission distance 100 meters
Automotive industrial grade -40°~85° digital video processor
Graphical OSD menu for screen mirroring, reversing ruler, and trigger priority
High temperature resistant ABS+PC shell with detachable sun visor
U-shaped bilateral fastening anti-seismic bracket
1024RGBX600 high resolution and 600cd/m2 high brightness
Load dump pulse voltage DC24V+174V protection
DC8~32V wide range working voltage

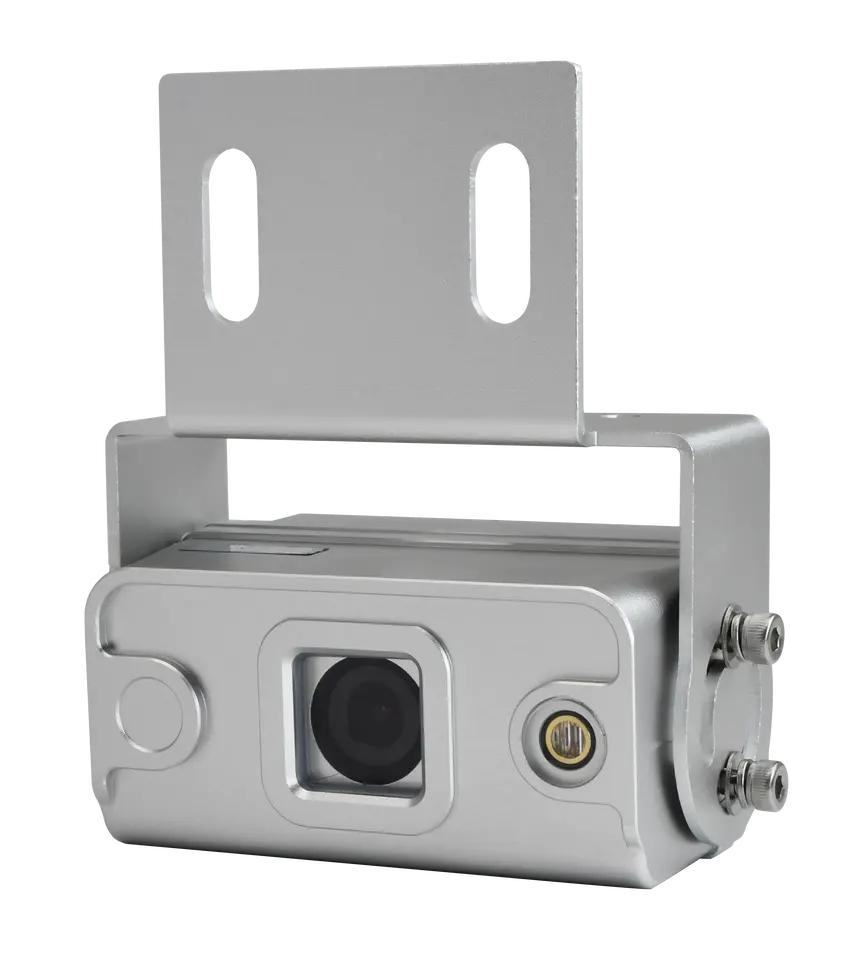

📷 1080P 2.4GHz Digital Wireless Camera

Car regulation DSP million high-definition pixels
Heat-dissipating aluminum alloy case
Nitrogen filling anti-fogging, waterproof IP69K
Built-in IR-CUT filter for true color by day and high brightness at night

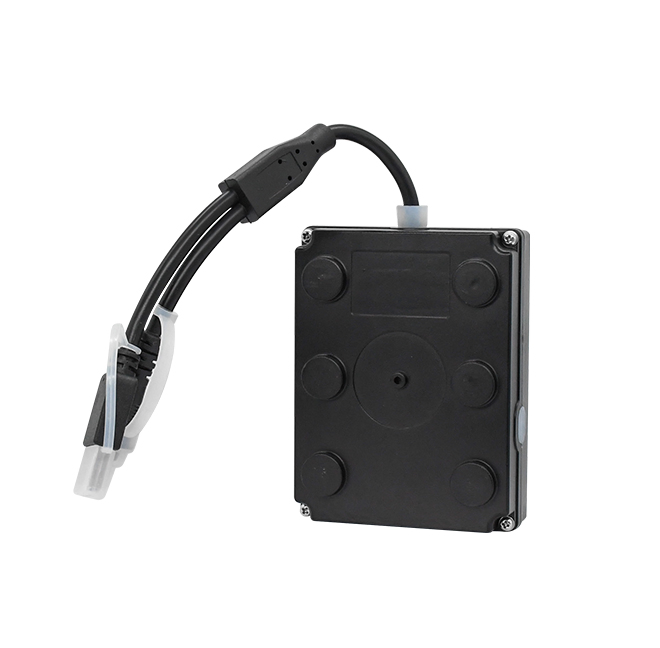

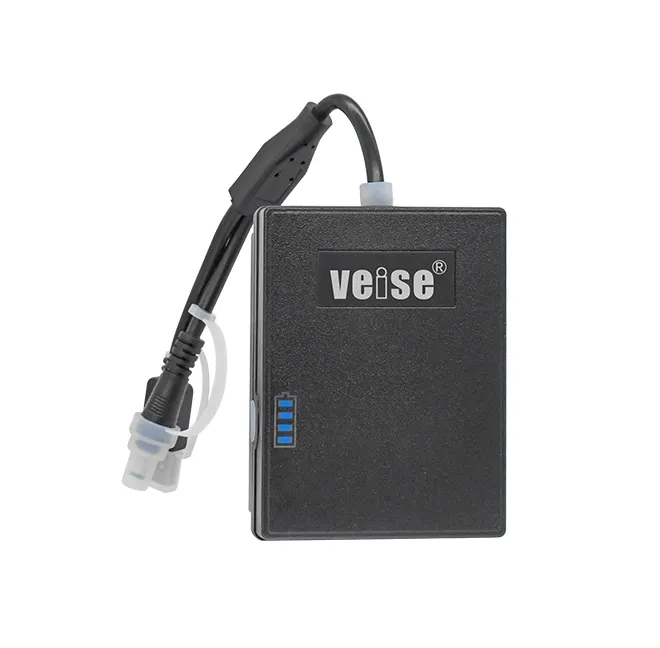

🔋 Mobile Rechargeable Power Supply

Panasonic original battery, safe and efficient
Built-in short circuit, overcharge, and overdischarge protection
Magnetic installation design for any vehicle position
Waterproof grade IP66

⚙️ Technical Specifications

Monitor Specifications (MWHD-774H)
Screen Size	7" HD Screen with Removable Sun Visor
Operating Frequency	2400 ~ 2483.5MHz
Receiving Sensitivity	≤-86dBm
Resolution	1024RGB(H) X 600(V)
Brightness	600cd/m2
Voltage	DC8~32V

Camera Specifications (CWHD-372M)
Image Sensor	1/2.9 Color DSP
Effective Pixel	1920(H)X1080(V)
Waterproof Level	IP69K
Shockproof	10G
Transmission Range	≤100M (Line of Sight)

🖼️ Product Gallery

❓ Frequently Asked Questions

Q1: What is the wireless transmission range of this system? The system uses 2.4GHz digital wireless technology with an open transmission distance of up to 100 meters.

Q2: Is the camera waterproof enough for outdoor use? Yes, the camera features an IP69K waterproof rating, which is the highest level of protection against water and dust, specifically tested for high-pressure washdowns.

Q3: How does the camera perform at night? The camera is equipped with a built-in IR-CUT filter that automatically corrects color cast during the day and improves image brightness for clear night vision.

Q4: Can the battery pack be easily installed on different vehicles? Absolutely. The mobile power supply uses a magnetic installation design, allowing it to be attached to any iron surface on a vehicle without complex wiring.

Q5: What are the monitor's display capabilities? The 7-inch monitor provides 1024x600 HD resolution and high brightness (600cd/m2), ensuring clear visibility even in bright sunlight conditions.

Q6: What safety features protect the system from electrical damage? The system includes load dump pulse voltage protection (DC24V+174V), reverse polarity protection, and constant current/voltage circuit designs to extend service life.
