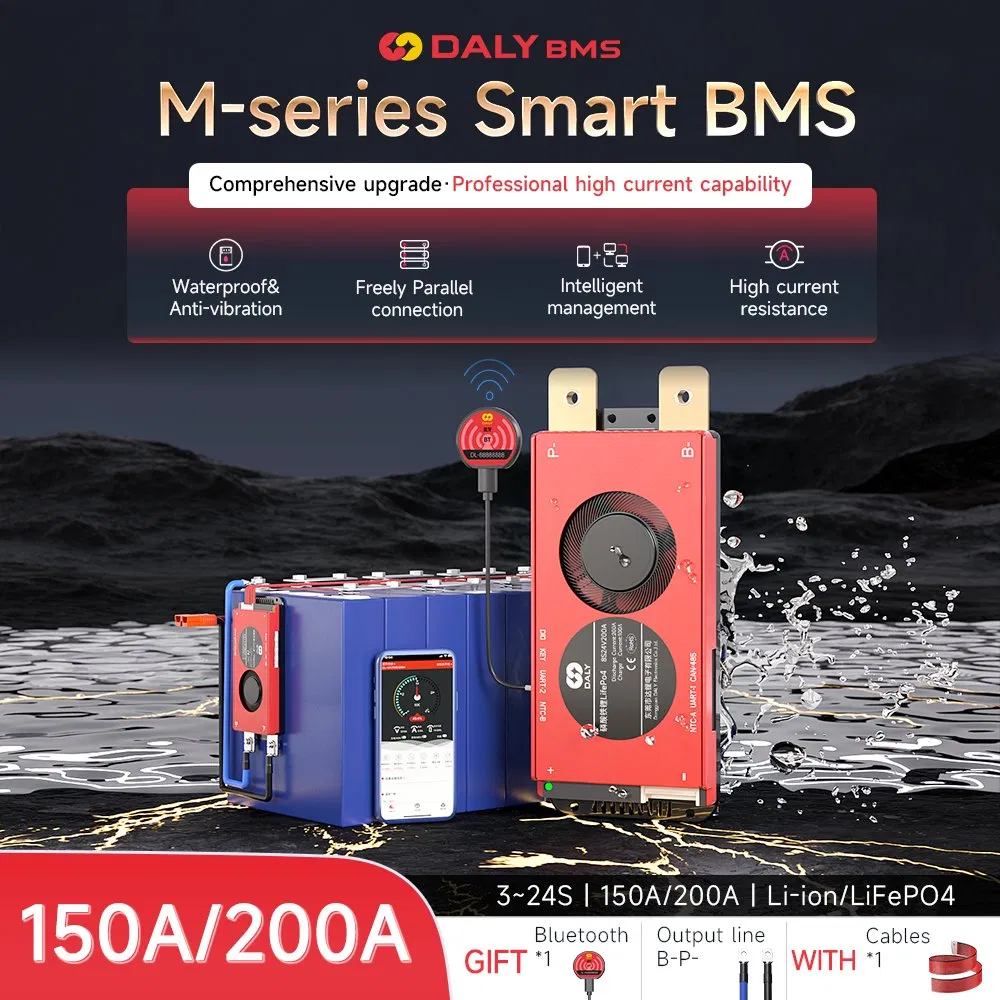

Daly Smart M Type Lithium Battery Management System BMS 3s-24s 12V-72V 150A 200A for RV Energy Storage Forklift

1 / 1

Daly Smart M Type Lithium Battery Management System BMS 3s-24s 12V-72V 150A 200A for RV Energy Storage Forklift

Customization:	Available
Accessory Type:	Battery Accessories
Applications:	3.7V Lithium Battery Rated

Send Inquiry

Product Description

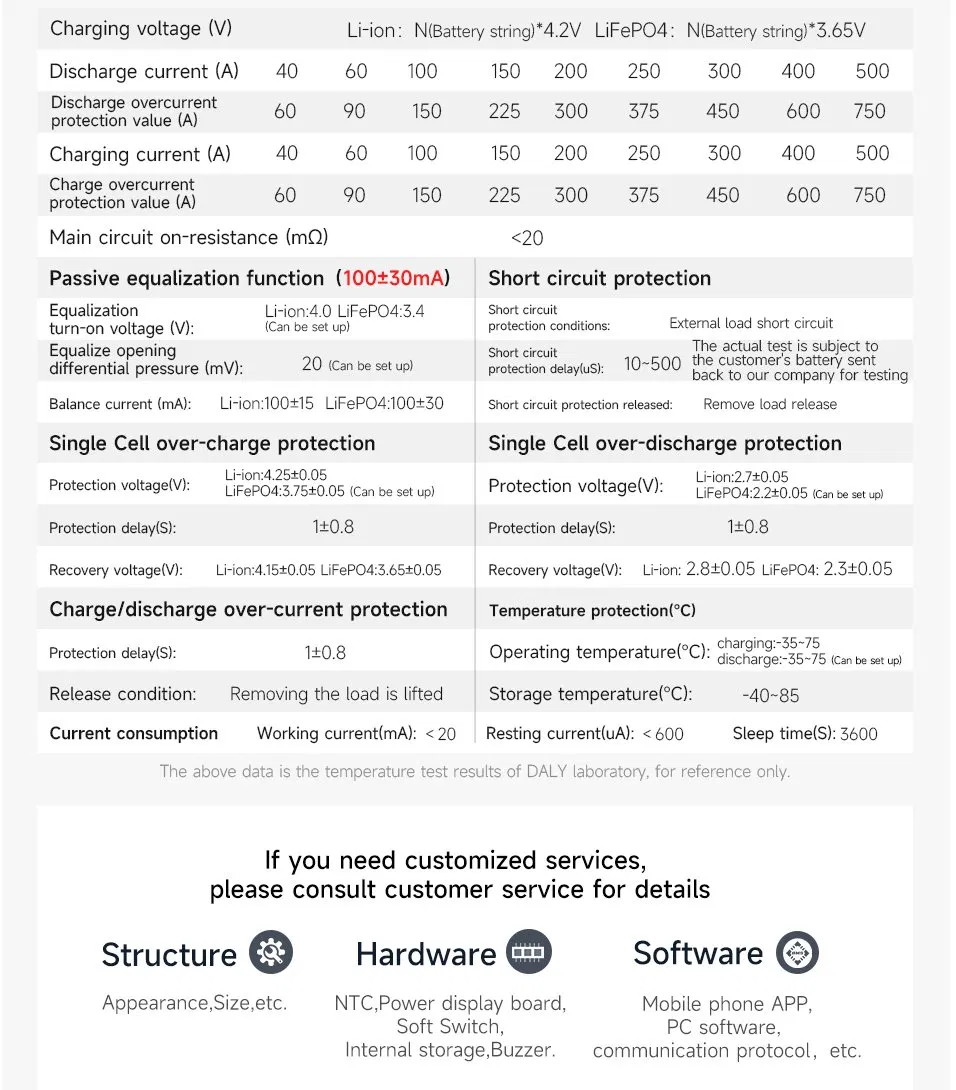

📋 Specification

Model NO.	Smart M Type BMS 3S-24S 150A-200A
Battery Series	4s
Over Charge Protection	Yes
Over Discharge Voltage	Yes
Short Circuit Protection	Yes
Continuous Discharging Current	150A
Peak Discharging Current	450A
Application	Energy Storage System
Feature	Waterproof, with Heat Sink

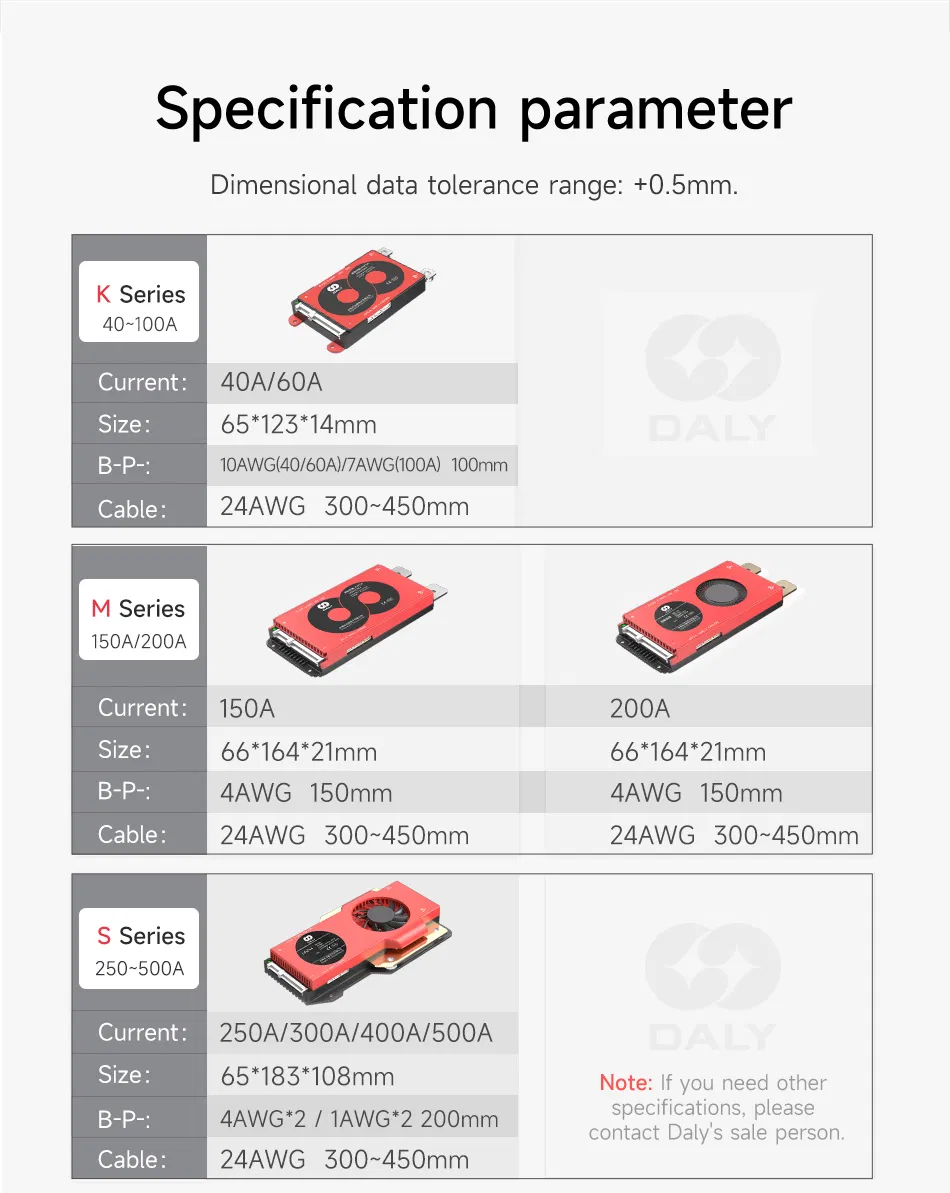

Dimensions	135mm80mm30mm

🖼️ Product Display

📦 Packing & Delivery

Package Size	6616421mm
Package Gross Weight	1.000kg

🏢 Profile

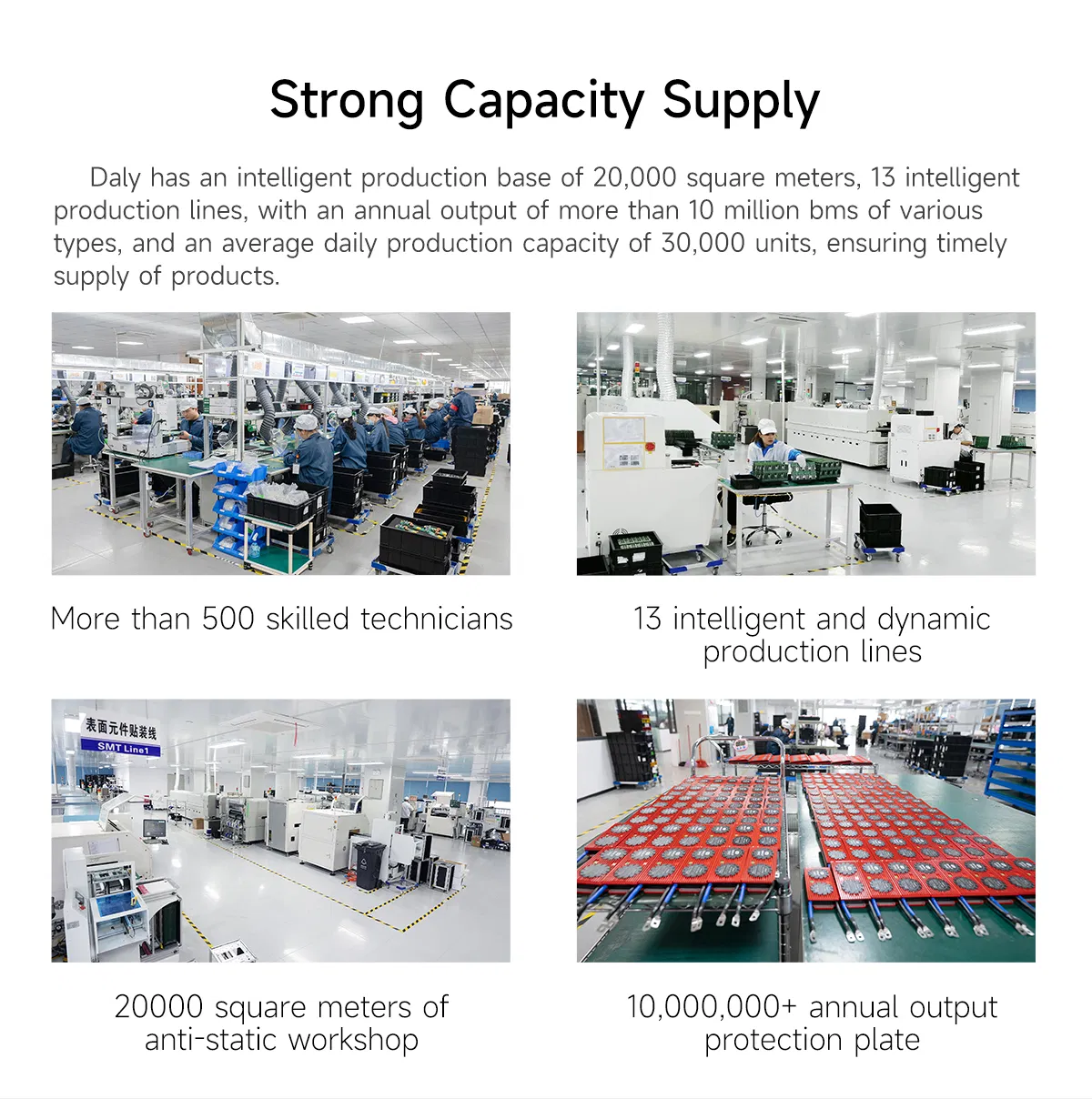

We are a high-tech company specializing in R&D, production, and sales of lithium battery protection boards (BMS). "Only safety, not to be" is the quality policy we always implement. The production facility maintains an internationally standardized quality management system to ensure premium reliability.

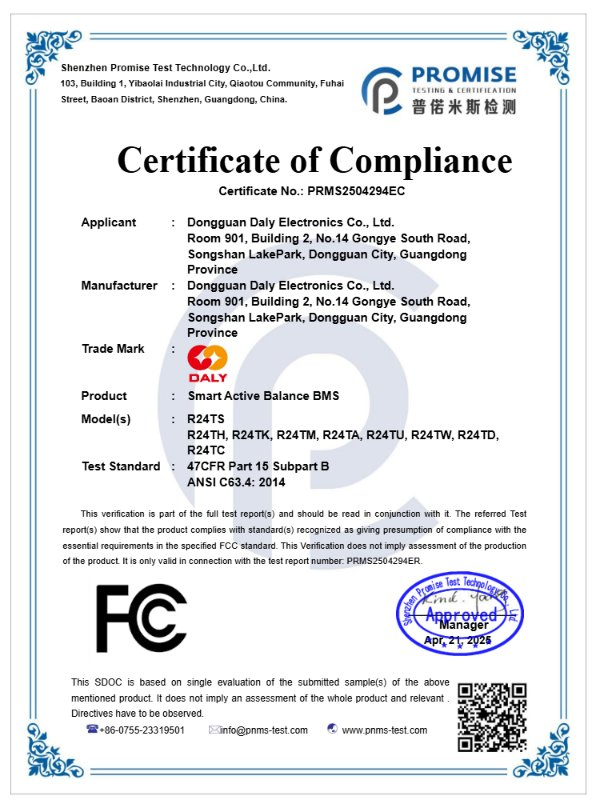

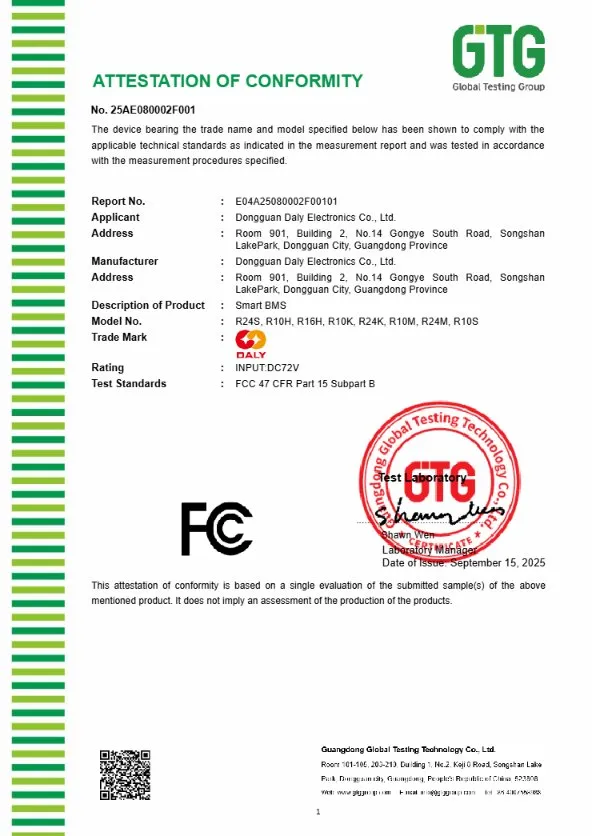

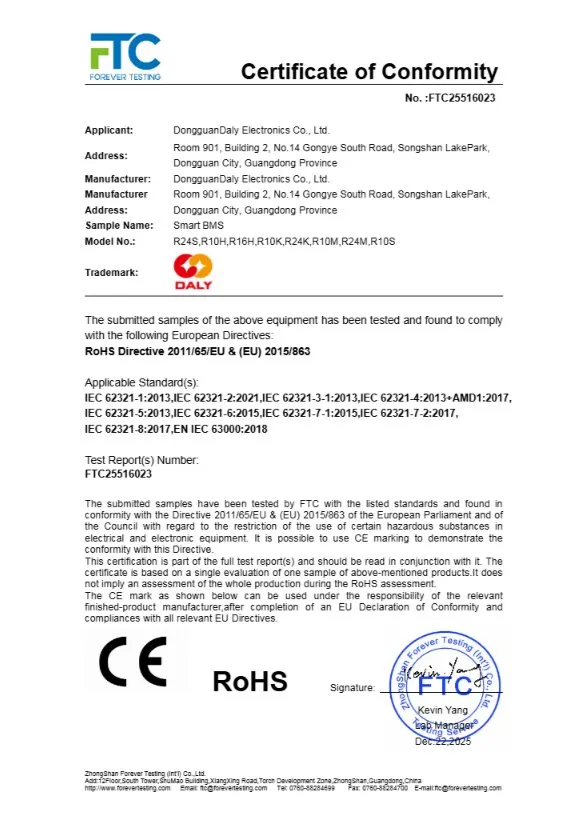

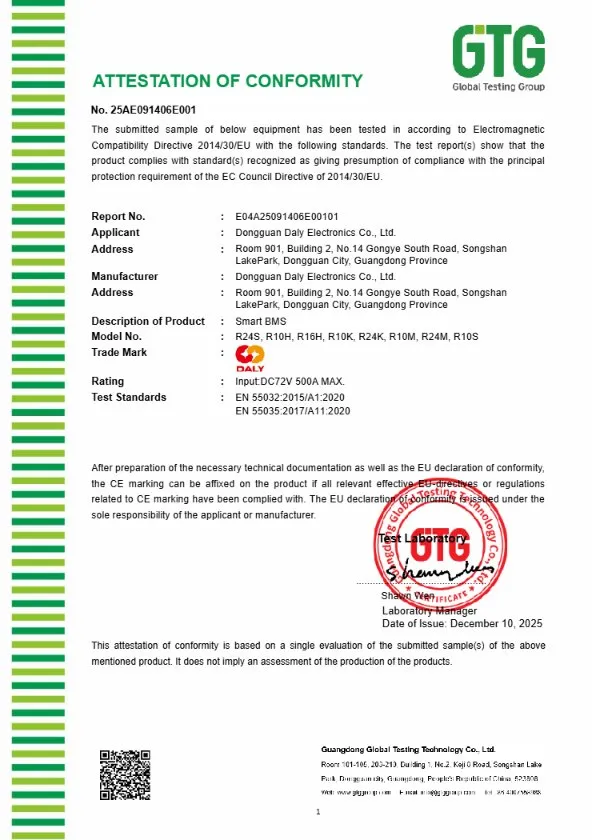

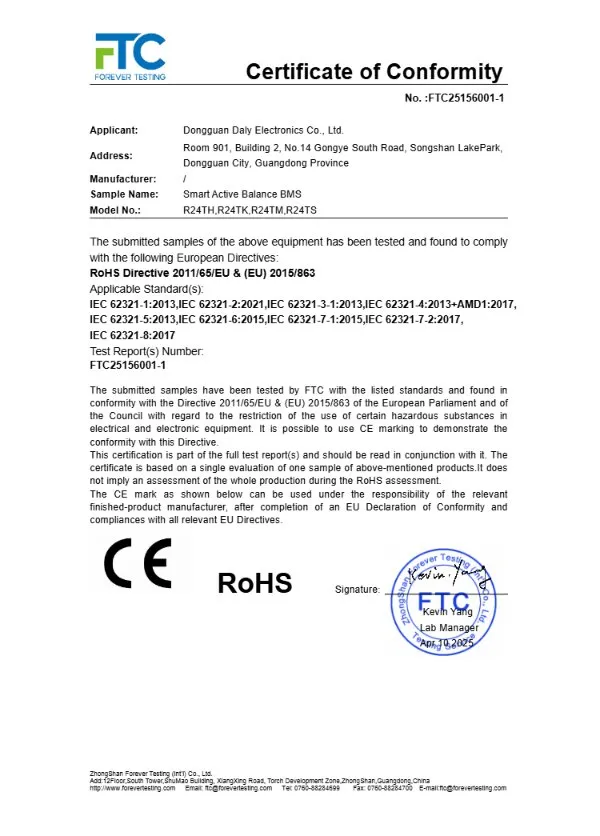

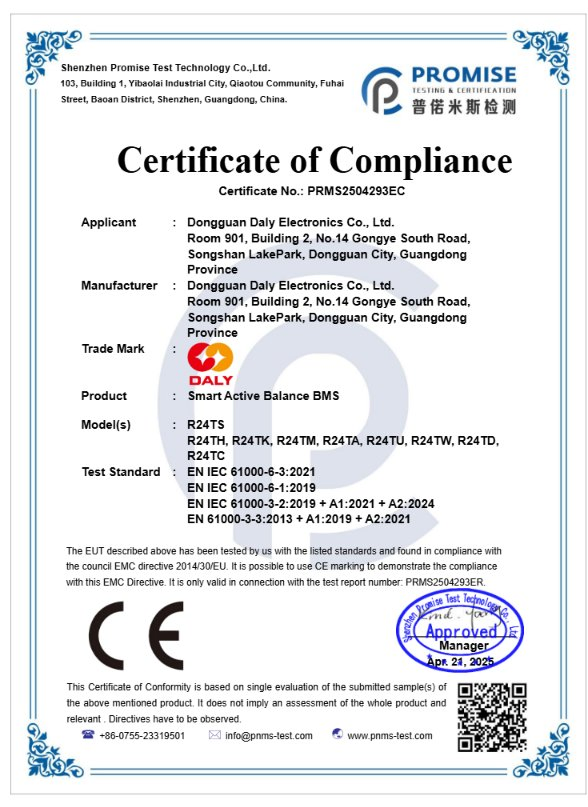

📜 Certifications

❓ Frequently Asked Questions

Q1: How to choose the suitable BMS?

A: Please confirm: 1. Your battery type (3.7V Li-ion or 3.2V LiFePO4). 2. How many cells in series. 3. The peak power watt of your load/motor and the application.

Q2: How to activate the BMS?

A: Methods: 1. Click the activation switch on the power board. 2. Press the button on the Bluetooth module. 3. Charge the battery (B-line must be connected to the total negative pole).

Q3: What is the balance function?

A: When a cell reaches balance voltage (Li-ion 4.18V, LiFePO4 3.6V), it starts discharging at 35mA to allow other cells to continue charging. This ensures all cells reach full capacity equally.

Q4: What type of charger should I choose?

A: Use a specific Lithium battery charger. LiFePO4 charger voltage = strings x 3.6V; Li-ion charger voltage = strings x 4.2V. Avoid lead-acid chargers as they may damage the BMS.

Q5: Do you have a Minimum Order Requirement (MOQ)?

A: No, we don't have an MOQ. We provide various capacities and sizes based on your requirements, including ODM/OEM options.

Q6: How to contact for technical support?

A: Please send messages through the inquiry system, and we will be glad to assist you with BMS technical details.
