Deye High Voltage Solar Battery Lithium Cabinet 60kW 70 kWh 100kWh 120kWh Storage Battery Industry Solar System
Deye High Voltage Solar Battery Lithium Cabinet 60kW 70 kWh 100kWh 120kWh Storage Battery Industry Solar System
Deye High Voltage Solar Battery Lithium Cabinet 60kW 70 kWh 100kWh 120kWh Storage Battery Industry Solar System
Deye High Voltage Solar Battery Lithium Cabinet 60kW 70 kWh 100kWh 120kWh Storage Battery Industry Solar System
Deye High Voltage Solar Battery Lithium Cabinet 60kW 70 kWh 100kWh 120kWh Storage Battery Industry Solar System
1 / 5
Deye High Voltage Solar Battery Lithium Cabinet 60kW 70 kWh 100kWh 120kWh Storage Battery Industry Solar System
Deye High Voltage Solar Battery Lithium Cabinet 60kW 70 kWh 100kWh 120kWh Storage Battery Industry Solar System
Deye High Voltage Solar Battery Lithium Cabinet 60kW 70 kWh 100kWh 120kWh Storage Battery Industry Solar System
Deye High Voltage Solar Battery Lithium Cabinet 60kW 70 kWh 100kWh 120kWh Storage Battery Industry Solar System
Deye High Voltage Solar Battery Lithium Cabinet 60kW 70 kWh 100kWh 120kWh Storage Battery Industry Solar System

Deye High Voltage Solar Battery Lithium Cabinet 60kW 70 kWh 100kWh 120kWh Storage Battery Industry Solar System

Customization: Available
Application: PV Supporting Energy Storage
Installation: Cabinet Floor-Mounted
Send Inquiry

Product Description

ⓘ

Overview & Basic Info

Model NO.
All in one Hybrid System
Energy Capacity
100kWh-500kWh
Power Configuration
50kw-250kw
Cycle Life
8000 Cycles (80%DOD)
Cooling Method
Air Cooling System
Battery Type
Lithium Ion
Grid connection
Off grid, Hybrid grid, on grid
Protection Class
IP55
Warranty
10 year
Certification
CE, IEC62619, IEC62040, UN38.3
⚙

Product Description

Product Description
🖀

System Connection & Internal Structure

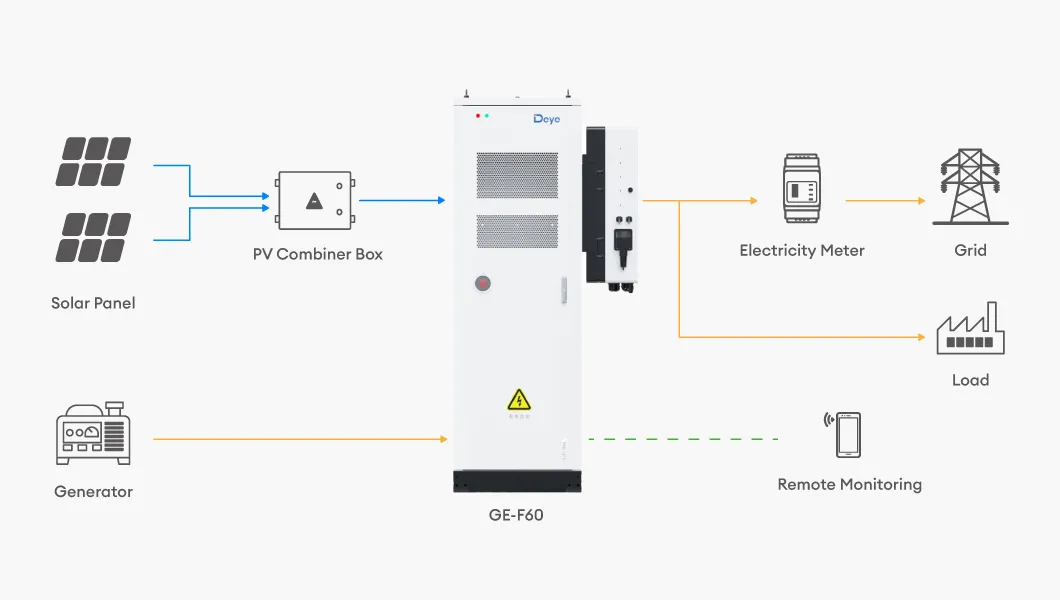

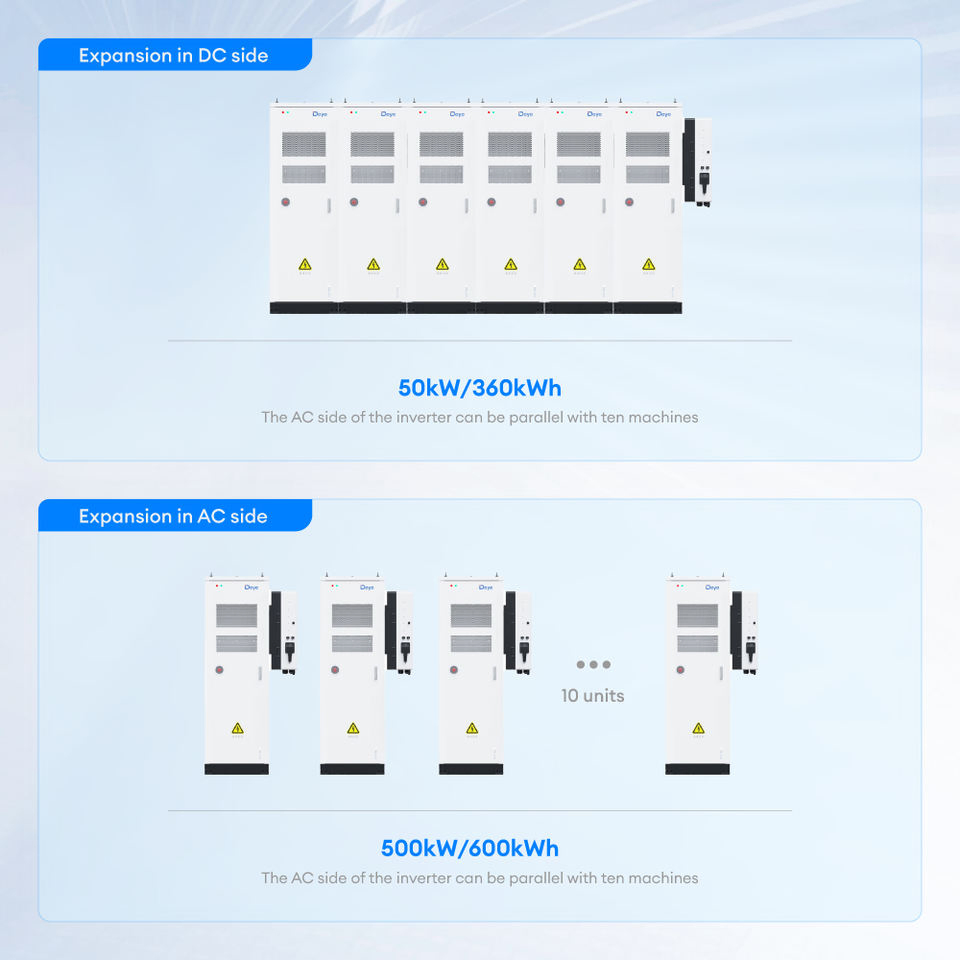

System connection diagram

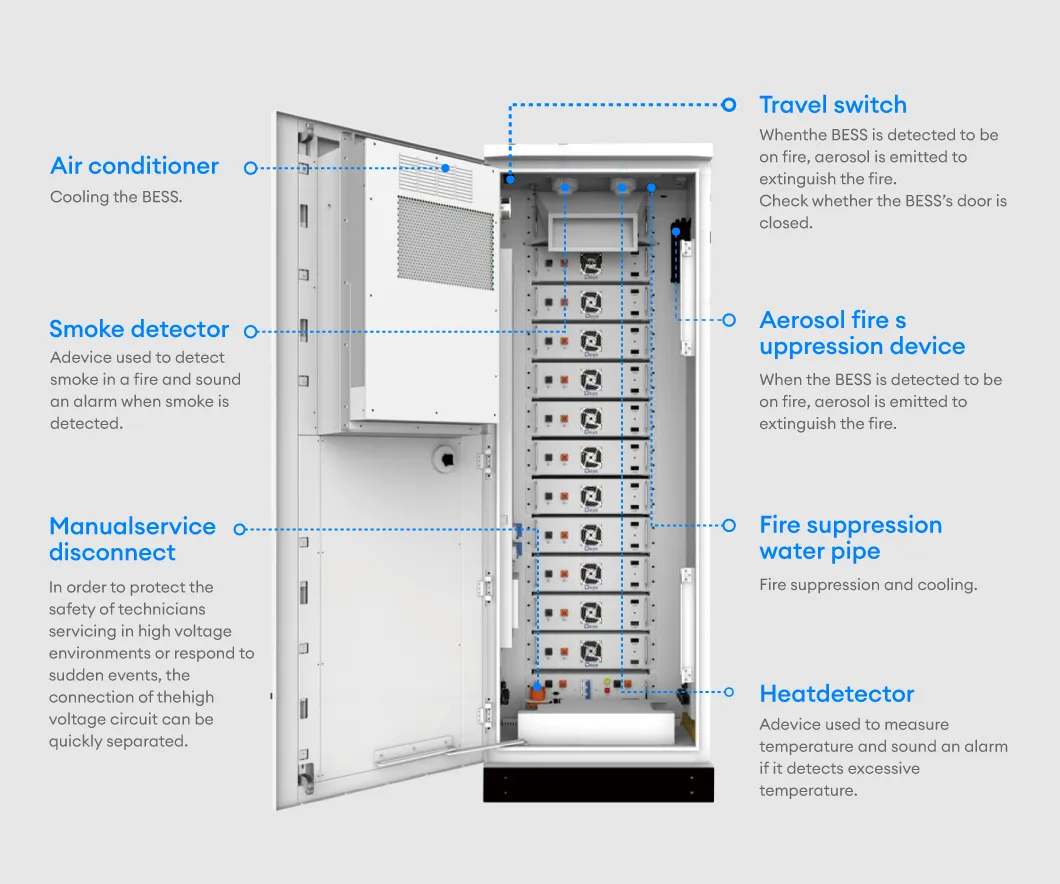

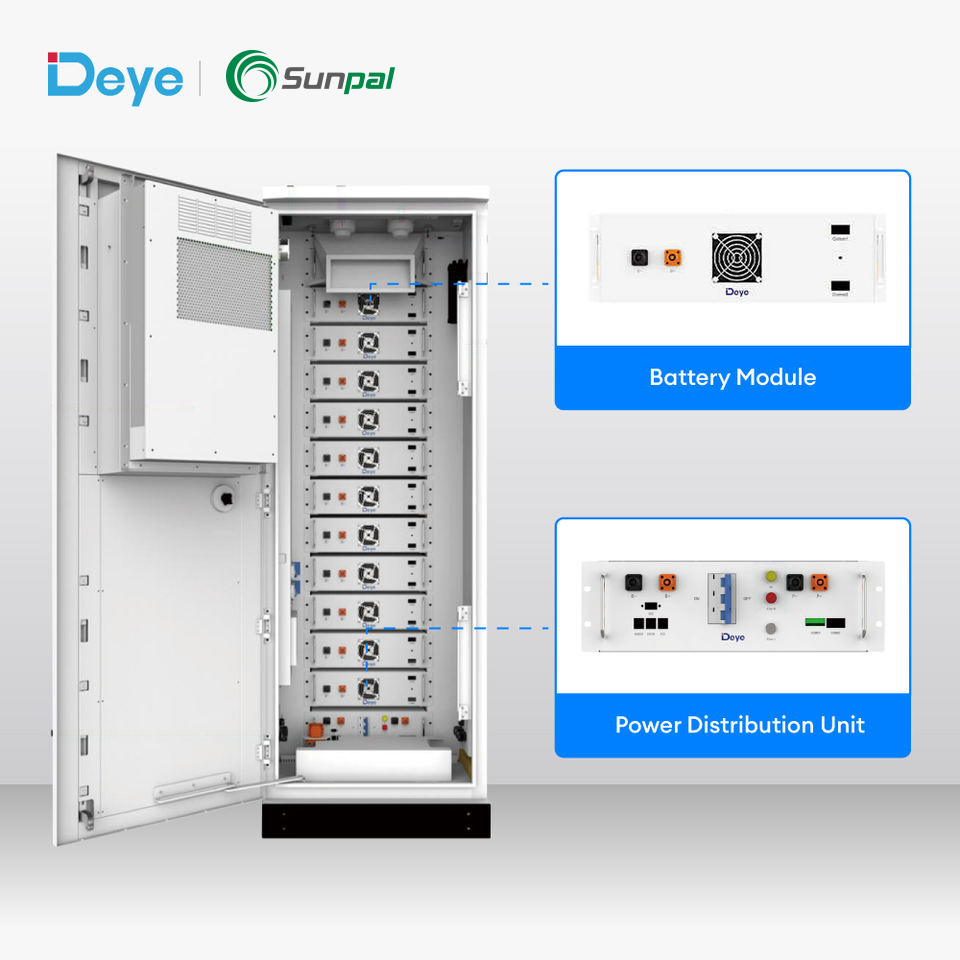

Internal Structure
✔

Product Features & Details

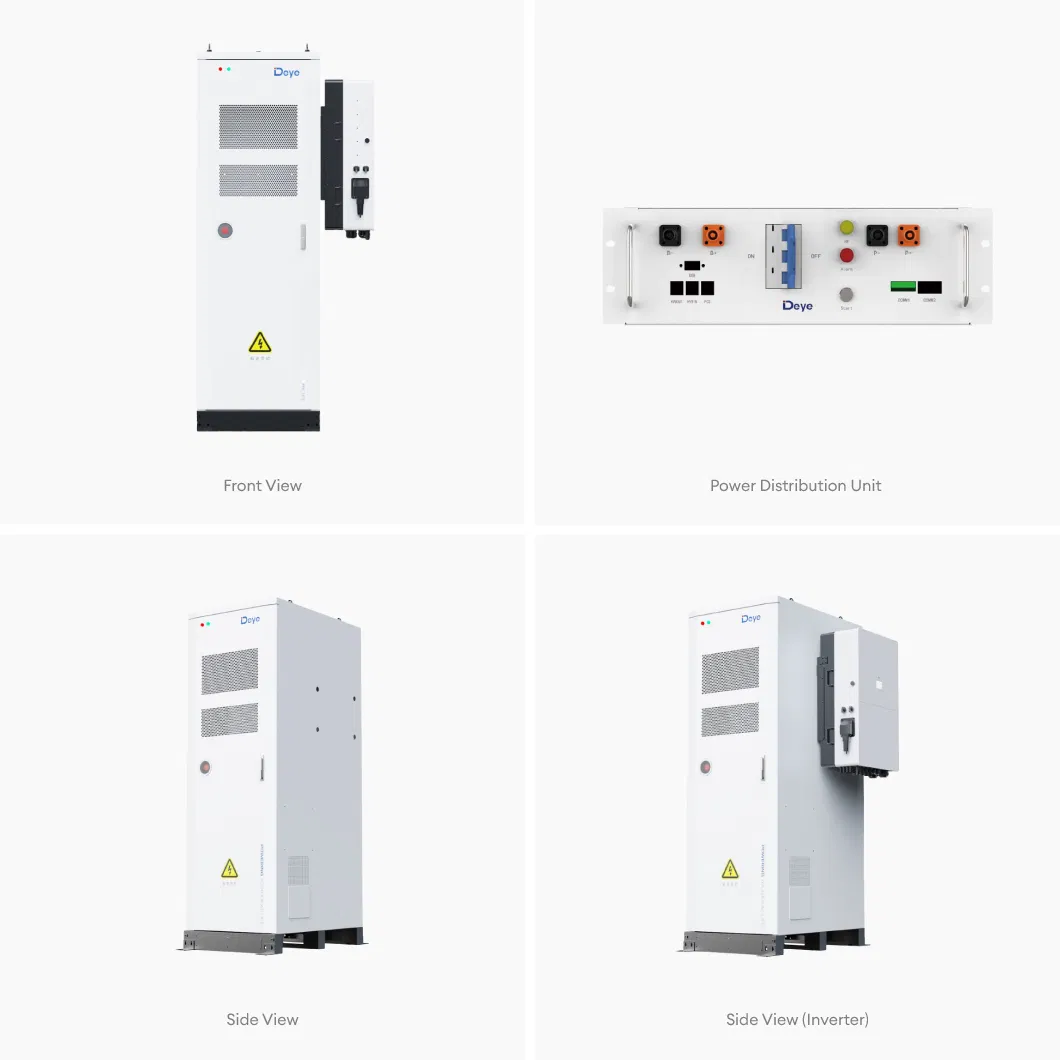

Angle details

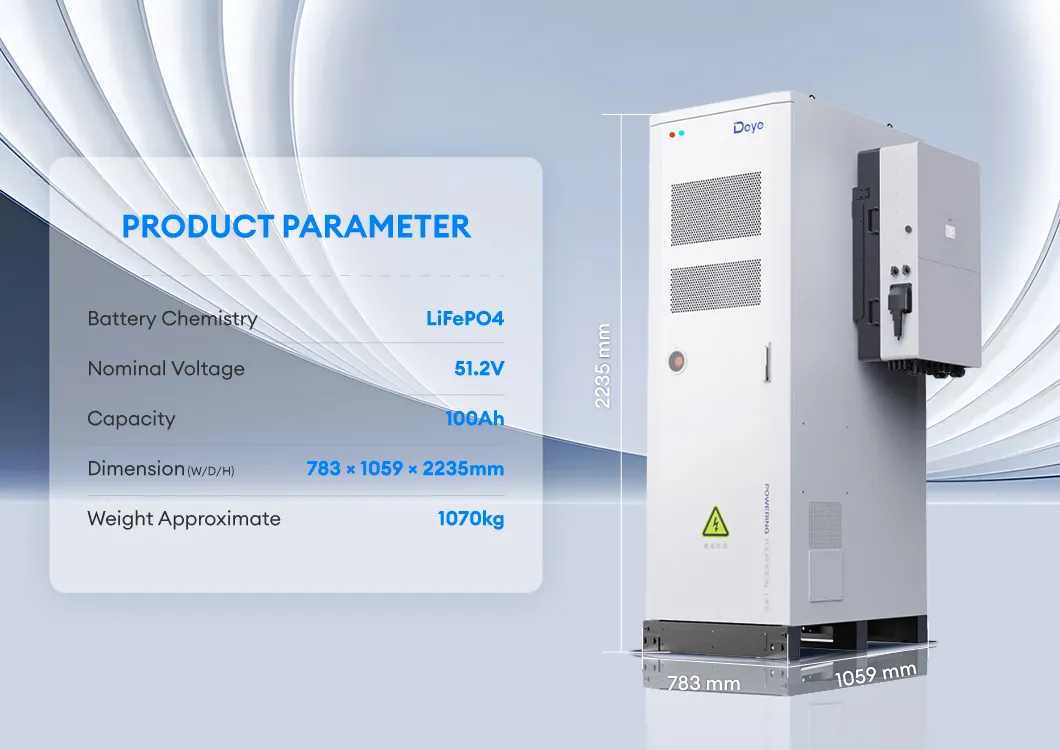

Product Feature

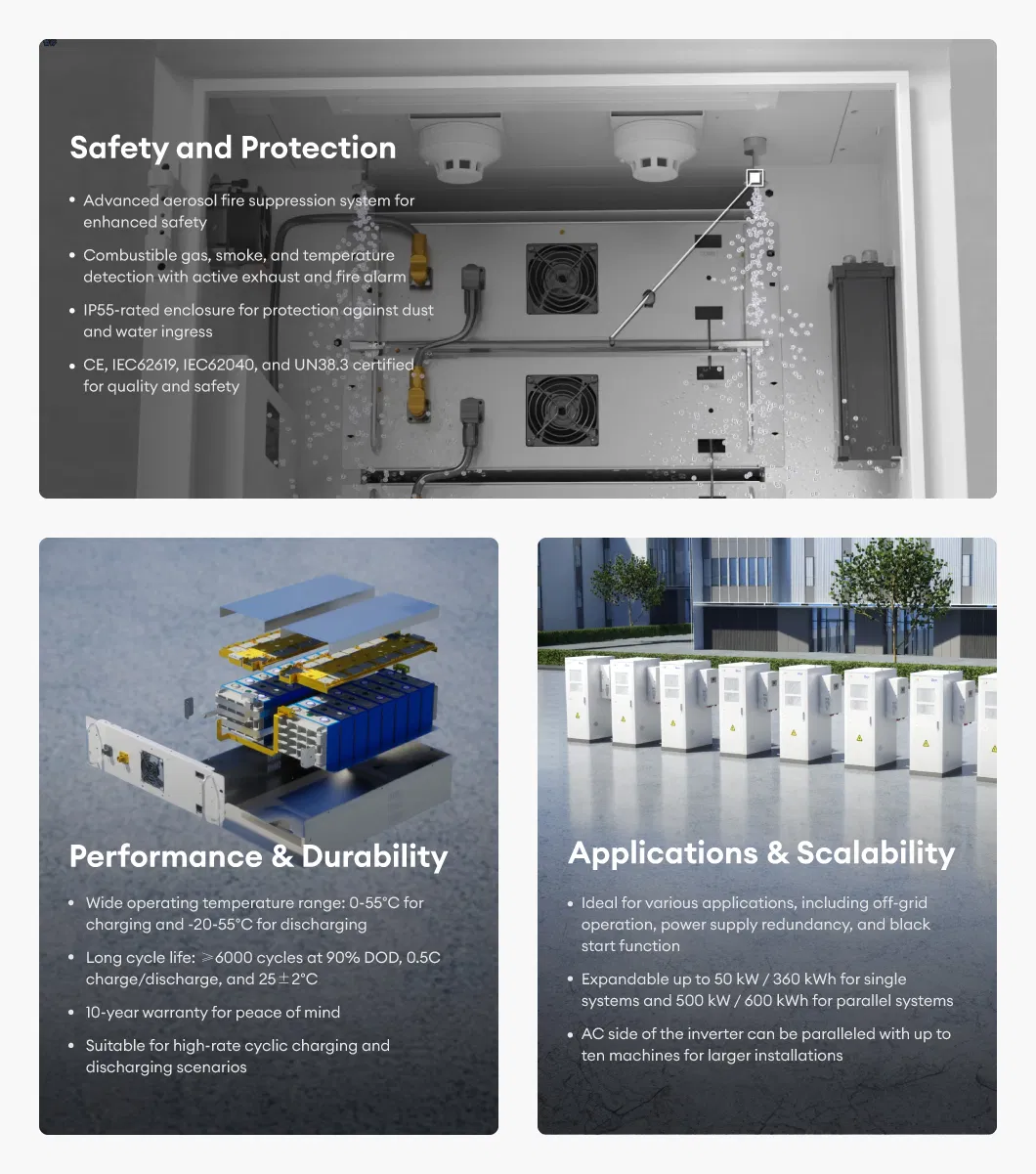

Feature details
📄

Product Datasheet

ModelGE-F60
Cell ChemistryLiFePO4
Module Energy (kWh)5.12
System Nominal Voltage (V)614.4
System Energy (kWh)61.44
Rated DC Power61.44
Working Temperature (°C)Charge: 0~55 / Discharge: -20~55
Communication PortCAN2.0/ RS485
IP RatingIP55
Dimension (W/D/H, mm)780*1056*2235
Cycle Life25±2°C, 0.5C/0.5C, EOL70% ≥ 6000
Warranty10 years
📦

Packaging & Project Cases

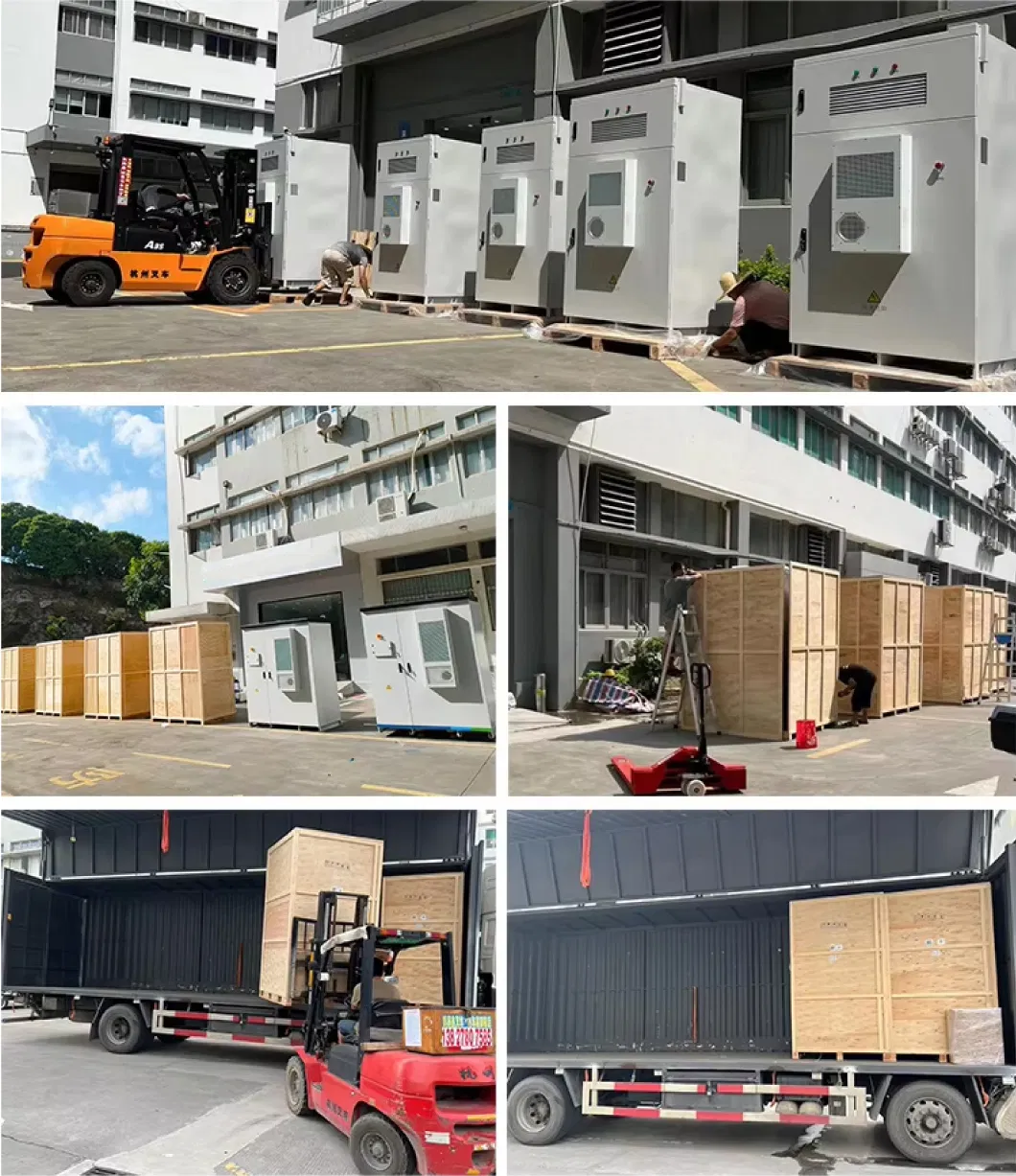

Packaging

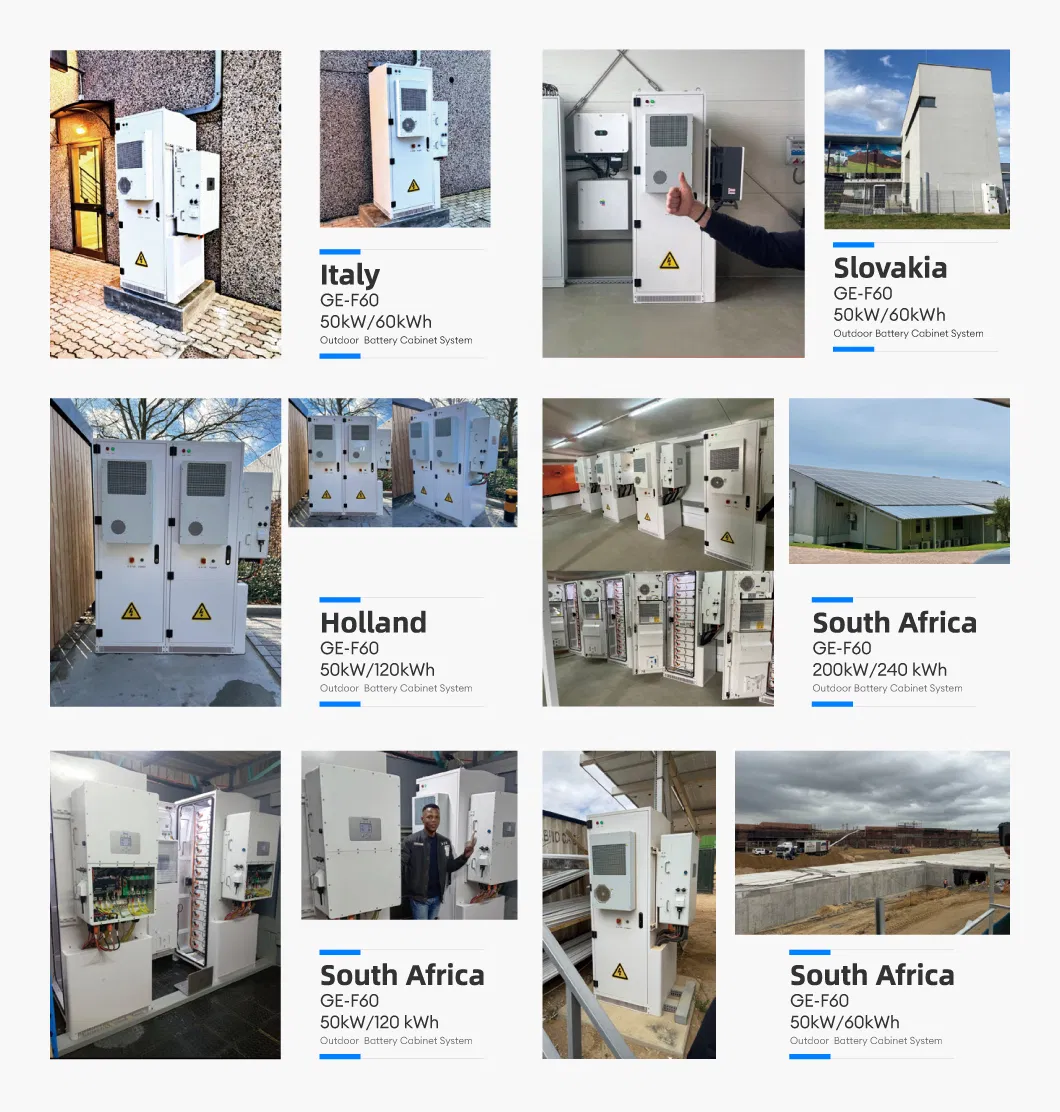

Project Cases

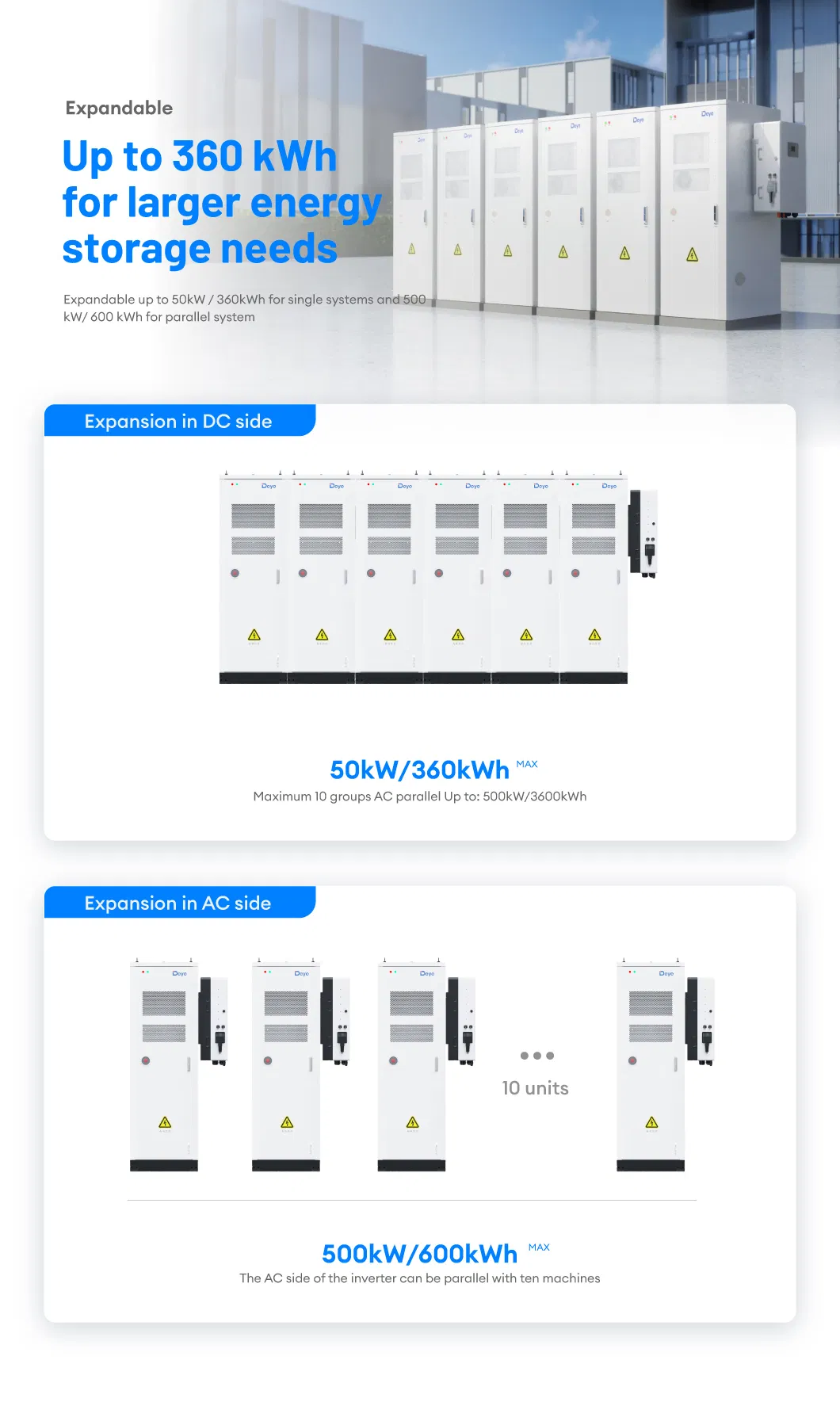

Applications
Service

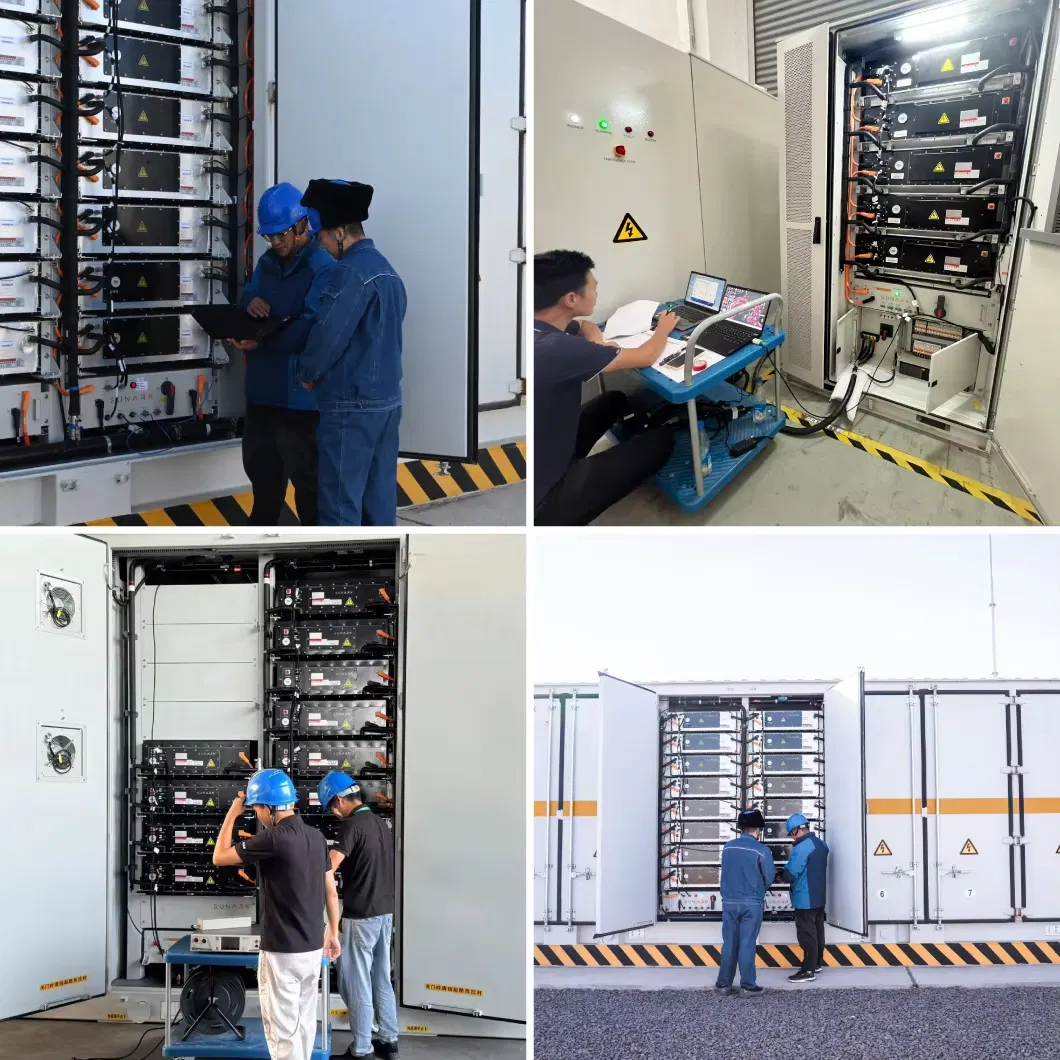

One-stop Solar Service
?

Frequently Asked Questions

What type of battery technology is used in this system?
The system utilizes high-quality Lithium Iron Phosphate (LiFePO4) cell chemistry, known for its safety and long cycle life.
What is the expected cycle life of the energy storage system?
The system is rated for 8000 cycles at 80% Depth of Discharge (DOD) under standard conditions.
Can this system be used in outdoor environments?
Yes, the system features an IP55 protection class rating, making it suitable for outdoor cabinet energy storage applications.
Does the system support grid-connected operations?
The system is highly versatile and supports Off-grid, Hybrid grid, and On-grid connections.
What is the warranty period for this energy storage solution?
We provide a 10-year warranty for the system, ensuring long-term reliability and performance.
How is the battery system cooled?
The system uses an efficient Air Cooling System to maintain optimal operating temperatures for the battery modules.
