Autrionyx Power
1 / 5

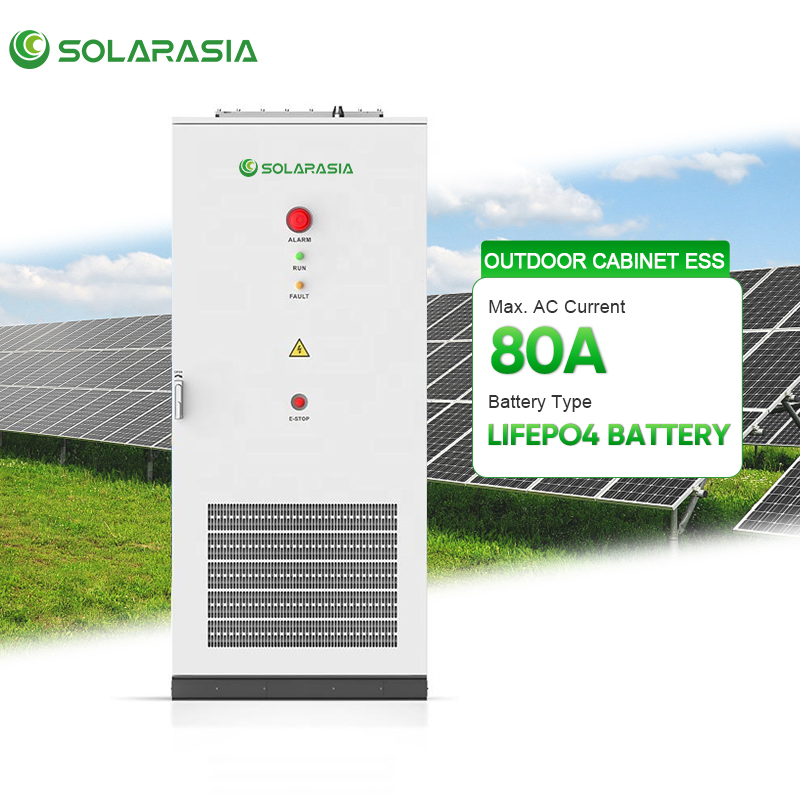

| Model Number | IYP-B100-55H3-75M2-HX1 |
|---|---|
| Warranty | 3 Years |
| Nominal Capacity | 100kWh |
| Cycle Life | 6000 Cycles |
| Max. PV Voltage | 850 VDC |
| MPPT Voltage Range | 200 ~ 800 VDC |
| Rated Frequency | 50Hz / 60Hz |
| Communication Type | RS485 / WiFi |
| Fire Protection System | Yes |
| Dimensions | 740x1170x2060 mm |
| Origin | China |

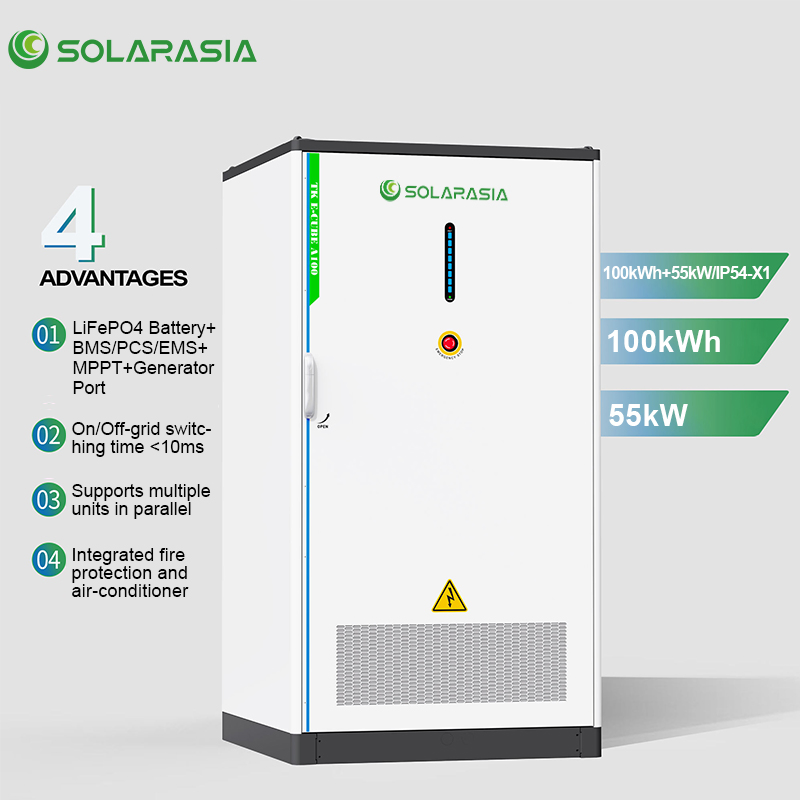

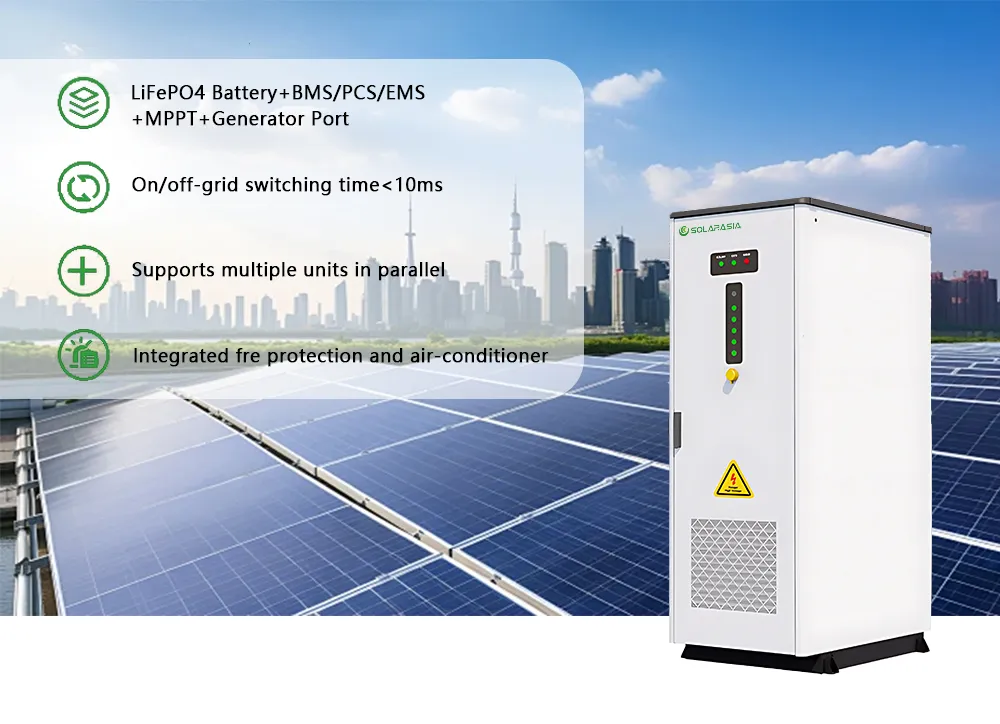

Pre-integrated and factory-tested for rapid, plug-and-play installation — no complex setup required.
Engineered to perform reliably in extreme outdoor conditions, with high resistance to dust and moisture.
Gain real-time insights and control over system performance from anywhere, optimizing efficiency.
Modular architecture enables seamless capacity upgrades as your energy needs evolve.

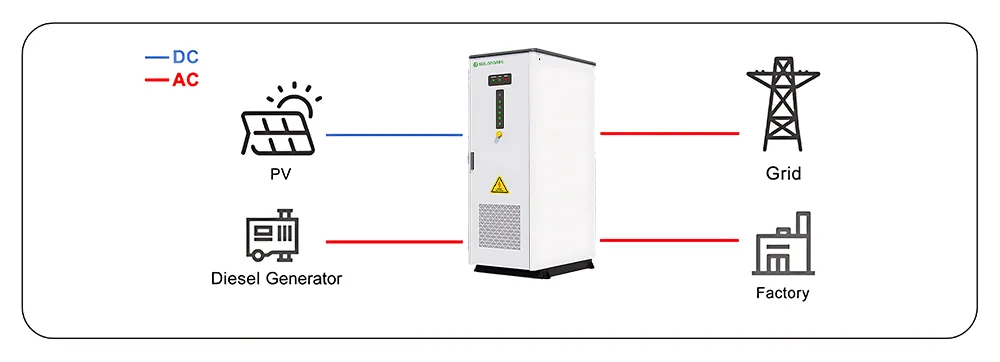

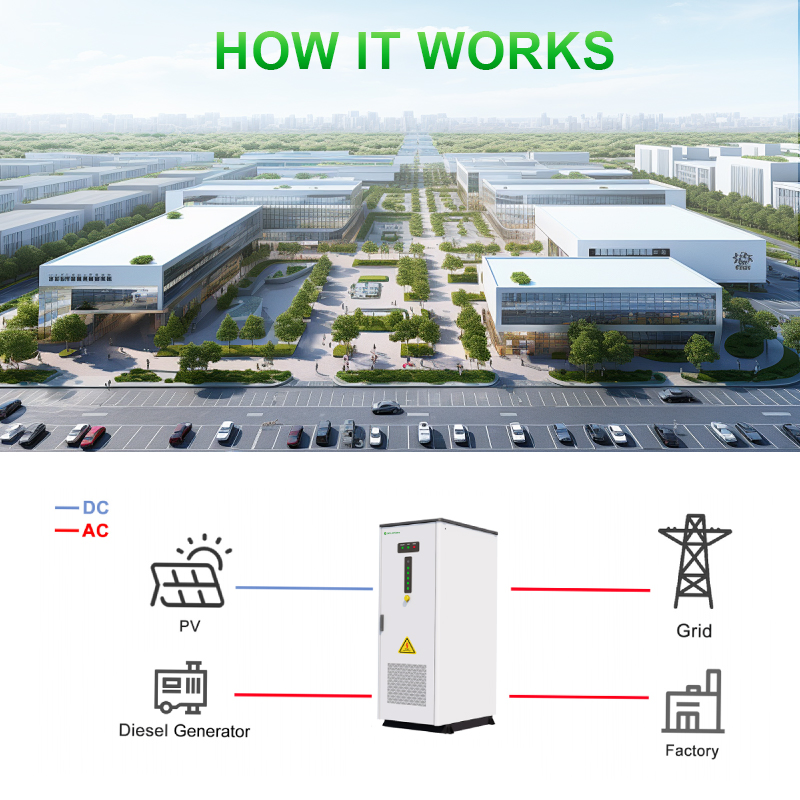

Effortlessly connects with grid power, solar, and wind sources for intelligent energy switching.
| Battery System | |
| Rated Energy | 100kWh |
|---|---|
| Cooling Method | Air-Conditioner |
| PV Input | |
| Max. Power | 75kW |
| Max. PV Voltage | 850 Vdc |
| MPPT Channels | 2 |
| Max. PV Current | 60A + 60A |
| AC Output (On-Grid) | |
| Rated Power | 55kW |
| AC Voltage | 400Vac / 230Vac |
| Max. AC Current | 80A |
| AC Output (Off-Grid) | |
| Rated Power | 50kW |
| Switching Time | <10 ms |
| Parallel Capability | Up to 3 units |
| Environmental & General | |
| Operating Temp. | -10°C ~ 50°C |
| Protection System | Fire Suppression Integrated |
| Altitude | <3000 m |
Our company is a preeminent energy technology enterprise specializing in solar panels, solar inverters, lithium batteries, and comprehensive solar systems. Our products have been distributed in over 100 countries, earning a remarkable reputation for quality and reliability.
Our partner manufacturers are equipped with state-of-the-art production equipment and technology, ensuring all products comply with ISO, TUV, and CE standards. We focus on providing professional guidance and sustainable energy innovation to partners worldwide.
