Basic Information
Model NO.TRS-Standard
UsageBeverage, Food, Industrial, Warehouse Rack
MaterialSteel
StructureRack
TypeCompact Storage
MobilityFixed
Height5-15m
Weight300kg
CertificateISO9001, CE
Load Weightup to 2000kg
Work Temperature50 to -30 Degree
Capacity3000 Tons Monthly
Product Description

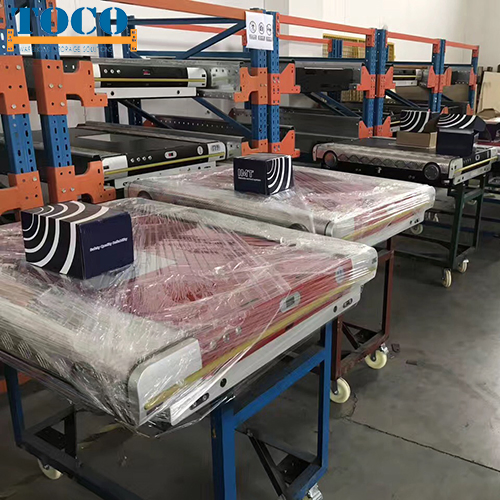

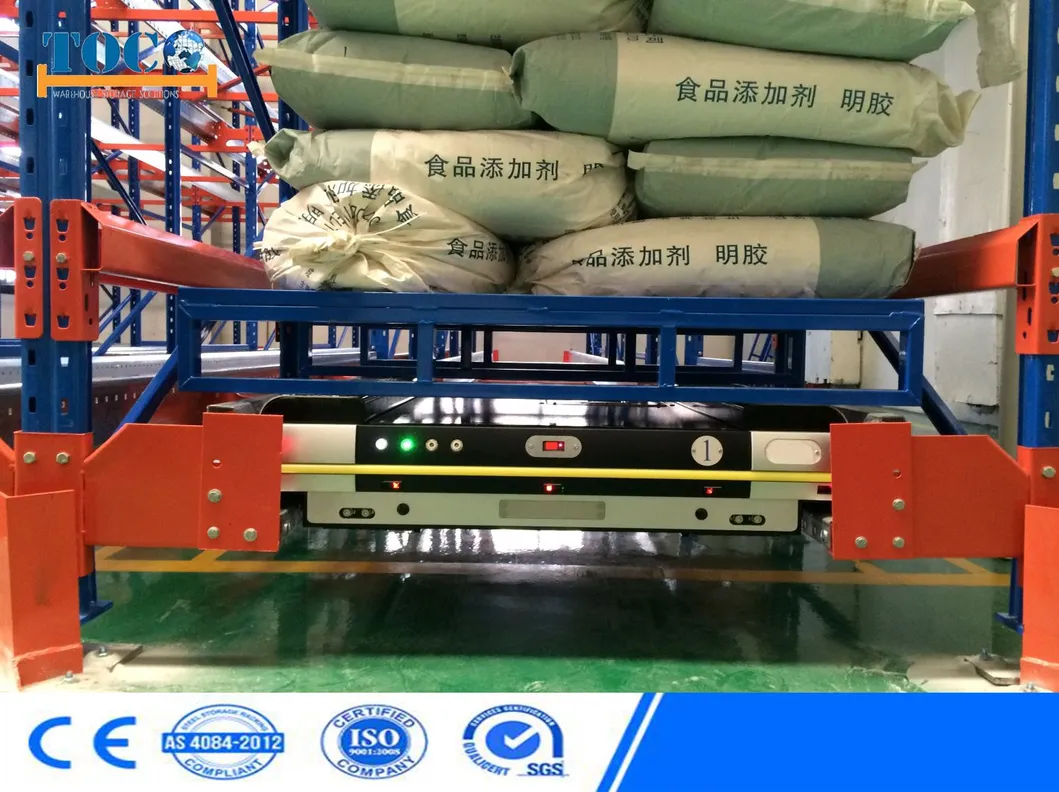

Radio Pallet Shuttle Shelving Systems are energy efficient, with battery charging 3 hours, and keep working 8 hours in temperatures from 50 down to -30 degrees. The Semi-Automated Shuttle Systems utilize forklifts and are modular and easily converted to a fully automated system, as your business needs and labor demands require.

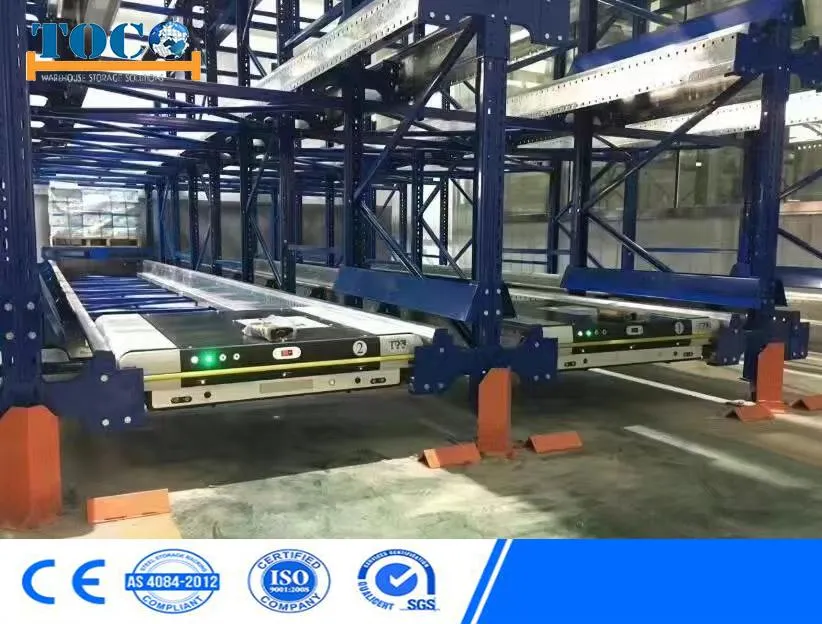

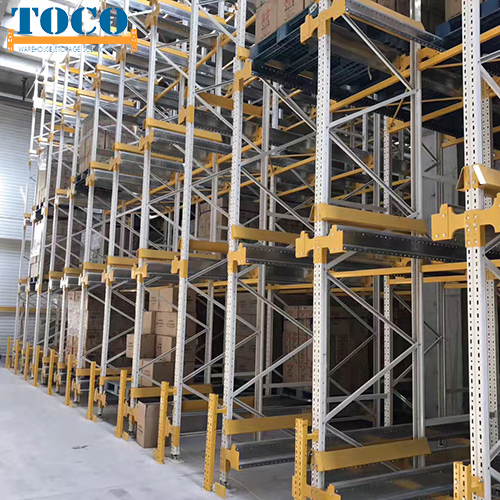

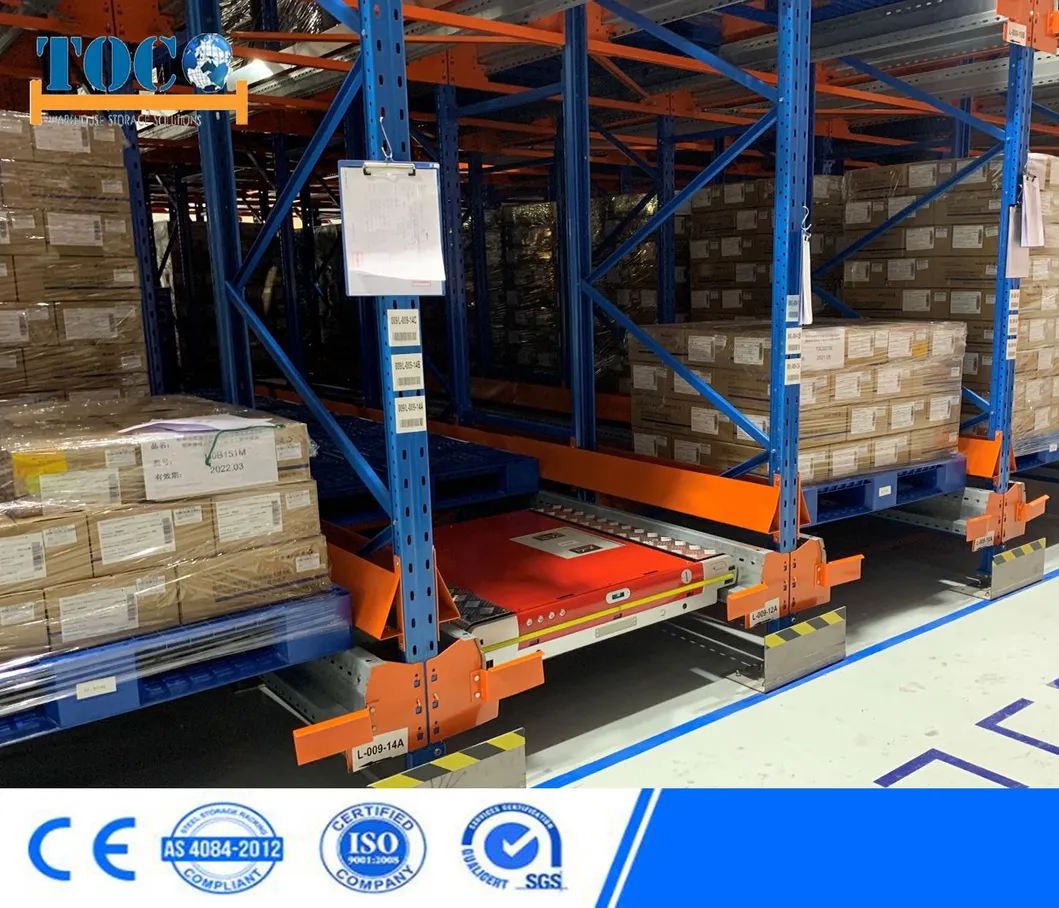

Shuttle channel racking for high throughput performance
Shuttle channel racking offers many advantages, ranging from the high throughput performance during complete filling and emptying of a pallet channel, to collision-free storage and retrieval of pallets as well as optimum space utilization thanks to less operation aisles required.
| Name | Radio Pallet Shuttle Rack | Model No. | IPR08 |
| Capacity | Up to 2000kg/Pallet | Material | Q235 or Q345 High Grade Steel |
| Certificate | TUV, CE, ISO9000 | Design Standards | Meet FEM, AS4084 |
| Finish | Powder Coating or Galvanized |
| Main Components | Frame (Upright, Bracing, foot plate), Beam, Frame Tie, and accessories included |
| Color Options | Standard: Blue RAL5015, Orange RAL2004, Yellow RAL1003, Grey RAL7047. Customized available. |
| Lifespan | 10+ Years for racking |
Key Features
- High density storage system, more than 80% of the warehouse space utilization.
- Can fulfill both FIFO/LIFO access mode, more convenient than any other racking systems.
- Forklift no enter into racking, safer for forklift operator.
- Turnover speed enhanced, work efficiency improved.
- Electricity automated system, reduce energy consumption, save cost.

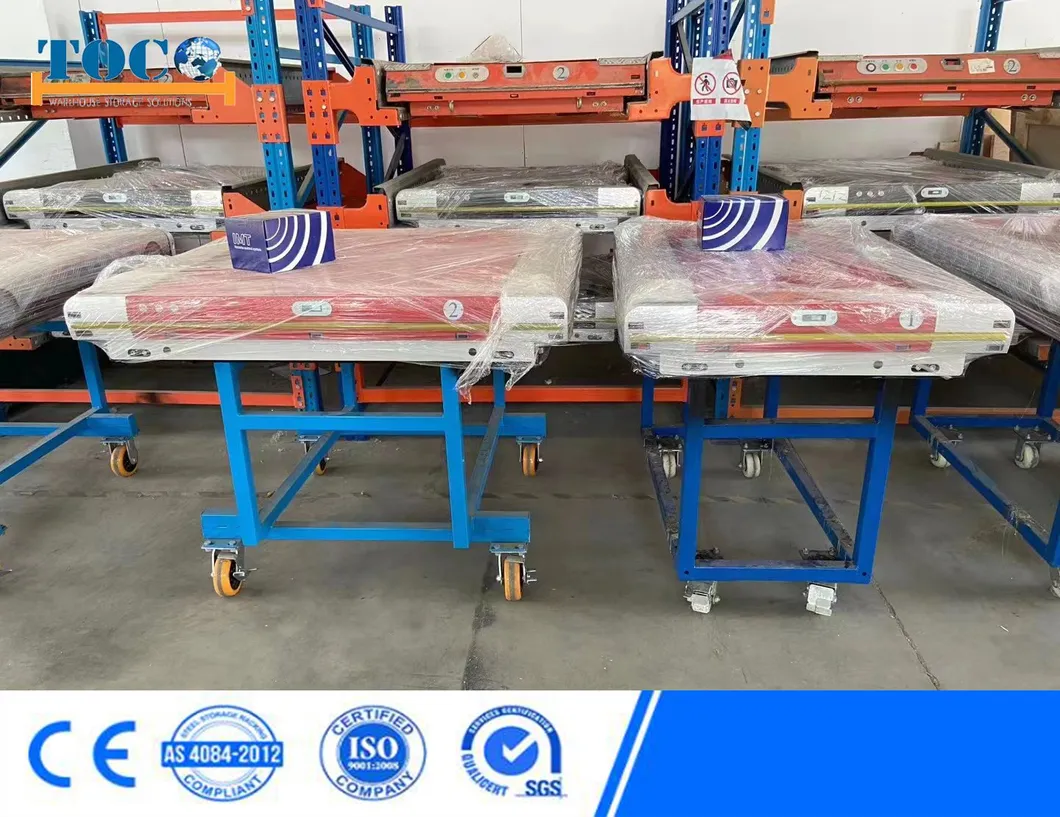

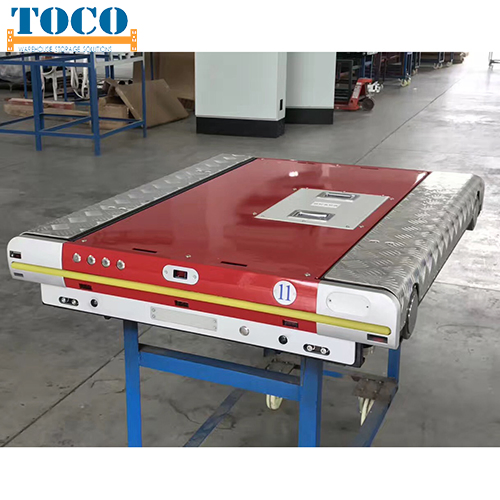

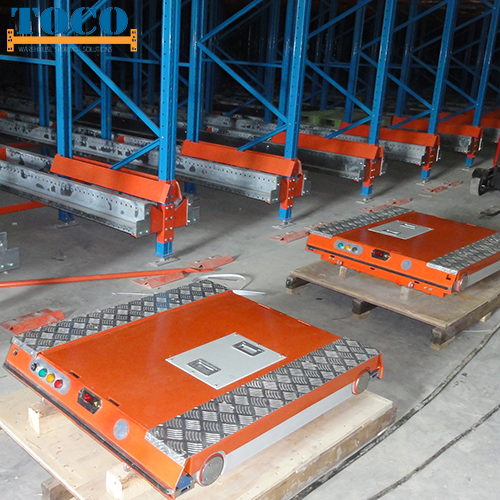

Radio Shuttle Specifications
| Loading capacity max | Max 1500kg |
| Running speed | Vmax_empty:1.0m/s Vmax_full:0.8m/s |
| Drive motor | Brushless servo motor 48VDC 600W |
| Control system | Siemens S7-1200 PLC |
| Power supply | Lithium battery (48V, 30AH) |
| Running time | ≥8h |

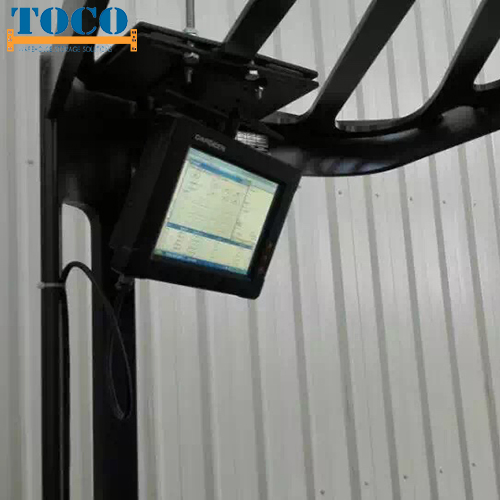

| Operation mode | Remote control |
| Ambient temperature | 0ºC~50ºC (Cold storage version available down to -30ºC) |
Ideal Applications
- Compact storage of palletized goods and mass storage of products.
- Warehouses with medium to high consumption SKUs.
- Facilities with fast product turnover requiring max use of space.
- Cold storage - Reduce cooled volumes and operator exposure to low temperatures.
Frequently Asked Questions
Q: What are the trade terms and payment methods?
A: Payment terms include T/T 40% as deposit, balance against copy of B/L, irrevocable L/C at sight, or O/A. Lead time is typically 14-21 working days.
Q: How is the delivery of the goods handled?
A: We arrange sea freight through major shipping companies or designated forwarders, and air freight via TNT, DHL, or Fedex for urgent requirements.
Q: What services do you provide for customized projects?
A: We offer full OEM & ODM services, including professional engineer-led solution designs and warehouse equipment customization.
Q: What is the standard ordering process?
A: Solution Design → Drawings Approval → Pricing → Order Confirmation → Deposit → Manufacturing → Inspection → Balance Payment → Delivery.
Q: Is there a minimum order quantity (MOQ)?
A: There is no MOQ requirement for most standard products. MOQ only applies to newly developed or fully customized products.
Q: How are the racks installed?
A: We provide detailed assembly instructions and documents. If necessary, we can send engineers and experienced installers to assist with the setup.
