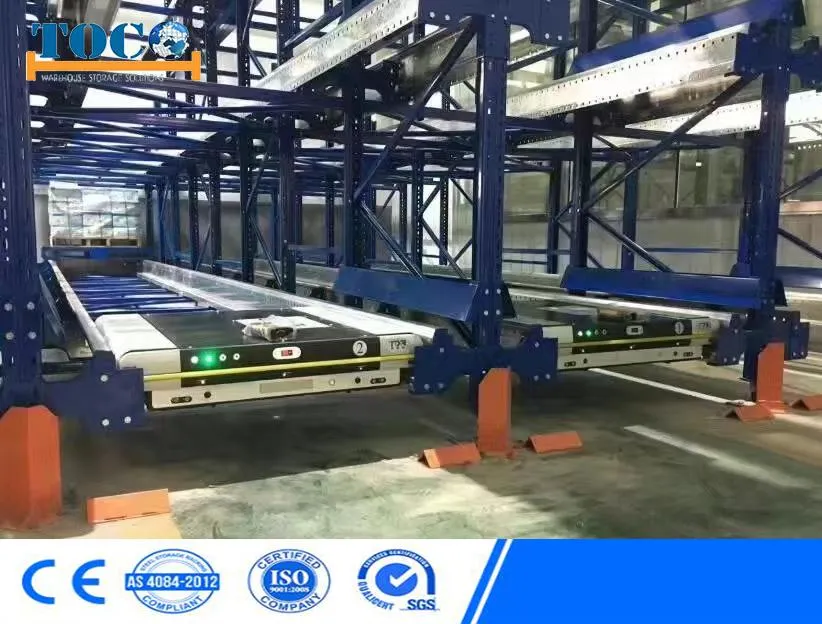

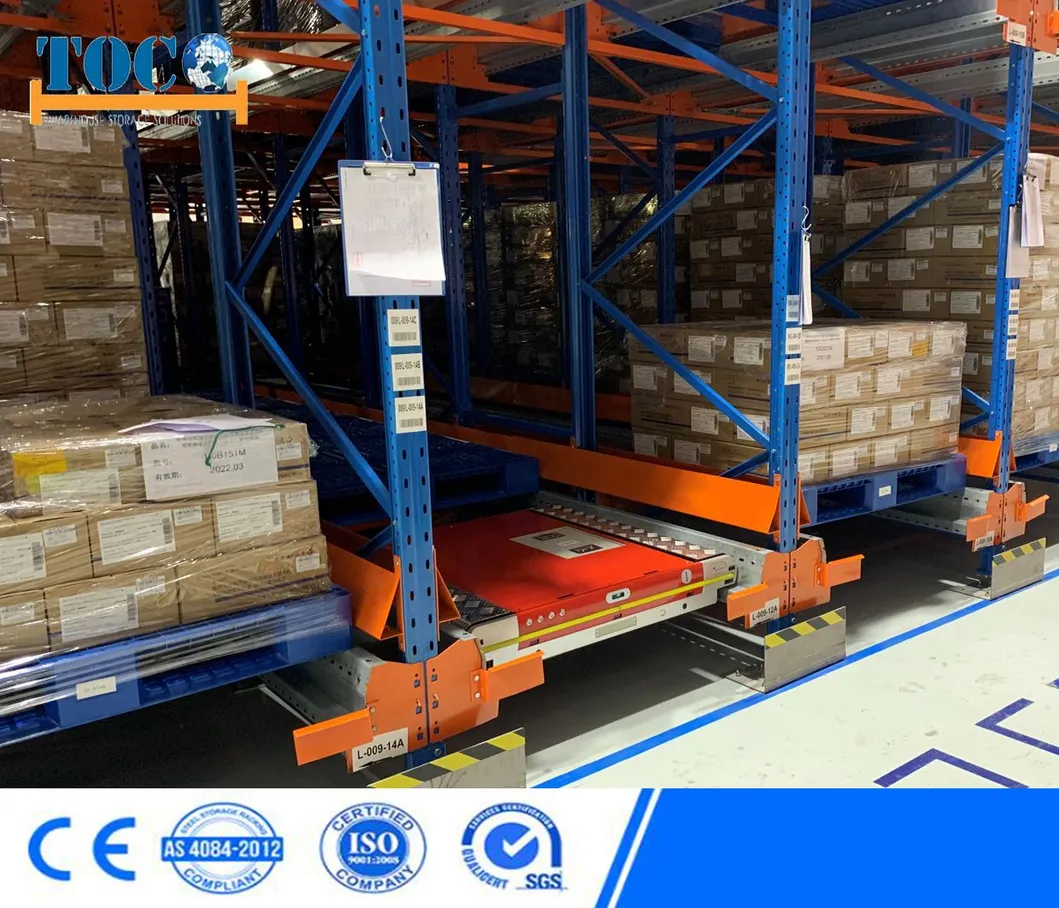

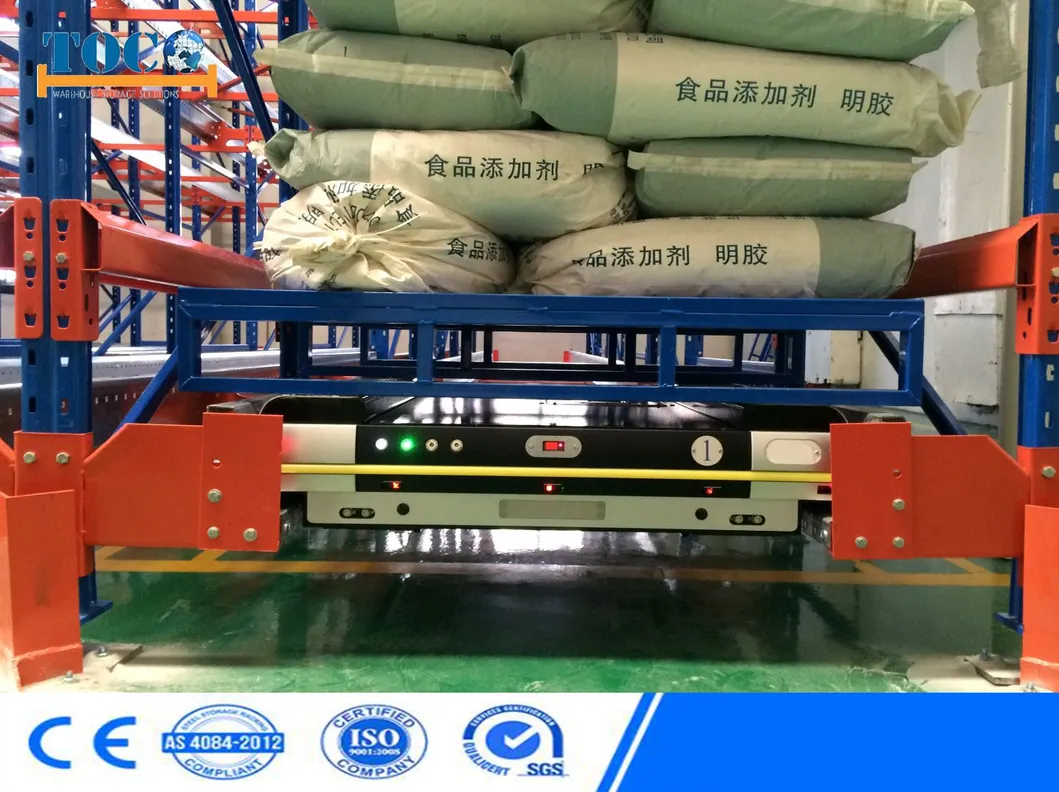

Radio Pallet Shuttle Shelving Systems are energy efficient, requiring only 3 hours of battery charging to keep working for 8 hours in extreme temperatures ranging from 50 down to -30 degrees. These semi-automated shuttle systems utilize forklifts and are modular, making them easily convertible to fully automated systems as your business needs and labor demands evolve.
This system offers high throughput performance during filling and emptying pallet channels, collision-free storage, and optimum space utilization by reducing the number of operation aisles required.
| Capacity | Up to 2000kg/Pallet | Material | Q235 or Q345 High Grade Steel |
| Finish | Powder Coating or Galvanized | ||
| Standards | Meets FEM, AS4084; TUV, CE, ISO9000 Certified | ||
| Main Components | Frame (Upright, Bracing, foot plate), Beam, Frame Tie, and associated accessories | ||
| Color Options | Blue RAL5015, Orange RAL2004, Yellow RAL1003, Grey RAL7047, etc. | ||

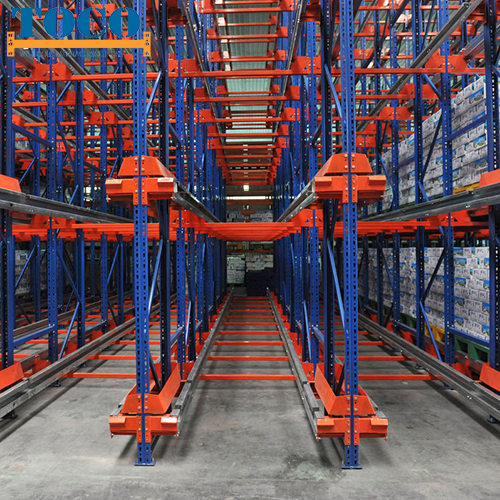

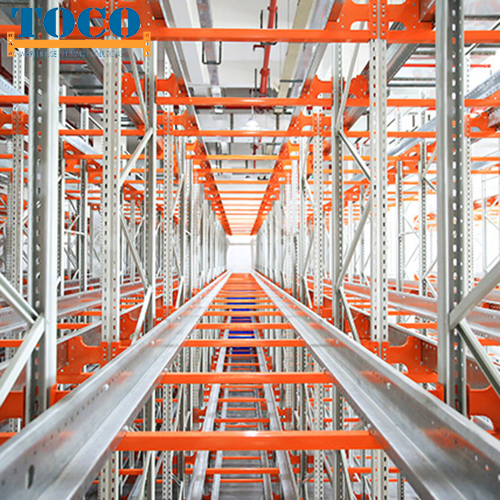

High density storage system utilizing more than 80% of warehouse space.
Fulfills both FIFO (First-In, First-Out) and LIFO (Last-In, First-Out) access modes.
Forklifts do not enter the racking rows, ensuring operator safety and reducing rack damage.
Increased turnover speeds and automated electricity systems reduce energy consumption.

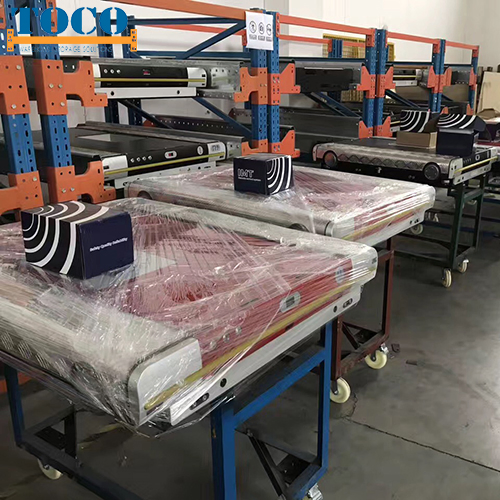

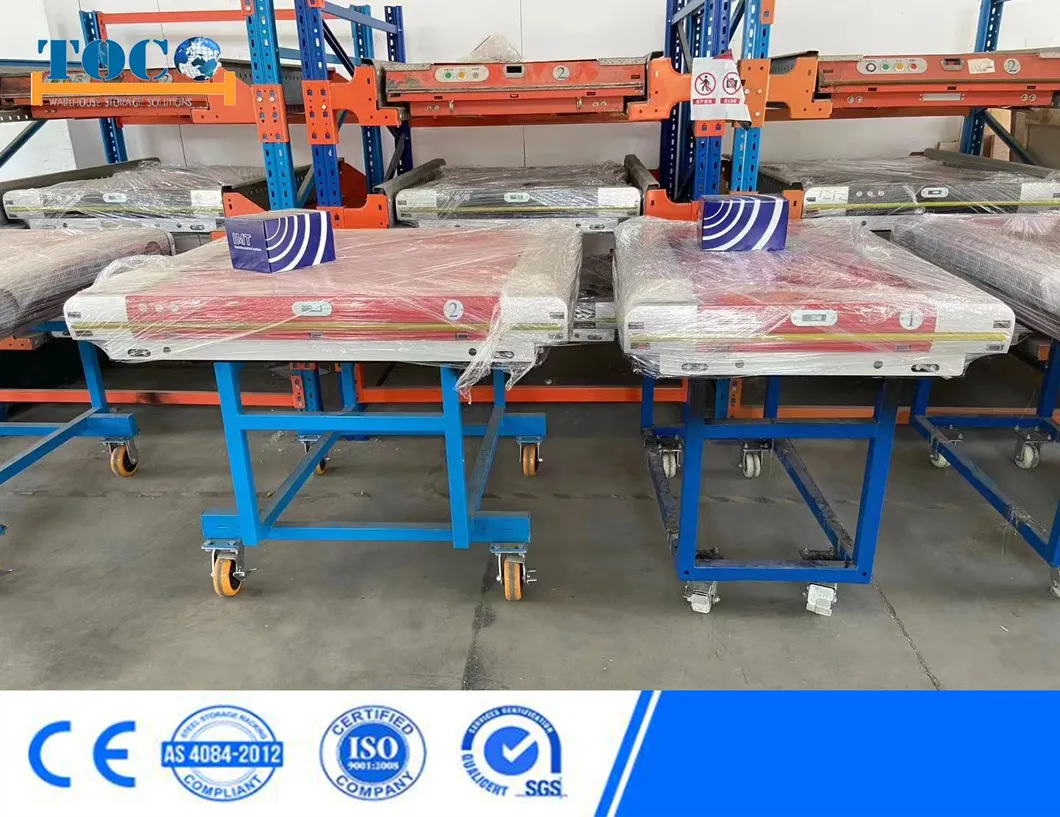

| Parameter | Specification |
|---|---|
| Loading Capacity | Max 1500kg |
| Running Speed | Vmax_empty: 1.0m/s; Vmax_full: 0.8m/s |
| Drive Motor | Brushless servo motor 48VDC 600W |
| Control System | Siemens S7-1200 PLC |
| Power Supply | Lithium battery (48V, 30AH) |
| Running Time | ≥ 8 hours |
| Charging Time | 3 - 4 Hours |
| Sensors | Germany P+F/SICK Laser sensors |
