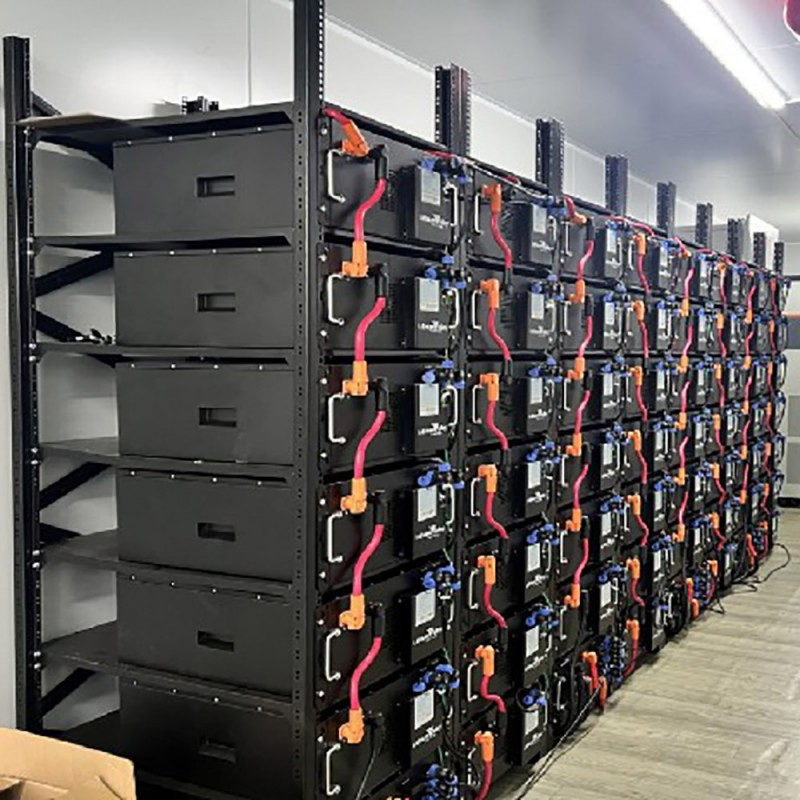

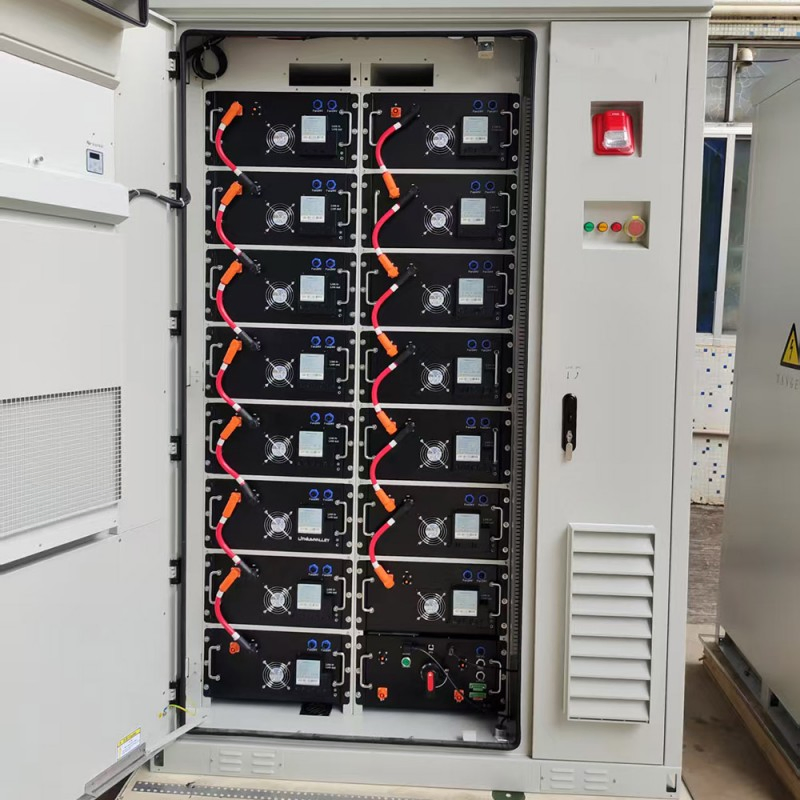

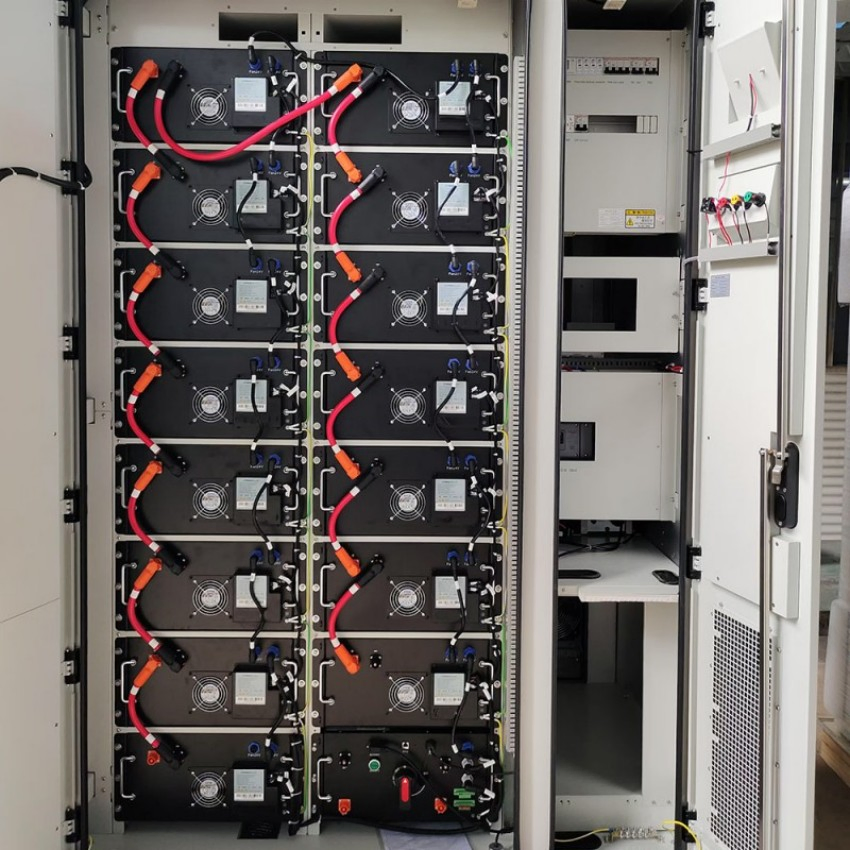

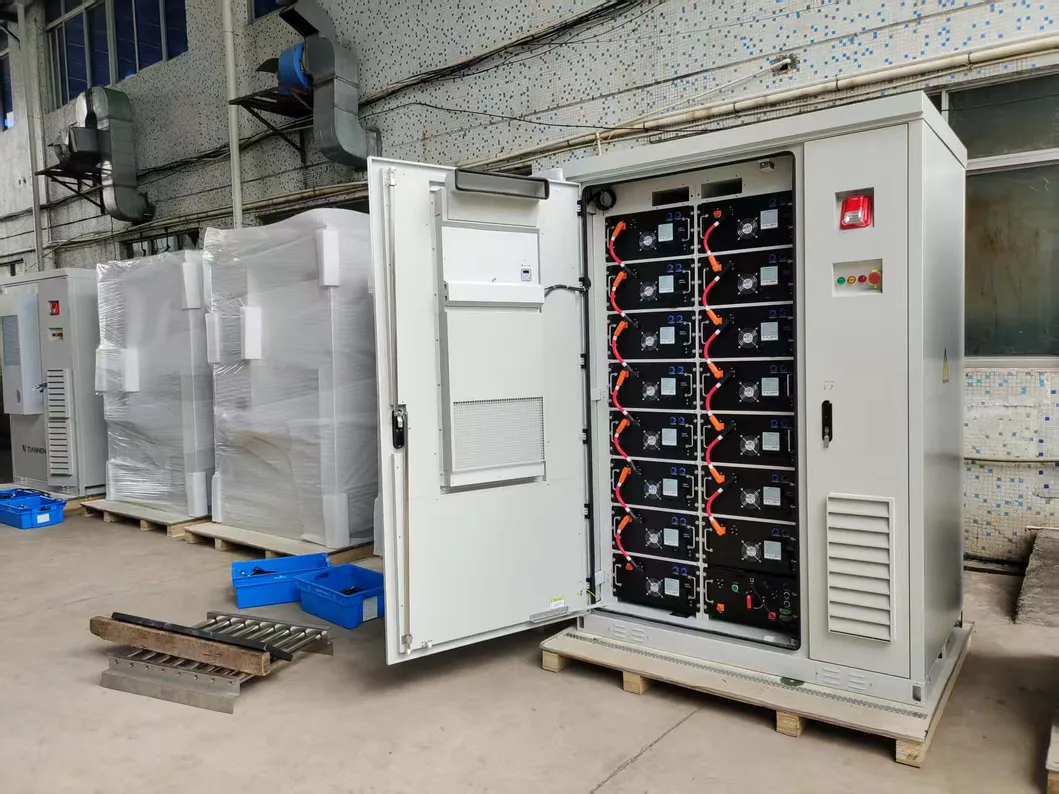

High voltage DC lithium-ion battery energy storage rack mounted lifepo4 battery system

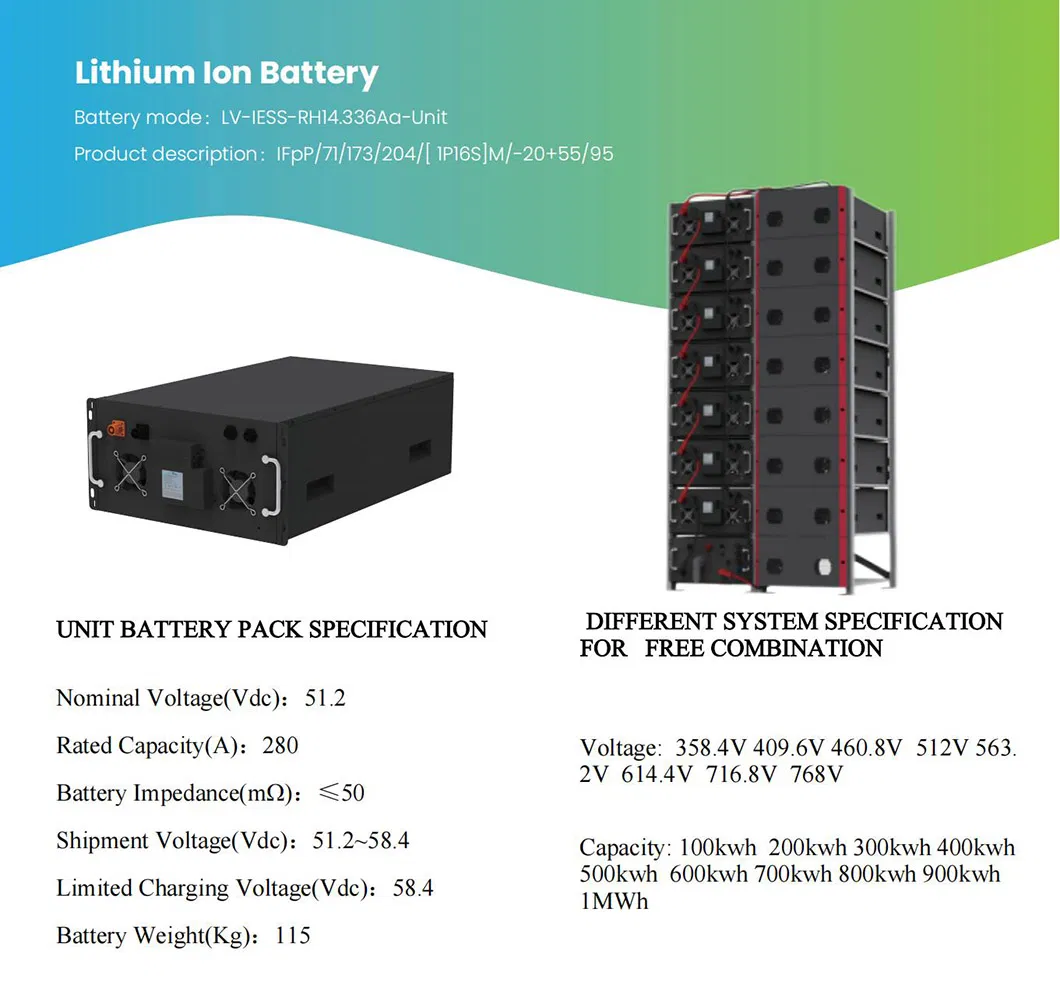

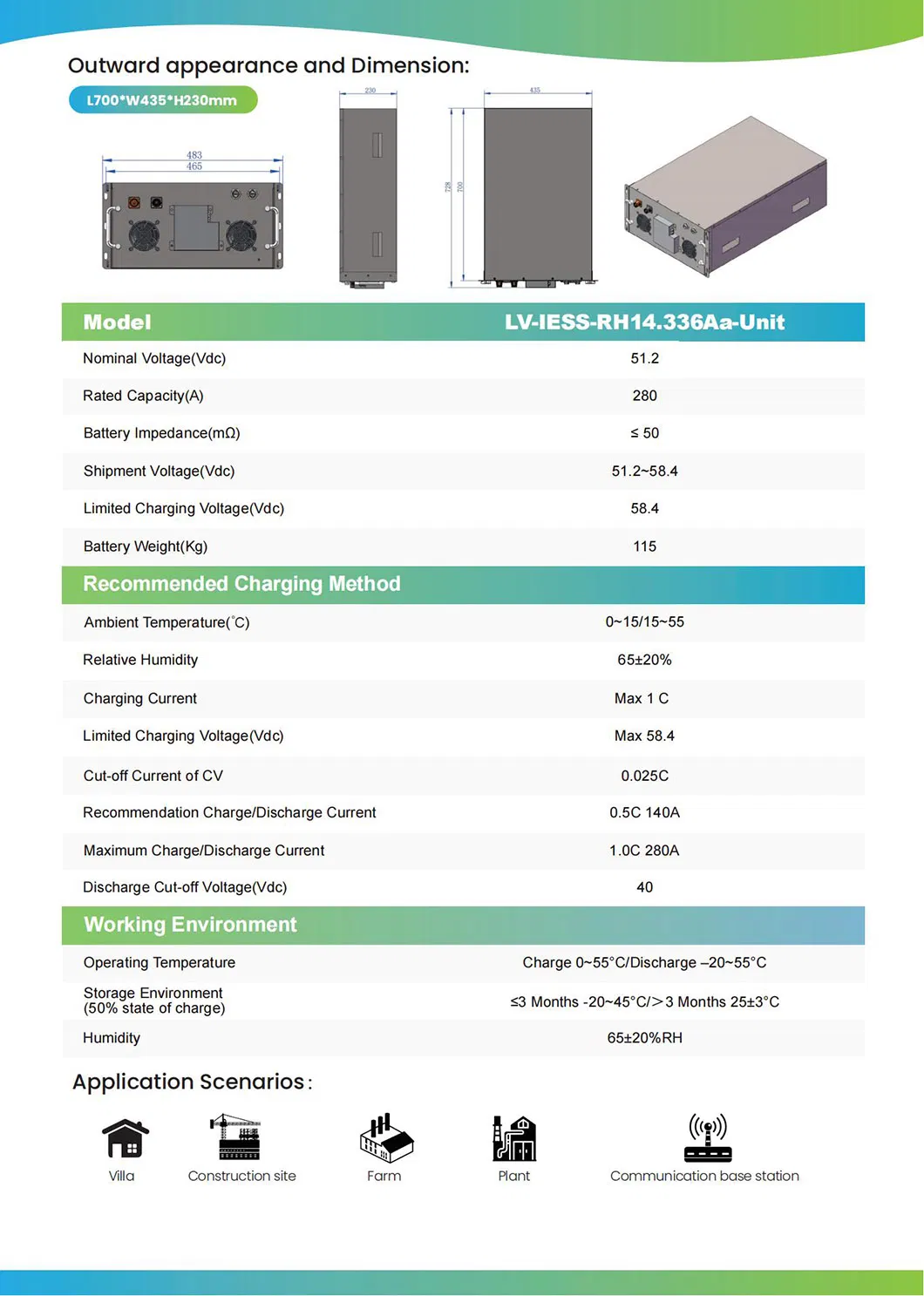

| Unit Battery Pack Specification | |
| Nominal Voltage | 51.2Vdc |
| Rated Capacity | 280Ah |
| Battery Impedance | ≤50mΩ |
| Limited Charging Voltage | 58.4Vdc |
| Battery Weight | 115kg |
| Operating Temperature | Charge: 0~55°C / Discharge: -20~55°C |

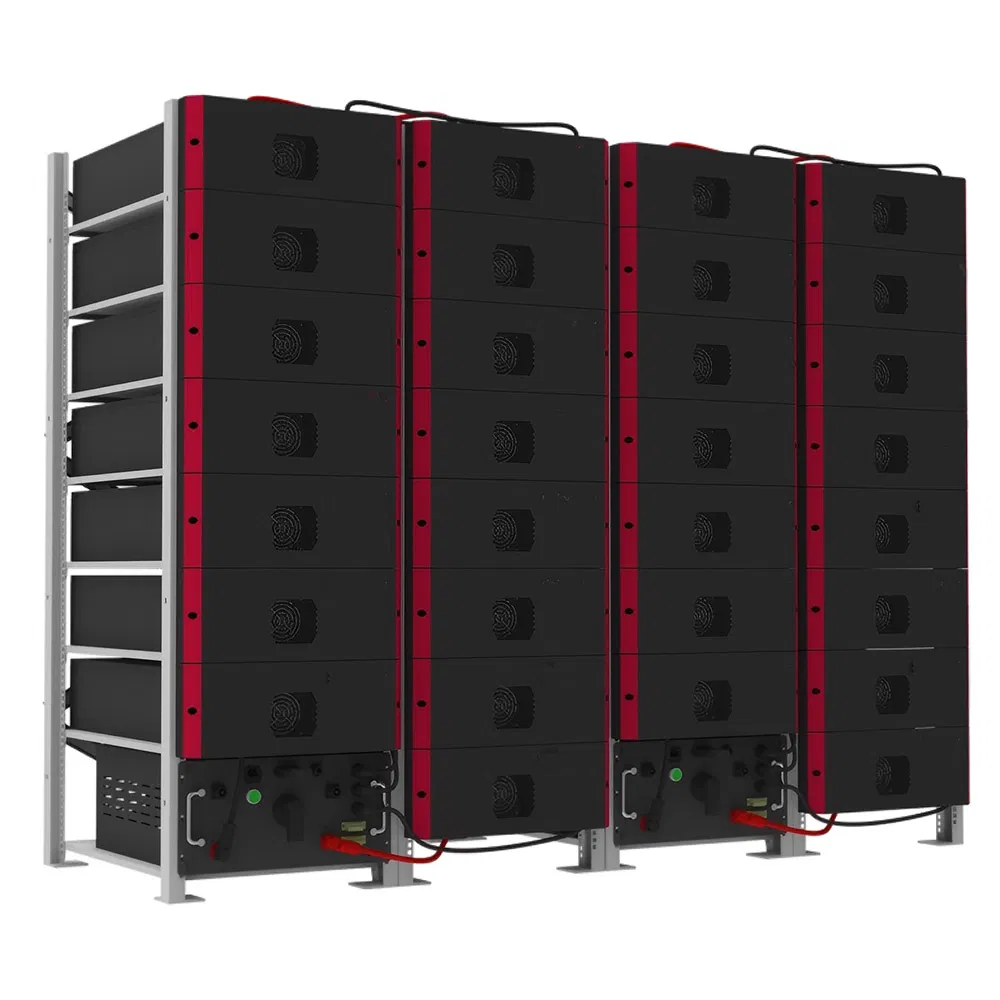

| System Configuration Options | |
| Voltage Range | 358.4V | 409.6V | 460.8V | 512V | 614.4V | 768V |
| Capacity Range | 100kwh to 1MWh options |
| EMS Management System | |
| CPU | NXP Cortex-A7 i.MX6UL (1.2GHz) |
| Operating System | Linux |
| Serial Ports | 10 Channels (RS485/RS232) |
| Communication | 2-Channel Ethernet, 2-Channel CAN Bus |
Our company is focused on being a Total Solution provider based on clean, sustainable solar energy. Addressing global environmental challenges, we provide comprehensive services covering polysilicon, wafers, cells, and modules, alongside PV Equipment, EPC, and O&M services.
With a commitment to green energy independence, we supply high-quality raw materials and residential solutions globally. We prioritize protecting precious environmental values through innovation in renewable energy storage and generation.
