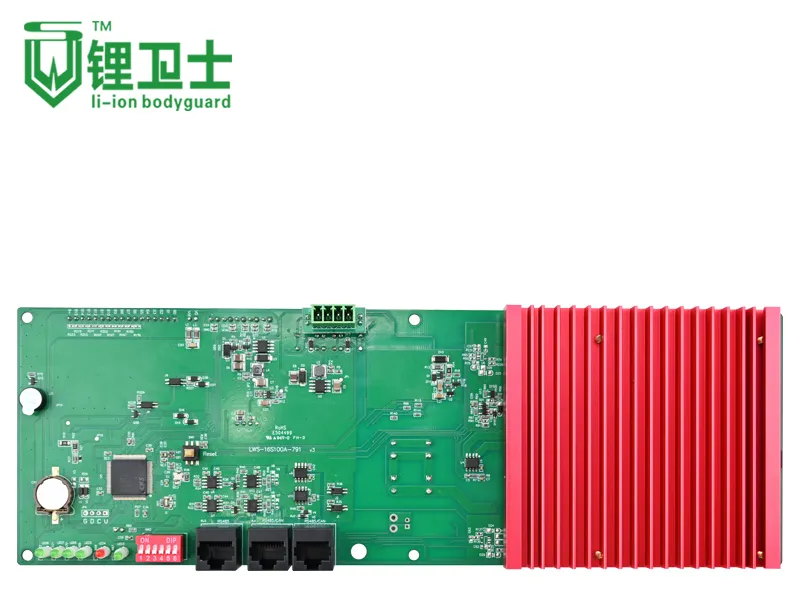

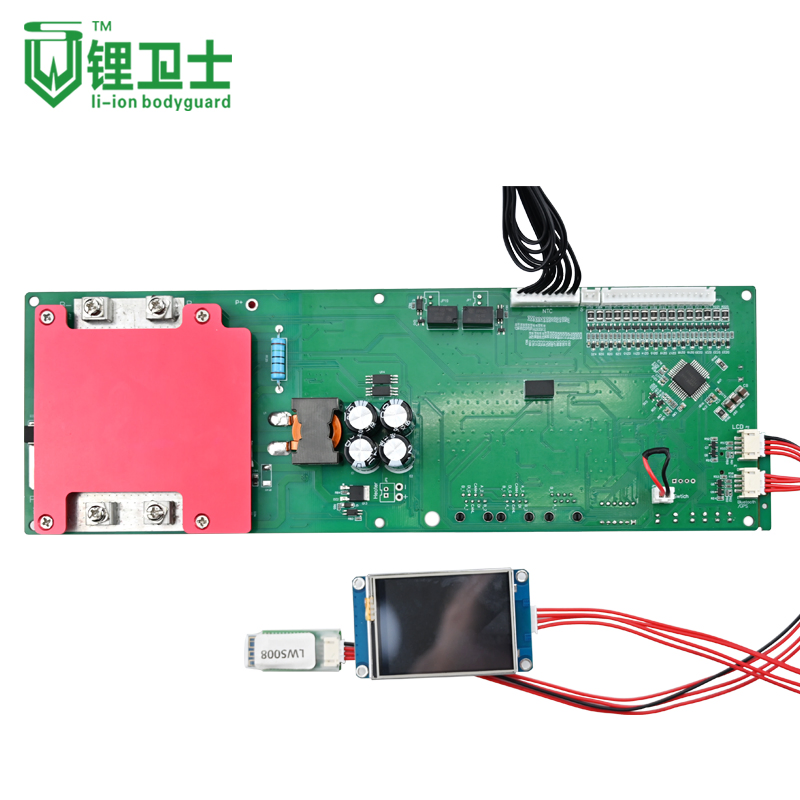

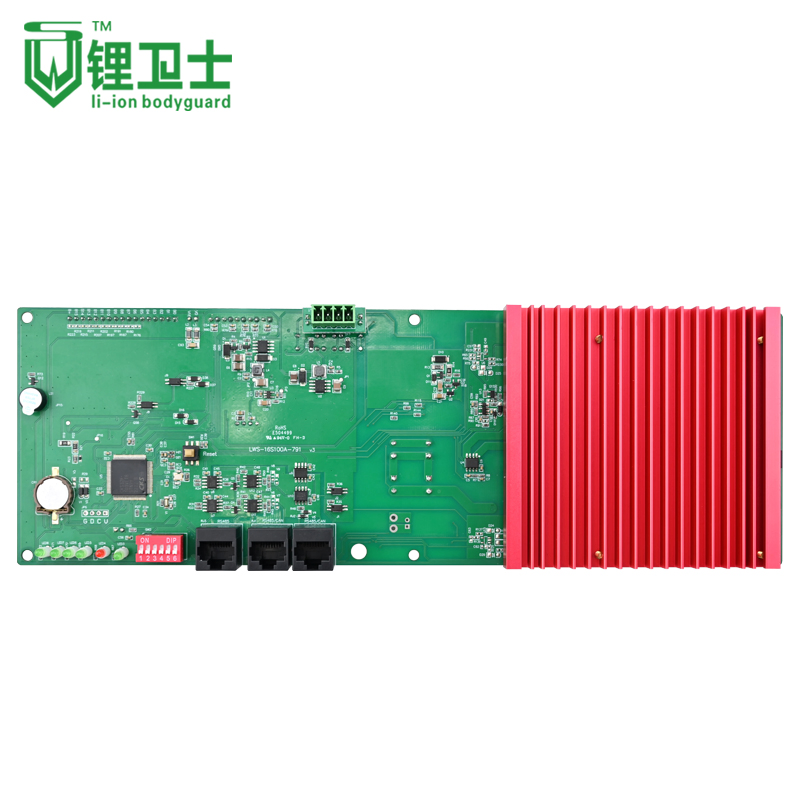

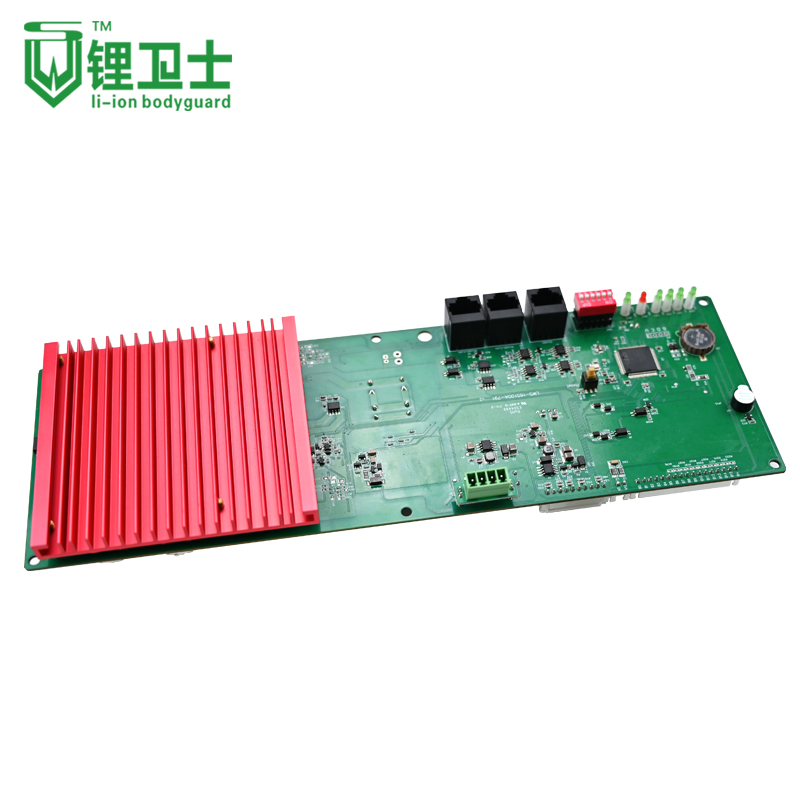

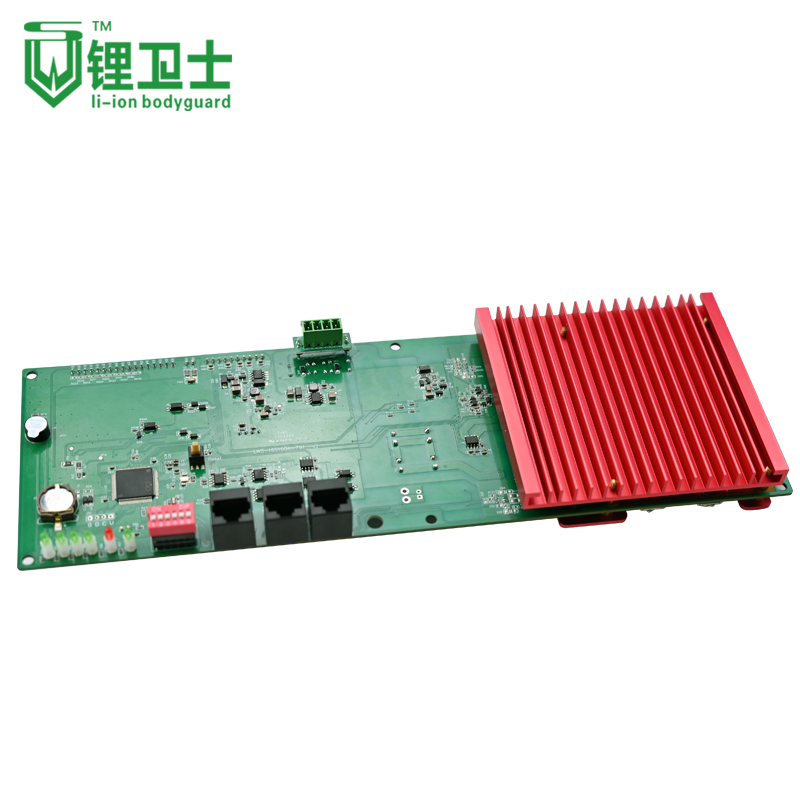

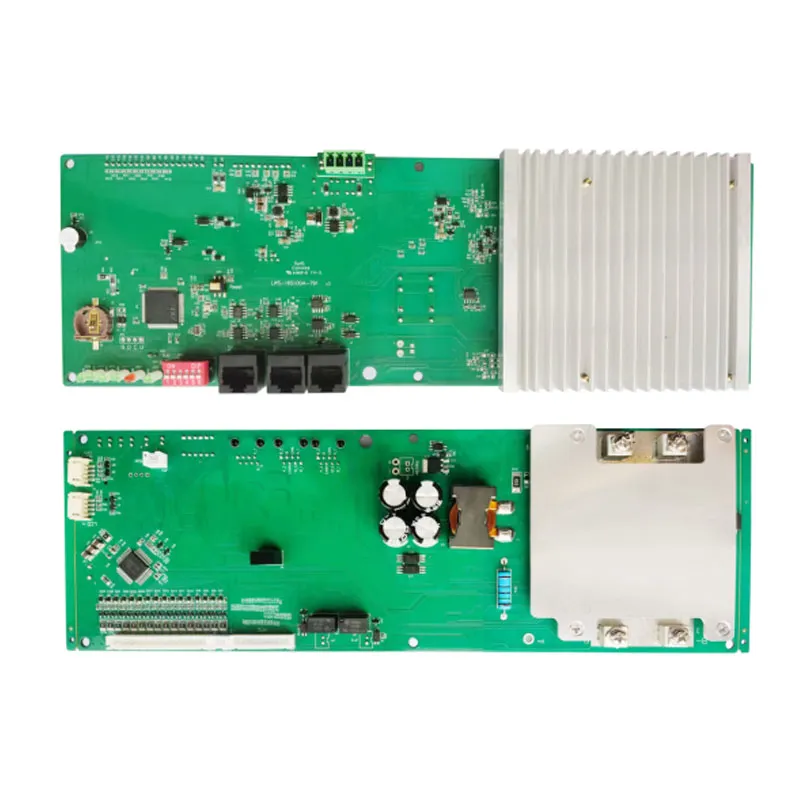

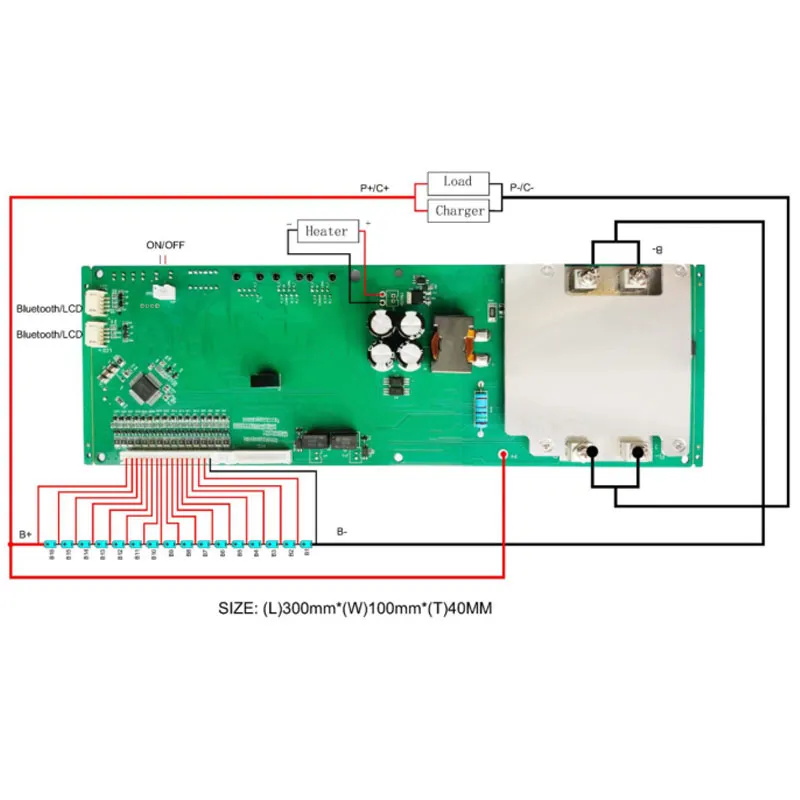

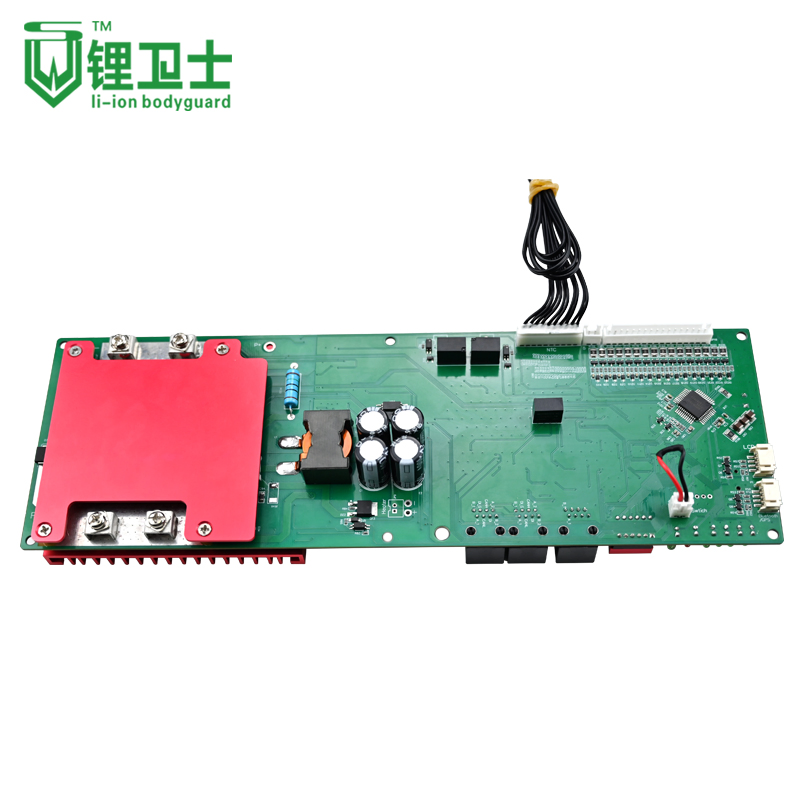

The LWS-16S100A-791 battery management system is designed for battery packs with 5-16 series (5S-16S) of monomer voltage ranging from 2V to 5V. It offers comprehensive protection and recovery functions, including over-voltage, under-voltage, over-current, high temperature, low temperature, and short circuit protection. It accurately measures SOC during charging/discharging and provides SOH statistics.
Equipped with various sleep and wake-up methods, this system facilitates data communication via RS485 for easy parameter configuration and real-time monitoring through host computer software.
| Parameter | Standard Value (13S-16S) | Customization |
|---|---|---|
| Charging Voltage | 54.6V (Li-ion) / 46.8V (LiFePO4) | Available |
| Continuous Discharge Current | 15A / 25A / 30A / 40A / 100A / 200A | Available |
| Balance Current | 36mA - 42mA ±5mA | Available |
| Over Charge Protection | 4.25V (Li-ion) / 3.90V (LiFePO4) | Customizable |
| Over Discharge Protection | 2.75V (Li-ion) / 2.00V (LiFePO4) | Customizable |
| Operating Temperature | -20°C to +65°C | Customizable |
