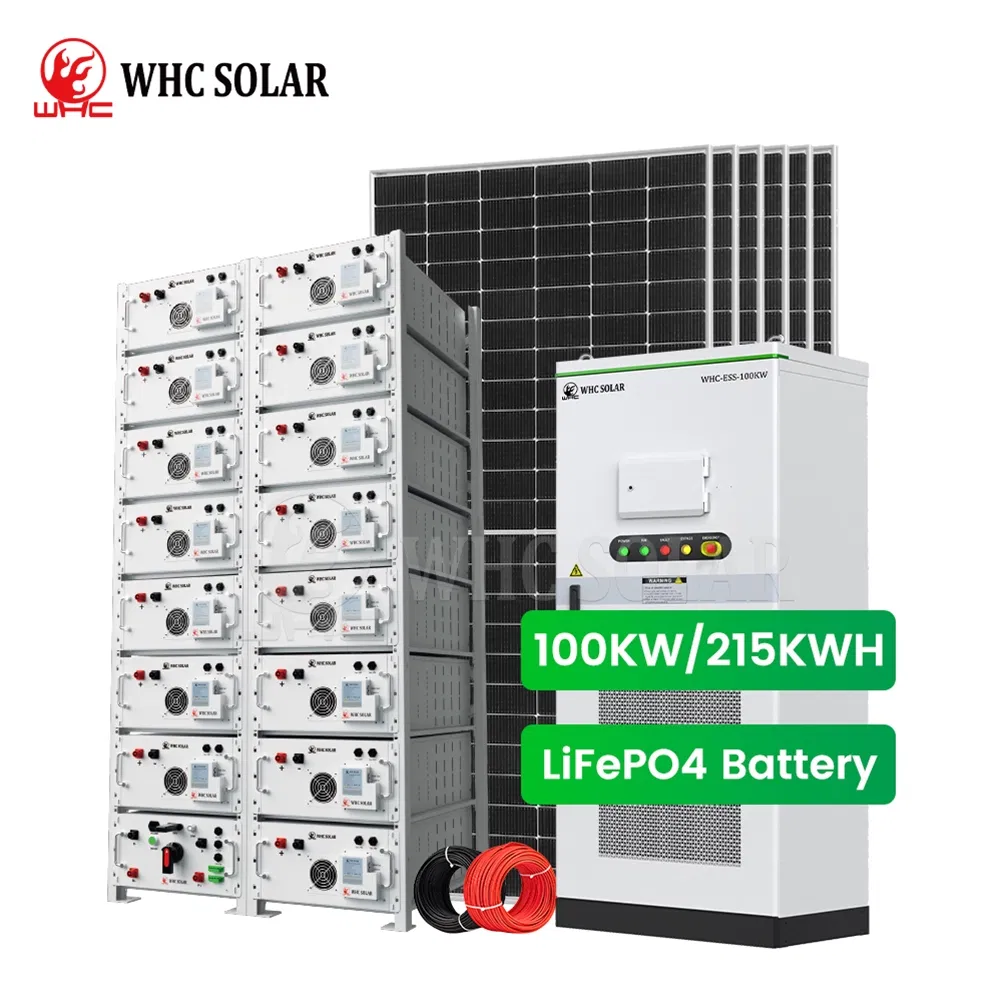

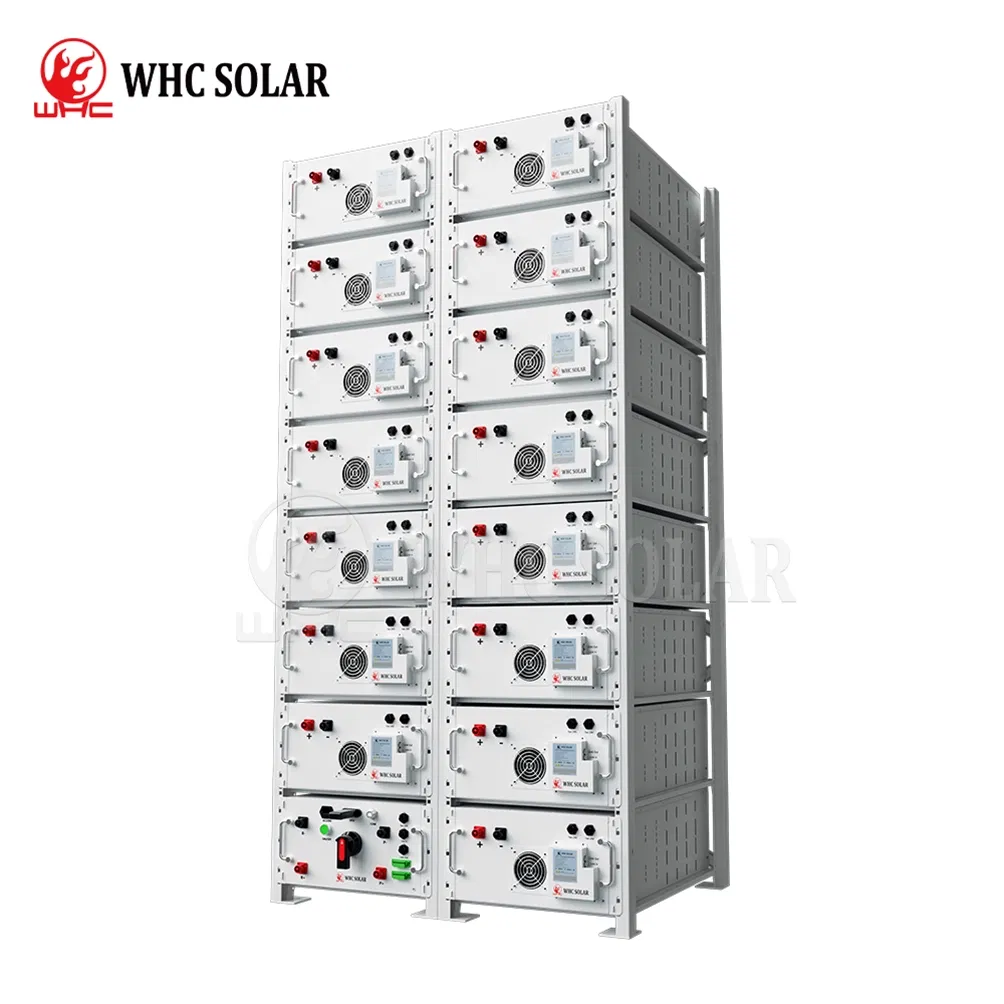

WHC SOLAR C&I Lithium Ion Battery Pack 100KW 215Kwh High Voltage Industrial and Commercial Solar Energy Storage Cabinet System

Customization: Available
Container Size: 2700mm*1100mm*2550mm
Weight: 2700KG

Product Description

⚡ Basic Information

Model NO.
100KW-Li-215KWH
Nominal Voltage
768V
Warranty
3 years
Nominal Capacity
215KWH
Cycle Life
6000 Times
System Type
Commercial Solar System
Max. Output Power
100KW
Solar Panel
550W Mono Solar Panel
Max PV Input Power
200KW
Efficiency
99%
Cooling Method
Intelligent air cooling
Protection
IP65

📦 Product Description

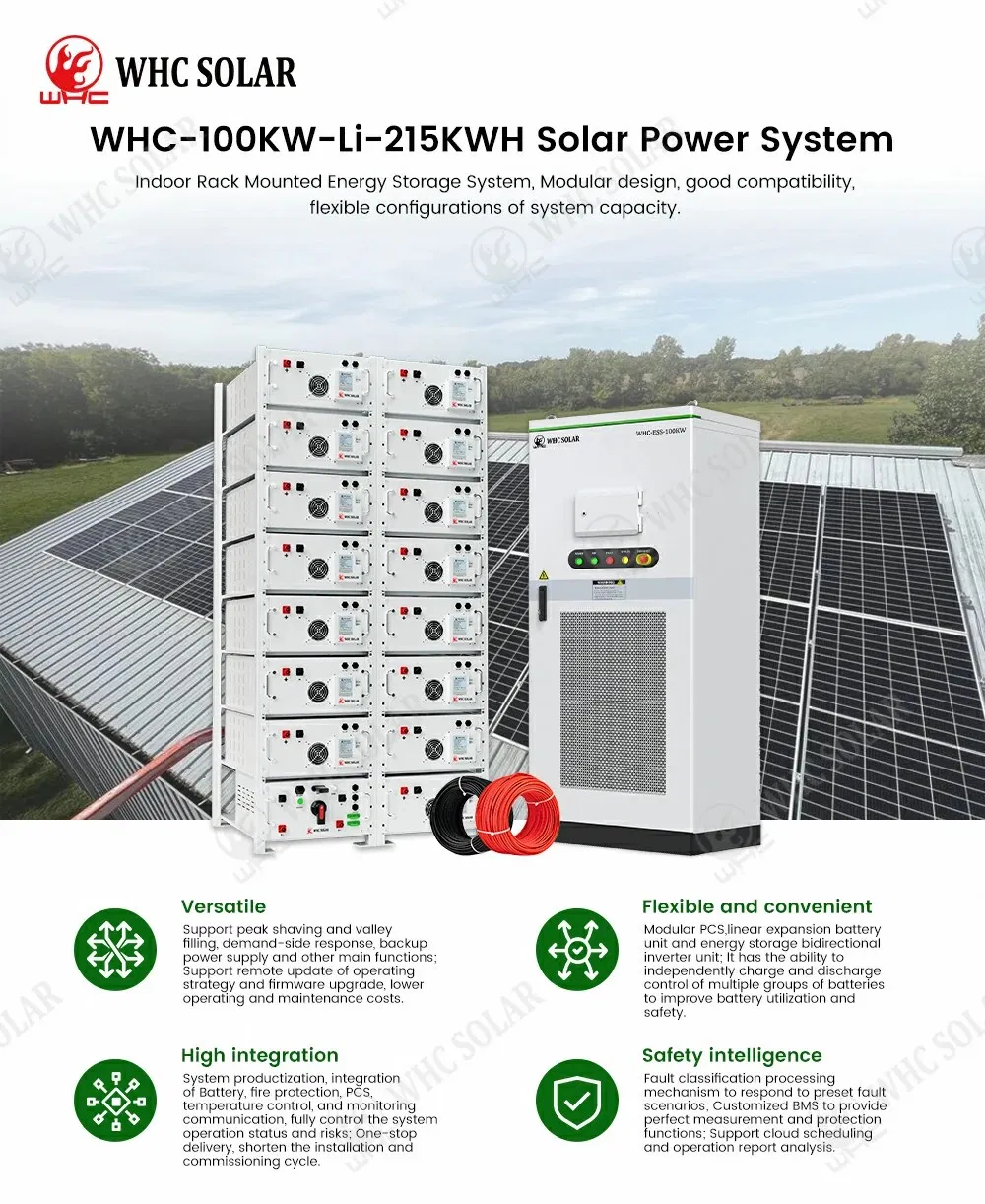

Industrial Solar Energy Storage

This Solar Energy System, also known as an off-grid solar system, is the most cost-effective type for commercial applications. It is a complete solar setup that comes with highly efficient solar panels, an off-grid solar inverter, lithium-ion battery technology, and other standard solar accessories. This solar system will not only provide you with continuous electricity but will also significantly reduce heavy electricity bills.

📊 Product Parameters

NO. Item Description Quantity
1100kw/215kwh solar Energy storage System integrated BMS/PCS/EMS, LiFePo4 Battery1 Set
2550W Solar Mono Panel182 Pieces
3100KW PCS System1 Set
4UPS (1KVA/900W)1 Set
5EMS Management System1 Set
6Battery Cable RV*50cm²18 Pieces
7PV Combiner Box: N4 Plus1 Piece
8PV Cable 1*10mm 100M4 Pieces
9Solar Panel Bracket (Anodized Aluminum)1 Set
10MC4 Solar Cable Connector30 Pieces
11Solar PV Crimping Tool kit1 Set

🖼️ Detailed System components

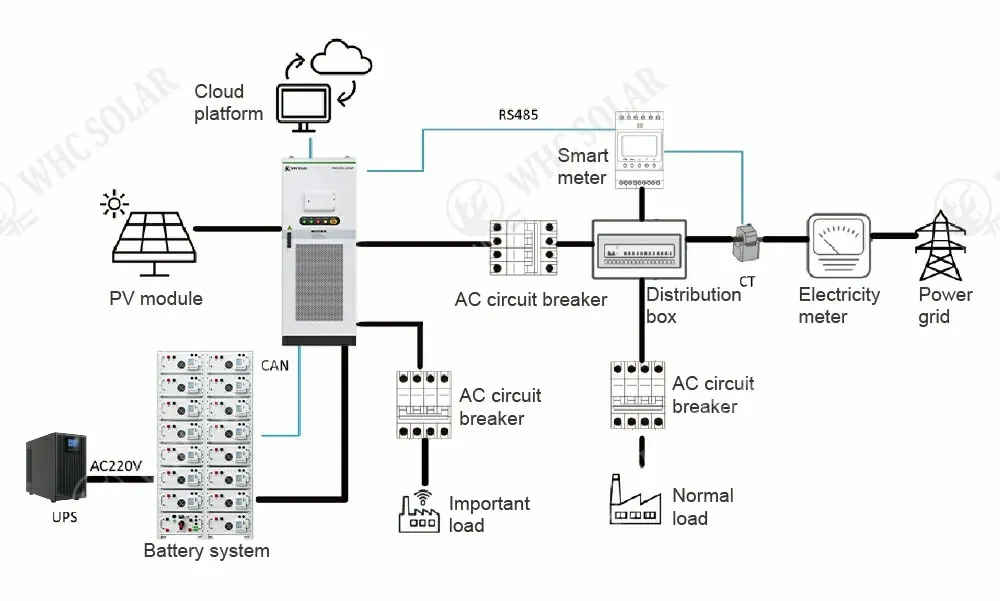

System Overview

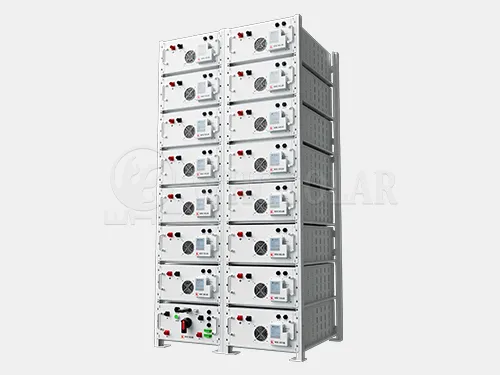

Battery Rack
Battery Data:
• Chemistry: LiFePo4
• Cell spec: 3.2v/280Ah
• Rated Capacity: 215kwh
• Nominal Voltage: 768V

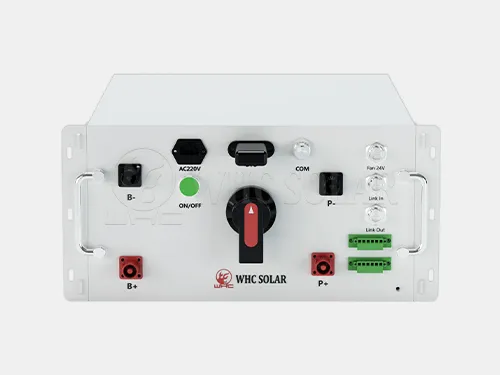

Control Box
Control System:
• Type: 0-1500V, 140A
• 2-Stage BCMU, BMU Architecture
• High voltage control box
• Ethernet communication
Cabinet Design
General Data:
• Size: 2700*1100*2550mm
• Protection: IP65
• Temp Range: -20°C to 40°C

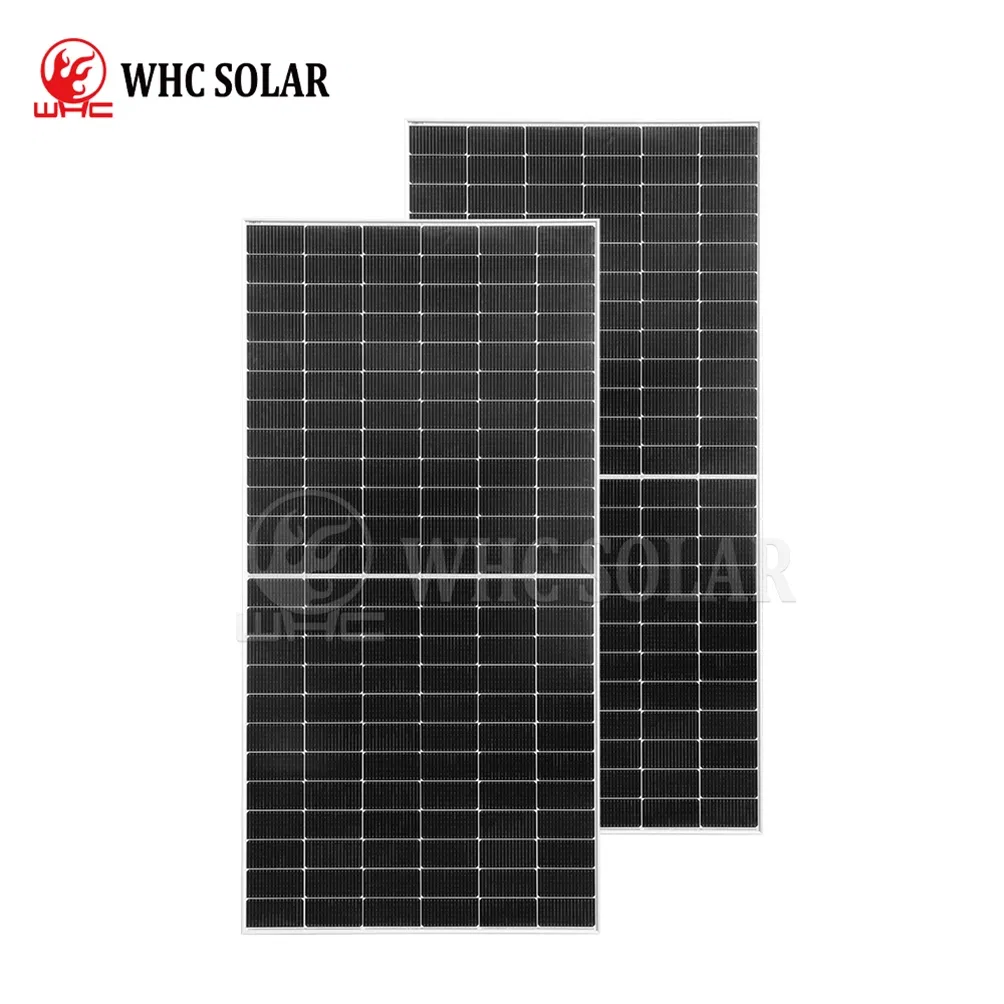

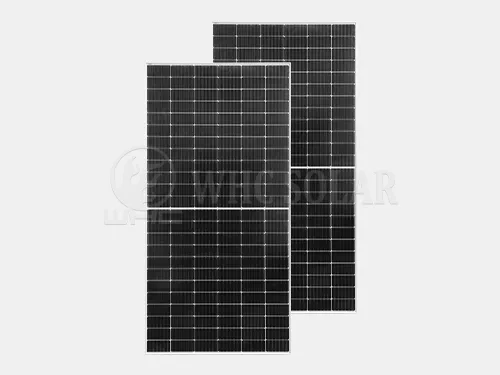

Solar Panel
Mono Solar Panel:
• Model: 550M-144
• Efficiency: 20.9%
• Max System Voltage: 1500V DC

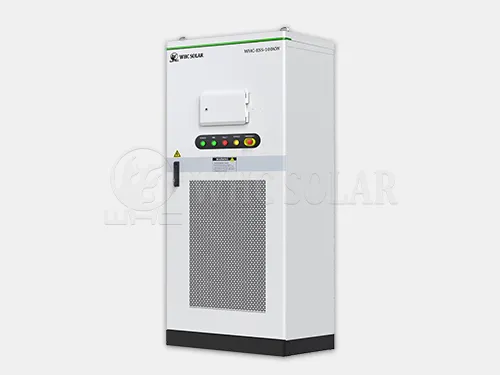

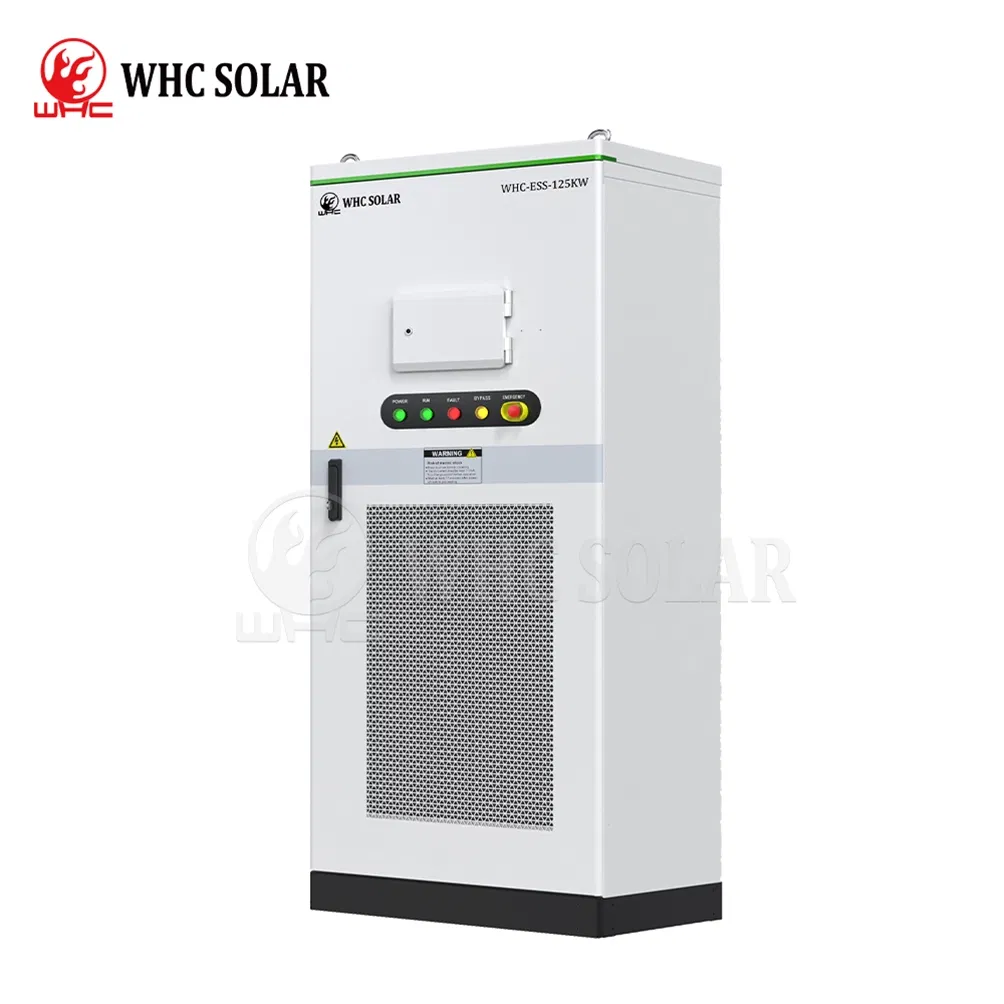

PCS System
100KW PCS System:
• Max PV input: 200KW
• MPPT Range: 180-800V
• Cooling: Intelligent air cooling

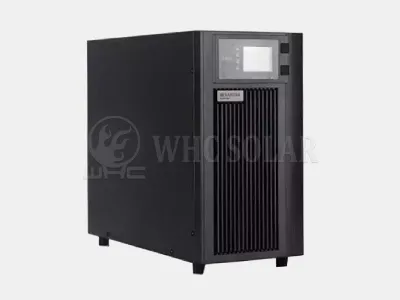

UPS Backup
UPS Unit:
• Type: 1KVA/900W
• Function: Backup auxiliary power supply

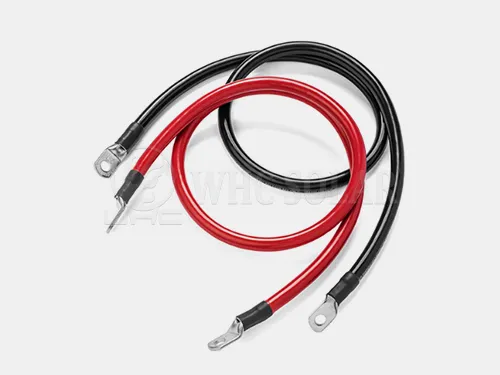

Cables

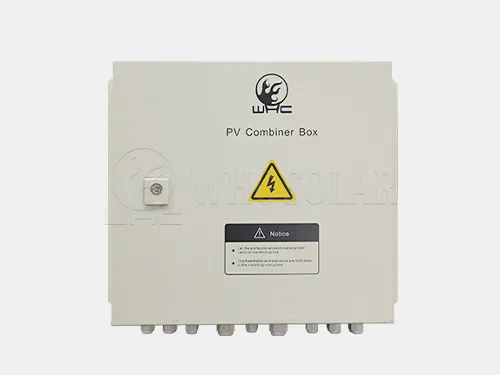

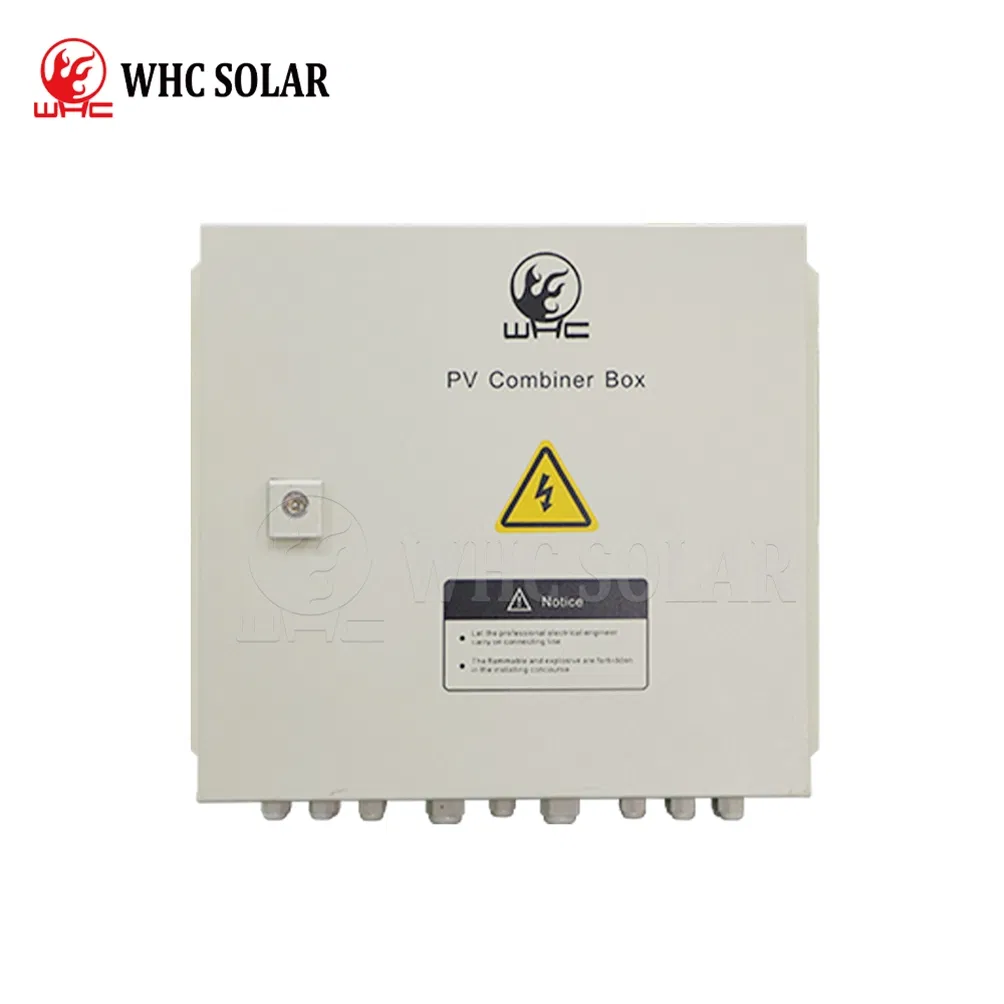

Combiner Box

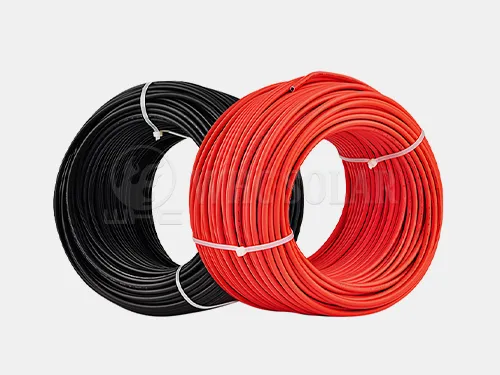

PV Cable

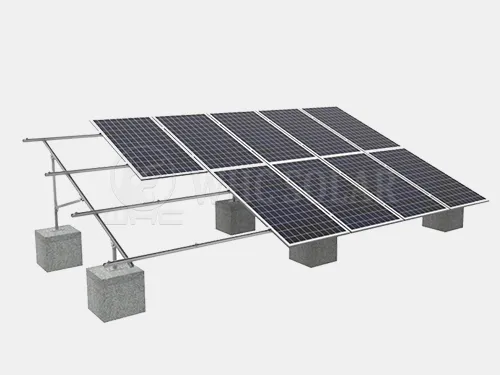

Brackets

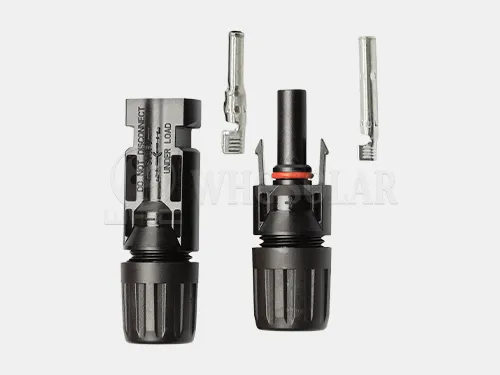

Connectors

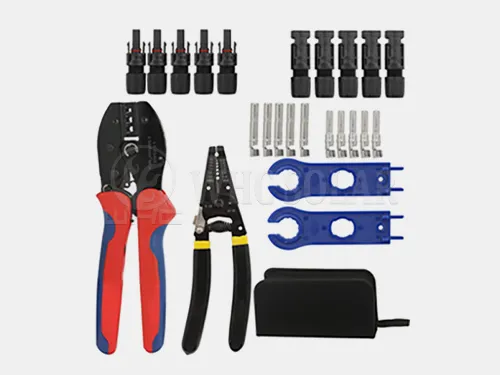

Tool Kit

🏭 Production & Application

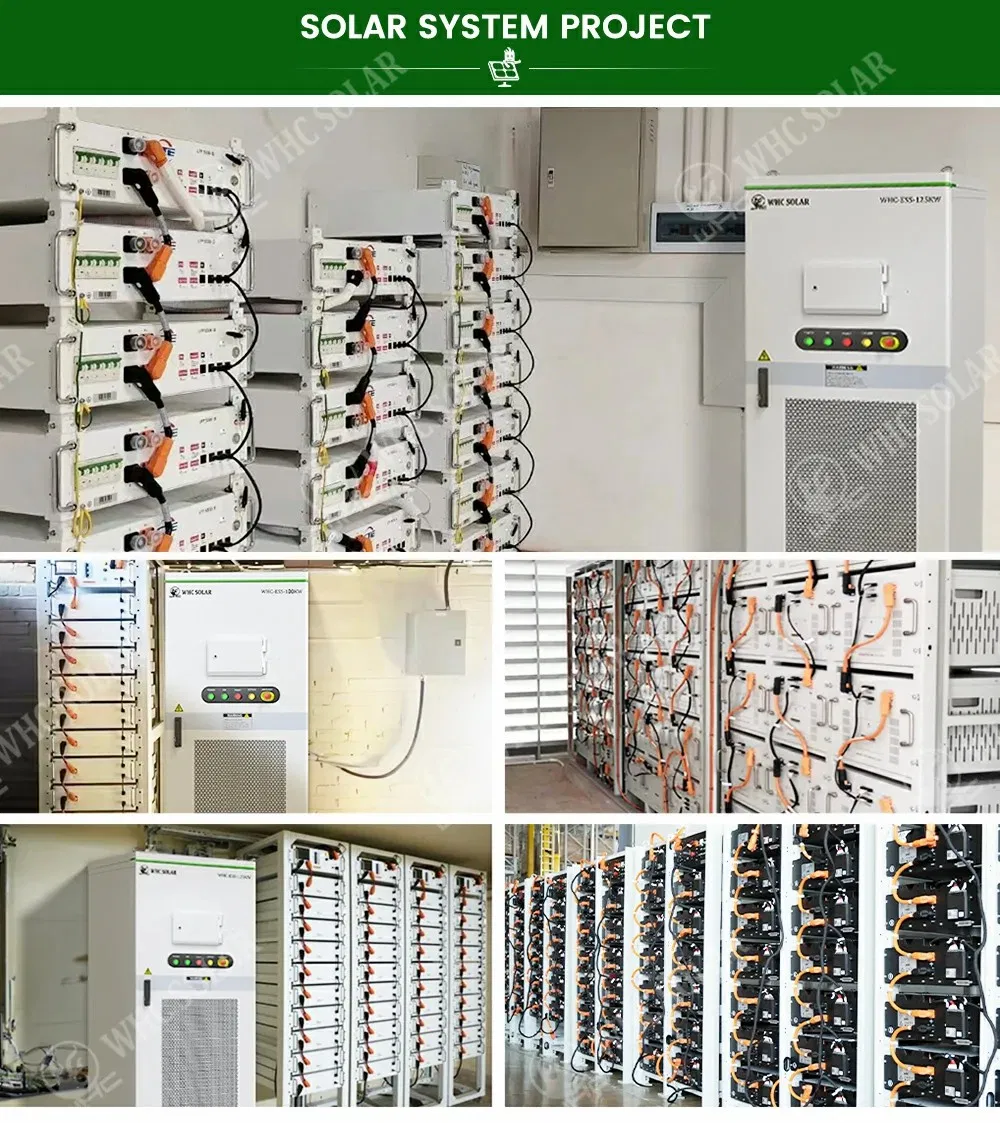

System Workflow Application Case
Factory 1
Factory 2
Workshop
Production Line
Testing

❓ Frequently Asked Questions

What is the cycle life of the lithium battery pack?
The system utilizes high-quality LiFePo4 cells with a cycle life of over 6000 times at 25ºC (0.5c/0.5c).
What is the ingress protection rating for this system?
The whole system is designed with an IP65 protection degree, making it suitable for various industrial and commercial environments.
Can the system handle high PV input?
Yes, the 100KW PCS system supports a maximum PV input power of up to 200KW.
What is the operating temperature range?
The system operates efficiently within a temperature range of -20°C to 40°C.
Does the package include installation accessories?
Yes, the system is a complete solution including solar panels, brackets, combiner boxes, PV cables, connectors, and even a crimping tool kit.
What safety certifications or features are included?
The system features a 2-stage BCMU architecture, high voltage control box, integrated EMS/BMS, and lightning protection in the combiner box.
