🔵 Basic Specifications
Model NO.
HDWS-774H15A2M1-01A10W1
Display Type
7 Inch IPS Screen (1080P)
Shell Material
Aluminium / Stainless steel
Function
Waterproof, Dustproof, Shockproof
Wireless Range
Within 100m-200m in Open Area
Battery Capacity
30000mAh / 111wh
💡 Product Overview

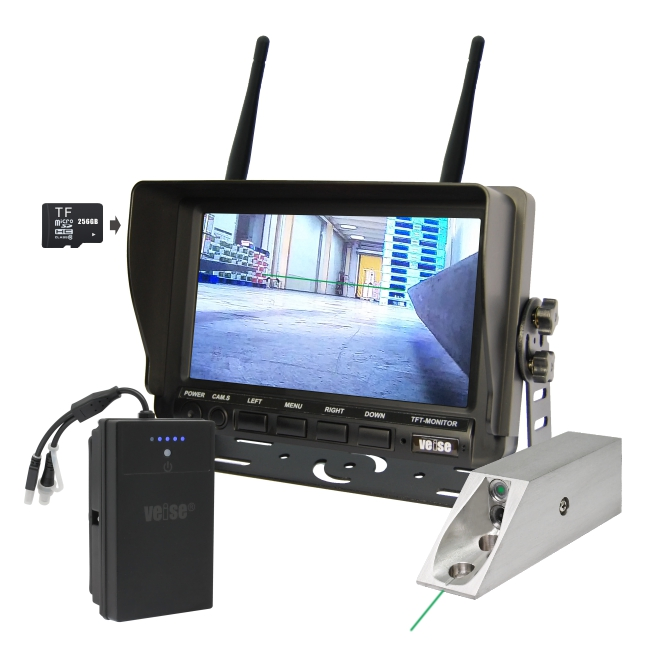

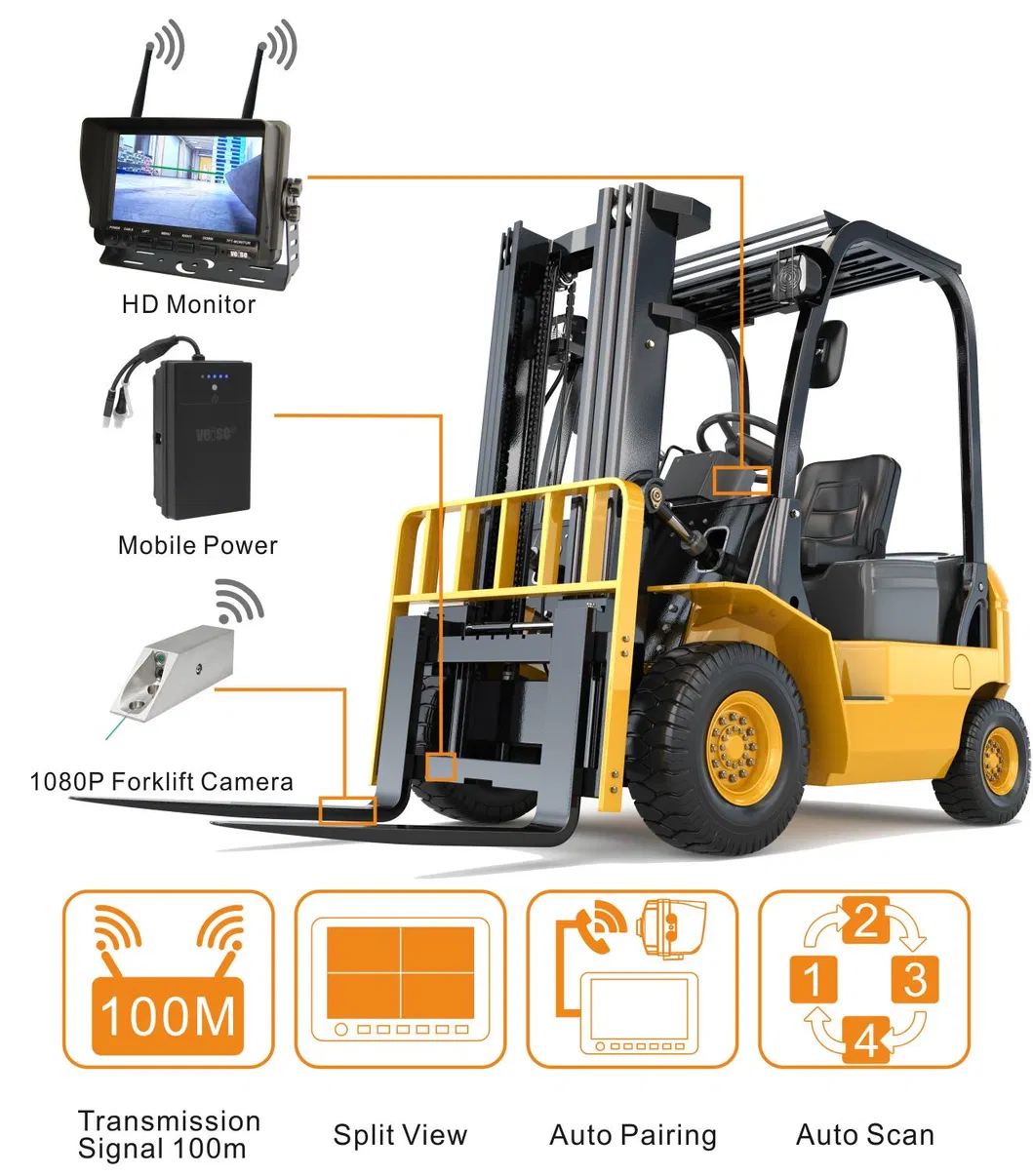

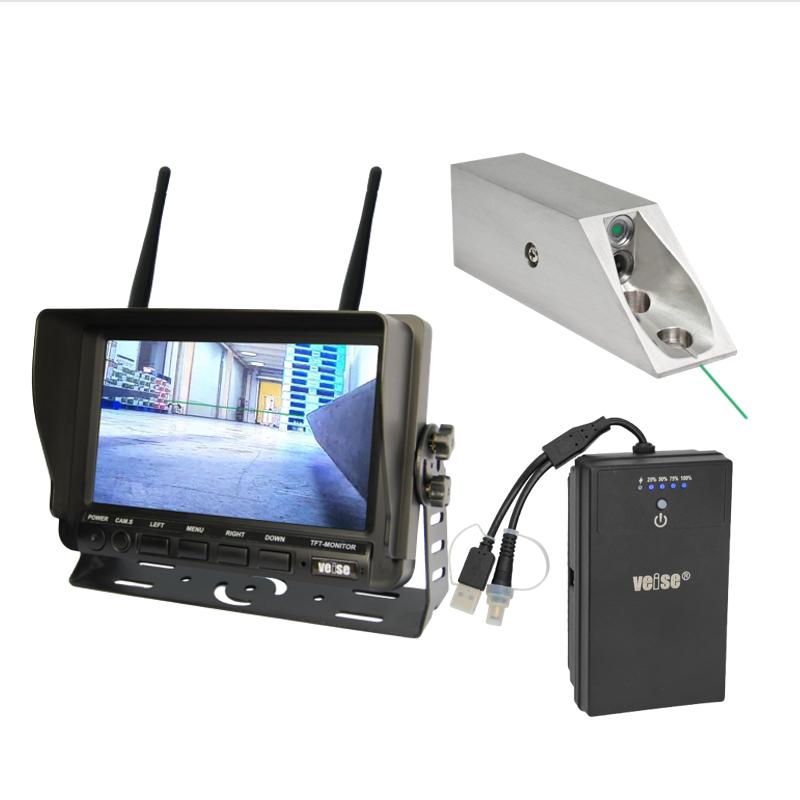

Wireless Forklift Camera & Laser Guidance System
✔ HD Wireless DVR Monitor: Support 256GB TF card, 1024RGBX600 high resolution.
✔ Laser Positioning: 1080P wireless camera with one-word green laser positioning.
✔ Extreme Durability: Stainless steel shell anti-collision, IP69K waterproof.

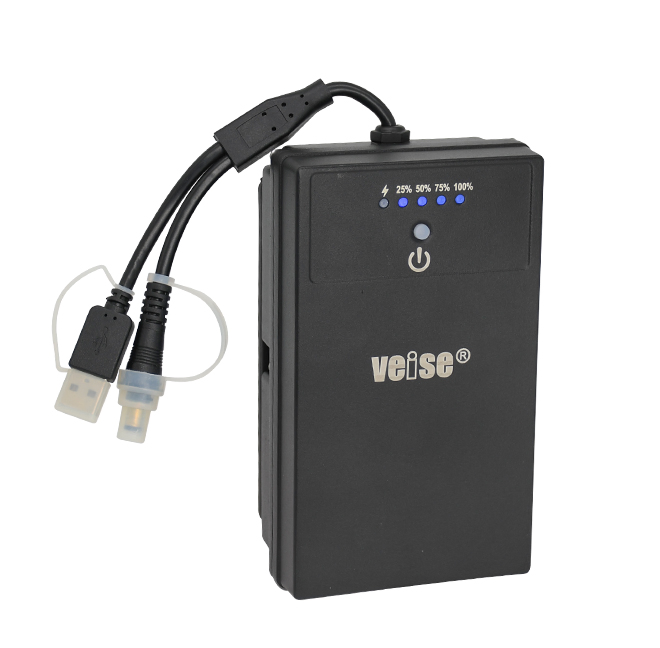

✔ Magnetic Power Bank: 30000mAh with QC protocol fast charge and strong magnetic suction.
📋 Technical Specifications

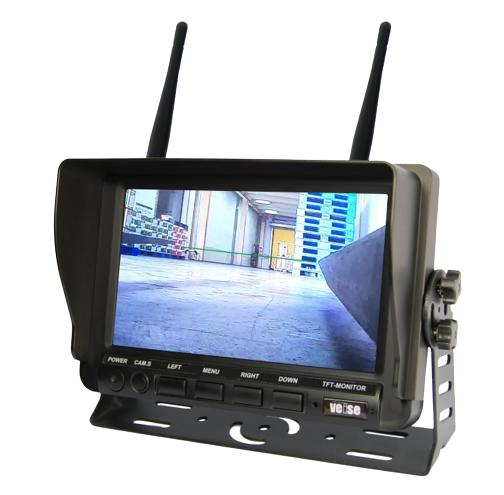

| 1080P Wireless Monitor (MWHD-774HD) |
|---|
| Color LCD Display | 7 inch IPS Screen |
| Wireless Receiver | Built-in 2.4G Wireless Receiver |
| Picture Mode | Single / dual / three / four screen |
| Resolution | 1024(H) X 600(V) dot |
| Brightness | 600 cd/m2 |
| Operating Voltage | DC8-32V |

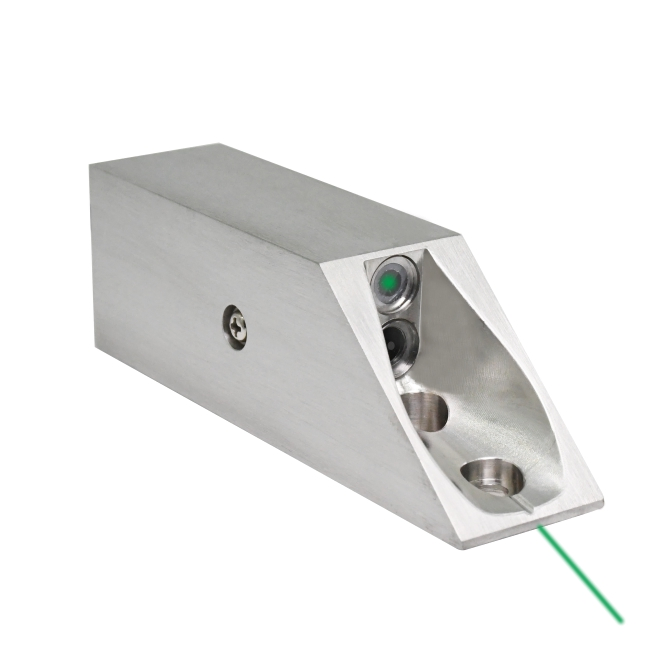

| 1080P Digital Wireless Camera (CWHD-23A2M) |
|---|
| Image Sensor | 1/2.9 Color DSP |
| Resolution | 1080P (1920x1080) |
| Viewing Angle | 52° |
| Laser Positioning | Green word laser |
| Waterproof Level | IP69K |
| Anti-vibration Grade | 5G |
| Mobile Rechargeable Power Supply (MP-03B10W1) |
|---|
| Product Capacity | 30000maH / 111Wh |
| DC Output | DC12V / 0.8A |
| Charge Time | ~10.5 hours (12V/1.5A fast charge) |
| Magnetic Strength | Horizontal pull > 20kg, Side pull > 8kg |
| Waterproof Level | IP67 |
📸 Product Gallery

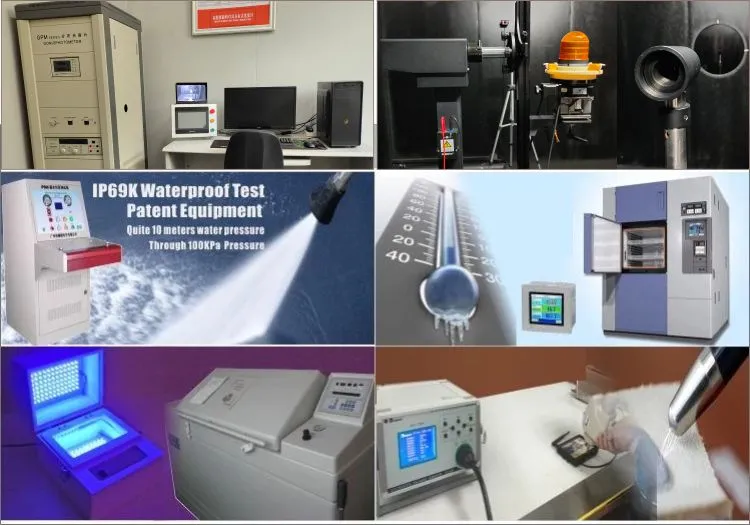

Sealed pressure tester for IP69K standards
❓ Frequently Asked Questions
What is the wireless transmission range of this system?
The system supports an open transmission distance of up to 100 meters, ensuring stable connectivity for forklifts and large vehicles.
How does the laser guidance system help during operation?
The camera features a built-in "one-word" green laser positioning light, which provides a visual reference for forklift operators to align forks with precision.
Is the camera durable enough for harsh industrial environments?
Yes, the camera is housed in a 304 stainless steel shell with an anti-collision design and features an IP69K waterproof rating, making it resistant to high-pressure water jets and dust.
How long does the mobile power bank last on a single charge?
The 30000mAh high-capacity lithium polymer battery provides long-lasting power and supports DC12V output. It can be fully recharged in approximately 10.5 hours using fast charge.
Does the monitor support video recording?
Yes, the monitor includes a recording function that supports up to a 256GB TF card for storing high-definition video files in AVI format.
What types of vehicles is this system compatible with?
The system is highly versatile and applicable to forklifts, SUVs, trucks, agricultural vehicles, engineering vehicles, RVs, and harvesters.
