Product Description

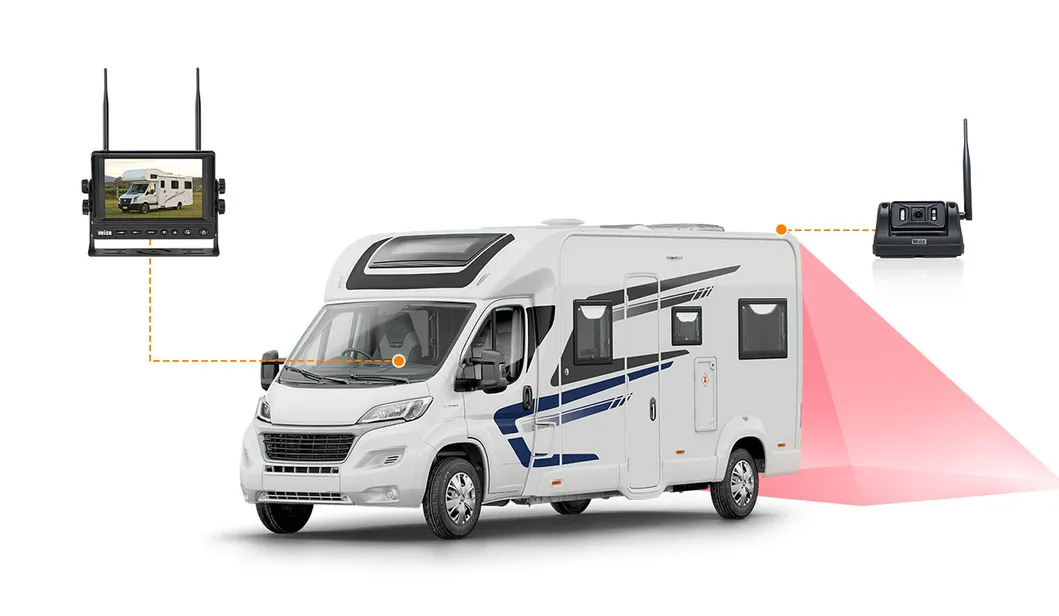

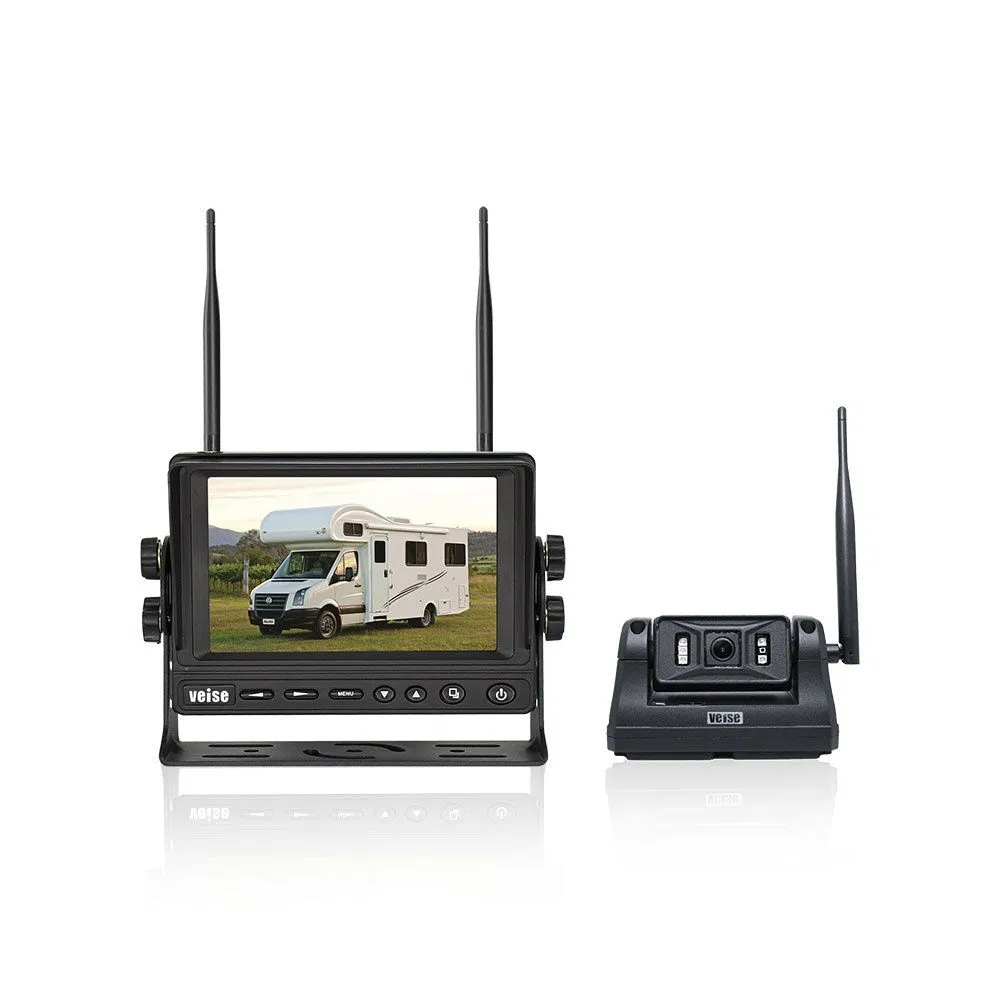

5-Inch 1080P Wireless Reverse Camera System

For RVs and trucks with large dimensions, visibility is often limited. Our wireless camera monitoring systems eliminate blind spots by providing real-time high-definition views of the vehicle's surroundings, significantly improving driving safety and maneuvering ease.

Basic Specifications

Model NO.

HDWS-5014H362M1

Screen Size

5" IPS

Waterproof

Camera IP69K

Certification

RoHS, CE, ISO

Warranty

12 Months

Distance

Up to 200m (Line of Sight)

Voltage

DC 8-32V

Origin

China

Core Features

Wireless HD Monitor Performance

Screen & Reception:

5-inch digital IPS screen with 1024x600 high resolution.
600 cd/m² high brightness for clear visibility in daylight.
Built-in 2.4GHz wireless receiver with multi-frequency hopping to prevent interference.
Transmission distance up to 200m clear line of sight.

Smart Functions:

Vehicle-grade industrial DSP and graphical OSD menu.
Adjustable settings for image mirroring, reverse guidelines, and priority trigger.
Load dump and reverse polarity protection (DC 8~32V).

Wireless HD Waterproof Camera

Durability & Quality:

1080P high-definition resolution with millions of pixels.
IP69K waterproof rating for extreme weather resistance.
Powerful IR LED night vision capability.

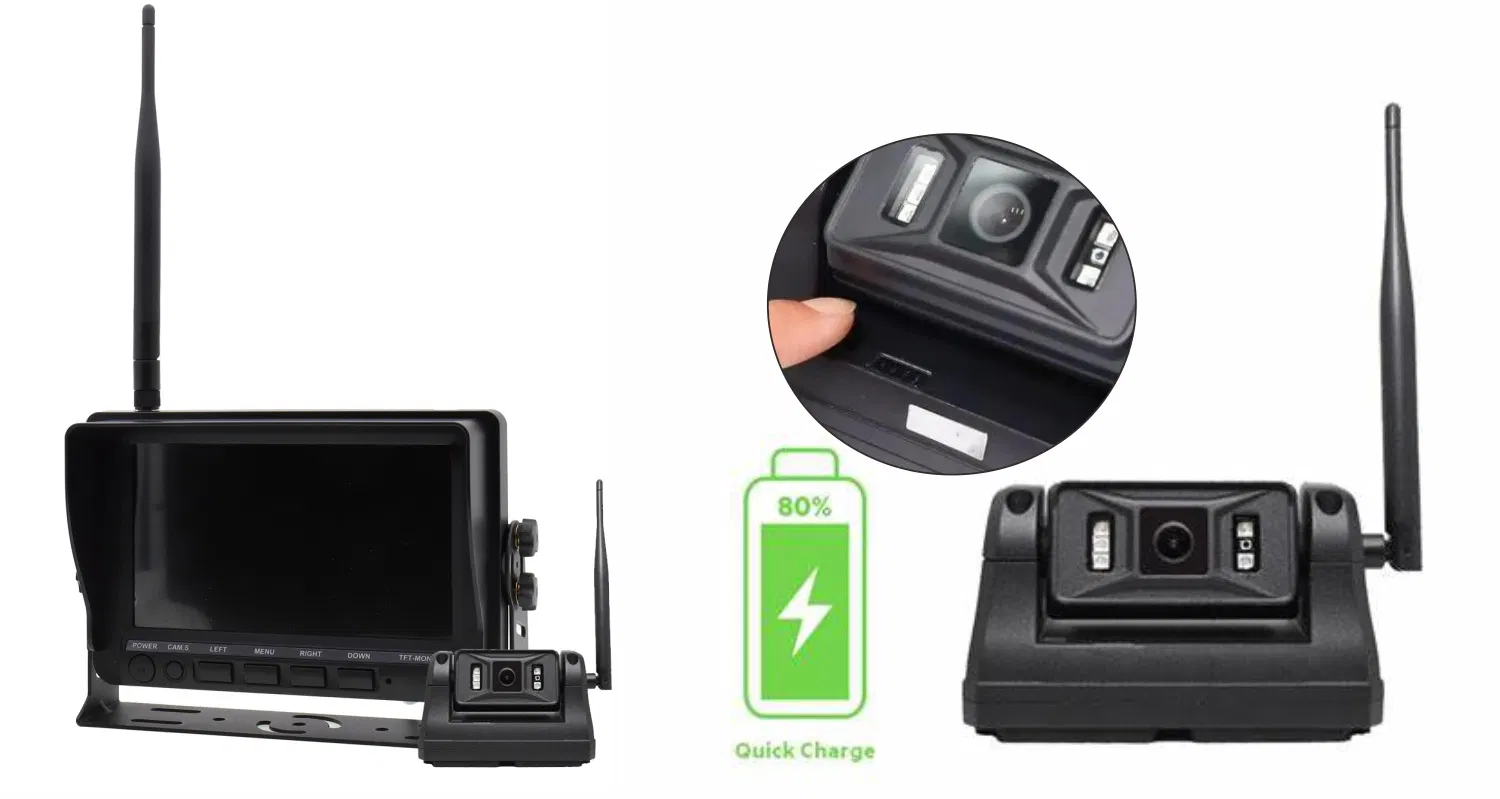

Built-in 8000mAh Lithium Polymer battery for cable-free installation.

Detailed Parameters

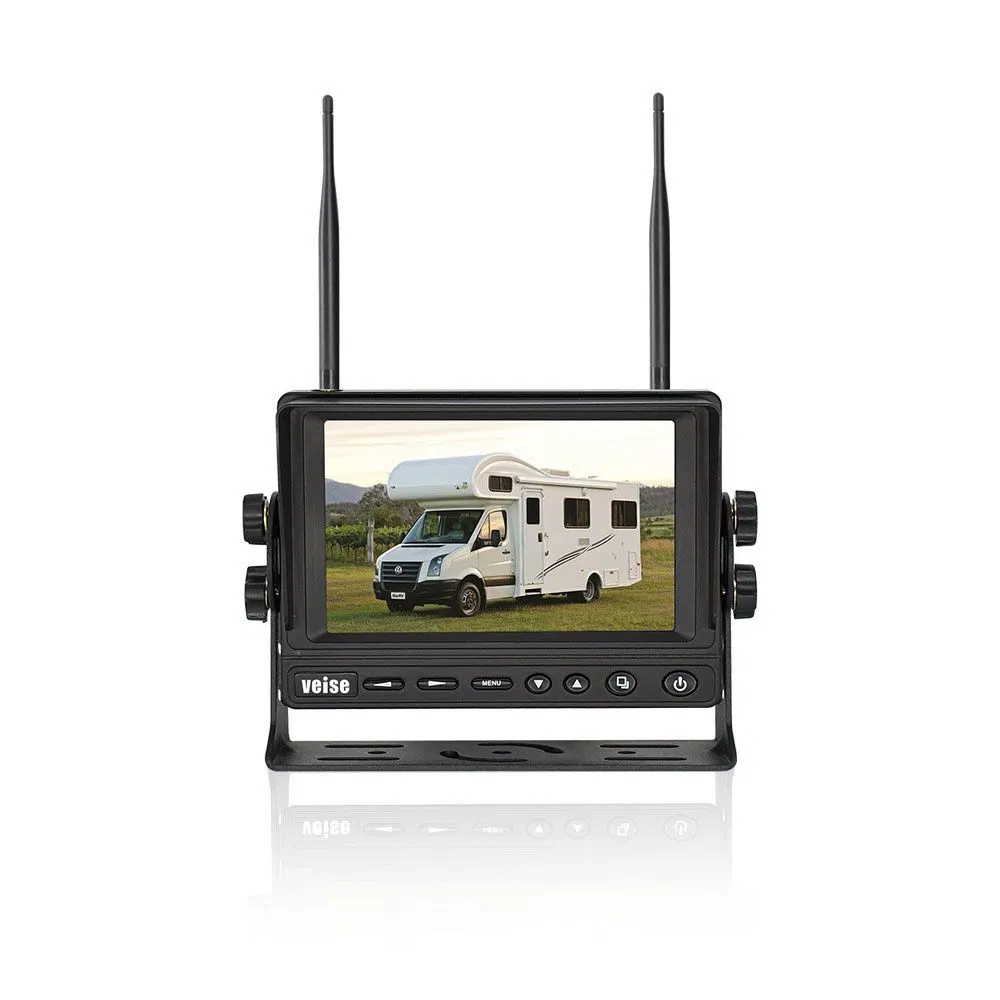

Waterproof Wireless HD Monitor (MWHD-5014H)
LCD Screen	5-Inch IPS Screen
Resolution	1024(H) x 600(V) Dots
Brightness	600 cd/m²
Operating Frequency	2400 - 2483.5MHz
Reception Sensitivity	≤-86 dB
Operating Voltage	DC 8-32V
Protection Rating	IP69K
Operating Temp	-20ºC to +70ºC

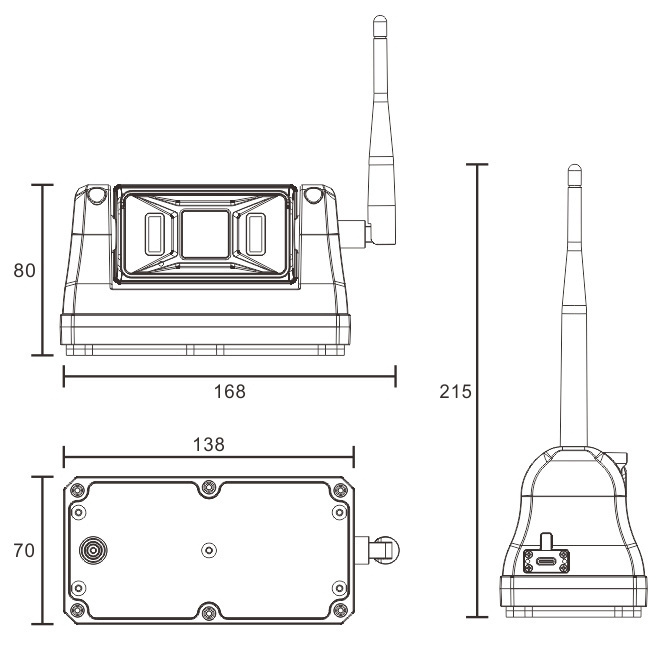

1080P Wireless Battery Magnetic Camera (CWHD-362M)
Image Sensor	1/2.9 Color CMOS (1080P)
Viewing Angle	130°
Battery Capacity	8000mAh (Approx. 20 Hours discharge)
Charging Interface	Type-C with QC2.0 Fast Charge
Installation	Silicone Magnetic Base
Night Vision	5 Meters Infrared Distance
Housing Material	Aluminum Alloy
Waterproof Rating	IP69K

Product Showcase

Frequently Asked Questions

What is the maximum wireless transmission range?

The system supports a digital wireless transmission distance of up to 200 meters with a clear line of sight, ensuring stable performance for long trucks and RVs.

How long does the camera battery last on a single charge?

The camera features a built-in 8000mAh lithium polymer battery that provides approximately 20 hours of continuous discharge duration.

Is the camera easy to install?

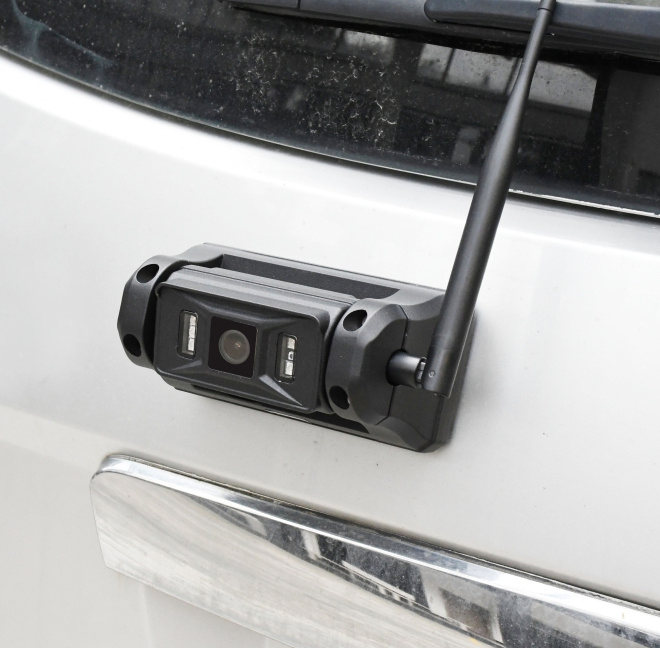

Yes, the camera utilizes a silicone magnetic base for instant attachment to any metal surface, requiring no drilling or complex wiring.

Can the system handle extreme weather conditions?

Absolutely. The camera has an IP69K waterproof rating and can operate in temperatures ranging from -10ºC to +60ºC, making it suitable for all-weather use.

Does the monitor support different viewing modes?

The monitor features a graphical OSD menu where you can adjust settings for image mirroring, normal view, and toggle reverse guidelines.

How does the system prevent signal interference?

It uses 2.4GHz digital wireless technology with multi-frequency hopping across 80 channels to ensure a clean, interference-free signal.
