232 Kwh Industrial Energy Storage Solution for Efficient Power Management

Customization:	Available
Energy Capacity:	100kWh-500kWh
Power Configuration:	100kW-250kW

Basic Info.

Model NO.WRES-CI-25-100/232

Cycle Life≥8000 @25℃

Product NameC&I Energy Storage

Battery TypeLFP

Rated Energy232kwh

Nominal Voltage832V

Voltage Range728-949V

Rated Power100kw

Rated VoltageAC400V

Power Factor>99%

Connection Method3vy+N+PE

Production Capacity50000pieces/Year

Product Description

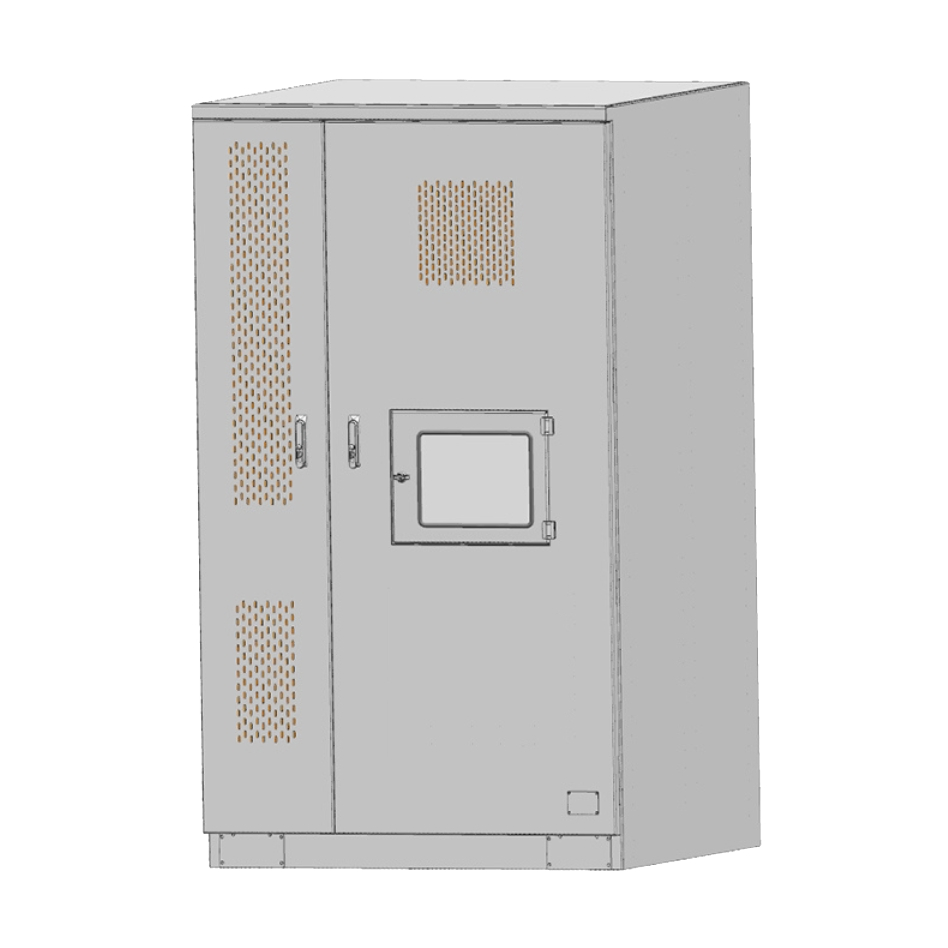

COMMERCIAL & INDUSTRIAL ENERGY STORAGE CABINET

Our energy storage cabinets adopt LFP (Lithium Iron Phosphate) batteries, ensuring high safety and reliability for long-term industrial operations. With an energy capacity ranging from 112.54 kWh to 241 kWh, these systems meet diverse power demand scenarios with high usable energy ratios.

Optimized for industrial grids, the nominal DC voltage spans 358.4V to 832V. Most models feature 100KW rated power and AC 400V rated voltage, compatible with standard industrial power systems. The grid-tied design includes MPPT (Maximum Power Point Tracking) functionality (200~800V), enabling efficient integration with solar panels.

Specifications

Parameter	Details
Product Model	WRES-CI-25-100/232
Battery System
Battery Type	LFP
Rated Energy	232KWH
Nominal Voltage	832V
Voltage Range	728-949V
AC Side Parameters
Rated Power	100KW
Maximum Power	110KW
Harmonic Current	<3%
Rated Voltage	AC400V
Power Factor	>99%
Isolation Type	Transformerless

Functional Advantages

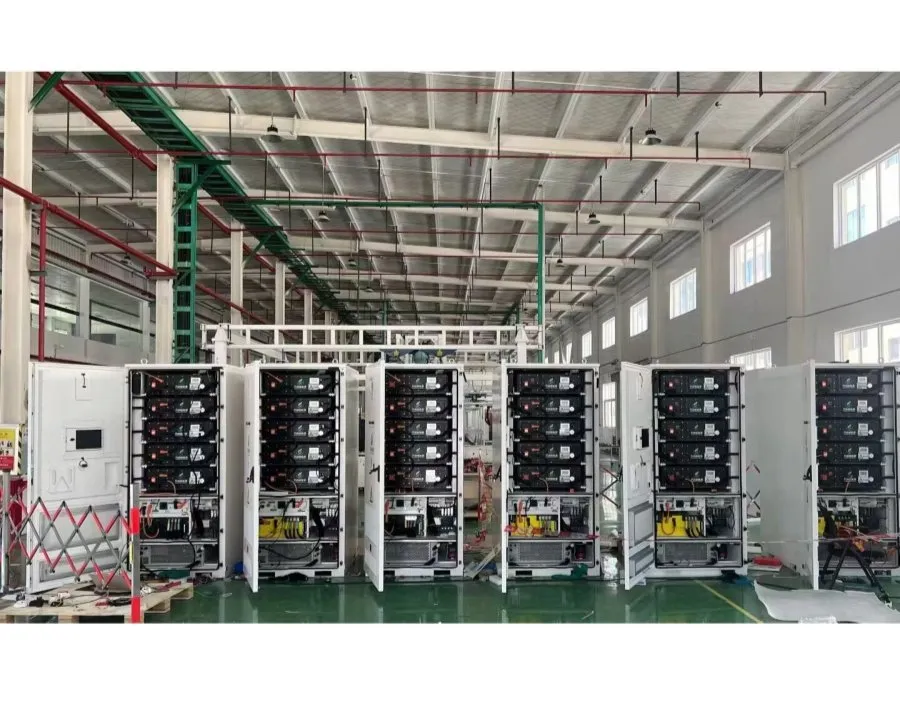

Strong Economic Value: Enables effective peak-valley tariff arbitrage by storing low-cost off-peak electricity and supplying it during high-tariff peak hours.

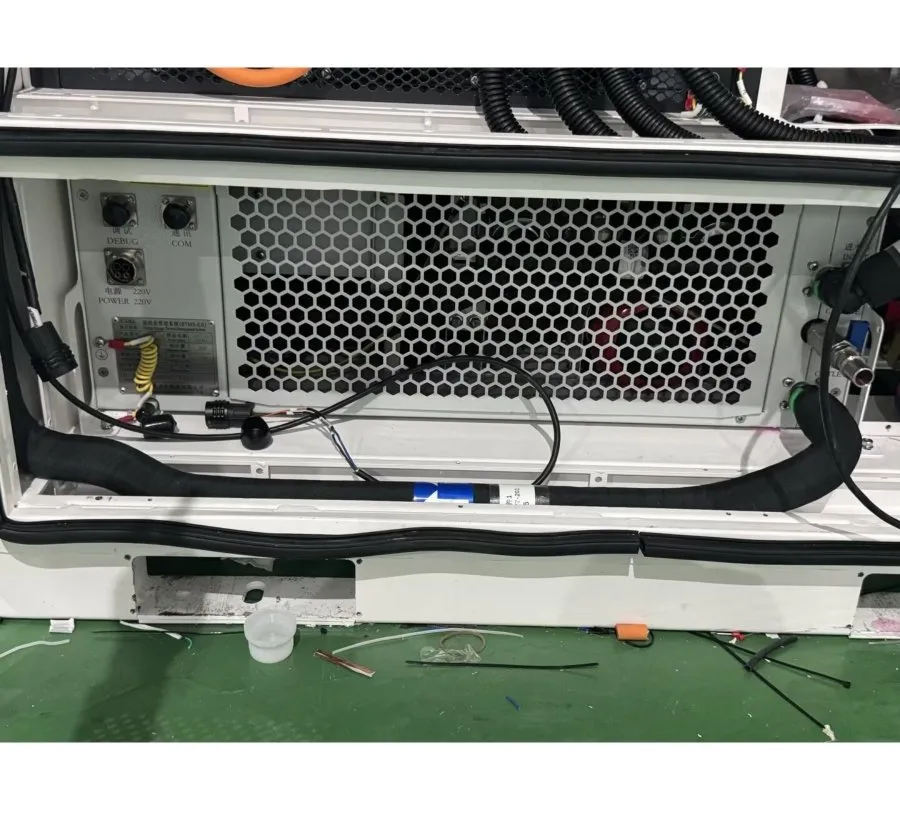

High Safety & Reliability: Utilizing LFP batteries with excellent thermal stability and long cycle life, ensuring uninterrupted power for critical production lines.

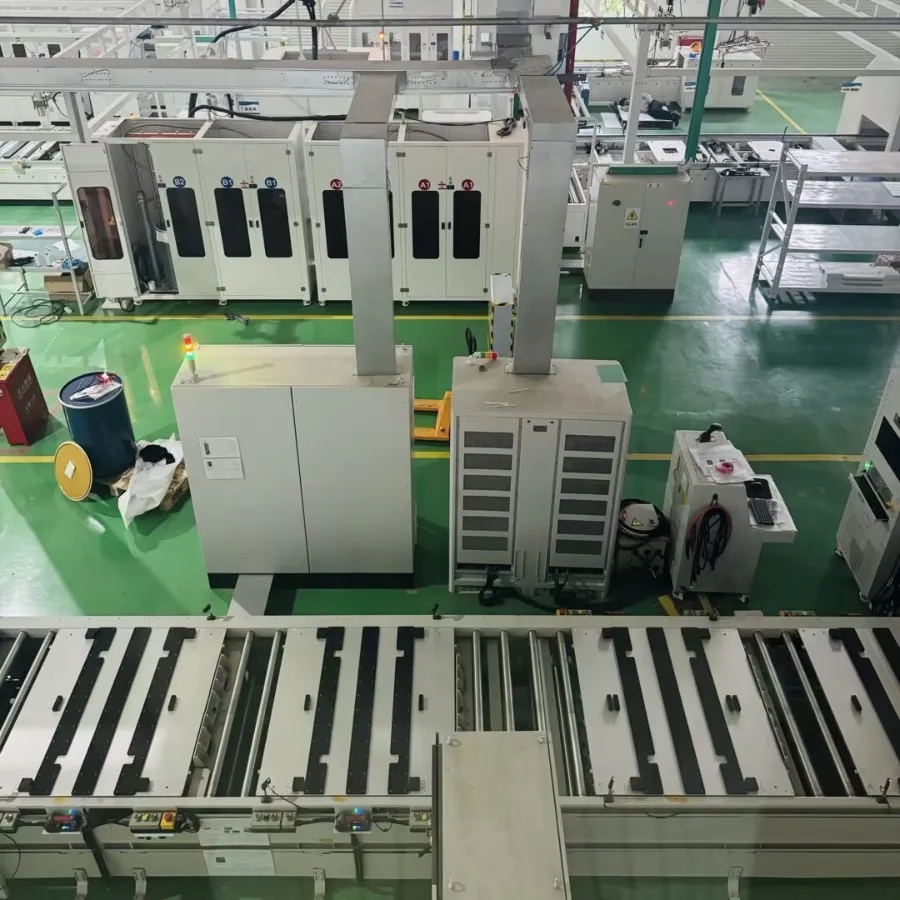

Strong Adaptability: Wide DC voltage ranges and MPPT compatibility allow seamless integration with renewable energy and diverse grid conditions.
Sustainability: Lower carbon emissions by storing excess solar/wind energy and reducing reliance on fossil-fueled power.

Core Applications

⚡ Peak-Valley Tariff Arbitrage: Reduces monthly electricity costs for energy-intensive sectors like manufacturing and retail.

🔋 Backup Power: Ensures continuous operation for data servers and production lines during grid outages.

☀️ Renewable Consumption: Efficiently stores electricity from on-site solar or wind, increasing self-consumption of clean energy.

🌐 Grid Stability: Balances fluctuating electrical loads and reduces pressure on the public grid.

Transportation & Logistics

We provide secure transportation services with custom protective packaging (reinforced, shockproof materials) and full-process tracking to ensure your systems arrive safely and on time.

Frequently Asked Questions

What is the lifespan of these batteries?

Lithium iron phosphate (LFP) batteries typically offer 6,000-8,000 charge cycles, which is equivalent to 10-15 years of daily use, depending on usage patterns and maintenance.

Are these batteries compatible with existing solar inverters?

Yes, our systems offer high compatibility with various solar inverters using RS485, CAN, or RS232 communication protocols, supporting major brands like SMA, Growatt, Deye, and more.

What safety features are included?

The systems include a comprehensive Battery Management System (BMS) with overcharge protection, over-discharge protection, short-circuit protection, temperature monitoring, and overcurrent protection.

Can I monitor the system performance remotely?

Yes, we provide a cloud-based monitoring platform accessible via App and Web for tracking real-time performance, charging status, and battery health.

How do I choose between grid-tied and off-grid systems?

Grid-tied is best for stable urban areas for tariff arbitrage; off-grid is for remote locations without grid coverage; and grid-tied with off-grid switching is ideal for areas with frequent outages.

What is your after-sales support like?

We provide 24/7 after-sales service, including remote technical support, immediate response to fault reports, and emergency plans for unforeseen incidents.
