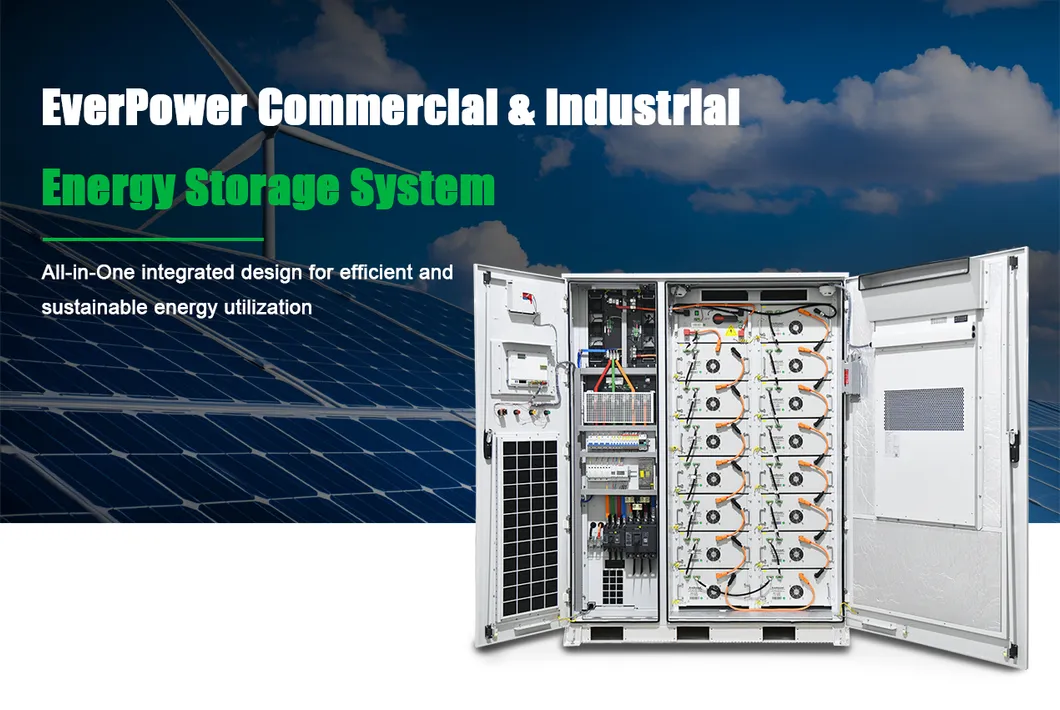

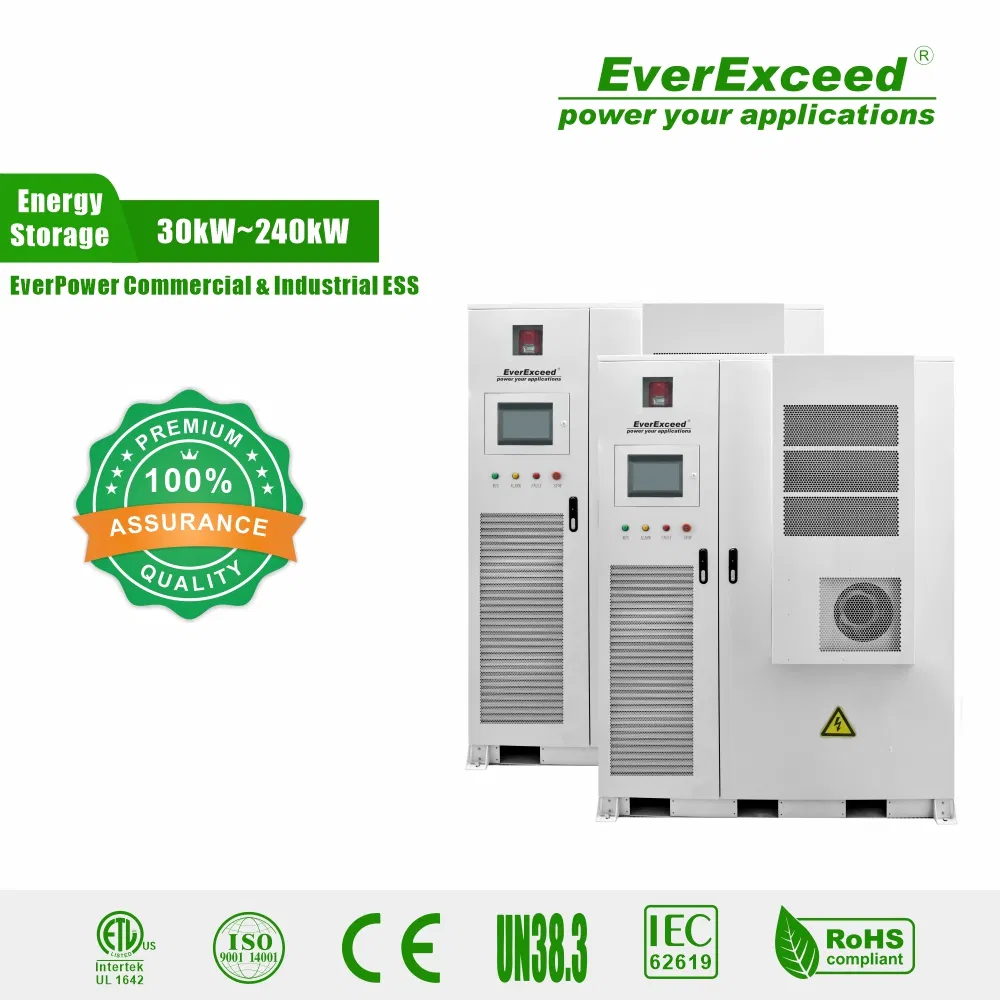

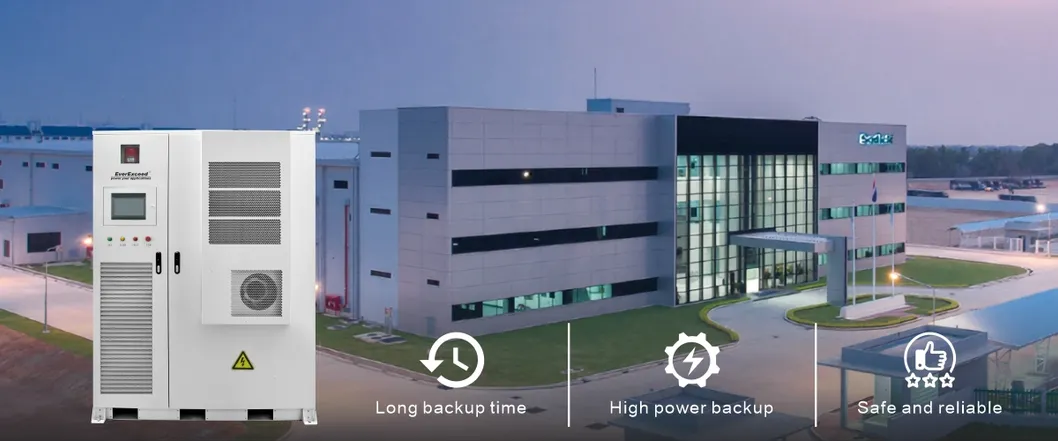

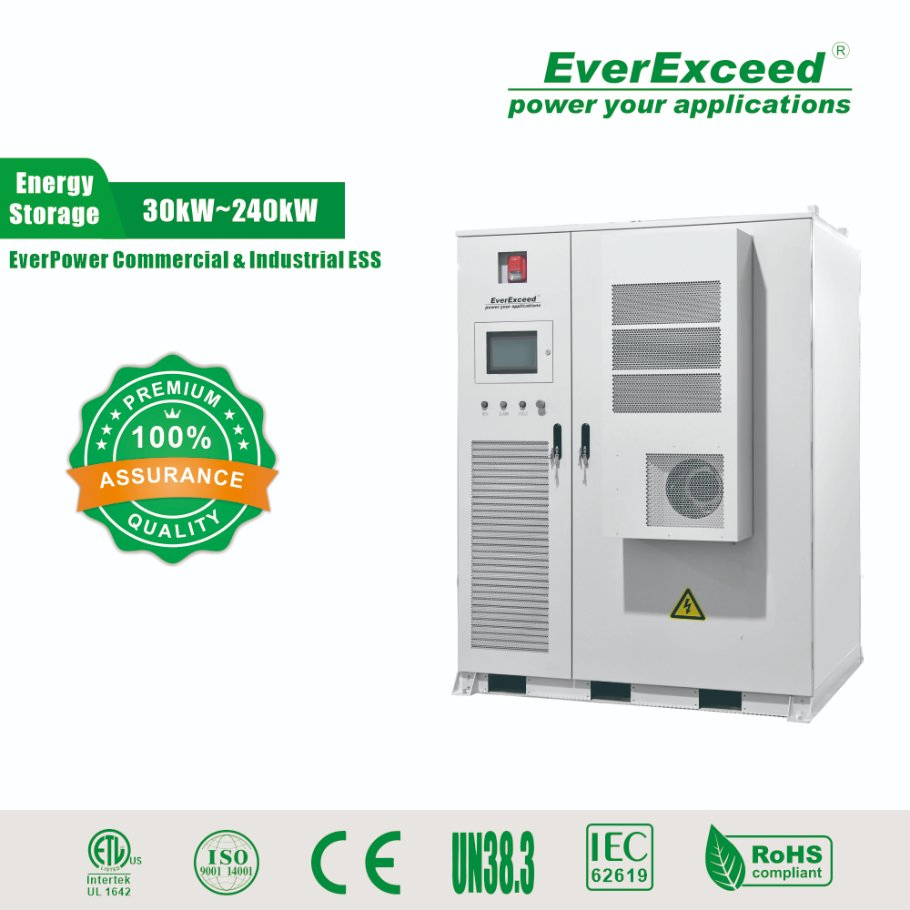

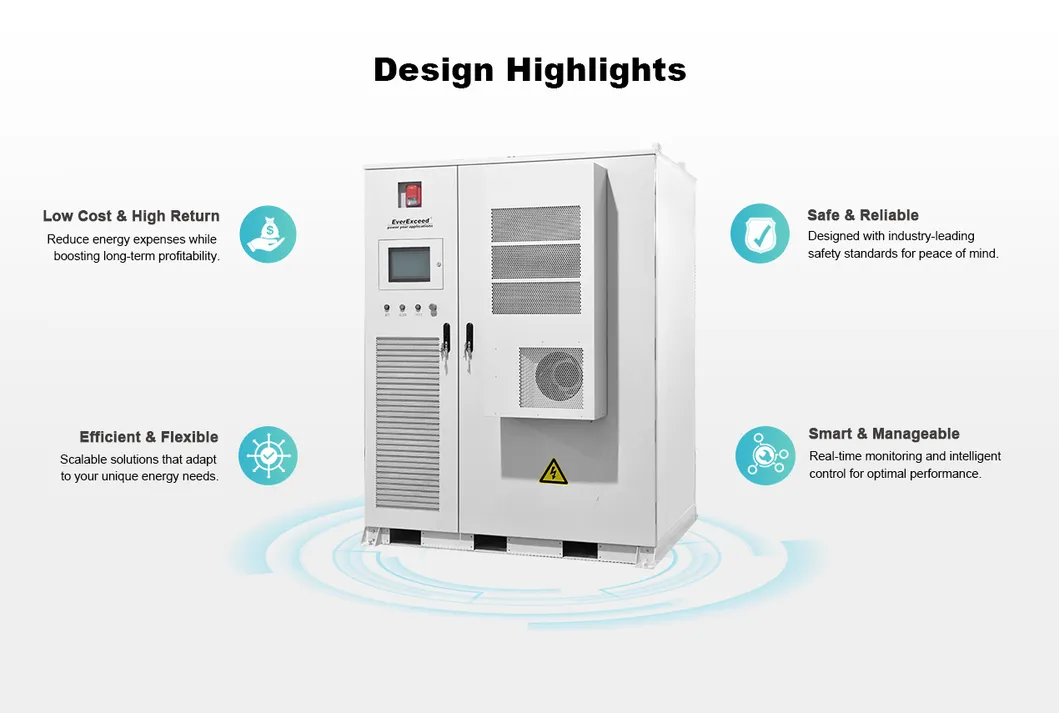

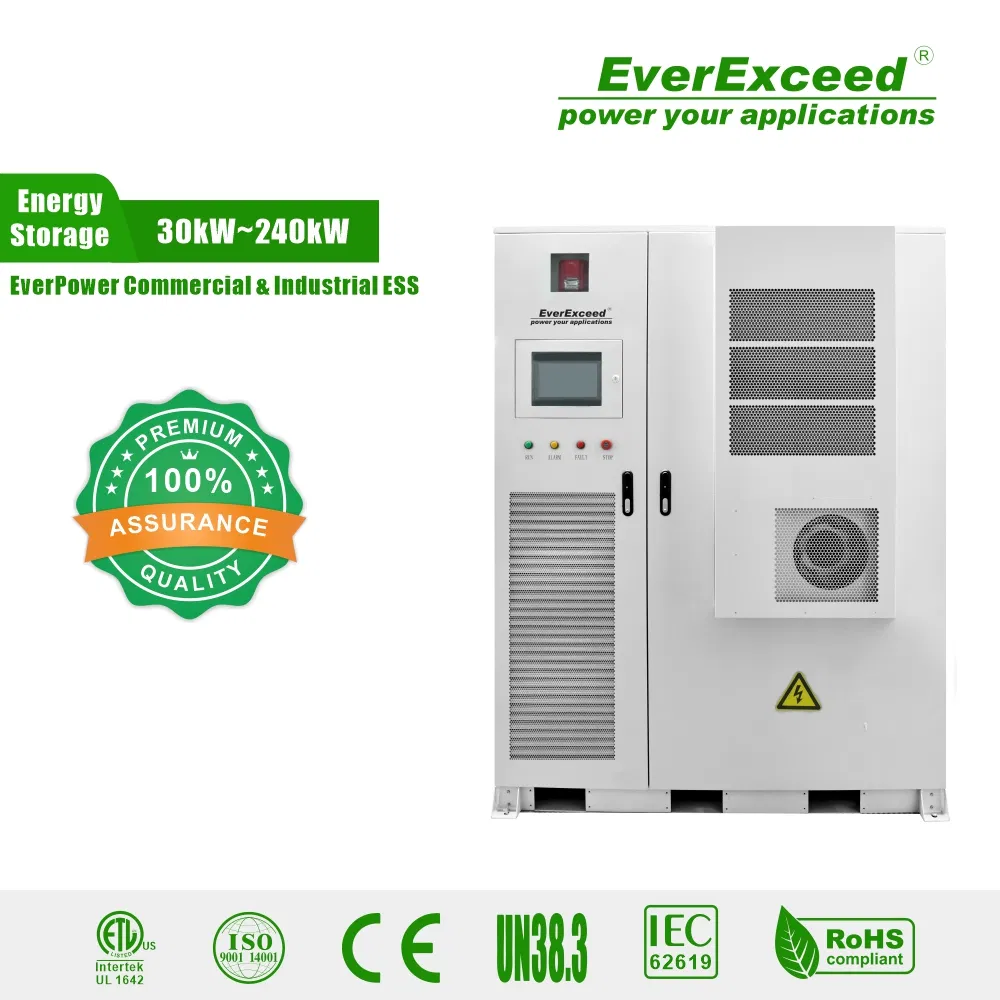

This All-in-one Industrial & Commercial ESS highly integrates PCS, LiFePO4 batteries, BMS, EMS, fire-fighting, and heat dissipation systems in a single cabinet. It is a high-power backup solution designed for commercial, industrial, and grid-level customers. The high-voltage system offers maximum flexibility for both rack-mounted and cabinet constructions. It is much "Safer, Smarter, and Simpler," suitable for substations, outdoor areas, microgrids, factories, shopping malls, and solar charging stations.
Wide Compatibility
Compatible with various operation environments and both lead-acid & lithium-ion batteries.
Cold Start Function
Off-grid cold start support and multi-machine parallel function capabilities.
Multiple Protection
Safety features for overcharge, discharge, overload, short-circuit, and temperature extremes.
High Efficiency
Highest power density with efficiency reaching up to 97.5%.
| Product Model | CO25K-50E | CO50K-100E | CO100K-215E | CO150K-300E |
|---|---|---|---|---|
| Electrical Parameter | ||||
| Nominal AC power | 25 kW | 50 kW | 100 kW | 150 kW |
| Nominal grid voltage | 400 Vac | |||
| Max.THD of current | <3% (at nominal power) | |||
| Battery Parameter | ||||
| Cell Chemistry | Lithium Iron Phosphate (LFP) | |||
| Battery energy capacity | 51.2 kWh | 100 kWh | 215 kWh | 315 kWh |
| Cycle Life | 6000+ cycles | 10000+ cycles | 10000+ cycles | 10000+ cycles |
| Mechanical & Solar | ||||
| Cooling method | Air-conditioner | |||
| Degree of protection | IP54 | |||
| Max. PV input power | 30 kW | 60 kW | 120 kW | 240 kW |
A: The system uses Lithium Iron Phosphate (LFP) cells, offering a cycle life ranging from 6,000 to over 10,000 cycles, with a calendar life of 15 to 20+ years depending on the model.
A: Yes, it is equipped with an integrated air-conditioning cooling system and has an operating temperature range of -20ºC to 50ºC.
A: Absolutely. It features an IP54 protection rating and includes an integrated fire-fighting system for maximum safety in outdoor industrial environments.
A: Yes, the system has an optional solar parameter configuration, supporting PV input power from 30kW up to 240kW depending on the specific model.
A: Key applications include peak shaving, load shifting for electricity cost savings, emergency backup power, and off-grid power supply when combined with solar and generators.
