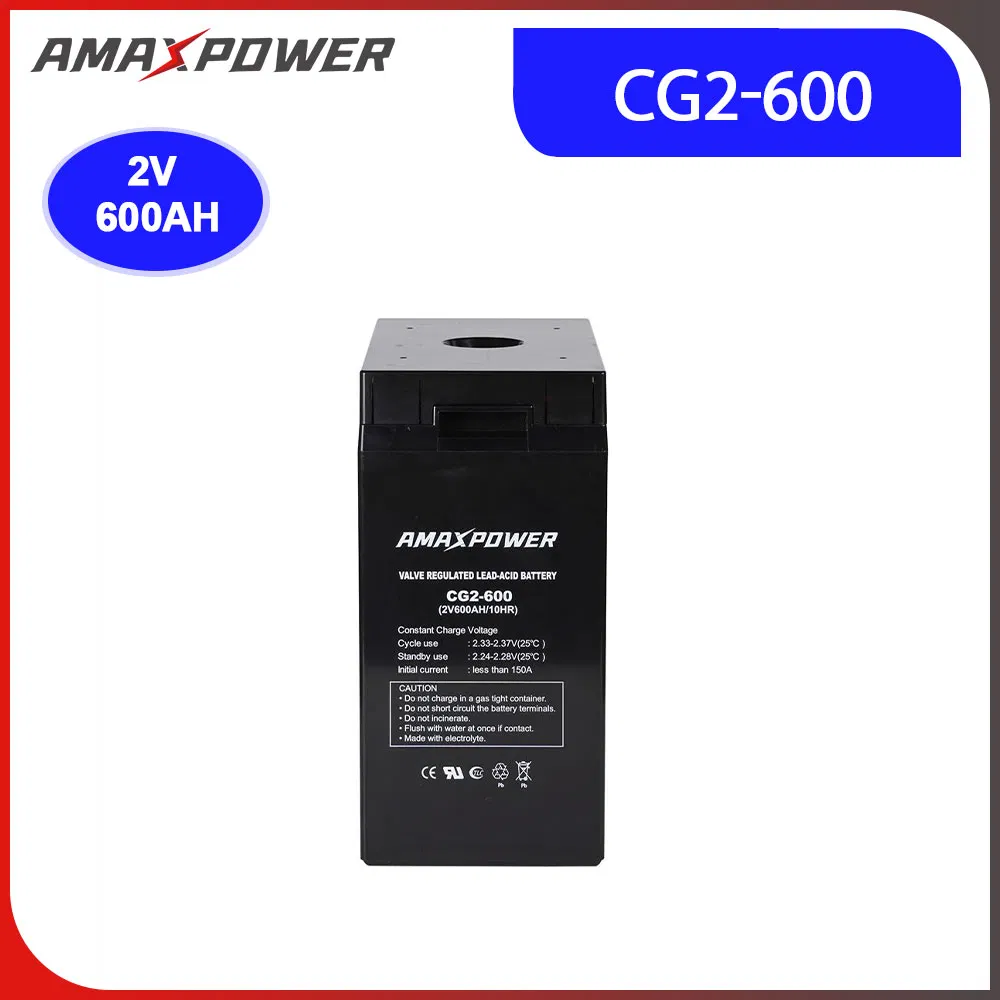

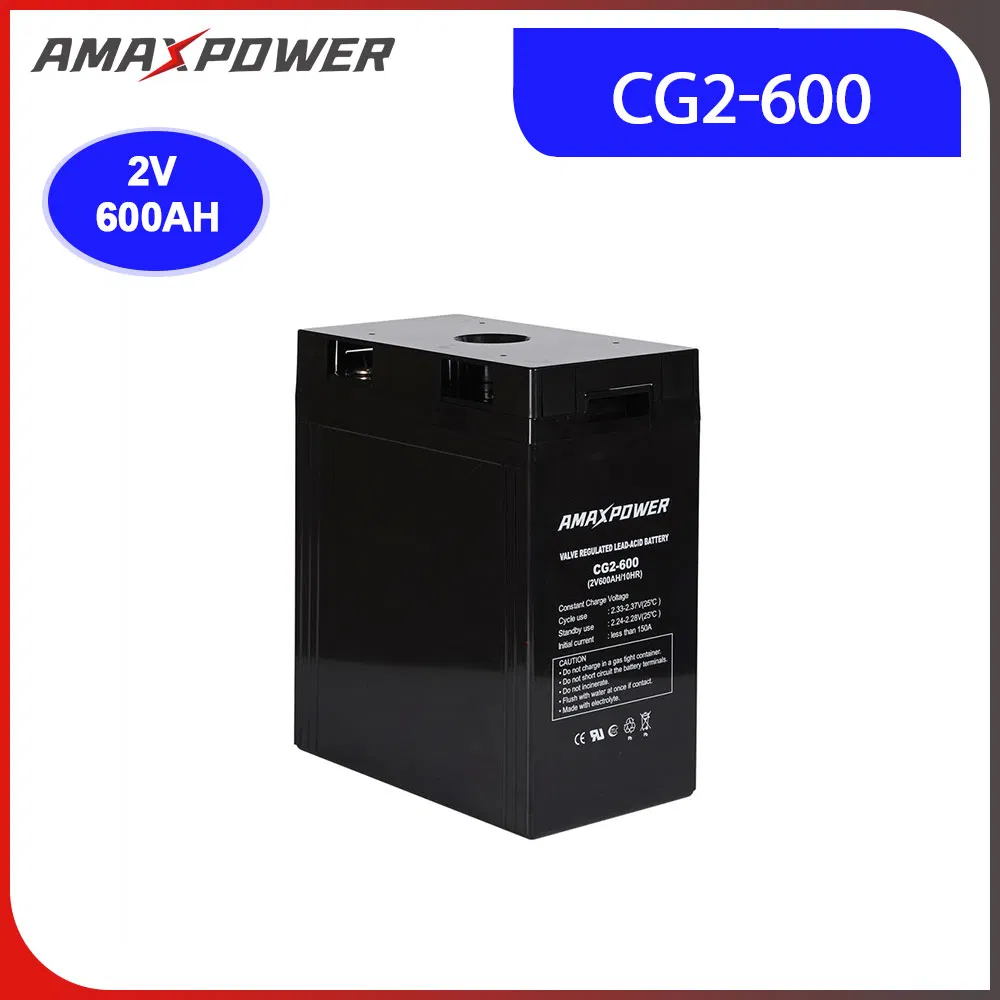

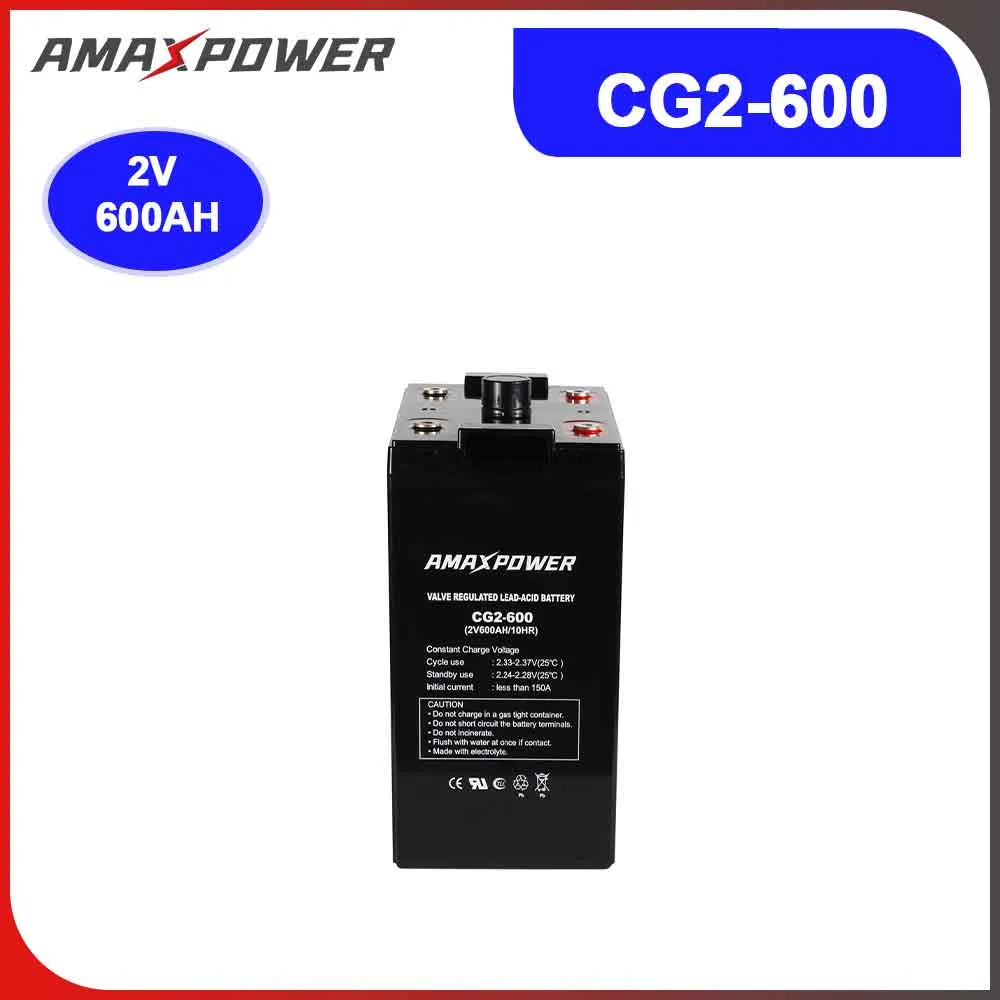

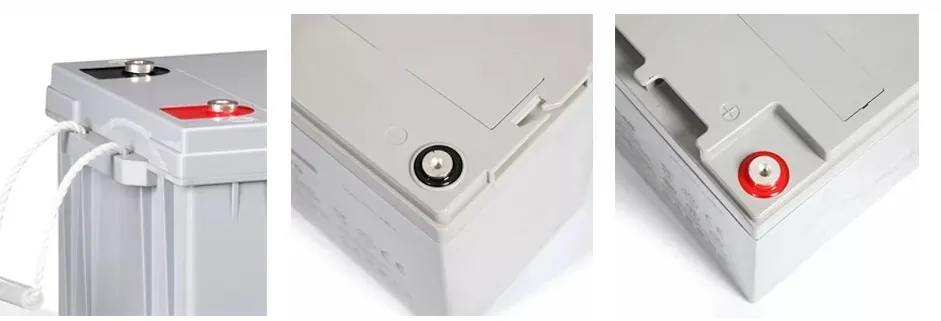

The CG Series is a specially valve-regulated sealed maintenance-free 2V deep cycle AGM battery with a 12-15 year design life in float service. As a reliable and high-quality battery system, it is the perfect choice for deep cycle use, backup power, and solar cycle applications.
| Parameter | Specification |
|---|---|
| Nominal Voltage | 2V (Single cell) |
| Nominal Capacity | 600Ah @ 10 hour-rate |
| Dimension (L*W*H) | 301*175*331 mm |
| Total Height | 366 mm |
| Weight | Approx. 34kg |
| Max. Discharge Current | 3000A (5S) |
| Internal Resistance | Approx. 0.7mΩ |
| Container Material | ABS Plastic |

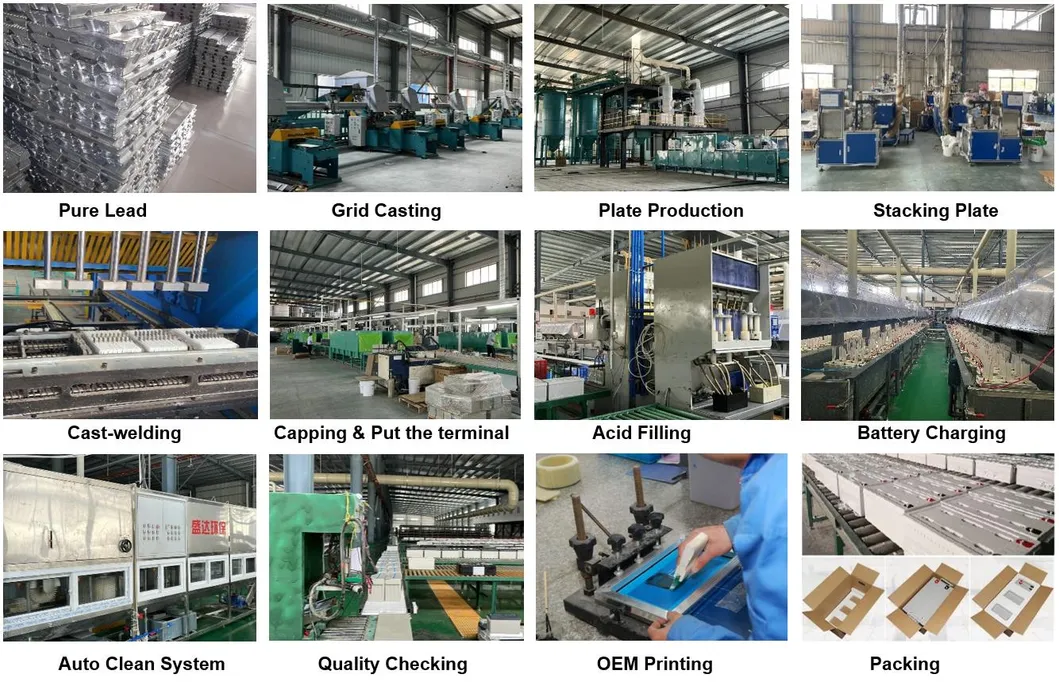

We provide comprehensive OEM & ODM services to both domestic and international clients. Our experience in R&D and manufacturing helps you produce high-quality products under your own brand.
| Model No. | Voltage(V) | Capacity(AH) | Weight(Kg) | Dimensions (LxWxH mm) |
|---|---|---|---|---|
| CG2-200 | 2 | 200 | 12.0 | 172*111*329 |
| CG2-400 | 2 | 400 | 24.0 | 210*176*329 |
| CG2-600 | 2 | 600 | 34.0 | 301*175*331 |
| CG2-1000 | 2 | 1000 | 58.0 | 475*175*330 |
| CG2-2000 | 2 | 2000 | 130.0 | 491*351*343 |
| CG2-3000 | 2 | 3000 | 195.0 | 710*352*342 |
