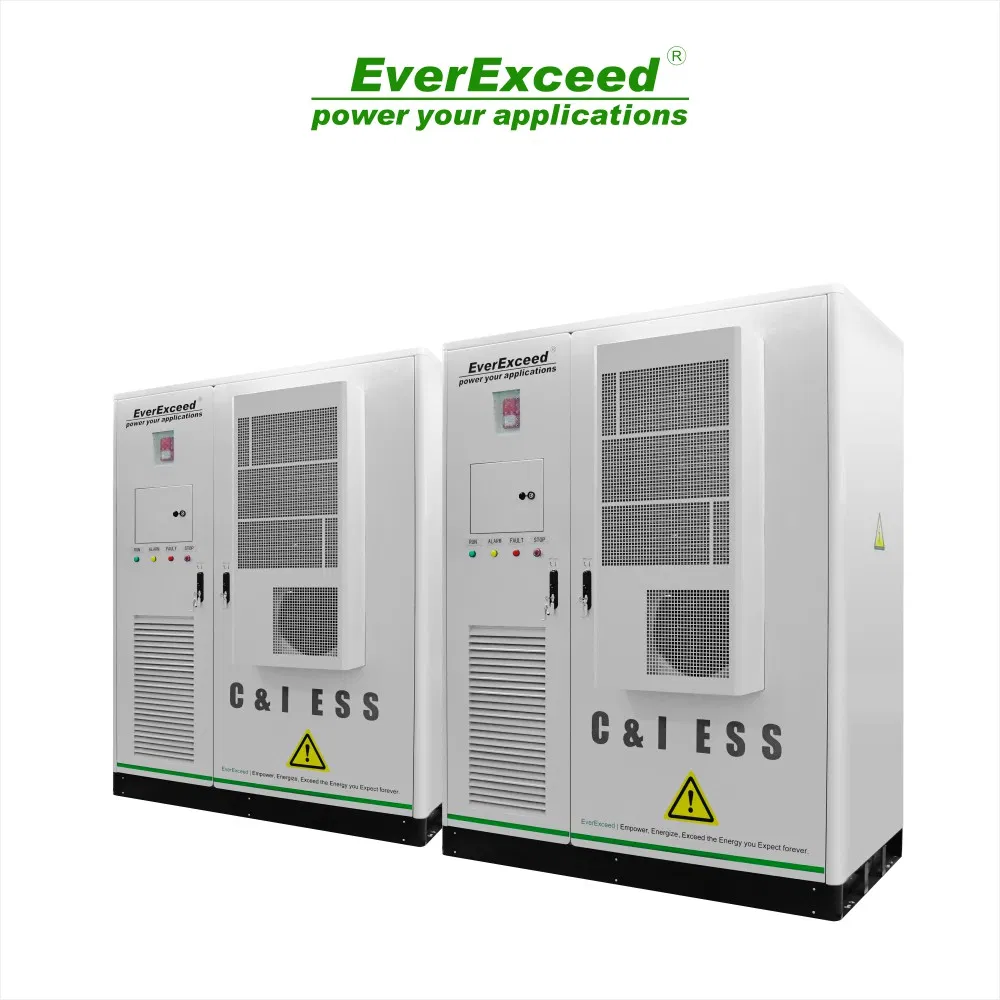

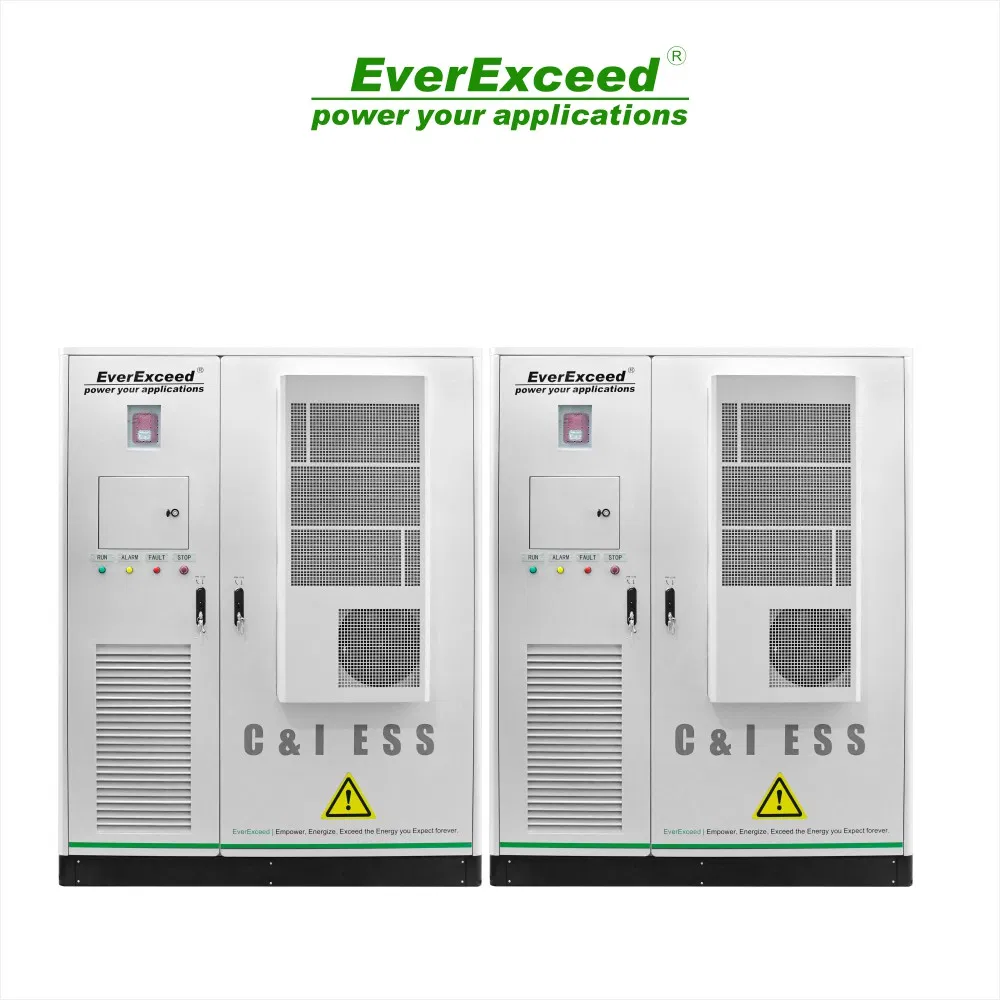

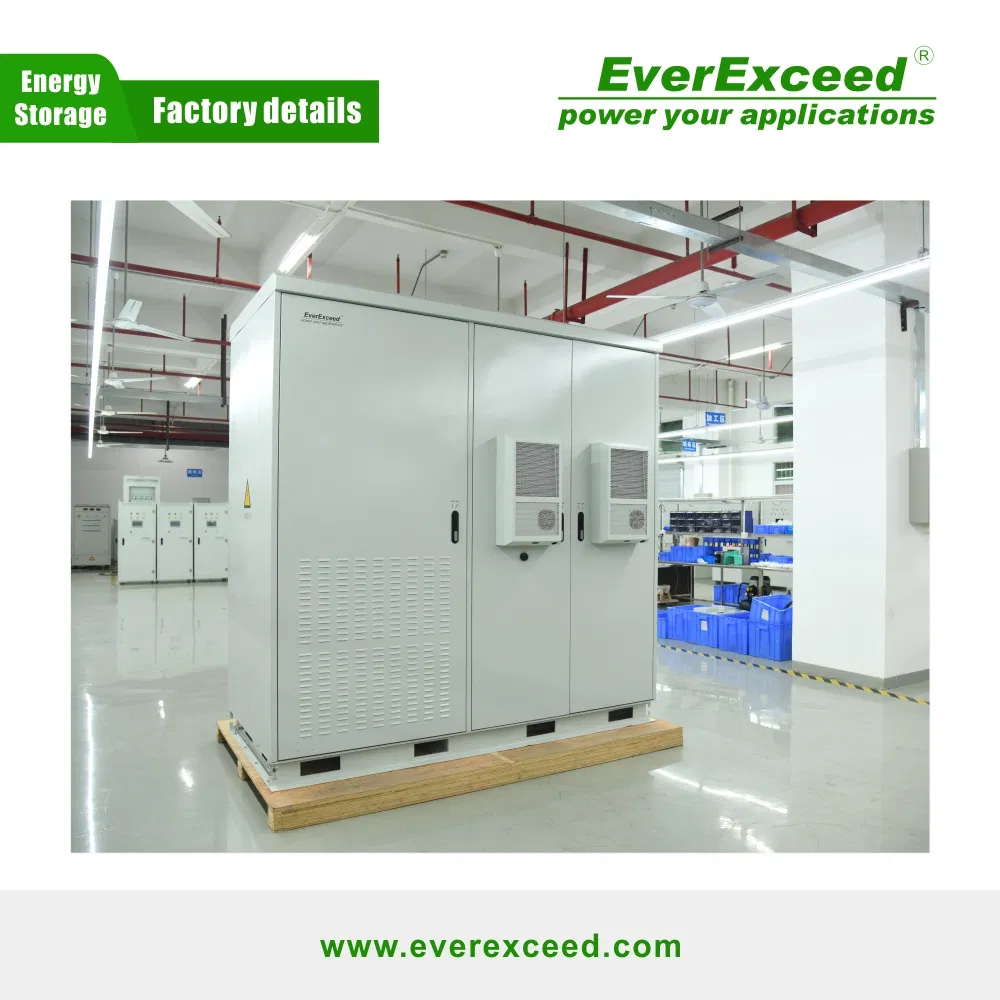

100kwh 200kwh Commercial Industrial Energy Storage System Solution

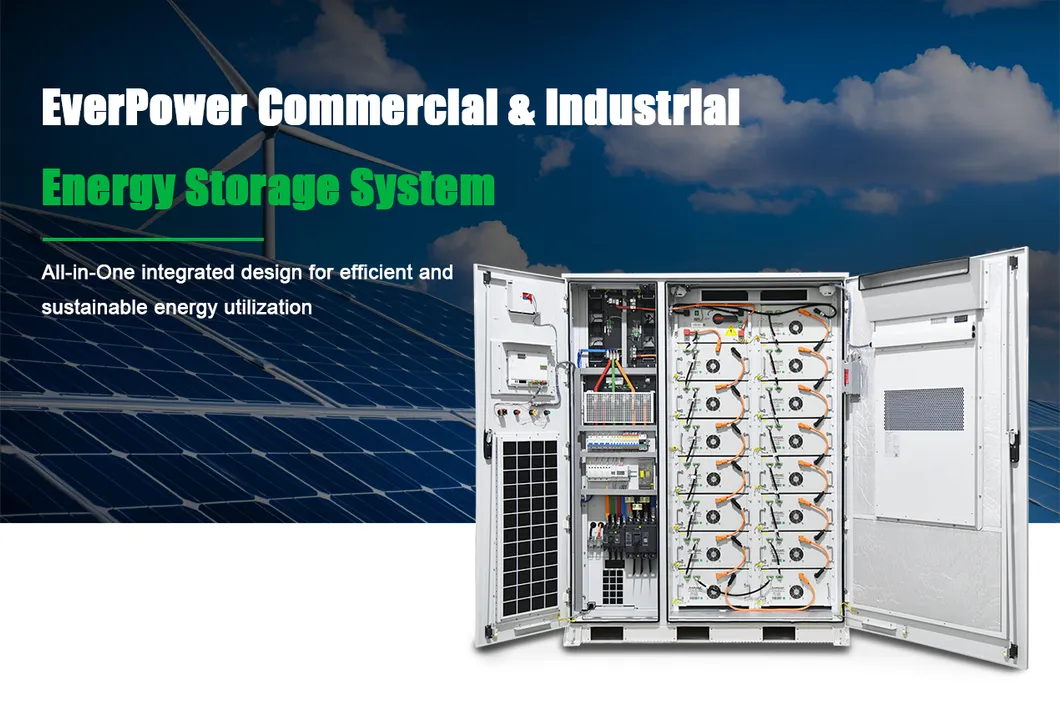

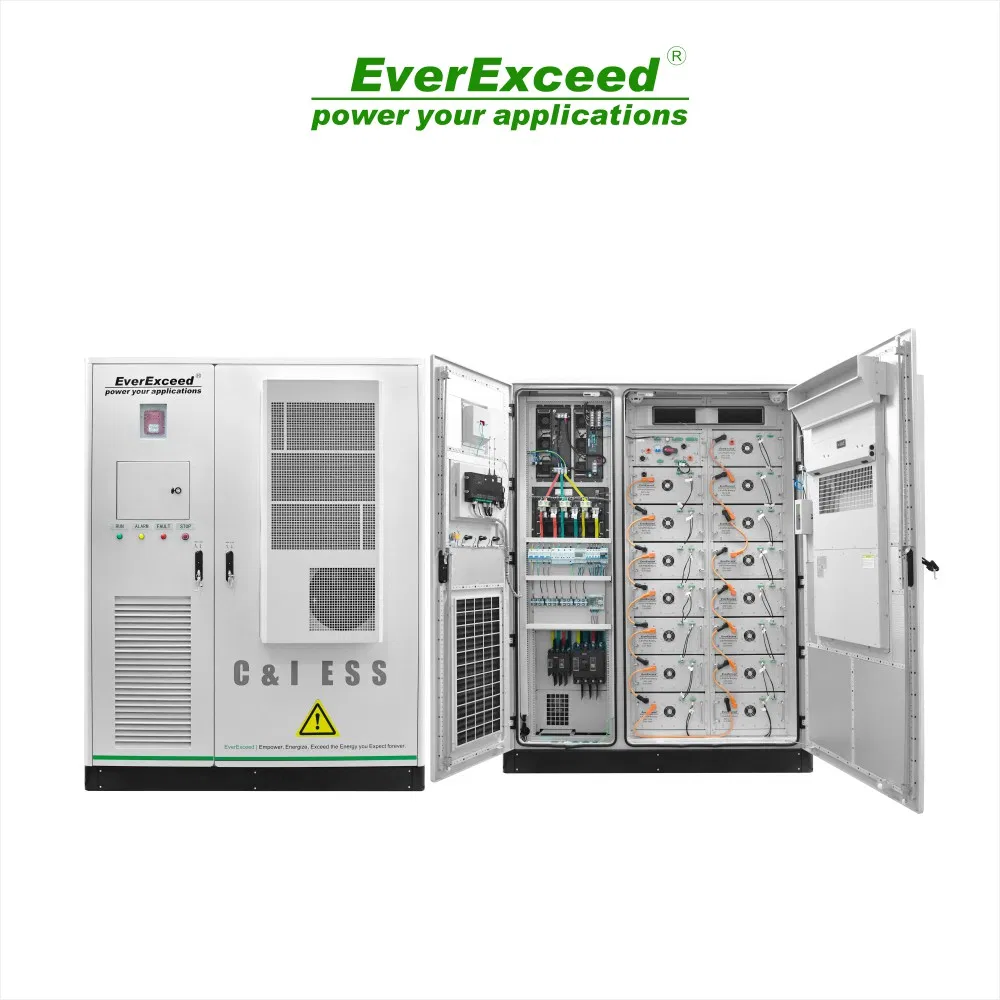

This All-in-one Industrial & Commercial ESS highly integrates PCS, LiFePO4 batteries, BMS, EMS, fire-fighting system, and heat dissipation system within a single cabinet. It serves as a high-power backup solution for commercial, industrial, and grid-level needs. Featuring high voltage energy storage, it offers maximum flexibility for both rack-mounted and cabinet-based installations. Designed to be safer, smarter, and simpler, it is ideal for substations, outdoor areas, microgrids, factories, shopping malls, and solar charging stations.
Wide battery voltage range compatible with various environments. Fully compatible with lead acid & lithium-ion batteries.
Off-grid cold start function, supporting multi-machine parallel operations for enhanced reliability.
Comprehensive protection against overcharge, over-discharge, overload, short-circuit, and extreme temperatures.
Features the highest power density with peak efficiency reaching up to 97.5%.
| Product Model | CO30K-50E | CO50K-100E | CO100K-215E | CO150K-300E |
|---|---|---|---|---|
| Electrical Parameters | ||||
| Nominal AC power | 30 kW | 50 kW | 100 kW | 150 kW |
| Grid Type | 3W+N | |||
| Nominal Grid Voltage | 400 Vac | |||
| Rated AC Output Current | 43.5 A | 72 A | 152 A | 200 A |
| Battery Parameters | ||||
| Cell Chemistry | Lithium Iron Phosphate (LFP) | |||
| Battery Energy Capacity | 51.2 kWh | 100 kWh | 215 kWh | 315 kWh |
| Cycle Life | 6000+ cycles | 10000+ cycles | 10000+ cycles | 10000+ cycles |
| Mechanical Parameters | ||||
| Cooling Method | Air-Conditioner | |||
| Degree of Protection | IP54 | |||
| Dimensions (W*D*H) mm | 800x1200x2100 | 1000x1450x2100 | 1738x1250x2330 | Customized |
| Shipping & Payment Details | |
| Payment | T/T, L/C, Cash, Western Union (Flexible terms available) |
| Delivery Method | By sea, air, train, or truck transportation |
| Lead Time | Normally 4 weeks ex-factory |
| Packaging | Standard carton boxes with wooden pallets/boxes |
