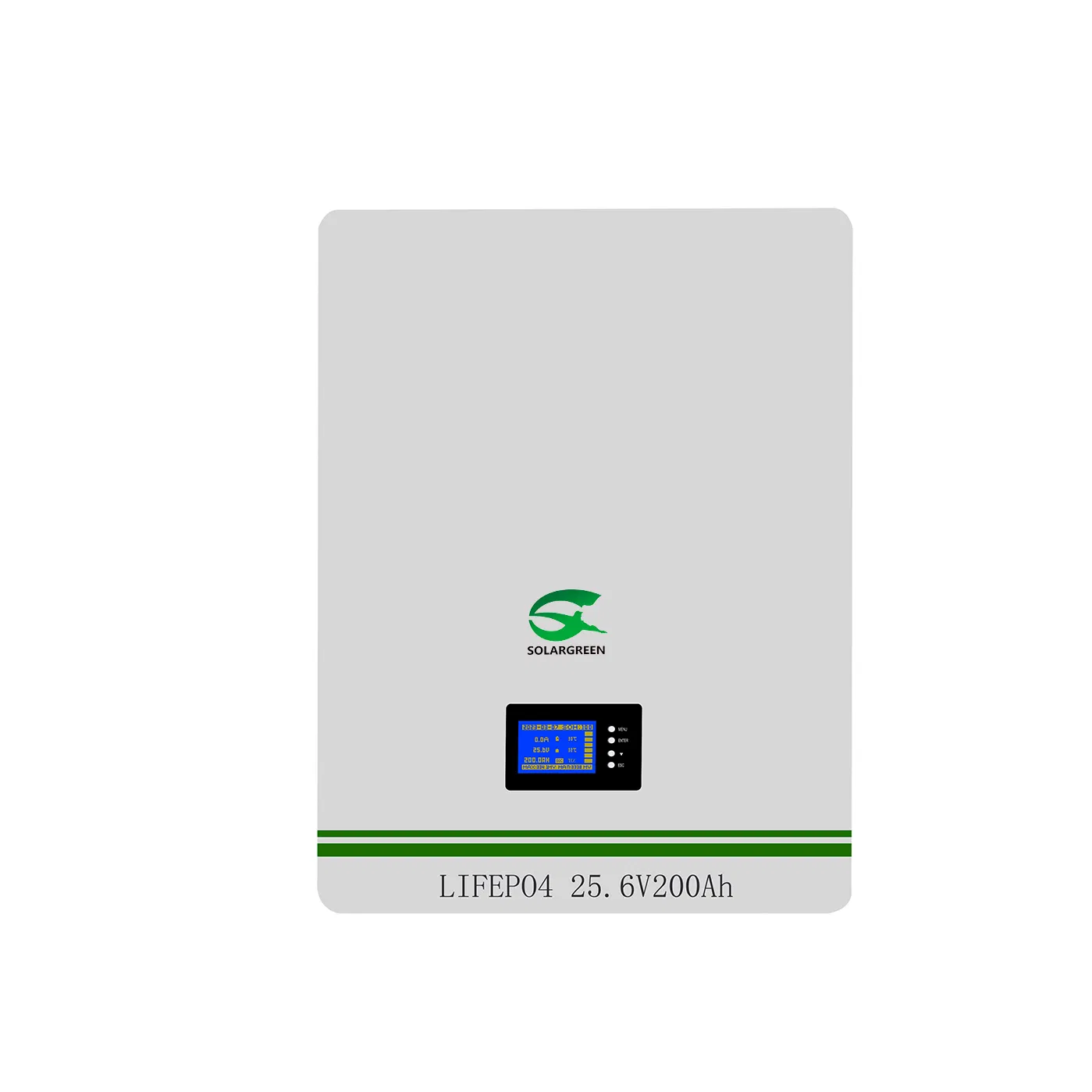

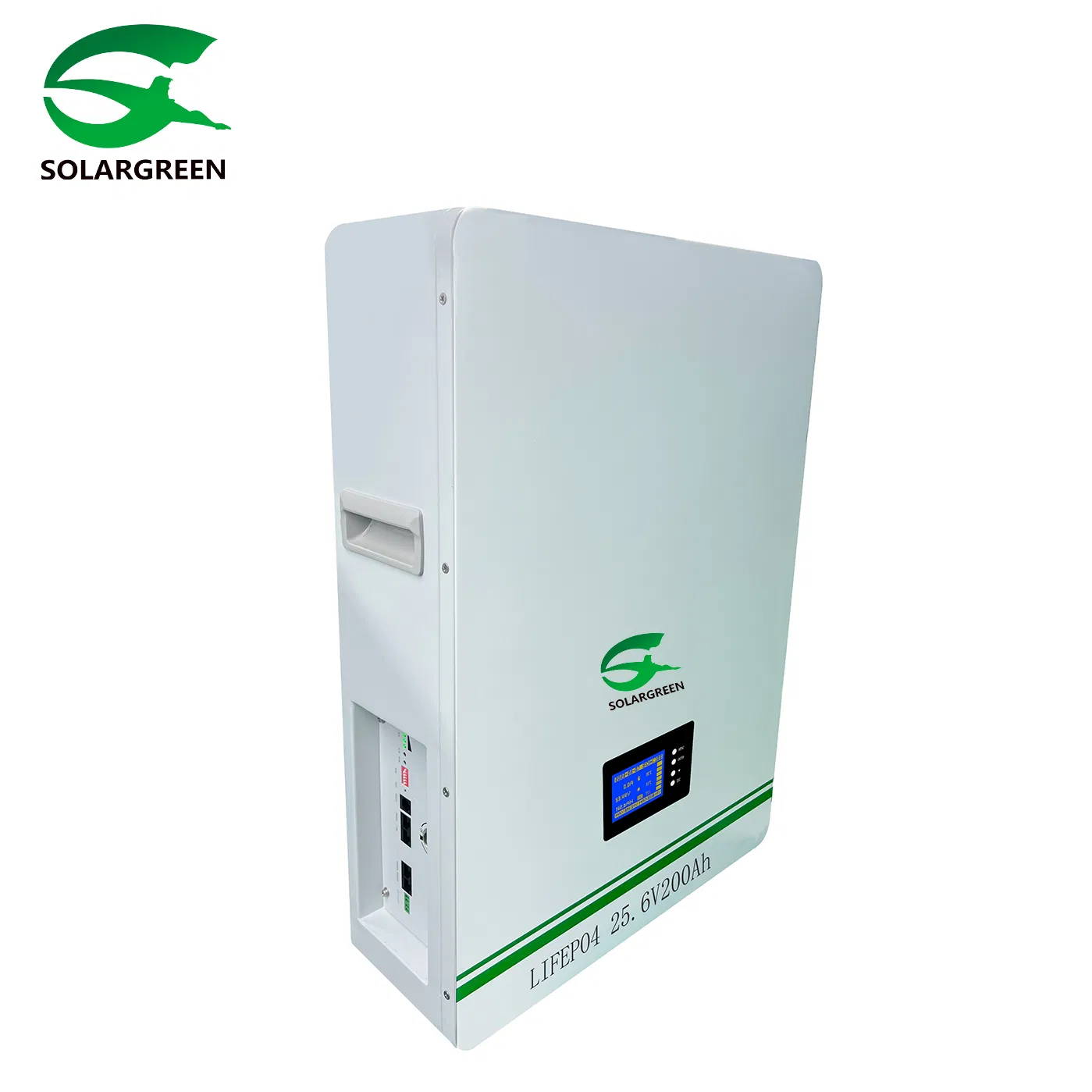

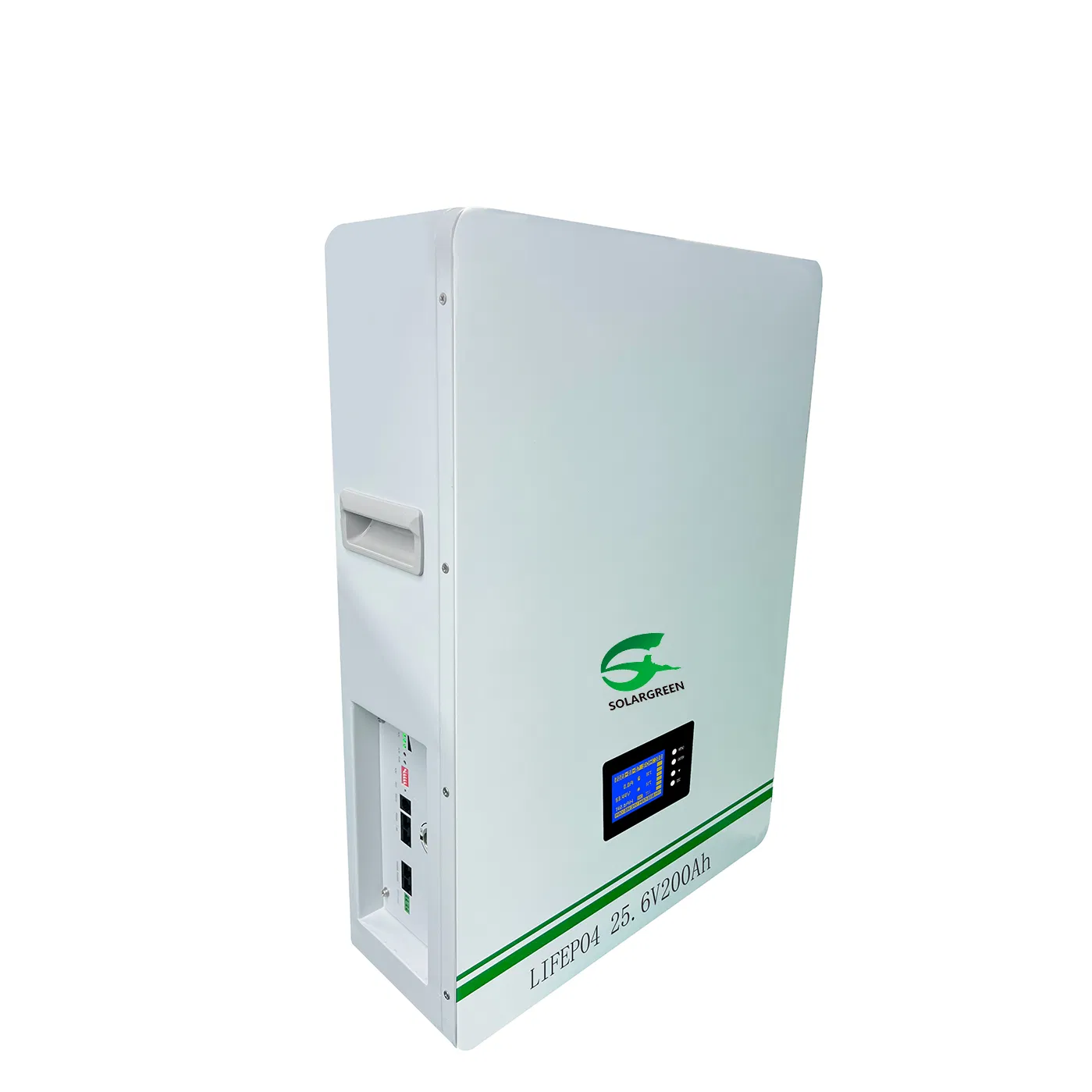

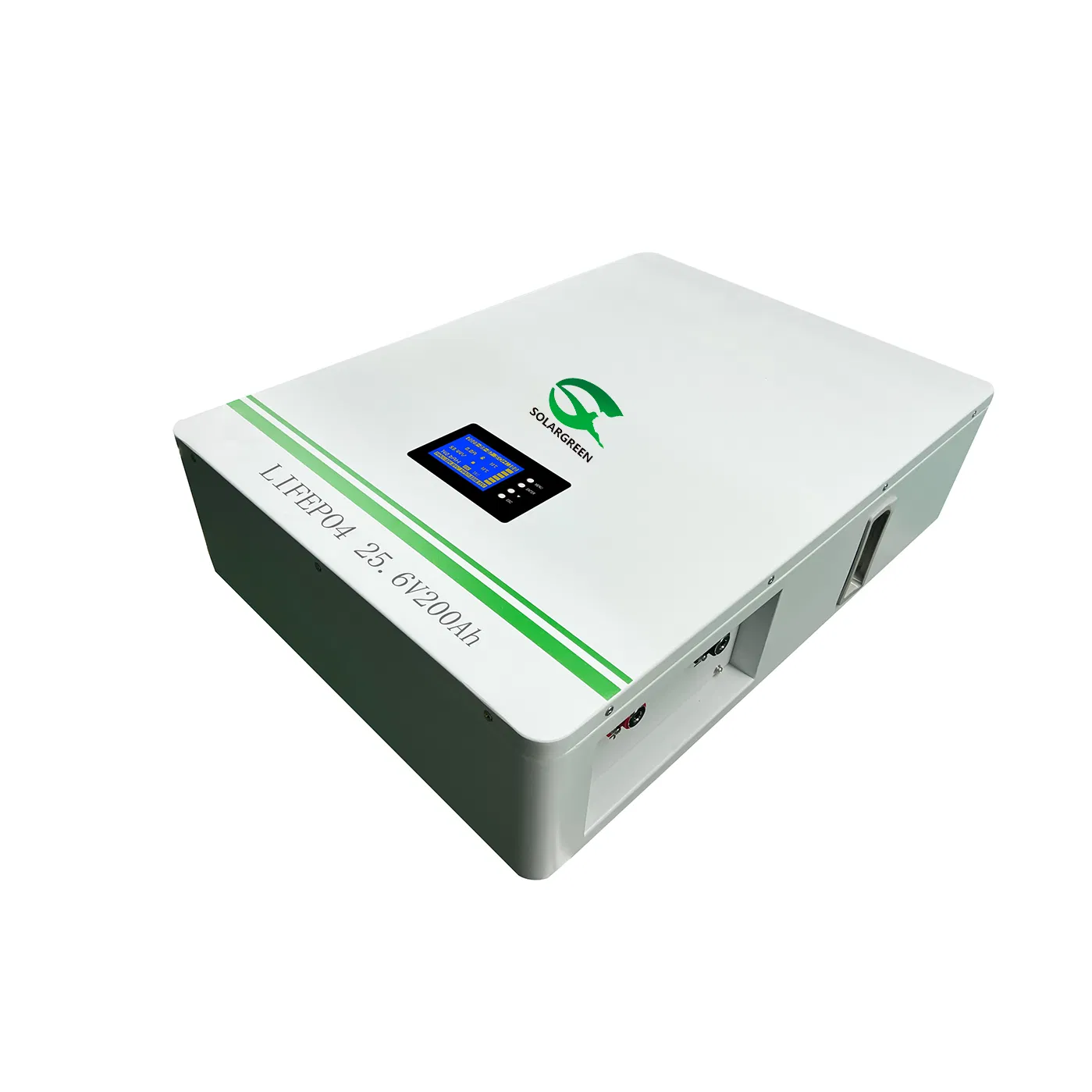

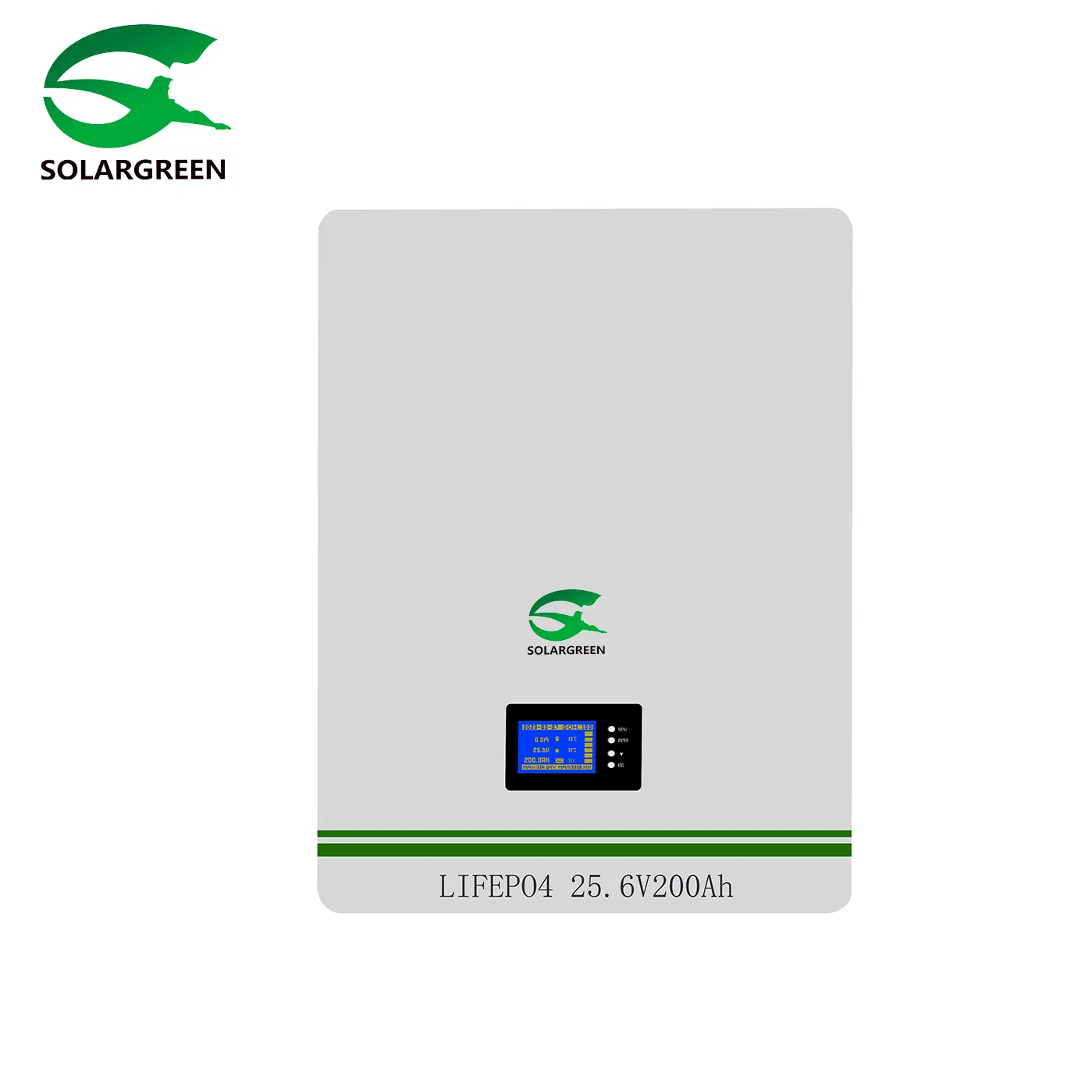

Lightweight 12V 24V 48V Lithium Ion Battery Pack for Easy Transportation

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.12V 24V 48V

RechargeableYes

Cycles6000

Calendar Life10-12 years

Rated Voltage12V 24V 48V

Charging (CC-CV)0.25c Suggested

Charging TypeConstant Current, Then Constant Voltage

HS Code8507600090

Production Capacity500,000 PCS Per Month

Specification9.2 x 133 x 200mm

Product Description

Lithium Series Batteries provide superior performance, capacities and reliability. Using state of high power cell technology the lithium series is designed for environmentally sensitive areas that require enhanced cycle life capabilities in commercial, industrial, residential, and private applications. The maintenance-free construction and advanced design features makes the lithium Series the definitive choice for a wide variety of markets; Solar and Renewable Energy Storage; Electric Vehicle and Golfcart; Industrial equipment, Floor Machines, Forklifts, Aerial lifts, and Robotics; Marine, RV, and no idle solutions; Mobility and Medical Equipment; Telecom, Broadband and Cable TV; UPS systems.

Key Features

✔High lifespan: 6000 cycles and more

✔Deep discharge allowed up to 100%

✔Ultra safe Lithium Iron Phosphate chemistry

✔Embedded BMS (Battery Management System)

✔Calendar life > 10 years

✔Excellent temperature robustness (-20 °C to +60 °C)

✔Very low self discharge (<3% per month)

✔50% lighter than equivalent Lead-AGM battery

Technical Specifications (48V 100Ah)

BMS Protection Item	Range / Value	Accuracy / Delay
Over Charging Cell Protection	>3.80V ±0.05V	Delay 2 ±0.5S
Over Charging Pack Warning	>59V ±0.20V	-
Over Charging Pack Protection	>60V ±0.20V	Delay 2 ±0.5S
Over Charging Current Warning	>100A ±2.0A	-
Over Charging Current Protection	>102A ~ 112A	Delay 20 ±1.0S
PCB Temp Protection	>95ºC ±3ºC	Release <80ºC

48V 200Ah Technical Specifications

Battery Type	LiFePO4 51.2V	Amp Hour Capacity	200AH
Energy Density	10240 Wh	Max Parallel Connections	16 pcs
Dimensions	45056770 mm	Weight	85 KGS
IP Rating	IP20	Design Life	20 Years
Cycle Life (0.5C)	>6000 cycles	Efficiency	>99.5%

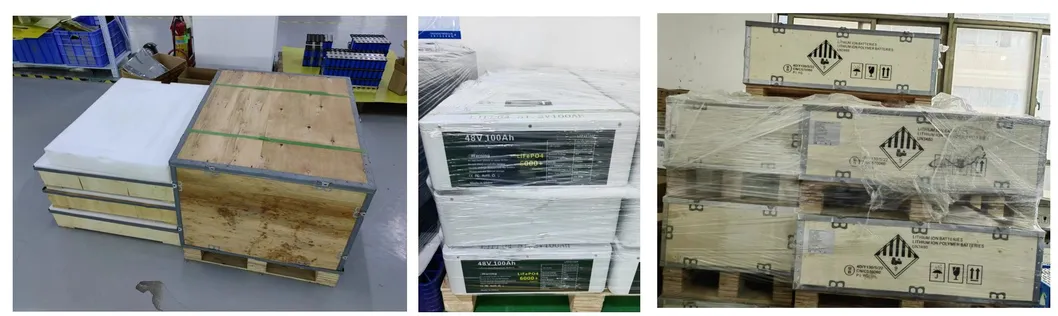

Packing & Logistics

Package Size71.00cm * 51.00cm * 22.00cm

Package Weight50.000kg

Transport PackageCarton/Wooden Case

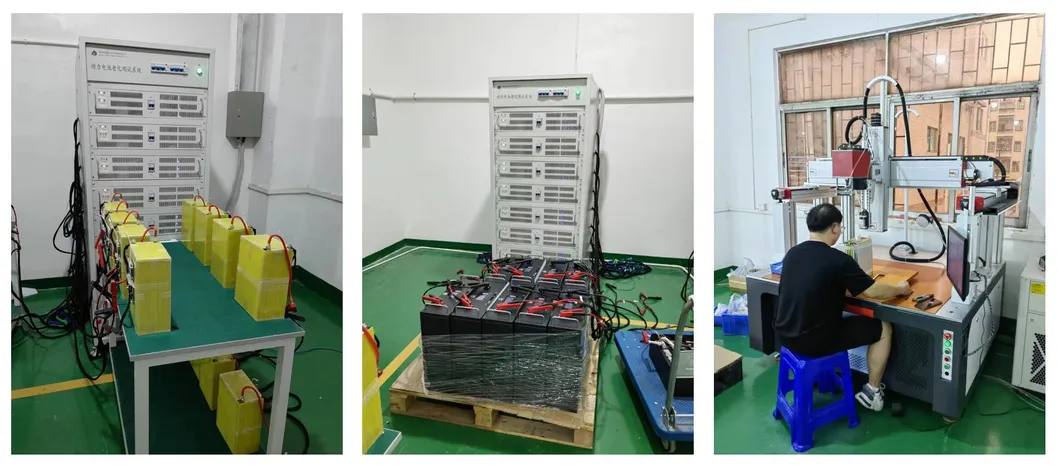

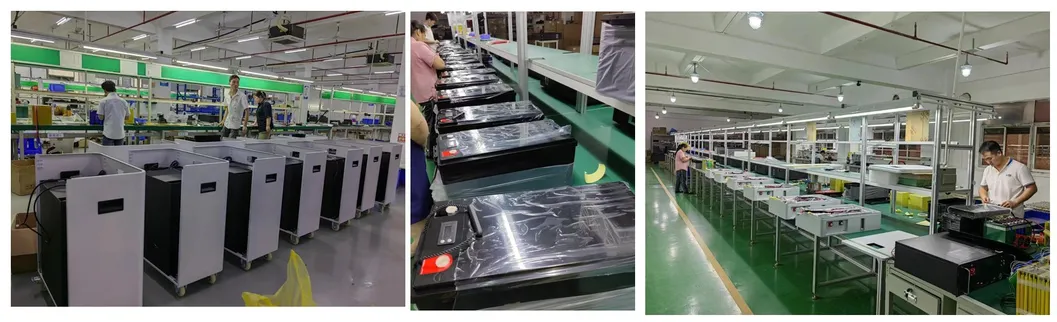

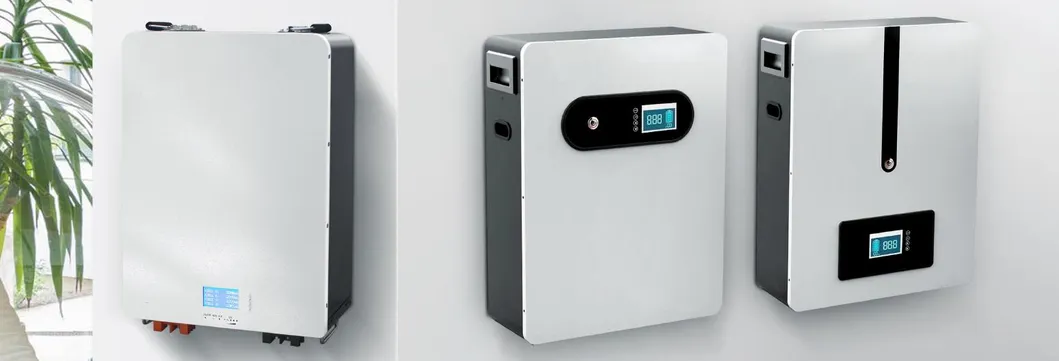

Product Gallery & Production

Applications

Buses Trucks and Delivery Vans Cars Wheelchairs Boats Ground Power Units Energy Storage

Frequently Asked Questions

Q: What is the cycle life of these lithium batteries? A: These batteries offer a high lifespan of 6000 cycles or more, depending on the discharge rate and operating conditions.

Q: Is it safe to use LiFePO4 chemistry? A: Yes, Lithium Iron Phosphate (LiFePO4) is ultra-safe chemistry with no thermal run-away and no fire or explosion risks.

Q: Does the battery include a protection system? A: Yes, all packs include an embedded BMS (Battery Management System) that secures the battery against over-voltage, over-current, and extreme temperatures.

Q: How many battery packs can be connected in parallel? A: You can connect up to 16 packs in parallel to increase your total energy capacity.

Q: What is the operating temperature range? A: The batteries show excellent temperature robustness, operating efficiently from -20 °C up to +60 °C.

Q: Is there a memory effect with these batteries? A: No, these lithium-ion battery packs have no memory effect, meaning they can be recharged at any state of discharge without reducing their capacity.
