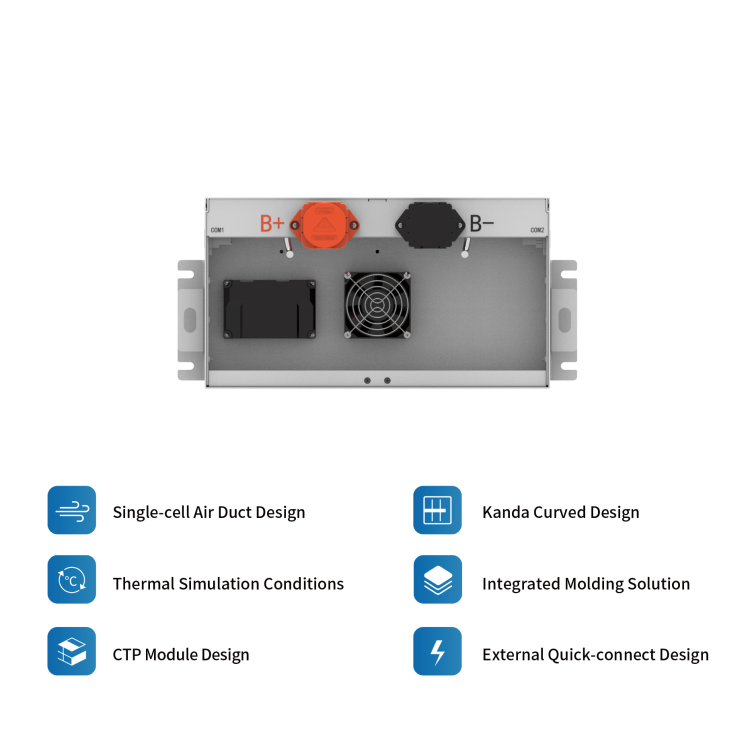

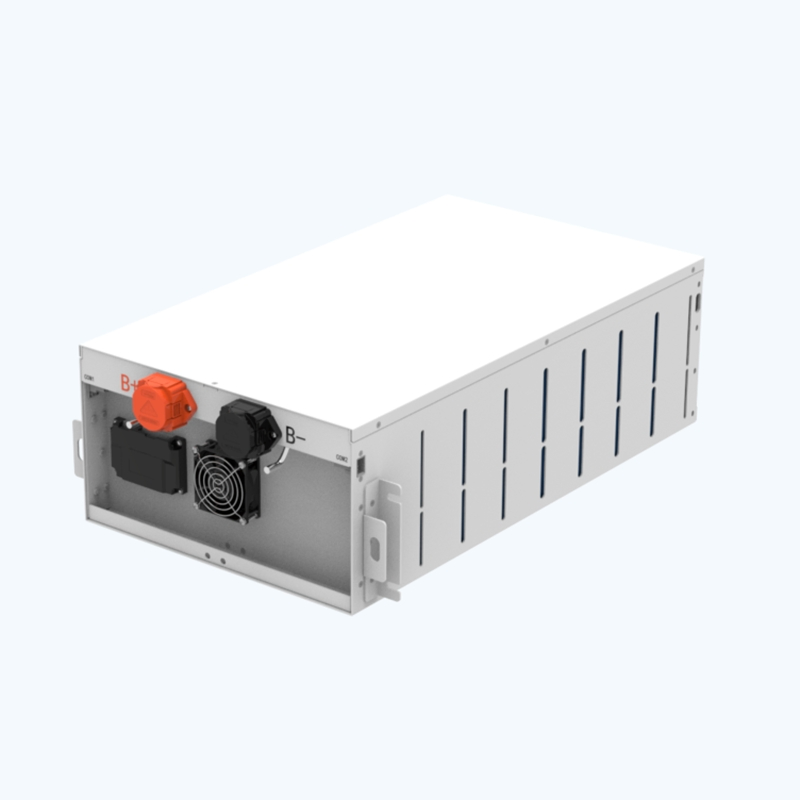

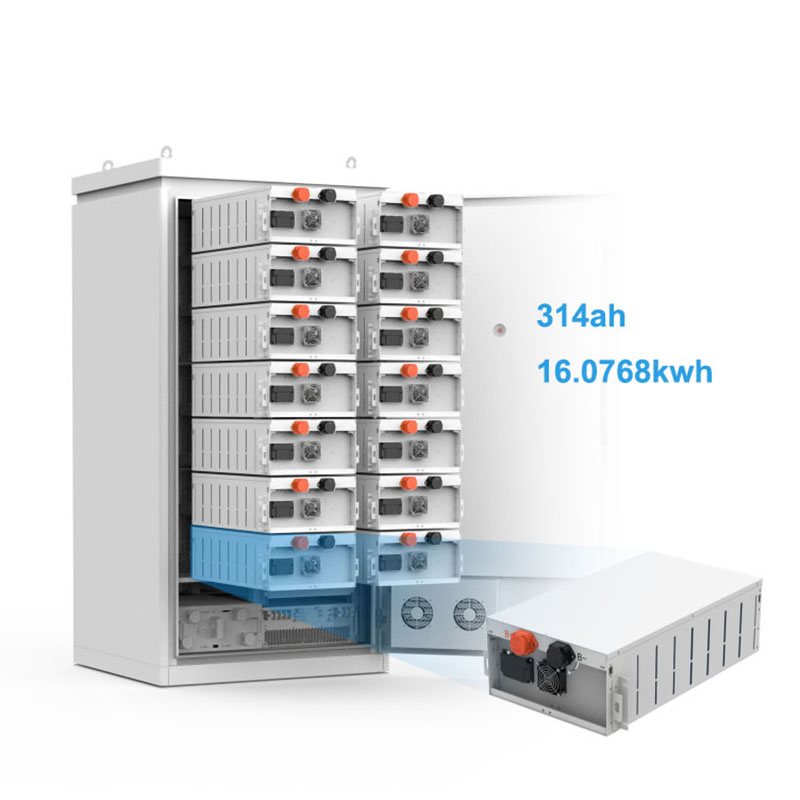

Air-Cooled LFP Battery Pack (BS-F-1P16S-314A-B)
The BS-F-1P16S-314A-B Air-Cooled Battery Pack is a high-performance lithium iron phosphate (LFP) energy storage solution designed for applications requiring safety, reliability, and efficient thermal management. Utilizing 314Ah LFP cells and configured in a 1P16S combination, this pack delivers a nominal voltage of 51.2V and a total energy capacity of 16.076kWh.

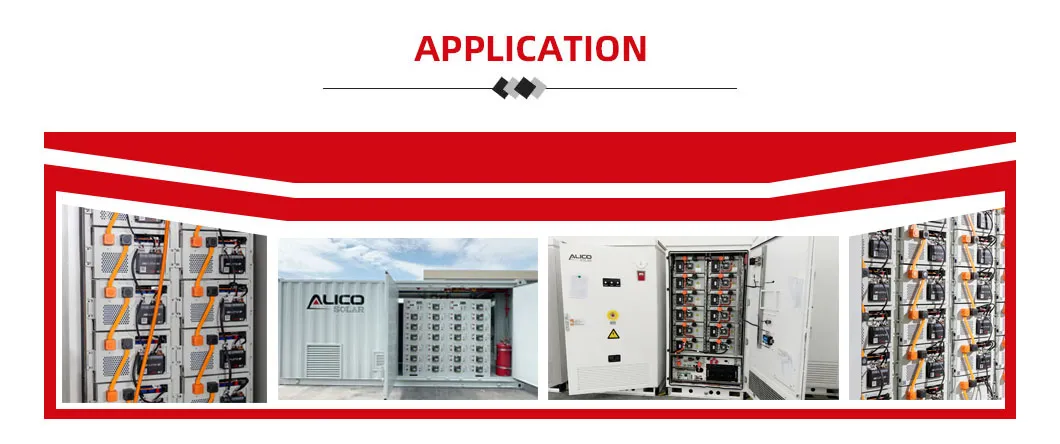

With a robust forced air cooling system, the battery pack ensures stable operation even under continuous charge and discharge cycles, supporting standard currents up to 1P. Its operating voltage range from 44.8V to 57.6V makes it suitable for various renewable energy storage, telecom backup, and industrial power applications.
| Specification | Parameter |
|---|---|

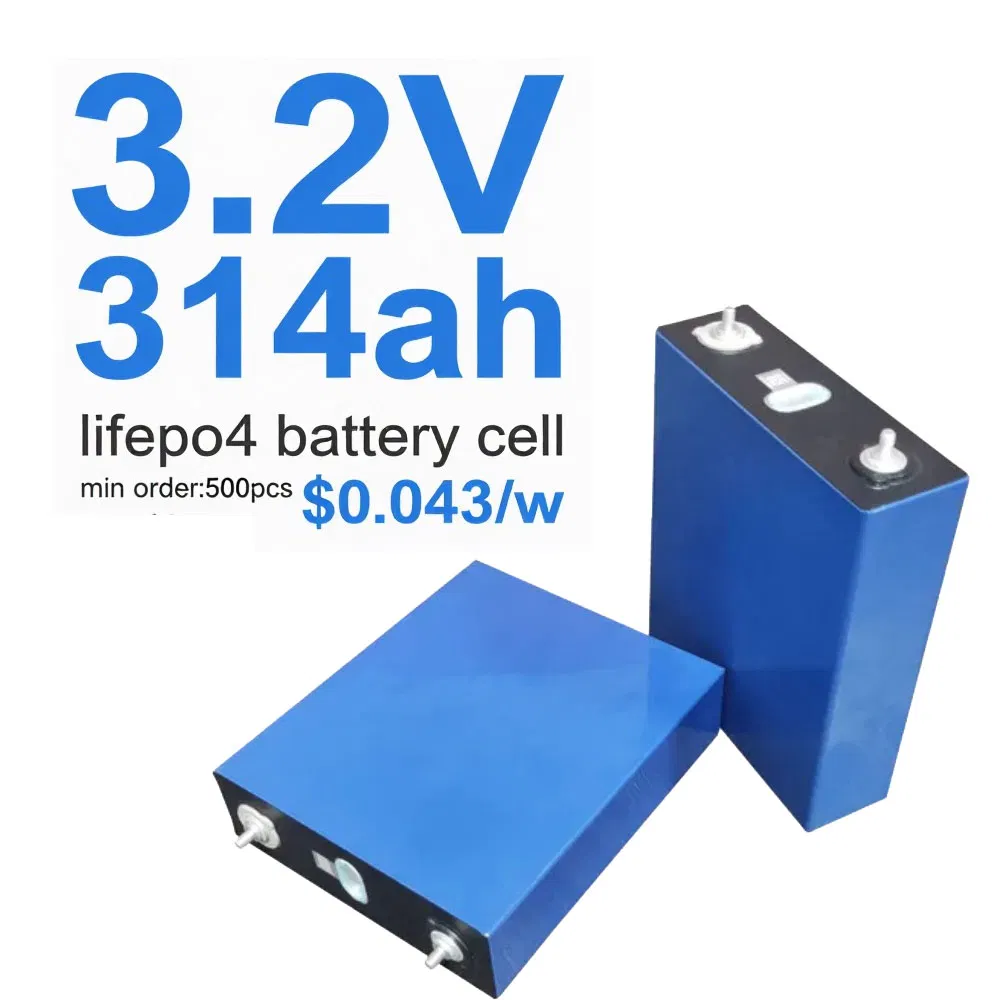

| Cell type | LFP 314Ah |
| Module type | BS-F-1P16S-314A-B |
| Combination mode | 1P16S |
| Nominal voltage (V) | 51.2V |
| Rated capacity (Ah) | 314Ah |
| Nominal energy (kWh) | 16.076kWh |
| Standard charging current | 0.5P/1P |
| Standard discharge current | 0.5P/1P |
| Cooling Mode | Forced Air Cooling |
| Operating voltage (V) | 44.8~57.6V |
| Size (W * D * H mm) | 470 * 728 * 230 |
