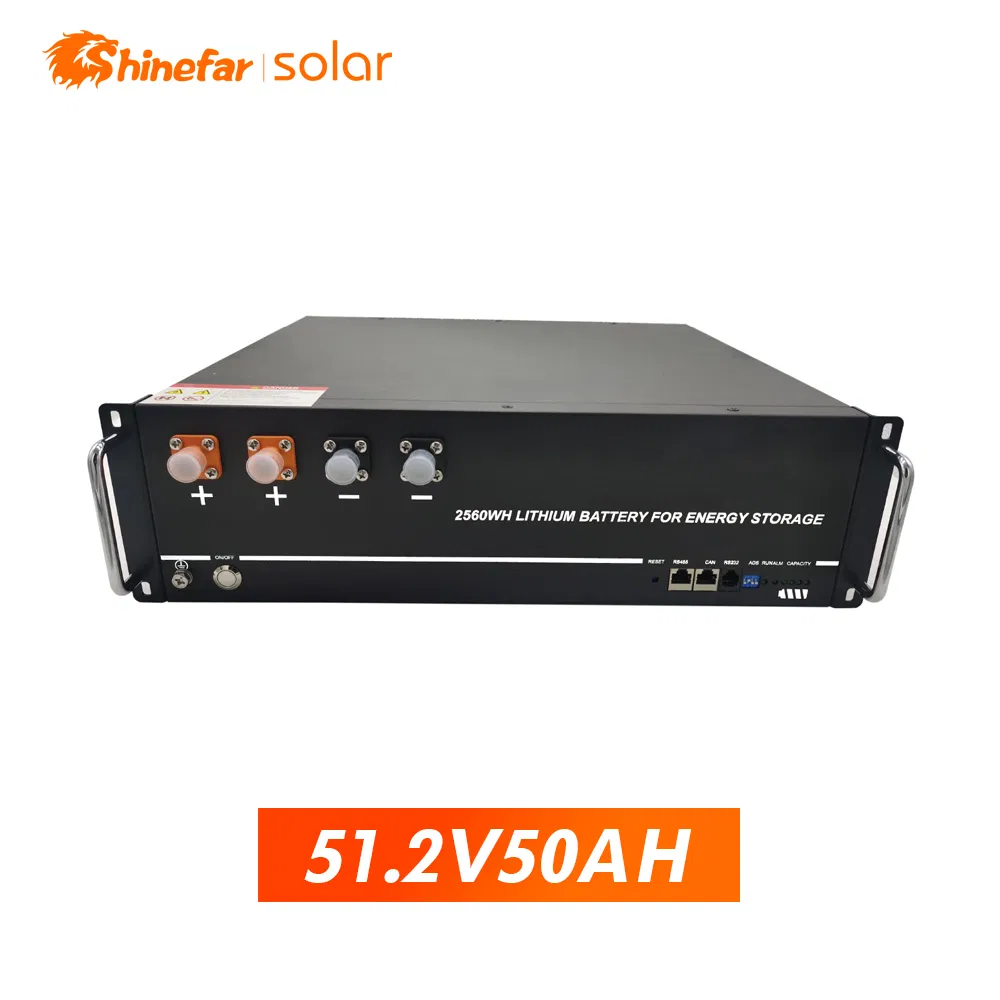

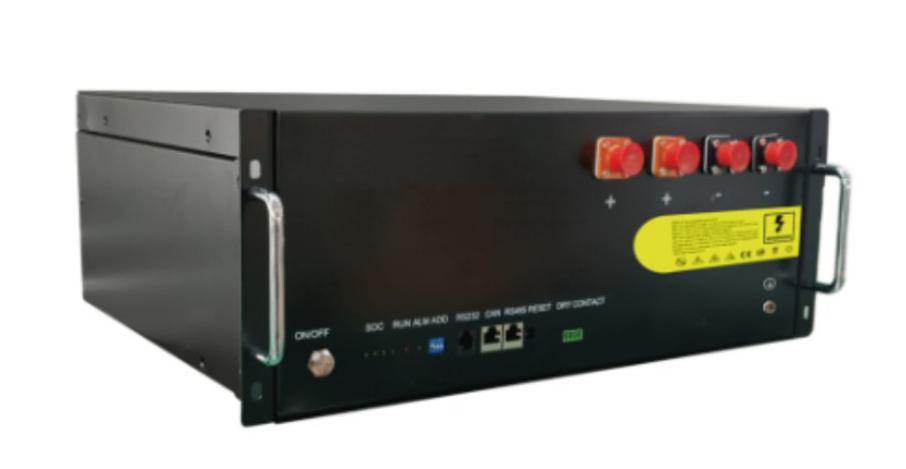

| Model NO. | 51.2V50AH | Weight (Kg) | 27 |
| Model | Ot24100 | Design Life | 10+ Years (25℃ / 77℉) |

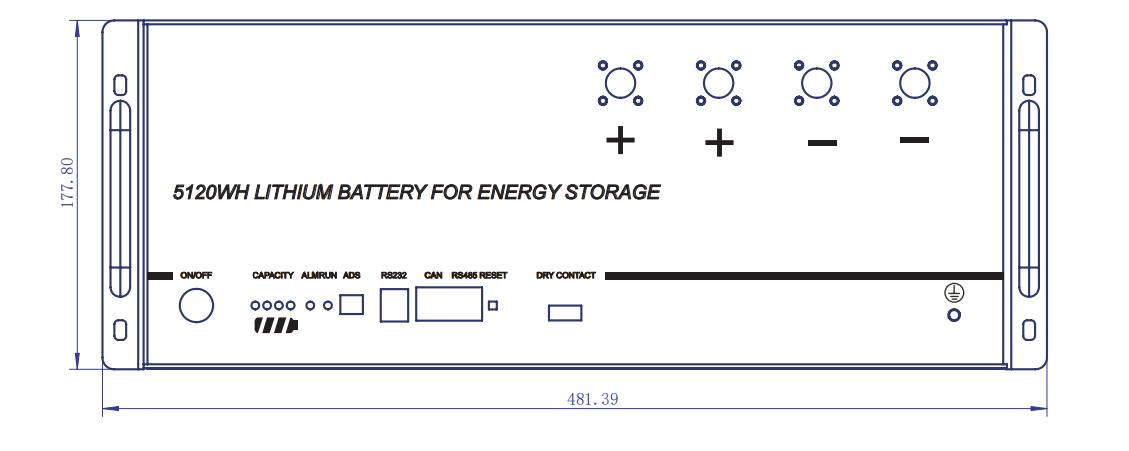

| Communication | Can / RS-485 / RS-232 | Specification | 440*133*400 mm |
| Origin | China | Production Capacity | 5000 PCS Per Day |
Specializing in manufacturing PERC, N-type TOPCon, and HJT solar panels. Focused on the research and development of solar panels, on/off-grid systems, and hybrid solar systems, providing comprehensive one-stop solar solutions.
| Normal Specifications | |
| Model | OT4850 |
| Battery Type | LiFePO4 (LFP) |
| Nominal Voltage (V) | 51.2V |
| Nominal Capacity (WH) | 2560WH |
| Usable Capacity (WH) | 2048WH |
| Electrical Parameters | |
| Cycle Life | >6000 cycles @ 25ºC |
| Discharge Voltage (V) | 40 ~ 58.4 |
| Charge Voltage (V) | 56 ~ 58.4 |
| Charge/Discharge Current (A) | 25A (Recommended) / 50A (Max) |
| Internal Resistance | ≤30mΩ |
| BMS & Monitoring | |
| Power Consumption | <2W (Work) / <100mW (Sleep) |
| Monitoring Parameters | System voltage, Current, Cell voltage, Cell temperature, Module temperature |
| SOC | Intelligent algorithm |

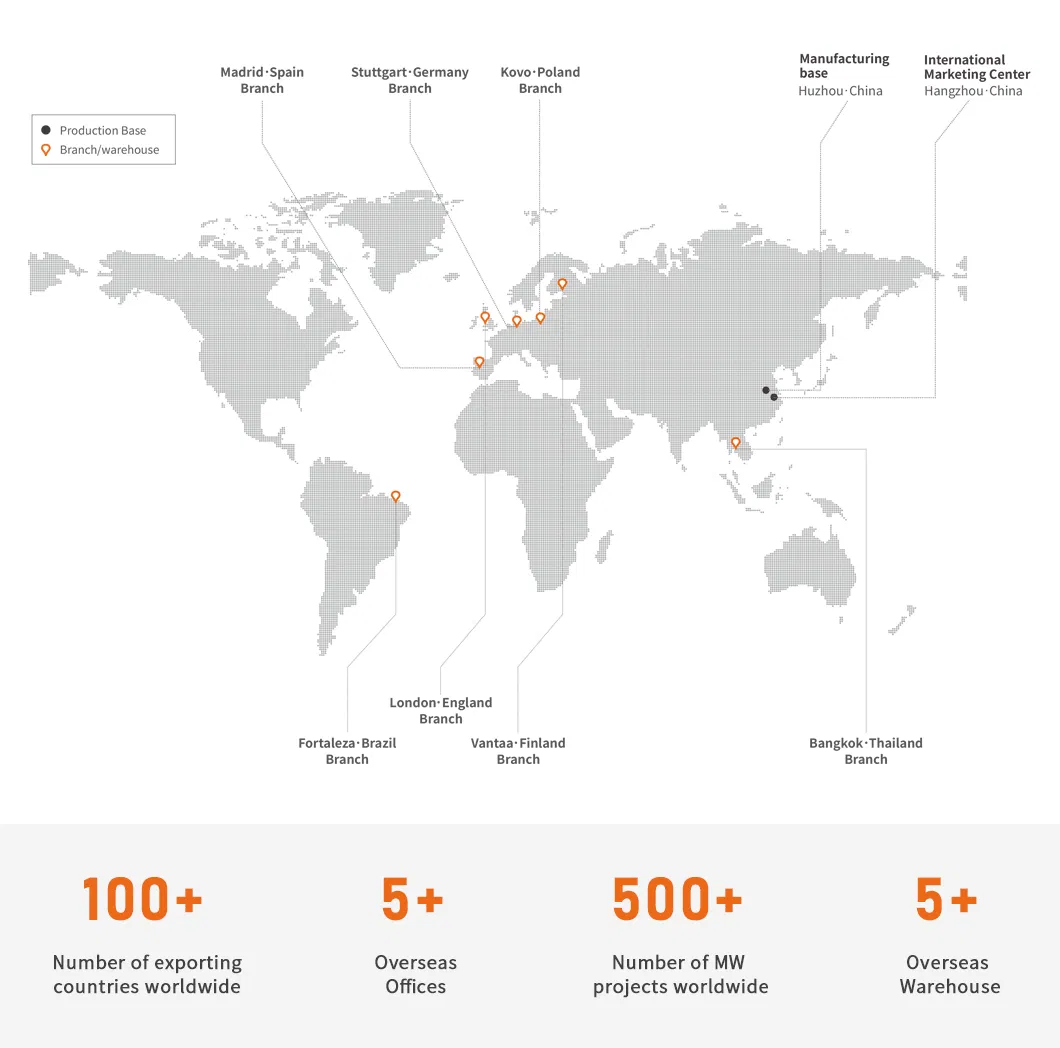

With a solid global presence, products have been shipped to Europe, Latin America, North Africa, and Southeast Asia. To better serve international customers, seven overseas branches and service centers have been established in Germany, Spain, Poland, Finland, Thailand, Brazil, and the UK. A European manufacturing base in Spain is currently under construction and scheduled to commence production in 2026.

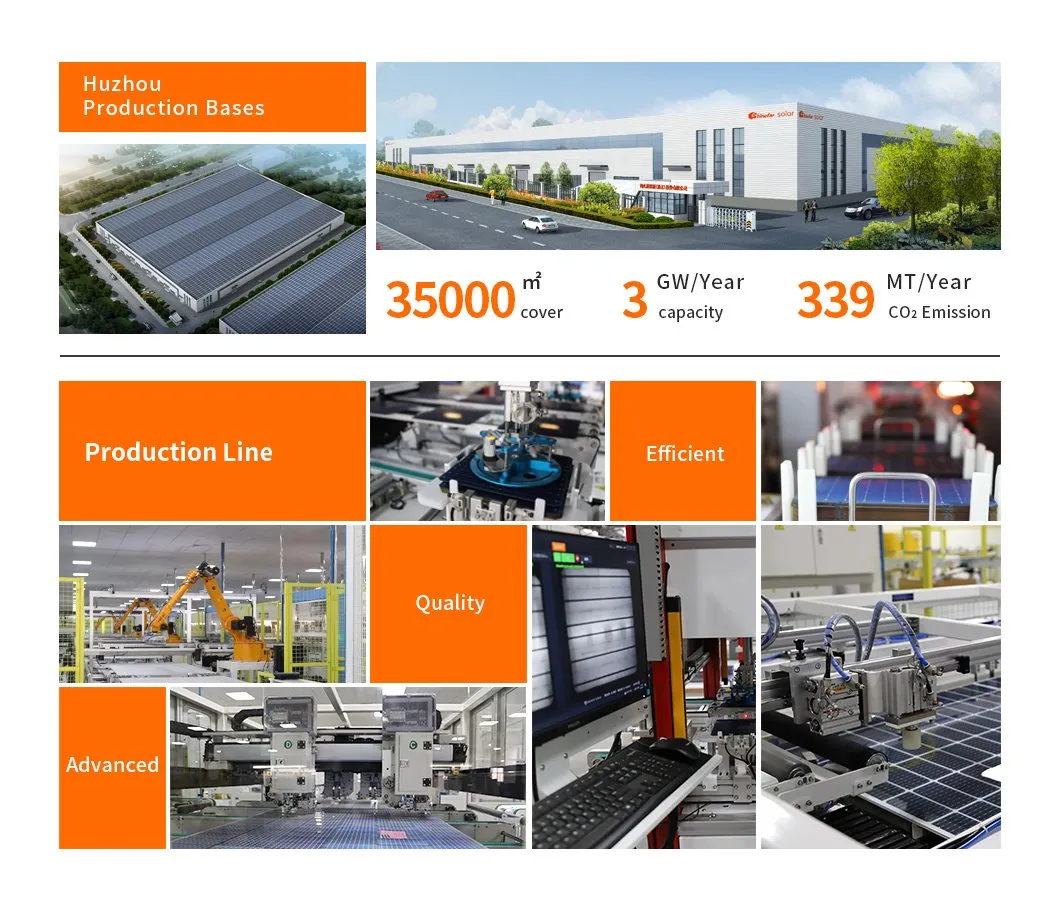

Advanced production facilities span over 35,000m² with an annual production capacity of 3GW. The factory currently operates 3 fully automated production lines. Each panel undergoes five rigorous quality tests, checking layer by layer to ensure excellence.

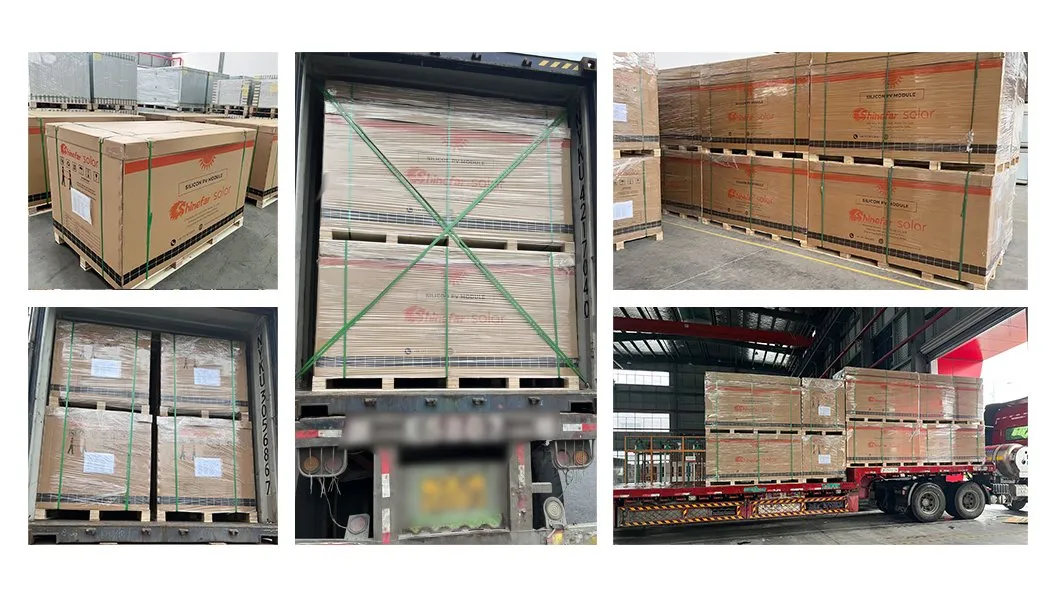

Standard Packaging: 31 pcs/pallet or 37 pcs/pallet for optimal efficiency.
Special Packaging: 1 pc/carton or 2 pcs/carton, catering to specific order sizes and ensuring pristine delivery.

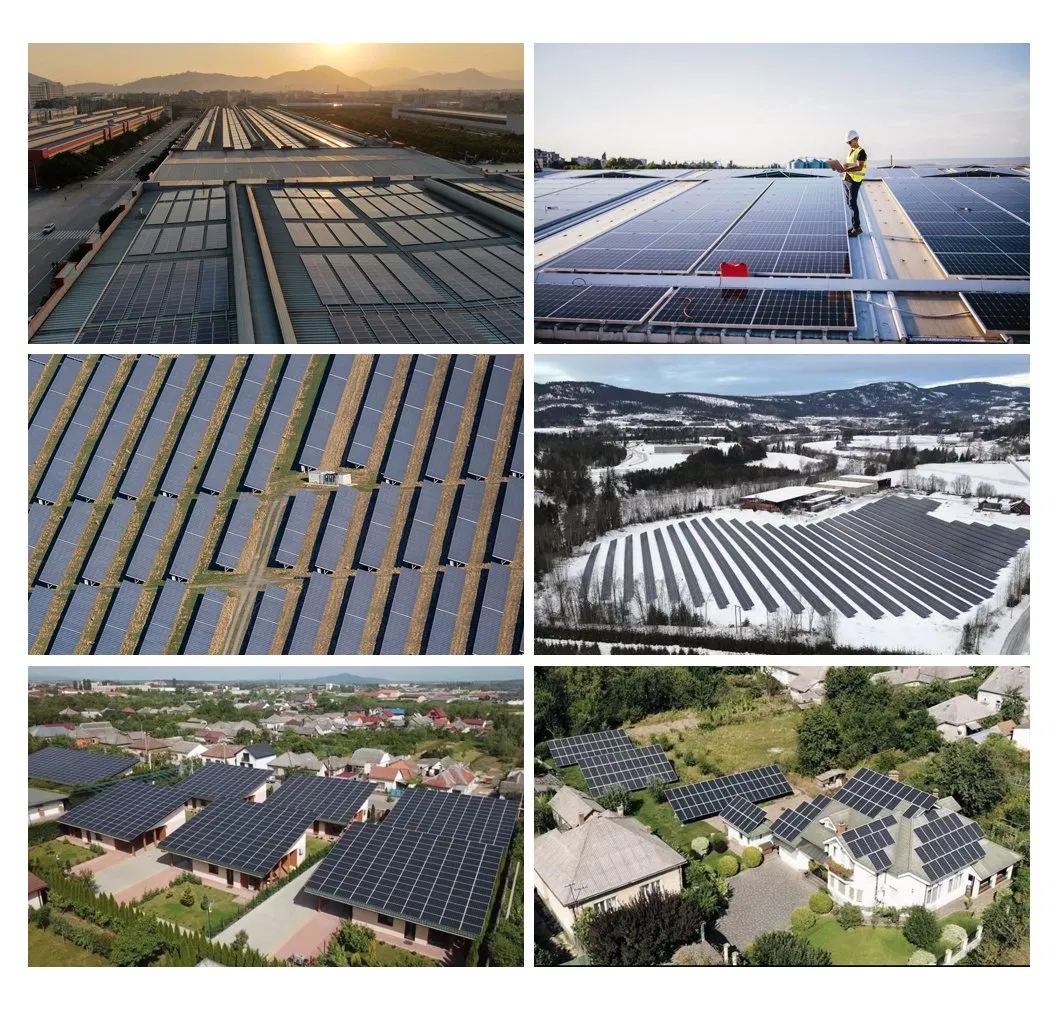

With a global presence extending to Brazil, Morocco, Ukraine, Vietnam, and beyond, commitment to sustainable energy solutions is demonstrated through diverse photovoltaic projects that shape a greener future.
Full certifications according to different market needs: ISO 9001, ISO 14001, ISO 18001, TUV, CE, ROHS, IEC, PID, DEWA, CB, RETIE, Inmetro, Ammonia 62716, Salt Mist Corrosion 61710, SGS-CPVT.
