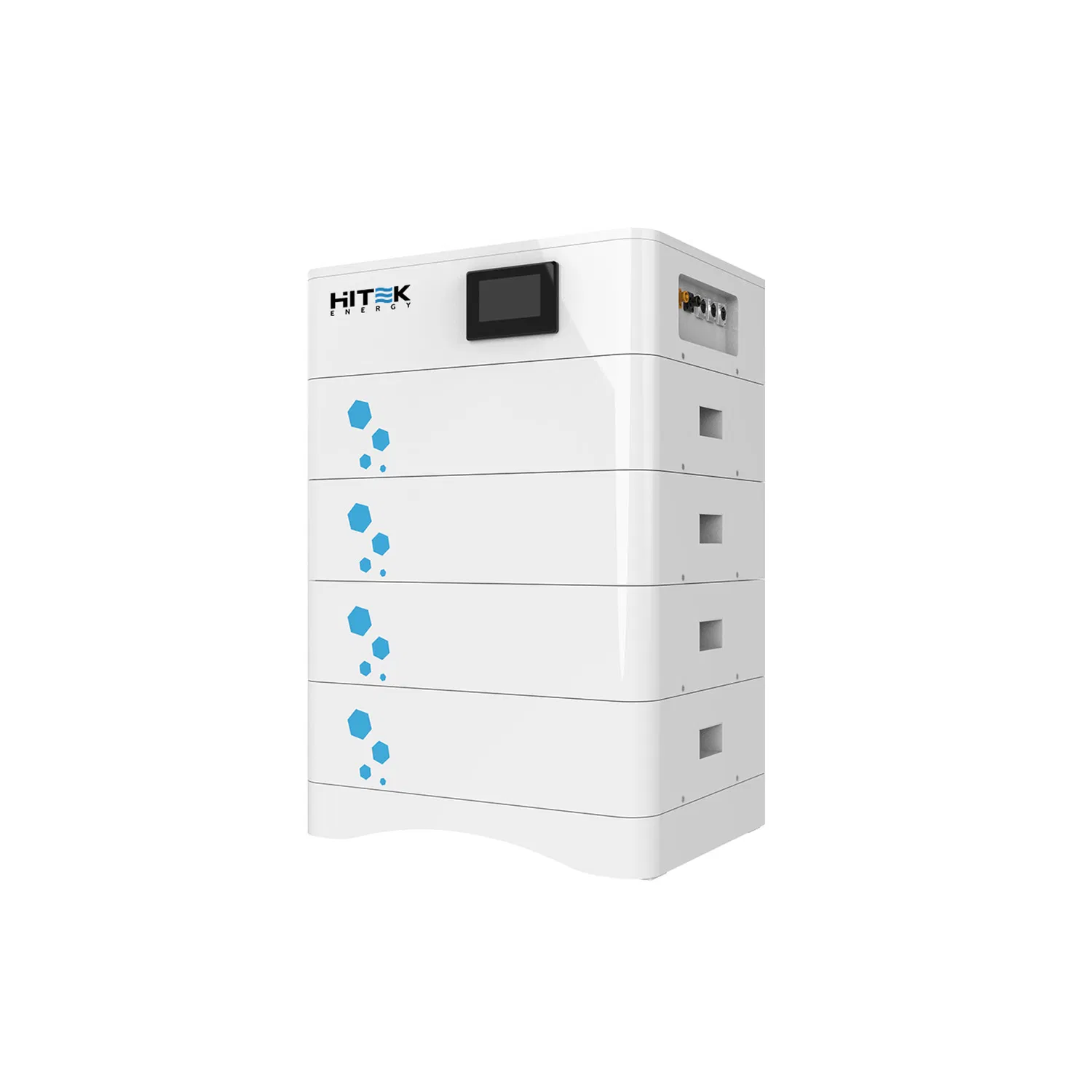

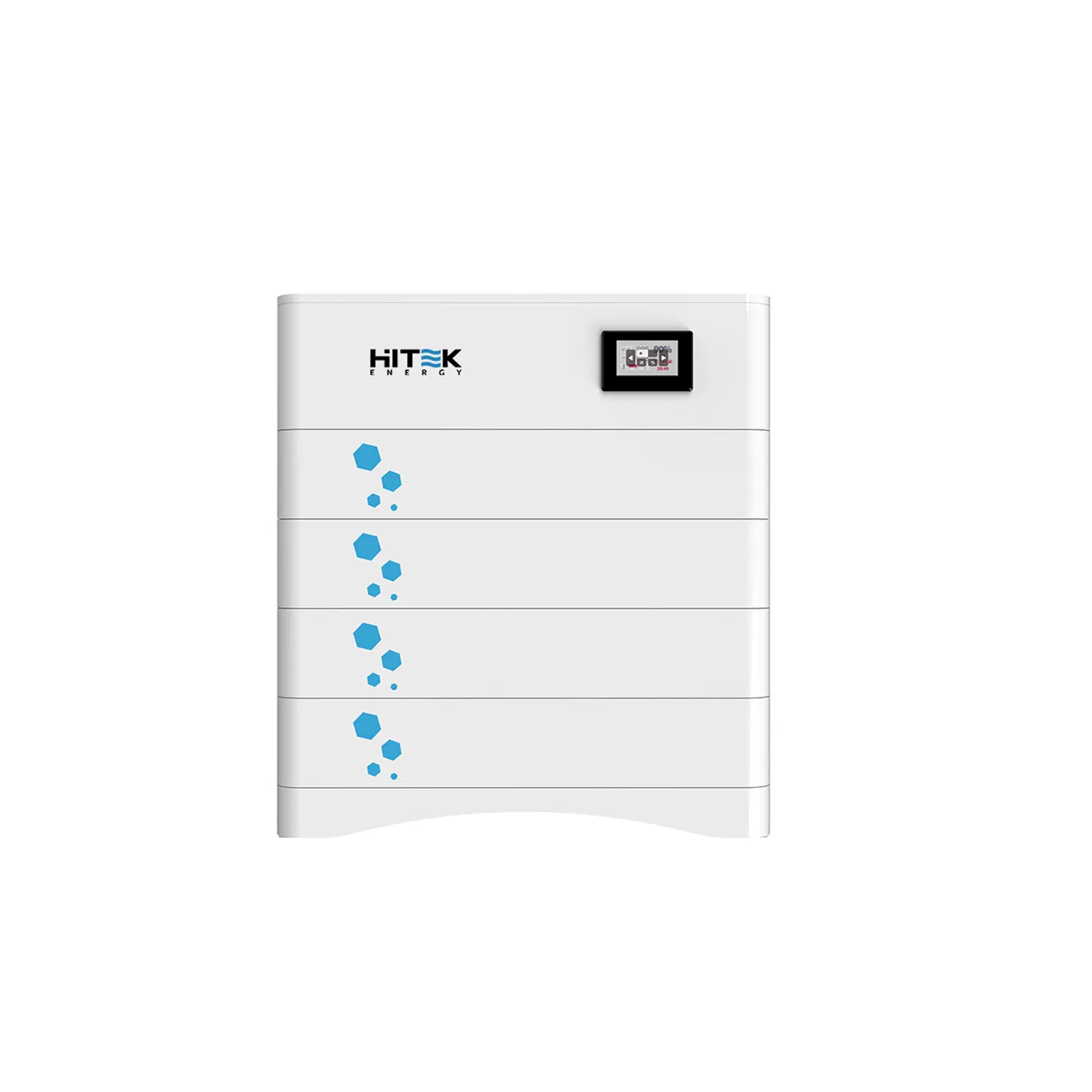

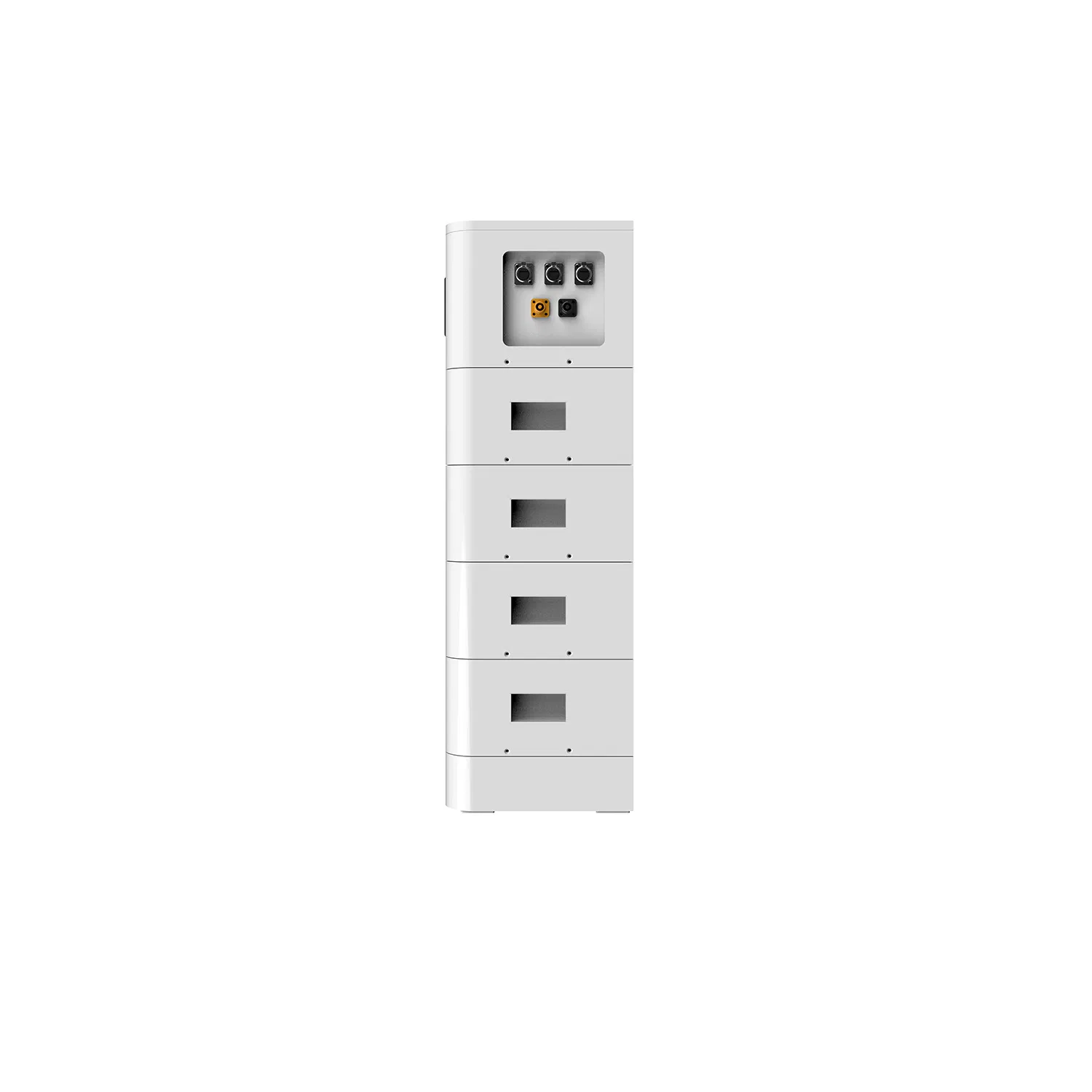

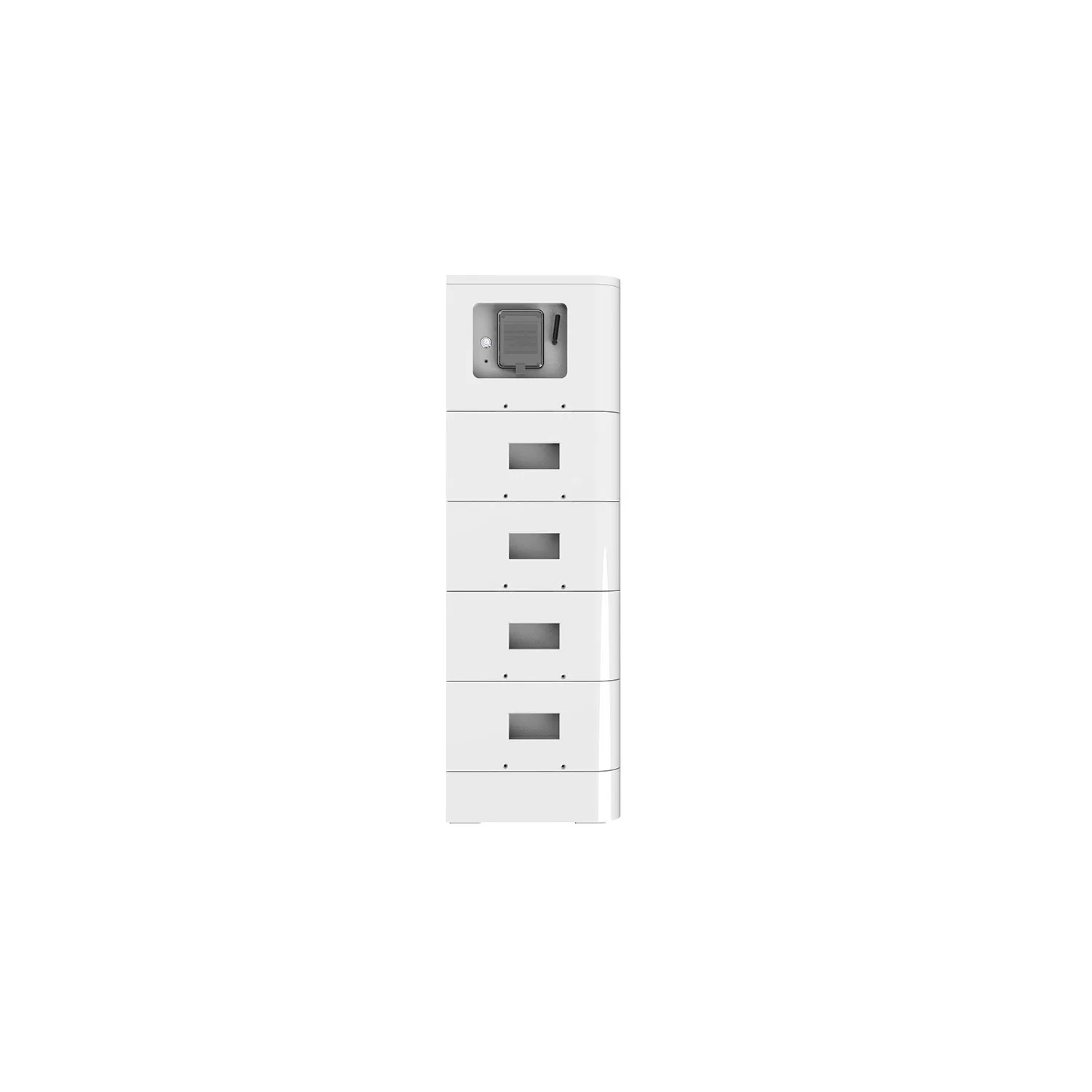

High Voltage Stacked Lithium Battery Modular Design 5kwh 10kwh 20kwh LiFePO4 Battery Pack

Customization:	Available
Type:	Li-ion Battery
Cathode Material:	LFP

📊

Overview - Basic Info

Model NO.

HT51.2VLS

Rechargeable

Yes

Size

Medium

Capacity

15-40kwh

Voltage

153.6-409.6V

Installation

Stackable

Transport Package

Wooden Box

Specification

51.2V 100AH Each

Production Capacity

50000PCS/Year

🔋

Product Description

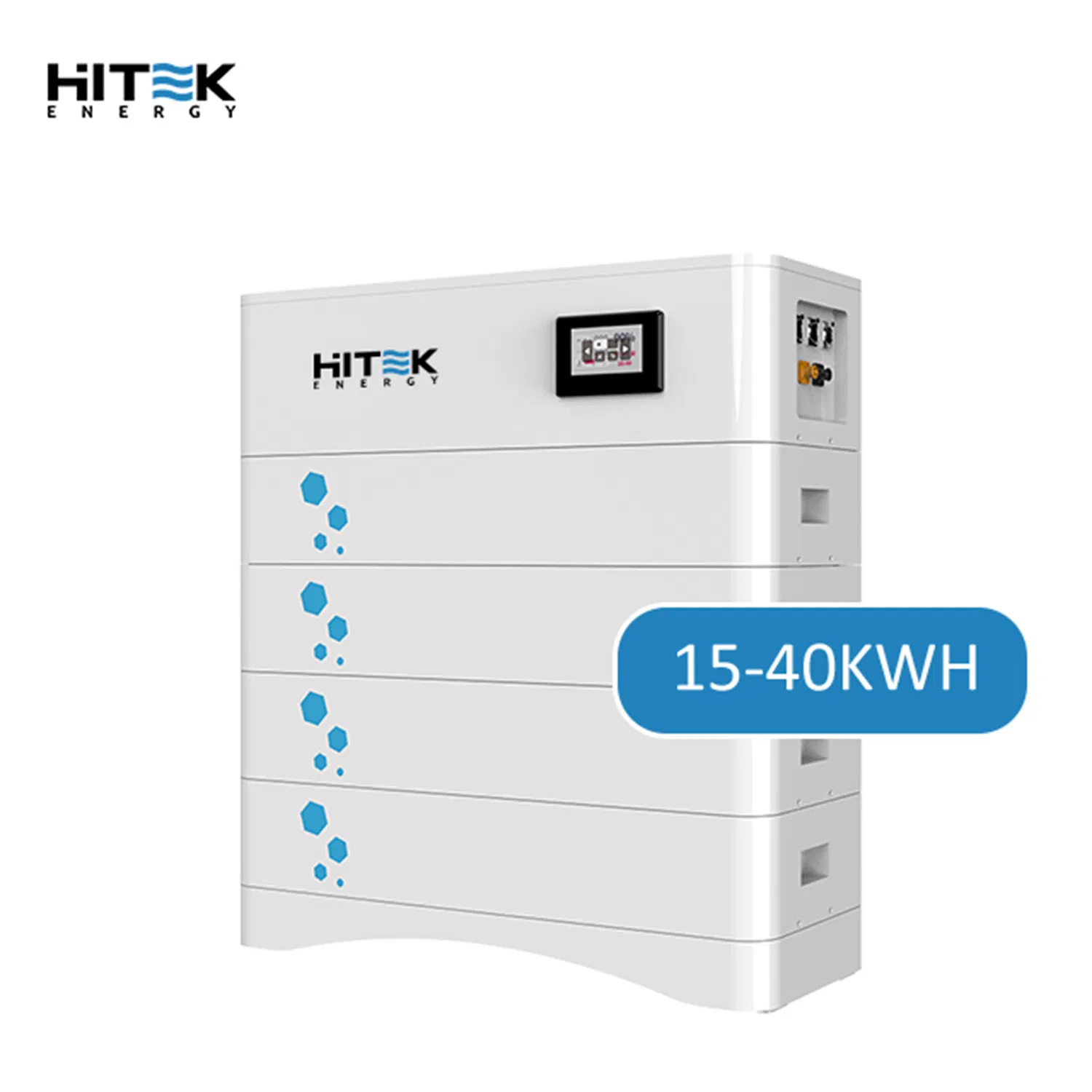

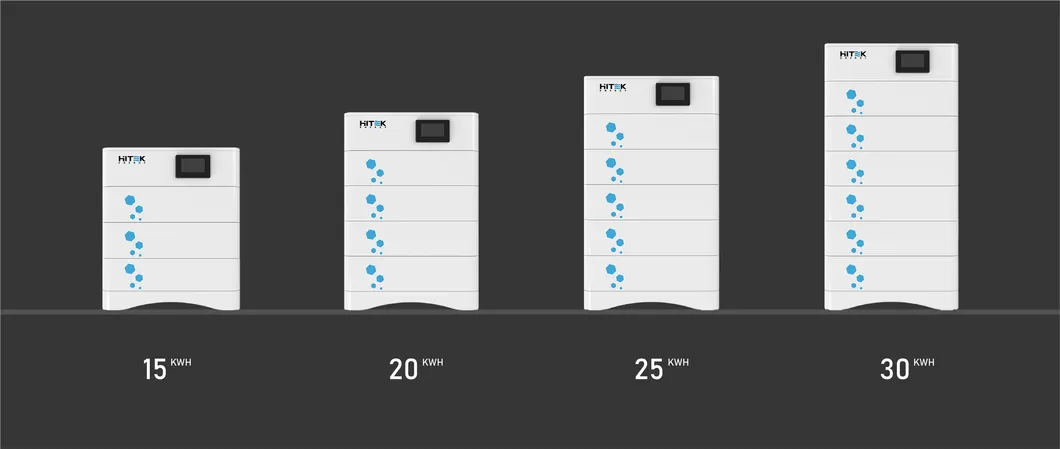

STACKABLE LITHIUM STORAGE BATTERY FROM 15KWH TO 40KWH Modular Design LiFePO4 Battery Pack

📝

Technical Parameters

Model	HT-15HS	HT-20HS	HT-25HS	HT-30HS
Nominal Voltage	153.6V	204.8V	256V	307.2V
Nominal Capacity	15.36KWH	20.48KWH	25.60KWH	30.72KWH
Weight	135KGS	180KGS	225KGS	270KGS
Dimension (LWH)	590420695MM	590420845MM	590420995MM	5904201145MM

Battery Type	LiFePO4
Max. Charge Current	35A
Installation	Floor Installation
Max. Discharge Current	35A
Recyclable	Fully recyclable at the end of life
IP Protection	IP20
Cycle Life	>6000 @ 25°C, 0.5C 90%DOD
Working Temperature	Charge: 0°C~+55°C \| Discharge: -20°C~+55°C

High-Voltage Stackable Residential Battery

High-voltage stackable residential battery features a high-voltage battery pack that can store electricity converted from solar, wind and other renewable energy sources for residential use. Compared with low-voltage options, this system allows for reduced energy loss and higher efficiency to better meet high-power output requirements.

🔗

Compatible Inverter Brands

🏠

Application Scenarios

🏭

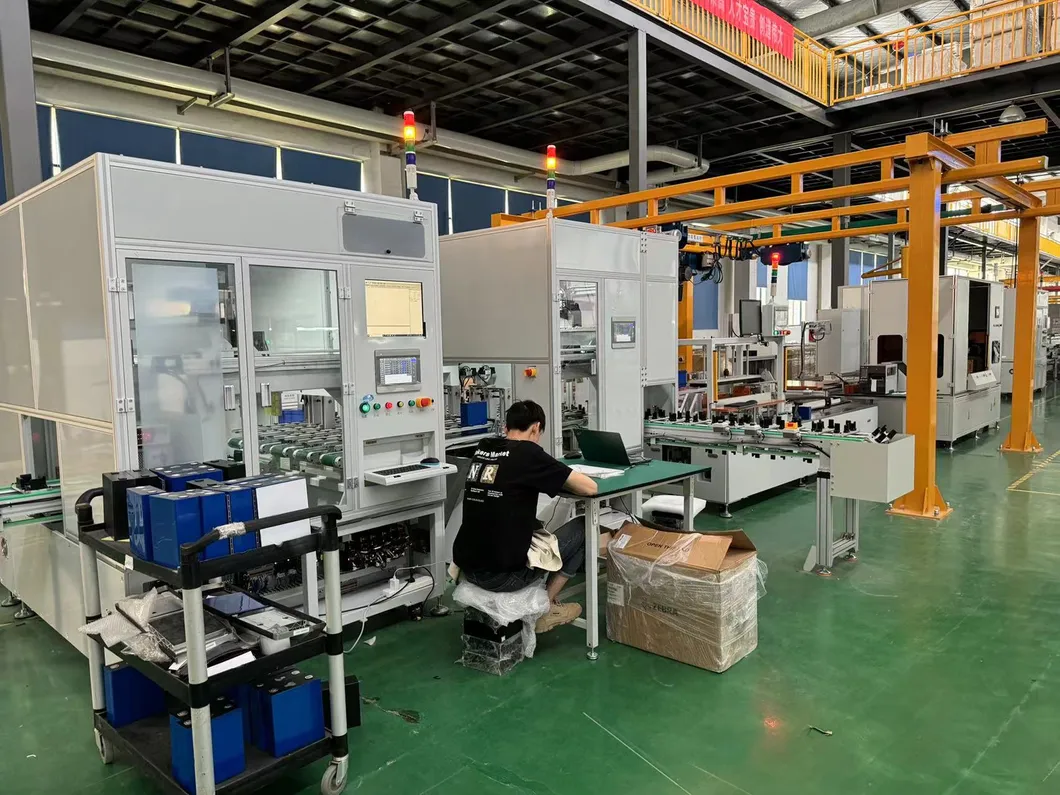

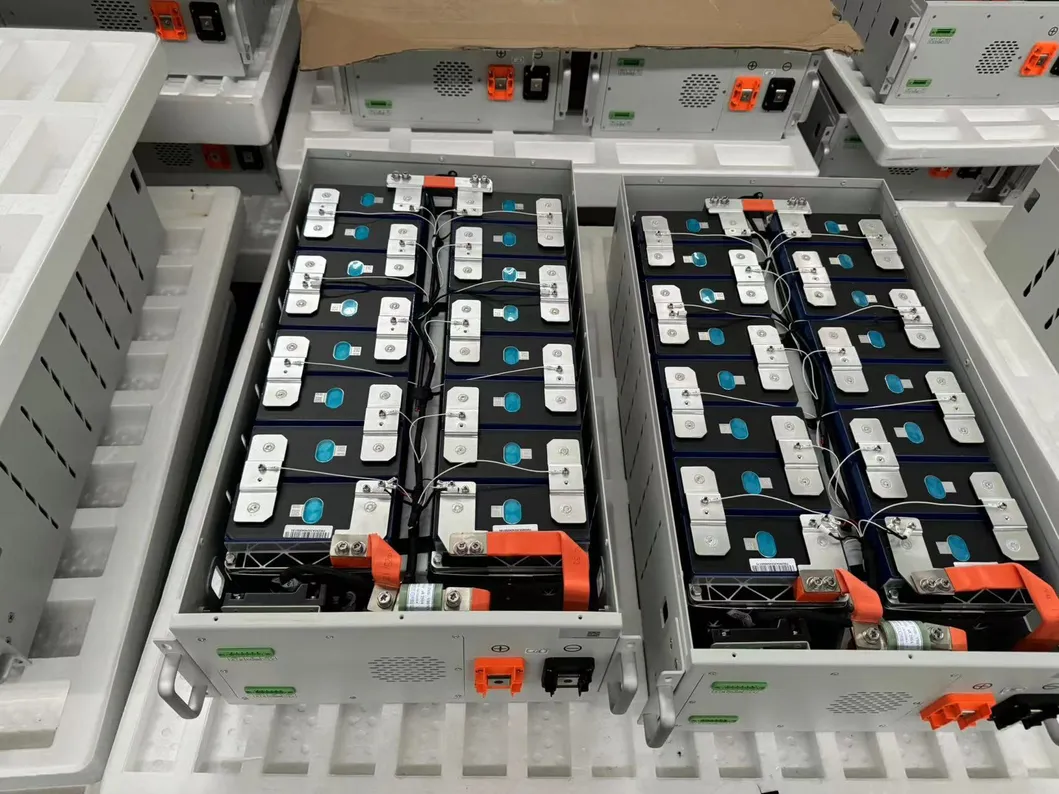

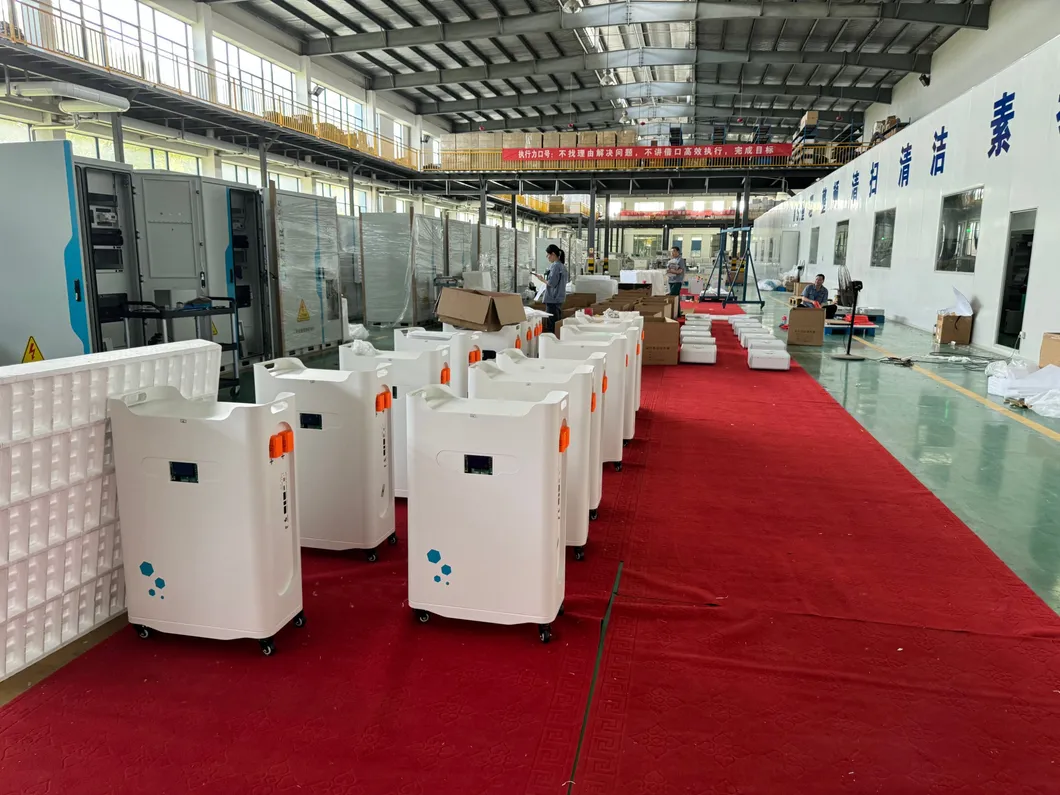

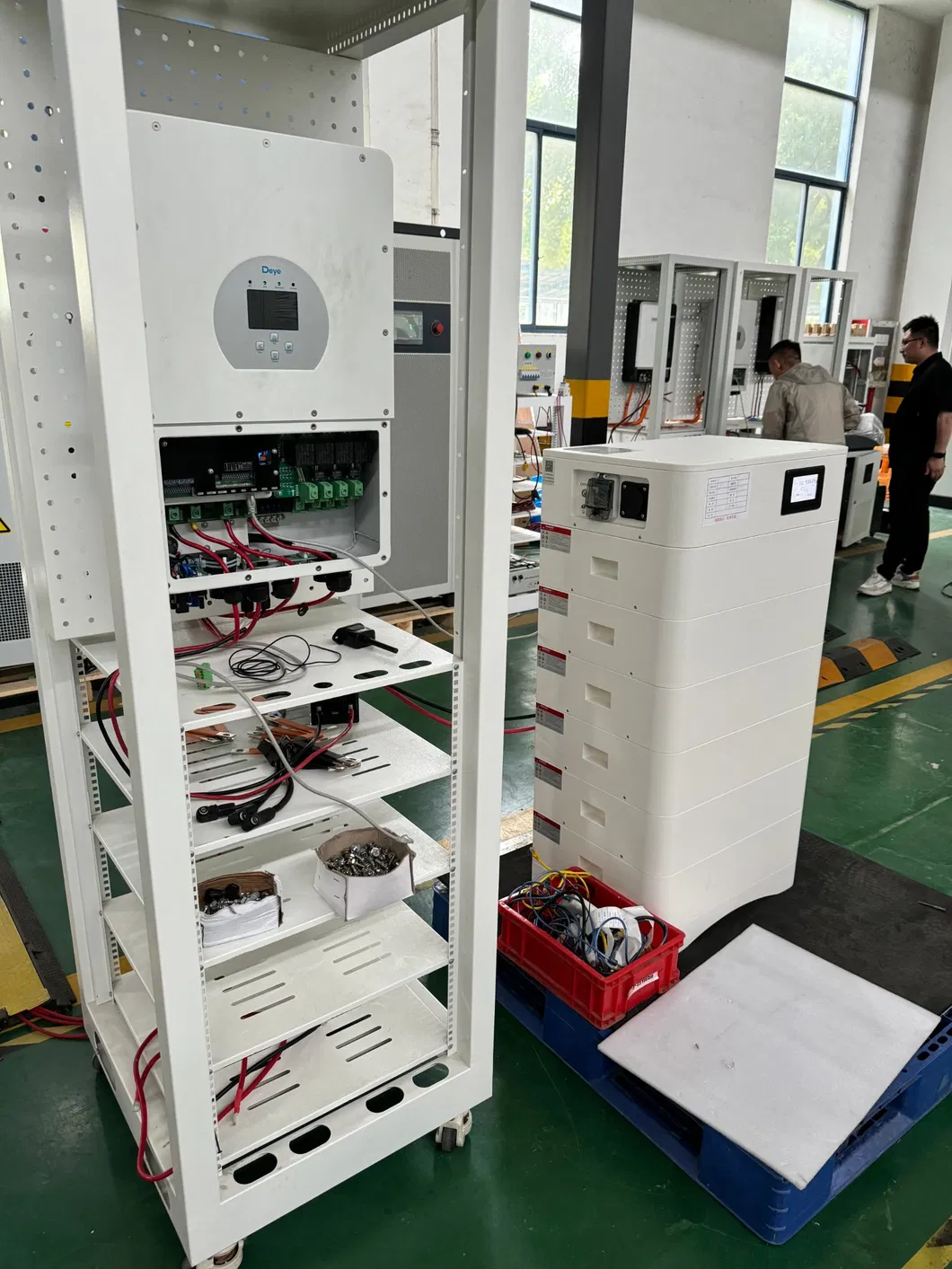

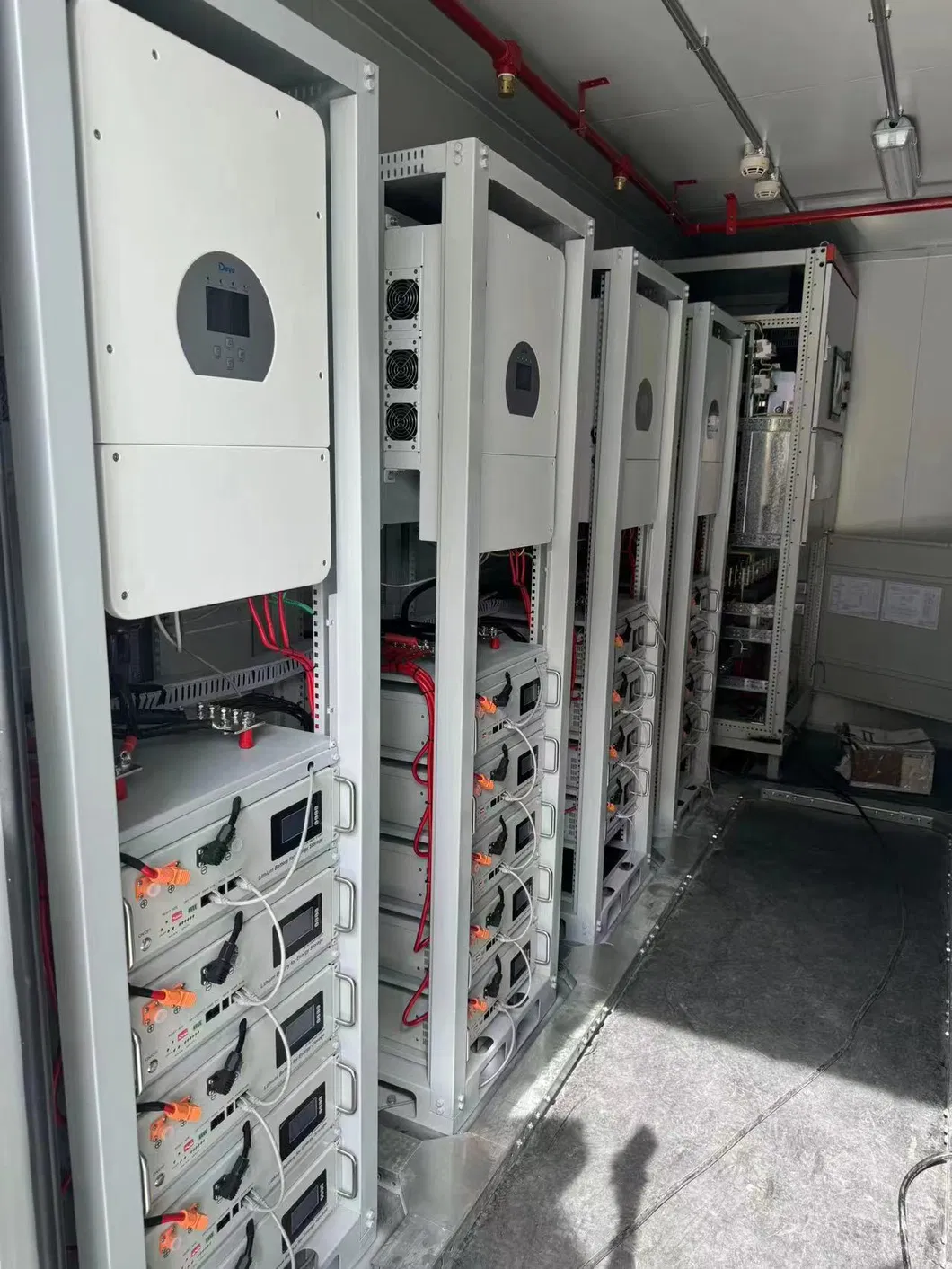

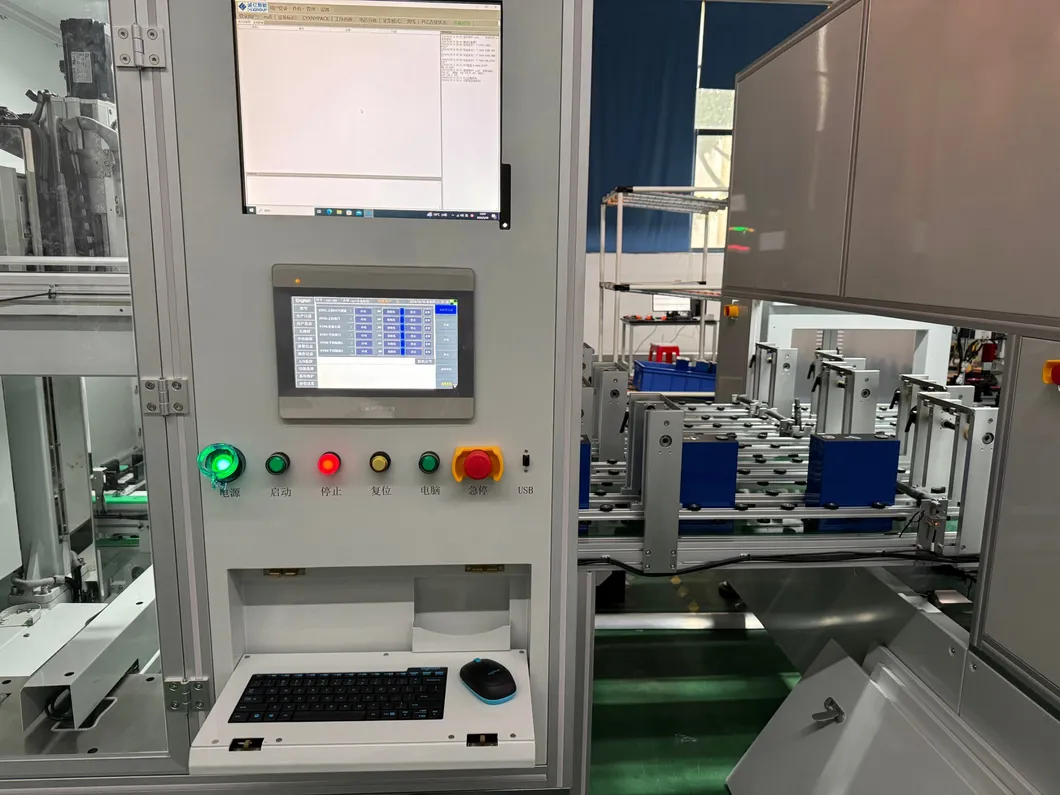

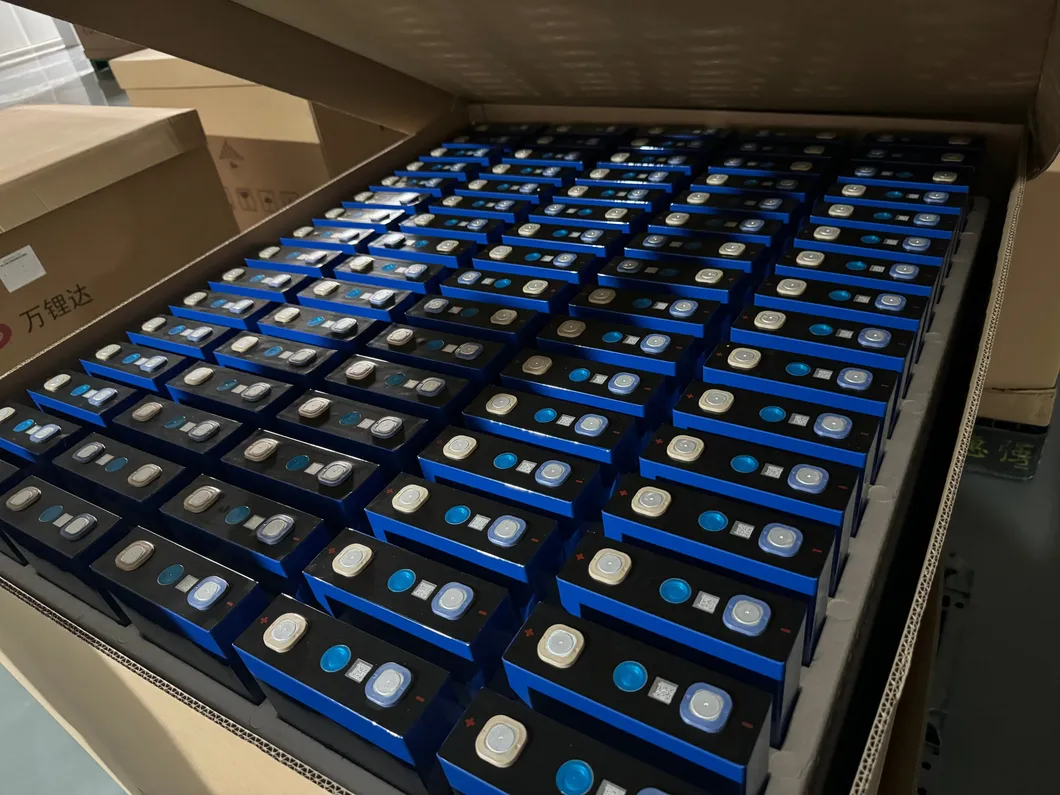

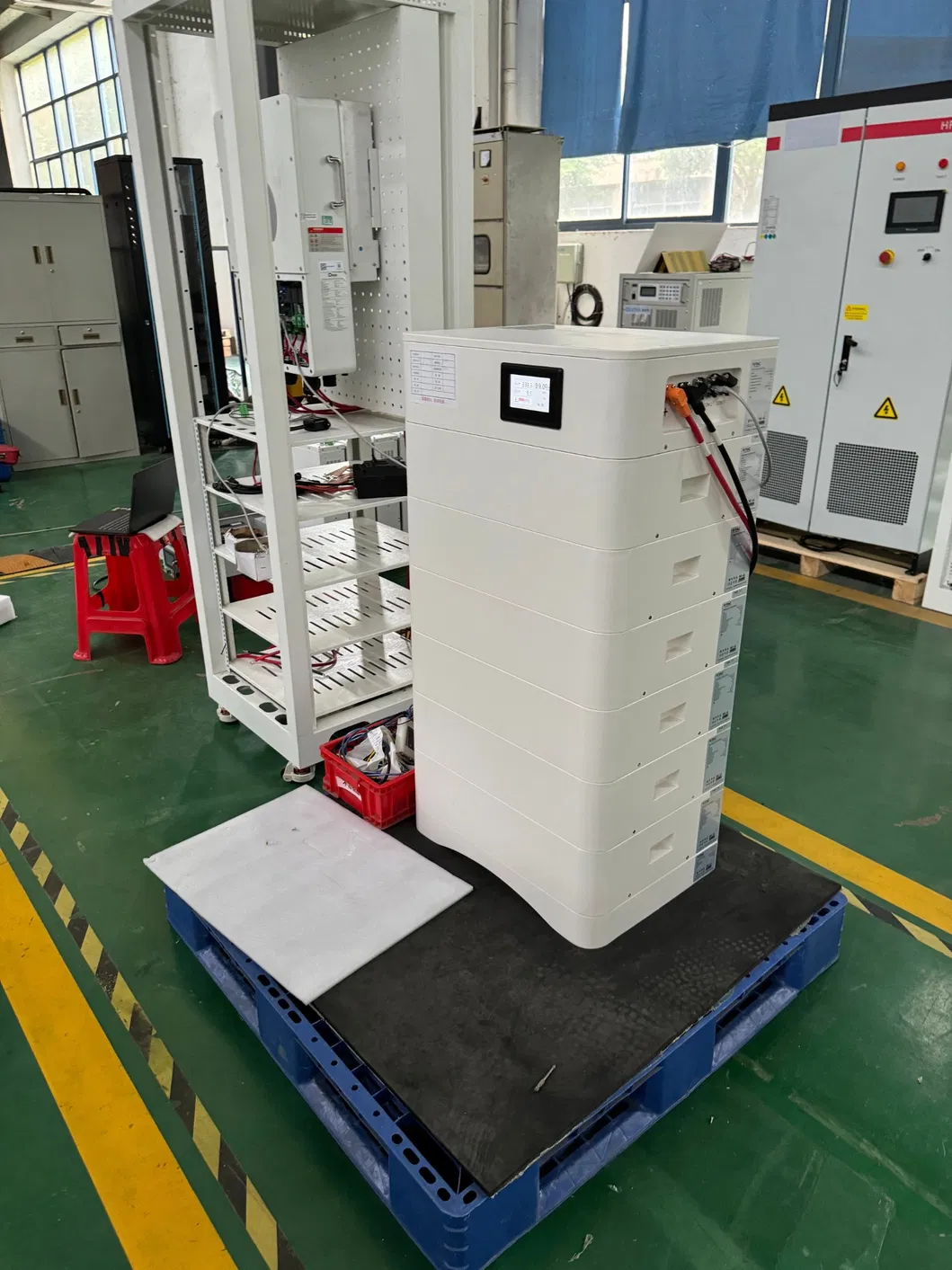

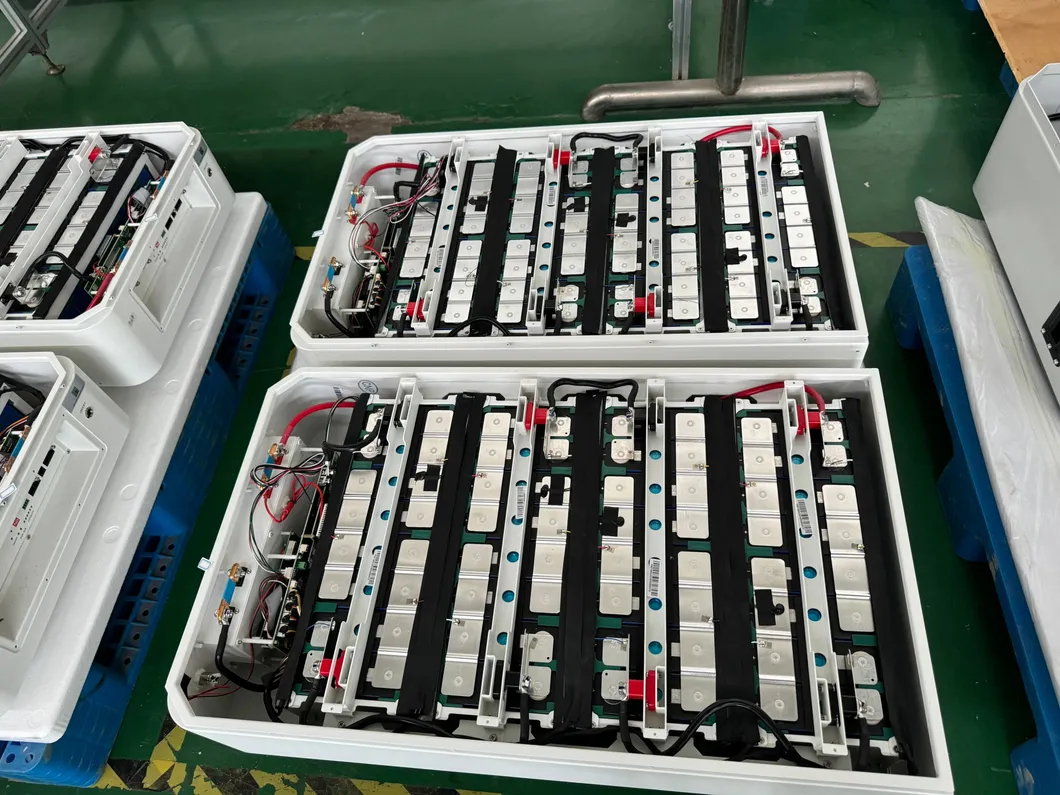

Manufacturing Facility

❓

Frequently Asked Questions

What are your main products?

We offer a wide range of solar products, including solar systems, solar panels, solar inverters, powerwalls, lithium-ion batteries, and mounting systems with all related accessories.

Are you a factory or a trading company?

We are a dedicated factory with over seven years of experience in manufacturing solar energy series products.

Do you support OEM and field installation?

Yes, as a professional manufacturer, we provide comprehensive support including OEM services, on-site installation, and dedicated after-sales services.

How is quality control managed in your factory?

Quality is our priority. We maintain a professional QC team that strictly monitors production. Products are only packaged for delivery once they meet all quality requirements.

What are your competitive advantages?

We utilize fully automatic production lines with advanced equipment from Japan and Germany. This ensures competitive pricing, high quality, and the capacity to supply large-scale solar projects.

How can I get further assistance with an order?

You can reach out via inquiry or chat with our sales team online; we will respond promptly to provide more details.
