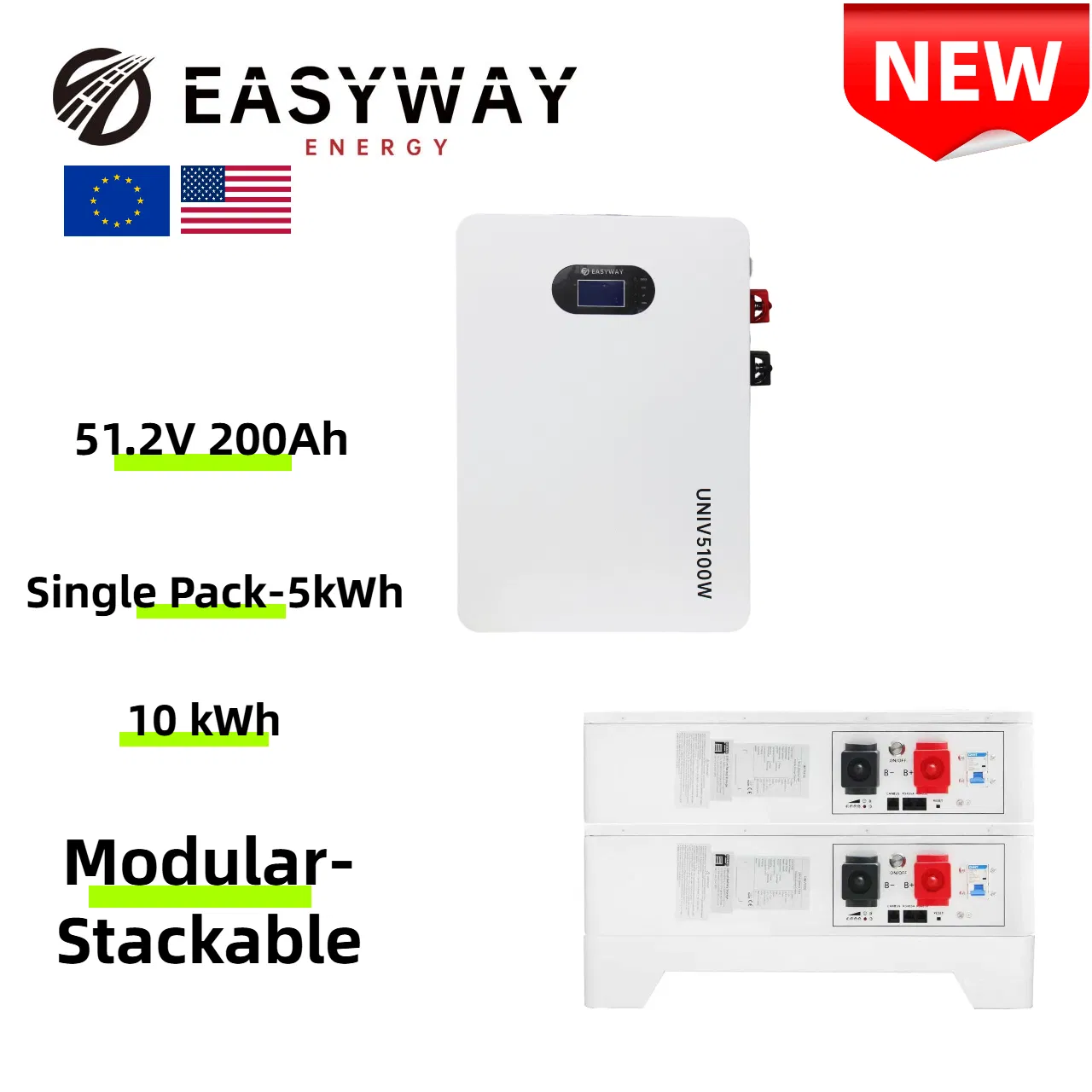

Eway 10kwh Modular Stackable Low Voltage for 5kw Pack with Lithium Battery
Eway 10kwh Modular Stackable Low Voltage for 5kw Pack with Lithium Battery
Eway 10kwh Modular Stackable Low Voltage for 5kw Pack with Lithium Battery
Eway 10kwh Modular Stackable Low Voltage for 5kw Pack with Lithium Battery
Eway 10kwh Modular Stackable Low Voltage for 5kw Pack with Lithium Battery
1 / 5
Eway 10kwh Modular Stackable Low Voltage for 5kw Pack with Lithium Battery
Eway 10kwh Modular Stackable Low Voltage for 5kw Pack with Lithium Battery
Eway 10kwh Modular Stackable Low Voltage for 5kw Pack with Lithium Battery
Eway 10kwh Modular Stackable Low Voltage for 5kw Pack with Lithium Battery
Eway 10kwh Modular Stackable Low Voltage for 5kw Pack with Lithium Battery

Eway 10kwh Modular Stackable Low Voltage for 5kw Pack with Lithium Battery

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

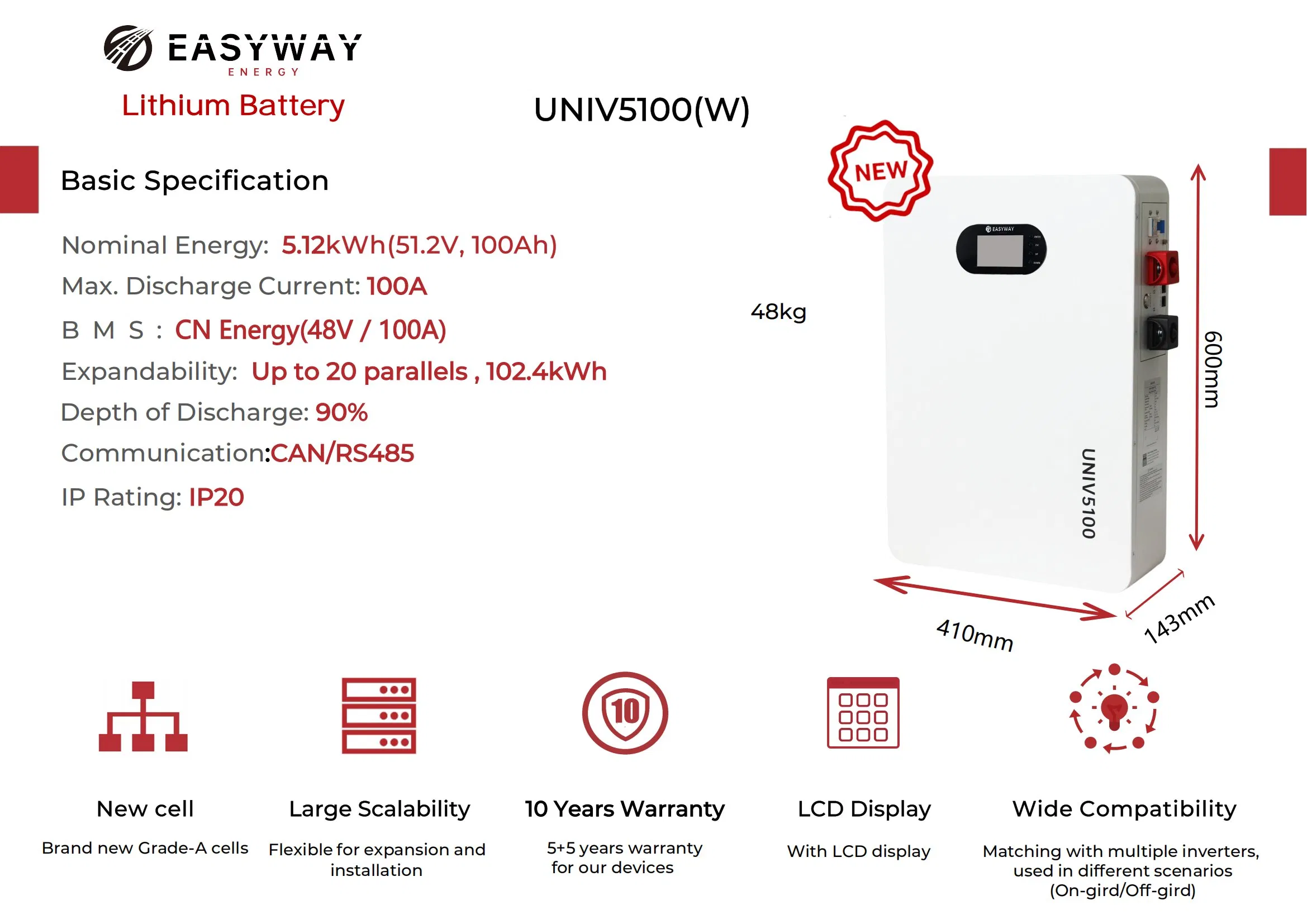

Basic Information

Model NO.
UNIV-LV-ST10K
Rated Capacity
10.24kwh
Standard Voltage
51.2V
Battery Type
LiFePO4 Battery
Rated Capacity(Ah)
200ah
Life Span
>15 Years
Warranty
10 years
Usage
Home Storage Battery
Dimension
600*386*410mm
Discharge Rate
0.5c
Production Capacity
3000PCS/Month
Origin
China
P

Packaging & Delivery

Package Size
68.00cm * 49.00cm * 21.90cm
Gross Weight
50.000kg
Transport Package
Carton / Pallet
D

Product Gallery

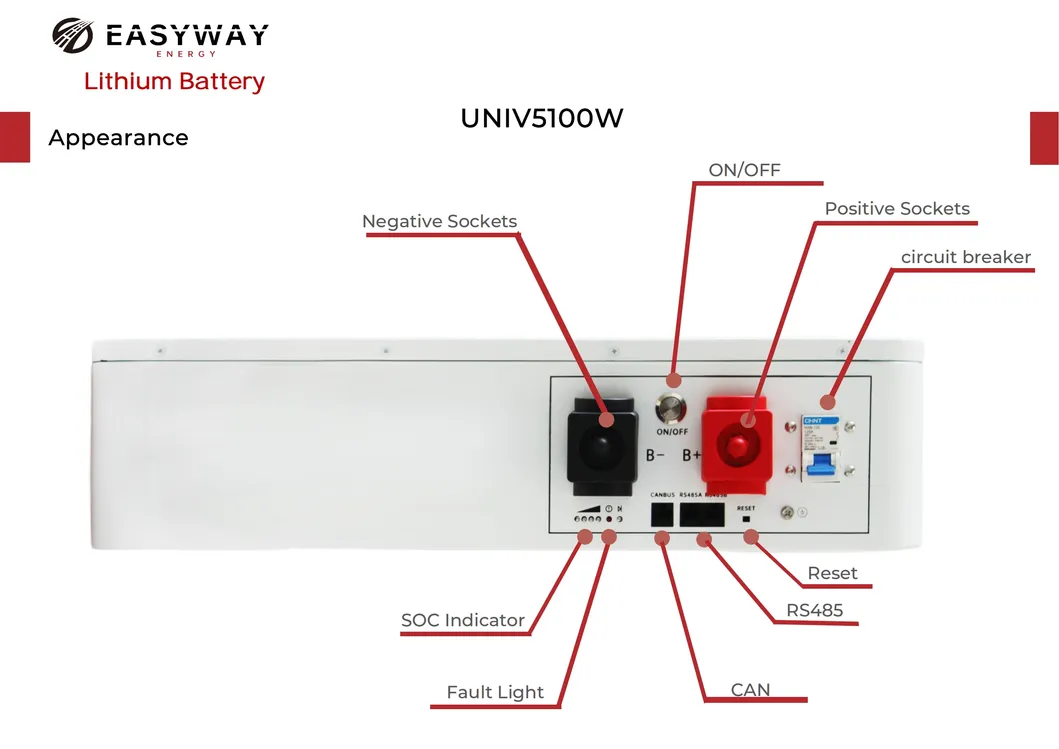

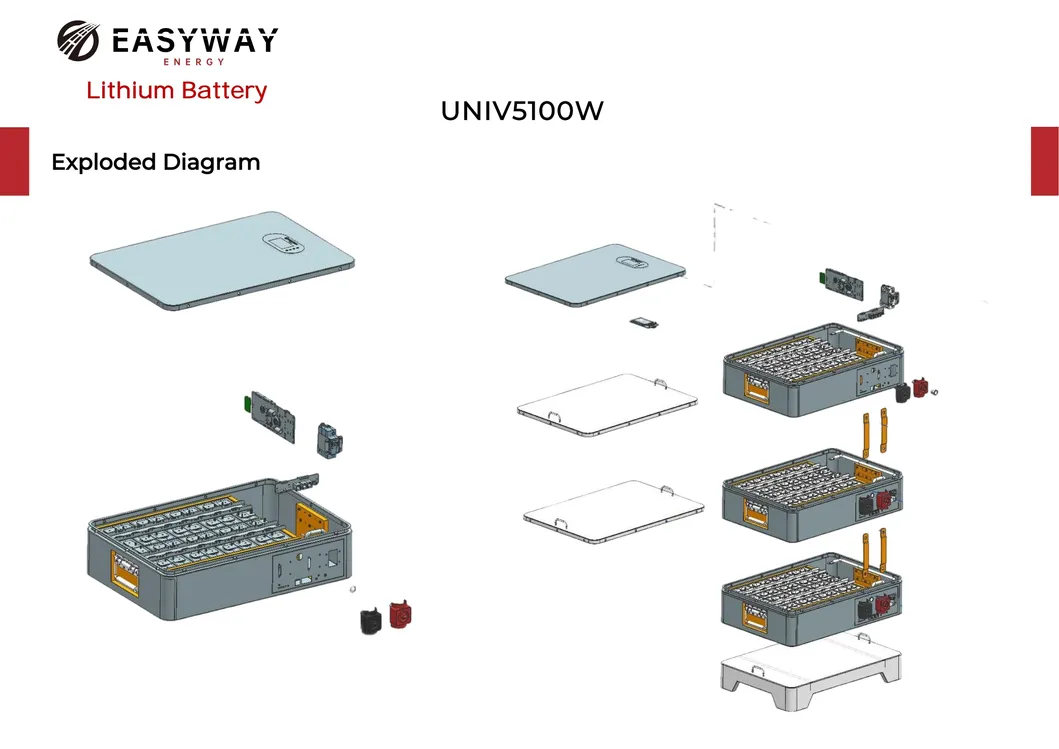

Modular Stackable Low Voltage Battery Pack
Modular Stackable Low Voltage Battery Pack
Modular Stackable Low Voltage Battery Pack
Modular Stackable Low Voltage Battery Pack
Modular Stackable Low Voltage Battery Pack
Modular Stackable Low Voltage Battery Pack

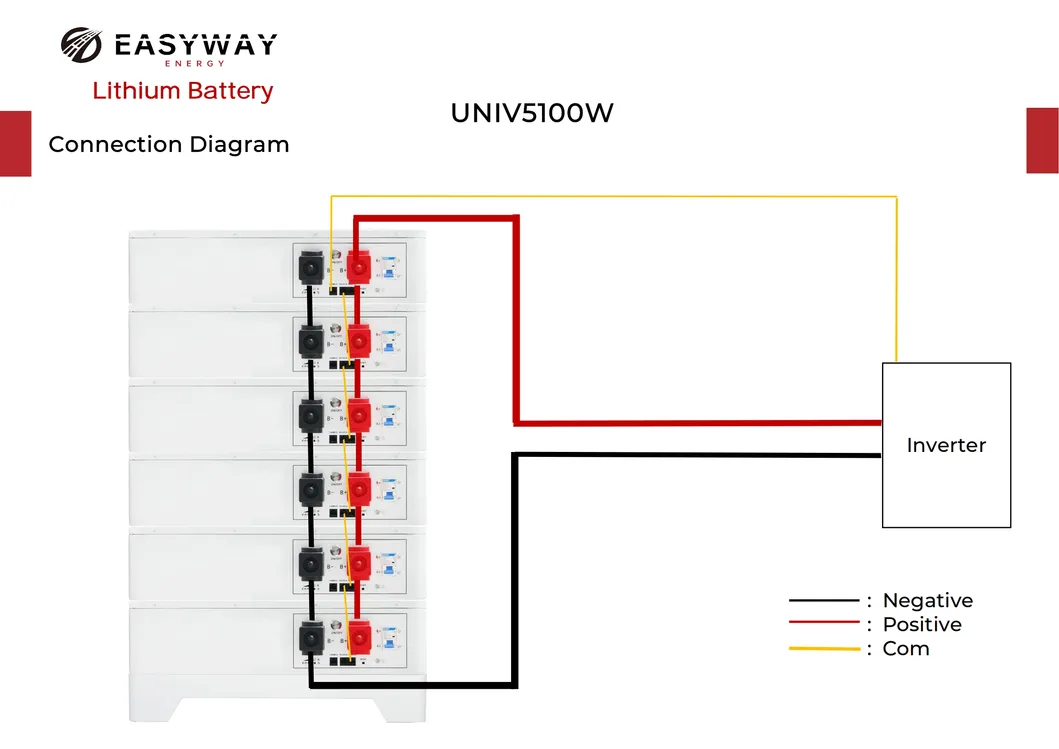

Product Layout
S

Technical Specifications

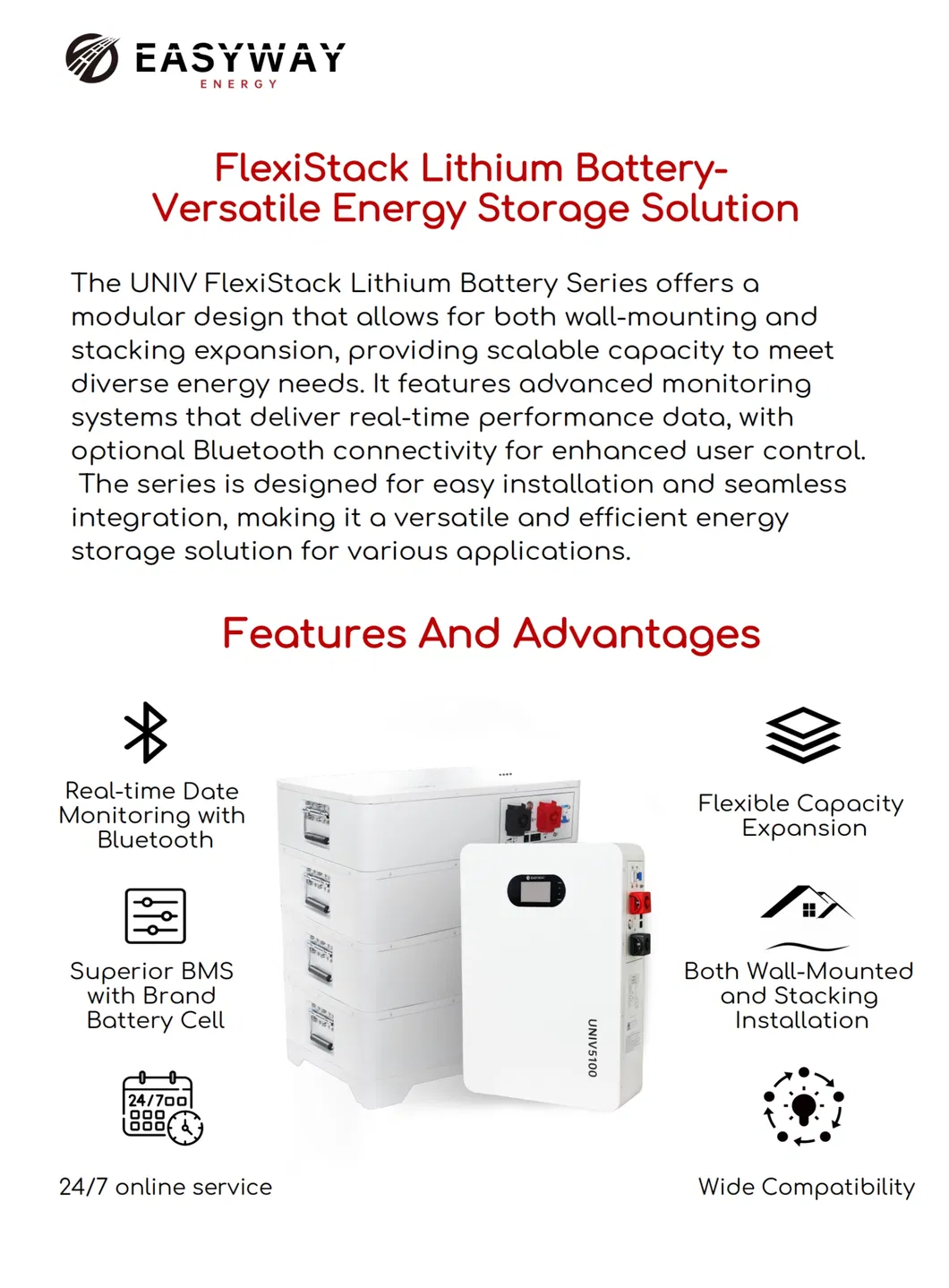

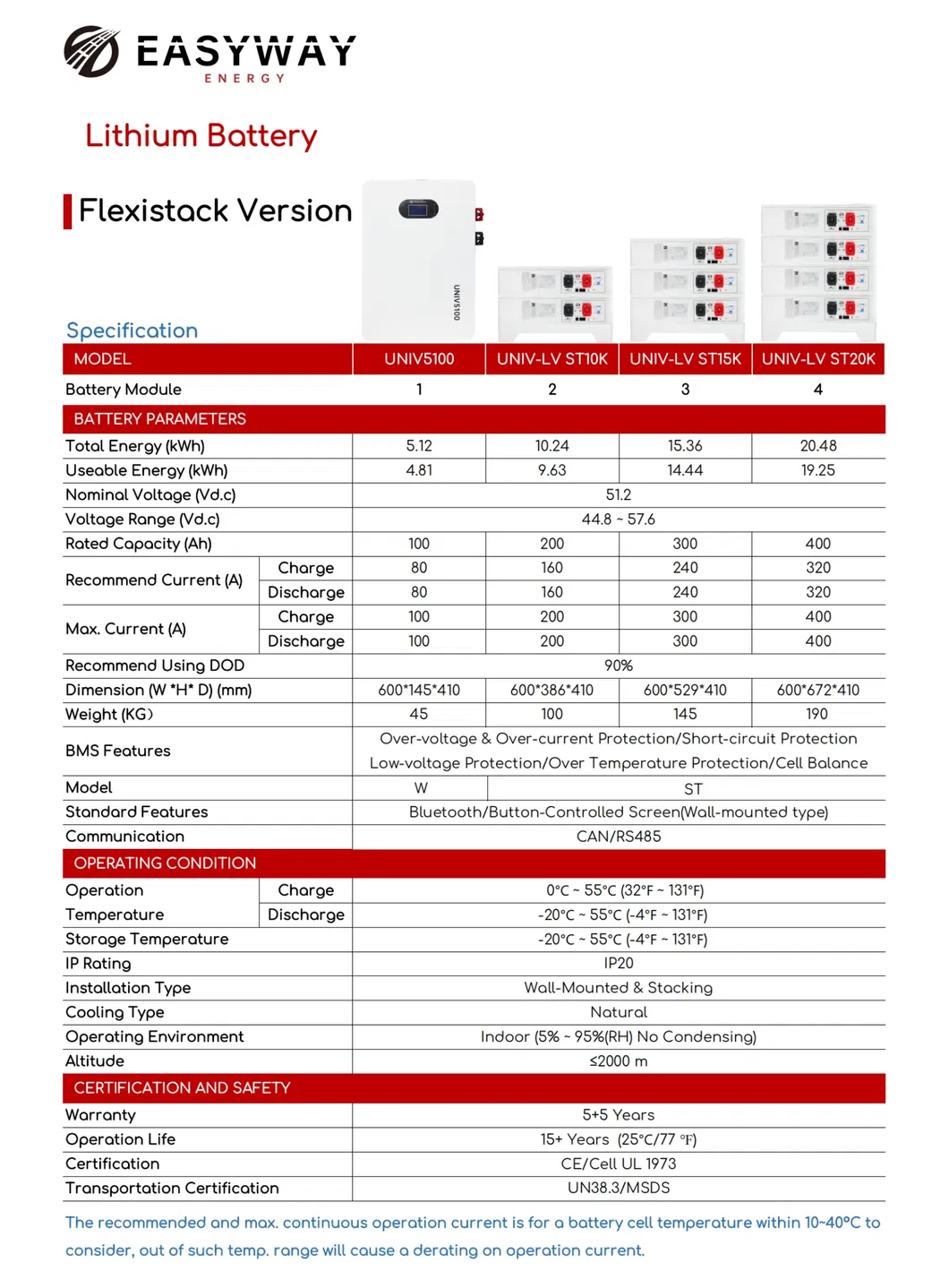

Specification Chart 1 Specification Chart 2
Module UNIV5100W ST10K ST20K ST30K ST40K
Battery Module Quantity 1 Module 2 Modules 4 Modules 6 Modules 8 Modules
Cell Config 51.2V 100Ah 51.2V 200Ah 51.2V 400Ah 51.2V 600Ah 51.2V 800Ah
Total Energy 5.12kWh 10.24kWh 20.48kWh 30.72kWh 40.96kWh
W

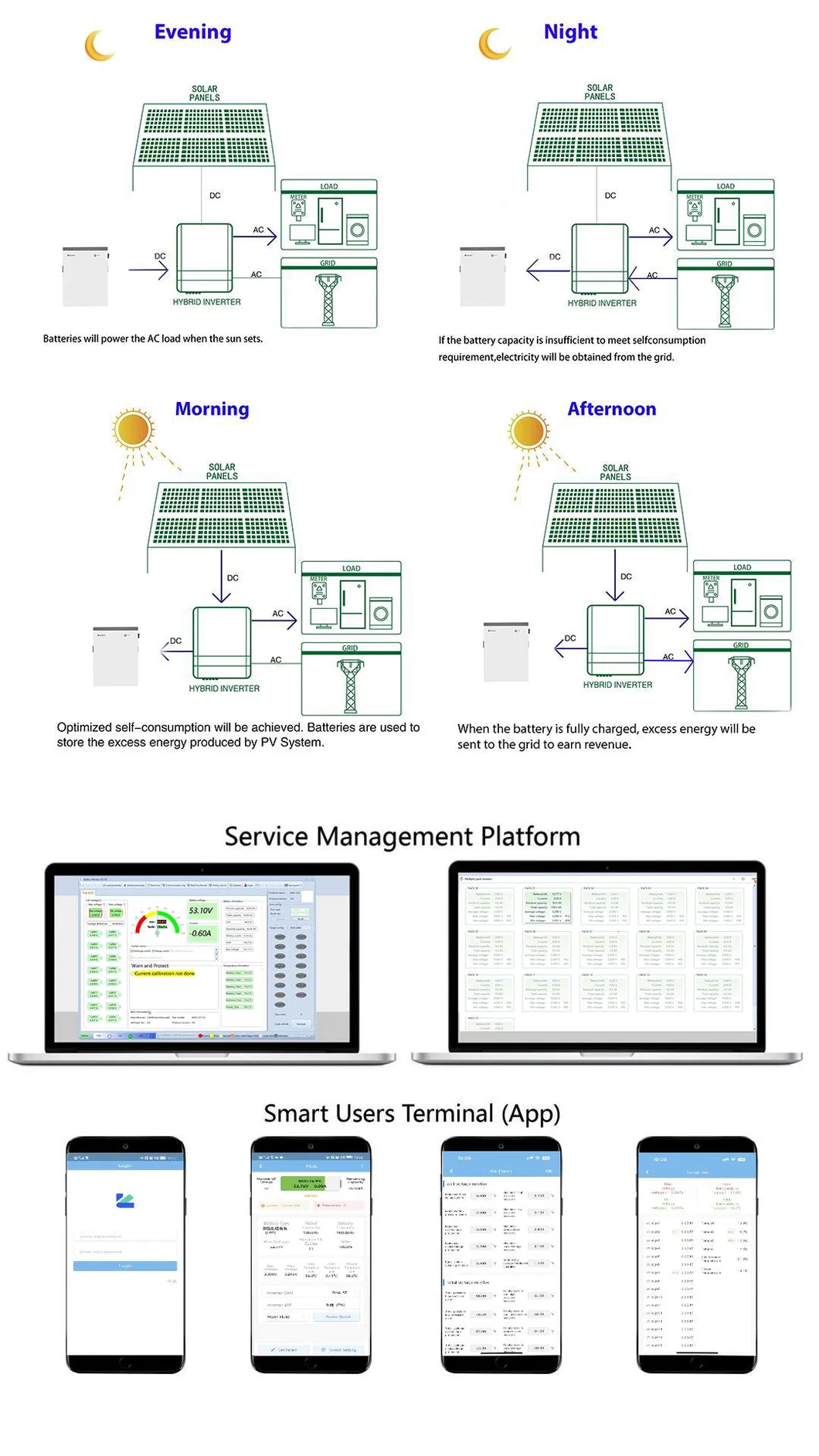

Working Principle

Intelligent Service Platform
Application Scenarios
Application Scenarios

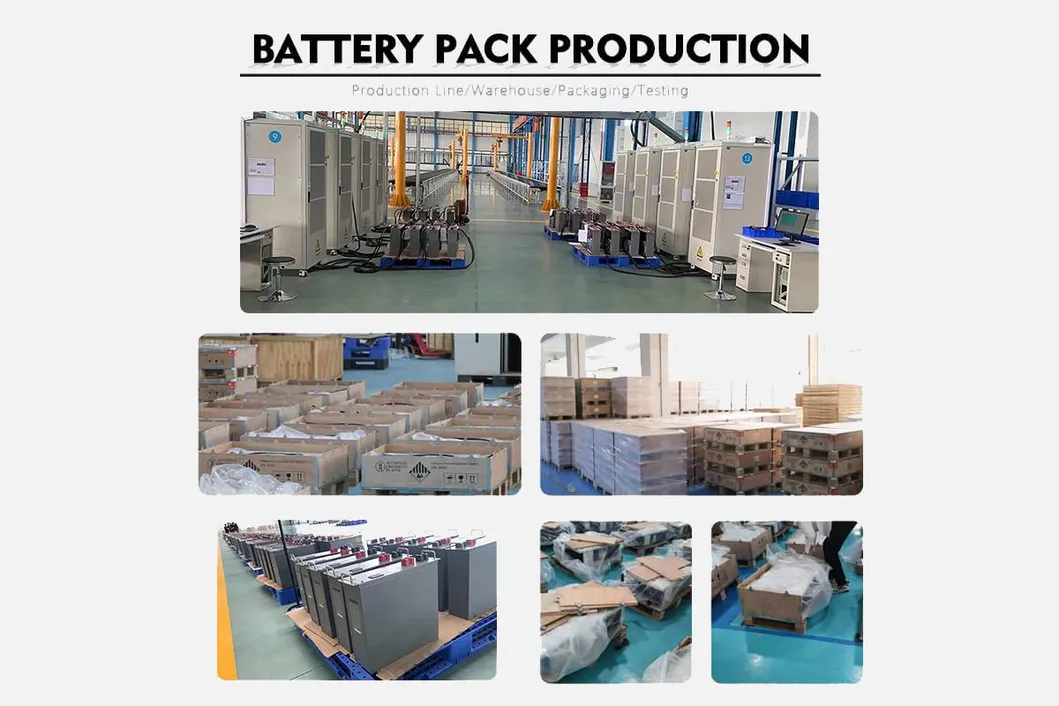

Battery Monitoring Factory Testing
?

Frequently Asked Questions

How long is the life span of the battery?
Our batteries are built with grade A LiFePO4 cells, with a cycle life of up to 6000+ at 80% DoD.
What is the provided warranty?
We offer a 5+5 years warranty to provide after-sale service and technology support, including battery or BMS replacement.
Which inverter brands are compatible?
Our BMS supports Canbus/RS485 communications and is compatible with most famous inverter brands.
What is the typical delivery time?
Usually, delivery is completed within 30 days, though this may vary based on order quantity.
Do you support customization?
Yes, we support customization including logos, stickers, and full OEM/ODM services.
Do the products have safety certifications?
Yes, we have CE, MSDS, and UN38.3 certifications for the safe transport of goods.
