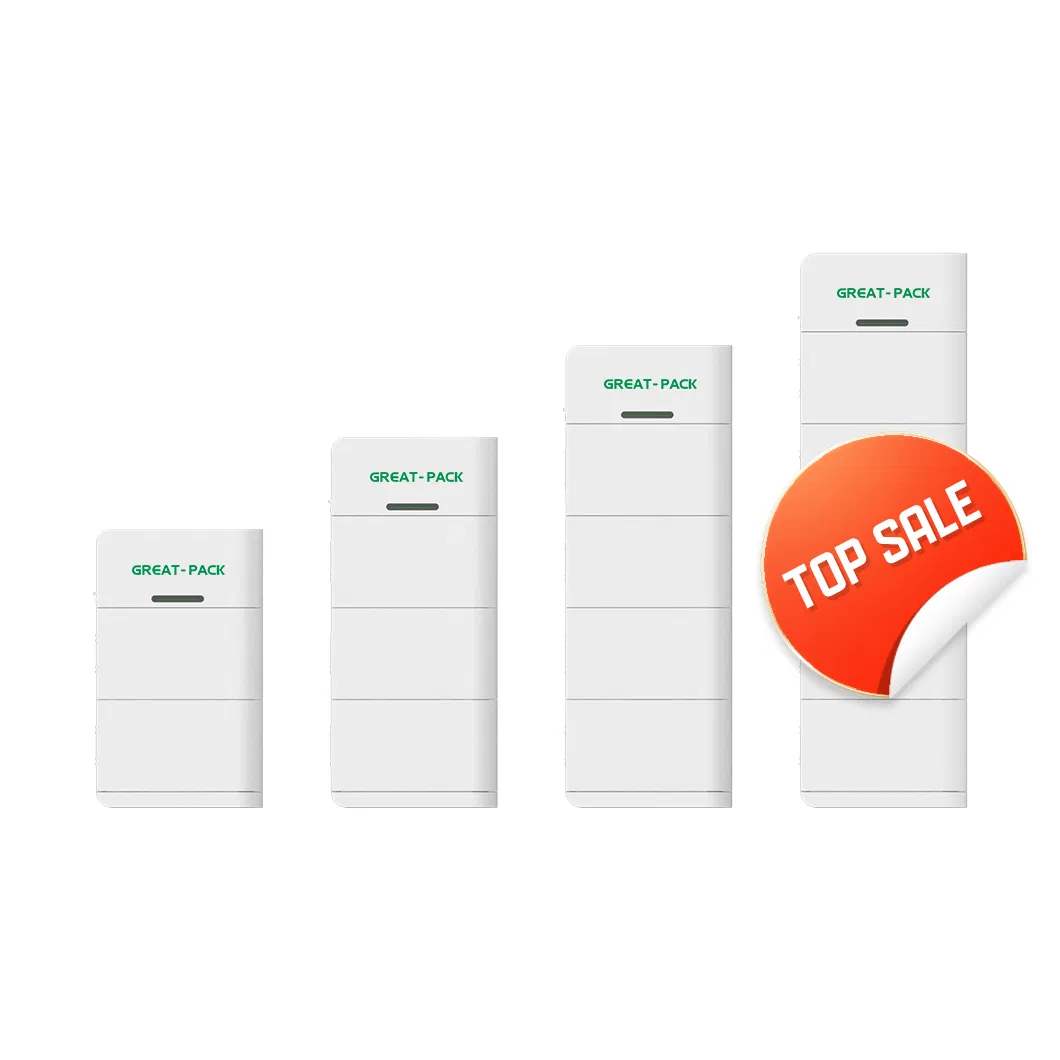

High Voltage Stacked Lithium Battery Modular Design 10kwh 15kwh 20kwh LiFePO4 Battery Pack
High Voltage Stacked Lithium Battery Modular Design 10kwh 15kwh 20kwh LiFePO4 Battery Pack
High Voltage Stacked Lithium Battery Modular Design 10kwh 15kwh 20kwh LiFePO4 Battery Pack
High Voltage Stacked Lithium Battery Modular Design 10kwh 15kwh 20kwh LiFePO4 Battery Pack
High Voltage Stacked Lithium Battery Modular Design 10kwh 15kwh 20kwh LiFePO4 Battery Pack
1 / 5
High Voltage Stacked Lithium Battery Modular Design 10kwh 15kwh 20kwh LiFePO4 Battery Pack
High Voltage Stacked Lithium Battery Modular Design 10kwh 15kwh 20kwh LiFePO4 Battery Pack
High Voltage Stacked Lithium Battery Modular Design 10kwh 15kwh 20kwh LiFePO4 Battery Pack
High Voltage Stacked Lithium Battery Modular Design 10kwh 15kwh 20kwh LiFePO4 Battery Pack
High Voltage Stacked Lithium Battery Modular Design 10kwh 15kwh 20kwh LiFePO4 Battery Pack

High Voltage Stacked Lithium Battery Modular Design 10kwh 15kwh 20kwh LiFePO4 Battery Pack

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

ℹ️
Basic Information
Model NO.GP-HV20K RechargeableYes
SizeLarge CellsLFP 3.2V 50ah Prismatic
Warranty10 Years CertificationCE/RoHS/Un38.3/MSDS
ApplicationHome Energy Storage Ess, Solar & Wind System OEM/ODMAcceptable
Transport PackageCarton Box, Wooden Pallet Specification740*295*2000mm, 233kg
OriginChina HS Code8507600090
📦
Product Description

High Voltage Stacked Lithium Battery Modular Design 10kwh 15kwh 20kwh LiFePO4 Battery Pack

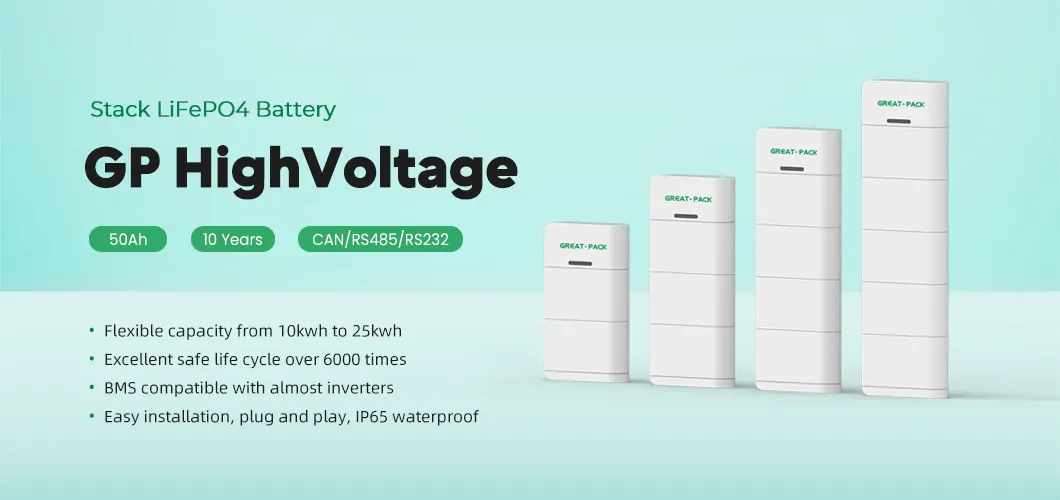

High Voltage Stacked Lithium Battery
Model GP-HV10K GP-HV15K GP-HV20K GP-HV25K
Battery Module 102.4V 50Ah, 5KWh, 49kg, 630*185*345mm
Number of Modules 2 3 4 5
Nominal Voltage 204.8V 307.2V 409.6V 512V
Energy 10.24KWh 15.36KWh 20.48KWh 25.60KWh
Max Charge/Discharge 50A
Operating Temp Charge: 0°C to +55°C | Discharge: -20°C to +55°C
IP Class IP65
Dimensions (W/D/H) 630*185*955mm 630*185*1300mm 630*185*1650mm 630*185*2000mm
📷

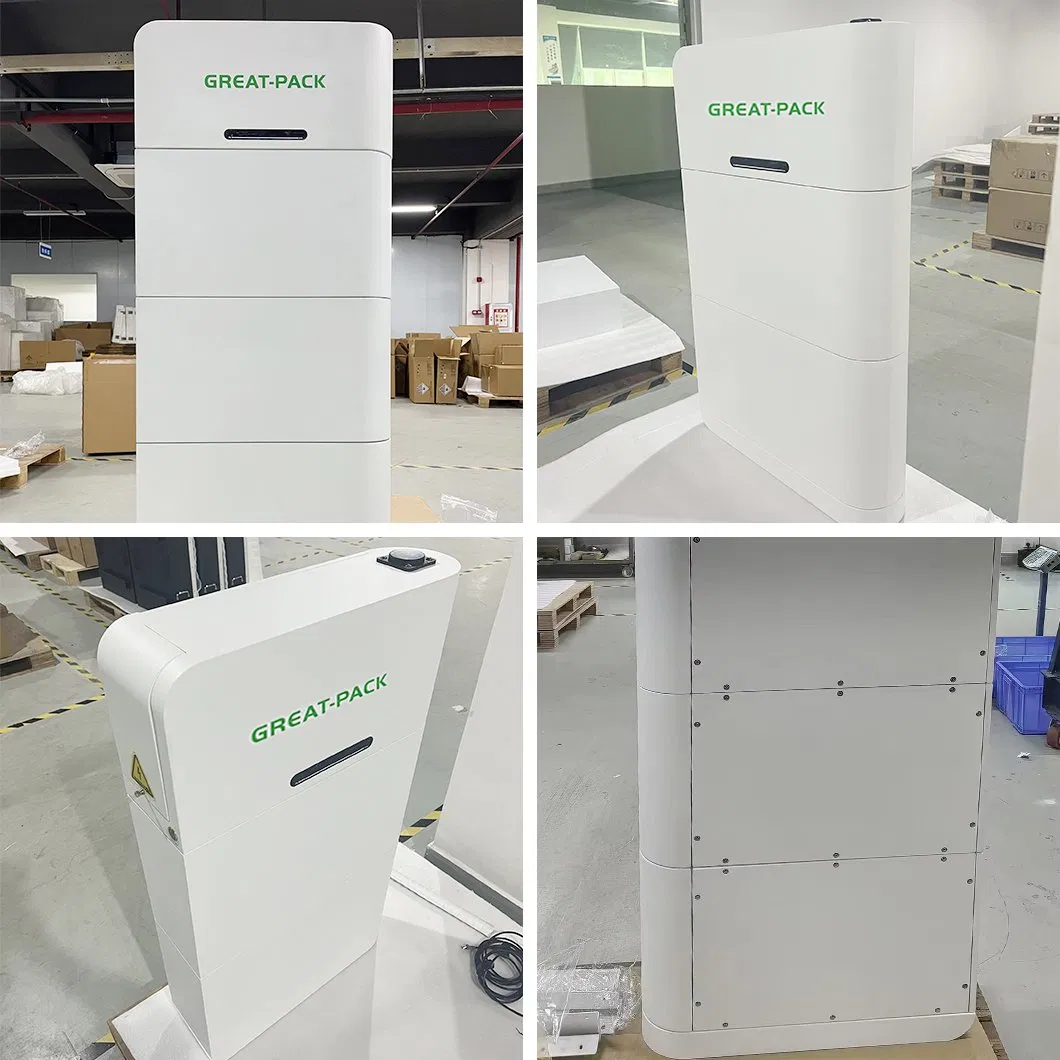

Detailed Photos

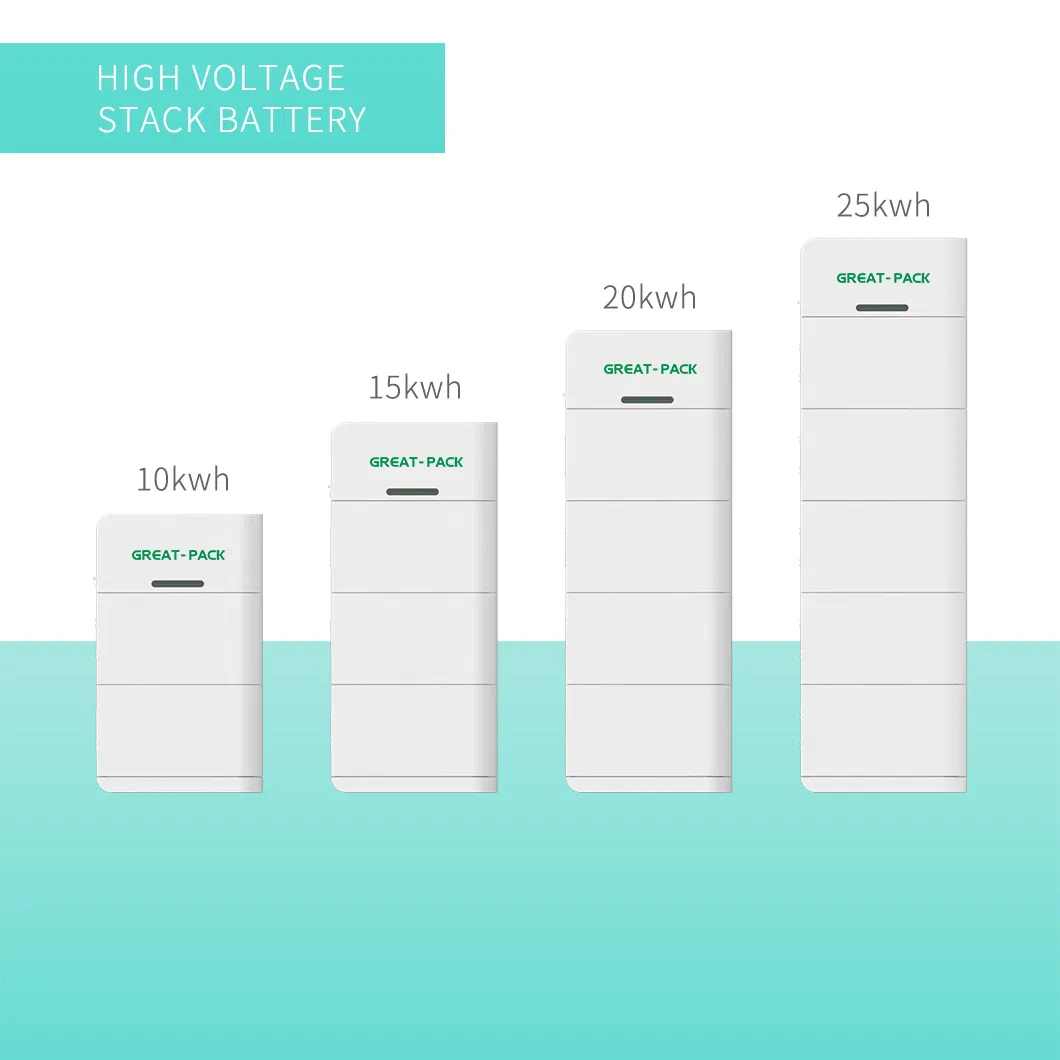

Detailed Photo 1

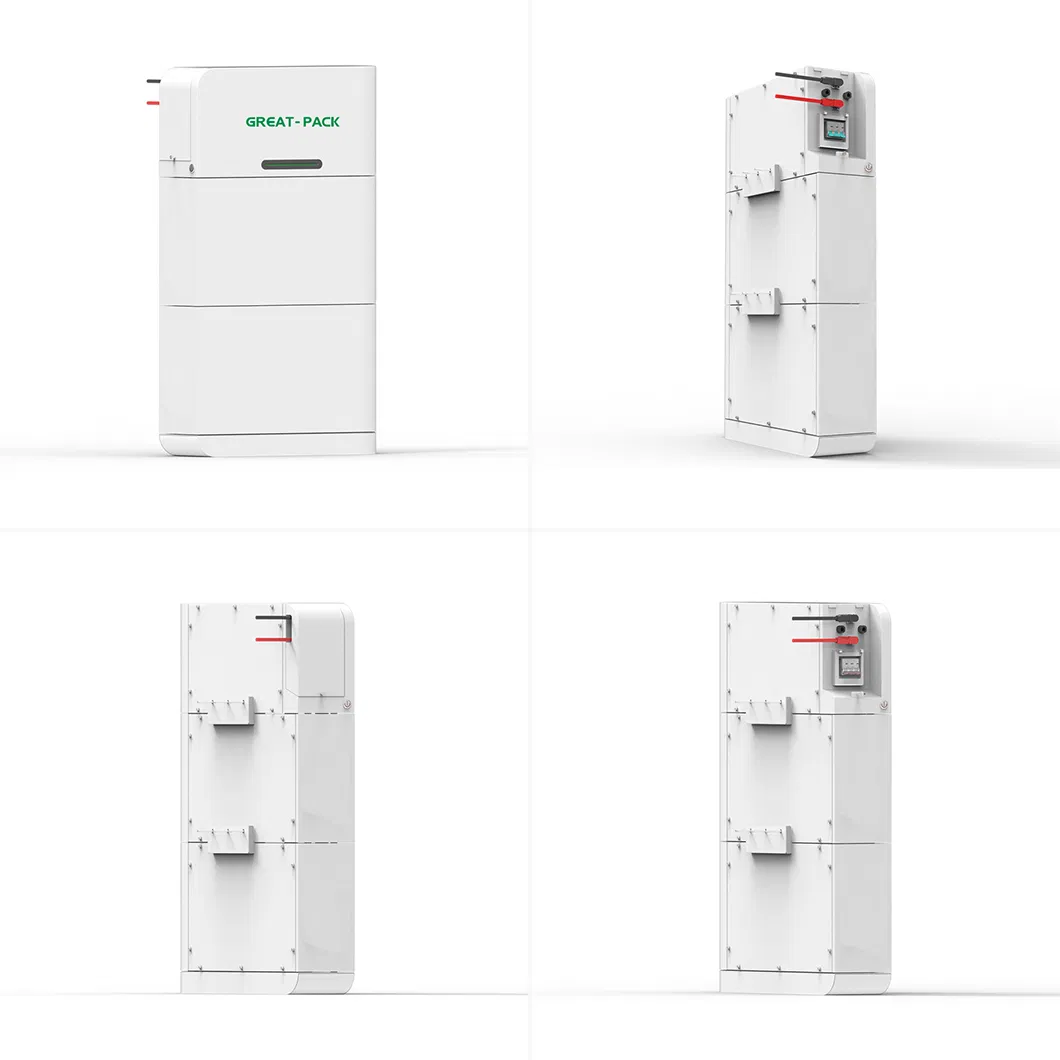

Detailed Photo 2

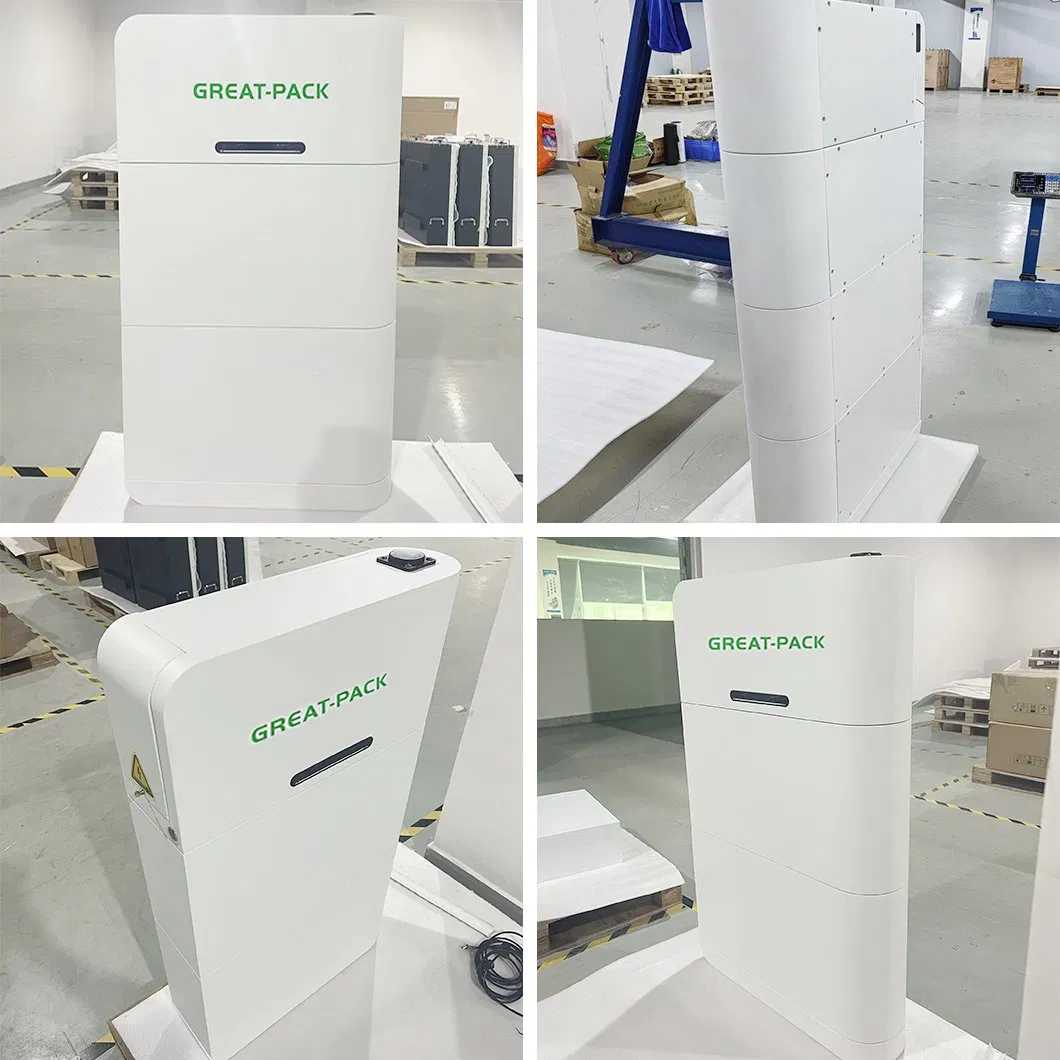

Detailed Photo 3
🚀
Our Project & Compatibility
Our battery is widely used in solar systems, wind systems, UPS systems and telecom systems, especially in photovoltaic off grid and hybrid systems. We are compatible with many inverters, such as Growatt SPH, Goodwe ET, Deye SUN, Sermatec SMT, Megarevo, Solis, SMA, Sunways, and more.

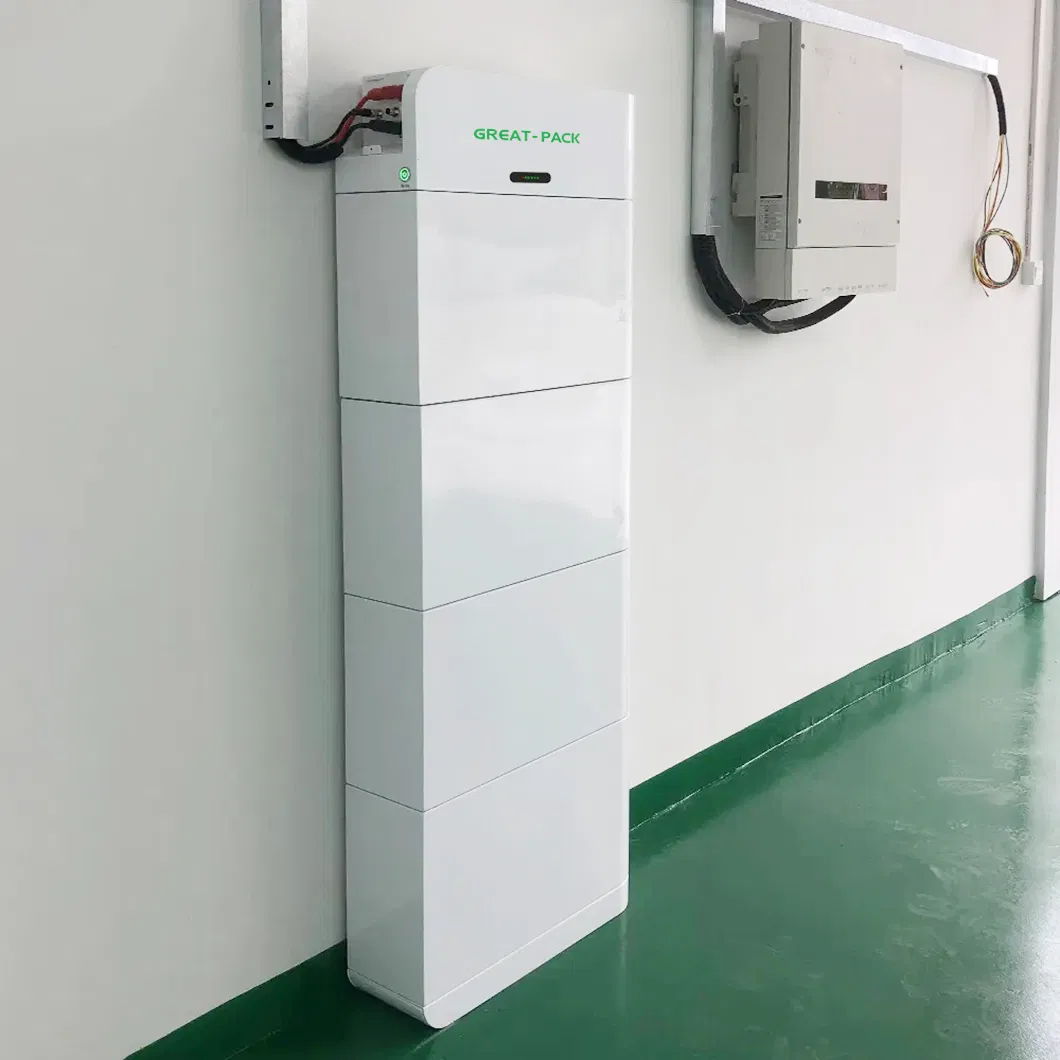

Project 1

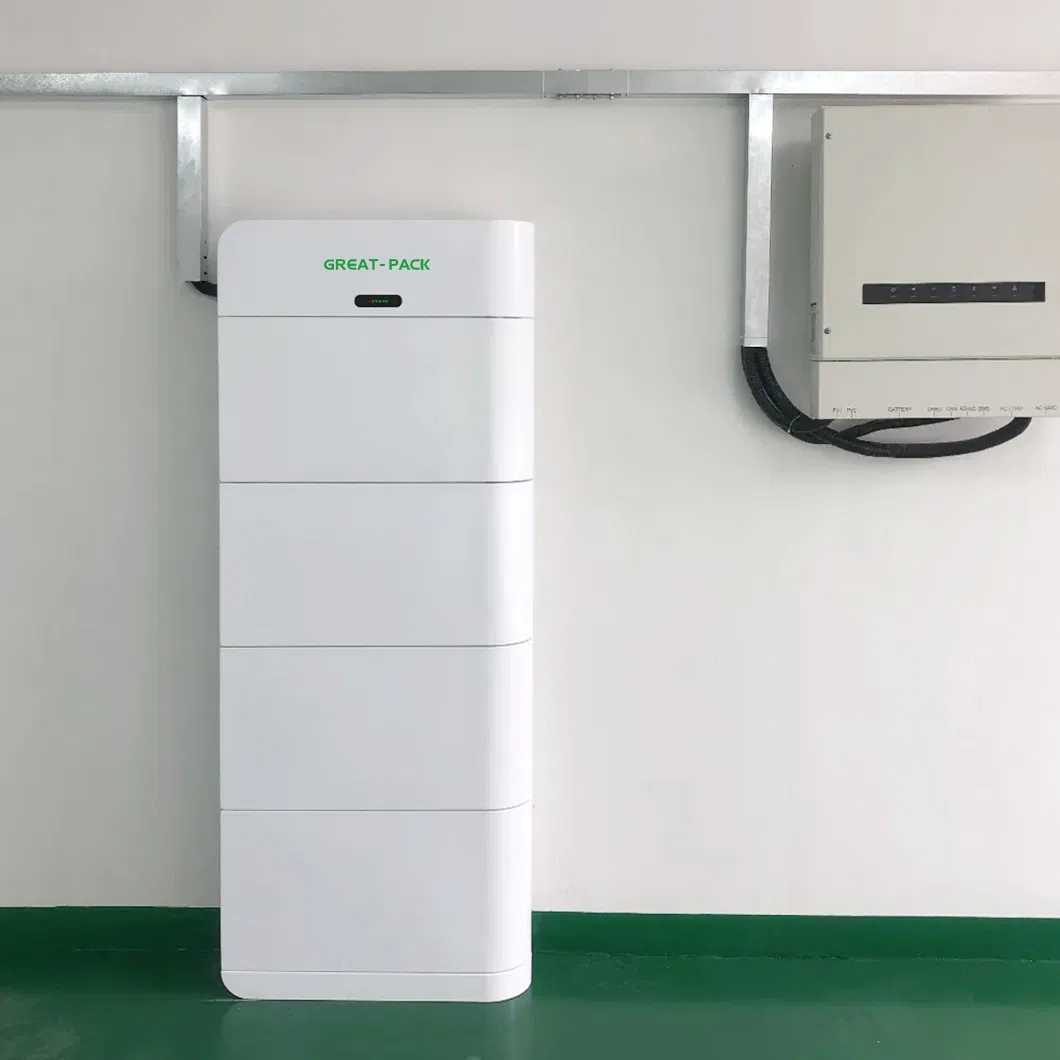

Project 2

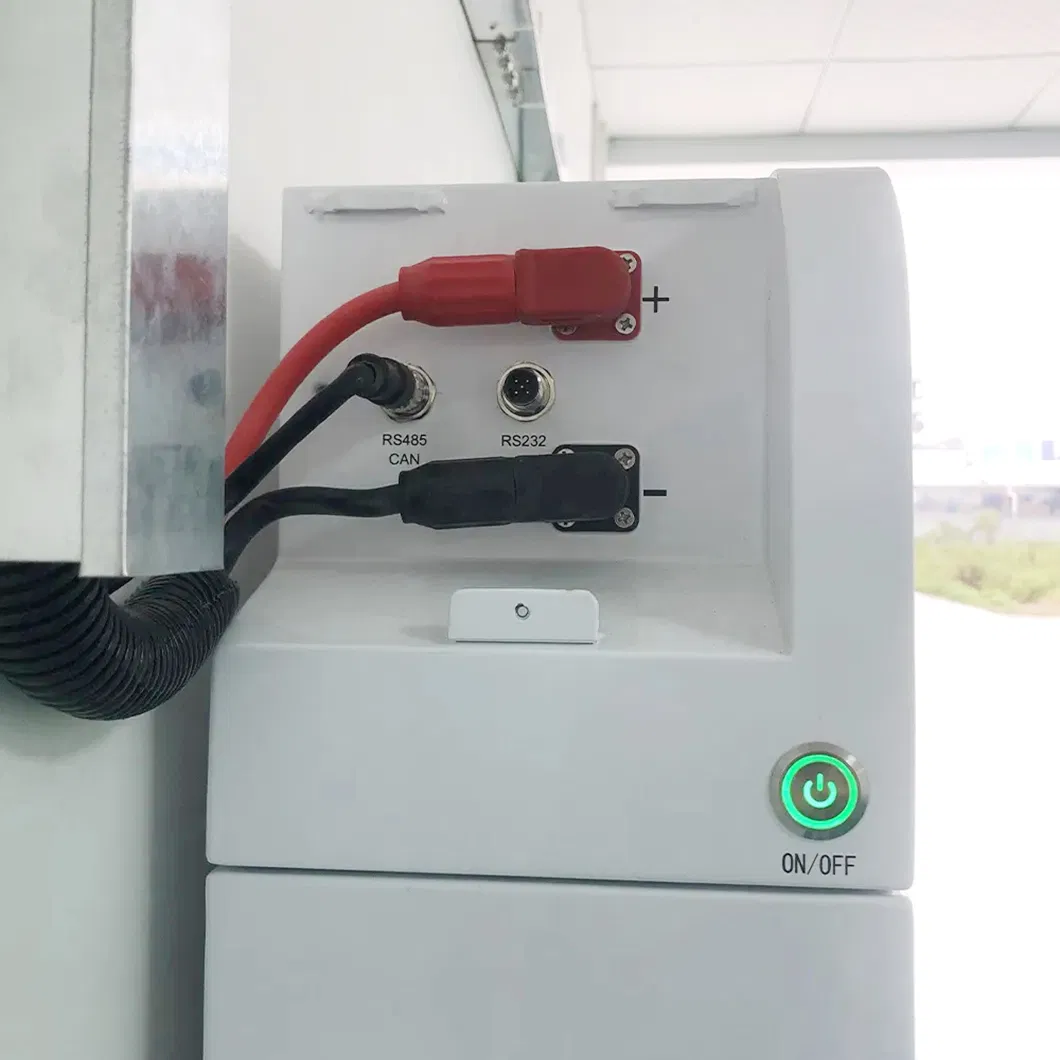

Project 3

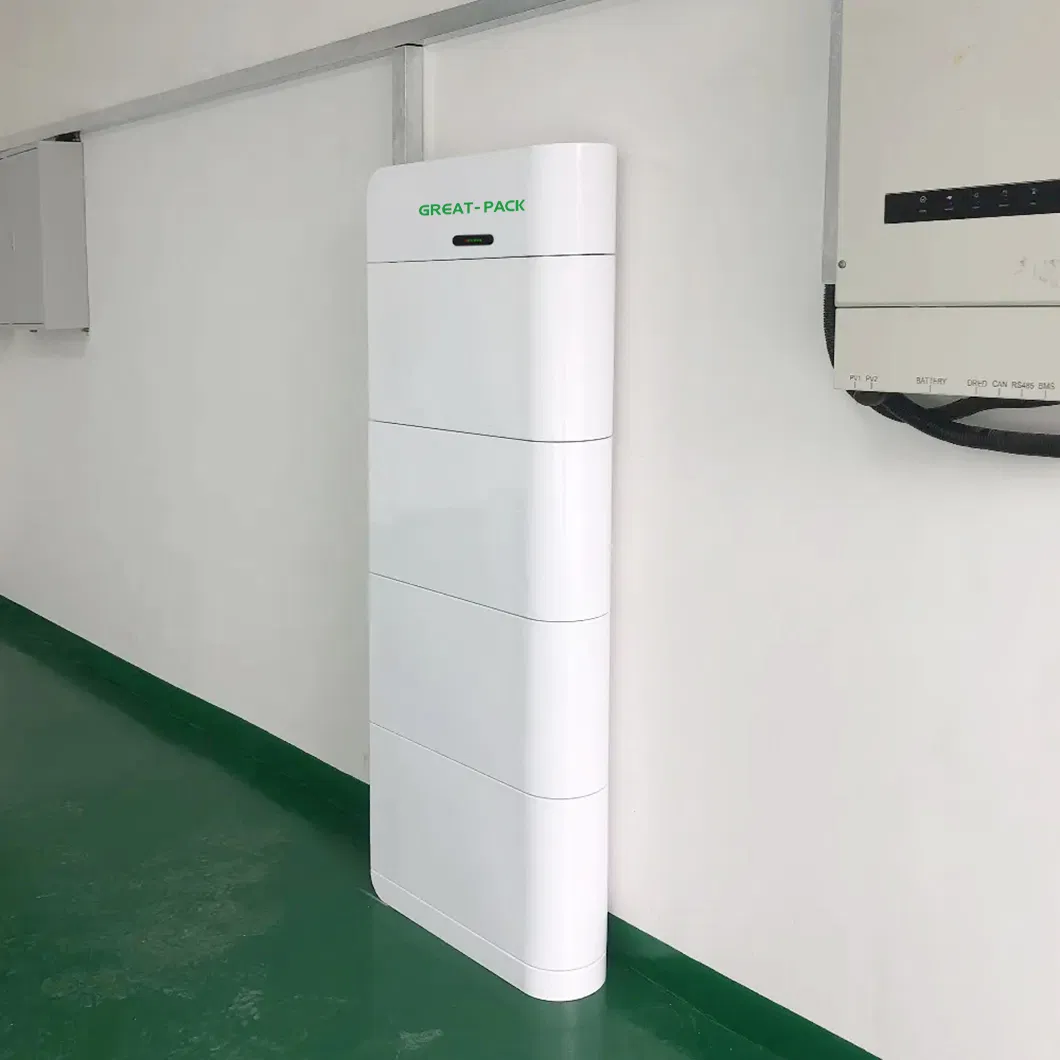

Project 4

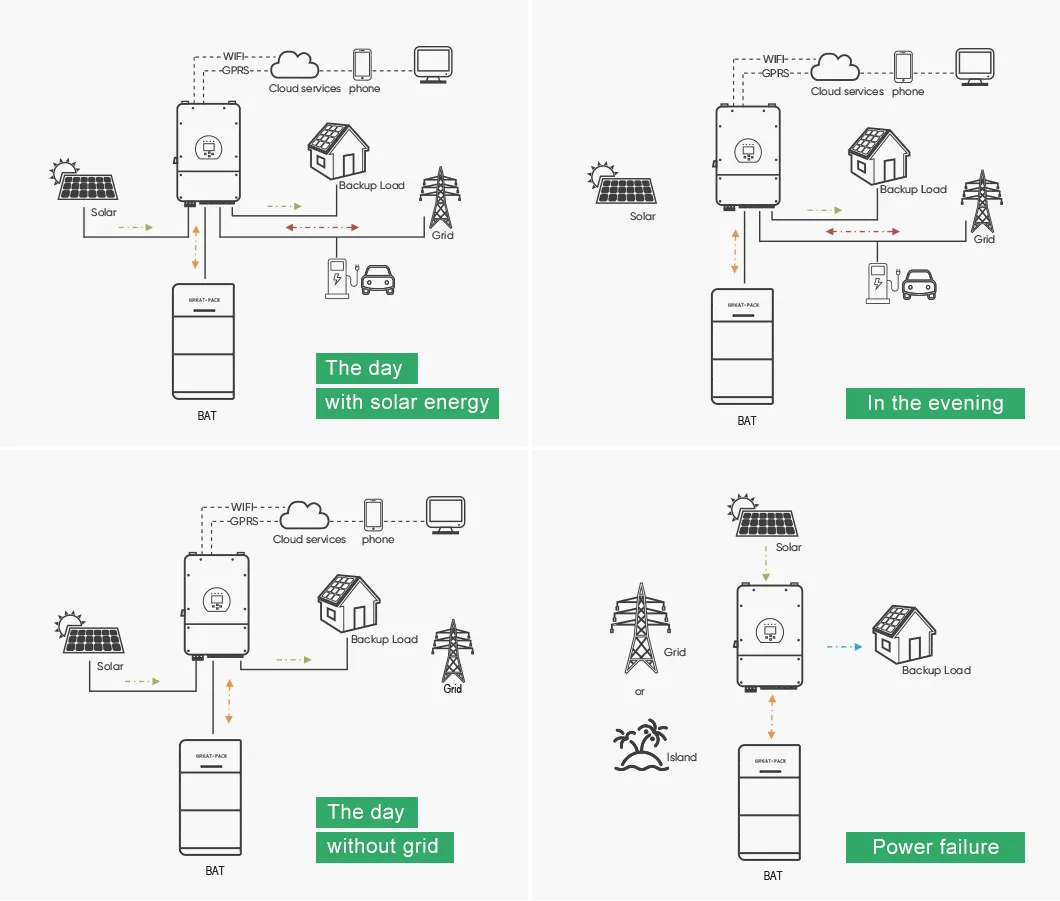

System Integration
⭐
Recommended Products
Solar Panel

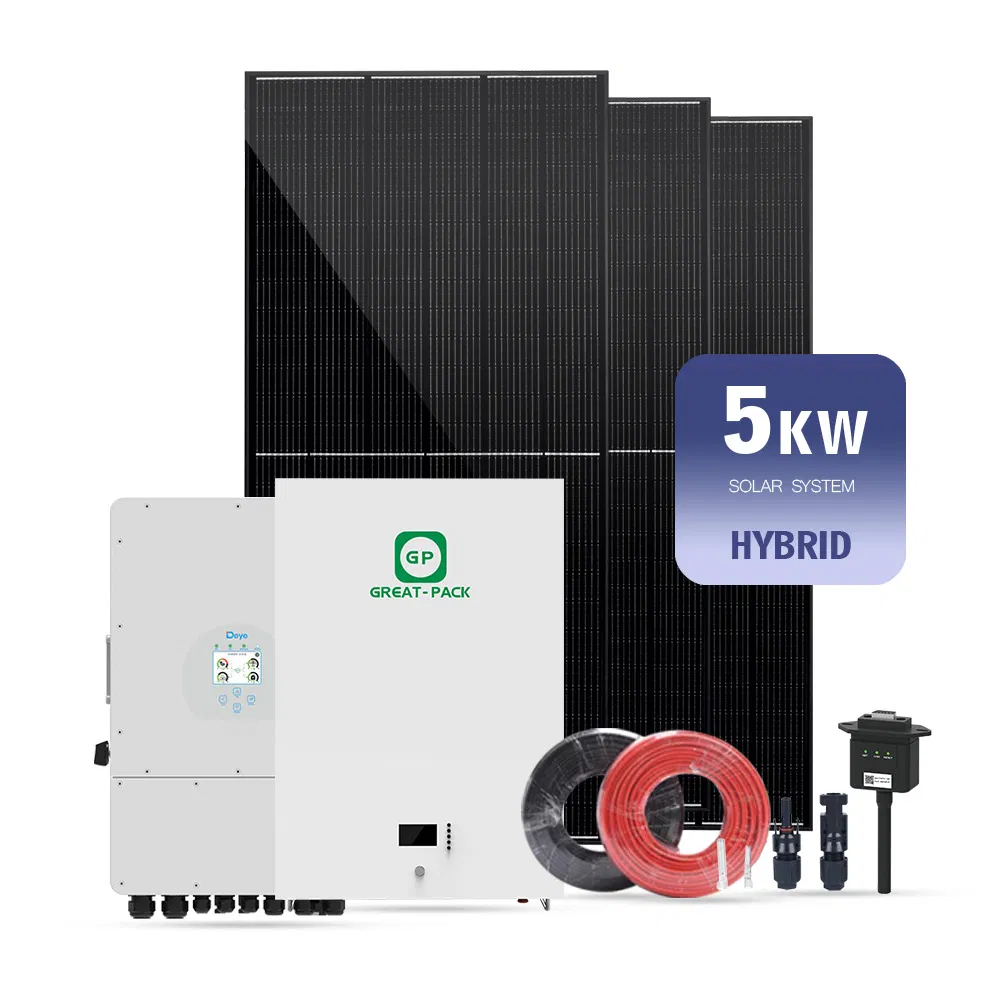

Hybrid System

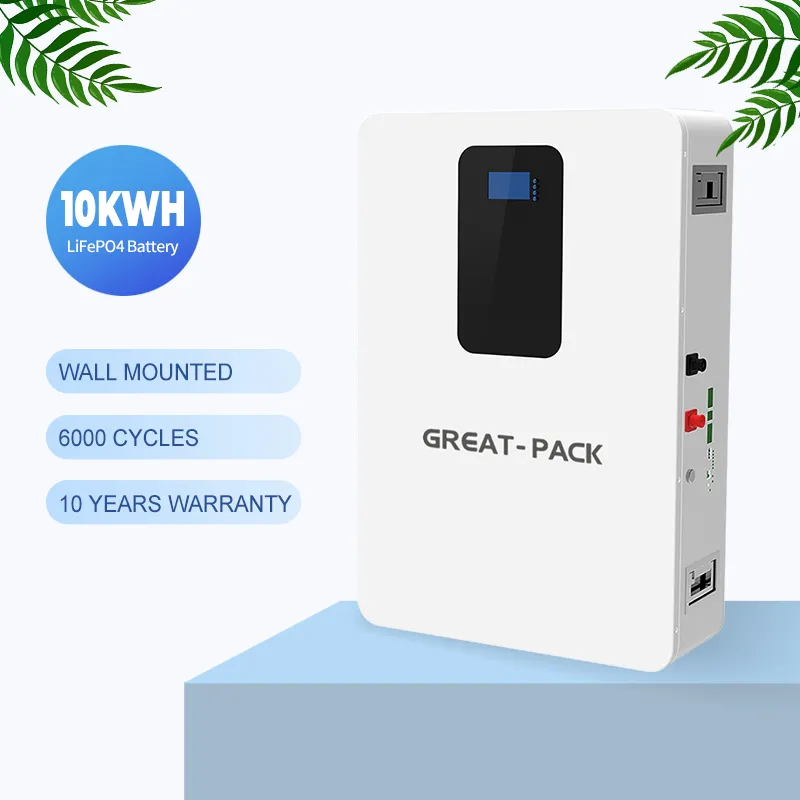

Powerwall
🏢
Company Profile

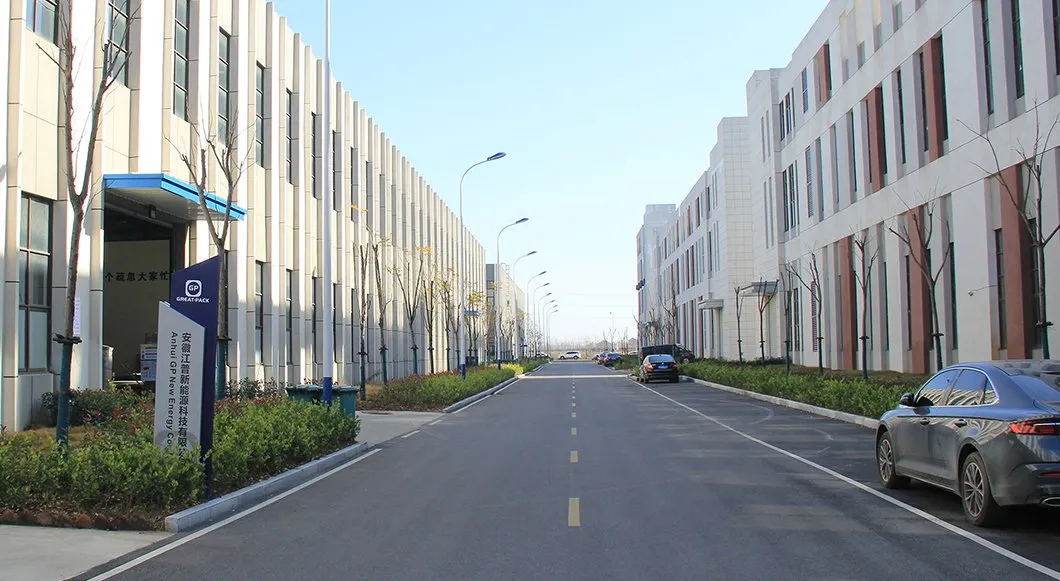

Factory View
We focus on LiFePO4, Li-polymer, Li-ion rechargeable batteries, and solar energy batteries. We are committed to the R&D, design, and innovation of lithium batteries to supply Green & Clean energy to our daily modern lives. Our team has over 8 years of experience in the lithium battery field, providing One Stop Power Solutions.

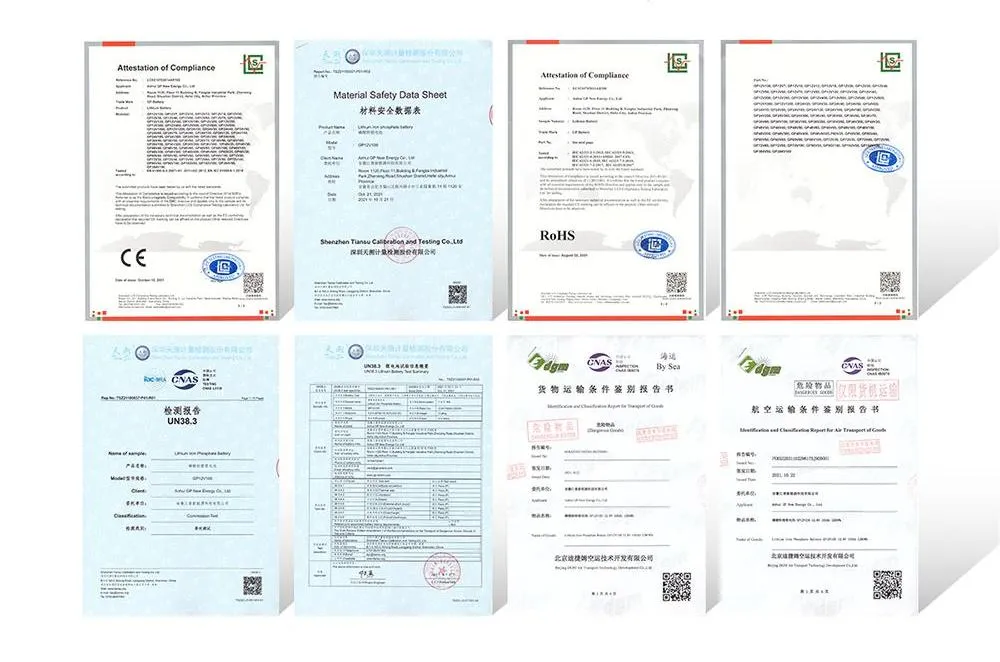

Our Exhibitions & Certifications:
Exhibitions Certifications
❓
Frequently Asked Questions
Can the product be shipped to my area?
We export to most countries/regions including Centre/South America, EMEA, SEA, SSA, and AU. We will confirm specifically once you provide your region.
What is the lead time for orders?
Typically, it takes 10 working days for requirements around 200kw.
What are the accepted payment methods?
We accept 100% TT, or 30% TT in advance with the remaining 70% TT upon goods being ready before shipment.
What kind of warranty do you provide?
We provide a 10-year battery warranty. If the BMS is damaged, we send a new BMS for replacement. If a cell is damaged, we send a new battery pack.
What applications are these batteries suitable for?
These batteries are ideal for Home Energy Storage (ESS), Solar and Wind energy systems, UPS, and telecom systems.
Which certifications do your batteries hold?
Our batteries have passed CE, UN38.3, RoHS, and MSDS certifications, ensuring high quality and safety standards.
