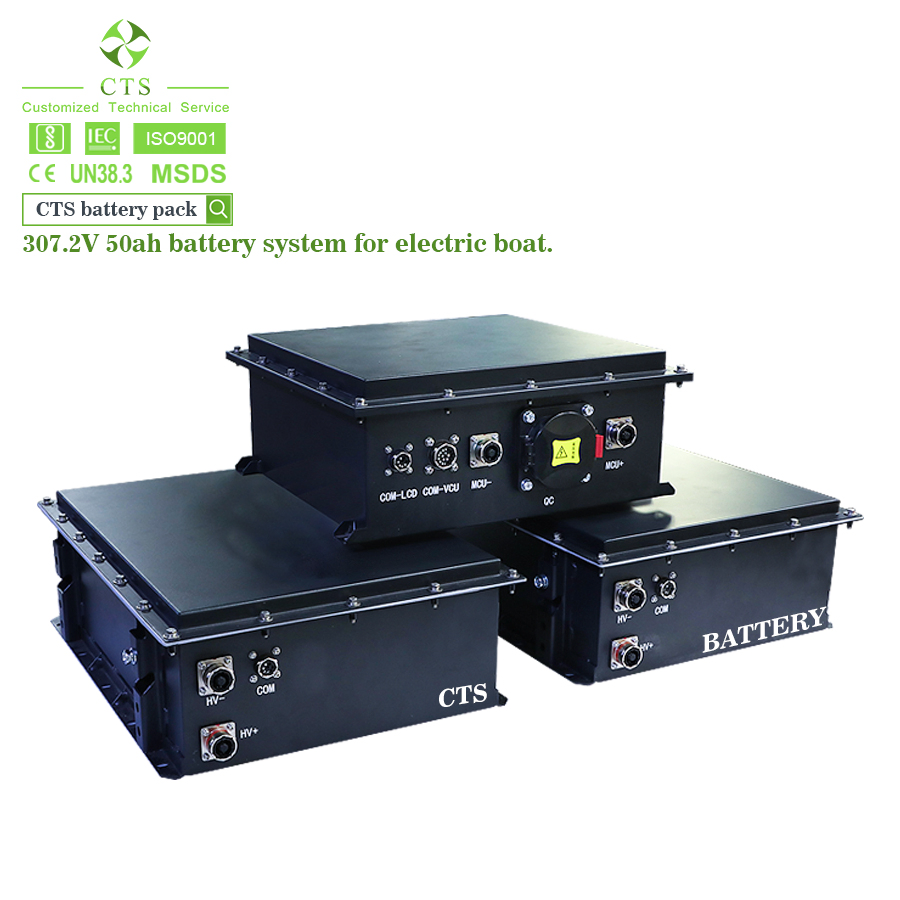

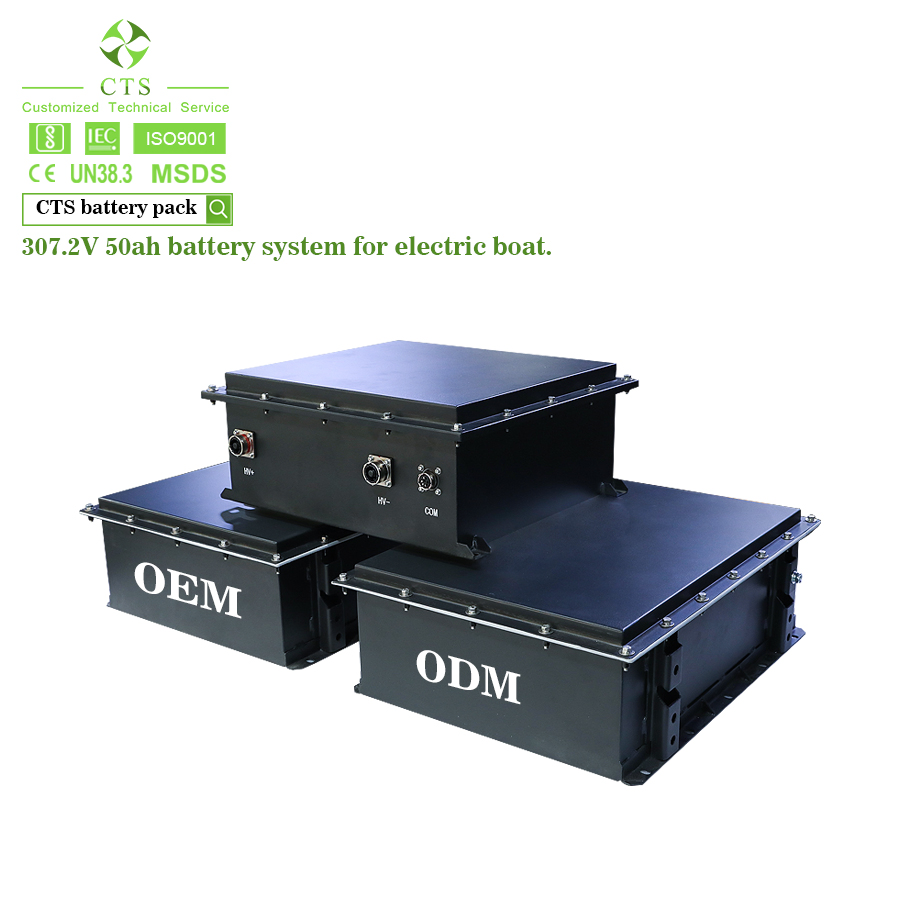

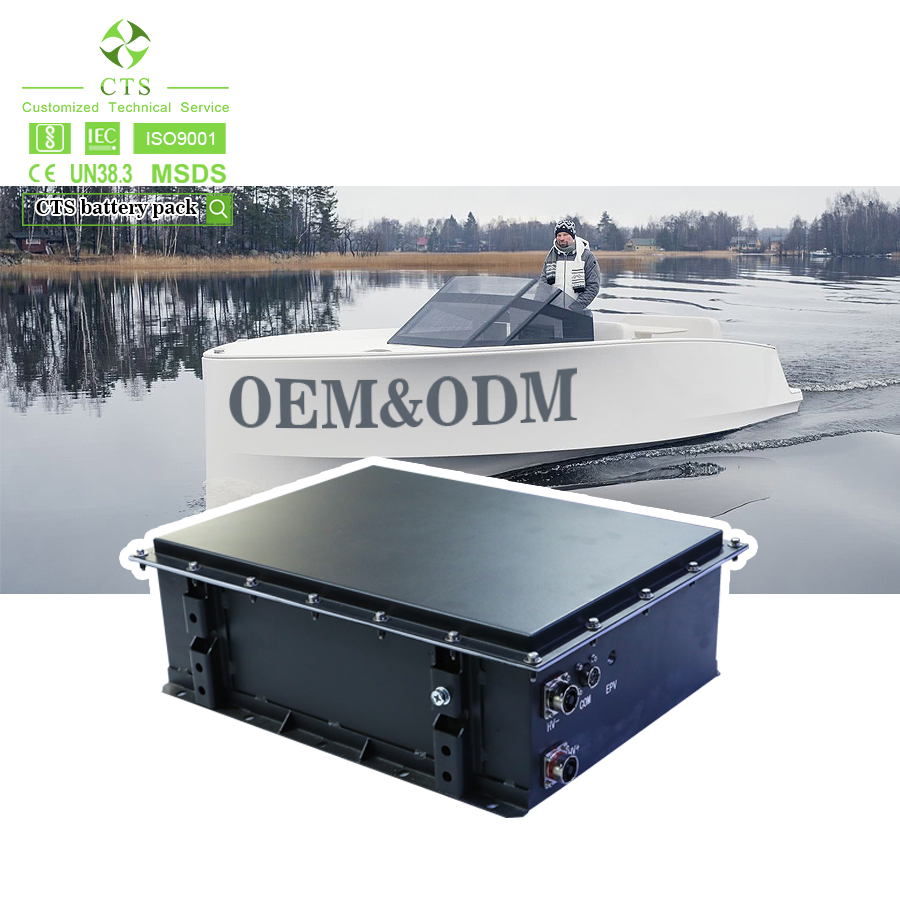

Modular solution 72V 50Ah battery module / 307V 50Ah EV battery pack for electric tour Boat yacht
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| Cell Type - Chemistry | Prismatic - LiFePO4 |
| Rated Capacity | 50Ah |
| Rated Voltage | 76.8V |
| Energy | 3.84 kWh |
| Resistance | ≤ 30mΩ |
| Self Discharge | < 4% per month |

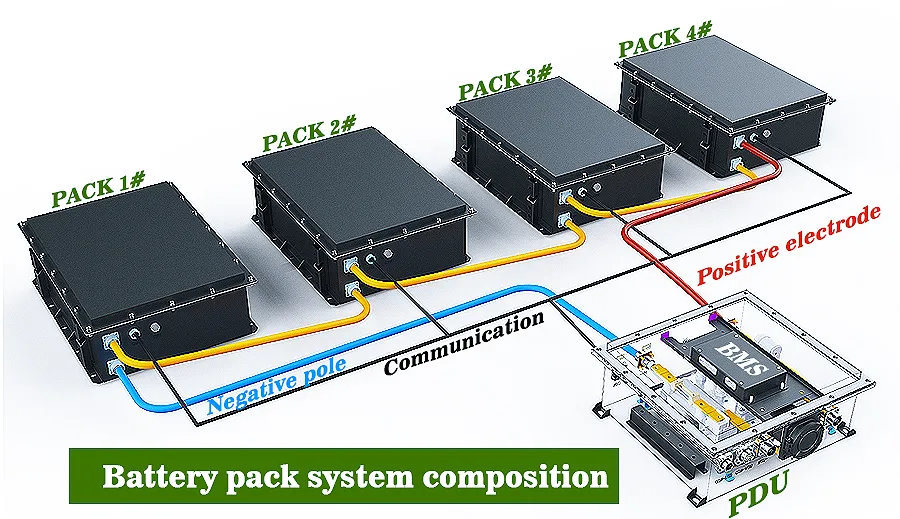

| Modules in Series | 4S1P to 307.2V 50Ah battery pack |
| MECHANICAL & DISCHARGE | |

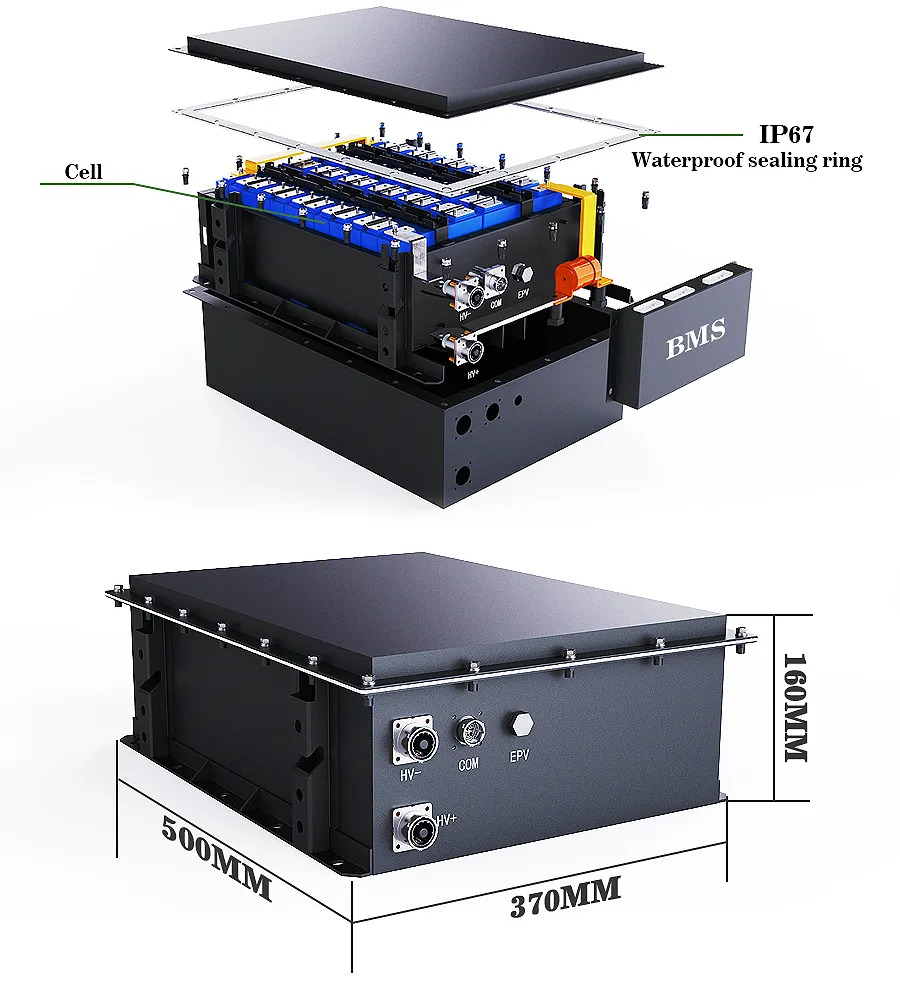

| Dimensions (L x W x H) | 500*370*160 mm |
| Weight | 32 Kg / module |
| Enclosure Protection | IP67 |
| Max Continuous Discharging Current | 50A |
| Peak Discharge Current | 100A (30 seconds) |
| Charge Temperature Range | 0 ~ 45ºC |
| Discharge Temperature Range | -20 ~ 60ºC |
Customized Battery Systems: According to the size requirements of the ship, we can design and customize matched lithium battery systems, including OBC and charging piles.
Our lithium batteries have a wide range of applications, meeting 90% of yacht, tour boat, and speedboat requirements in the market.

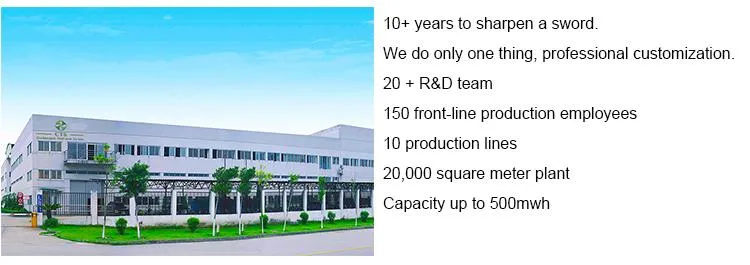

Since 2011, we have focused on one-stop customization of lithium battery products including electric vehicle batteries, large energy storage, and high-end motorcycle batteries. With over 30 types of cells, we produce OEM battery packs from 12V to 800V.
