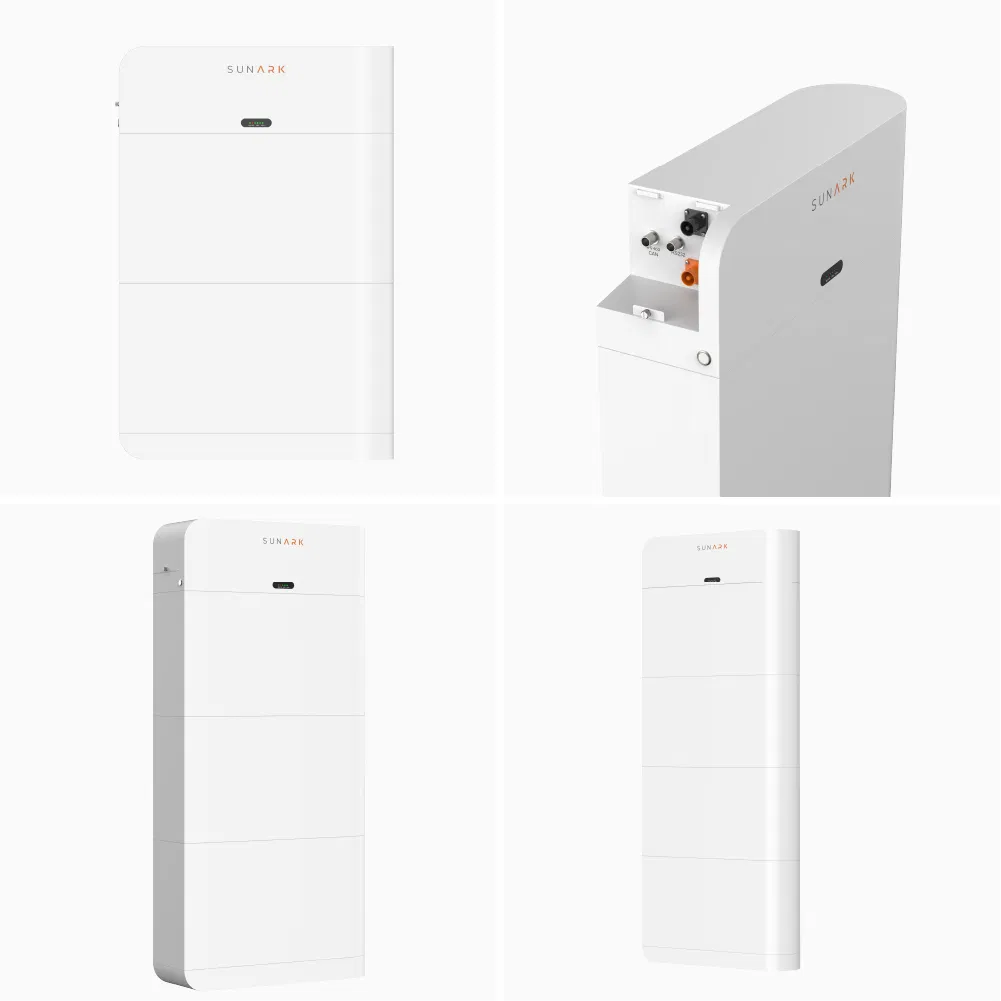

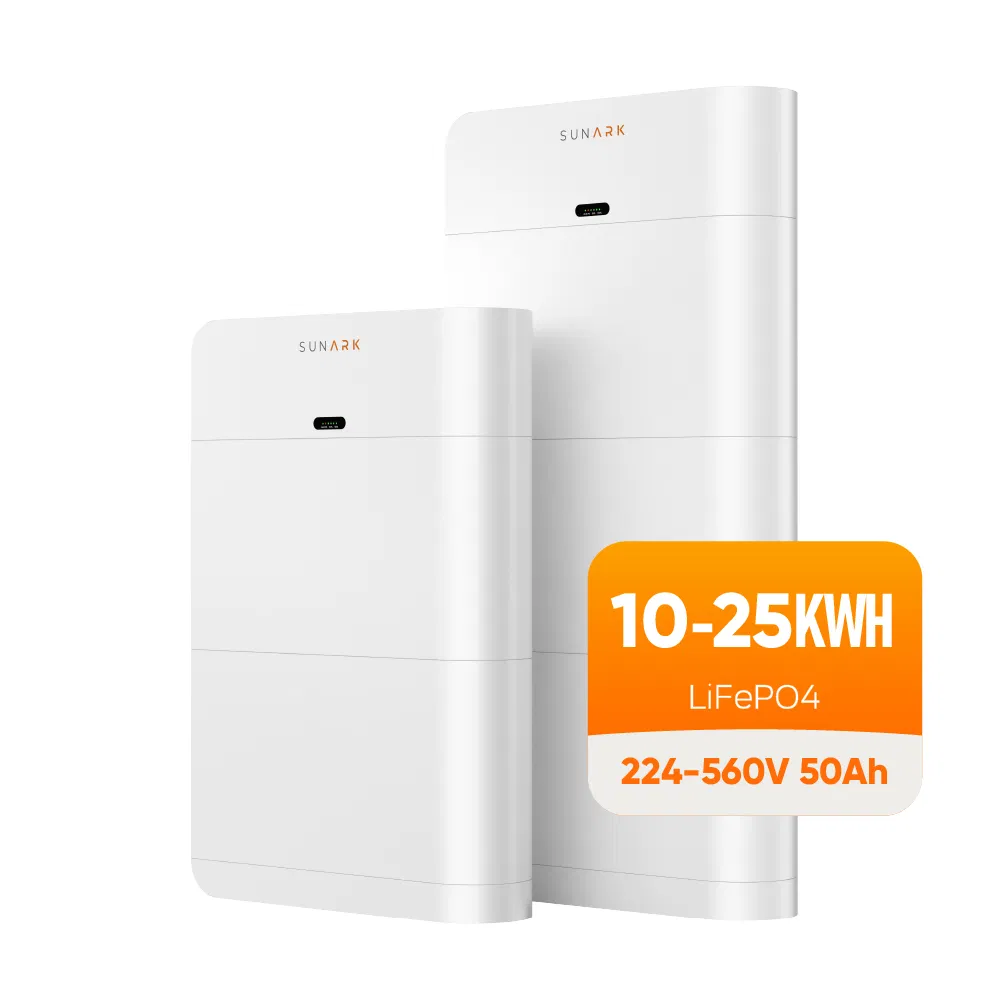

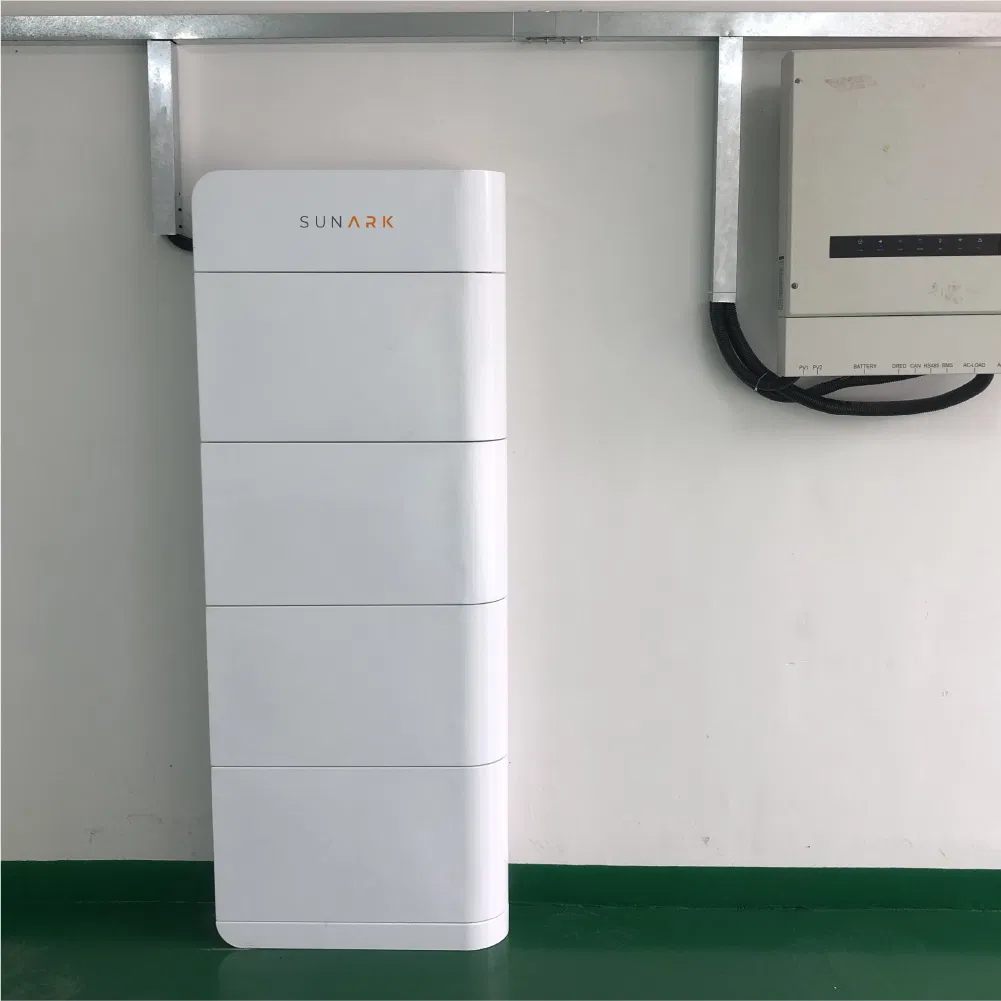

Sunark Charging Lithium Ion Battery 10kwh 25kwh 50ah Rechargeable Lithium Ion Polymer Battery Pack

1 / 5

Sunark Charging Lithium Ion Battery 10kwh 25kwh 50ah Rechargeable Lithium Ion Polymer Battery Pack

Customization:	Available
Warranty:	10 Year
Cycle Life:	6000 Cycles Long Working Lifespan

Send Inquiry

Product Description

Basic Specifications

Nominal Capacity 10~20 Kwh

Product Name High Voltage Stacked Lithium Battery

Compatibility Compatible with Most Inverter Brands

Compact Design Small Footprint / 690*195mm

Flexible Investment 5.12kwh Modular Design / Scalable up to 25kwh

Safety Standard BMS & Breaker Modular Level Protection

Working Life 6000 Cycles Long Working Lifespan

Certifications MSDS, UN38.3, RoHS, IEC62619, CE

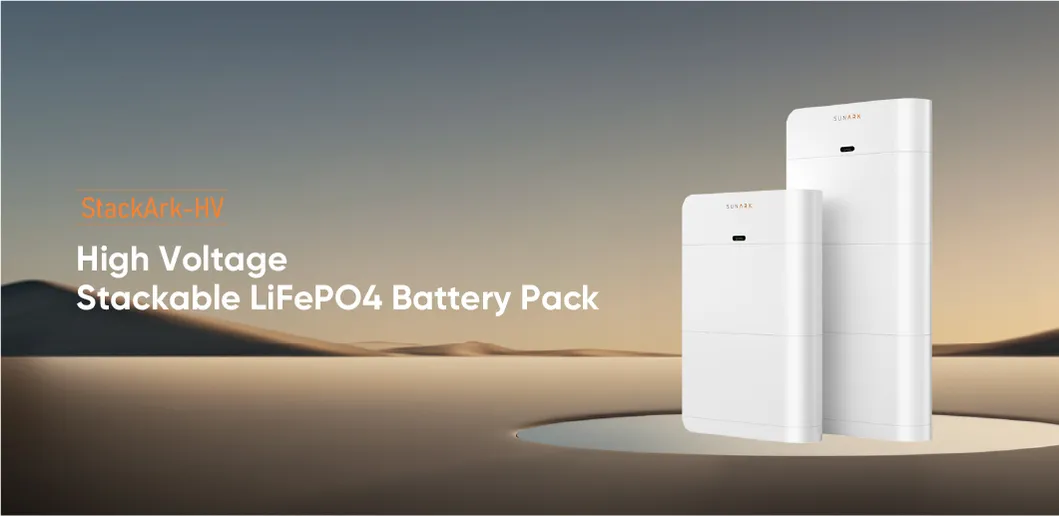

Product Overview

Technical Parameters

MODEL	StackArk-5HVS2	StackArk-5HVS3	StackArk-5HVS4	StackArk-5HVS5
Electrical Characteristics
Rate voltage (Vdc)	204.8	307.2	409.6	512
Cell combination	32S1P*2S	32S1P*3S	32S1P*4S	32S1P*5S
Rate capacity (AH)	50
Energy storage (KWH)	10.24	15.36	20.48	25.6
Cycle life	6000 cycles @80% DOD, 0.5C
Charge/Discharge Standard
Charge voltage (V)	224	336	448	560
Max. charge current (A)	50
Max. discharge current (A)	50
Mechanical & Environment
IP class	IP65
Material system	LiFePO4
Temperature Range	Charge: 0°C to 55°C / Discharge: -20°C to 55°C
Pack dimension (mm)	630185955	6301851300	6301851650	6301852000

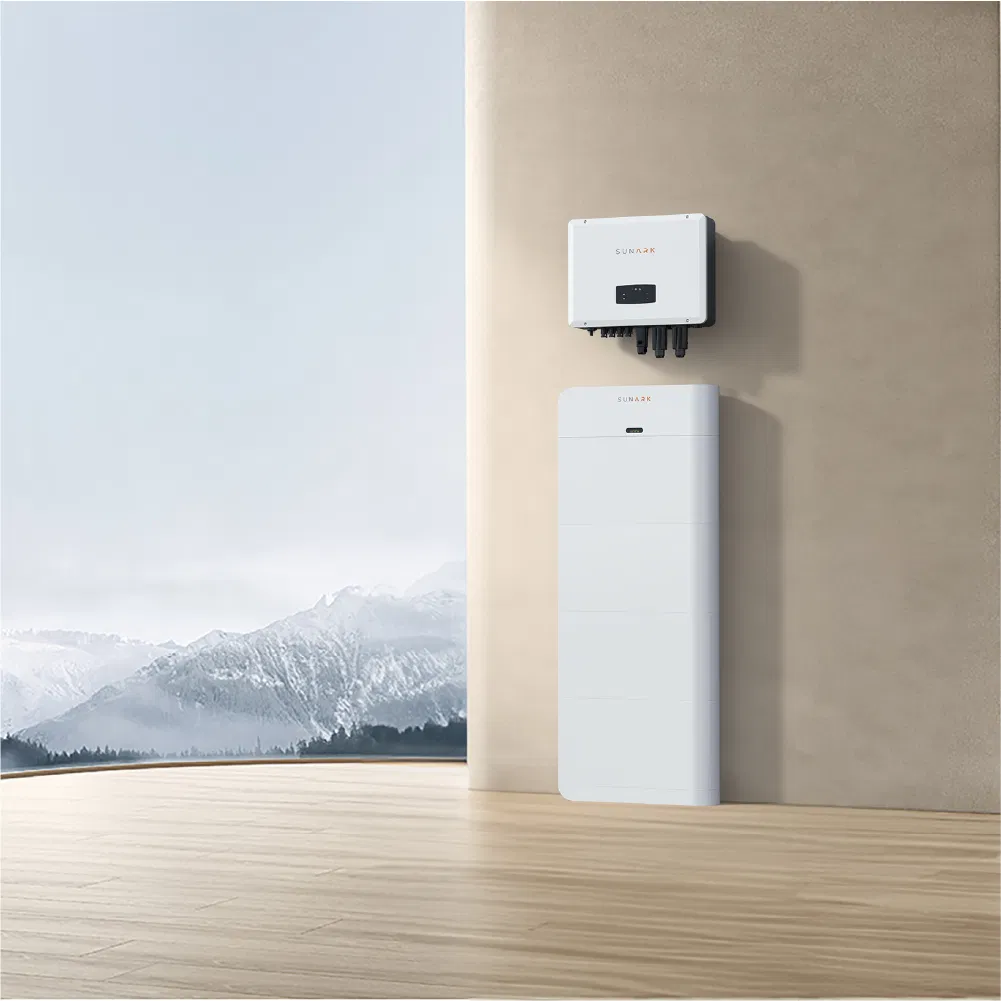

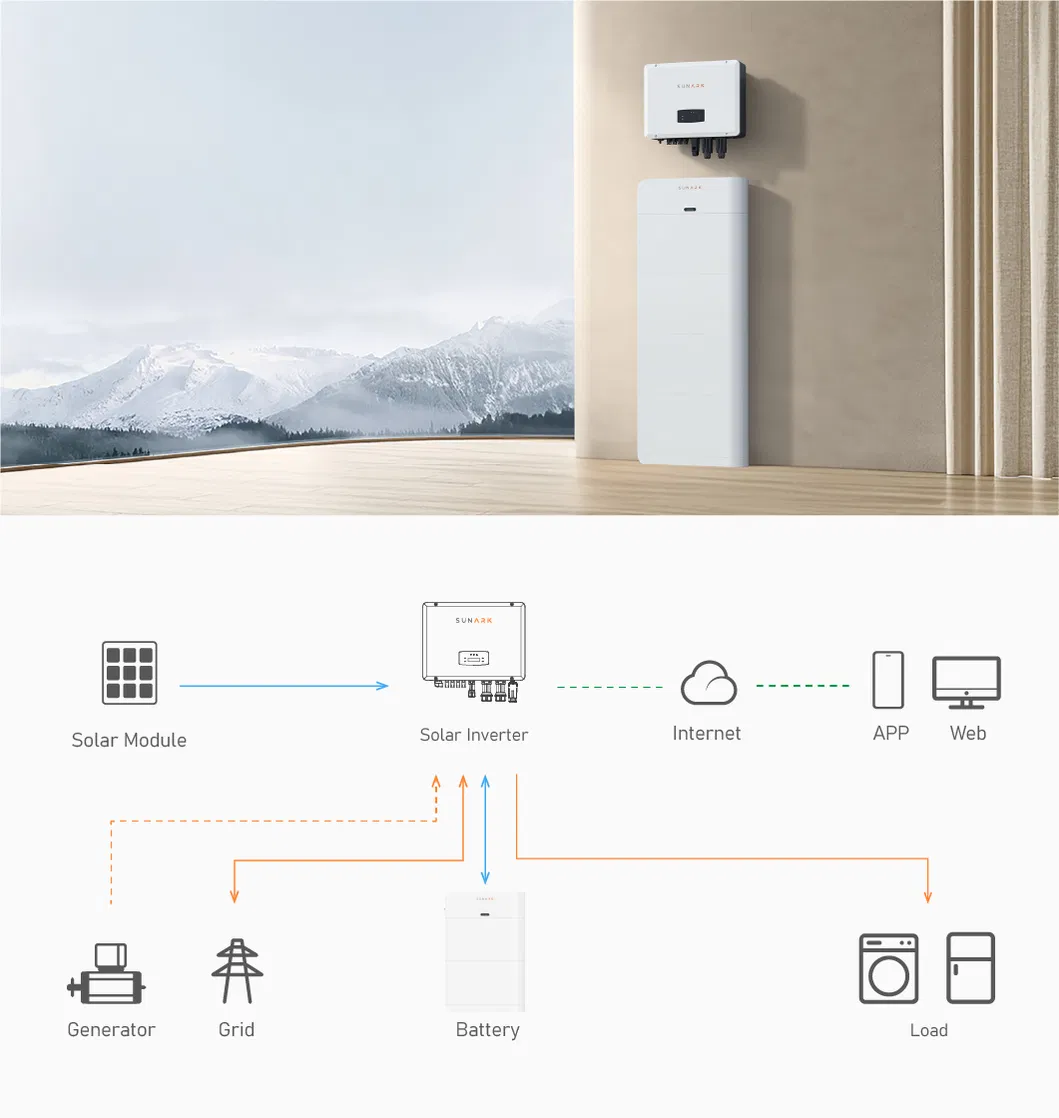

Applications

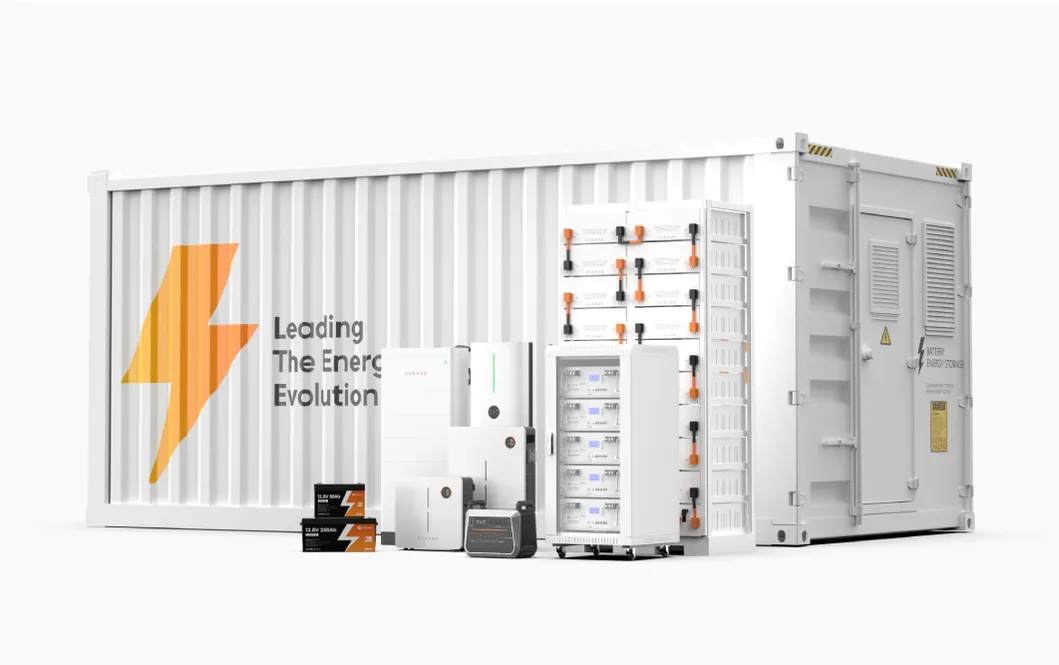

Product Series Lineup

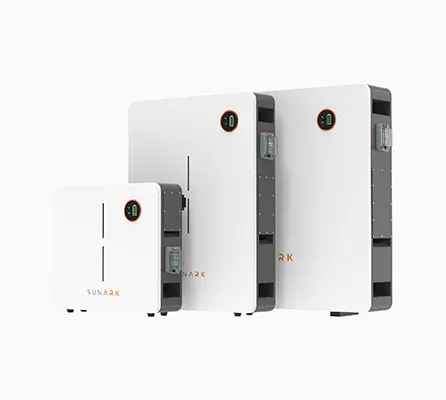

WallArk Series

Wall Mount Low Voltage Pack
Voltage: 48V/51.2V
Capacity: 2.5kWh - 15kWh

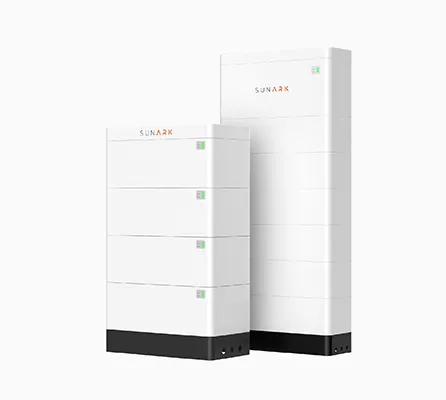

StackArk Series

Stackable Low & High Voltage
Voltage: 51.2V / 129.6V-561.6V
Capacity: 5kWh - 30kWh

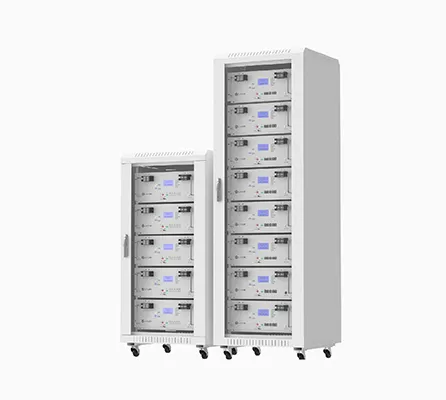

RackArk Series

Rack Mount Low Voltage Pack
Voltage: 48V/51.2V
Capacity: 50/100/150/200Ah

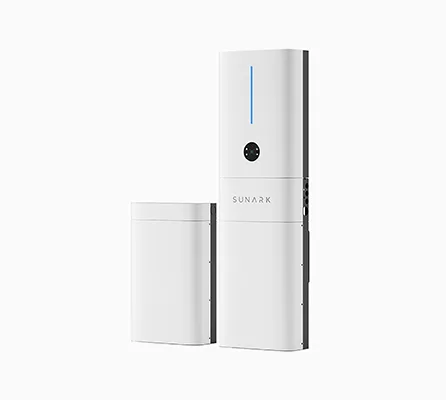

GroundArk Series

All In One Energy Storage System
Power: 3-12kW
Battery Capacity: 5-45kWh

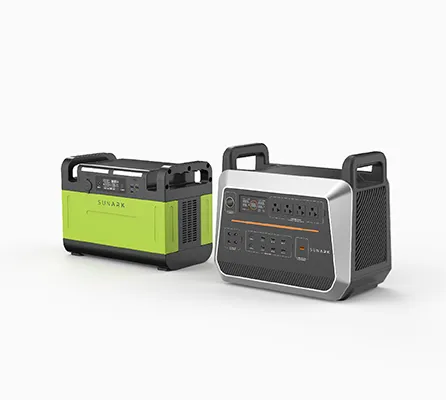

EasyArk Series

Portable Power Station
Power: 200-3000W
Battery Capacity: 200-3000Wh

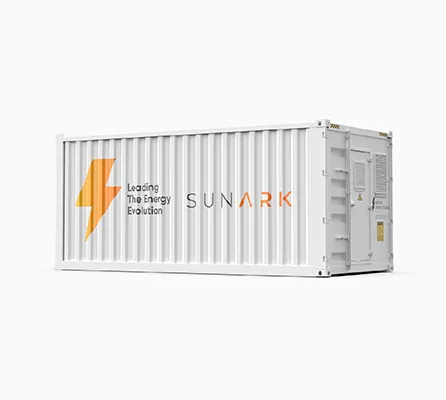

CubeArk Series

Energy Storage Container
Power: 50-1200kW
Battery Capacity: 64kWh - 2064kWh

Frequently Asked Questions

1. What is the expected lifespan of the High Voltage Stacked Lithium Battery? The battery is designed for long-term use, offering over 6000 working cycles at 80% Depth of Discharge (DOD).

2. Can I expand the battery capacity later? Yes, the system features a 5.12kWh modular design that is scalable up to 25kWh, allowing for flexible investment based on your energy needs.

3. Is this battery system compatible with my current inverter? This series is engineered for perfect compatibility and works with most major inverter brands available on the market.

4. What safety features are integrated into the system? The battery includes modular-level protection with a built-in Battery Management System (BMS) and an integrated breaker for maximum safety.

5. What are the environmental requirements for installation? The battery has an IP65 protection rating. It supports charging between 0°C to 55°C and discharging between -20°C to 55°C, making it suitable for various climates.

6. Which communication protocols are supported for monitoring? The system supports Canbus, RS485, and RS232 protocols, with optional Bluetooth and WLAN monitoring capabilities.
